Atomos Shogun Flame 4K Recorder

SKU:ATOMSHGFL1 UPC:

$1,695.00
-
+
$1,695.00

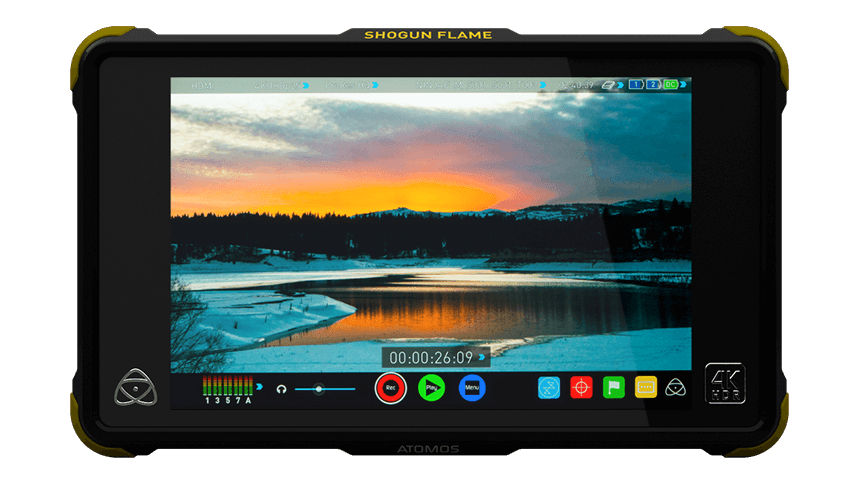

Filmmakers constantly face exposure challenges on set, choosing between detail in the highlights and in shadows. Shooting Log from the camera is a partial solution, recording a broader brightness range but still you need to compromise on the monitor's image quality. The solution is the Shogun Flame, a 7" 10-bit AtomHDR 1500nit Field Monitor with 4K/HD 10-bit ProRes/DNxHR recording, Sony & Canon Raw to ProRes/DNxHR recording, professional HDMI, SDI and XLR connections along with LTC/Genlock & bidirectional SDI/HDMI conversion needed on set and in broadcast. With AtomHDR, you get the brightness and dynamic range of HDR Log with natural, vibrant colors to let you simply shoot the way you see.

SCENES IGNITE WITH 1500NITS OF LIGHT
Not all scenes call for HDR Log recording. In situations that don't call for 10 stops of dynamic range, use the intensity of the 1500nit panel to monitor traditional standard dynamic range (SDR/Rec709) video at high brightness for outdoor monitoring.
Simply pick the right mode, HDR or High Bright SDR, and get busy setting up your shot on the premium 7" display boasting 10-bit processing, 1920x1200 resolution, 325ppi pixel density, optional calibration to overcome natural LCD color drift and an arsenal of precision video setup tools for perfect shots every time.

WIDEST CAMERA COMPATIBILITY
The HDMI connection is compatible up to 4Kp30 and the SDI connection has compatibity up to 12G ensuring you are future proofed as the SMPTE standard updates. The built-in bi-directional conversion allows HDMI cameras to be integrated into a SDI workflow or connect SDI cameras with HDMI flat panels.

SIMPLE OS, SOPHISTICATED SHOTS
The Flame Series is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (Focus peaking, 2:1/1:1 zoom, Zebra, False Color, Safe Area, luma/RGB parade, vectorscope) along with a flexible 3D LUT implementation (use built-in LUTs or upload .cube files) and options for de-squeezing anamorphic content.



CONTINUOUS POWER IS BACK... WITH SUPER FAST CHARGING.
Our patented continuous power system pioneered on our HD products are back on the 4K range. The hot swappable dual battery system that automatically swaps to the second battery when power is low, coupled with the blazingly fast battery charger and dual 4-cell batteries (both included with the product) means that continuous power in the field is all but assured.

MONITOR & RECORD XLR AUDIO
The Shogun Flame has professional audio to match professional video. Monitor up to 8ch of embedded HDMI audio, up to 12ch of SDI audio or use the included XLR breakout cable to connect with external microphones for balanced analogue audio with 48V phantom power. Audio control is simple with dedicated meters and menus to select channels for recording/ monitoring and adjustments for frame delay and gain.


ADVANCED RECORDING CAPABILITY
Outside of 10-bit 4:2:2 ProRes/DNxHR, the Shogun Flame adds recording functionality not found in other recorders. Trigger start/stop recording over HDMI from select Canon, Sony, Panasonic, Nikon cameras. Convert interlace video from your camera to progressive on the fly with built-in 3:2 and 2:2 pulldown and gain advanced functionality like Pre-roll (continuous cache recording to never miss the action) and Time lapse to maximize your creativity.
