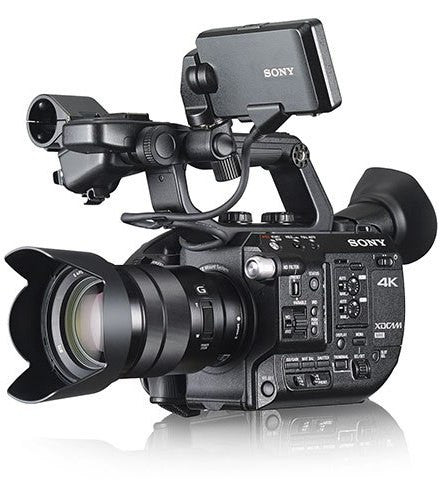

Pick it up. Wrap your hand around the sculpted Smart Grip. Line up a shot. You’ll immediately understand why Sony created the PXW-FS5. It’s the next step in Sony’s handheld revolution. Small as it is, the camera delivers uncompromising performance with Sony’s Super35 sensor, 4K onboard recording and wireless streaming. And with the CBK-FS5RIF software license, you can access the power of external RAW recording (license and RAW recorder both sold separately). The PXW-FS5. Just wait until you get your hands on it.
Grab and Shoot with handheld Super35
A handheld camera should be able to get you into tight places. To work in your lap. To move with the talent. To shoot high and low angles with equal agility. And a handheld camera should function beautifully against your chest comfortably steadied by your right hand with all the controls at your fingertips. Sony's extraordinary PXW-FS5 does all of this, and more.
The FS5 is a radical re-imagining of the FS7 for unsurpassed on the go shooting in the most demanding of conditions. With a body-only weight less than half the FS7 at approximately 1 LB 13.2 oz, you can shoot almost anywhere. Handheld operation is simply exceptional as the superbly balanced chassis is easily configured to shoot from high to low angles thanks to a flexible, rotatable grip and an LCD viewfinder that can be mounted in up to nine locations.
Modular Design for Easy Integration
The FS5 is designed to be taken apart quickly and easily, with no need for custom tools. There are also 1⁄4-inch screw holes on handle, top and bottom of the body to support mounting on a drone, gimbal or in a underwater housing. For tripod mounting, there are both 1/4 and 3/8-inch screw holes on the bottom. You can even add the FS7’s rosette mount* to securely attach an FS7 arm and compatible third-party accessories (sold separately).
4K Super35 Exmor® sensor
The FS5 is built around a high-sensitivity 4K Super35 Exmor CMOS Sensor that offers all the benefits of a large format sensor in combination with the exceptional image readout speeds required for 4K motion-picture shooting, Super Slow Motion and 4K resolution. 4K resolution delivers - 11.6 milllion pixels and 8.8 million effective pixels. Even if you’re delivering in HD, your recordings will capture detail and image texture that HD sensors simply cannot see. Super35 size sensor offers "bokeh," the de- focused backgrounds made possible by shallow depth of field, as well as excellent low-light sensitivity and an expansive field of view. Fourteen (14) stops of exposure latitude deliver powerful
240fps High Frame Rate (HFR) recording
The FS5 offers High Frame Rate (HFR) cache recording at Full HD 10bit 4:2:2 image quality and a frame rate of up to 240 fps. The 8-second cache recording means no more missed shots leading to extra takes. It takes and also lets you pick out footage at exactly the point that you want. Recording 120 fps with up to 16-second cache recording, and higher frame rates of 480 fps and 960 fps are also possible.
Built-in Electronic Variable ND Filters
The FS5 is the world's first Super 35mm camcorder* with a built-in electronic variable Neutral Density (ND) filter, further expanding the depth of field capability of its large format sensor. Unlike conventional optical ND filters, the electronic ND filter on the FS5 can be controlled from 1/4ND to 1/128ND linearly. This makes the FS5 ideal for fast-moving shoots in changeable environments - there’s no need to change filters as lighting conditions change and variable control makes it easy to keep depth of field under control.
Dual media slots with independent record control
To extend recording time and workflow flexibility, the FS5 is equipped with two memory card slots. “RELAY” mode automatically switches recording from the first to the second memory card when the first is full, while “SIMUL” mode permits simultaneous recording to two memory cards (for example to create an immediate back-up version). The FS5’s three Start/Stop buttons on the grip, handle and camcorder body, can independently start and stop recording on different memory cards while recording in “SIMUL” mode.
Input / Output
The FS5 has two XLR connecters – so even if you remove the handle with its standard, easy-access XLR connector then a second on the body is still available, making it ideal for applications such as shooting in a confined space, such as a car interior, or when mounting on a gimbal.
