Zoom H6 Handy Recorder (Black)
- H6 Handy Recorder
- XYH-6 X/y mic capsule
- 4x AA batteries
- Quick Guide
The Zoom H6 Handy Recorder is a handheld recorder with an interchangeable microphone system. Four interchangeable input capsules—X/Y, MS, Shotgun, and Dual XLR/TRS Combo—make the H6 the ultimate chameleon of the audio world, and its advanced preamps make it the best-sounding one too. It's a versatile tool for any audio professional, whether you're doing live recording, professional film/video work, or broadcast ENG (electronic news gathering). The Zoom H6 comes with both an XY and mid-side microphone as well as a foam windscreen.
The H6 Line Out is an unbalanced stereo 1/8" phone jack, located on the bottom of the H6, beneath the LCD display. It carries the analog stereo output signal, as determined by the H6's internal mixer.

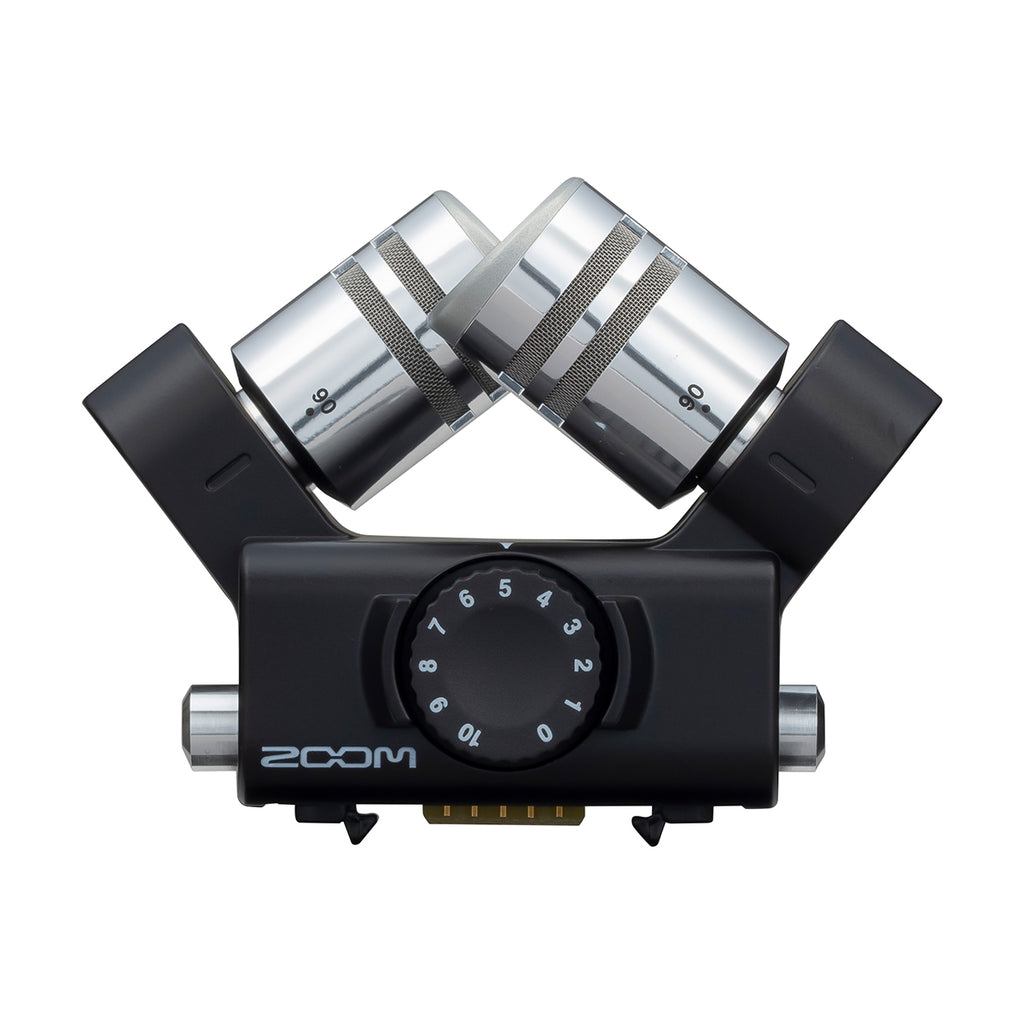

The X/Y miking technique is optimal when you want to cover a wide area and still capture sound sources in the center with clarity and definition, making it great for all types of live stereo recording.
Although the H6's supplied MSH-6 MS capsule appears to be just one microphone, it actually contains two mic elements, positioned directly on top of one another. One of the microphones inside the MSH-6 is unidirectional (that is, it is mostly sensitive to signal coming from directly in front, and less sensitive to signal coming from behind or from the sides) while the other is bi-directional (that is, it is mostly sensitive to signals coming from directly in front and directly behind, and less sensitive to signal coming from the sides).
- Interchangeable input capsules that can be swapped out as easily as the lens of a camera
- Six-track simultaneous recording
- Four mic/line inputs with XLR/TRS combo connectors
- Gain controls (real knobs!) and -20dB pads for each input
- Phantom power for all main inputs: +12/+24/+48V
- Large full-color LCD display, angled so it's easy to read in all environments
- Records directly to SD, SDHC and SDXC cards up to 128GB
- Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
- Multitrack to stereo internal mixdown
- Independent monitor and playback mixes
- Virtual VU meters
- Voice memo and up to 99 marks per recording
- Overdubbing, up to 99 takes
- Built-in effects, including low-cut filtering, compression and limiting
- Onboard MS decoding
- Normalize, Divide and Trim editing
- Chromatic tuner and metronome
- Loop Playback with user-defined start and stop points
- Variable playback speed, from 50% to 150%
- Variable pitch per track without affecting playback speed
- Mounts directly to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
- Over 20 hours of operation with 4 AA alkaline batteries
