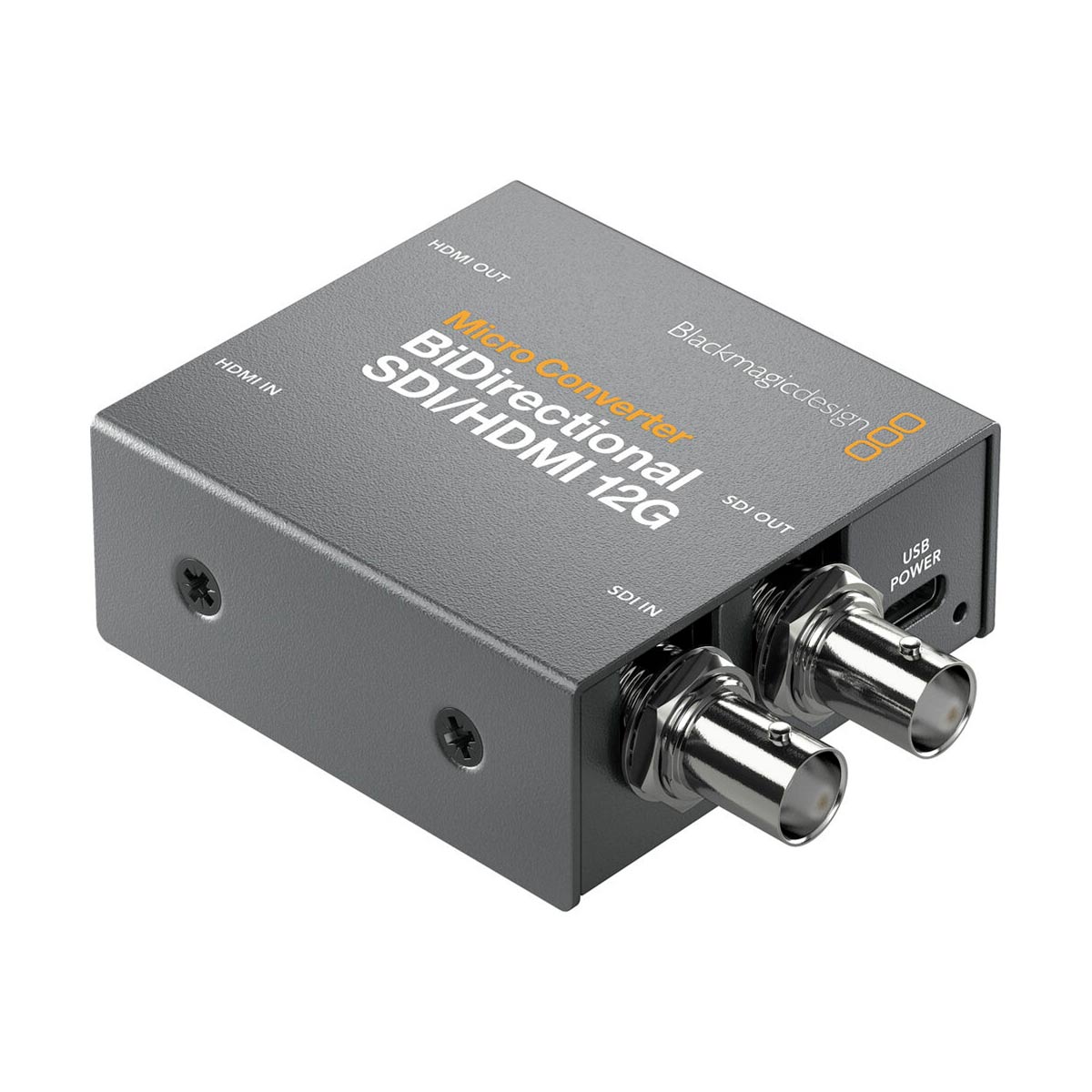

Blackmagic Design Micro Converter - BiDirectional SDI/HDMI 12G

IN STOCK
BlackmagicSKU: CONVBDC/SDI/HDMI12G
No reviews

Price:
Sale price$165.00
Configurations

  • Simultaneous SDI to HDMI & HDMI to SDI up to 4k60
  • Connect Computers to SDI Broadcast Systems
  • Use Big Screen TVs for Color Calibrated SDI Monitoring
  • SDI Re‑clocking - Perfect for longer SDI cable lengths
Related Products

Description

Connections
SDI Video Inputs1 x 270Mb, 1.5G, 3G, 6G, 12G
SDI Video OutputsAutomatically matches the HDMI video input
HDMI 2.0 Video InputsHDMI Type A in
HDMI 2.0 Video OutputsHDMI Type A out
Multi Rate SupportAuto detection of SD, HD, 2K, Ultra HD and 4K
Updates, Configurations and PowerUSB Type‑C
ReclockingYes
Standards
SDI Video Standards525i59.94 NTSC, 625i50 PAL
HD Video Standards720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
SDI Video RatesSDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI
SDI Color Precision4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color
SDI Color SpaceYUV
SDI Auto SwitchingAutomatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output
HDMI Video Standards525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
HDMI Color Precision4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
HDMI Color SpaceYUV
MISC
Copy ProtectionHDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Camera ControlBidirectional signal conversion supports Blackmagic Camera Control and Tally.
Settings ControlVia MacOS™ and Windows™ software utility connected by USB.
OS and Software
Operating SystemsMac 10.15 Catalina, Mac 11.1 Big Sur or later
Windows 10, 64-bit
SoftwareInternal software upgrade via USB.
Power Requirements
Power Consumption5W max.
Operational Voltage Range4.4 to 5.25V DC
General
Dimensions3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight6.13 oz / 174 g
Operating Temperature32° to 104° F / 0° to 40° C
Storage Temperature-4° to 140° F / -20° to 60° C
Relative Humidity0% to 90% non-condensing
