- Live Stream any SDI video source directly to the internet via ethernet
- Live stream directly to YouTube, Facebook, Twitter, and more
- USB connections work like webcam to allow more streaming software options
- Redundancy options available for backup internet and power connections
Live stream from any 12G‑SDI video source direct to YouTube, Facebook, Twitter and more!
Now you can live stream to the world! Blackmagic Web Presenter is a complete streaming solution that includes a professional hardware streaming engine for direct streaming via Ethernet to YouTube, Facebook, Twitter and more! It’s just like a modern broadcast television transmitter for a new global streaming audience! Plus the built in USB connections work like a webcam, so you can connect a computer and use any streaming software, or even Skype or Zoom. For redundancy, you can stream to the internet via Ethernet or connect a 5G or 4G phone to use mobile data! Web Presenter also includes a technical monitoring output that includes video, audio meters, trend graphs and even SDI technical data!
Blackmagic Web Presenter HD
Self contained streaming solution with broadcast H.264 encoder, direct streaming in HD to services such as YouTube, USB webcam, 12G‑SDI input with standards conversion, front panel with LCD and more!
Live Stream to YouTube, Facebook and More!
Blackmagic Web Presenter supports the most popular streaming platforms. Plus the built in hardware streaming engine has been designed for live streaming at professional broadcast quality. That means you get a self contained solution for live streaming that works without dropped frames. You only need to connect it to the internet! Setup is easy, as the Web Presenter Utility software lets you select the streaming platform and update the streaming key. The utility works on Mac and Windows and connects directly via USB or remotely via Ethernet. If you're technically minded, you can even manually update the XML settings file to change specific settings or to add new streaming platforms.
Make Live Streaming Easy!
Blackmagic Web Presenter is a self contained solution that includes a powerful hardware encoder, software for connecting to streaming platforms, and network connections. That means you don’t need to buy an expensive computer or use complicated streaming software. Simply connect an SDI video source such as a live production switcher or a camera, then connect to the internet using the built in Ethernet connection. Or plug in a mobile phone to use mobile data! With settings built in for popular streaming platforms, you simply need to enter a streaming key and press on air! Plus you can simultaneously use the USB webcam output to connect to a computer, allowing other video software to be used!
Connect 5G or 4G Phones for Mobile Data
If you're streaming from a remote location, or you need a backup for the main Ethernet connection, you can plug in an Apple or Android phone to connect to the internet via mobile data. For convenience, there are USB connections on both the front and rear panel that can be used for tethering phones. Plus it works with the latest high speed 5G phones, as well as 4G phones! Blackmagic Web Presenter will auto detect when a phone is connected and switch its internet connection to use it. You can select Ethernet or phone priority, which makes phone internet backup fully automatic. Plus, by using phone tethering and mobile data, Web Presenter becomes the perfect remote location streaming solution!
USB Webcam Output for Video Software
Blackmagic Web Presenter features two USB connections that operate as a simple webcam source. That means you can plug into any computer and work with any video software. The software is tricked into thinking the web presenter is a common webcam, but it's really a broadcast quality SDI video source! That guarantees compatibility with any video software in full resolution 1080 HD or even 2160p Ultra HD quality, depending on the model! Imagine connecting web presenter to a camera and then Skype or Zoom calling your client with live video of a shoot! Web Presenter works with any video software including Zoom, Microsoft Teams, Skype, Open Broadcaster, XSplit Broadcaster and more!
Built-in Technical Monitoring
Traditional broadcast transmitters are critical equipment in a television station, however now the streaming server is just as critical because millions of viewers can be watching globally! To help, Blackmagic Web Presenter includes a feature rich technical monitoring output. The graphics based monitoring output includes a video view, audio meters with accurate ballistics, trend graphs for codec data rates and cache fill, plus a summary of the streaming settings and detailed SDI technical information. Plus the technical monitoring output works in full 1080 HD and outputs to both SDI and HDMI. That means you can use an SDI router for monitoring multiple units, or connect a simple HDMI TV!
Includes Web Presenter Utility
The Blackmagic Web Presenter Utility software provides a single place to manage multiple web presenters and to update the settings and software. Simply plug directly into the front of the web presenter’s USB connection, or connect using Ethernet so you can configure remotely, which is important when you're managing multiple remote sites. The familiar menus and controls make it very easy to set up a live event, so you can get started fast! Plus the front panel LCD menus have the same settings and controls! You can even load additional services for ATEM Streaming Bridge. The Blackmagic Web Presenter Utility software is included free and runs on both Mac and Windows platforms.
Broadcast Links with ATEM Streaming Bridge!
While Blackmagic Web Presenter can send video to a wide range of streaming services, it can also be used as a private broadcast SDI video link between studios! The ATEM Streaming Bridge is a video converter that lets you receive the H.264 stream from Blackmagic Web Presenter and then convert it back to SDI video. This means you can send video between remote locations across your local Ethernet network, or via the internet globally! That's all possible due to the built in H.264 hardware codec that decodes the Web Presenter stream. Imagine setting up multiple television studios and using ATEM Streaming Bridge and Web Presenter for video links between sites.
Compact 1/3rd RU Design

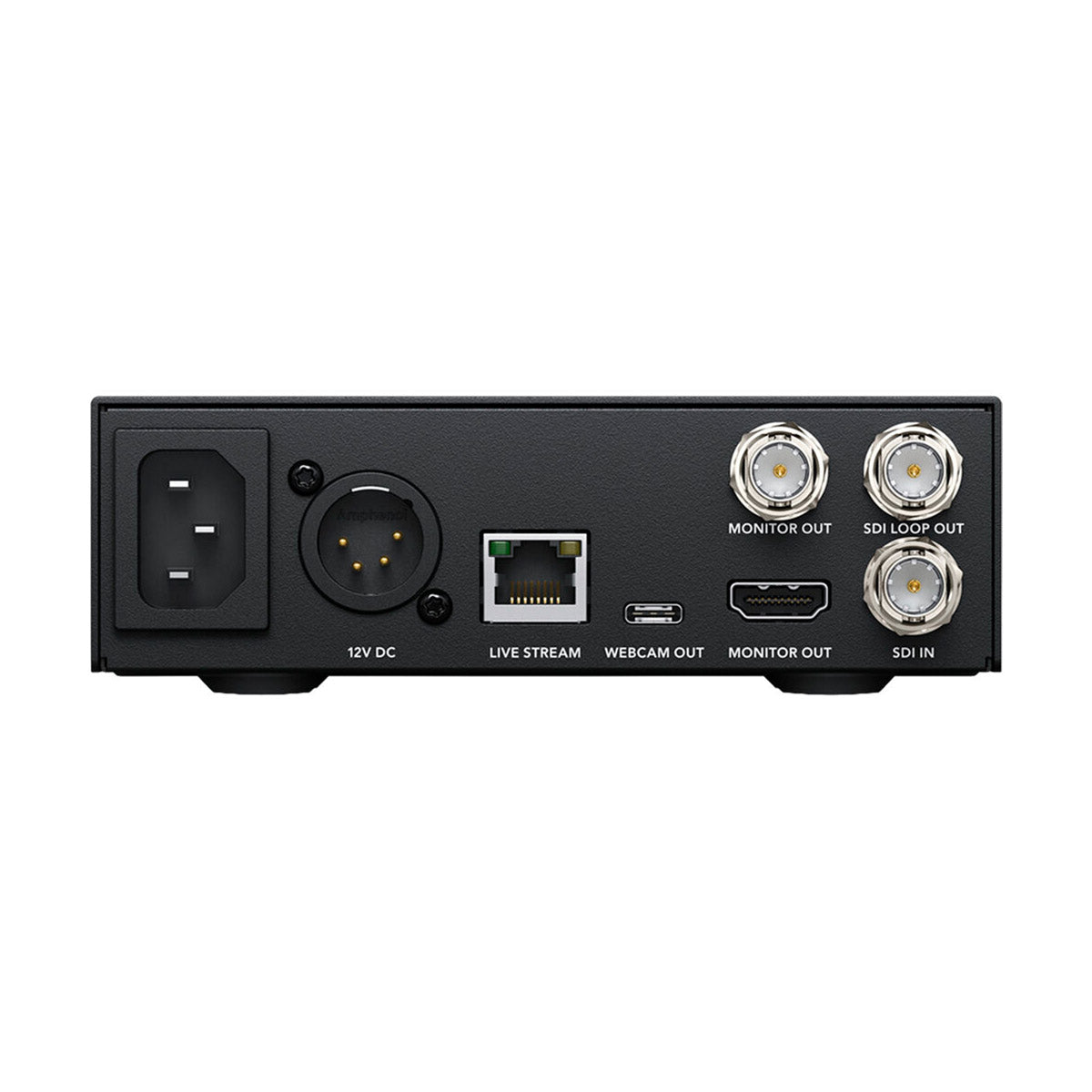

Blackmagic Web Presenter is based on the modular Teranex Mini design allowing desktop or rack use. It includes a built in AC power supply, plus a 4 pin 12V DC connection for backup power or battery operation. The extremely portable design is only 5.5 inches wide, which means you can mount 3 in a single rack unit, perfect when you need to stream to multiple independent services all at the same time. Plus you can combine Blackmagic Web Presenter with other products such as the ATEM Television Studio HD switcher for a live production and streaming solution in a single rack unit. The front panel includes a USB connection, so you can plug in a computer for quick local setting changes.
|SDI Video Inputs||1|
|SDI Video Outputs||1 x loop out |
1 x monitor out
|SDI Rates||1.5G, 3G, 6G, 12G|
|HDMI Video Outputs||1 x monitor out|
|Webcam Output||1 x USB-C up to 1080p60|
|Ethernet||Ethernet supports 10/100/1000 BaseT for live streaming, software control and software updates|
|HD Video Input Standards||720p50, 720p59.94, 720p60. |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.
1080i50, 1080i59.94, 1080i60.
|Ultra HD Video Input Standards||2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.|
|Video Input Color Space||Rec.601, Rec.709, Rec.2020|
|3G SDI||Auto detects SMPTE level A or B on SDI input.|
|SDI and HDMI Monitor Out Video Standards||1080p50, 1080p59.94, 1080p60.|
|Video Streaming Standards||720p25, 720p30, 720p50, 720p60. |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
|Direct Streaming||Blackmagic Web Presenter HD supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP)|
|Closed Captions||Web Presenter HD supports embedding CEA-608 and CEA-708 closed captions in your live RTMP stream.|
|Compatible Services and Software||YouTube Live, Facebook Live, Twitter, Twitch, Skype, Microsoft Teams, Open Broadcaster and Wowza Streaming Engine|
|Operating Systems||Mac 10.15 Catalina, Mac 11.1 Big Sur or later |
Windows 10, 64-bit
|Power Supply||1 x Internal 100 - 240V AC|
|12V DC Input||1 x +12V DC 4‑pin XLR.|
|Power Usage||21 W|
|Dimensions (W x L x H)||5.51 x 6.9 x 1.75" / 14 x 17.53 x 4.44 cm|
|Weight||1.66 lbs / 0.75 kg|
|Operating Temperature||0° C to 40° C (32° - 104°F)|
|Storage Temperature||-20° to 45° C (-4° to 113° F)|
|Relative Humidity||0% to 90% non-condensing|
