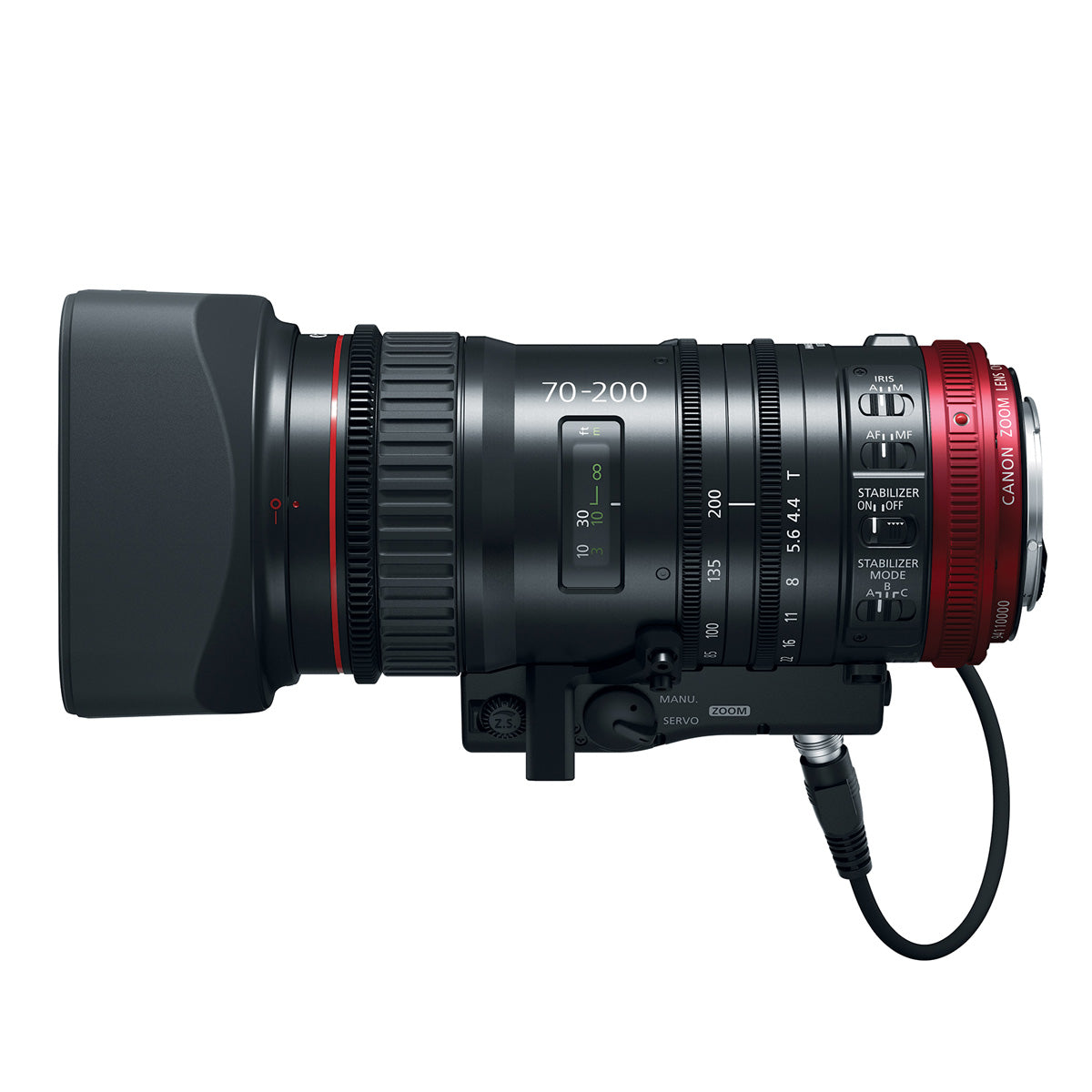

The newest member of Canon's Compact-Servo lens family has a focal range of 70-200mm. The COMPACT-SERVO 70-200mm T4.4 EF lens combines high level 4K optical performance with a compact size of only 7.2 in. in length and a weight of only 2.76 lbs. provides outstanding mobility.

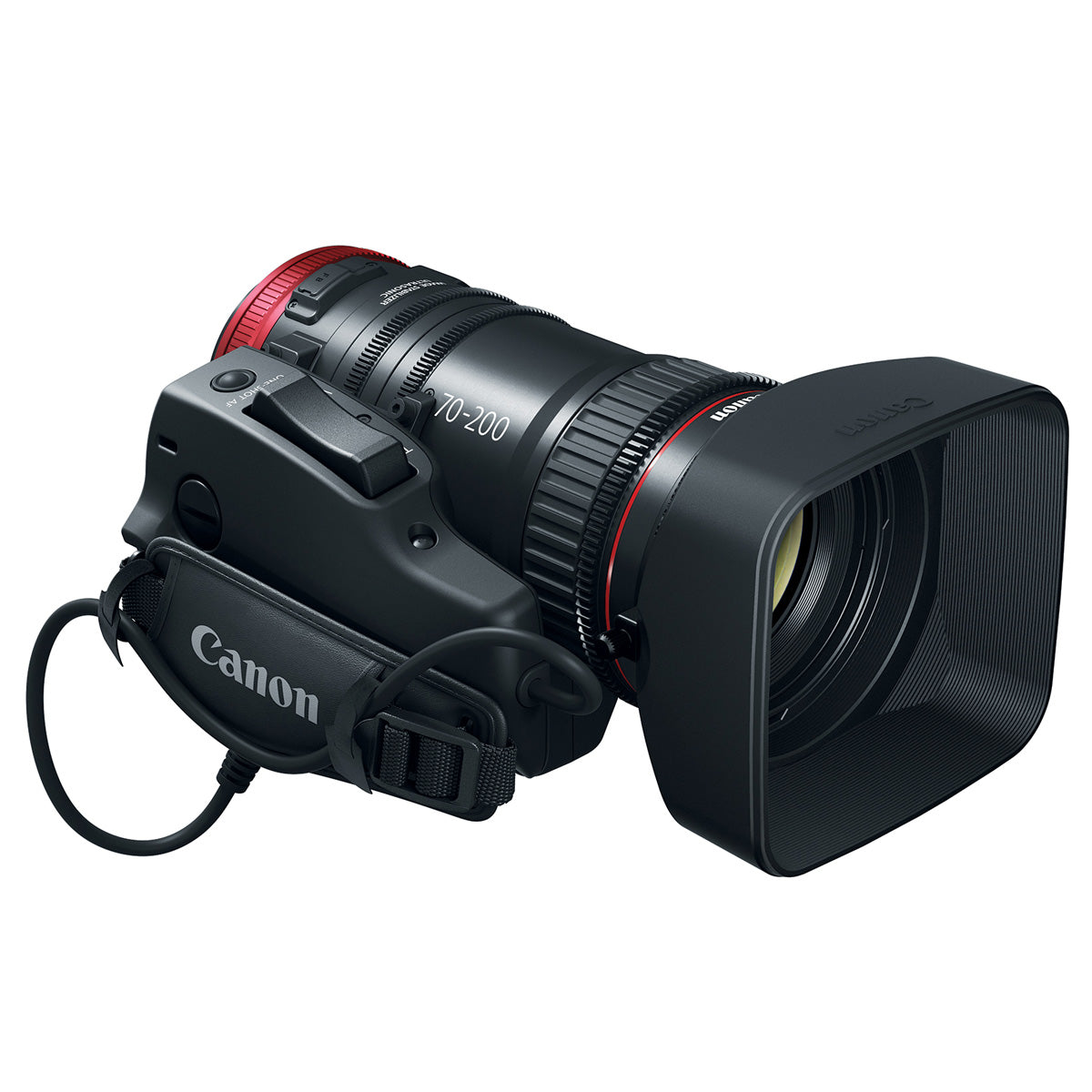

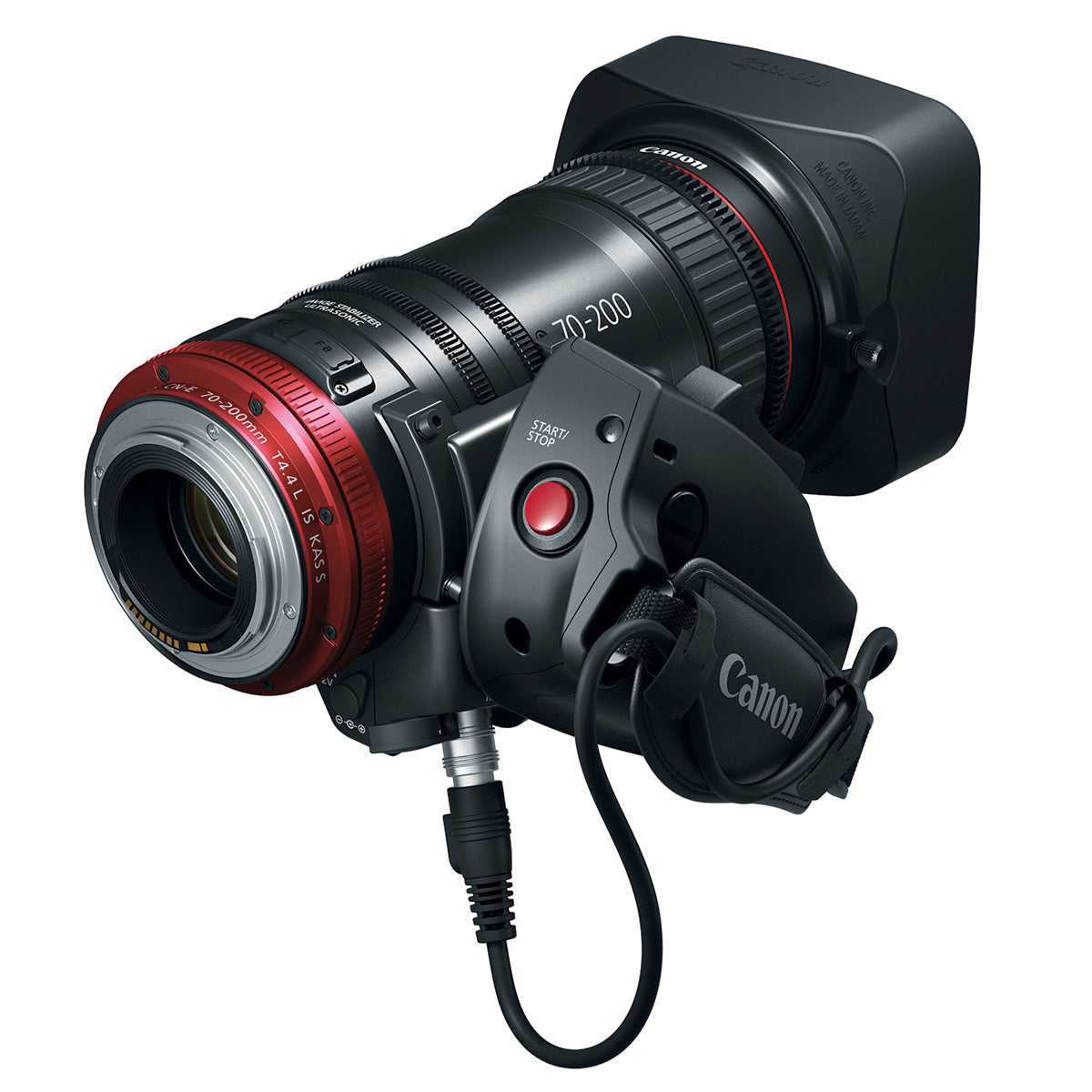

Acknowledging the need to control zoom, focus and iris, Canon has developed this zoom lens with full external servo control. The integrated servo drive unit is compatible with broadcast industry-standard lens controllers including Canon's standard broadcast lens controllers (ZSD-300D/FPD-400D). The optional ZSG-C10 Zoom Servo Grip can mount to the lens for handheld operation.
Three levels of Image Stabilization and incorporated autofocus functions set the COMPACT-SERVO 70-200mm T4.4 EF lens apart from traditional Super 35mm Cinema lenses. A 9-blade iris creates a rounded aperture so out-of-focus highlights appear circular. The lens also features a 2.8x zoom magnification, a focal length range of 70-200mm and a 130° smooth rotating focus ring. The lens is also compatible with our Canon EF 1.4x III and EF 2x III Extenders. The 70-200mm T4.4 EF lens offers professional video functionality all at an affordable price, making it ideal for a wide range of video applications including documentary, cinema, news gathering, wedding and other video production.
Lens Design Optimized for Video Application
Different aspects of lens performance are emphasized when shooting video as opposed to still images. A zoom range through commonly used focal lengths, high level 4K optical performance and a smooth aperture iris designed for motion picture capture all demonstrate the COMPACT-SERVO 70–200mm T4.4 EF lens's optimization for video.
Telephoto Zoom that Covers the Commonly-Used Focal Length of 70mm–200mm
A telephoto zoom can be useful in narrative or documentary video production for capturing medium to tight fields of view. The 70–200mm T4.4 EF lens is also compatible with Canon's EF 1.4x III and EF 2x III Extenders.
Parfocal Operation – Precise Focus Through the Entire Zoom Range
The 70–200mm T4.4 EF lens is parfocal in both manual and autofocus modes. The lens employs a special compensating lens group that moves to maintain precise focus while a separate lens group performs the zooming action. Maintaining focus while changing focal length allows the lens to be used in video production where zooming while recording is required.
Consistent Brightness Throughout the Entire Zoom Range
The 70–200mm T4.4 EF lens maintains a wide aperture of T4.4 (F4.0) throughout their zoom range. This allows zooming while at maximum aperture without any dimming of the image.
High Level 4K Optical Performance
The 4K optical performance of the 70–200mm T4.4 EF lens produces a significantly sharper image than 2K/HD. The various advanced design strategies used help to ensure over 4K resolution at picture center and a careful control of falloff of image sharpness at picture extremities.
The excellent contrast range associated with High Dynamic Range (HDR) imaging helps ensure both deep black reproduction and the excellent handling of scene specular highlights. HDR image capture significantly enhances both the contrast and the richness of colors in a scene, but it also poses a potential challenge in exacerbating the visibility of any lens chromatic aberrations. The 70–200mm T4.4 EF lens was designed to help minimize such aberrations.
Color Consistency with Canon Cinema Lenses
Canon's color science has become highly refined over generations of lens designs, paying the closest attention to a pleasing skin tone reproduction. The 70–200mm T4.4 EF lens can be used interchangeably with other Canon Cinema lenses during the same production since both have the same warm, cine-look color characteristics — making it easier to maintain consistent color when multiple lenses are used.
Iris Mechanism for Motion Picture
The 70–200mm T4.4 EF lens can smoothly adjust between open and closed for precise exposure control and live in-shot changes. The 9-blade iris creates a rounded aperture so out-of-focus highlights appear circular. An odd number of iris blades also helps create a less distracting flare. The iris on the lens can also be completely closed, which is useful when adjusting black balance.
Continuous Iris Control Capability with Iris Ring
A Cinema lens requires an iris that can be smoothly adjusted between wide open and closed. Continuous adjustment allows not only for precise exposure control, but also smooth adjustment live in shot while recording. This can be useful to help compensate for change in exposure due to spotty clouds or moving between indoor and outdoor light levels within a shot.
More iris blades create a rounder aperture, resulting in out-of-focus highlights that appear more circular. An odd number of iris blades means that there will be a larger number of small radiating points on a flare, helping to prevent distracting artifact.
The aperture on the 70–200mm T4.4 EF lens can close completely, allowing no light to pass through. This is useful in black balancing a camera.
Auto Iris Available
The auto exposure system in the 70–200mm T4.4 EF lens capitalizes on Canon's Electromagnetic Diaphragm (EMD) technology that has been highly refined over many years in the EF lens series. This technology integrates the lens iris assembly and a miniature stepping motor in a single unit. Electronic pulses from the camera controls the motor to map numerous steps across the full range of the iris mechanism. This AE control loop is fast and silent. An AE Shift mode allows a small manual override for fine adjustments to exposure.
Flange Back Adjustment
A flange back adjustment mechanism is built-in allowing you to adjust on site which helps to provide even greater optical performance among various cameras.
Servo Capability in a Compact and Lightweight Design
The COMPACT-SERVO 70–200mm T4.4 EF lens includes the functionality of professional broadcast and cinema lenses along with compatibility with professional lens accessories. It fits these features in Canon's unique design that allows it to remain compact and lightweight. This best-of-both-worlds approach allows the versatility to shoot with the lens in a wide range of productions.
Servo Zoom Drive Unit
The 70–200mm T4.4 EF lens incorporates a servo drive unit directly in the body of the lens. The servo drive unit allows electronic control over zoom, and provides an option to be disengaged for direct manual control. The integrated design can power the servo drive through the lens mount on appropriate cameras, or power can be input through a separate port as in traditional lens servo systems. The servo control is compatible with Canon's ZSG-C10 Zoom Servo Grip which can be mounted directly onto the 70–200mm T4.4 EF lens, as well as standard broadcast style controllers (including Canon's FPD-400D and ZSD-300D) for remote operation.
Servo Control Capability for Zoom Function
The integrated servo drive allows for electronic control over the zoom. The control is electromechanical, rotating the actual geared rings on the lens housing via servo motors. These motors can also be disengaged, allowing for full manual control. The zoom servo can be remotely controlled or operated using a rocker switch on the side of the lens.
Power Provided via Camera Mount
On select Cinema EOS cameras, the EF lens mounts electrical contacts provide the necessary power to operate the servos on the 70–200mm T4.4 EF lens. This helps eliminates cabling and possible mounting issues. The lens can also be powered remotely through an accessory power port.
Compatible with Broadcast Style Servo Lens Controllers
The 70–200mm T4.4 EF lens's Servo Control can be operated remotely for tripod or other non-handheld use. Canon's FPD-400D Digital Focus Servo Demand for Canon Lens Control Kits can be used for remote focus control and the ZSD-300D Digital Zoom Servo Demand for digital ENG/EFP lenses used for remote zoom control. For use in studio configurations, an optional Zacuto® Z-CNYC Y-cable can be used to connect zoom and focus controllers to each lens. This configuration allows for simultaneous zoom and focus operation with Compact-Servo lenses.
