- Fits full sized set ups like Sony A7S III and Canon R5
- DJI Image Transmission compatible
- 3rd-Gen RS stabilization algorithms make shots 20% smoother
- 1.8" OLED full-color touchscreen
- Layered sheets of Carbon Fiber increase stiffness and lower weight
Ready When You Are

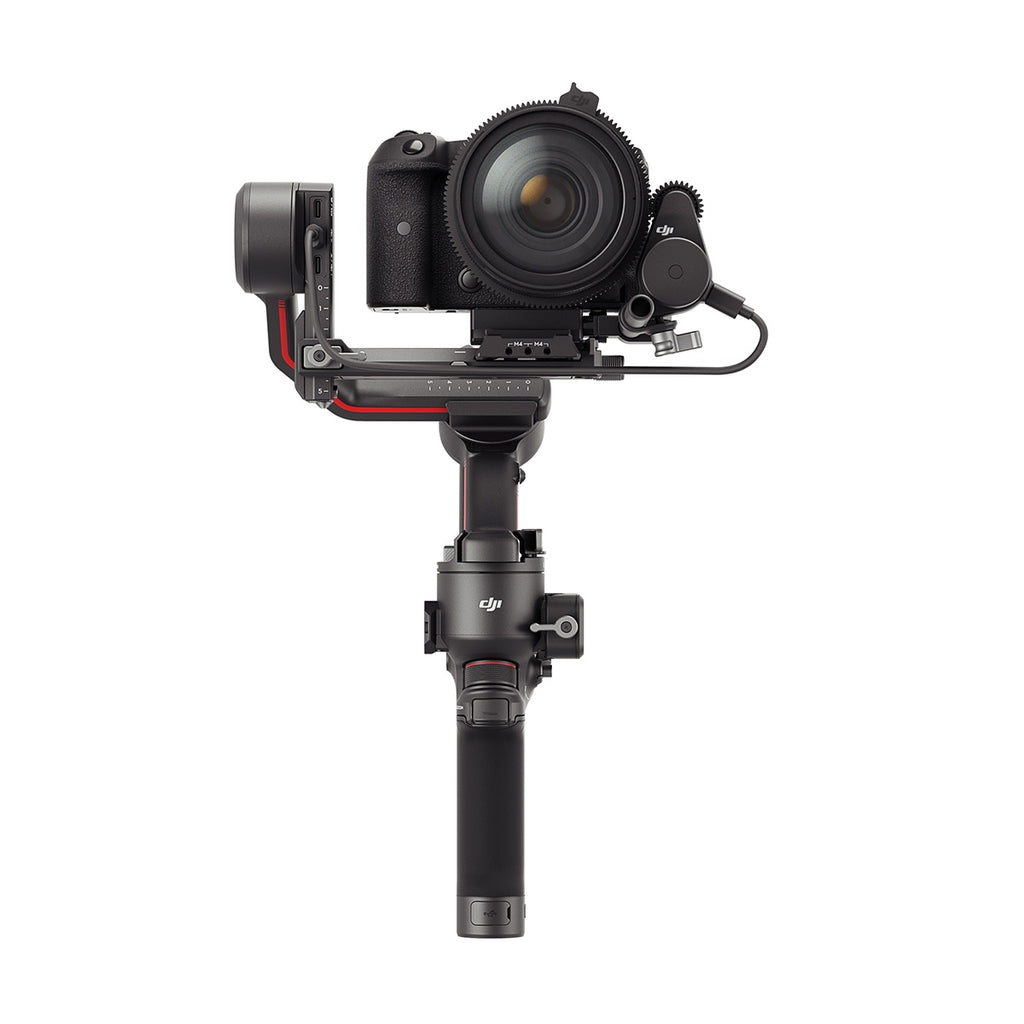

With every detail, DJI RS 3 delivers a flexible and efficient shooting experience to solo creators and independent crews. Light and sleek, it provides professional stabilization and efficient control for more creative freedom and endless possibilities. DJI RS 3 is ready when you are.
Get Started Right Away - It's All About Speed
With dual-layered quick-release plates, mounting a camera onto RS 3 is fast and convenient, with no need to re-balance the gimbal after swapping out a new battery or memory card.
A newly added fine-tuning knob on the tilt axis allows the camera to slide forward or backward with millimeter-grade precision to achieve accurate balancing more easily when changing lenses.
Automated Axis Locks
RS 3 lets you get up and running instantly. When the gimbal is powered off, press and hold the power button, and the three axes unlock while the gimbal expands automatically, allowing you to start working within seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making transportation and travel significantly more efficient. Press and hold the power button and it will fold and lock automatically.
Wireless Shutter Control
By implementing Dual-Mode Bluetooth, RS 3 supports wireless shutter control, saving time and effort with every use. After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabilizer. Previously paired cameras can automatically reconnect after the first use, eliminating the need for a camera control cable.
Excellent Weight-to-Payload Ratio
Weighing only 1.3kg / 2.8lbs (including gimbal, battery grip, and quick-release plates), RS 3 can be held easily in one hand, while its 3kg / 6.6lb load capacity is more than enough to support mainstream cameras, including the Sony A7S3 or Canon R5 with a 24-70mm F2.8 lens.
3rd-Gen RS Stabilization Algorithm
Thanks to a next-generation RS stabilization algorithm, RS 3 provides enhanced stability in any scenario. Laboratory testing shows RS 3 provides a 20% increase in stability over RSC 2, effortlessly managing low-angle shots, running scenarios, or switching between high and low positions.
When you need even smoother results, turn on SuperSmooth mode. RS 3 will increase motor torque to further enhance stabilization, delivering stable footage even in fast-moving scenarios or when 100mm-equivalent focal lenses are used.
1.8" OLED Touchscreen
Compared with the black and white screen of RSC 2, RS 3 is equipped with a 1.8-inch OLED full-color touchscreen with an 80% larger display. It also supports most Ronin app settings, providing intuitive and precise control together with the redesigned user interface.
Instant Mode Switching
By simply sliding the new gimbal mode switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started fast.
Customizable Front Dial
Rotating the front dial allows you to control zoom or focus. It can also be customized to control the camera's shutter, aperture, ISO, or gimbal movements, making it exceptionally convenient for single-handed operation.
Efficient Video Transmission - Monitoring via Smartphone
RS 3 supports the Ronin Image Transmitter (previously known as the Ronin RavenEye Image Transmitter) to transmit 1080p/30fps HD live feeds directly to a mobile device. The maximum transmission distance is 200 meters and the end-to-end transmission latency is as low as 60 ms. A smartphone can also be attached to the NATO port on the RS 3 with the phone holder for wireless monitoring.1
Integrated Monitoring and Control
Remotely adjust camera exposure directly in the Ronin app, or control the gimbal with the virtual joystick to get an integrated monitoring and control experience.1
With the Ronin Image Transmitter, a smartphone can be used as a motion controller to remotely control the RS 3 gimbal for more flexible and dynamic camera movements.1

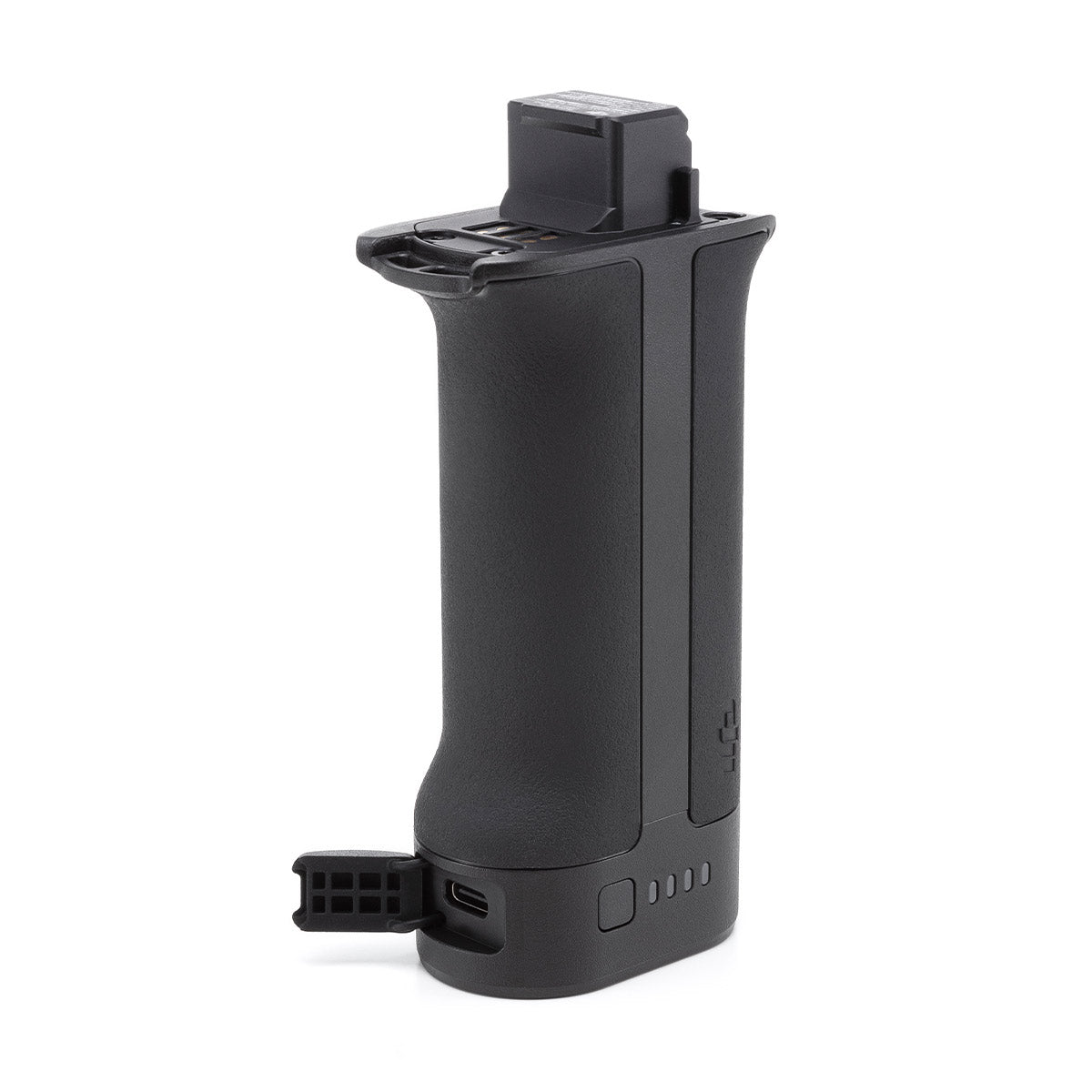

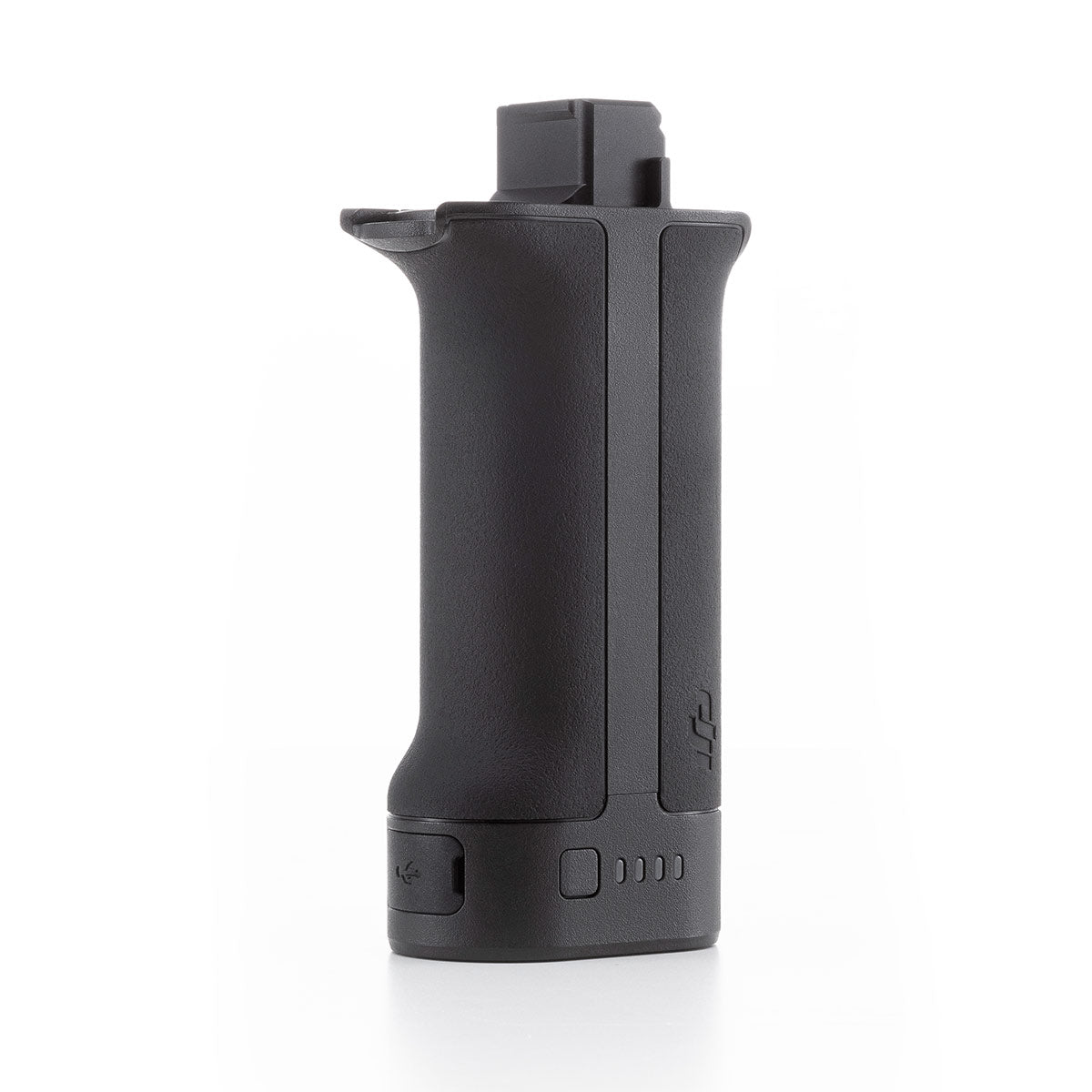

A Battery Built for Pros - Quick-Release Design
The new RS 3 battery grip features a cartridge design, making it easier to swap batteries and smaller for storage compared with RSC 2. It can even be charged independently from the gimbal.
12-Hour Operating Time + Fast Charging
The new battery grip provides an extended runtime of up to 12 hours, enough to handle continuous shooting throughout the day. It supports 18W PD fast charging with a charge time of just 2.5 hours. It can even be used while charging to keep RS 3 powered almost indefinitely.
New Briefcase Handle
The redesigned briefcase handle is foldable for convenient storage, and comes with a new ergonomic handle to make it easier and faster to install and switch to Briefcase mode. The built-in cold shoe mount and 1/4"-20 mounting holes can connect to external monitors for shooting assistance, making low-angle camera movements more intuitive.
All-New Focus Motor
The next-generation DJI RS Focus Motor (2022) provides torque three times stronger (up to 1 N·m) and audible noise is reduced by 50%. This delivers a smoother focusing experience and reduces the effect on audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.
Vertical Camera Mount
Install the Vertical Camera Mount to attach the camera vertically to RS 3 while avoiding camera ports, allowing easy portrait shooting at different angles for high-quality social media content.1
 Additional accessories required, sold separately
|Load Capacity||6.6 lb / 3 kg|
|Number of Axes||3-Axis (Pitch, Roll, Yaw)|
|Rotation Range||Yaw (Pan): 360° |
Pitch (Tilt): -112 to 214°
Roll: -95 to 240°
|Follow Speed||Pan: 360°/s |
|Grip Design||Single Handgrip|
|Camera Control||On Compatible Models|
|Camera Mounting Screw||1 x 1/4"-20 Male|
|Inputs/Outputs||3 x USB Type-C (Control) Output |
1 x USB Type-C (Power)
|Wireless Frequency||2.4 GHz (2.4 - 2.484)|
|Wireless Protocol||Bluetooth 5.0|
|Battery Type||1 x Detachable|
|Battery Capacity||3000 mAh / 21 Wh|
|Battery Runtime||12 Hours|
|Battery Charging Time||2.5 Hours|
|Battery Chemistry||Lithium-Ion Polymer (LiPo)|
|Display Type||Fixed Touchscreen OLED|
|Mounting||1 x 1/4"-20 Female |
1 x Cold Shoe Mount
|Dimensions||16.1 x 10.2 x 7.7" / 410 x 260 x 195 mm|
|Weight (Gimbal, Grip, Upper and Lower Quick-Release Plates)||2.85 lb / 1297 g|
|Operating Temperature||-4 to 113°F / -20 to 45°C|
