Configurations
- 4K UHD SDI & HDMI Support
- 450ft (150m) LOS Range with 0.06s Low Latency
- Broadcast & Production Frame Rate
- Smart Channel Scan & Selection
Description
General | |
---|---|
Antenna Ports | Transmitter/Receiver: 2 x RP-SMA Female |

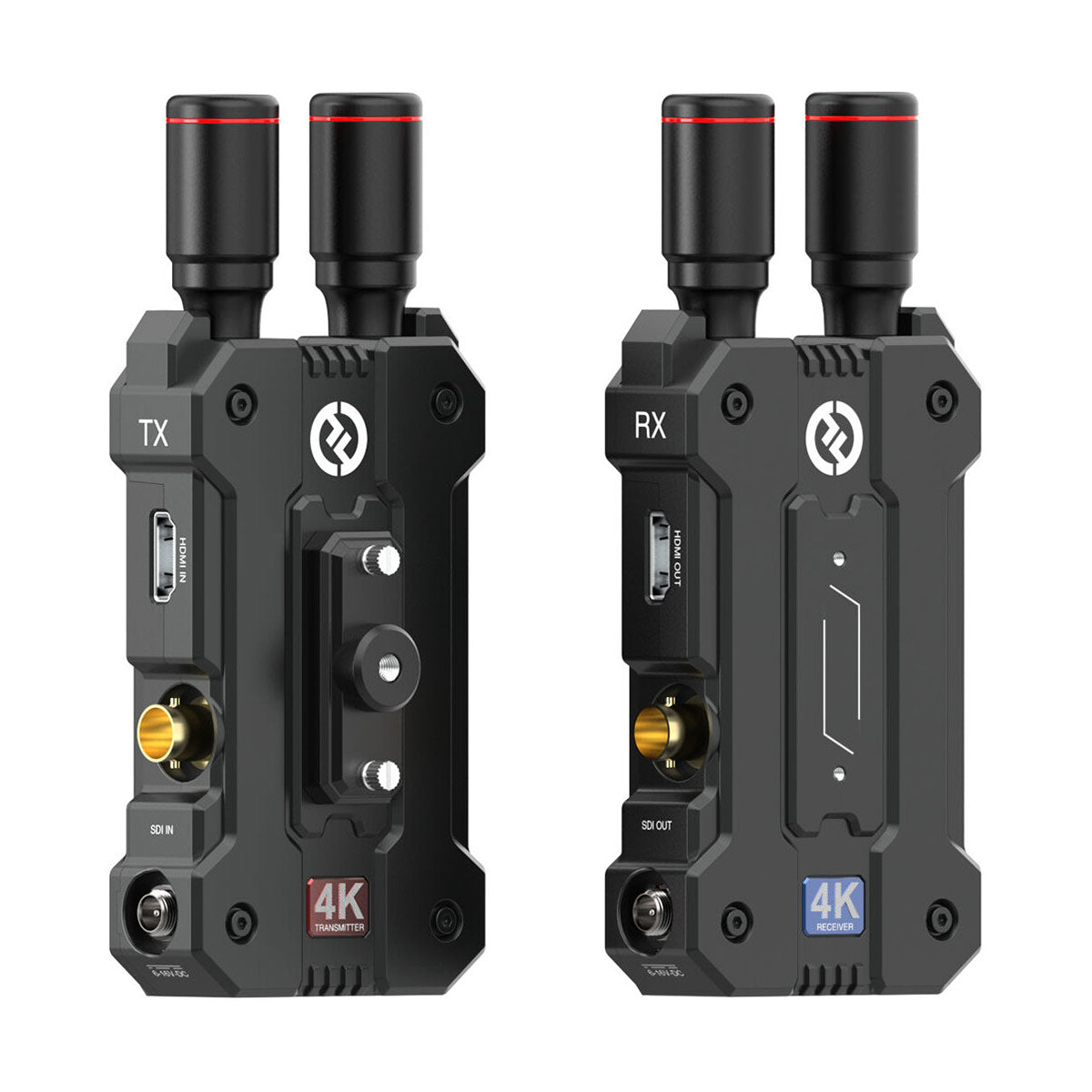

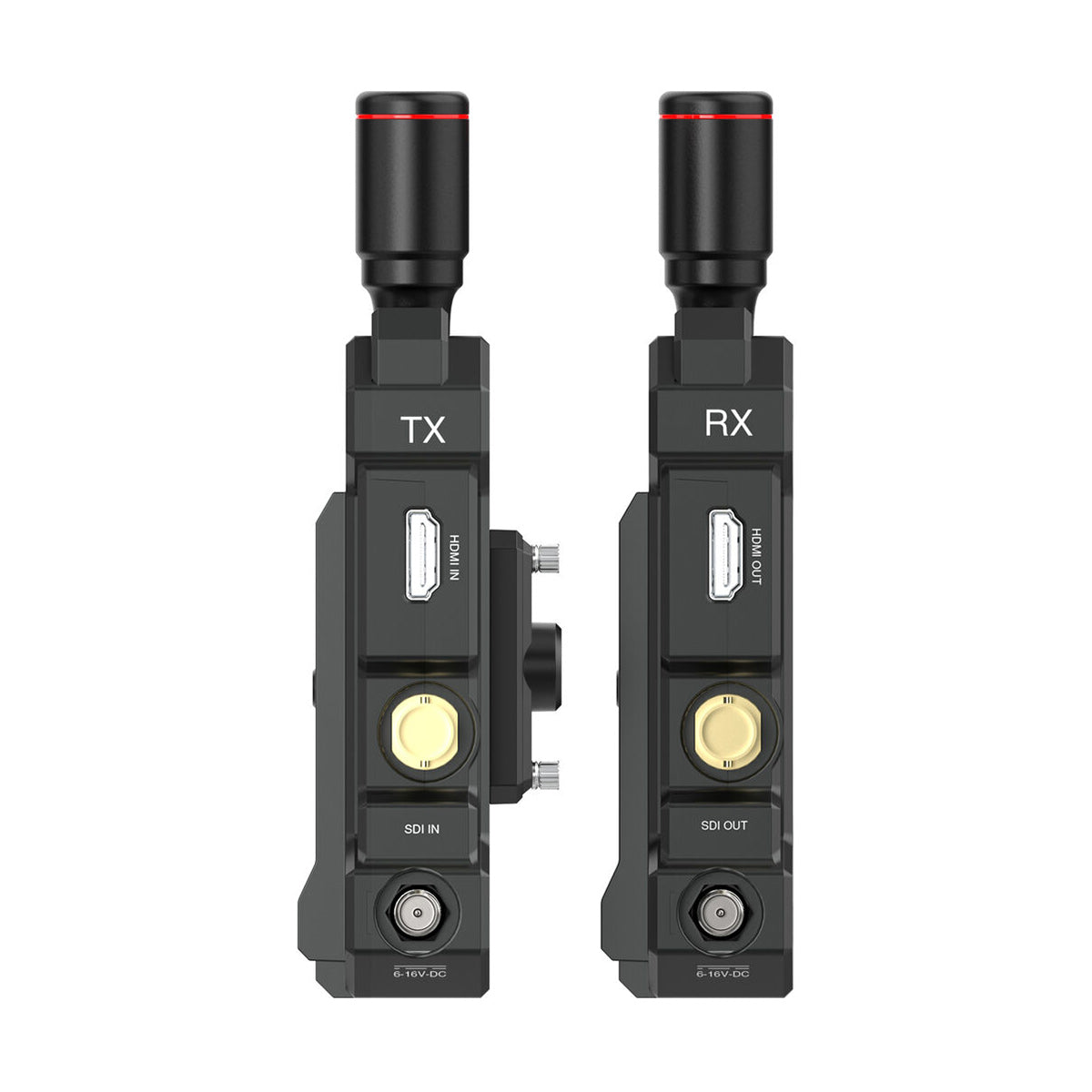

Video | Transmitter: 1 x HDMI Type A Input Transmitter: 1 x BNC Input Receiver: 1 x HDMI Type A Output Receiver: 1 x HDMI Type A Output |
Embedded Audio | HDMI/SDI |
Power | Transmitter/Receiver: 1 x Coax Input Transmitter/Receiver: 1 x USB Type-C Input |
Encryption | None |
Wireless | |
---|---|
Wireless Range | 450' / 137.2 m (Line-of-Sight) |
Channel Bandwidth | 20 MHz |
Frequency Range | US: 5 GHz |
Latency | 0.06 sec |
Format Support | |
---|---|
Video Format | HDMI UHD 4K: 30 1080p: 60/30/24 SDI 1080p: 60/59.94/30/29.97/24/23.98 |
Timecode Support | Yes |
Power | |
---|---|
DC Input Power | 6 to 16 VDC |

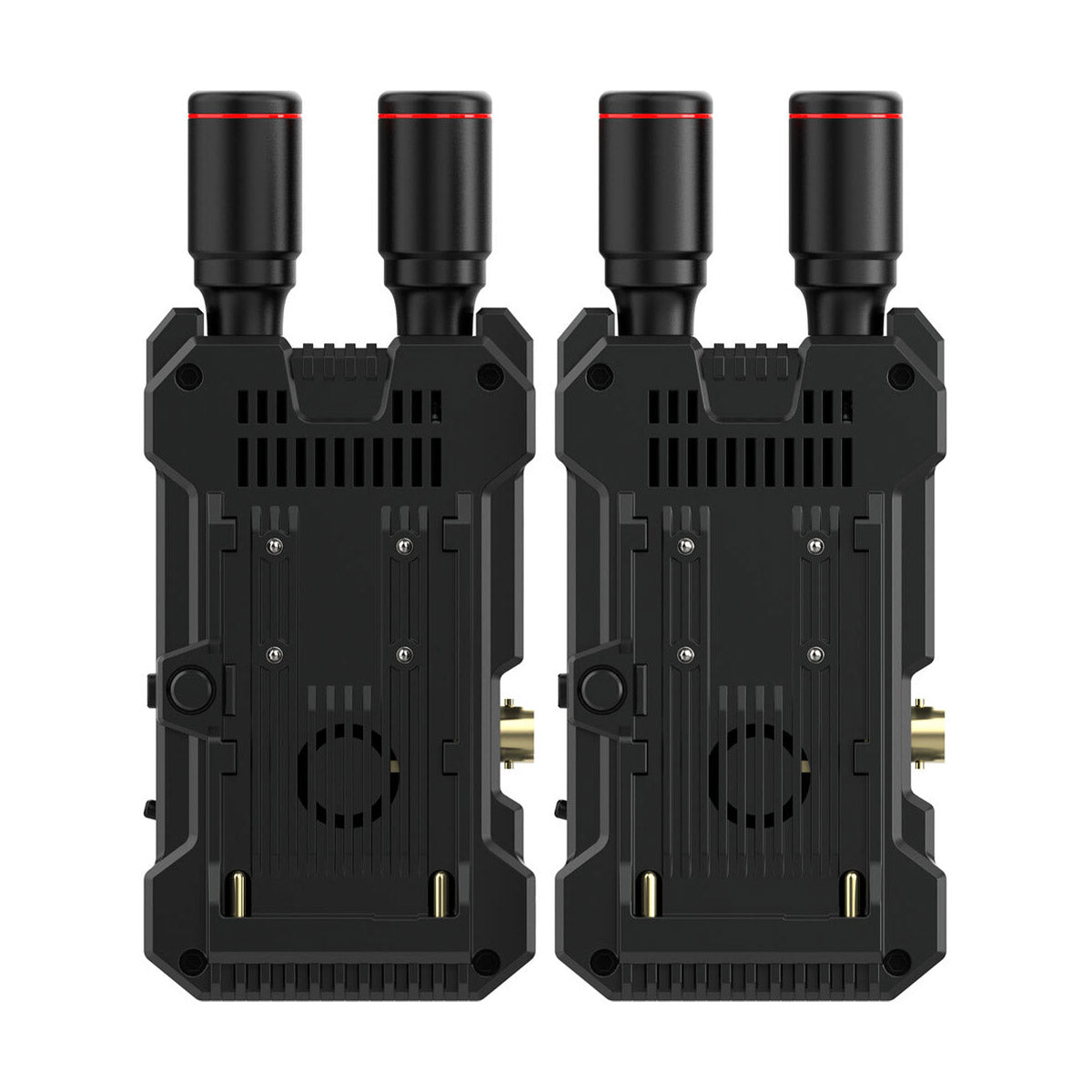

Battery Type | 1 x L-Series |
Mounting | |
---|---|

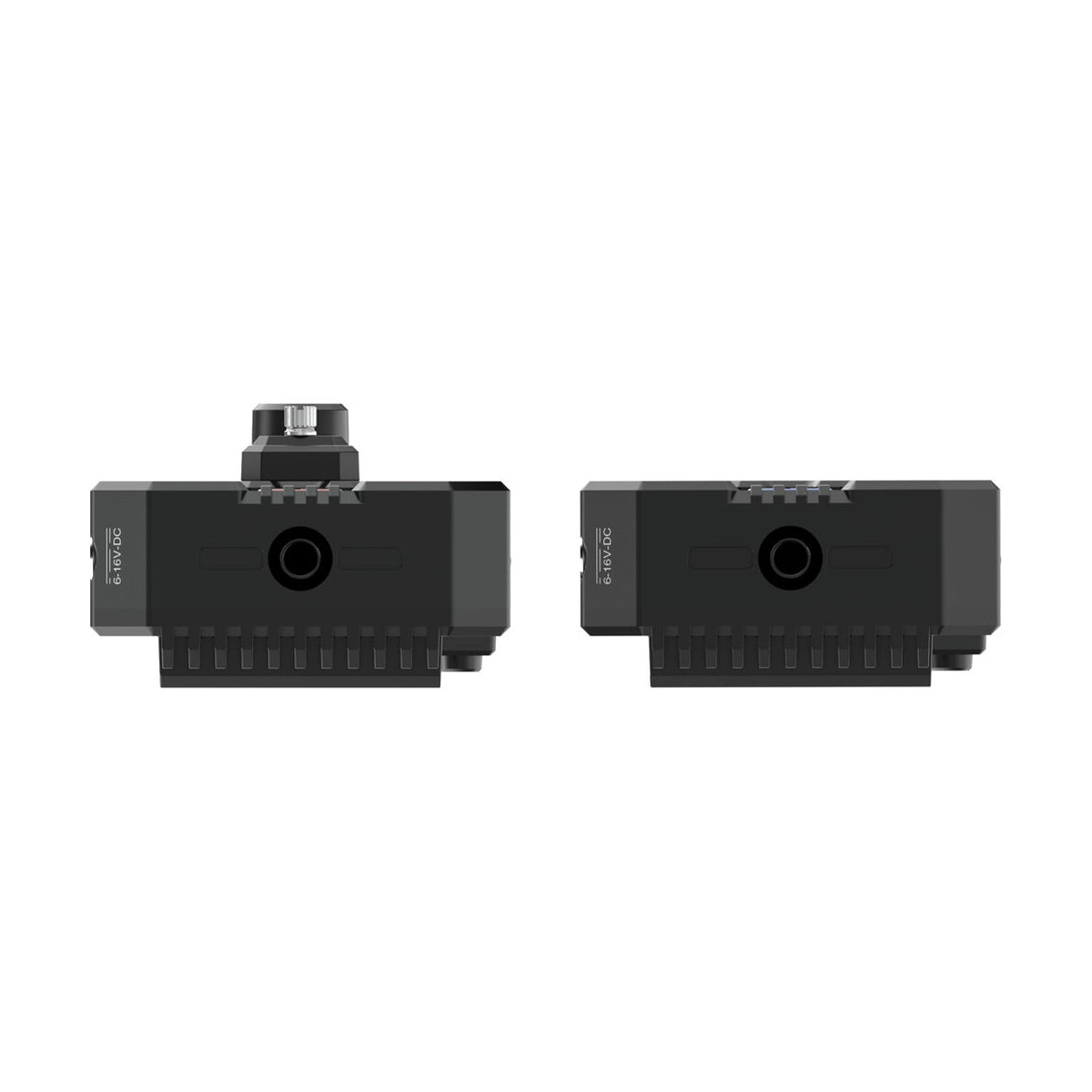

Mounting | 1 x 1/4"-20 Female |
General | |
---|---|
Material of Construction | Plastic |
Weight | 7.9 oz / 223g (excluding the antennas) |
Dimensions (L x W x H) | 4.5 x 2.5 x 1.3" / 115 x 65 x 32mm |
