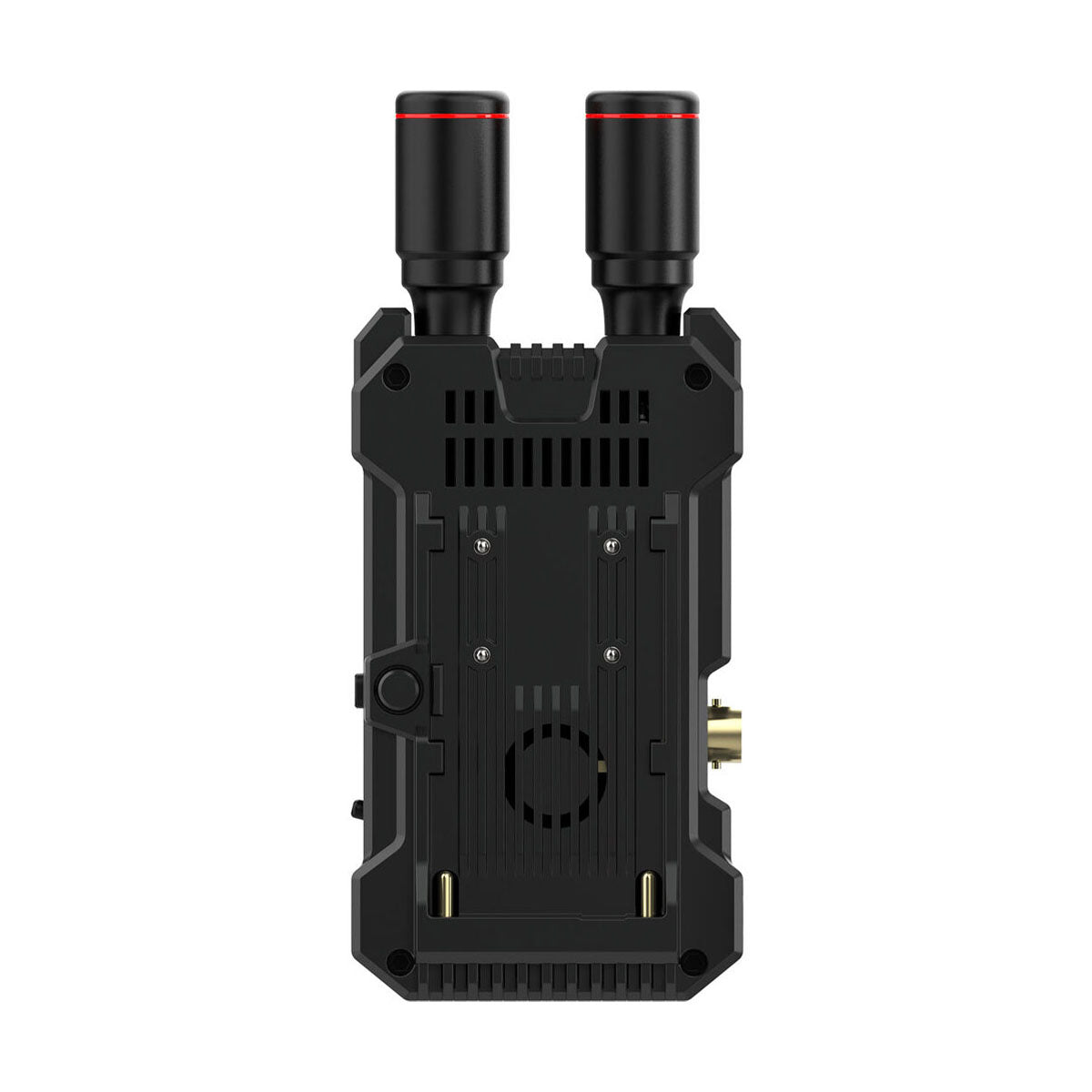

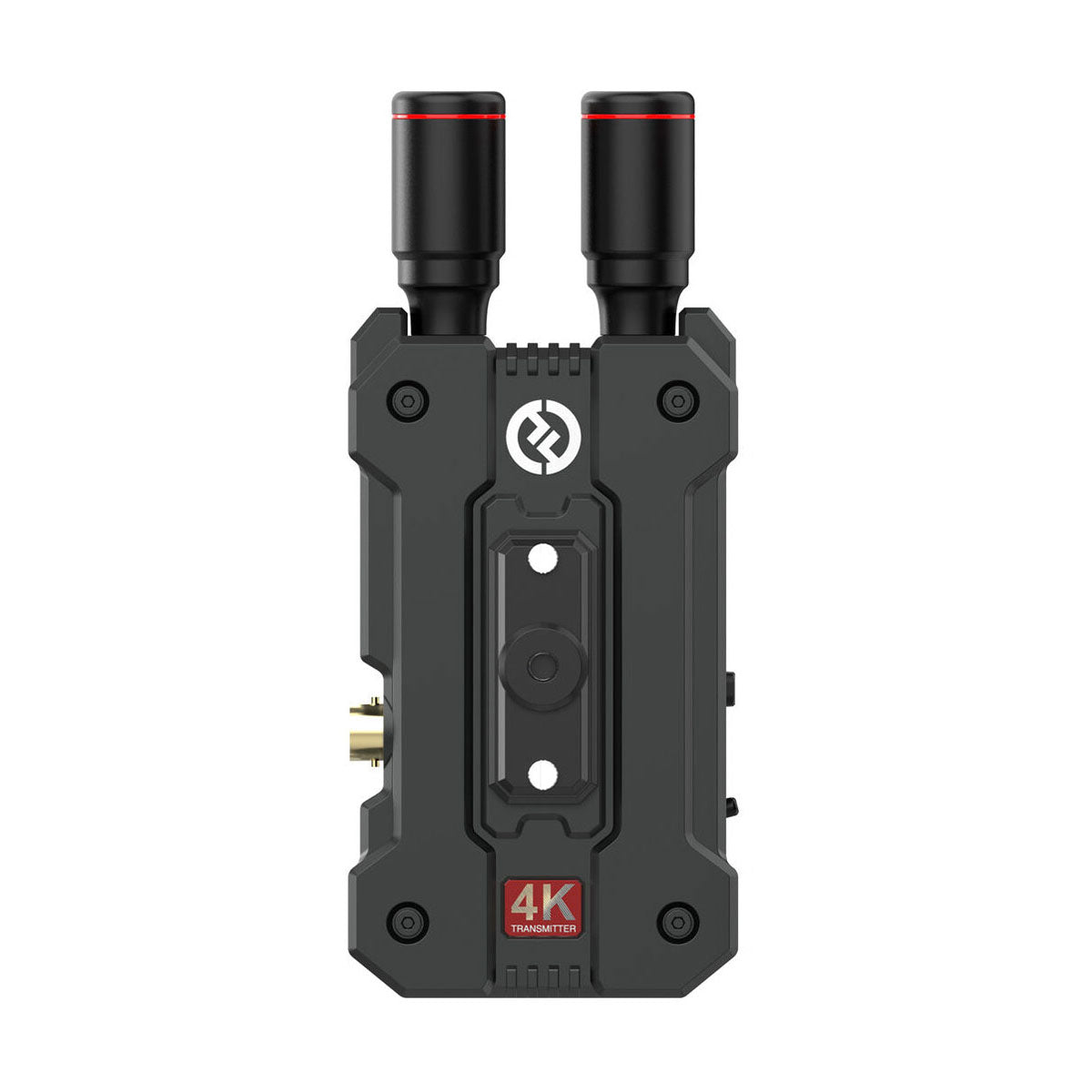

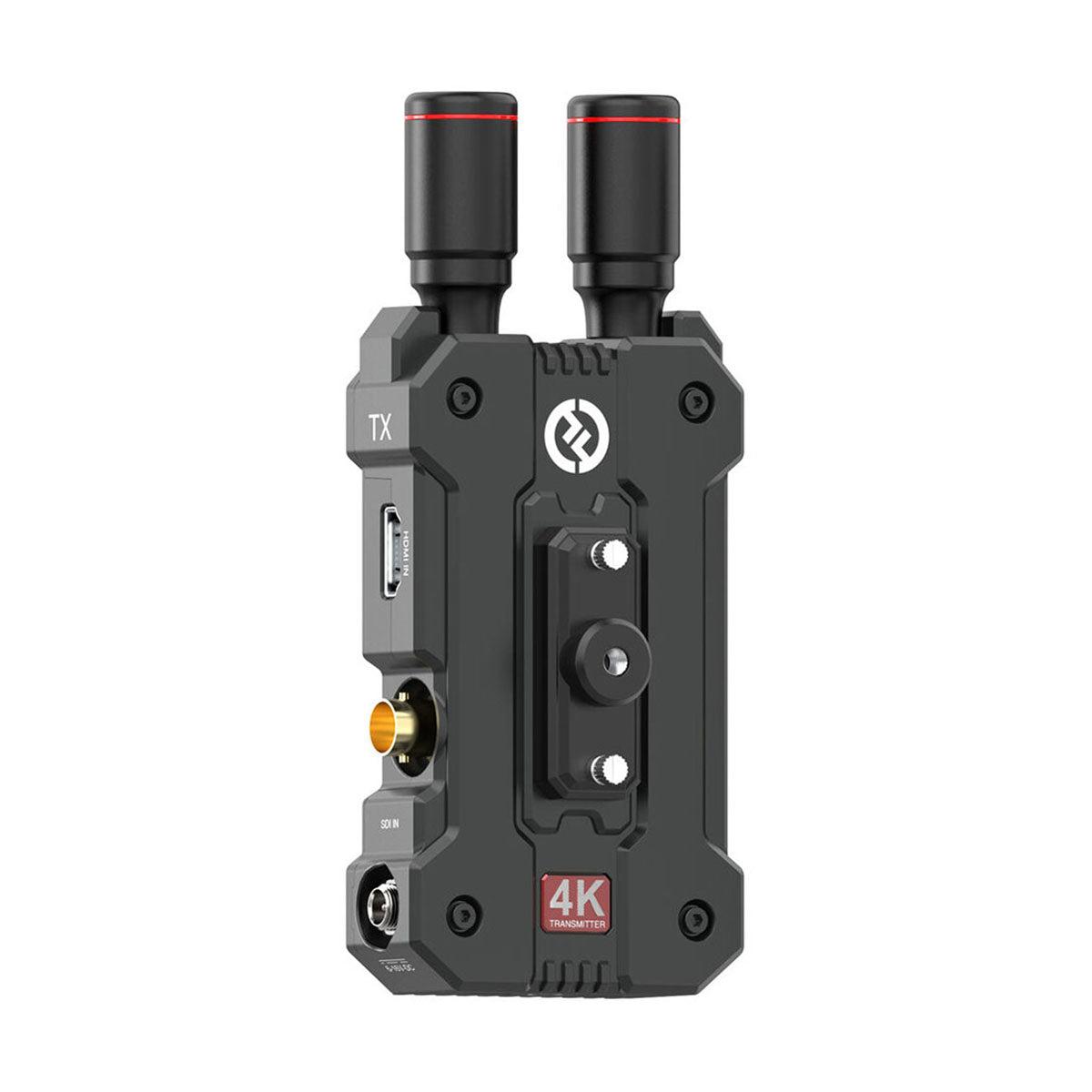

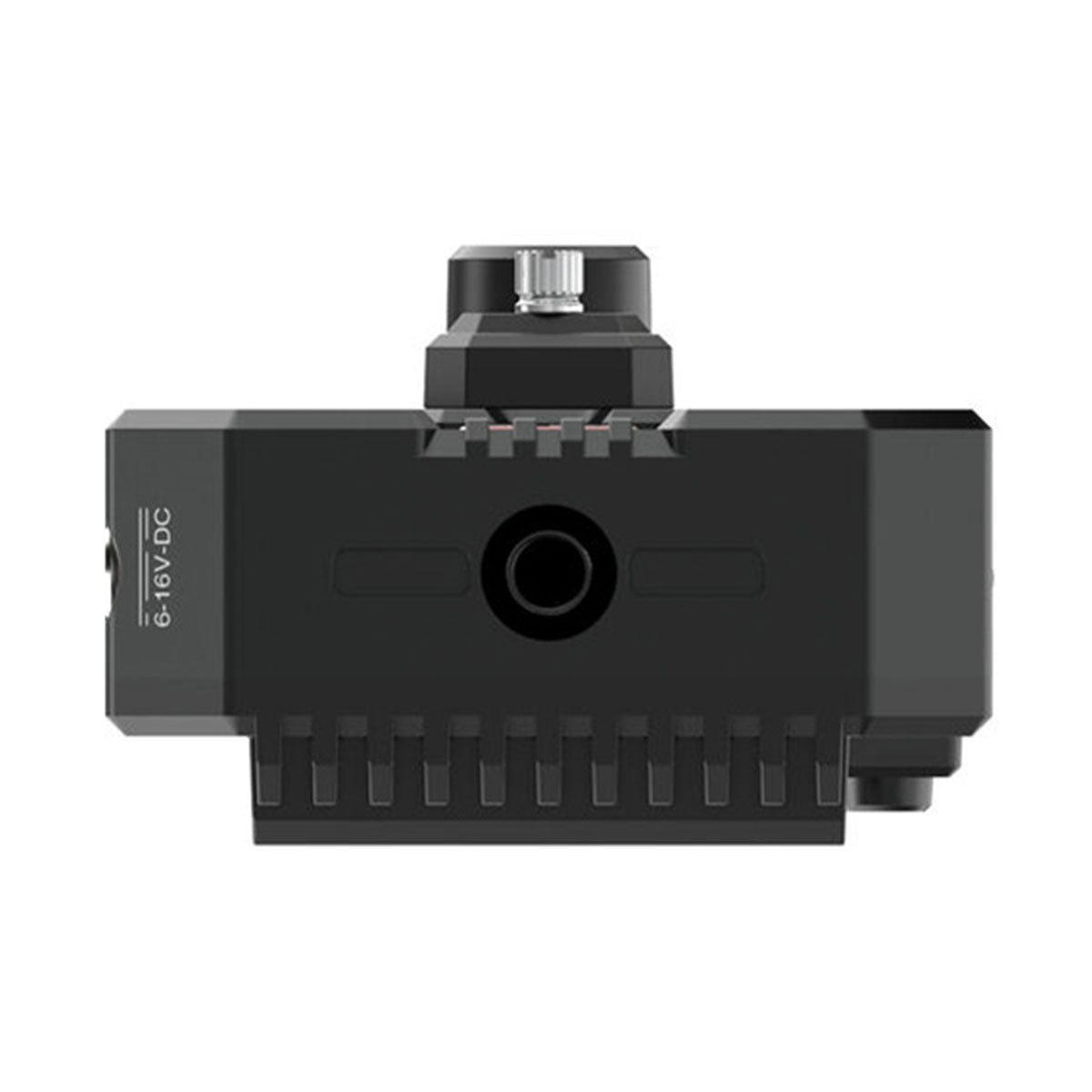

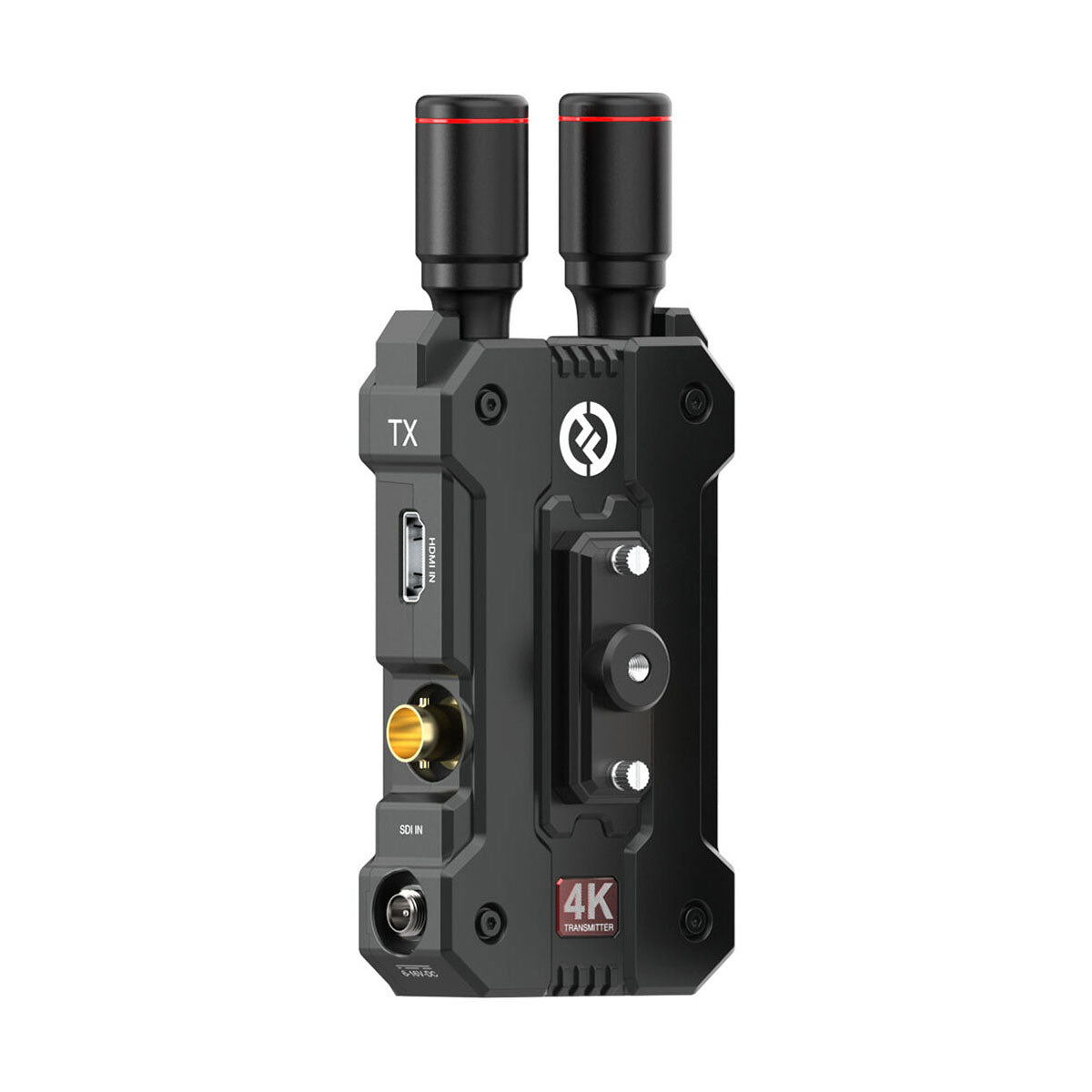

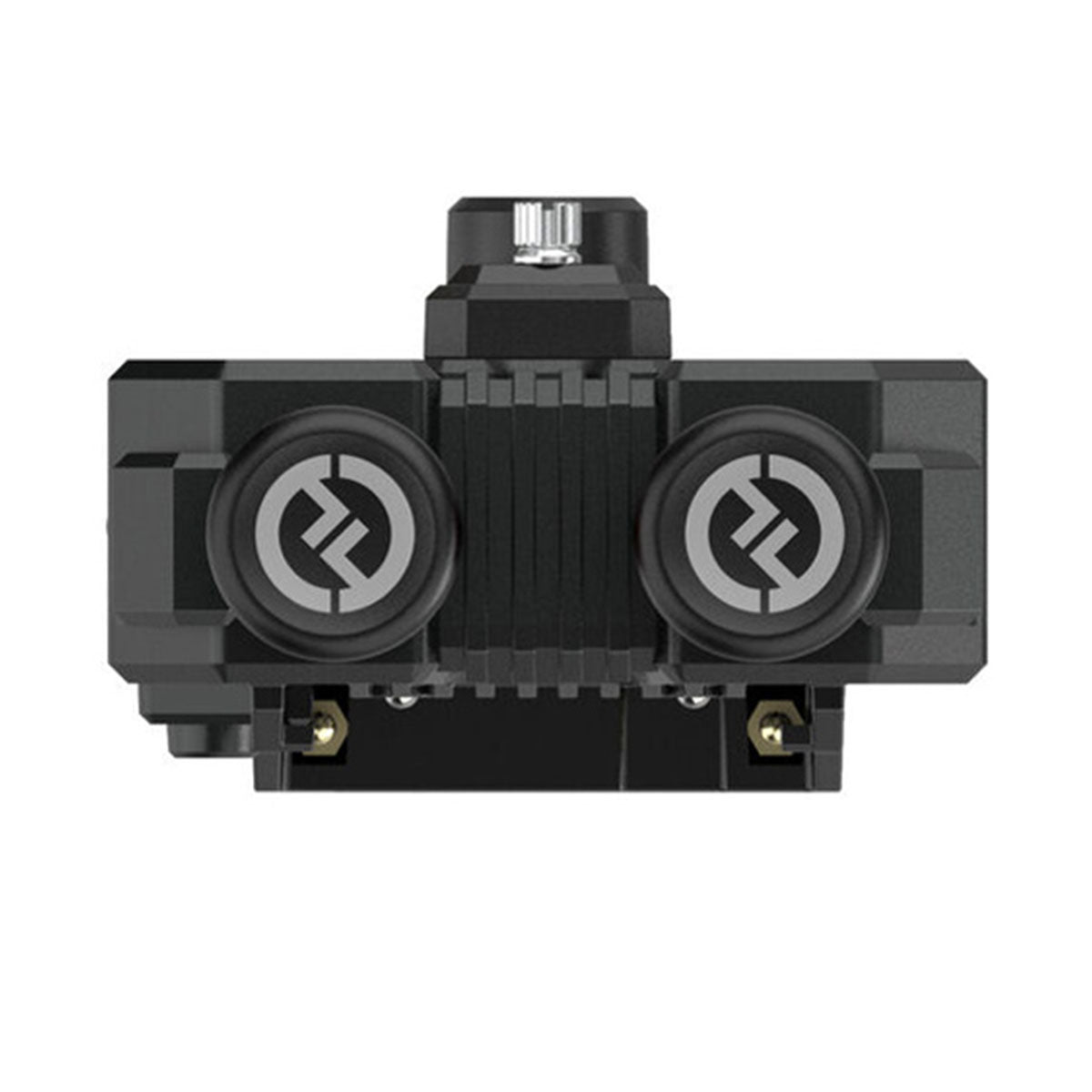

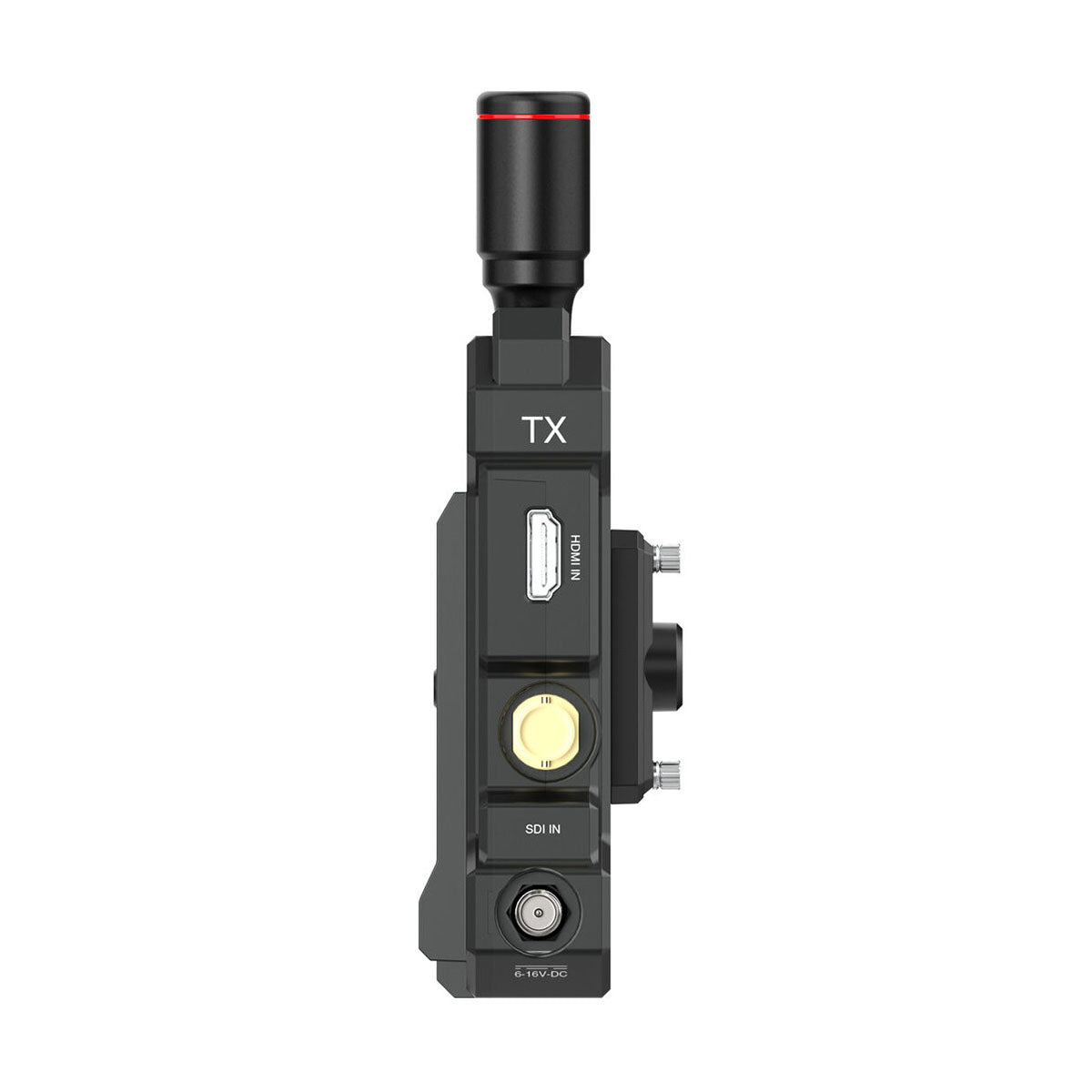

The new Hollyland Mars 4K wireless video transmission system is capable of a 450ft (150m) LOS range and ultra-low latency of 0.06s. The Mars 4K is designed to combine high performance and reliable quality at an affordable price.
450ft (150m) LOS Range and 0.06s Ultra-low Latency
The Mars 4K achieves an incredible LOS range of 450ft (150m) and ultra-low latency of 0.06s. Its upgraded dual-core codec chip is capable of a data rate ranging from 8 Mbps to 20 Mbps, with 12 Mbps as the default. The LOS range of 450ft (150m) is based on interference-free laboratory measurements.
Multiple Power Supply Options
The Mars 4K supports a wide range of DC power options–6V to 16V, NP-F batteries, and USB Type-C chargers.
HDMI & SDI Dual Interfaces
The Mars 4K supports HDMI and SDI input and output for expanded connectivity and compatibility. The SDI provides expanded frame rate flexibility for both broadcast and production frame rate (decimal-point frame rate) standards and compatibility through production and postproduction.
Operational Efficient Design Form Factor
The Mars 4K is featured with superior corrosion and wear resistance for outstanding durability. With disassembly-free, bullet-styled antennas attached, the well-thought-out design form factor optimizes operational functionality for fast configurations.
Flexible Monitoring Options
The Mars 4K transmitter is compatible with up to two receivers or four mobile devices with the app installed. Up to four mobile devices with the app installed allow a maximum of four parties (such as the director, producer, light control personnel, and audio personnel) on the site to monitor the shooting at the same time.
|Antenna Ports||Transmitter: 2 x RP-SMA Female|
|Video||Transmitter: 1 x HDMI Type A Input |
Transmitter: 1 x BNC Input
|Power||Transmitter: 1 x Coax Input |
Transmitter: 1 x USB Type-C Input
|Wireless Range||450' / 137.2 m (Line-of-Sight)|
|Channel Bandwidth||20 MHz|
|Frequency Range||US: 5 GHz|
|Video Format||HDMI |
UHD 4K: 30
|DC Input Power||6 to 16 VDC|
|Battery Type||1 x L-Series|
|Mounting||1 x 1/4"-20 Female|
|Material of Construction||Plastic|
|Weight||7.9 oz / 223g (excluding the antennas)|
|Dimensions (L x W x H)||4.5 x 2.5 x 1.3" / 115 x 65 x 32mm|
