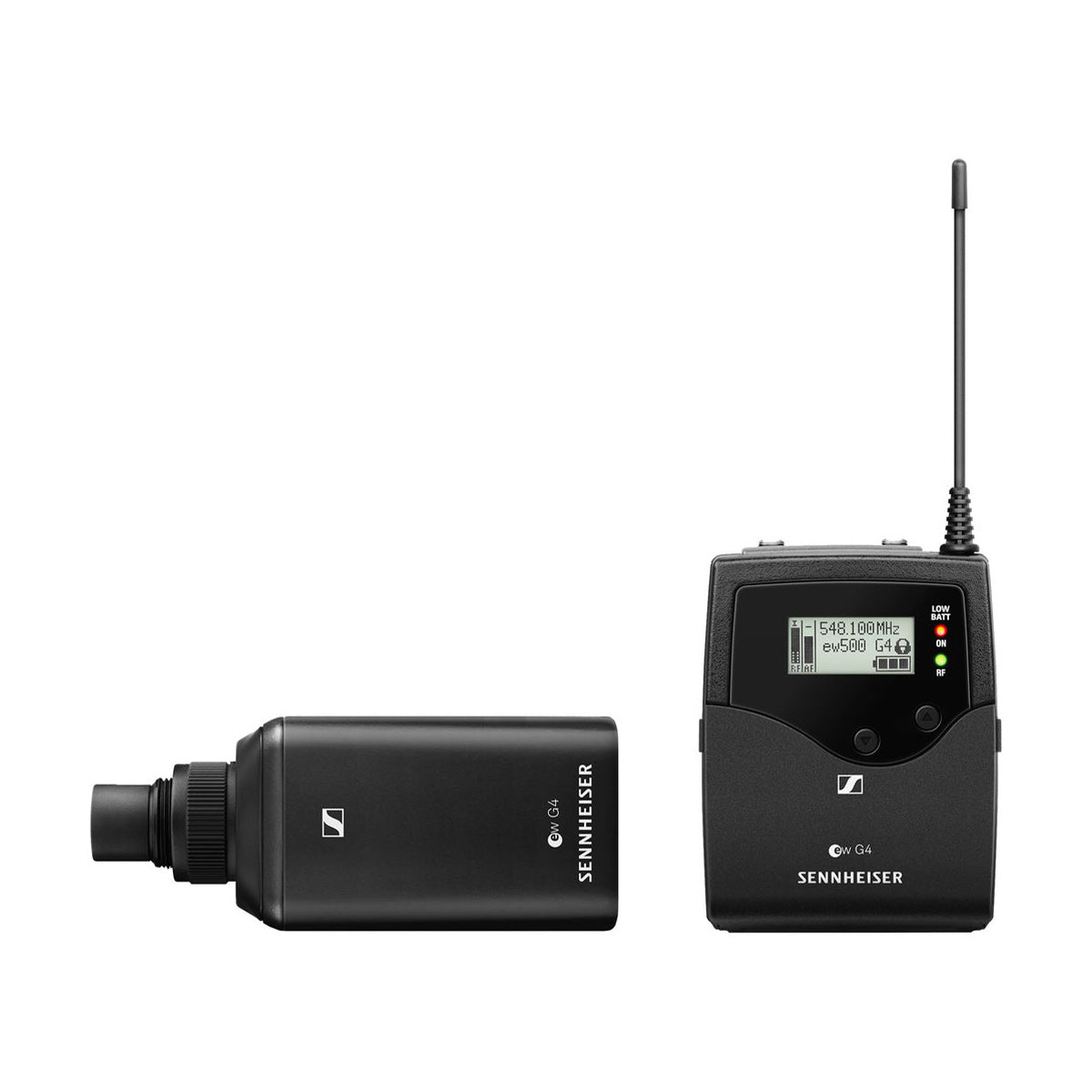

Sennheiser EW 500 BOOM G4 Camera-Mount Wireless Plug-On Microphone System (509547)

IN STOCK
SennheiserSKU: EW 500 BOOM G4-AW+
No reviews

Price:
Sale price$999.00
Configurations

  • Highly versatile solution for professional film sound
  • Rugged all-in-one wireless system for professional interviews and recording
  • Professional sound and excellent construction quality
  • Easy to use and fast setup time

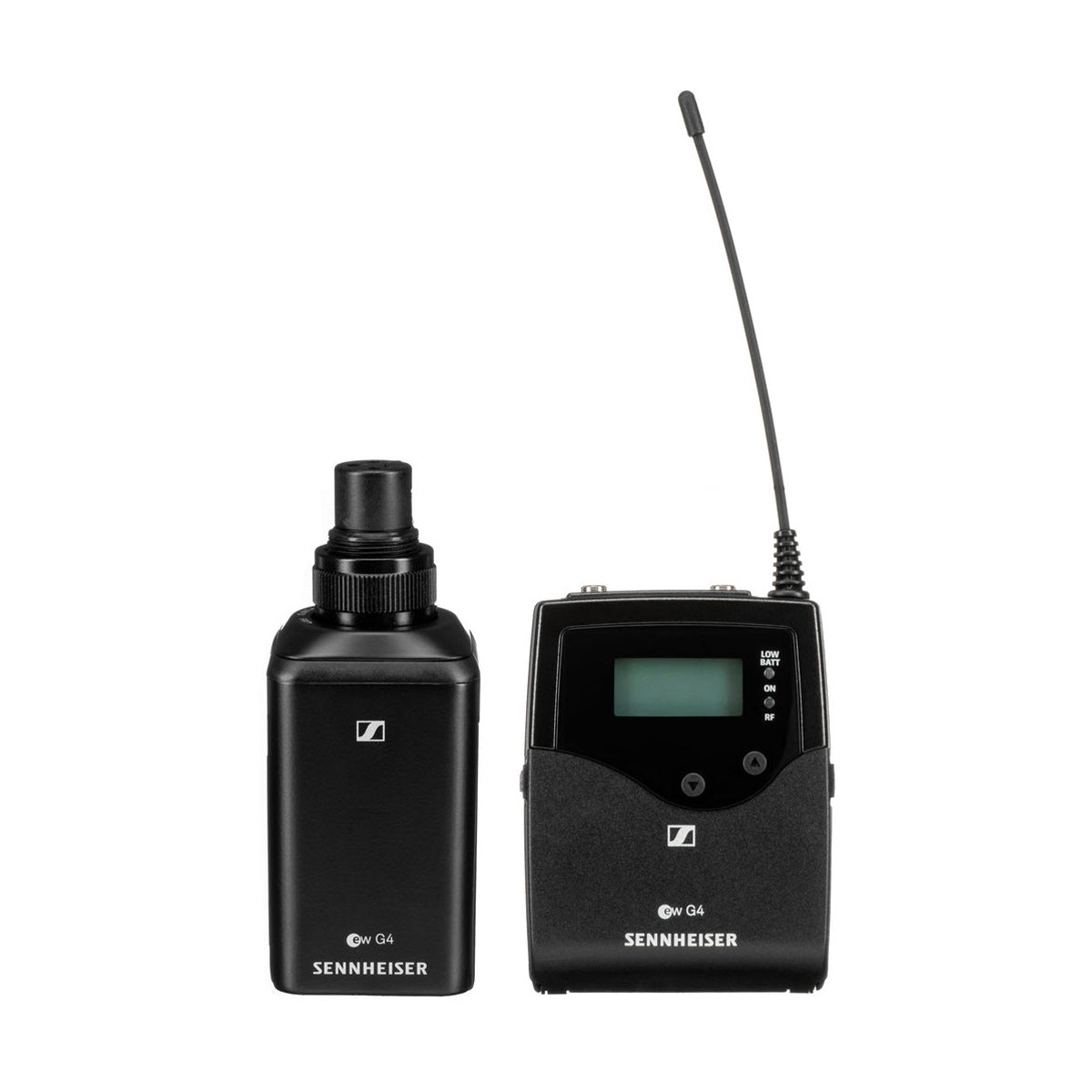

  • EW 500 BOOM G4 Camera-Mount Wireless Plug-On Microphone System (509547)

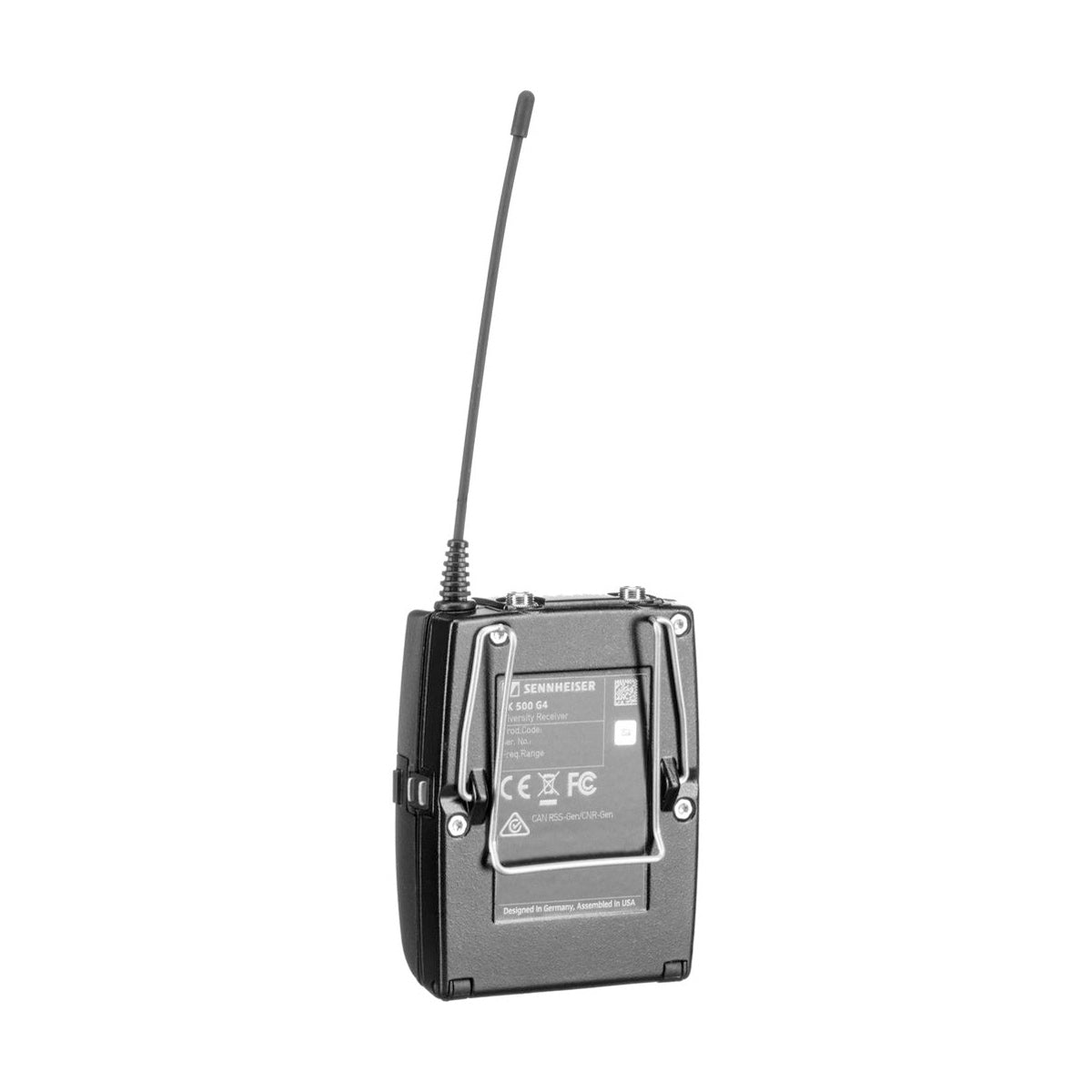

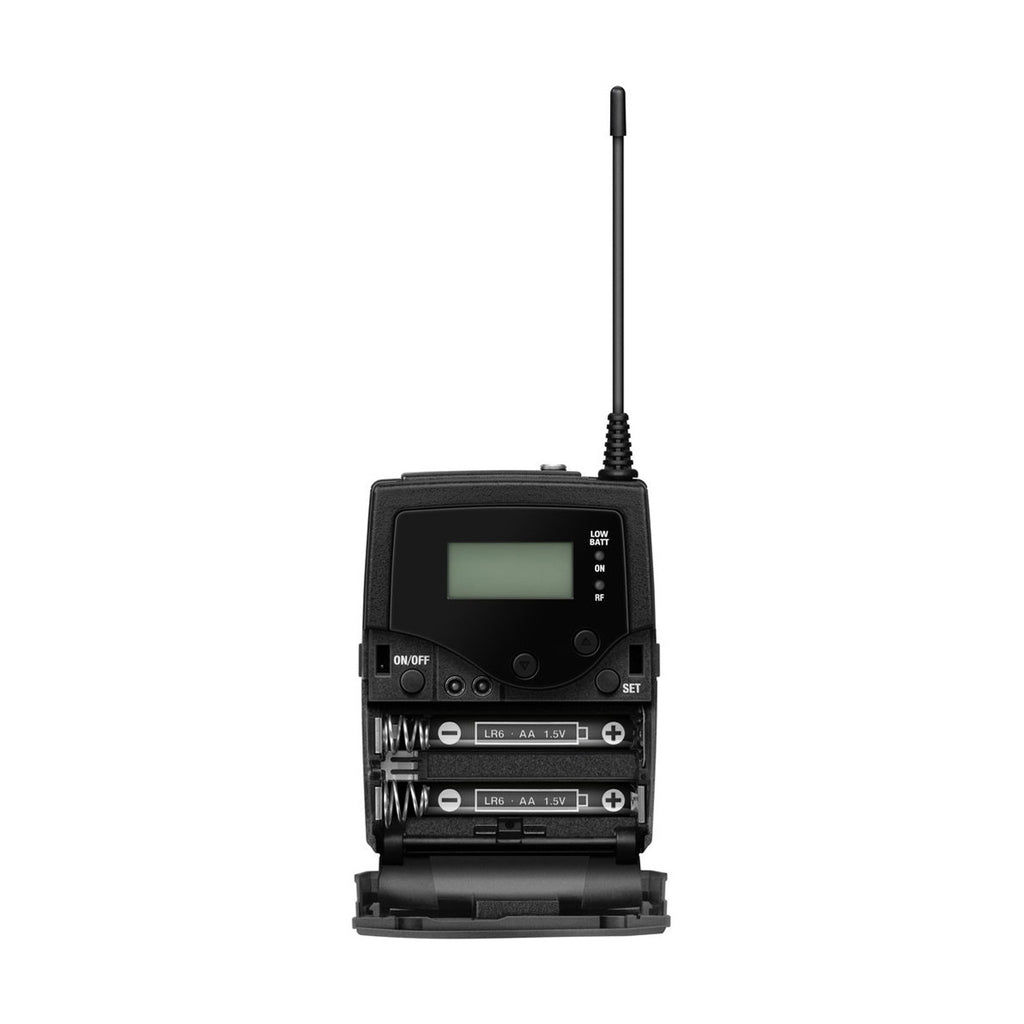

  • EK 500 G4 Pro Wireless Camera-Mount Receiver AW+: (470 to 558 MHz)

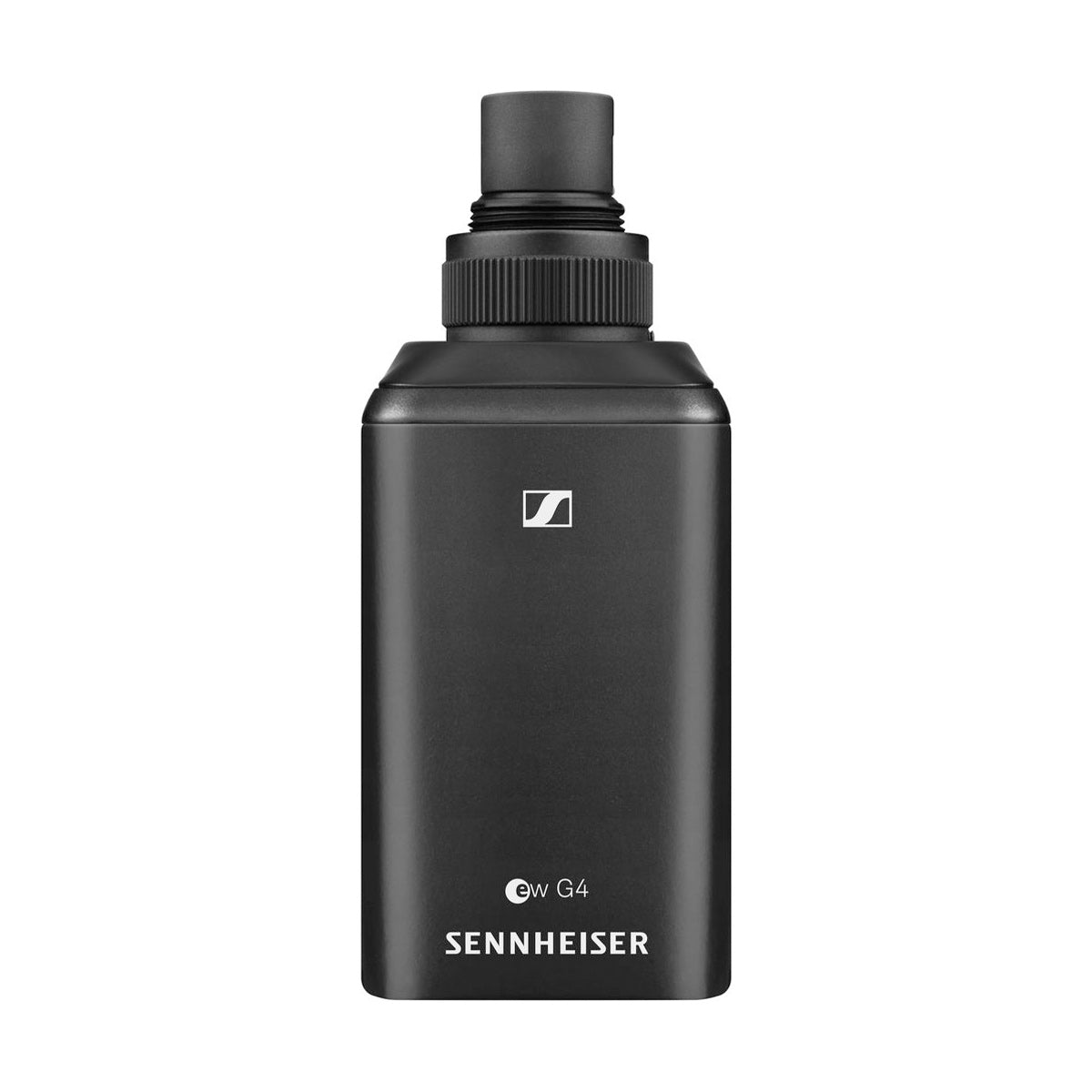

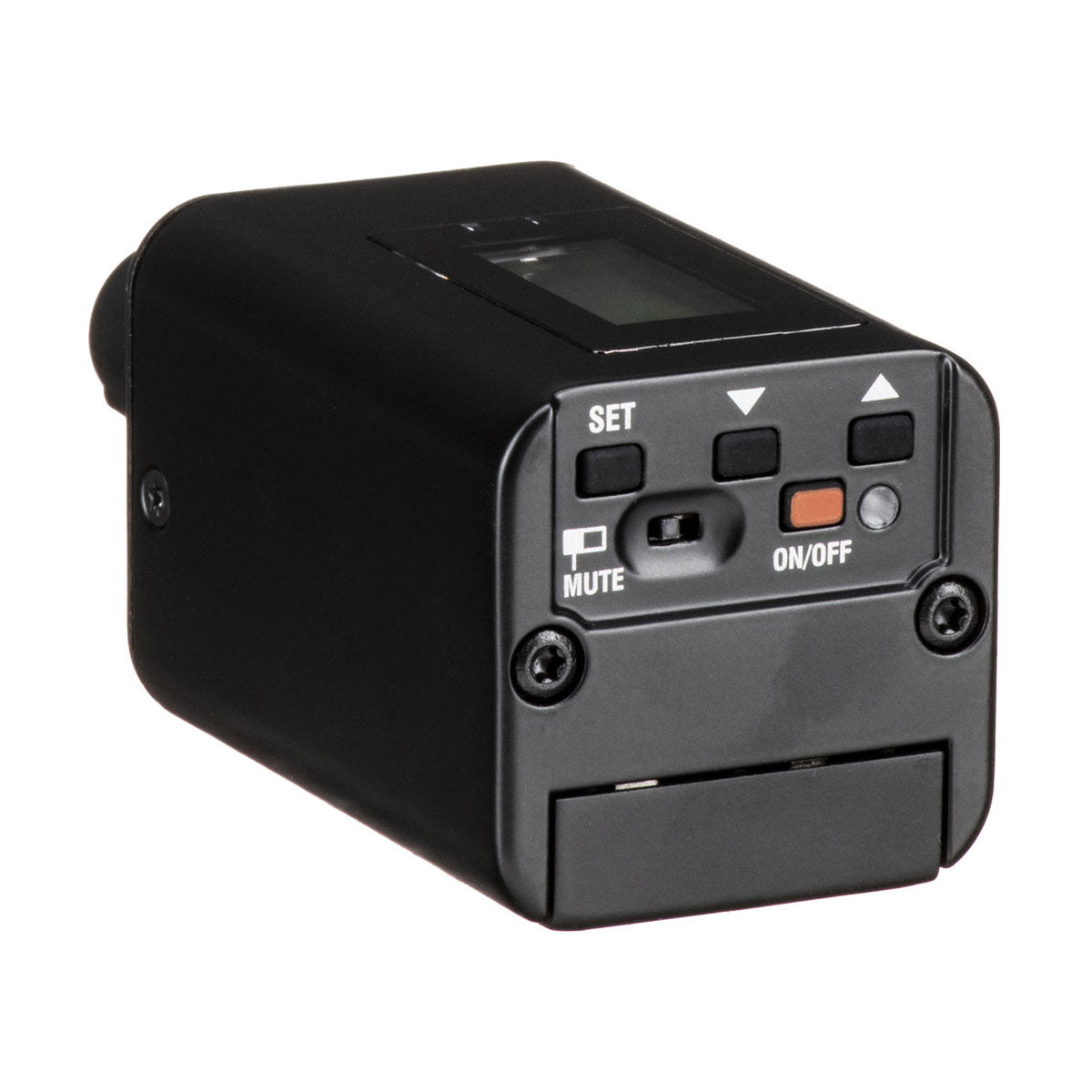

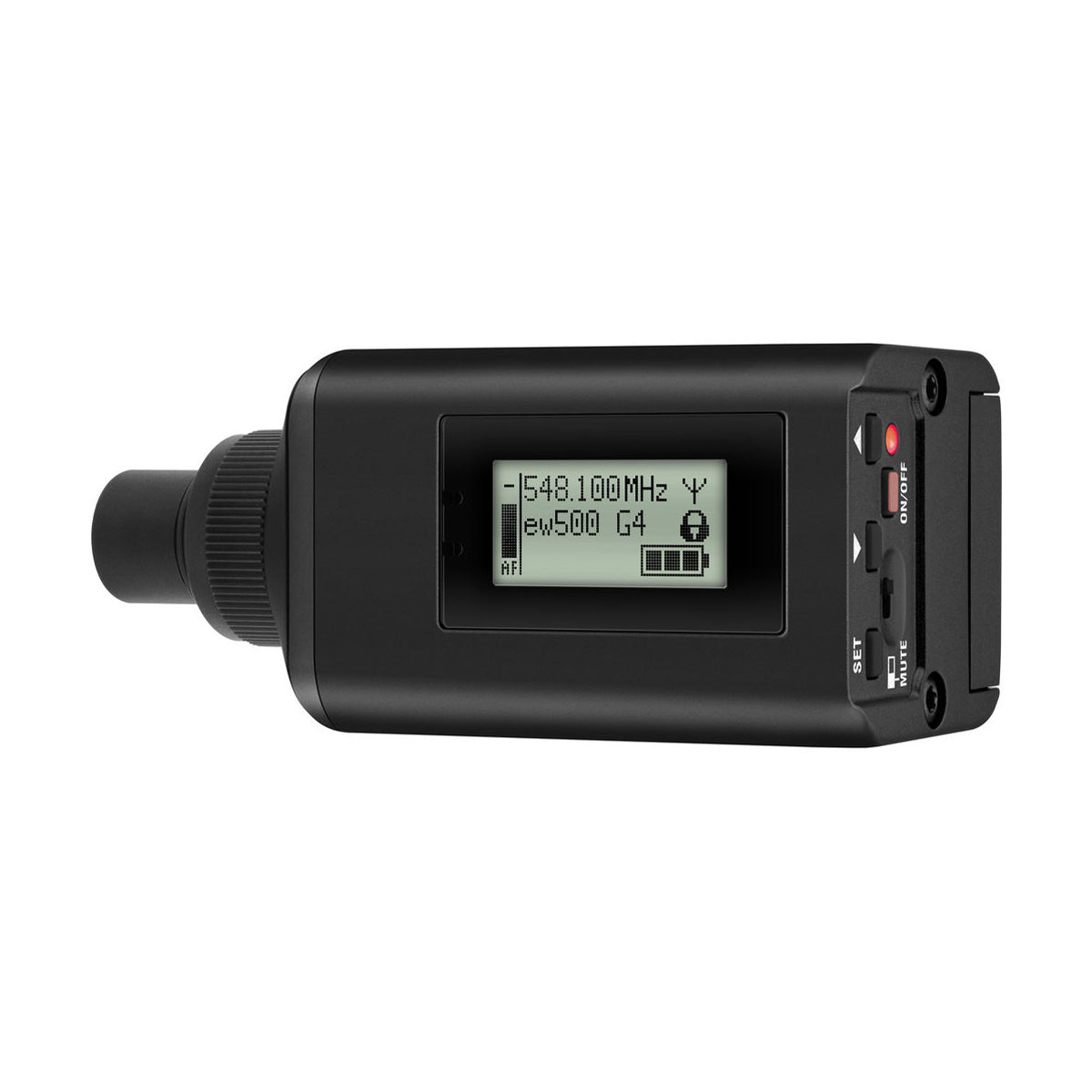

  • SKP 500 G4 Pro Wireless Plug-On Transmitter AW+: (470 to 558 MHz)

  • CA2 Shoemount Adapter for EW Series Camera Mountable Receivers

  • CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver

  • CL-500 Balanced Cable for Use with Sennheiser EK500 Receiver 1/8"-Male Mini Jack to XLR-Male Connector

  • 4 x AA Batteries

  • Limited 2-Year Warranty

Related Products

Description

System
Wireless TechnologyAnalog UHF
Number of RF Channel Frequencies3520
Included Transmitters1 x Plug-On
DiversityAntenna Diversity
RF Frequency Band470 to 558 MHz
RF Bandwidth88 MHz
Frequency Step Size25 kHz
Max Operating Range 330' / 100.6 m (Line of Sight)
Max Transmitters per Band32
EncryptionNone
Deviation±48 kHz (Peak)
ModulationWideband FM

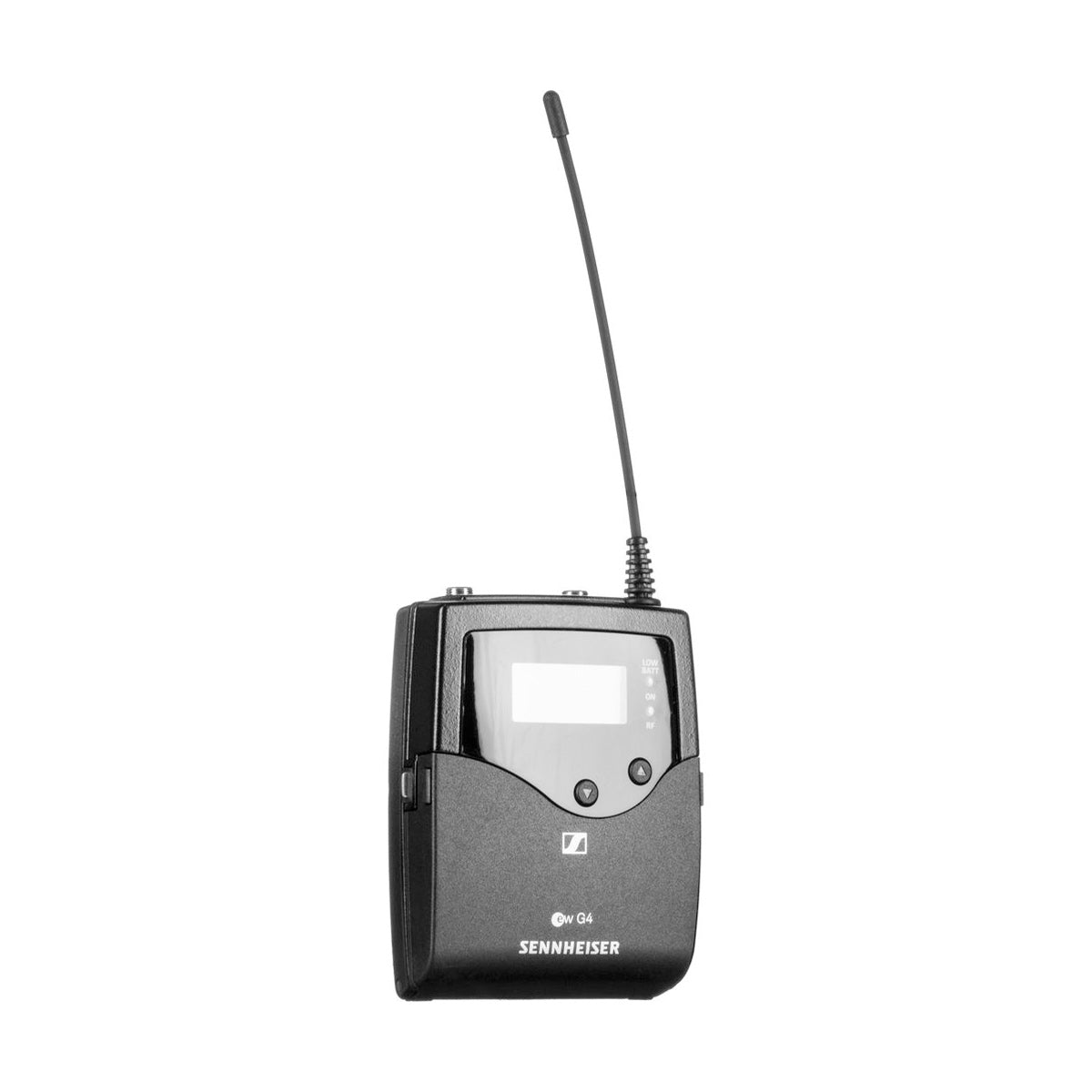

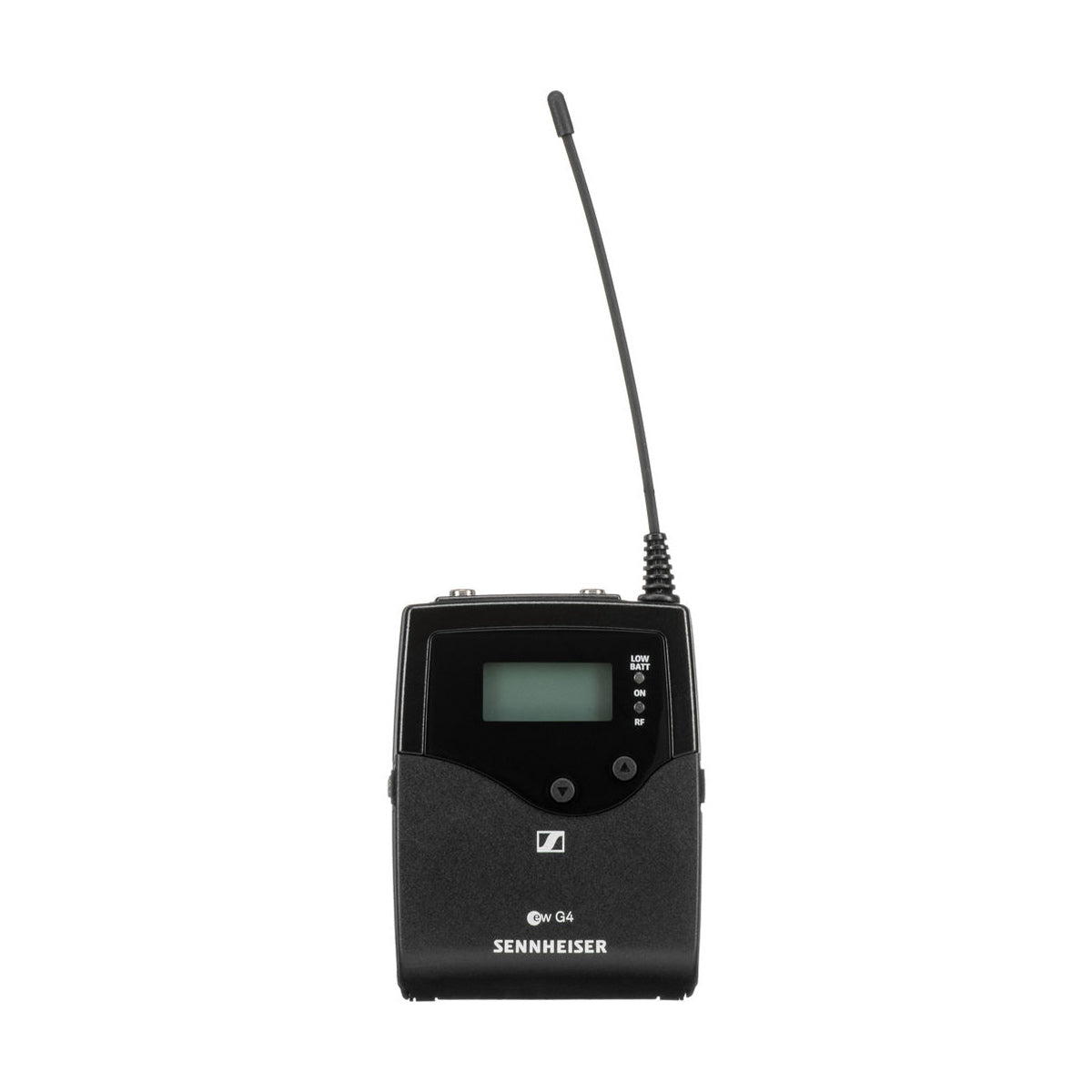

Receiver
Receiver TypeCamera-Mount
Mounting OptionsShoe-Mount (with Included Hardware)
Antenna1 x Flexible Whip, Fixed (Top-Mount)
Number of Audio Channels1

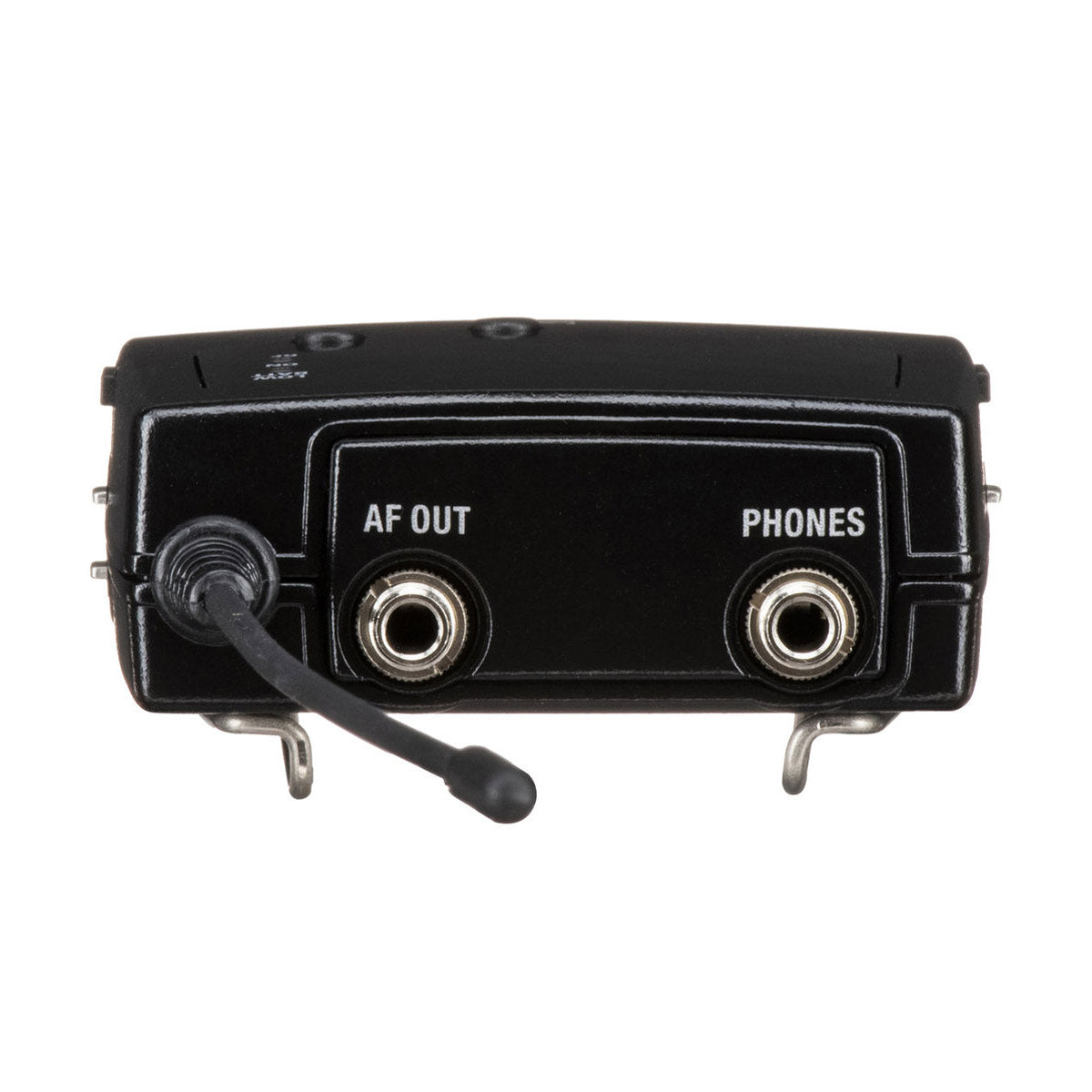

Audio I/O1 x 1/8" / 3.5 mm TRS Female Balanced Line Output (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Lockable)
Gain Range42 dB (6 dB Steps)
Audio Output Level1/8" / 3.5 mm Output:
+17 dBu (Balanced)
Approximate RF Sensitivity1.6 µV
SquelchAdjustable, 5 to 25 dBμV
Adjacent Channel Isolation>65 dB
Power RequirementsBattery

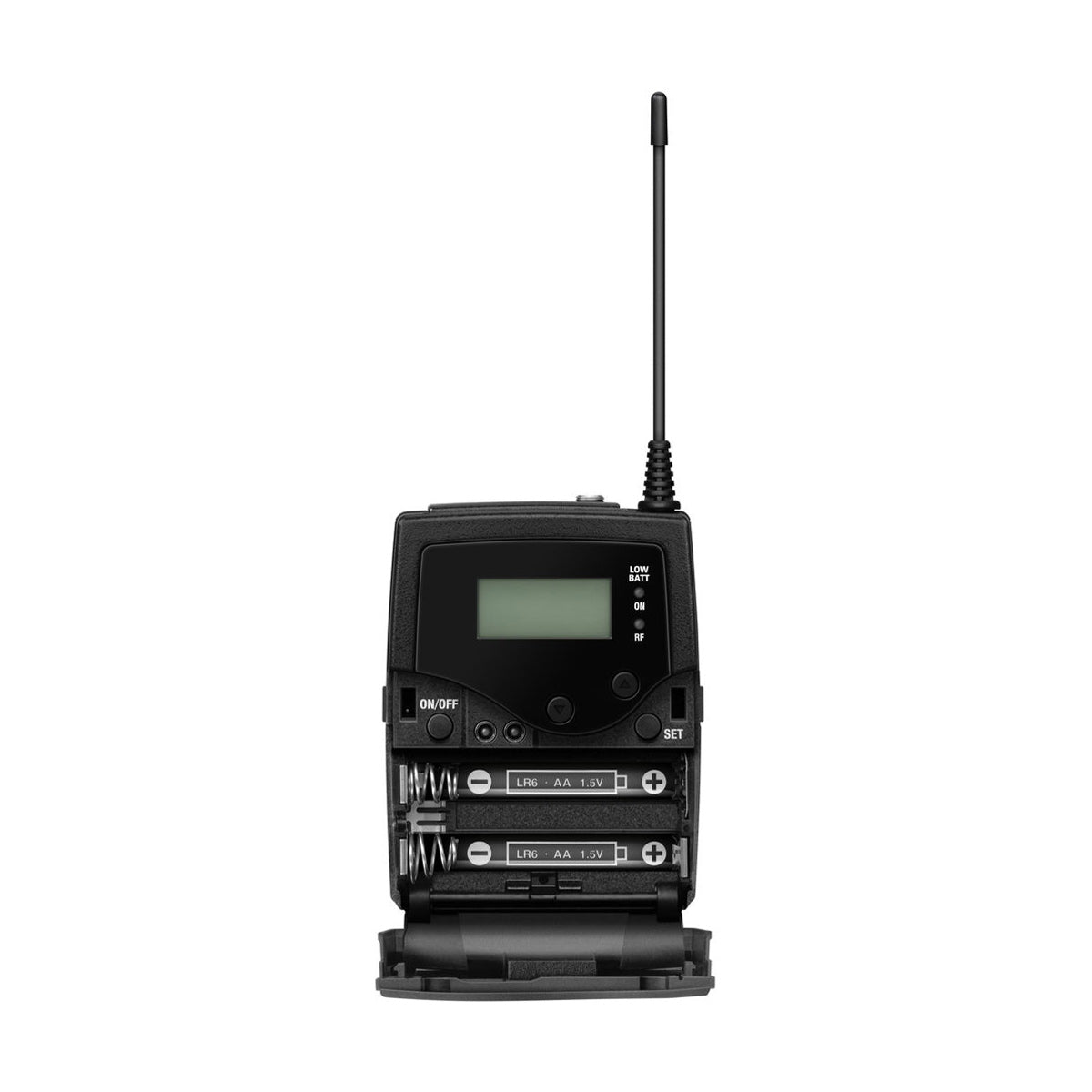

Battery Type2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life8 Hours (Alkaline)
Display & Indicators1 x Backlit LCD (Battery Status, Output Level, RF Level)
HousingMetal
Operating Temperature14 to 131°F / -10 to 55°C
Dimensions2.5 x 3.2 x 0.9" / 63.5 x 81.3 x 22.9 mm
Weight4.6 oz / 130 g (with Batteries)

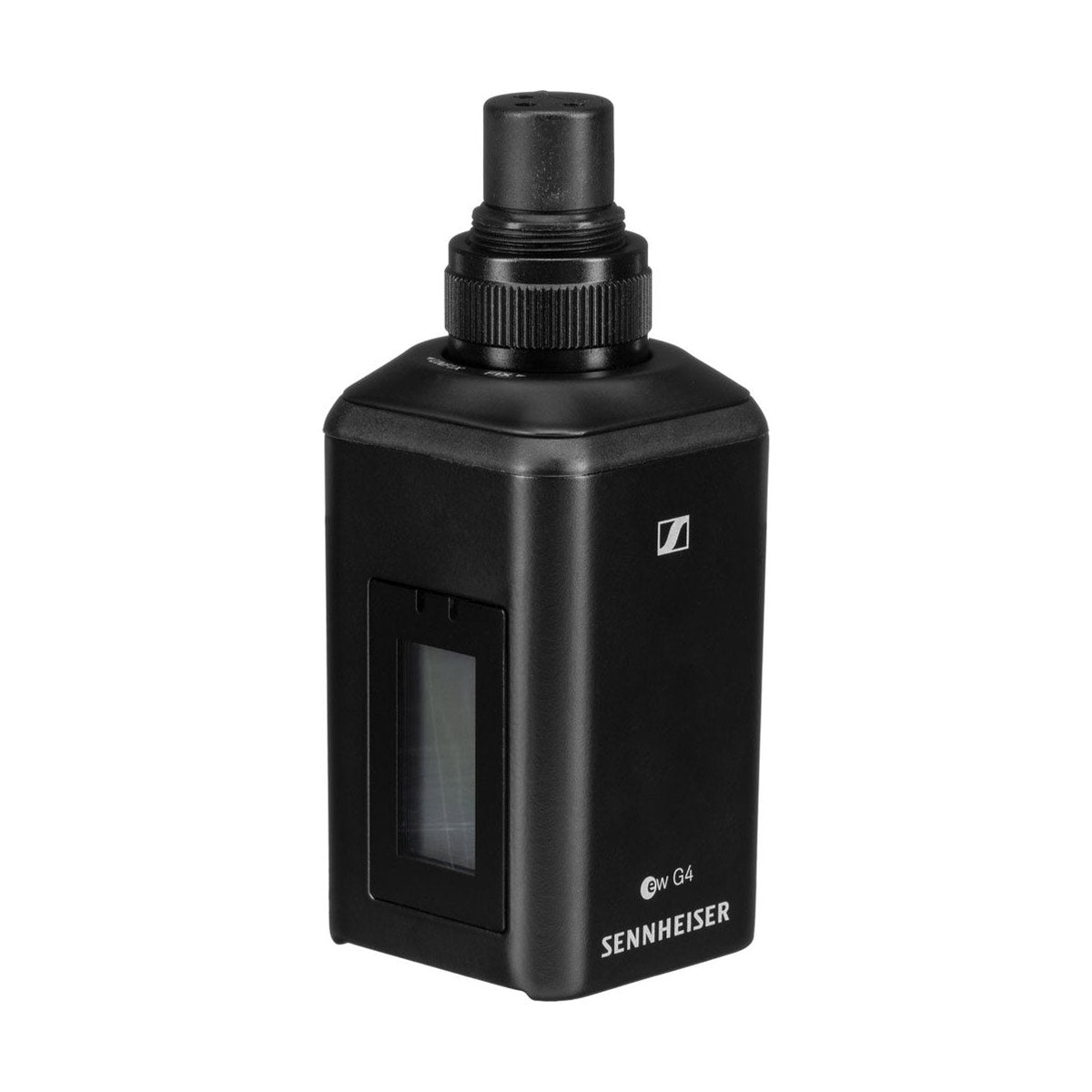

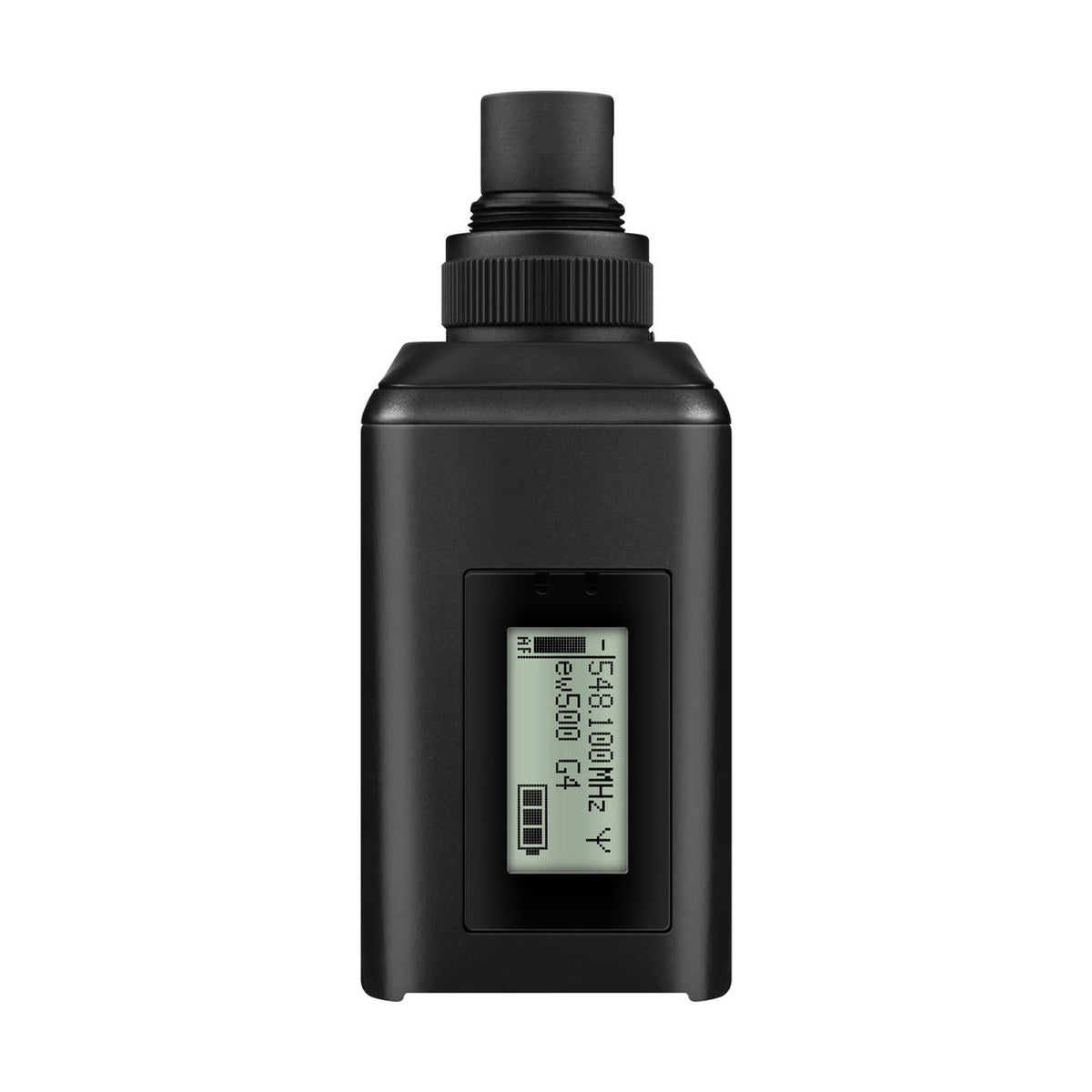

Transmitter
Transmitter TypePlug-On
RF Output Power10 / 30 / 50 mW (Switchable, at 50 Ohms)

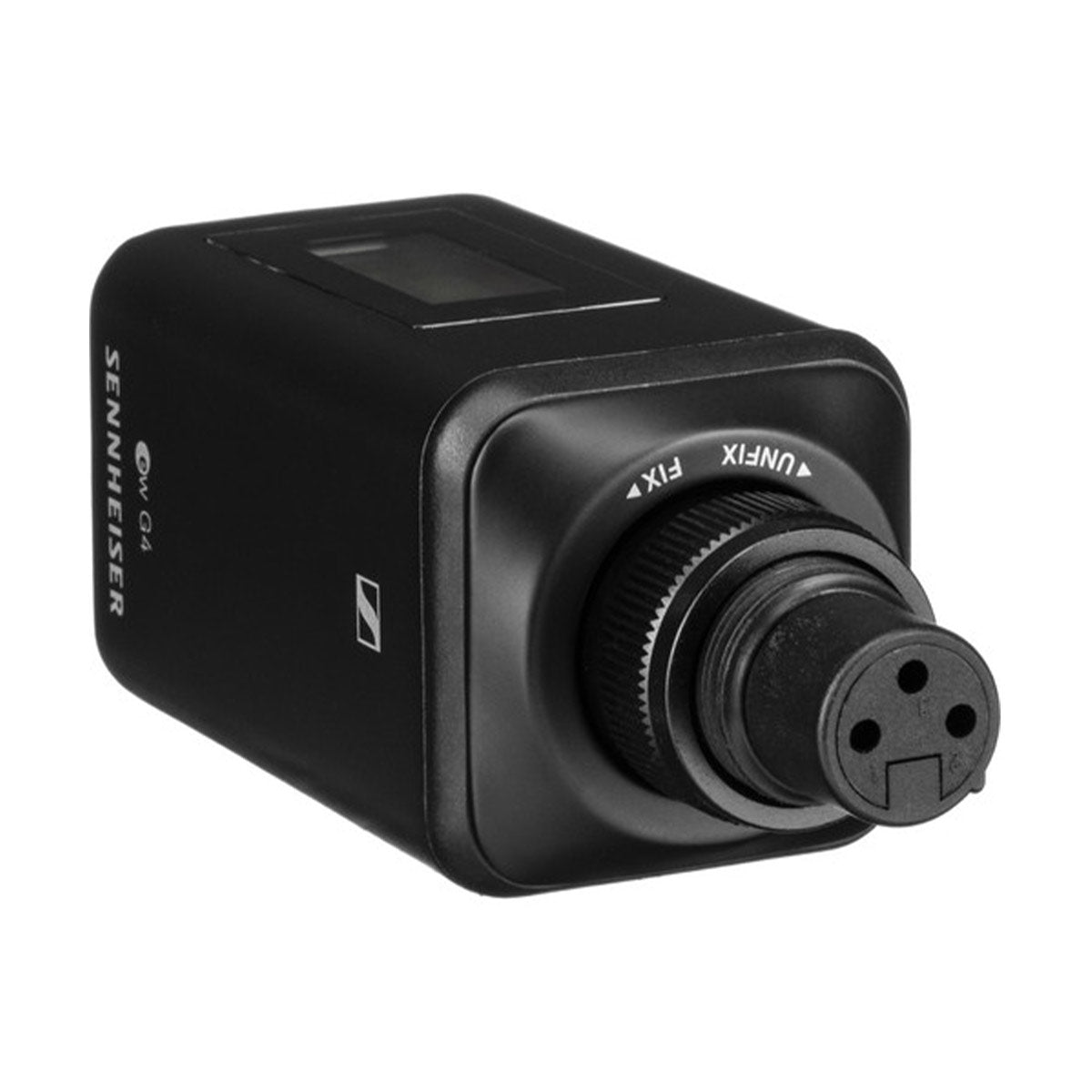

Audio I/O1 x XLR 3-Pin Female Unbalanced Input (Lockable)
Phantom Power+48 V
MutingMute Switch
Audio Input Level6 V RMS (Mic Level, Line Level)
Gain Range48 dB (6 dB Steps)
Signal ProcessingNone
Frequency Response80 Hz to 18 kHz
Sync MethodIR
Antenna1 x Internal, Fixed
Power RequirementsBattery
Battery Type2 x AA (Included)
1 x Sennheiser Accupack (Not Included)
Approx. Battery Life8 Hours (Alkaline)
Display & Indicators1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
HousingMetal
Operating Temperature14 to 131°F / -10 to 55°C
Dimensions1.7 x 4.1 x 1.7" / 43 x 105 x 43 mm
Weight6.9 oz / 195 g (with Batteries)
