Product Information
-

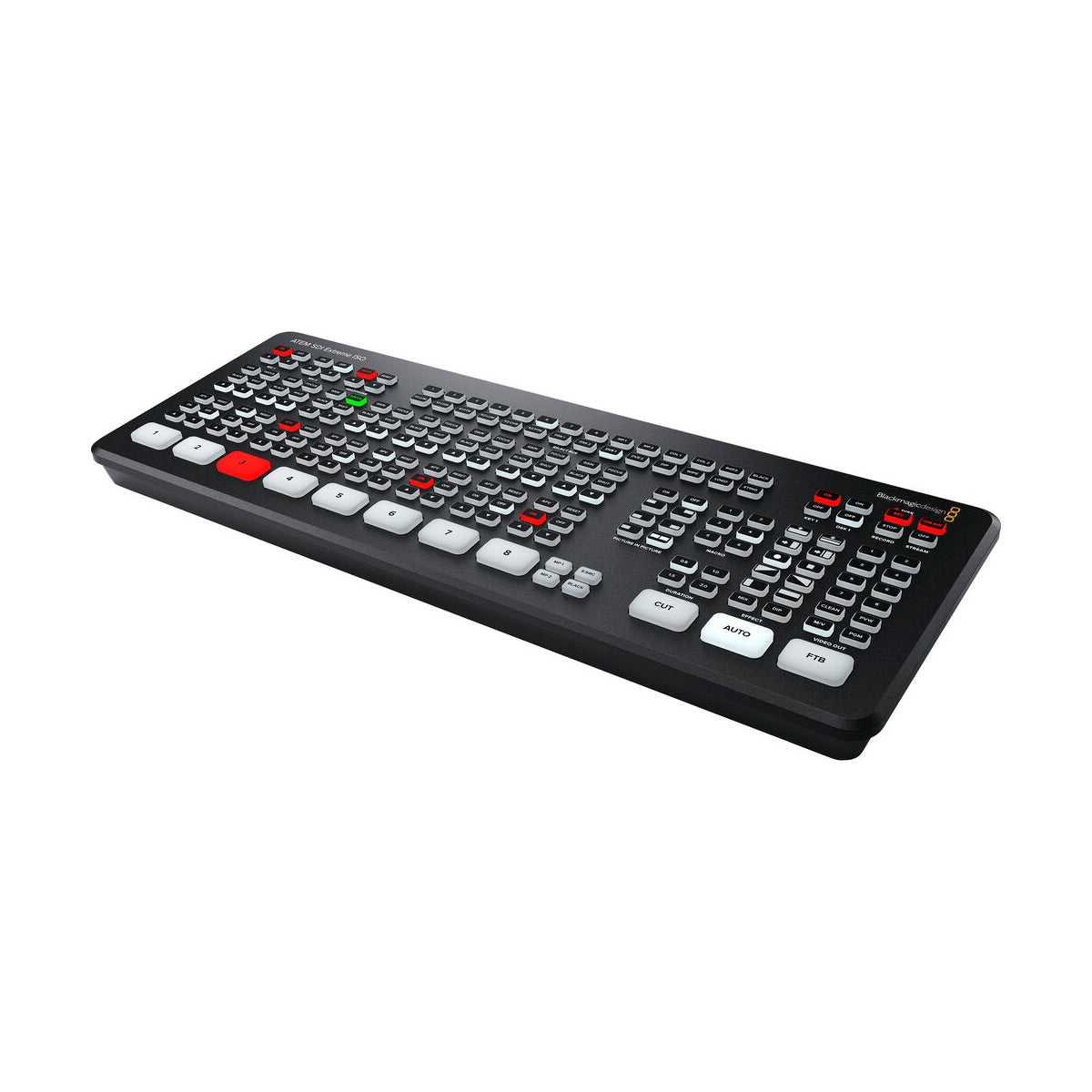

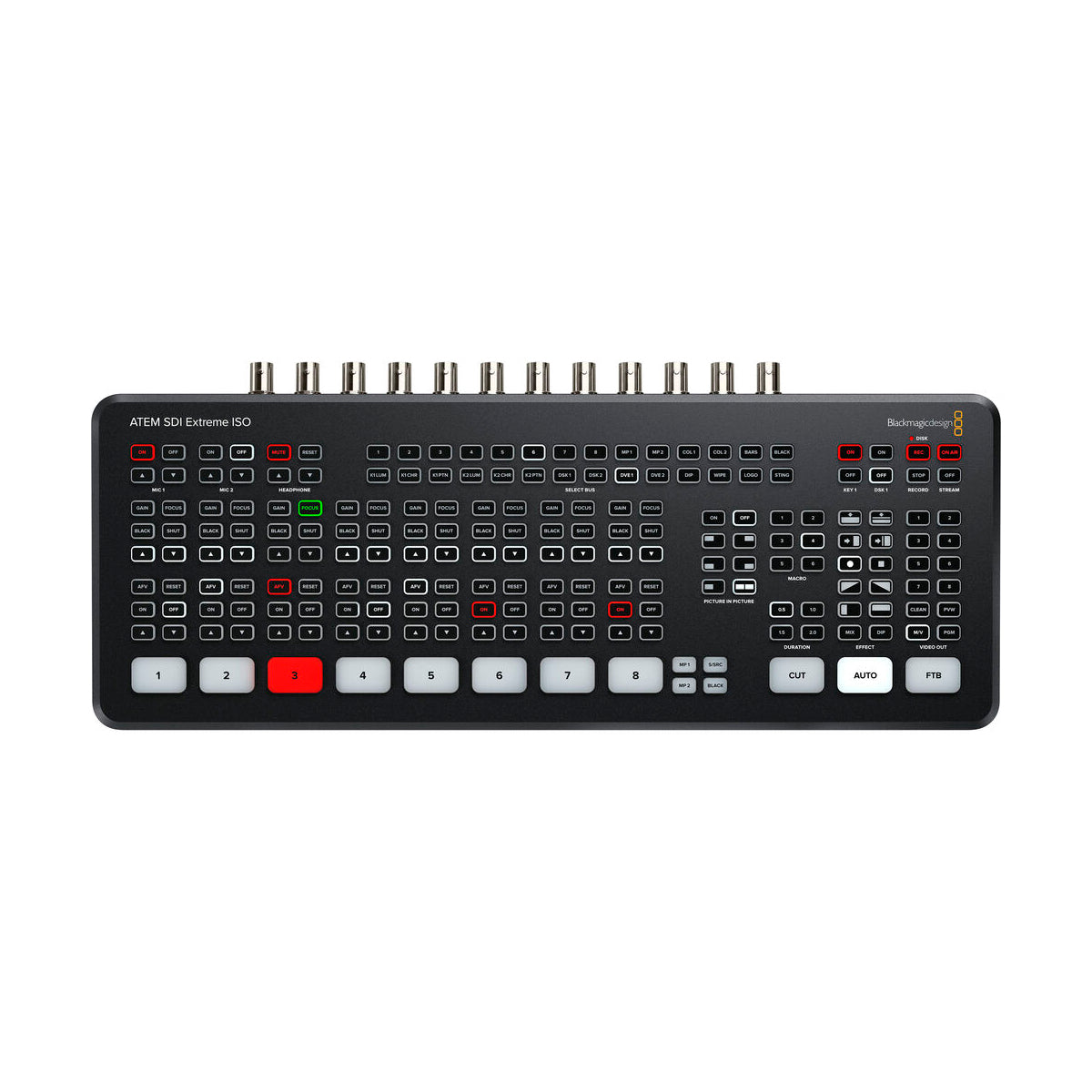

ATEM SDI Extreme ISO Switcher
-
Power Supply Cable
-
Limited 1-Year Manufacturer Warranty
| Switcher | |
|---|---|
| Available M/E Layers | 9 M/E |
| Effect Types | DVE, Transition, Chroma Key, Luma Key |
| Generators | 5 x Pattern 2 x Color |
| Audio Mixing | 2-Channel Mixing |
| Processing | |
|---|---|
| Switching Type | IR Remote, Pushbutton, Software |
| Input | |
|---|---|
| Number of Video Input Sources | 8 |

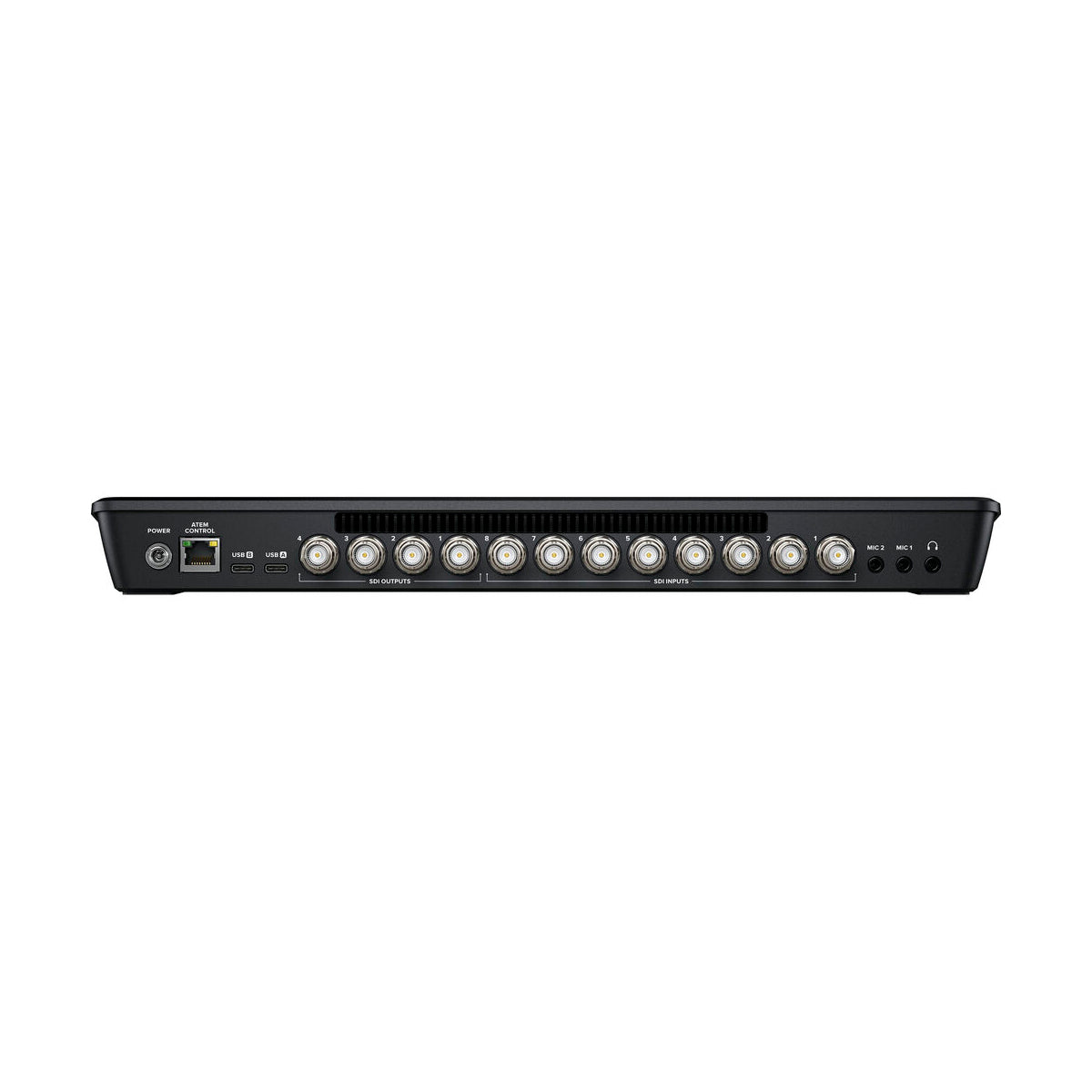

| Video Input Connectors | 8 x BNC (3G-SDI) |
| Input Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps |
| Audio Input Connectors | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | SDI: 2-Channel (per Input) |
| Output | |
|---|---|
| Video Output Channels | 6 |
| Video Output Connectors | 4 x BNC (3G-SDI) (Program) 2 x USB Type-C |
| Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB Type-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Analog |
| Output Audio Format | Analog |
| Embedded Audio Output | SDI: 2-Channel (per Output) |
| Multiview Output | None |
| Connectivity | |
|---|---|
| Other I/O | 1 x RJ45 Control Input/Output |
| HDCP Support | None |
| IP Video | 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding |
| Hardware | |
|---|---|
| OS Compatibility | macOS 11 macOS 12 or Later Windows 10 Windows 11 |
| Power Connector | 1 x Barrel (12 VDC) Input |
| Power Consumption | Device: 36 W |
| Environmental | |
|---|---|
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| General | |
|---|---|
| Dimensions | 14.56 x 5.94 x 1.56" / 36.98 x 15.09 x 3.96 cm |
| Weight | 3.13 lb / 1.42 kg |
