Configurations
Product Information
-

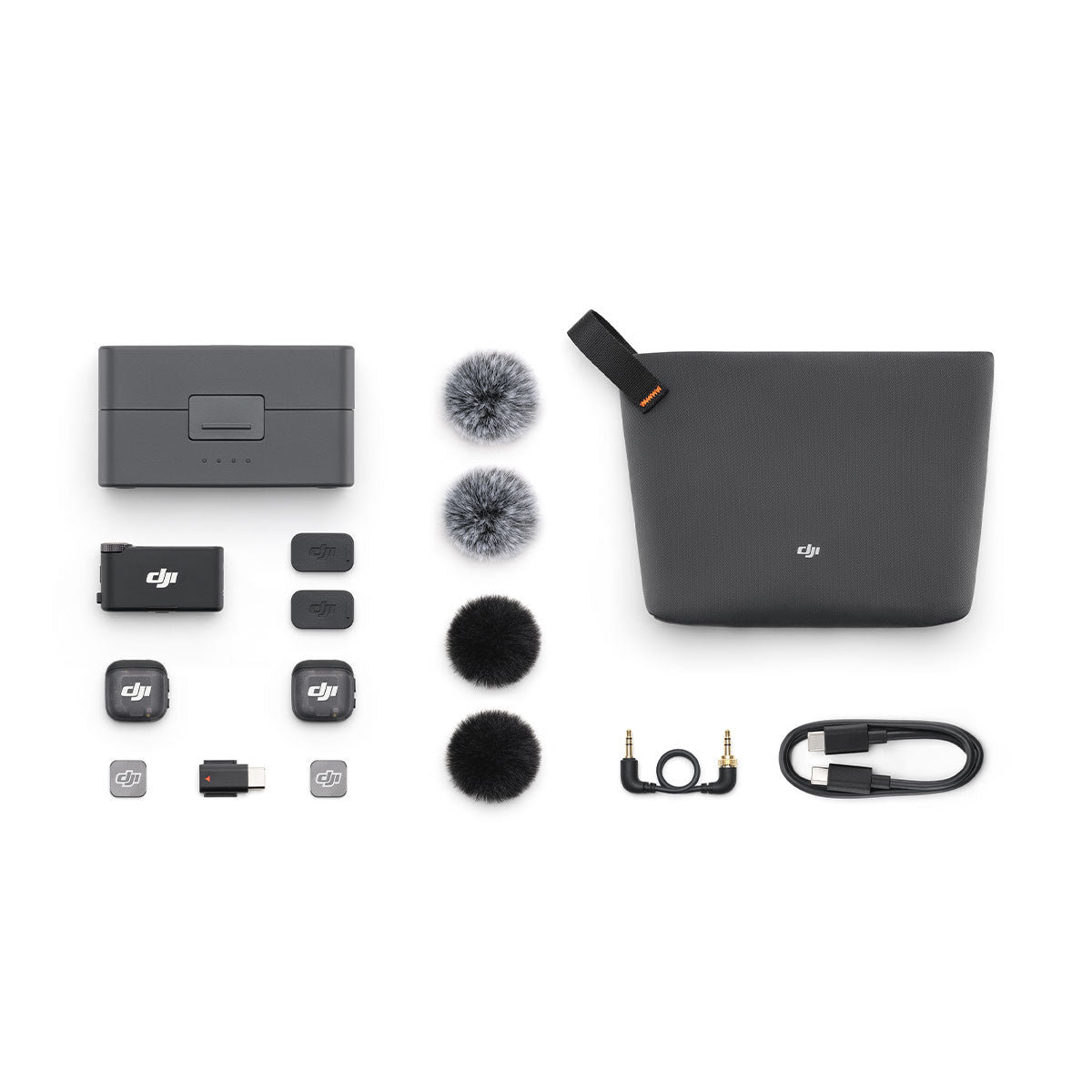

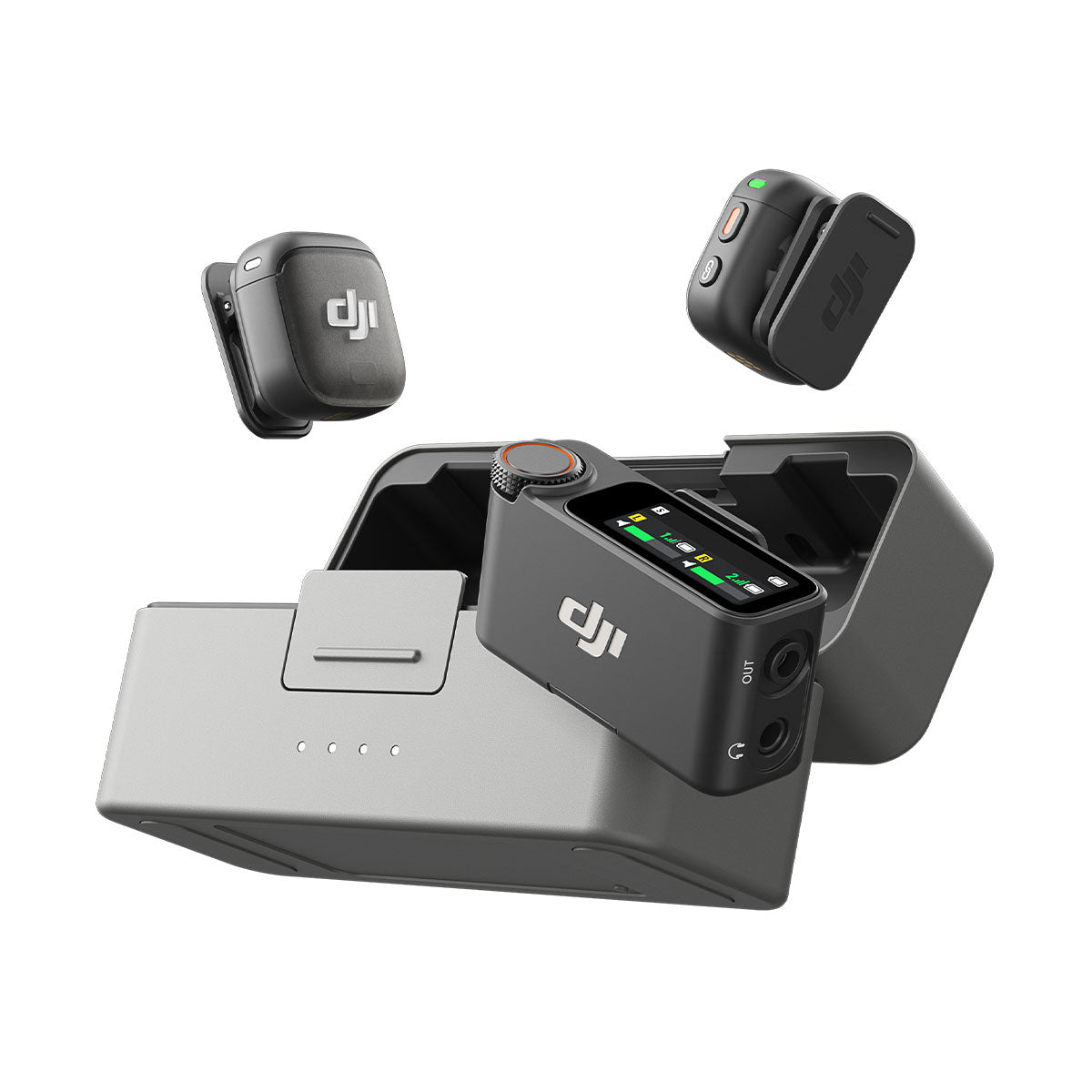

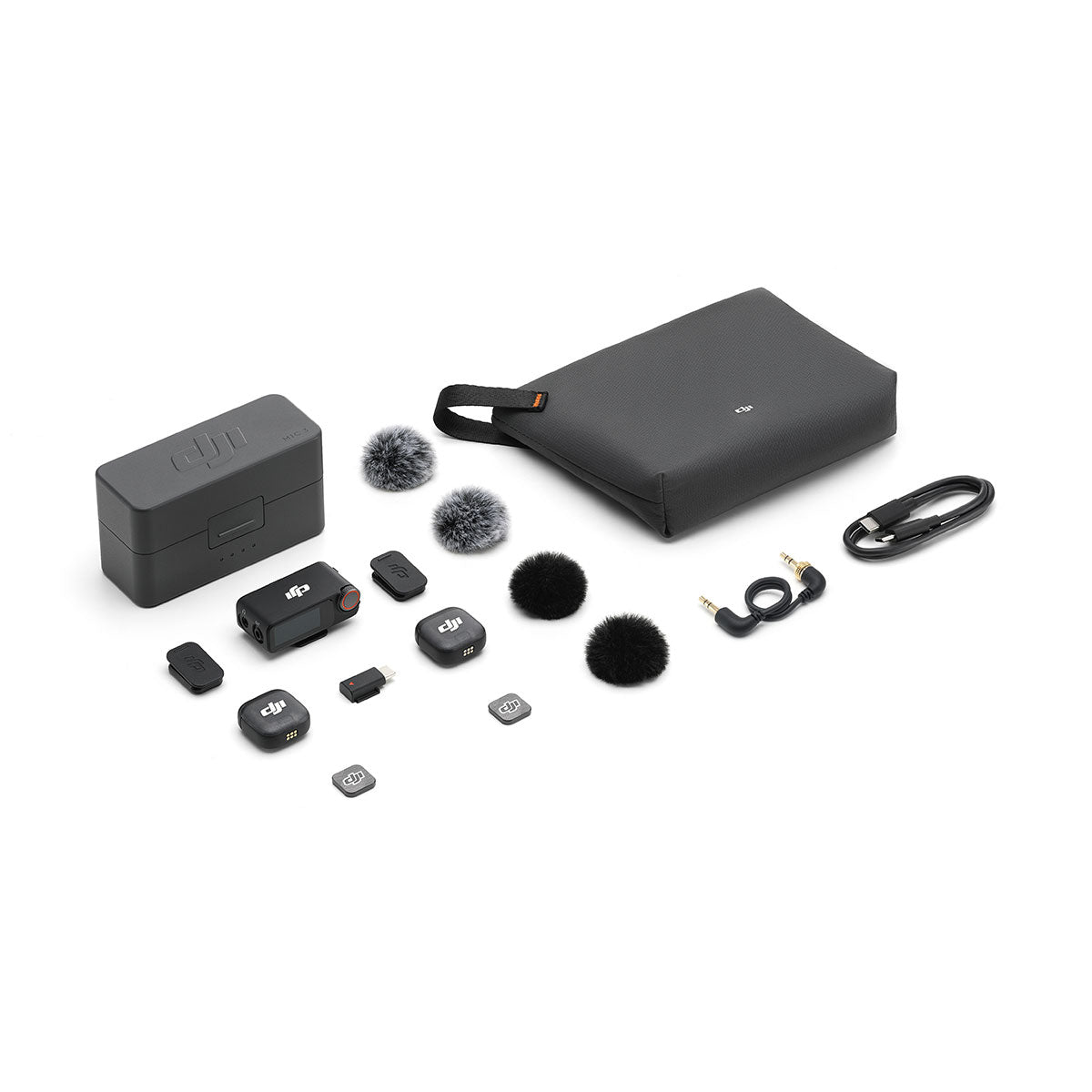

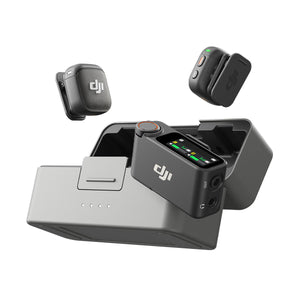

Mic 3 Two-Person Compact Wireless Mic System
-
Mic 3 Transmitter (Black) x 2
-
Mic 3 Receiver
-

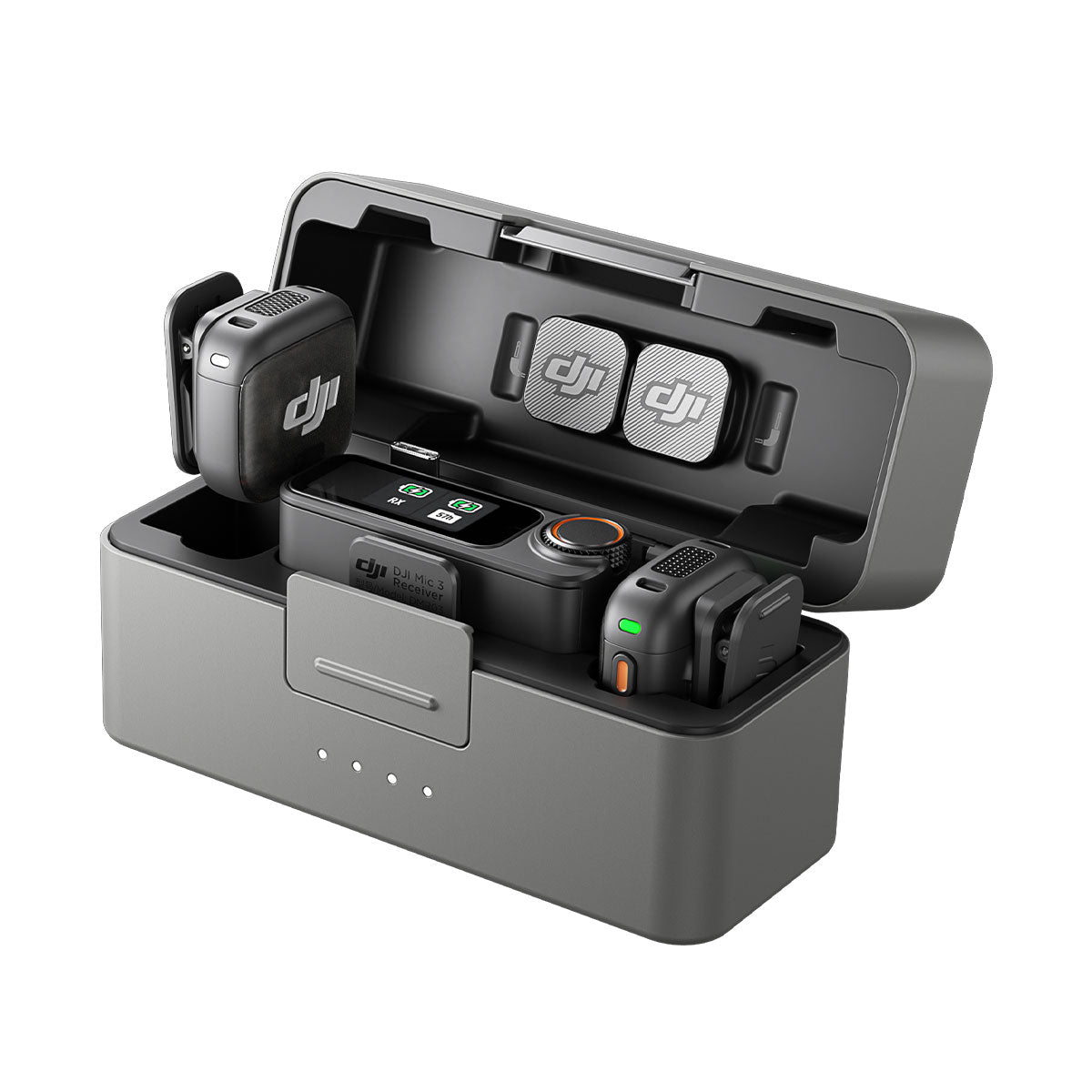

Mic 3 Charging Case
-
Mic 3 Mobile Phone Adapter (Type-C)
-
Mic USB-C Data Cable
-
Mic 3 Locking Audio Adapter Cable (3.5mm TRS to TRS)
-

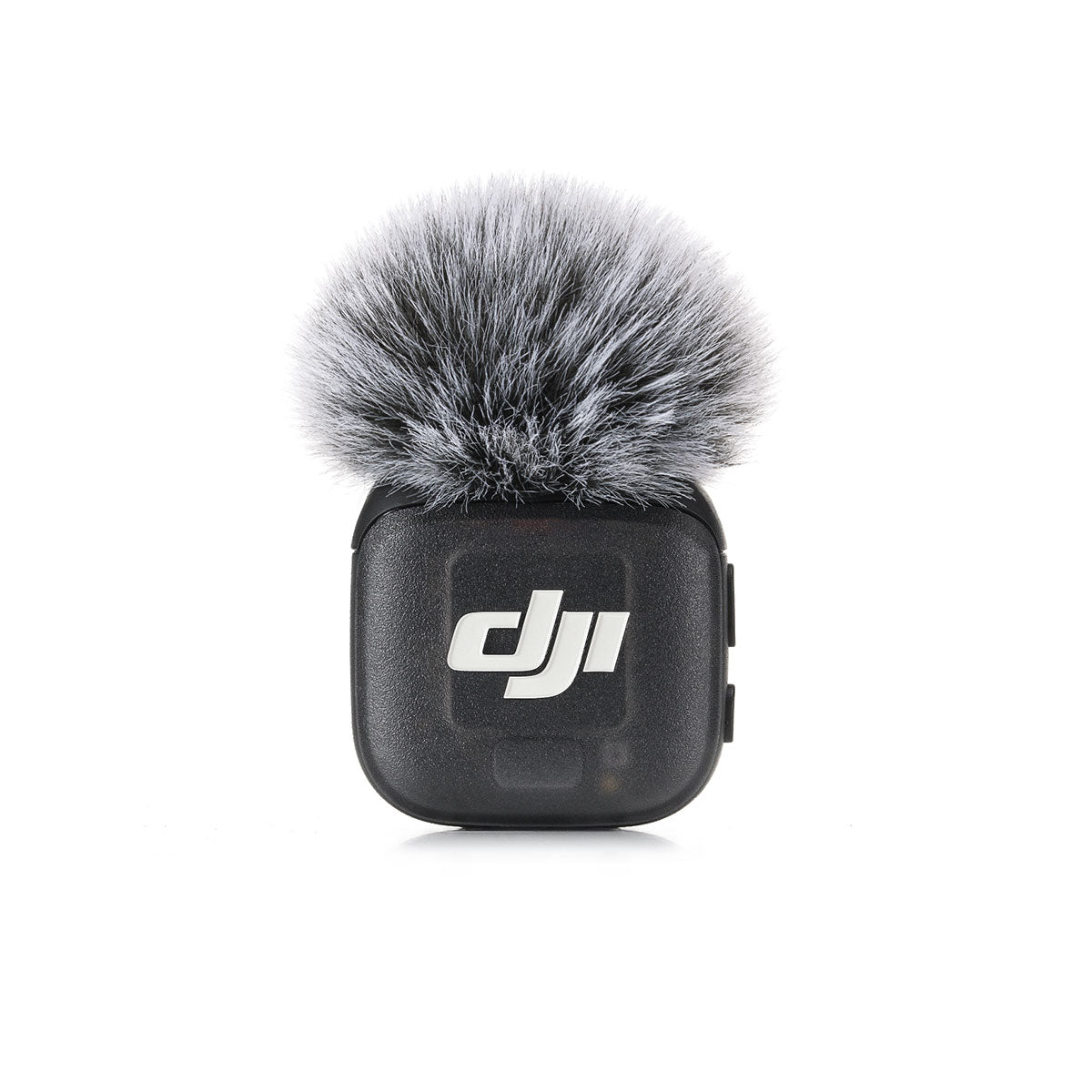

Mic 3 Windscreen (Black/Gray) × 2
-
Mic 3 Windscreen (Black) × 2
-
Mic 3 Magnet x 2
-

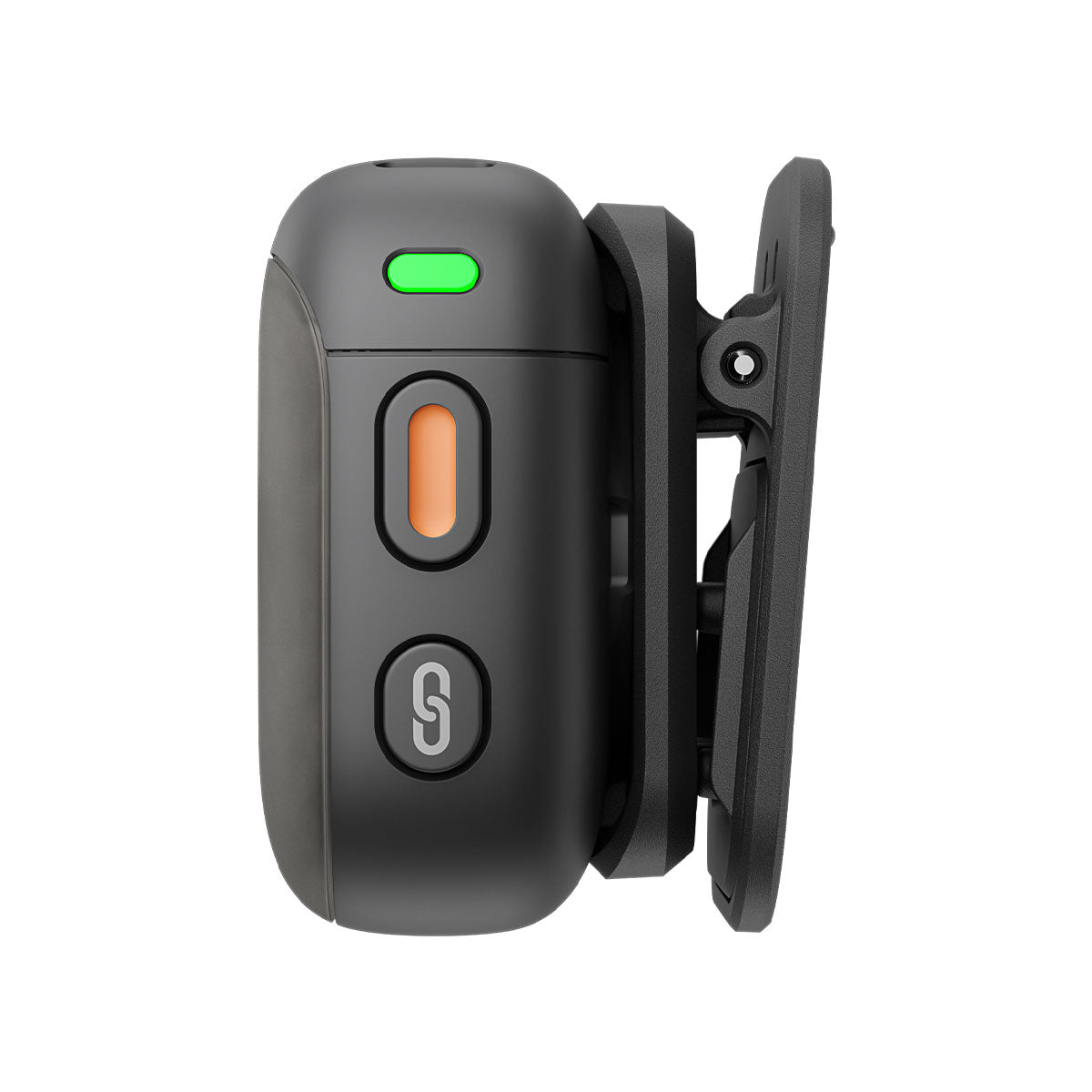

Mic 3 Magnetic Clip × 2
-
Mic 3 Carrying Pouch × 1
-
Limited 1-Year Warranty

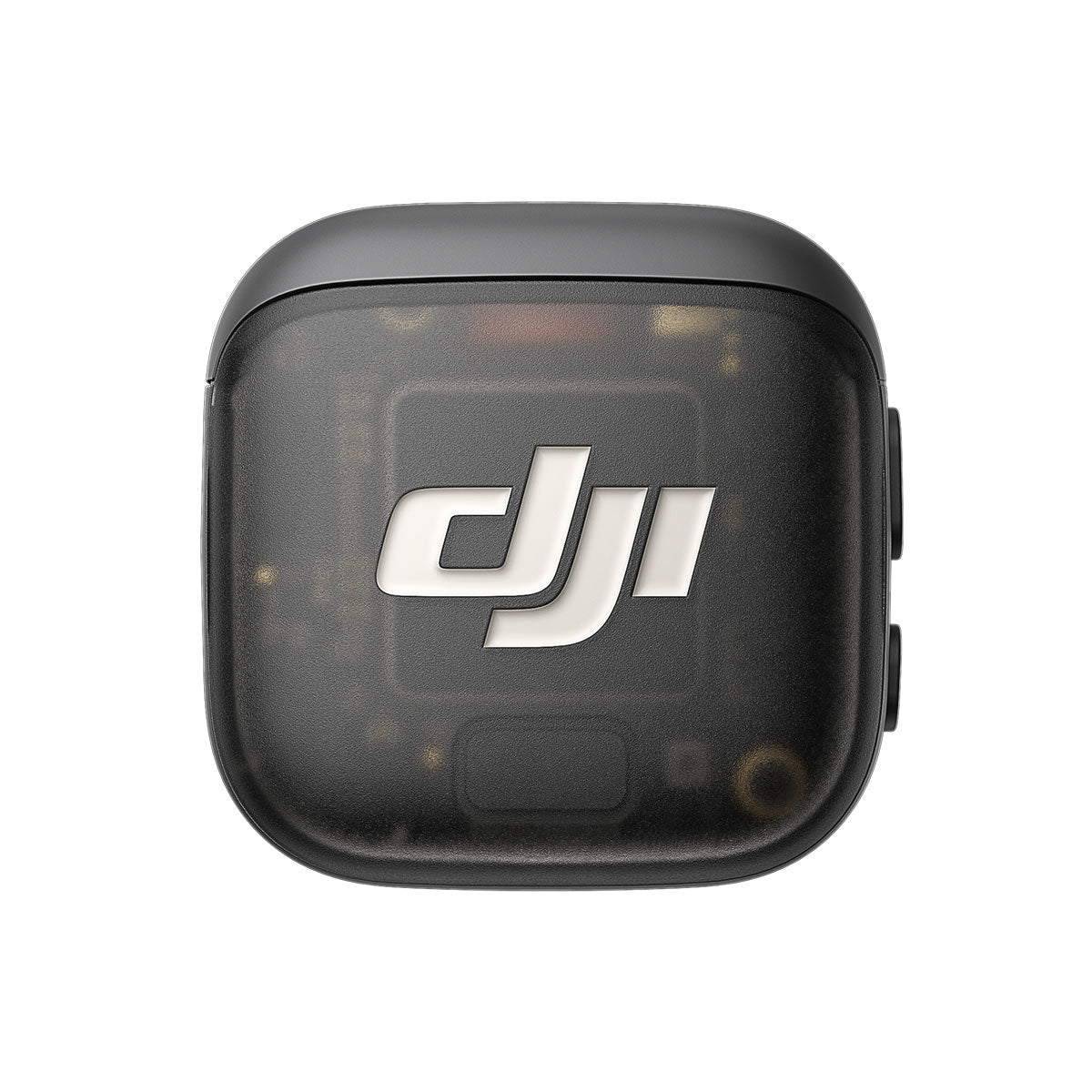

DJI Mic 3 Transmitter | |
---|---|
Wireless Mode | Wi-Fi: 802.11 a/b/g/n/ac/ax SDR: Customizable |
Equivalent Isotropic Radiated Power (EIRP) | <20 dBm |
Bluetooth Protocol | Bluetooth 5.3 |
Bluetooth Operating Frequency | 2.400-2.4835 GHz |
Bluetooth Transmitter Power (EIRP) | BLE: < 10 dBm BR/EDR: < 20 dBm |
Battery Type | Li-ion |
Battery Capacity | 137 mAh |
Battery Energy | 0.531 Wh |
Battery Voltage | 3.87 V |
Charging Specification | Max 5 V |
Charging Temperature | 5 to 45°C / 41 to 113° F |
Operating Temperature | -10° to 45°C / 14 to 113° F |
Charging Time | Approx. 50 minutes |
Operating Time | Approx. 8 hours |
Dimensions (L × W × H) | 1.13 x 1.12 x 0.64" / 28.77 × 28.34 × 16.35mm (with magnet) |
Weight | 0.56 oz / 16 g (with magnet) |
DJI Mic 3 Receiver | |
---|---|
Wireless Mode | Wi-Fi: 802.11 a/b/g/n/ac/ax SDR: Customizable |
Equivalent Isotropic Radiated Power (EIRP) | <20 dBm |
Bluetooth Protocol | Bluetooth 5.4 |
Bluetooth Transmitter Power (EIRP) | < 10 dBm |
Bluetooth Operating Frequency | 2.400-2.4835 GHz |
Battery Type | Li-ion |
Battery Capacity | 275 mAh |
Battery Energy | 1.065 Wh |
Battery Voltage | 3.87 V |
Charging Temperature | 5 to 45°C / 41 to 113° F) |
Operating Temperature | -10° to 45°C / 14 to 113° F |
Charging Time | Approx. 50 minutes |
Operating Time | Approx. 10 hours |
Dimensions (L × W × H) | 2.12 x 1.13 x 0.87" / 53.85 × 28.69 × 22mm |
Weight | 0.89 oz / 25.1 g |

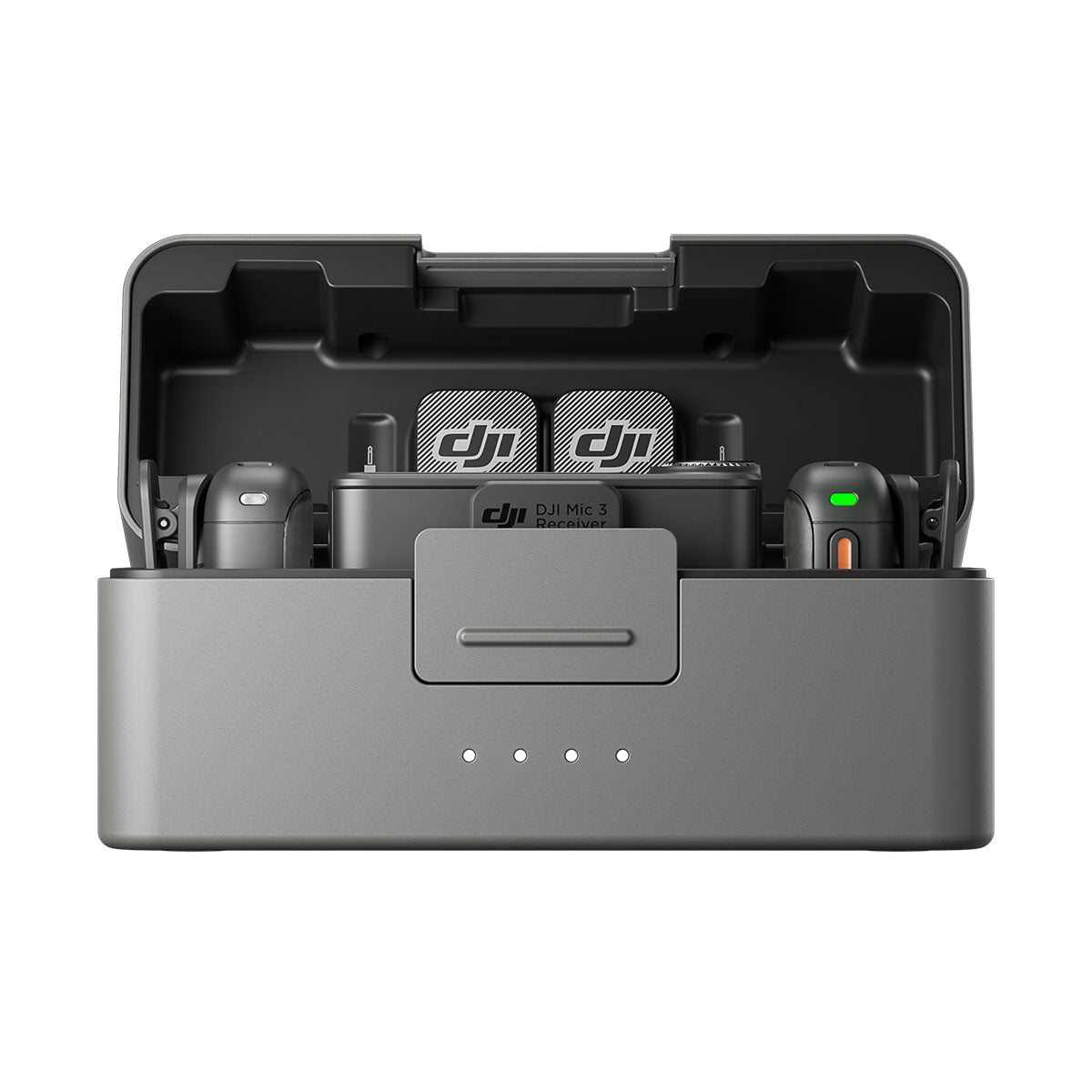

DJI Mic 3 Charging Case | |
---|---|
Battery Type | Li-ion |
Battery Capacity | 1950 mAh |
Battery Energy | 7.55 Wh |
Battery Voltage | 3.87 V |
Charging Temperature | 5 to 45°C / 41 to 113° F |
Operating Temperature | 5 to 45°C / 41 to 113° F |
Charging Time | Approx. 2 hours |
Charging Cycles for TX and RX | When charging two transmitters and one receiver simultaneously, a fully charged charging case can fully charge them for approx. 2.4 times. |
Dimensions (L × W × H) | 4.19 x 1.67 x 2.33" / 106.3 × 42.5 × 59.2mm |
Weight | 5.79 oz / 164.1g |
General | |
---|---|
Microphone Direction | Omnidirectional |
Microphone Sensitivity | Microphone Capsule: -36±1 dBV@1 kHz, 94 dB SPL |
Signal-to-Noise Ratio (SNR) | 72 dB |
Sound Field | Mono |
Frequency Response | Low Cut Off: 20 Hz - 20 kHz Low Cut On: 100 Hz - 20 kHz |
Max Sound Pressure Level (SPL) | 126 dB SPL@1% THD 130 dB SPL@10% THD |
Equivalent Noise | 22 dBA |
Monitor Interface Output Power | Max Output Power: 20 mW@1 kHz, 32 Ω |
Max Transmission Distance | 400m |
Timecode Supported Frame Rates | 23.98F, 24F, 25F, 29.97F, 30F, 50F, 60F |
