Configurations
10 lbs
Weight Limit
12 hrs
Battery Life
Yes
Wireless Control
Yes, Pan
Infinite Roll
3.3 lbs
Gimbal Weight
- 4.5kg (10lbs) Tested Payload
- 1.4” Full-Color Touchscreen
- Carbon Fiber Construction
- Professional Mounting Options
- Creative Filming Features
-

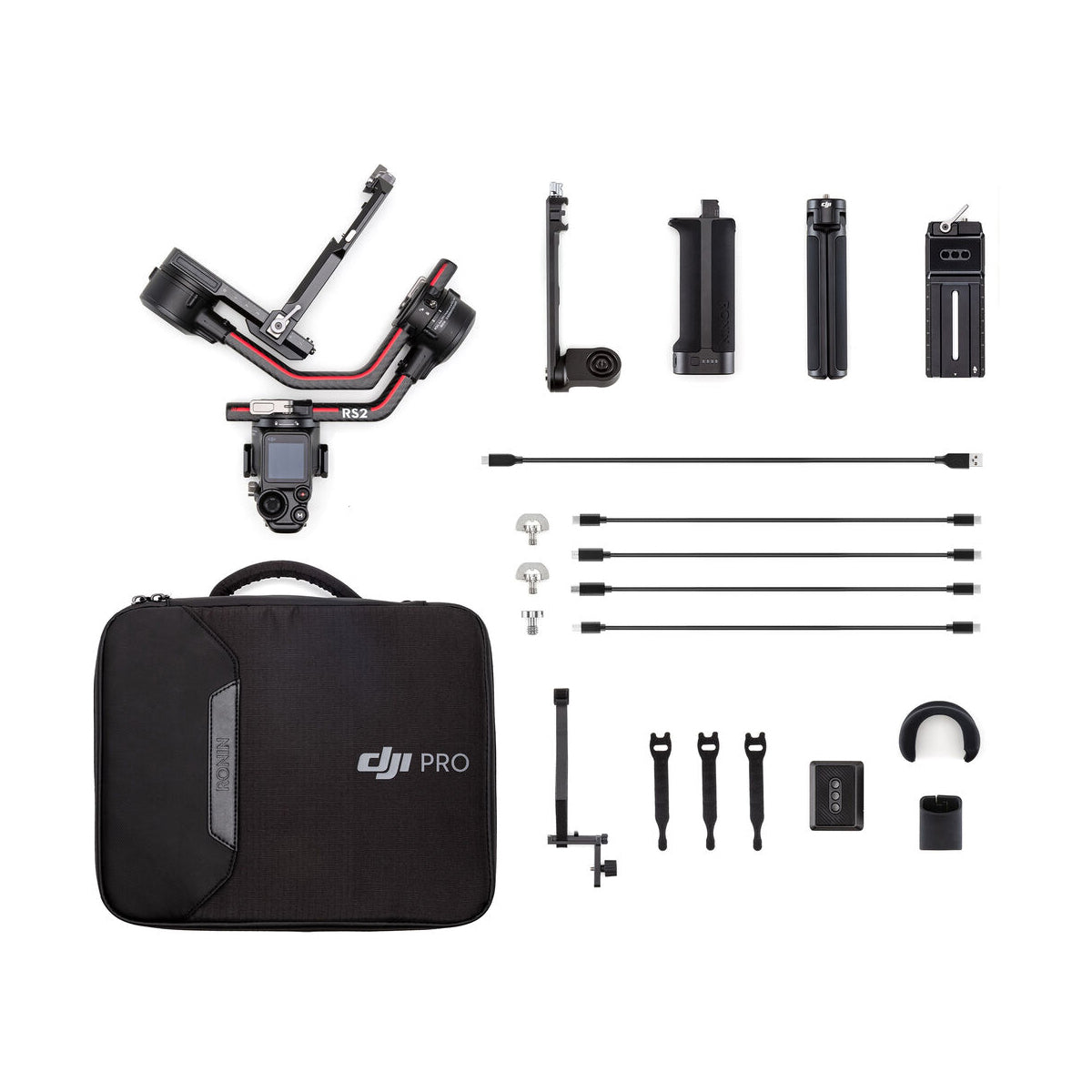

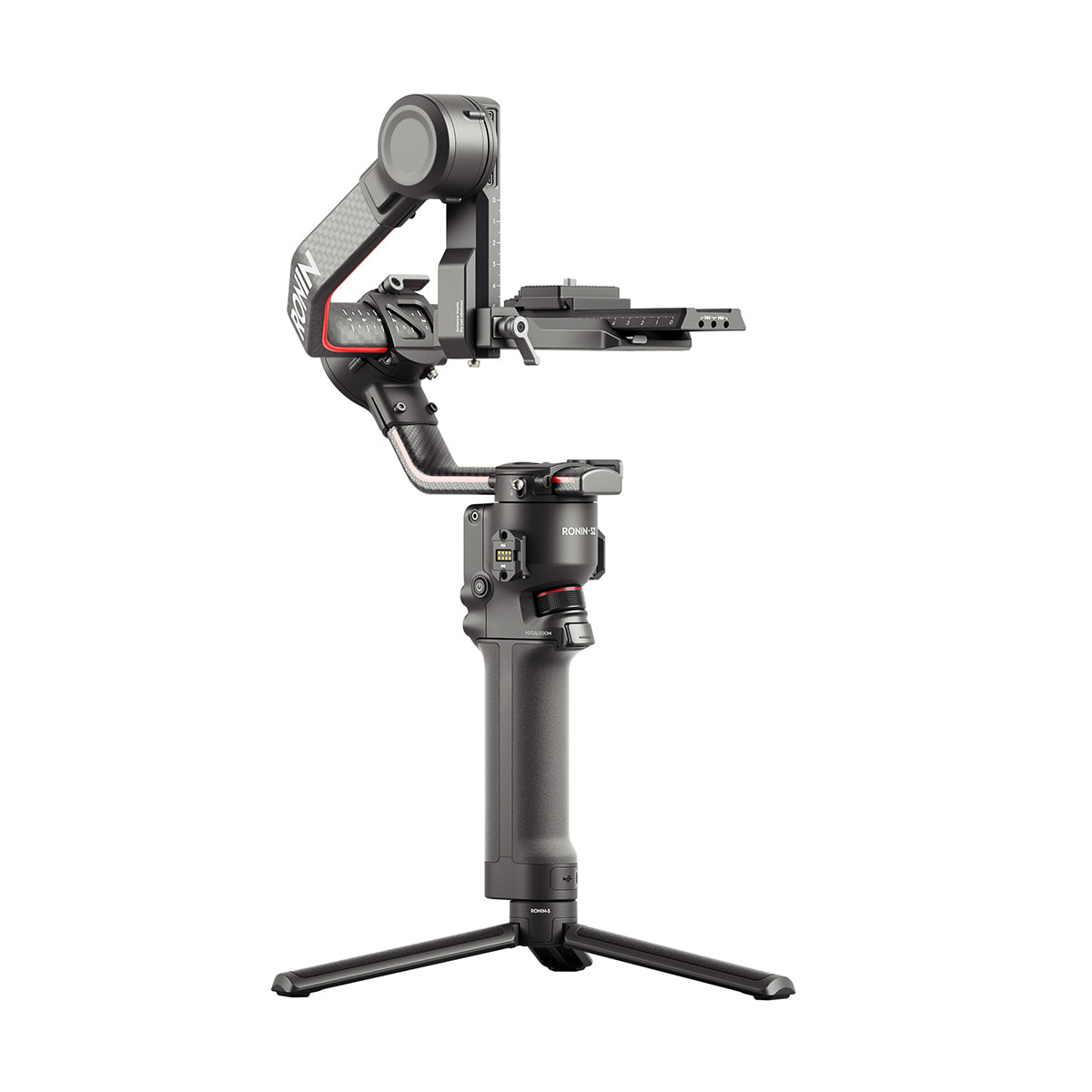

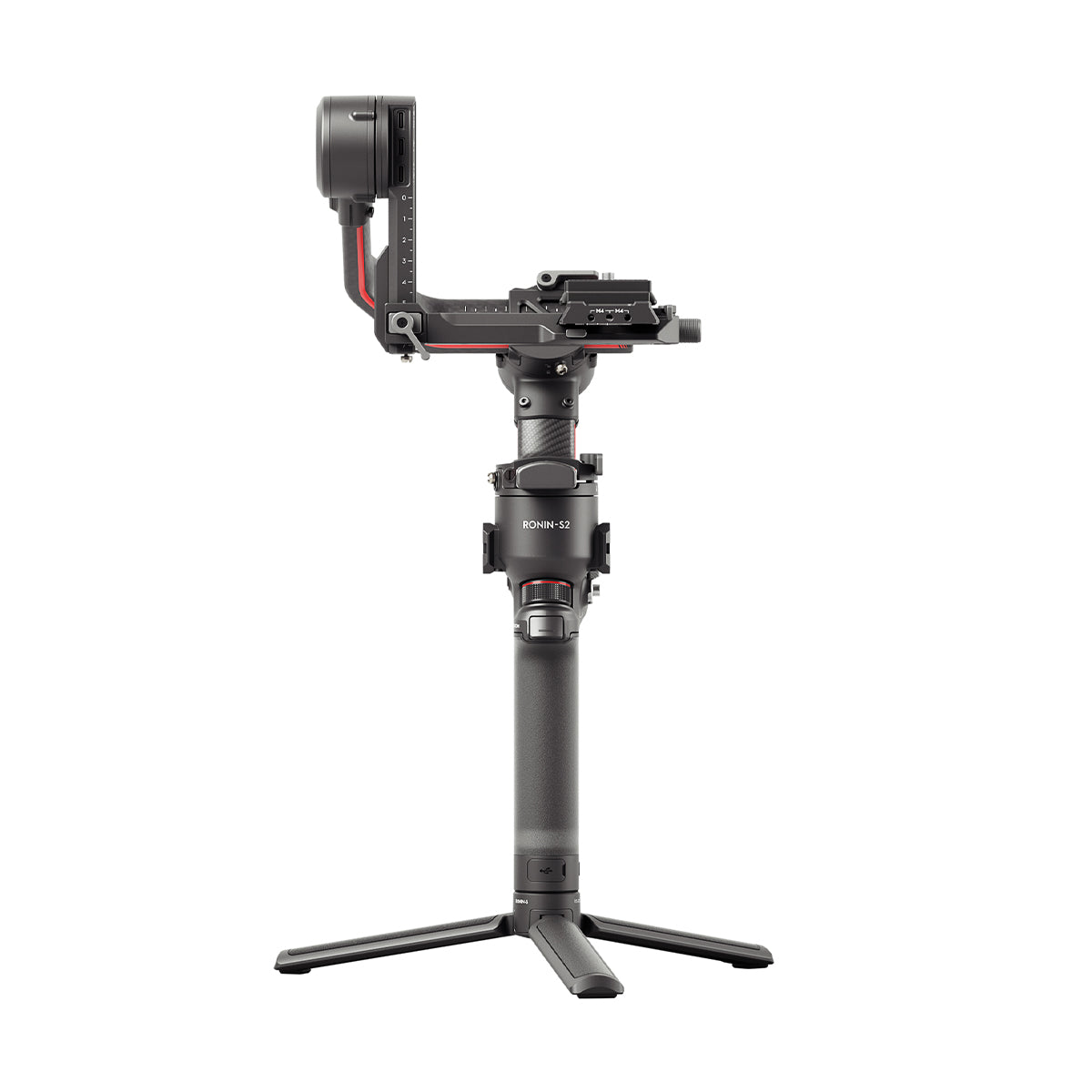

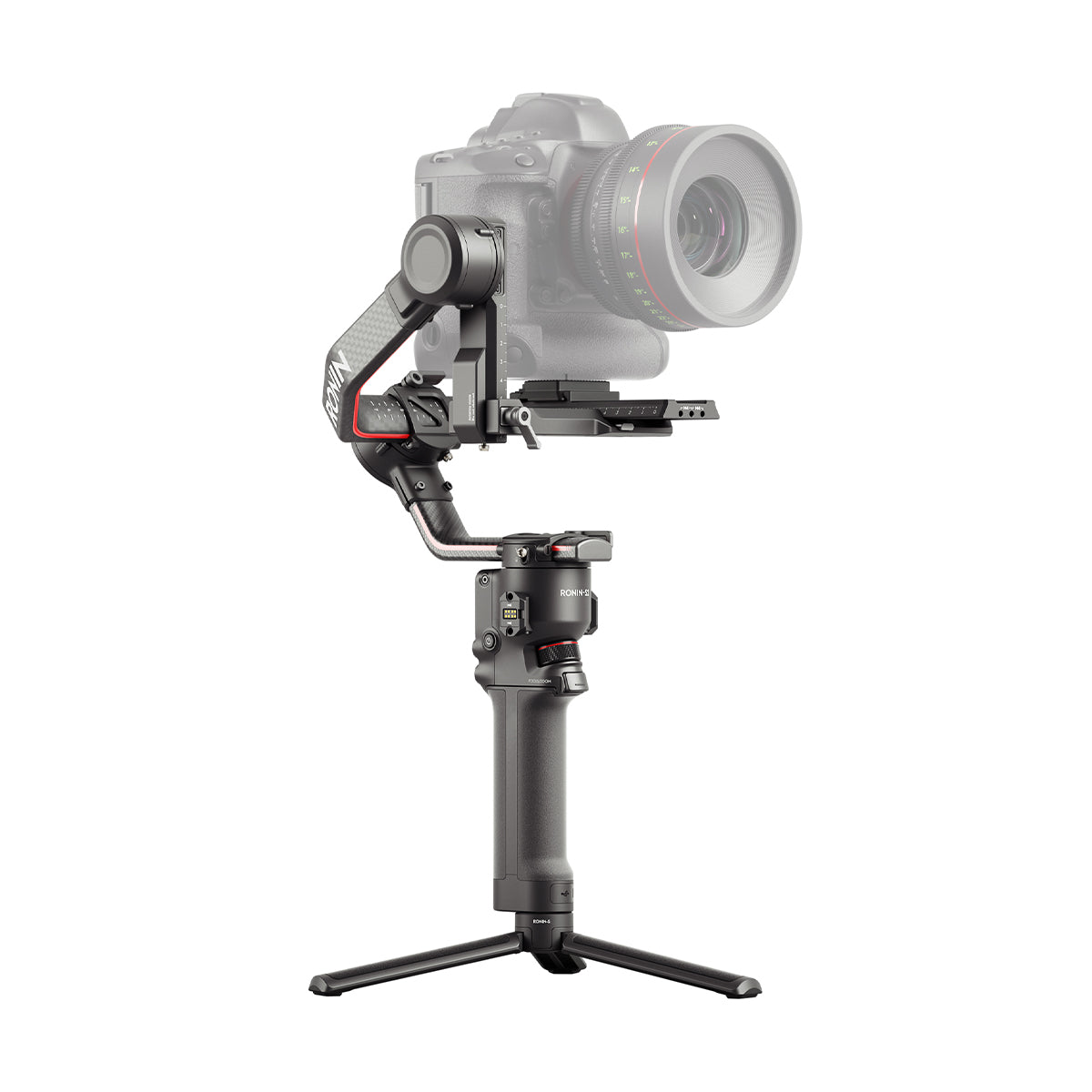

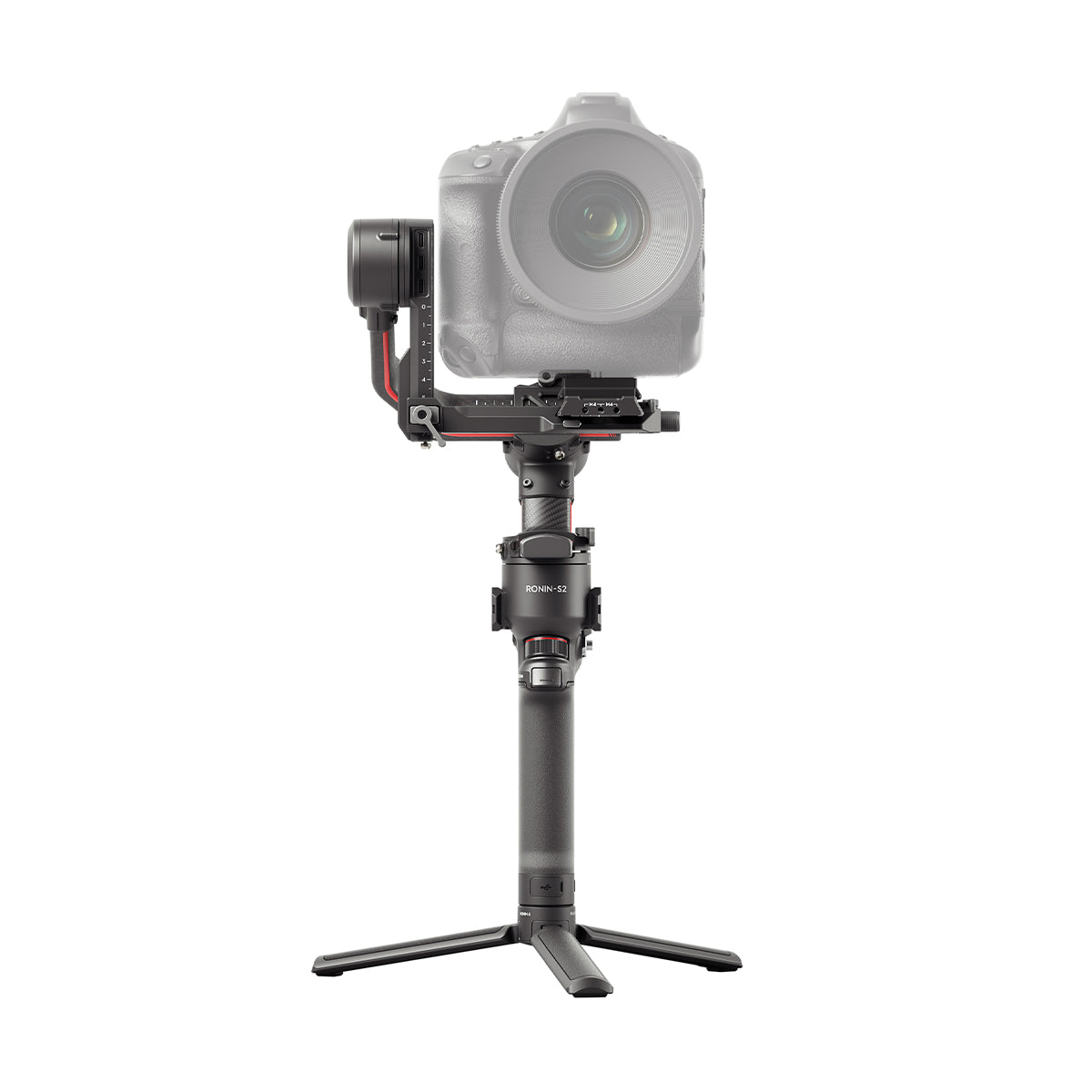

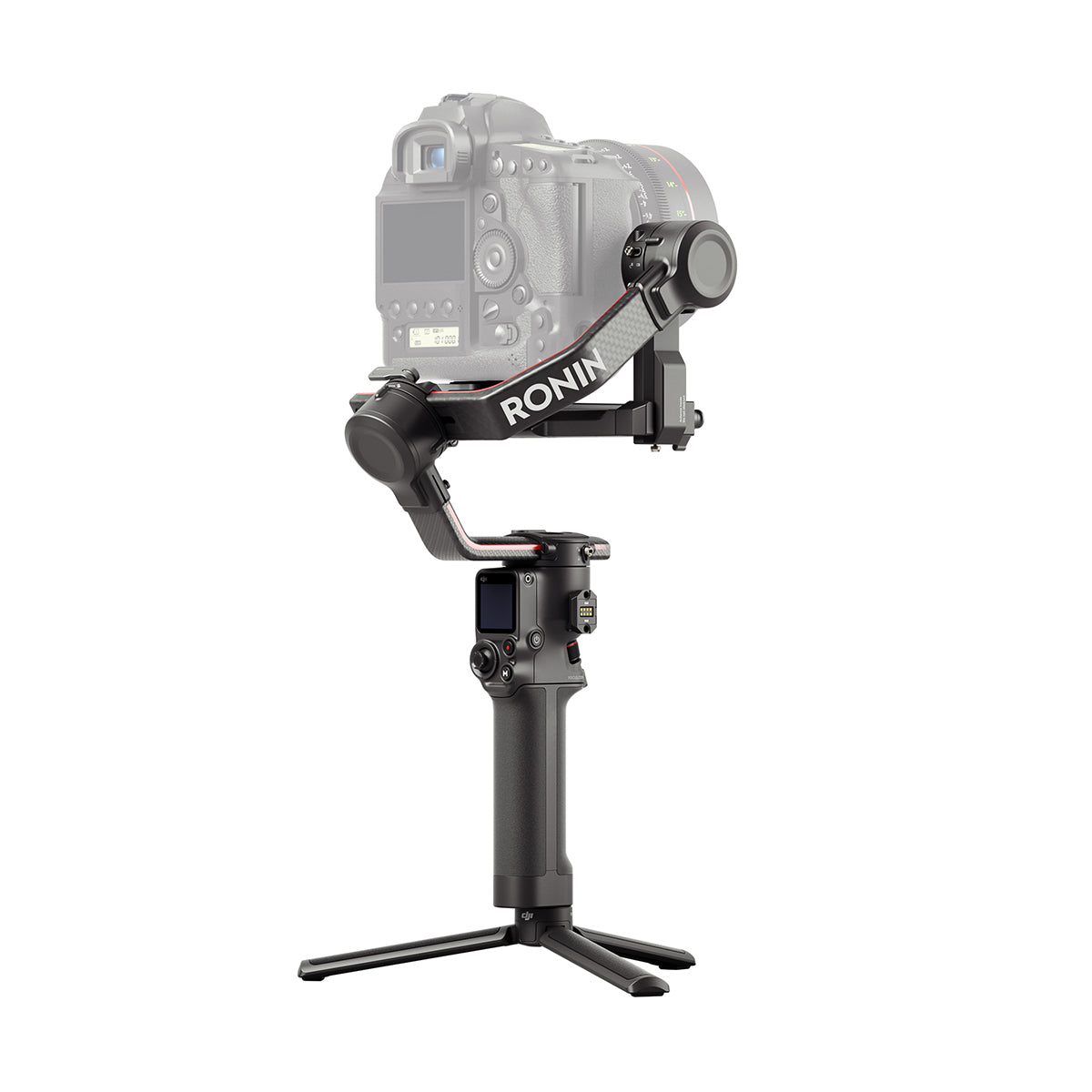

RS 2 Gimbal Stabilizer
-
Ronin-S Extended Grip/Tripod
-
BG30 Grip
-
R Multi-Camera Control Cable (USB Type-C)
-
R Multi-Camera Control Cable (Sony Multi)
-
R Multi-Camera Control Cable (Micro-USB)
-
R Multi-Camera Control Cable (Mini-USB)
-
R Briefcase Handle
-
R Quick-Release Plate (Lower)
-
R Quick-Release Plate (Upper)
-
R Lens-Fastening Strap
-
Carry Case
-
Limited 1-Year Warranty (6-Month on Motors)
Description
Gimbal | |
---|---|
Number of Axis | 3-Axis (Pan, Tilt, Roll) |
Rotation Range | Yaw (Pan): 360° Pitch (Tilt): -112º to +214° Roll: -95º to +240° |
Follow Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
Load Capacity | 10 lb / 4.5 kg |
Connectivity | |
---|---|
Ports | 3 x USB Type-C Input 2 x RSA |
Wireless Frequency | 2.4 GHz (2.4 - 2.483) |
Wireless Protocol | Bluetooth 5.0 |
Battery - Built in | |
---|---|
Capacity (mAh) | 1950 mAh (30.03 Wh) |
Battery Runtime | 12 Hours |
Charging Time | 1.5 hours (24W USB adapter) |
Battery Chemistry | Lithium-Ion Polymer (LiPo) |
Voltage | 15.4 VDC |
General | |
---|---|
Operating Temperature | 4 to 113°F / -20 to 45°C |
Mounting | 1 x 1/4"-20 Female 1 x Cold shoe mount |
Dimensions | 16.1 x 10.2 x 7.7" / 410 x 260 x 195 mm |
Weight | 2.36 lb / 1.07 kg 2.595 lb / 1.177 kg (with Camera Plate) 2.948 lb / 1.337 kg (with Handlebar) |
