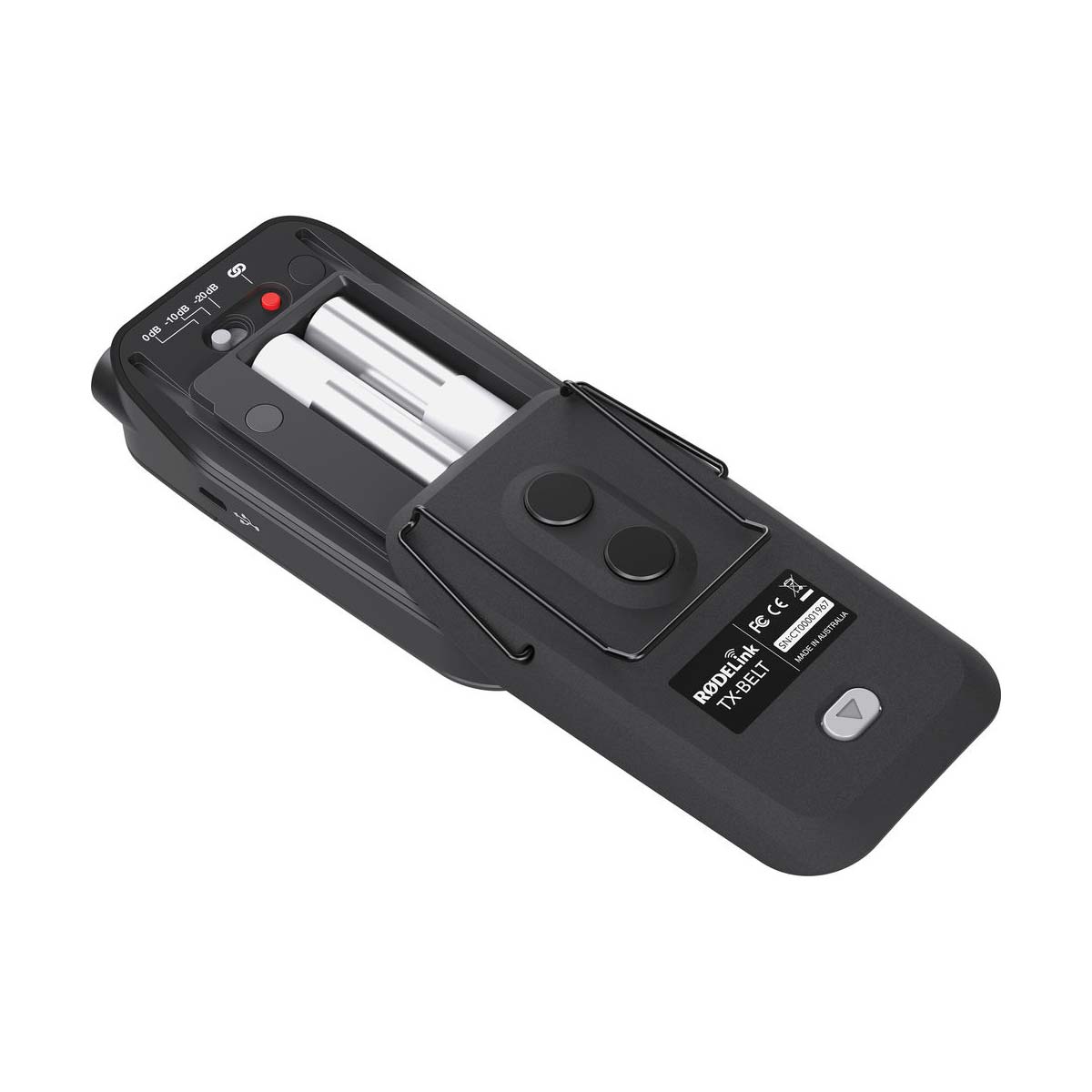

- Three level gain control
- Series II, 2.4GHz digital transmission with 128-bit encryption
- Up to 100 meter range
- OLED display (on receiver) and one button pairing
-

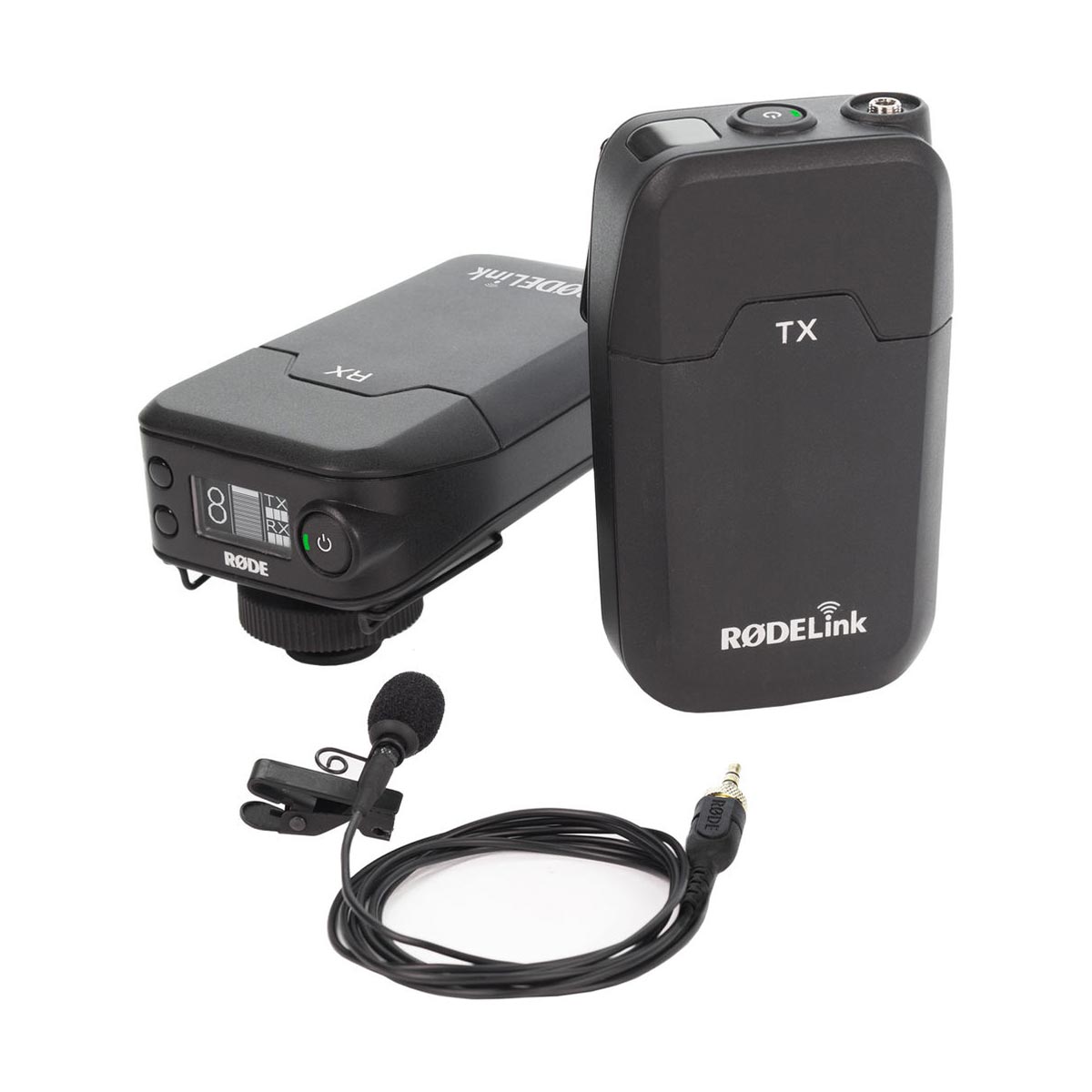

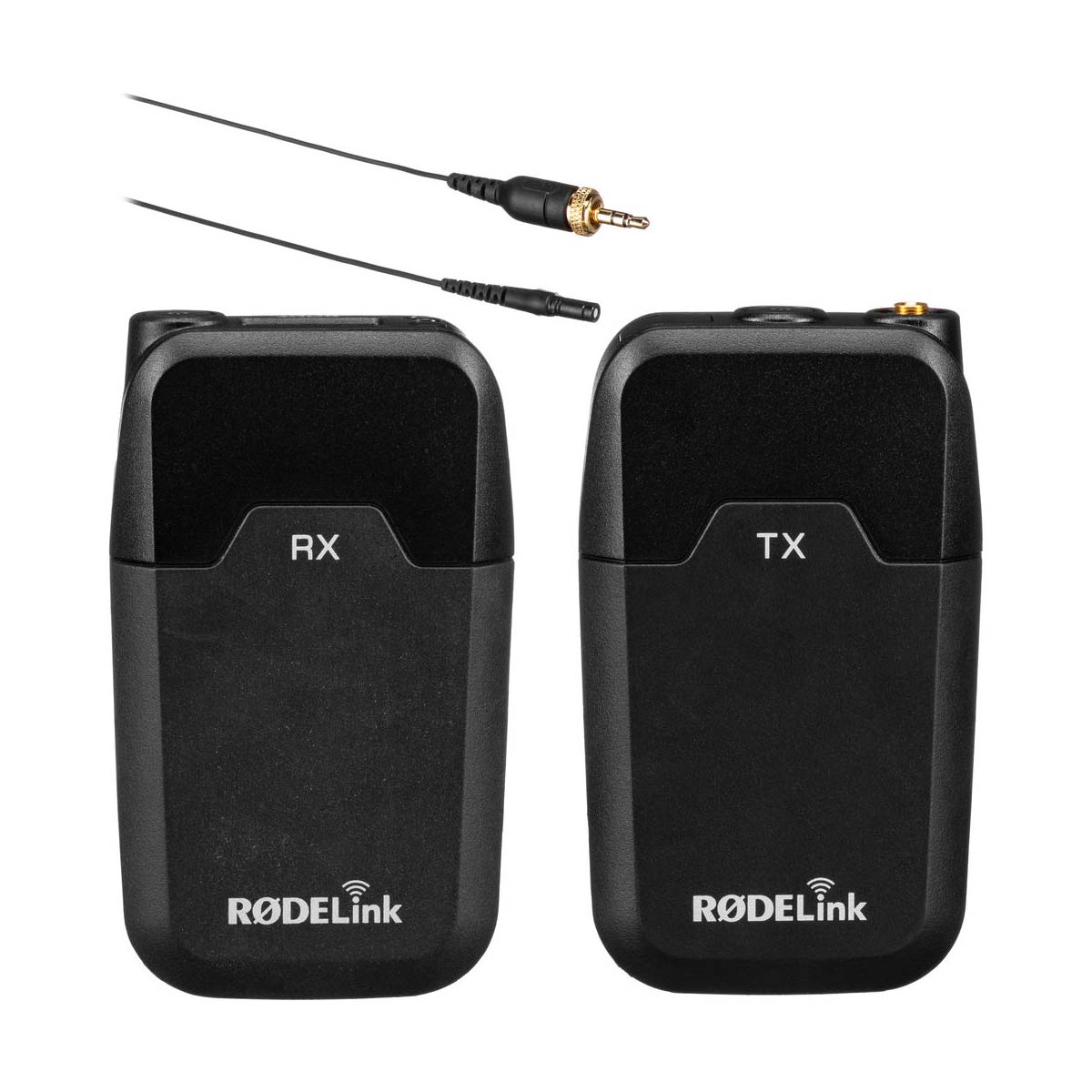

Rodelink Filmmaker Wireless Lav Kit
-
RØDELink LAV
-

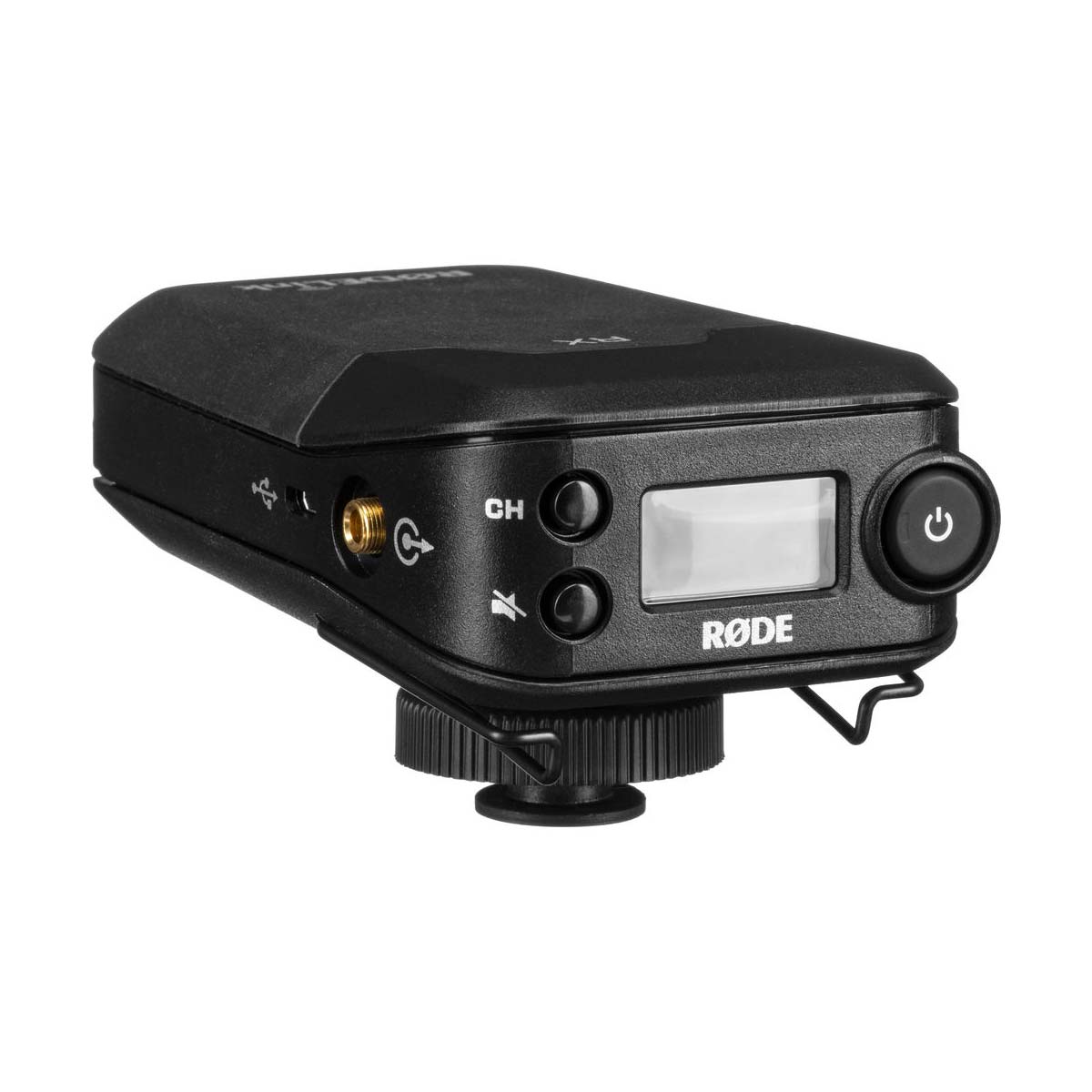

Camera-Mounted Wireless Receiver
-

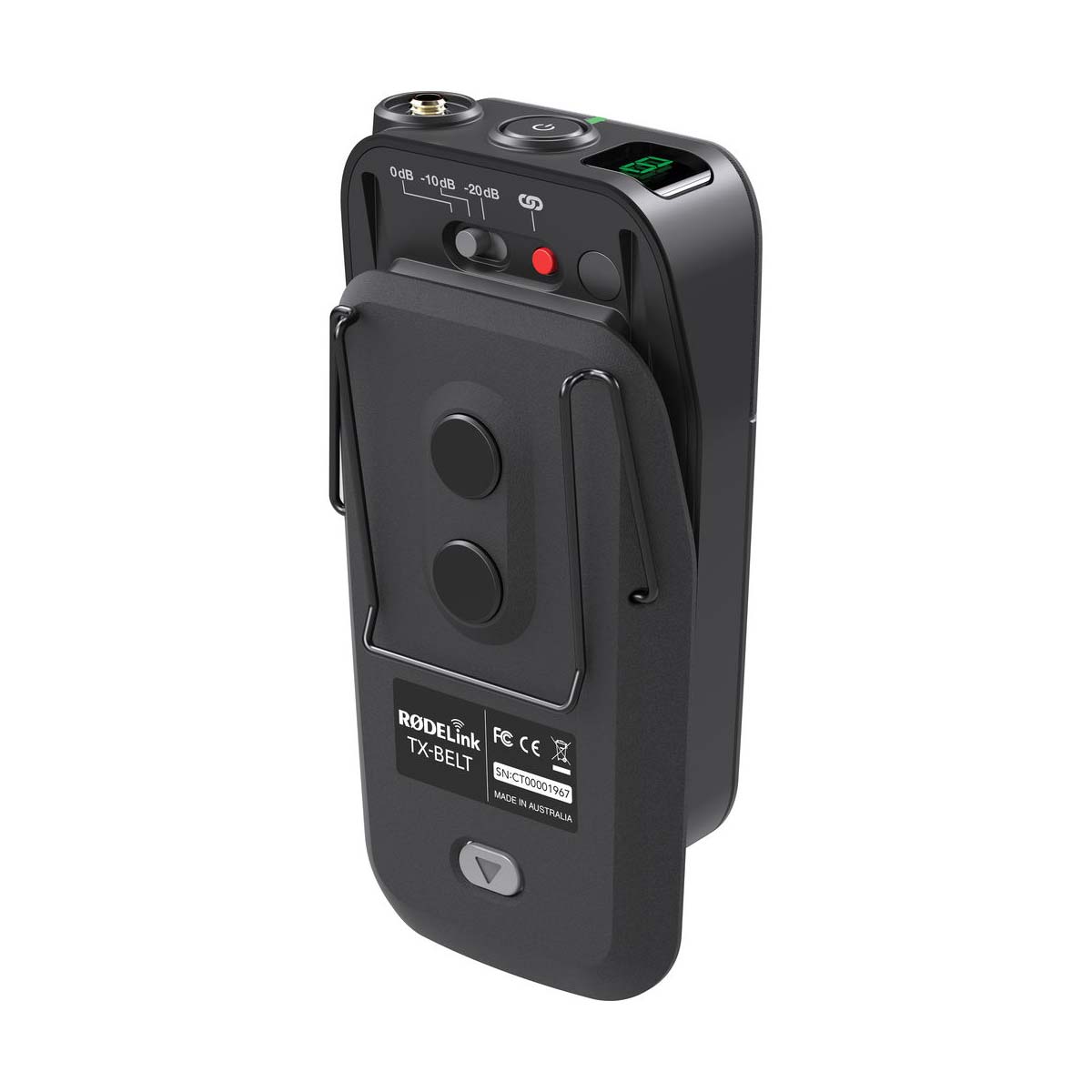

Beltpack Wireless Transmitter
-
Captive TRS cable
-
Limited 1-Year Warranty (Extendable to 2-Years)
Description

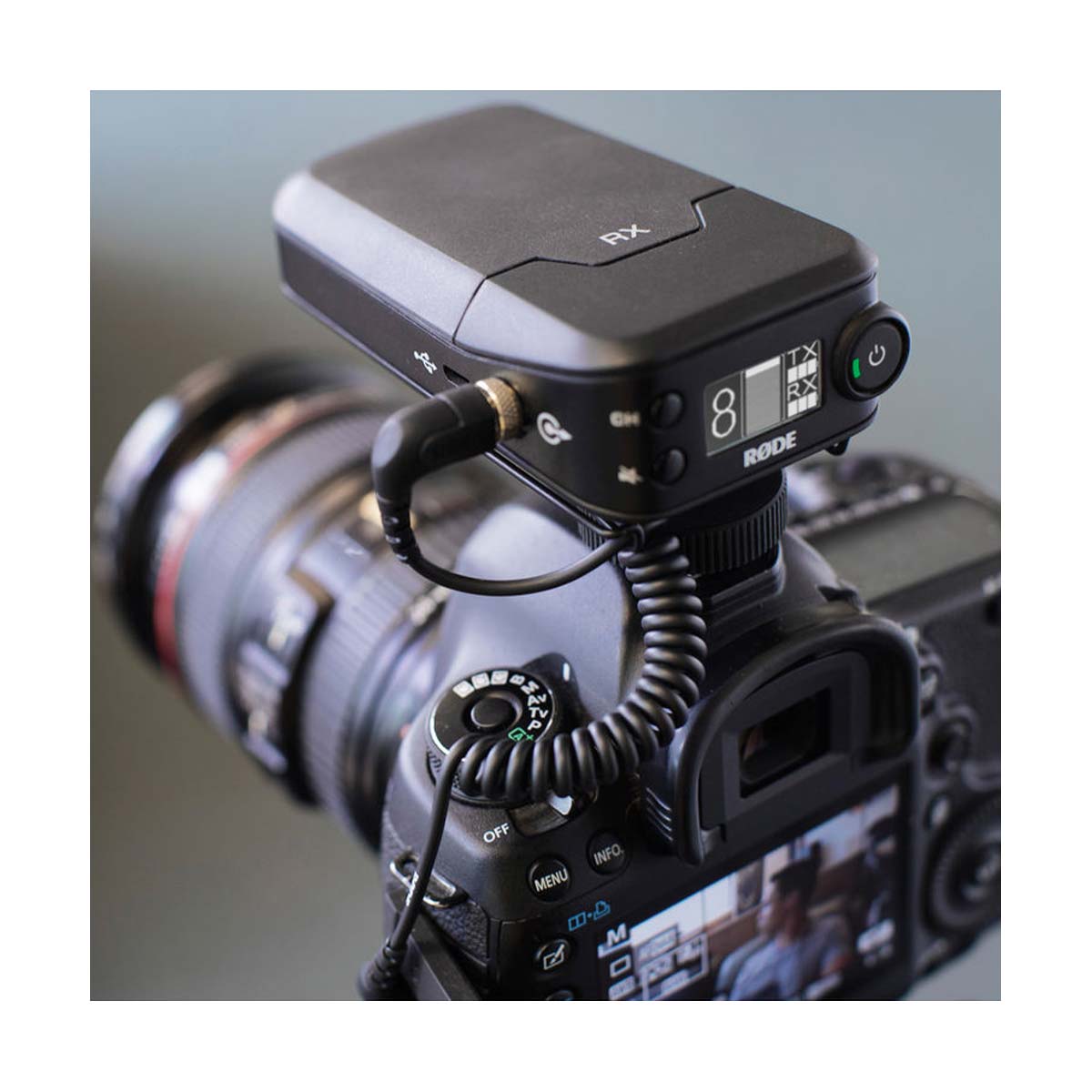

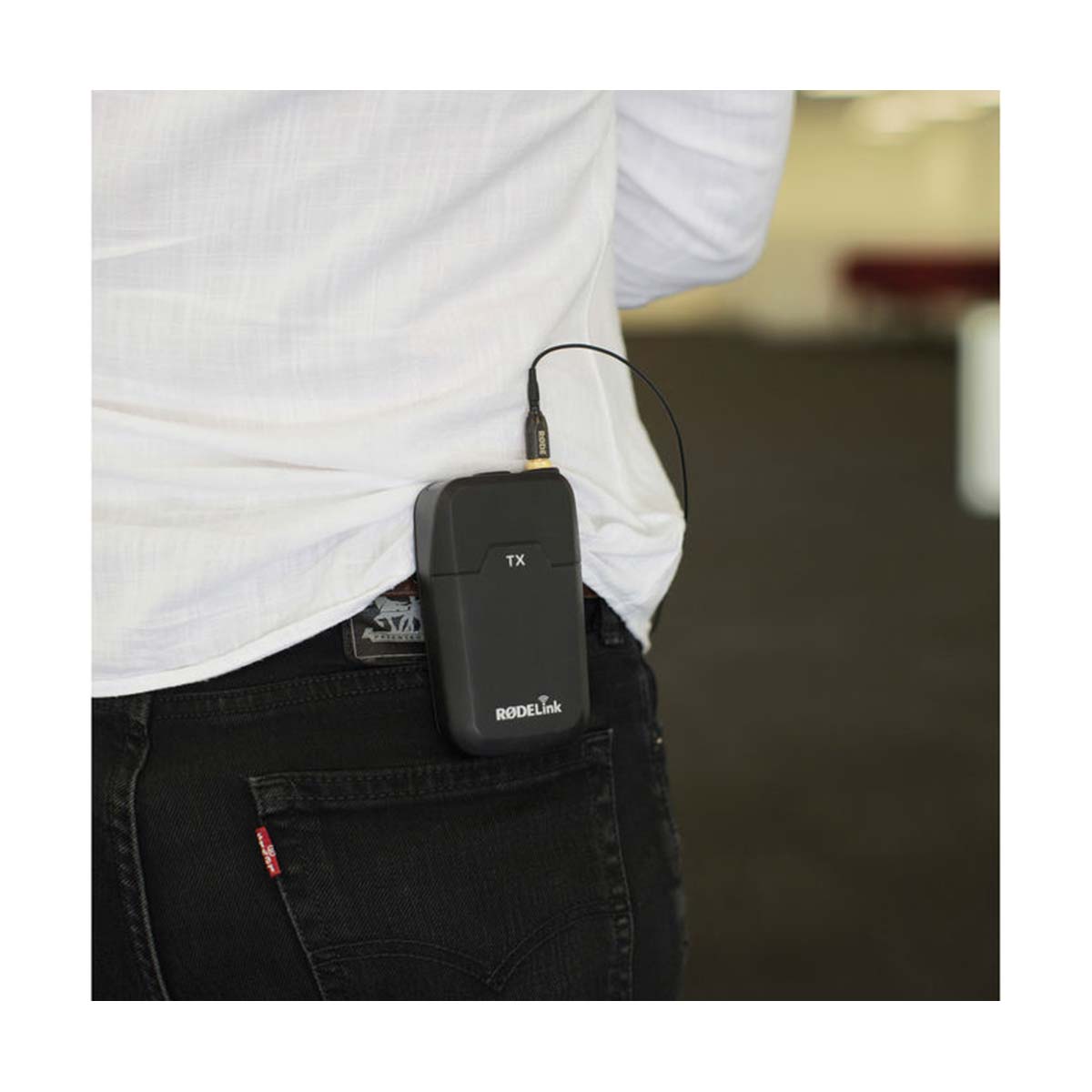

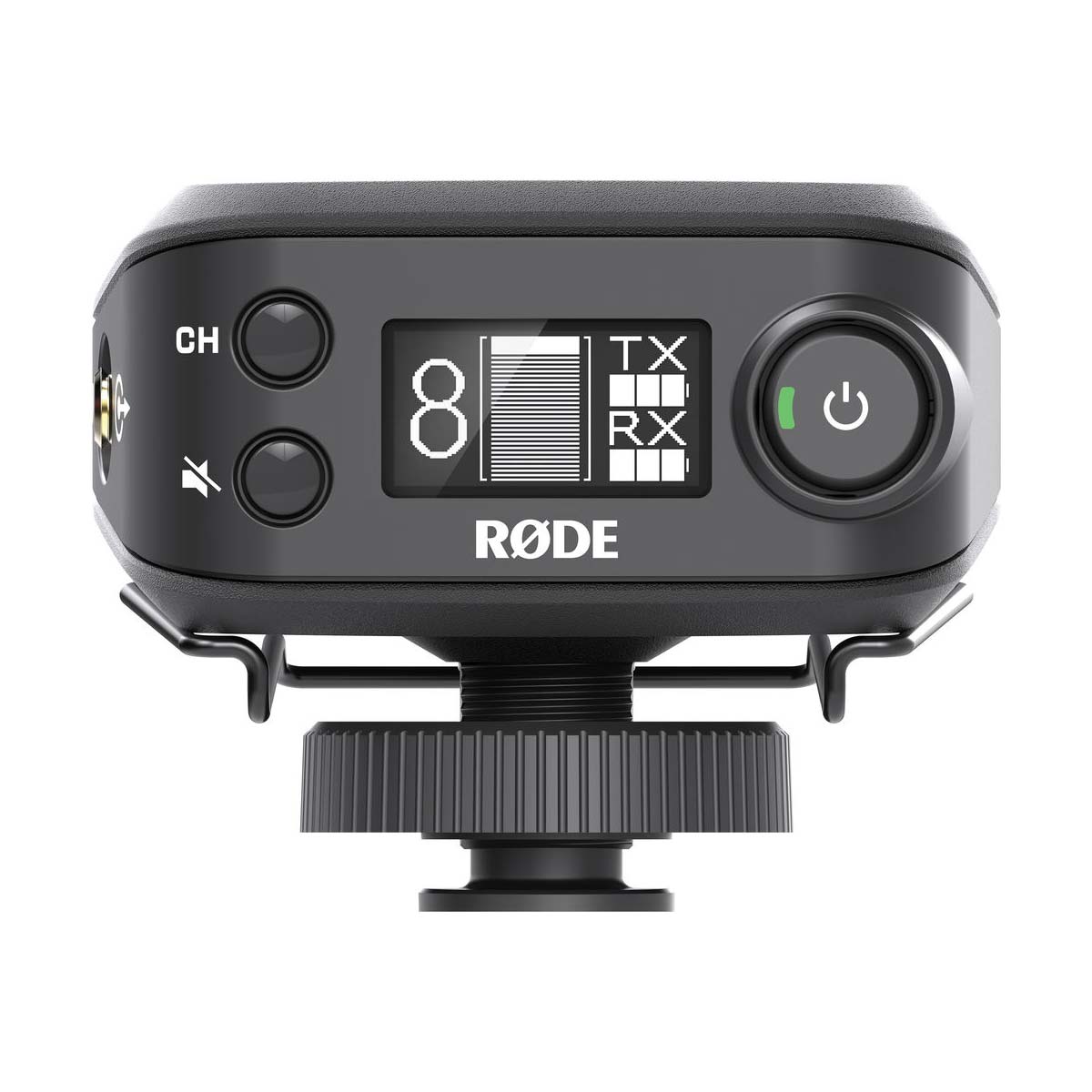

The RØDELink Filmmaker Kit represents the next generation of digital wireless systems. Using a Series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE has included an omnidirectional lavalier microphone in the kit to provide the highest possible audio reproduction quality.
| RØDELINK FILMMAKER KIT Specifications | |
|---|---|
| Transmission type | 2.4GHz Fixed Frequency Agile System |
| System dynamic range | 112dB |
| Range (distance) | Up To 100m |
| Frequency range | 35Hz - 22kHz |
| Maximum output level | 1v Rms (2.8v P-p) |
| Max input signal level | 1v Rms (2.8v P-p) |
| Max latency | 4ms |
| RECEIVER (RX-CAM) | |
|---|---|
| Power source | 2 X AA Battery Or MicroUSB |
| Antenna | Internal |
| Output connection | 3.5mm TRS Locking Jack Socket - Dual Mono |
| Output impedance | 300Ω |
| Dimensions | 111mm X 65mm X 52mm |
| Weight | 190gm |
| TRANSMITTER (TX-BELT) | |
|---|---|
| Power source | 2 X AA Battery Or MicroUSB |
| Antenna | Internal |
| Input connection | 3.5mm TRS Locking Jack Socket |
| Input impedance | 10kΩ |
| Dimensions | 111mm X 65mm X 40mm |
| Weight | 190gm |
| RØDELINK LAV ACOUSTIC & ELECTRICAL SPECIFICATIONS | |
|---|---|
| Acoustic Principle | Permanently Polarized Condenser |
| Polar Pattern | Omni-directional |
| Output Impedance | 3k Ω Typical |
| Frequency Range | 20Hz – 20kHz |
| Maximum SPL | 110 dB SPL (@ 1kHz, 1% THD into 1Ω load) |
| Sensitivity | -33.5db re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2dB @ 1kHz |
| Signal to noise Ratio | 67 dB |
| Equivalent Noise (A-weighted) | 27 dB Typical |
| Dynamic Range | 83 dB Typical |
