Product Information
-
H1essential 2-Track 32-Bit Float Handy Recorder
-
Limited 1-Year Manufacturer Warranty
| Inputs | |
|---|---|
| Built-in mic | 90º XY stereo format |
| Directionality | Unidirectional |
| Sensitivity | –37 dB/1 Pa at 1 kHz |
| Maximum sound pressure input | 120 dB SPL |
| MIC/LINE IN jack | Connector: Stereo mini jack |
| Input impedance | 2 kΩ or more |
| Plug-in power | 2.5 V |
| Outputs | |
|---|---|
| PHONE / LINE OUT jack | Connector: Stereo mini jack |
| Maximum output level | 20 mW + 20 mW (into 32Ω load) |
| Output impedance | 10 Ω or less |
| Built-in speaker | 20 x 30mm oval dynamic speaker |
| Practical maximum output | 250mW |
| Recorder | |
|---|---|
| Recording formats | WAV 44.1/48/96 kHz, 32-bit Float Stereo / Mono BWF and iXML formats supported |
| Recording media | 4–32GB cards compatible with the microSDHC specification 64GB–1TB cards compatible with the microSDXC specification |
| Display | |
|---|---|
| OLED | 128 x 64 |
| USB | |
|---|---|
| Connector | USB Type-C (Use a USB cable that supports data transfer) |
| USB Mic | USB 2.0 High Speed 48 kHz, 24-bit |
| File transfer | USB 2.0 High Speed |
| Power | |
|---|---|

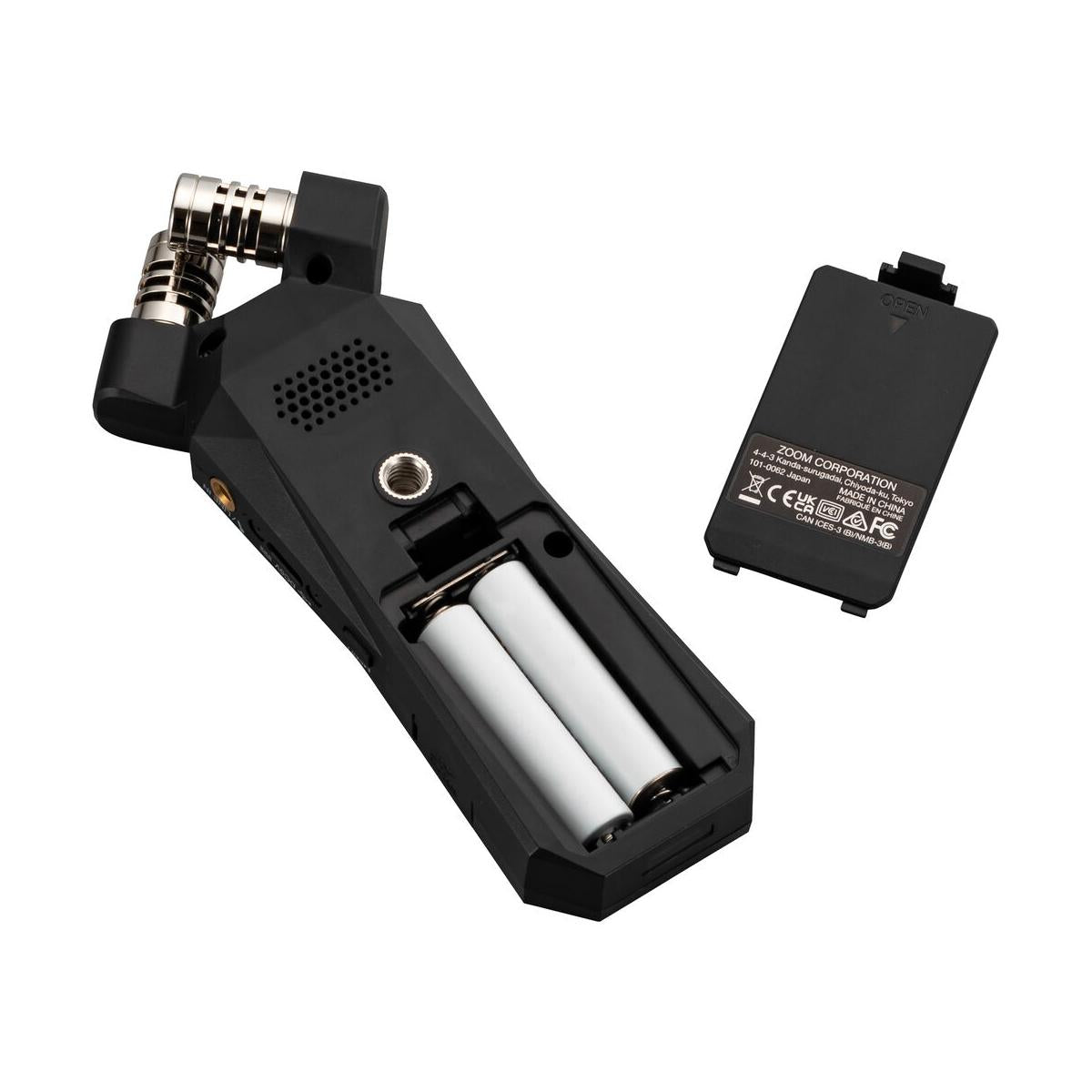

| 2 AAA batteries | Alkaline, Lithium, or Rechargeable NiMH |
| AC adapter | ZOOM AD-17: DC 5 V/1 A (Sold Separately) USB bus power is supported |
| Estimated Continuous Operation Time Using Batteries | |
|---|---|
| Alkaline batteries | About 10 hours |
| NiMH batteries (800 mAh) | About 9 hours |
| Lithium batteries | About 18 hours |
| Stereo recording, 48kHz/32-bit float, no headphones, Power Save 1min | |
| Power consumption | 5 W maximum |
| Physical | |
|---|---|
| Dimensions | 2.1 x 1.1 x 5.4" / 5.4 x 2.9 x 13.7 cm |
| Weight | 3.2 oz / 92 g (with Batteries) |
