Product Information
-

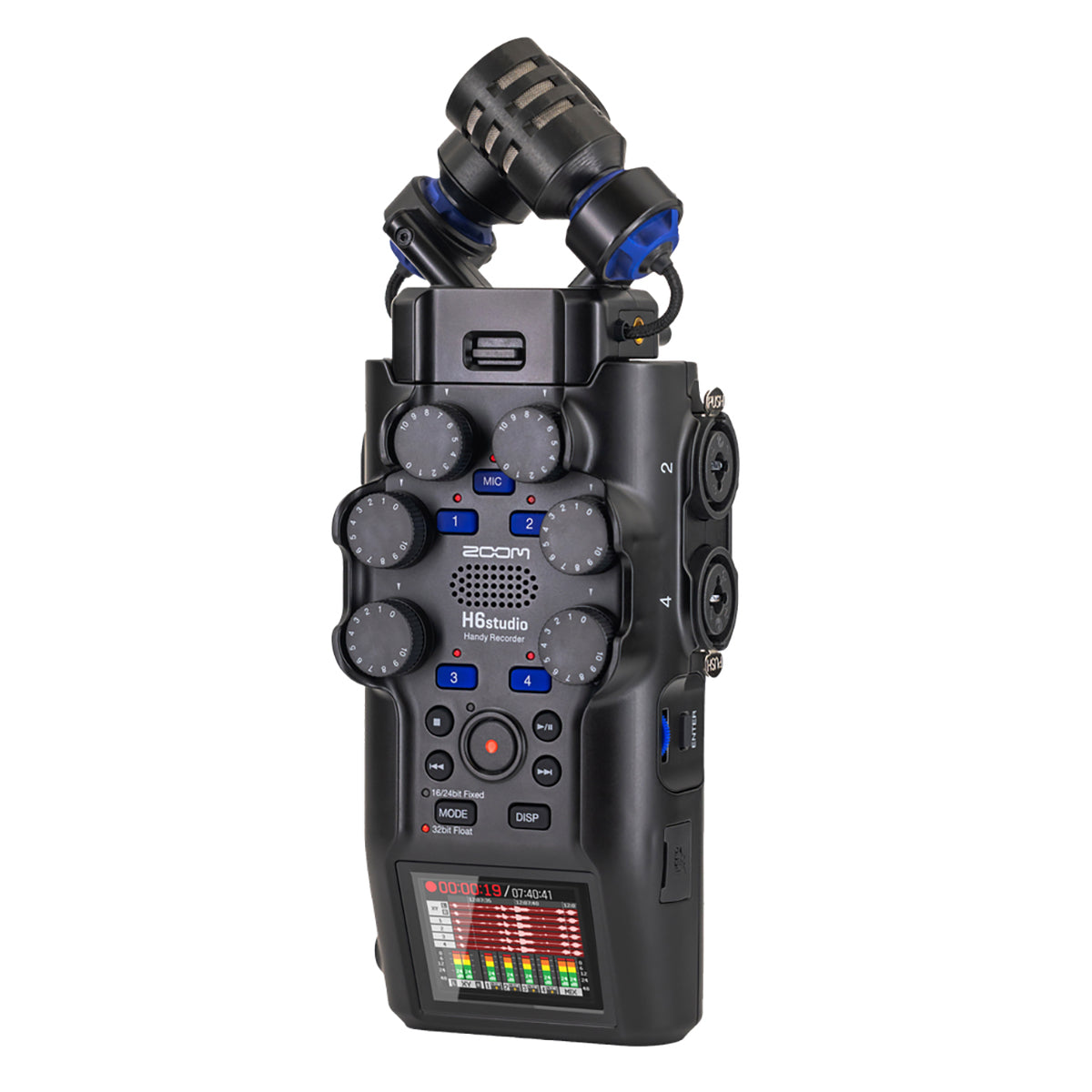

H6studio 6-Track 32-Bit Float Handy Recorder
-
Limited 1-Year Manufacturer Warranty
| INPUT AND OUTPUT CHANNELS | |
|---|---|
| Inputs | Mic capsule x1 MIC/LINE (mono) x4 |
| Outputs | LINE OUT x1 Headphone x1 Built-In Speaker (MONO) |
| INPUTS | |
|---|---|
| XY mic (XYH-5s) | 90º XY stereo format Pickup pattern: Unidirectional Sensitivity: –41 dB/Pa at 1 kHz Maximum sound pressure input: 140 dB SPL |
| MIC/LINE IN (XYH-5s) | Connector: 1 stereo mini jack Input gain: −∞ – +60 dB Input impedance: 2 kΩ or more Plug-in power: 2.5 V |
| MIC/LINE (mono) | Connectors: 4 XLR/TRS combo jacks (XLR:2 HOT, TRS:TIP HOT Input gain: −∞ – +60 dB MIC Input impedance: 3 kΩ or more LINE Imput impedance: 3 kΩ or more MIC Maximum input level: +4 dBu LINE Maximum input level: +24 dBu Phantom Power: +48 V Equivalent input noise: –127 dBu or less (IHF-A) at 150Ω input |
| OUTPUTS | |
|---|---|
| LINE OUT | Connector: 1 stereo mini jack Maximum output level: +1 dBu Output impedance: 110 Ω or less |
| Headphone | Connector: 1 stereo mini jack Maximum output level: 20 mW + 20 mW(when 32 Ω load) Output impedance: 10 Ω or less |
| Built-in speaker | Type: 20 mm x 30 mm elliptical dynamic speaker Effective maximum output: 250 mW |
| RECORDER | |
|---|---|
| Maximum simultaneous recording tracks | 8 |
| Maximum simultaneous playback tracks | 6 |
| Recording formats | WAV 44.1/48/96/192 kHz, 16-bit/24-bit/32-bit float mono/stereo BWF and iXML formats supported |
| Recording media | microSDHC & microSDXC memory cards |
| DISPLAY | |
|---|---|
| 2.00 full-color LCD | 320 x 240 |
| USB | |
|---|---|
| Connector | USB Type-C • Use a USB cable that supports data transfer. |
| Audio Interface | USB 2.0 High Speed Input and output channels: 6 in / 2 out (Multi), 2 in / 2 out (Stereo) Sampling frequencies: 44.1/48/96 kHz (audio interface only), 44.1/48 kHz (audio interface + onboard recording) Bit depths: 24-bit, 32-bit float |
| File transfer | USB 2.0 High Speed |
| REMOTE | |
|---|---|
| Dedicated wireless adapter | ZOOM BTA-1 (Sold separately) |
| POWER | |
|---|---|
| 4 AA batteries | Alkaline, lithium or rechargeable NiMH batteries |
| AC Adapter | ZOOM AD-17 (Sold separately) • USB bus power is supported. |
| GENERAL | |
|---|---|
| Dimensions | 3.39" (W) x 8.7" (D) x 2.15" (H) 86.0 mm (W) × 221.0 mm (D) × 54.6 mm (H) |
| Weight | 1.05 lbs / 477 g (including batteries) |
