Sony XLR-H1 XLR Handle Unit

XLR Handle Unit directly connects to the MI (Multi Interface shoe) with two XLR/TRS combo connectors and one 3.5mm stereo mini jack for microphone and line input, with extensive control and maximum performance from professional microphones that helps facilitate the post processing workflow.

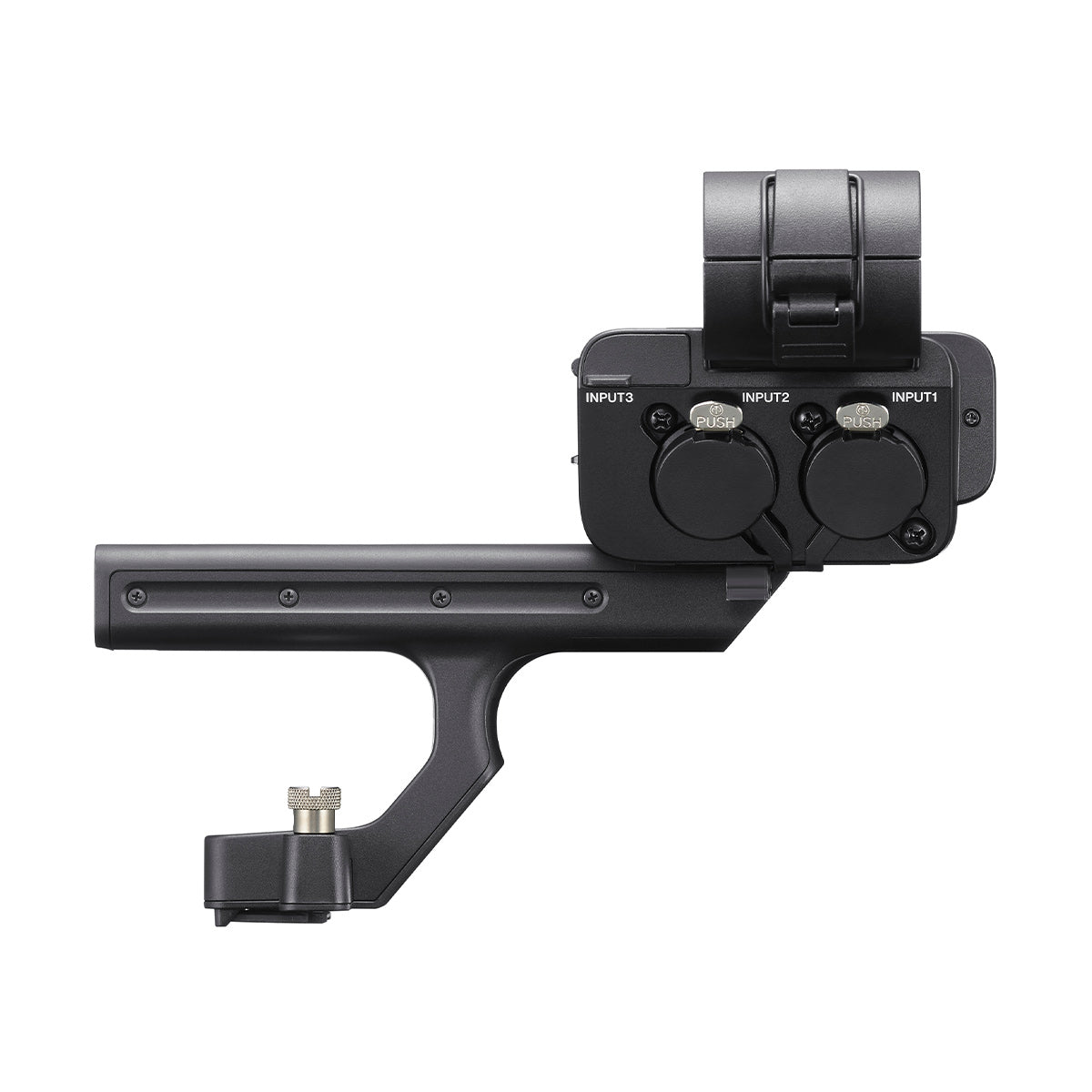

Two full-size XLR inputs with integrated TRS connectors

Two XLR/TRS combo jacks and one 3.5-mm stereo mini microphone jack are provided for input. The XLR/TRS combo jacks are switchable for line input, microphone input, or microphone input with 48 V phantom power.

Digital audio interface

When connected via the Multi Interface Shoe of a compatible camera with a built-in digital audio interface, the audio signal is directly transferred to the camera in digital form to minimize noise and distortion.

3.5 mm stereo mini jack

Provides connectivity with external microphones by 3.5mm stereo mini jack, adding additional audio flexibility, including 4-channel recording.

Comprehensive control

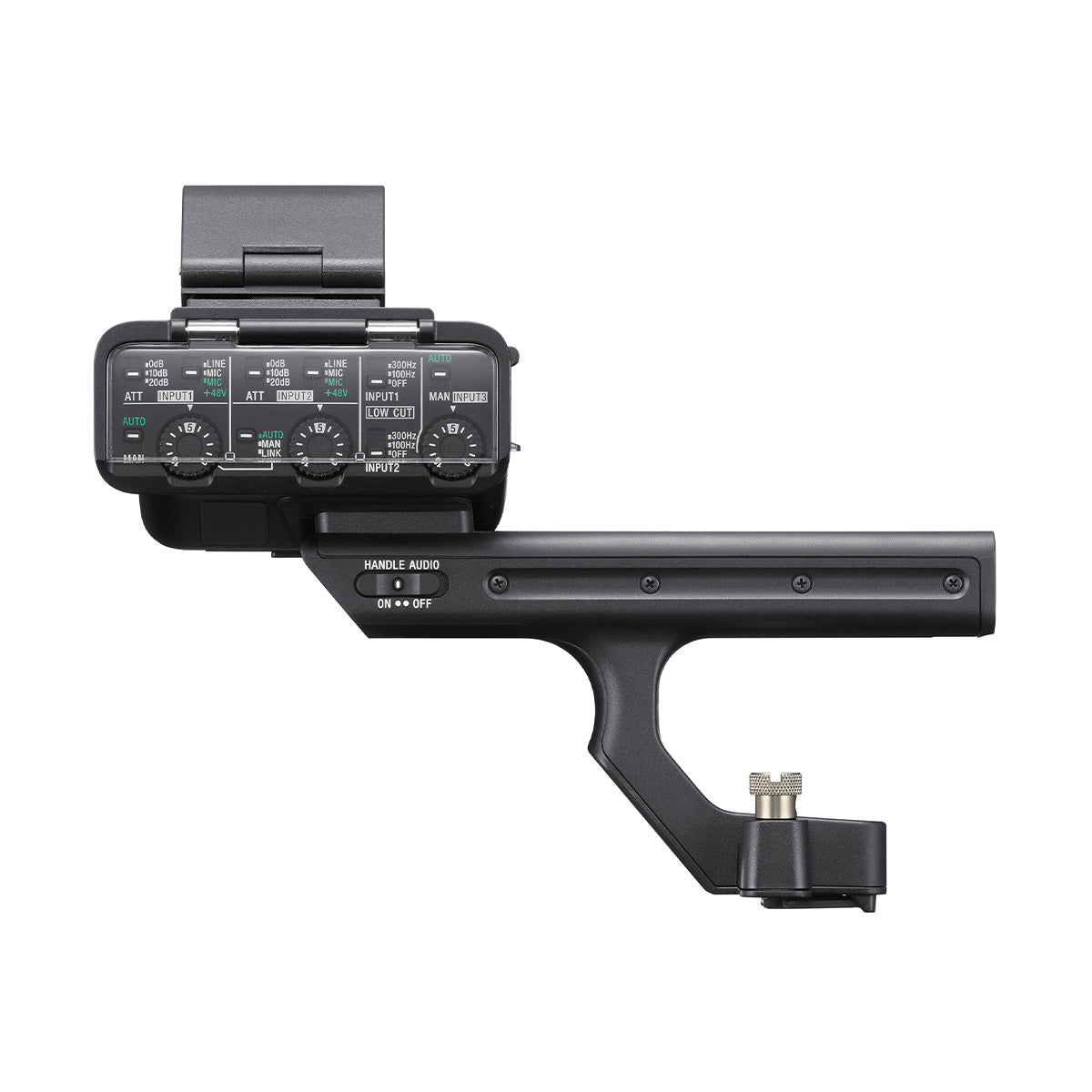

Comprehensive controllability at the recording stage can greatly facilitate the post processing workflow. Record level (AUTO/MANUAL), record level link (INPUT 1 – INPUT 2), attenuator and low-cut filter (100/300 Hz) controls are provided.

Record level link allows the signal to be applied to both channels of the camera, even with only one mic.

Easy-to-grip, easy-to-carry handle unit

Provides more comfortable and versatile production in difficult shooting situations, such as low-position shots.

All-in-one integrated handle unit

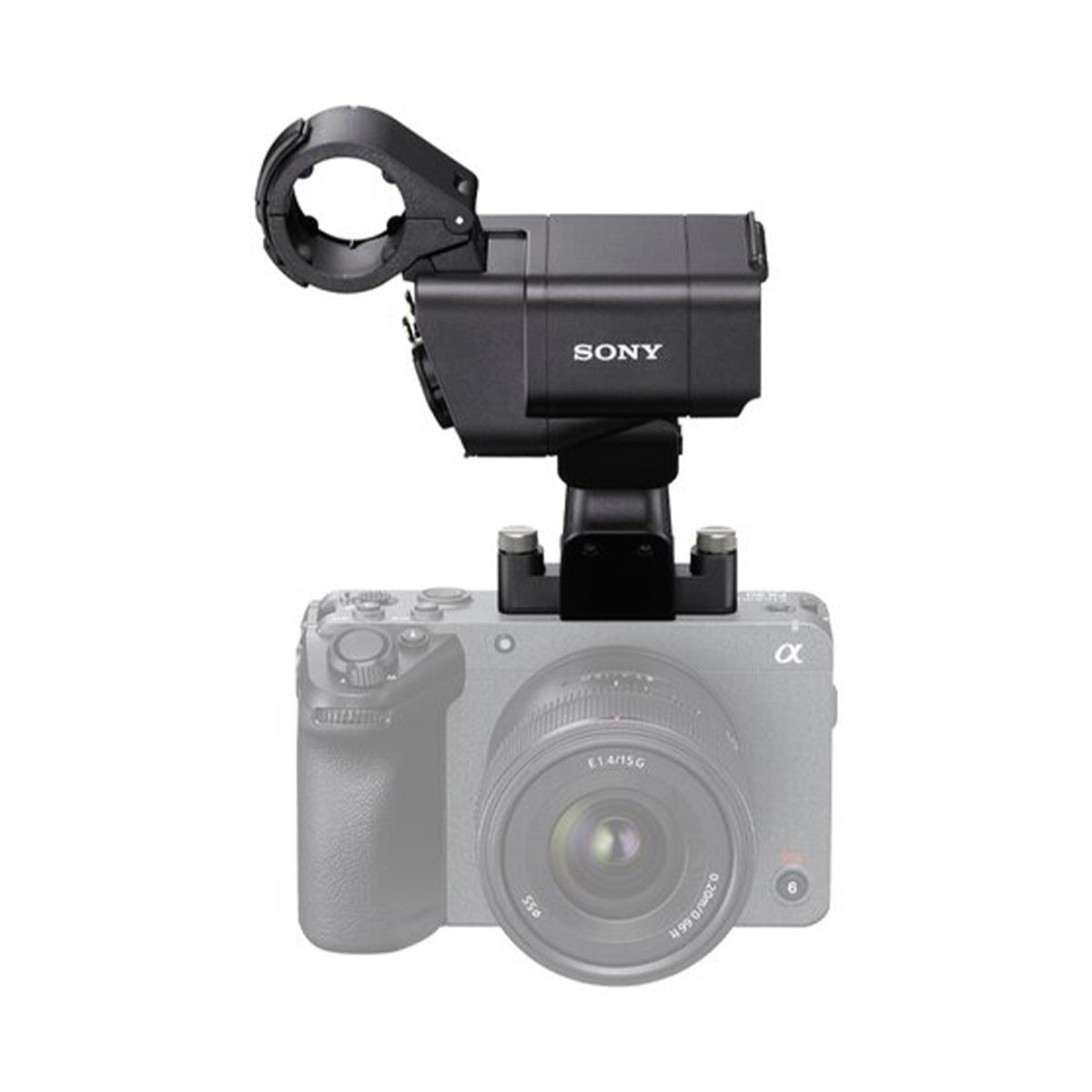

Attached to a compatible camera via the Multi Interface Shoe, with no cables or batteries required, XLR-H1 offers maximum shooting freedom and stress-free setup.

Three threaded mount points for expandability

Provide solid connection with accessories, such as external monitors, recorders, video lights, extension grips, wireless microphone receivers, brackets for cold shoe accessories or other add-ons.
