- Up to 29,300+ lux @ 3 Meters
- 15°-45° Spot-Flood - Variable Beam Angle
- Compatible with F10 Barn Doors
- Compatible with the Bowens Mount LED lights

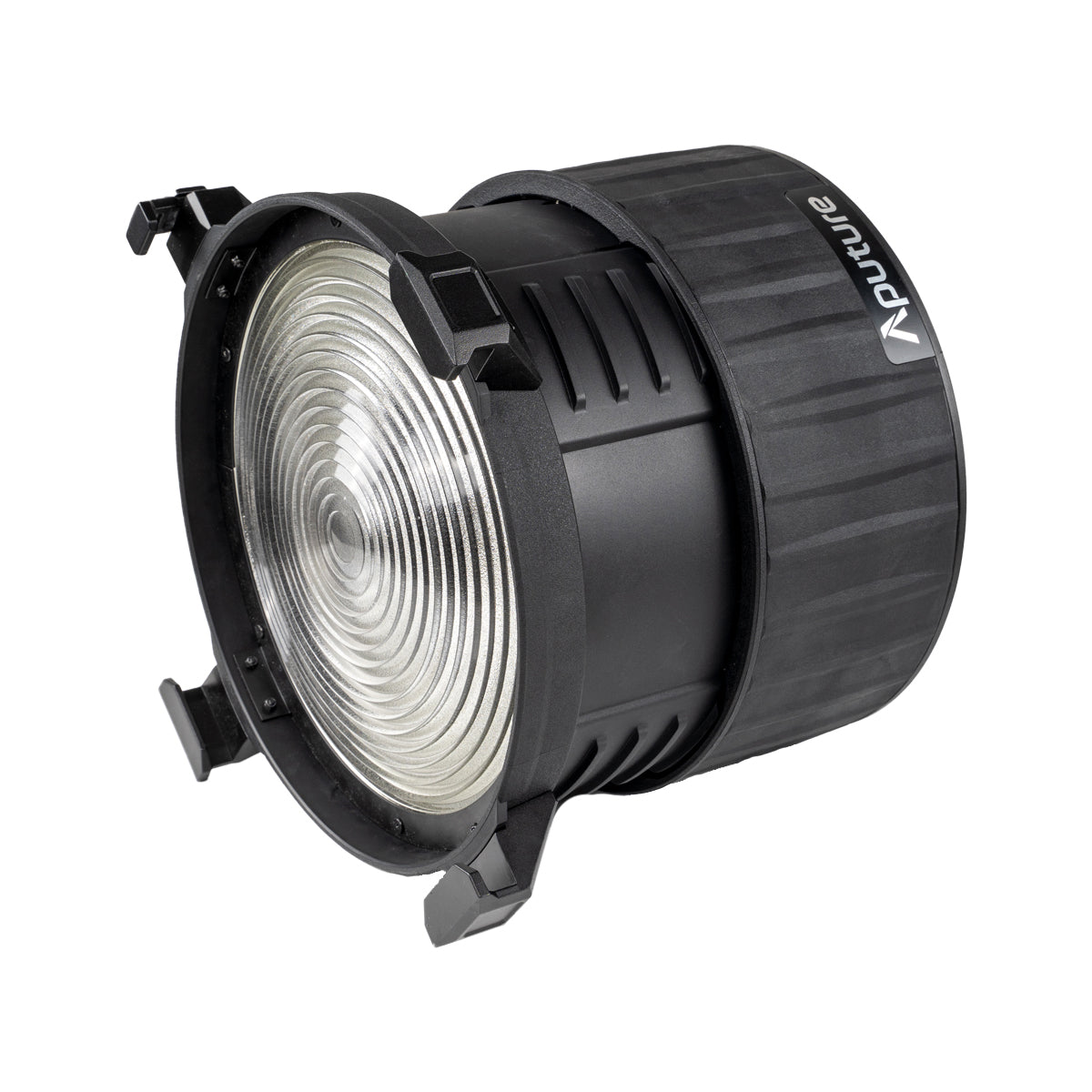

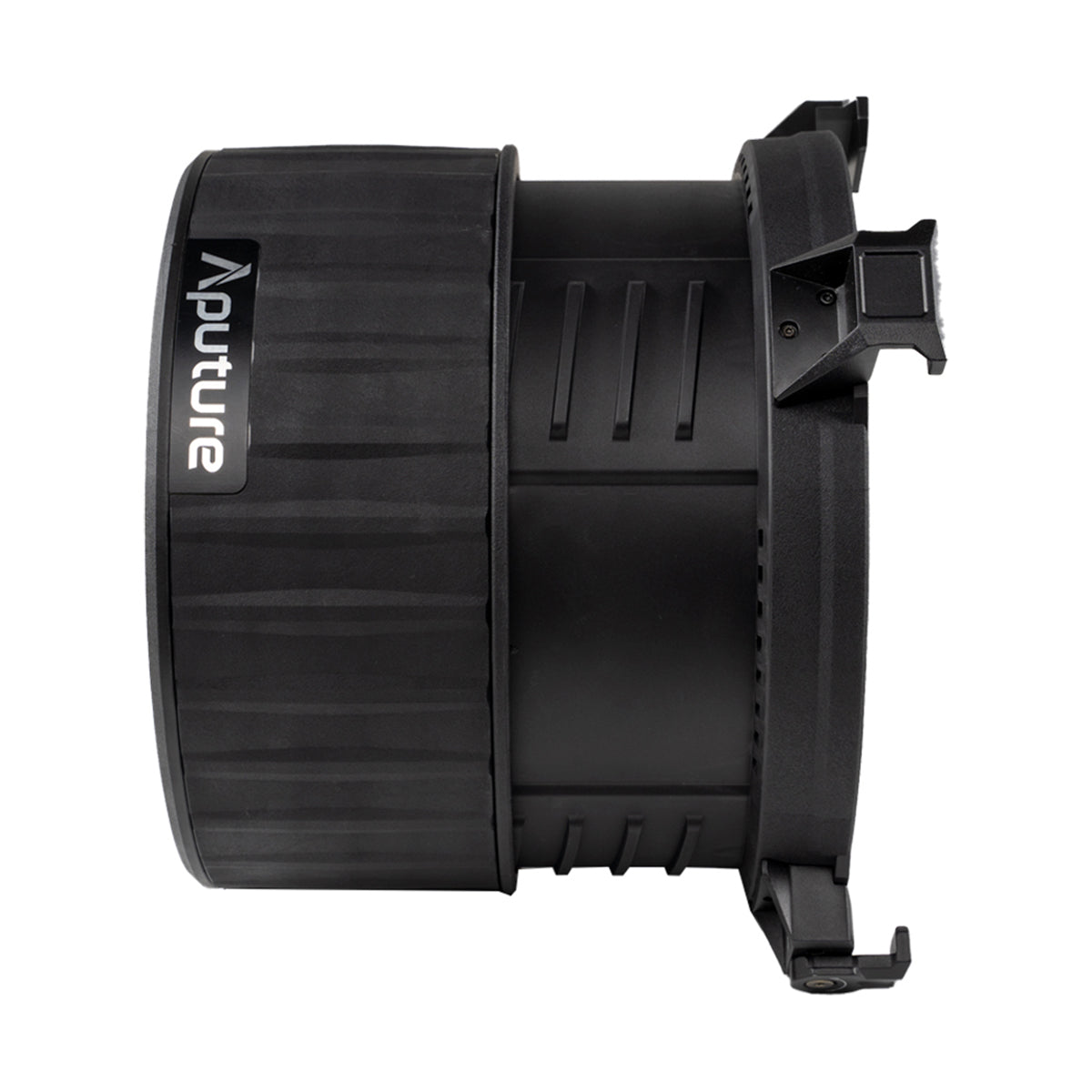

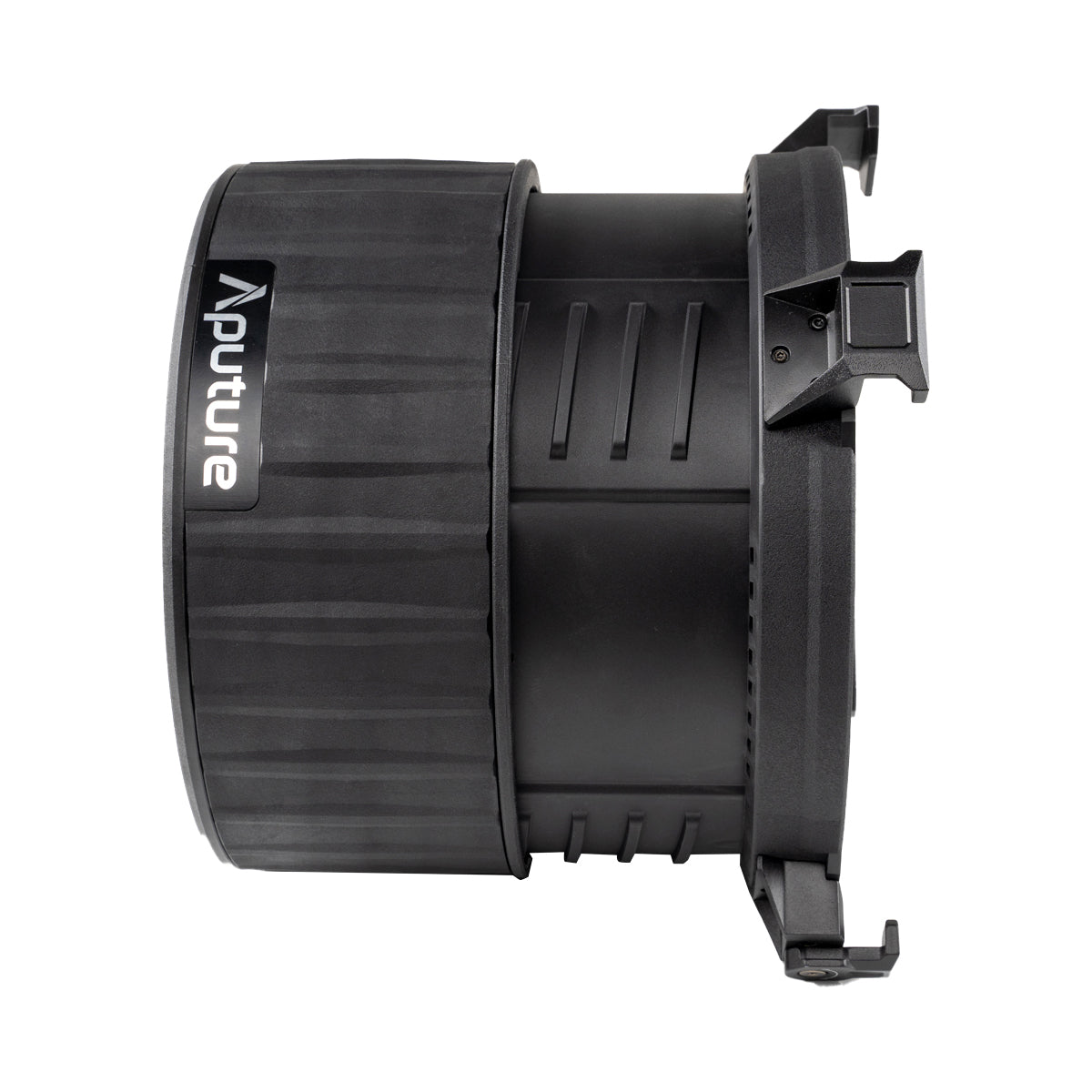

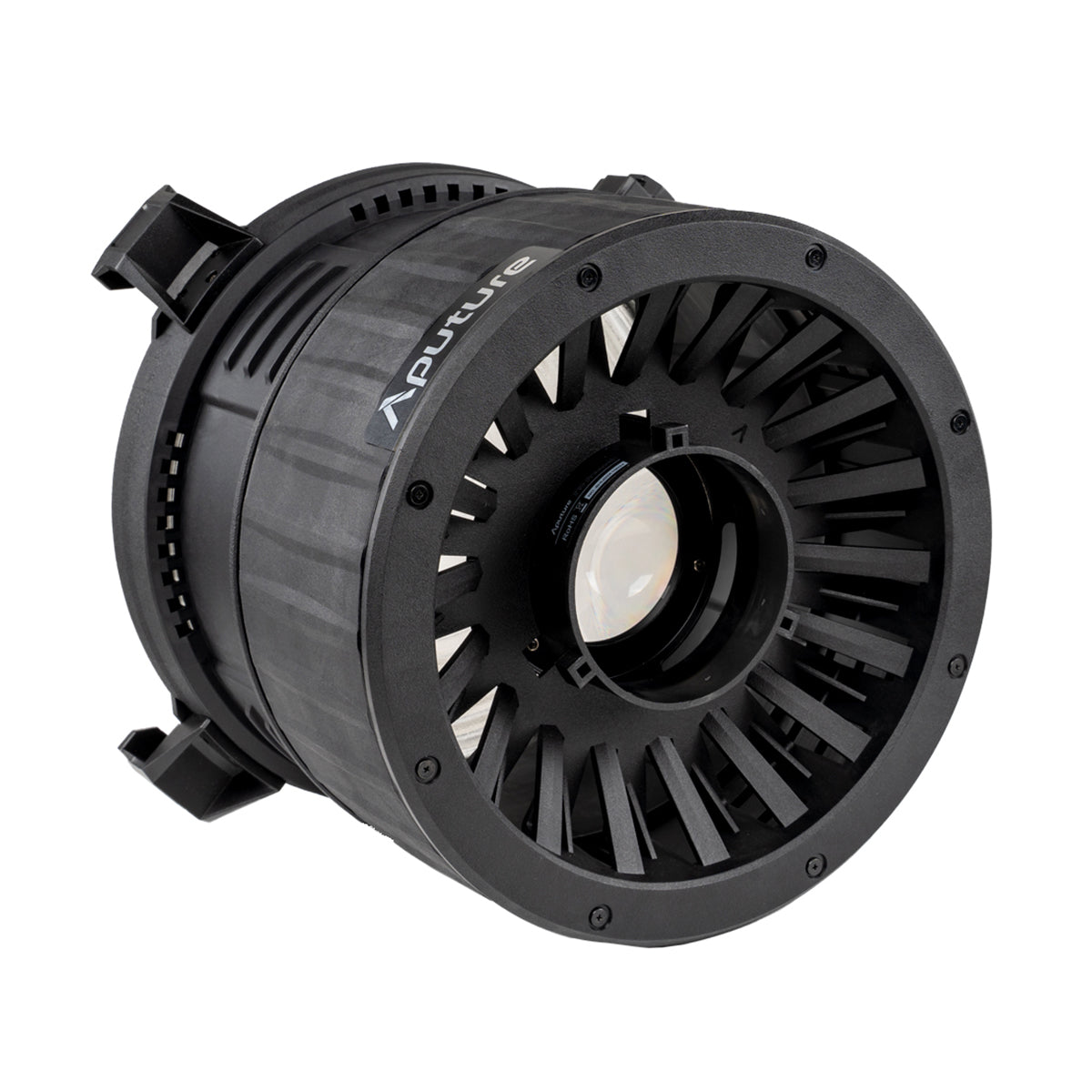

The Aputure F10 Fresnel is the first Bowens Mount Fresnel on the market made to match the size of traditional 10-inch Fresnel lights like a tungsten 5K, with a 250mm diameter lens made of real glass. The size of this Fresnel allows filmmakers to get punchy hard-light that maintains a subtle soft quality that is perfect for dramatic expression.

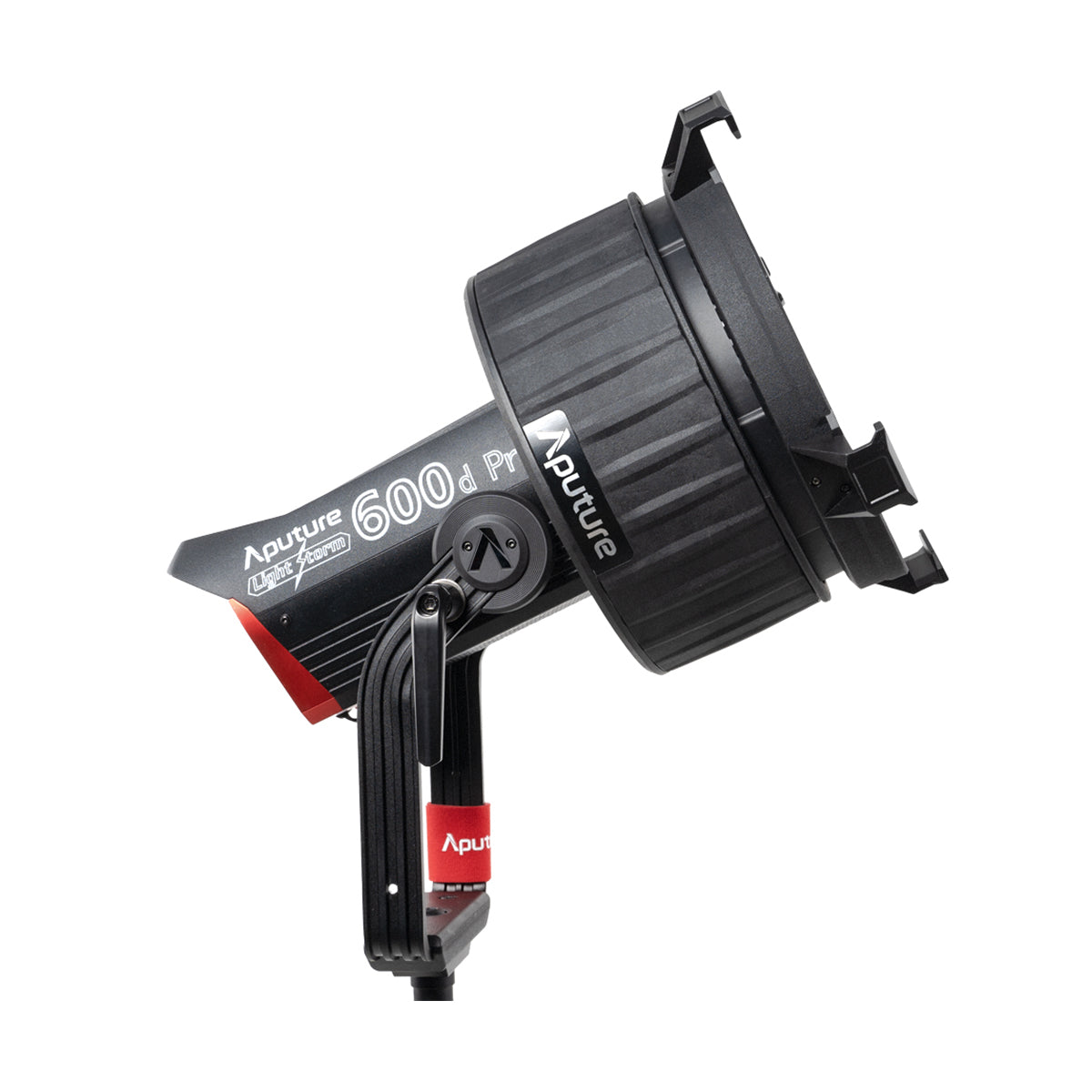

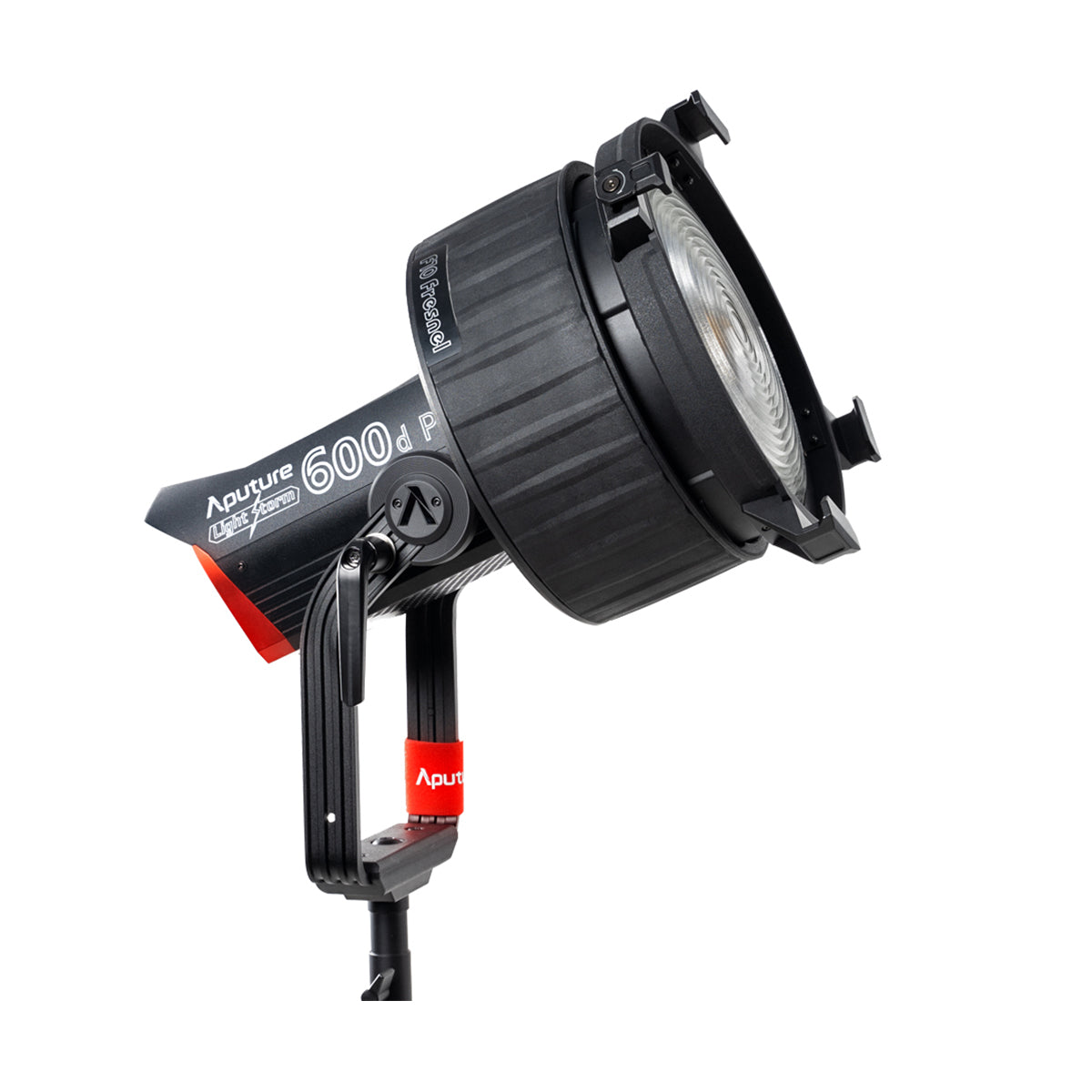

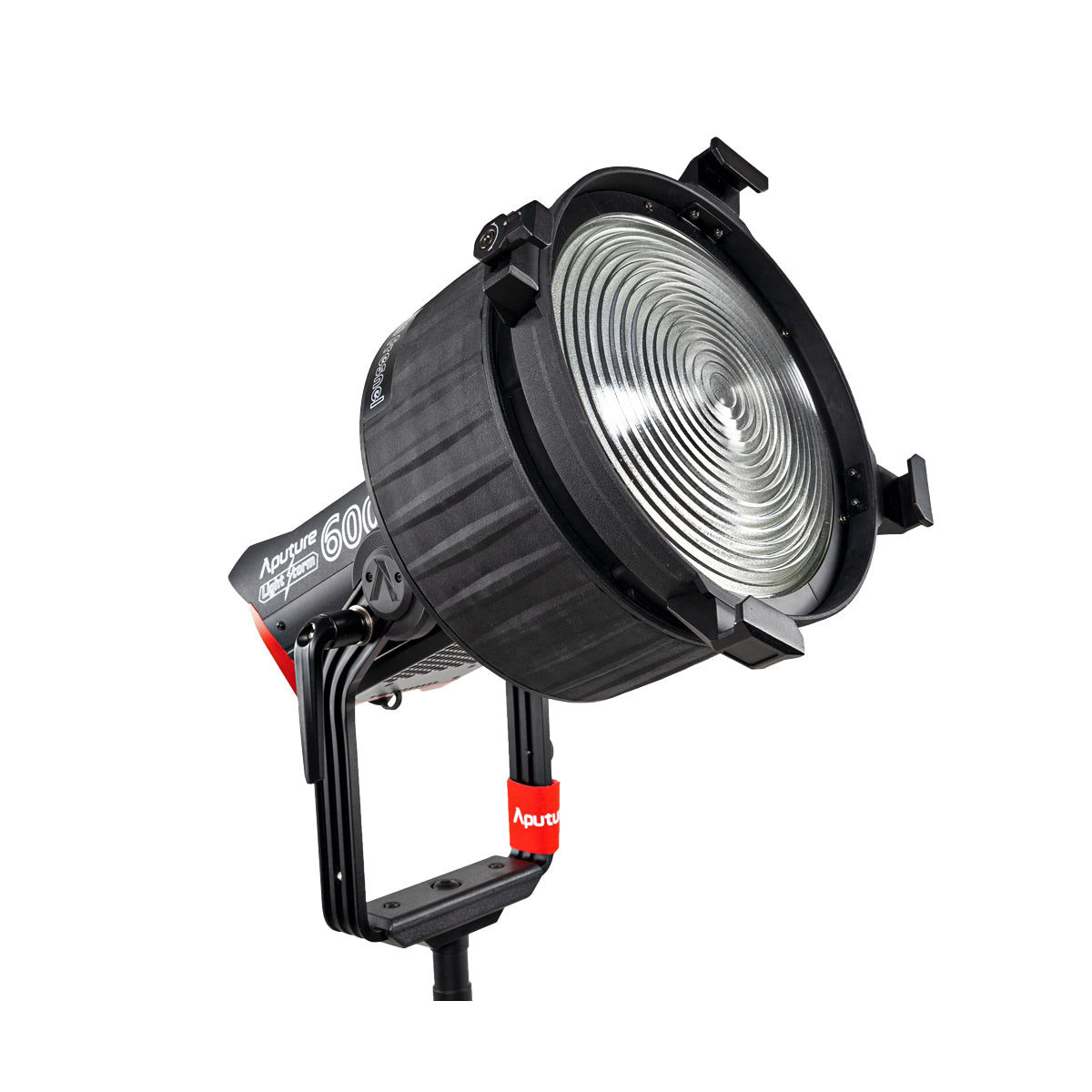

As an Aputure Fresnel, this modifier also uses dual-lens optical design, utilizing a condenser lens to refocus the light from a flat-chip COB LED to optimize it for the front Fresnel element, further enhancing the fixture’s illuminance. When combined with the Aputure LS 600d Pro, the fixture can output over 29,300 lux at 3 meters.

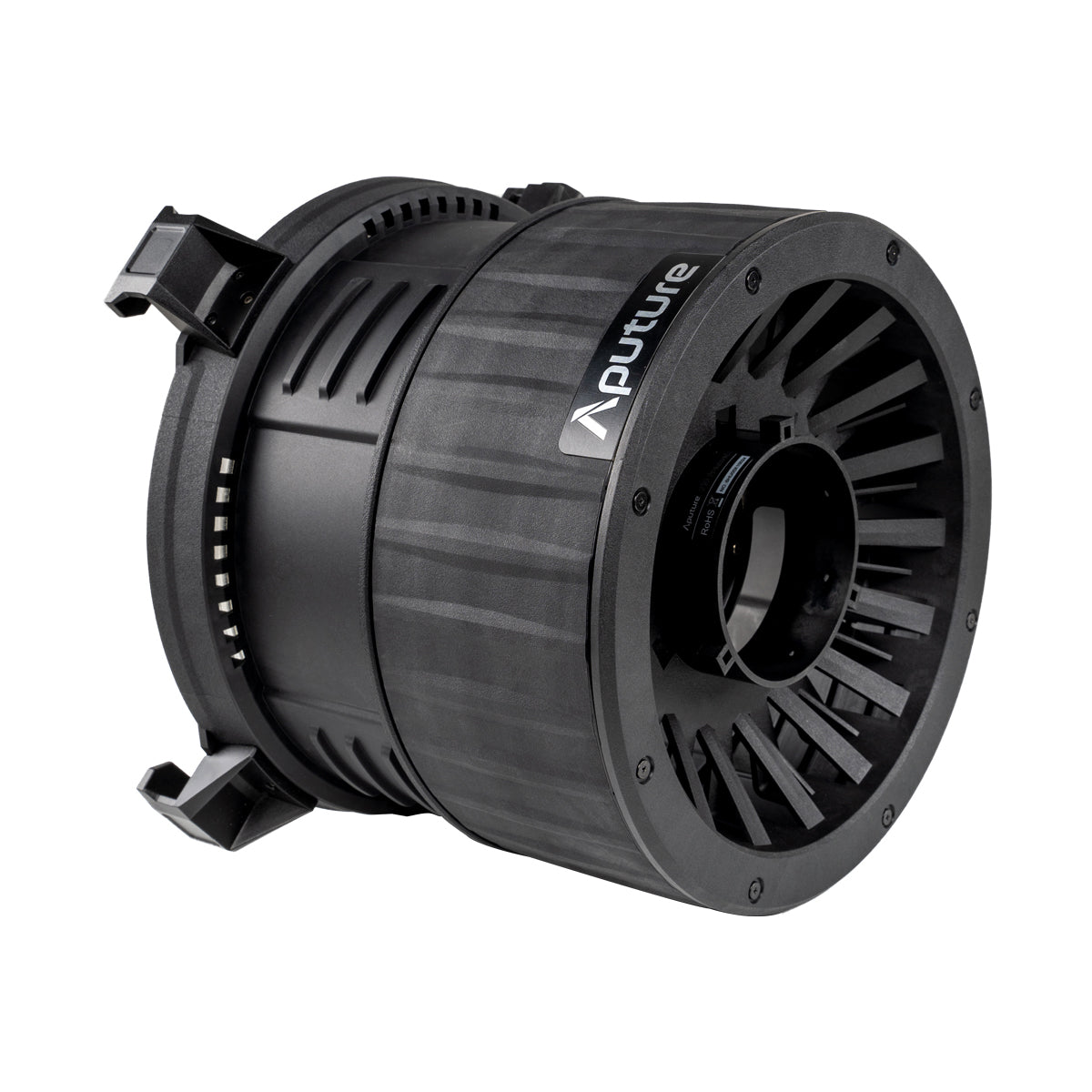

To ergonomically and precisely adjust its variable 15°-45° beam angle, the F10 Fresnel uses Aputure’s helicoid focus design from the Fresnel 2X. The F10 also incorporates a ventilation design that prevents the COB from overheating, while also minimizing any light leaks.
The drop-in accessory slot is compatible with Aputure’s F10 Barn Doors, which provide 8 leaves made to properly cut light from the large Fresnel.
|Photometrics - LS600d Pro|
|Flood 45º||1m: 89,200 Lux / 8,289 Fc |
3m: 11,440 Lux / 1,063 Fc
5m: 4,260 Lux / 395 Fc
|Spot 15º||1m: 224,200 Lux / 20,836 Fc |
3m: 29,300 Lux / 2,723 Fc
5m: 10,580 Lux / 983 Fc
|Fresnel Lens Diameter||9.84" / 250mm|
|Accessory Slot Diameter||13.106" / 332.88mm|
|Accessory Mount||Bowens Mount|
|Dimensions||Collapsed (Flood 45°): 13.6 x 13.4 x 6.8" / 346 x 340 x 172mm |
Extended (Spot 15°): 13.6 x 13.4 x 9.9" / 346 x 340 x 250mm
|Weight||8.5lbs / 3850g|
