- Live stream up to 1080p at 60fps

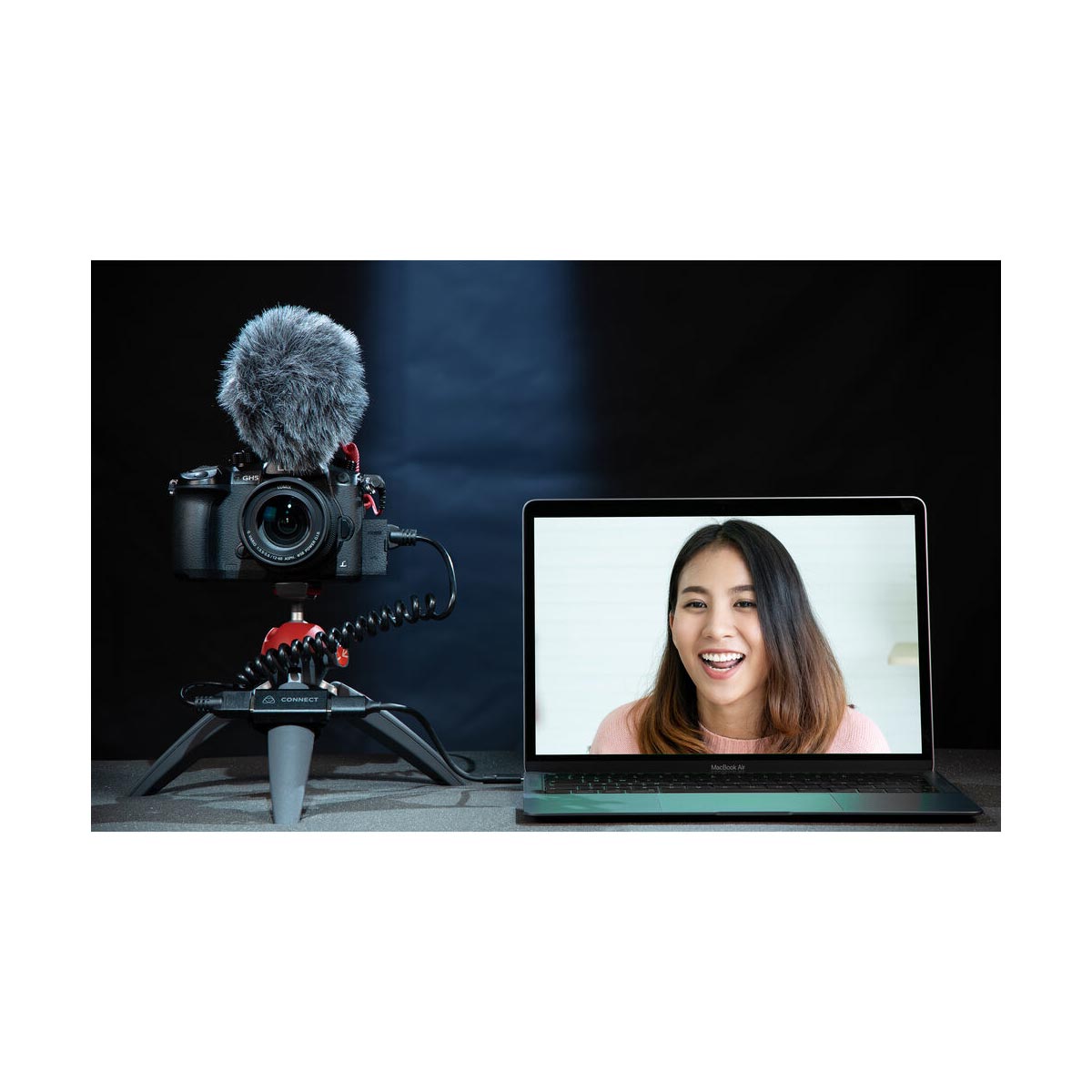

- Turns your DSLR or mirrorless camera into a professional webcam
- Functions as a switcher when paired with the Shogun7
- Plug and play interface

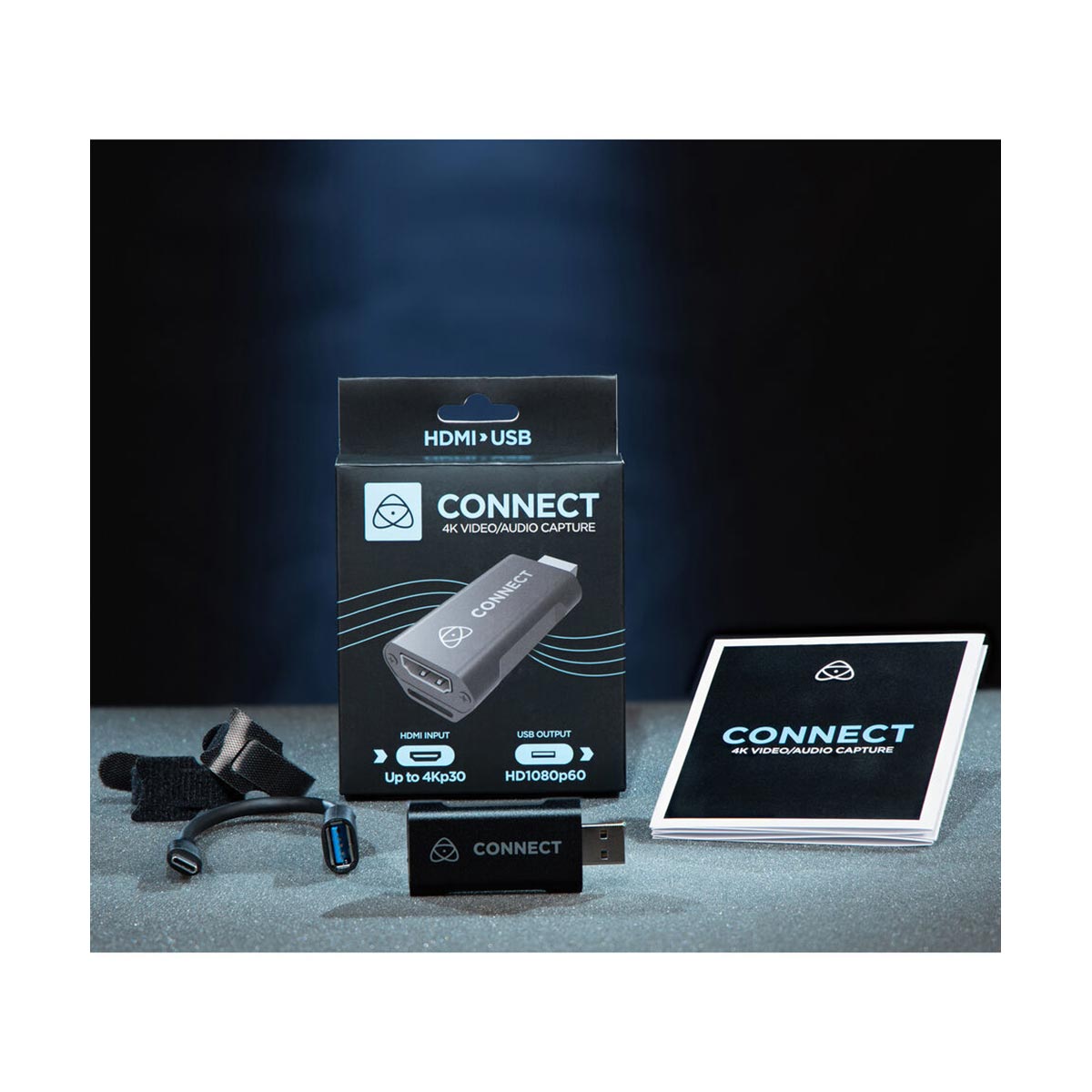

Convert your camera or switch output from HDMI to USB video for live streaming applications with the Atomos Connect 2 4K HDMI to USB Converter. The Connect 2 provides the same HDMI to USB conversion for live streaming applications and 4K30 support as the original Connect 4K, and this redesigned model includes a 7.9" long USB Type-A to Type-C connector to connect to even more computer models and devices. It also includes two hook-and-loop strips to keep the Connect 2 secured onto your devices.
The Connect 2 maintains the same features as the Connect, allowing you to run an HDMI signal to the USB port on your macOS, Android, or Windows device for use with streaming applications such as OBS, Twitch, and YouTube Live. It accepts up to a UHD 4K30 HDMI signal and outputs up to a 1080p60 signal over USB 3.1 Gen 1 Type-A, or over USB Type-C using the included adapter cable. You can connect an HDMI camera to use as a webcam, gaming systems for live streaming gameplay, monitor signals, and signals from various other devices. When used with the Atomos Shogun 7 monitor, which is capable of recording and switching four 1080p60 signals, the Connect 2 allows you to send the switched feed to your computer for streaming.
The Connect 2 automatically converts your HDMI input to the universal USB Video Class standard (UVC) for compatibility with popular CDN platforms that supports UVC, such as Skype, MS Teams, Zoom, Twitch, YouTube, and many more. It can also be used with professional streaming applications such as OBS, StreamLabs OBS, Wirecast, and X-Split for enhanced multimedia streaming. Its compact size and streamlined redesign make it an easy-to-use device for both the studio and on location.
It is powered from your computer's USB Type-A or Type-C port and requires no external power supply. It supports up to 49' HDMI AWG26 certified cables.
|Input Connectors||1 x HDMI|
|HDMI Input||up to 4K30|
|Output Connectors||1 x USB Type-A (USB Video) Male |
1 x USB Type-C (USB Video) Male
|USB Output Resolution||up to 1080p60 (YUV.JPEG)|
|Color Depth||Supports 8/10/12-bit deep color|
|HDMI Support||Certified AWG26 HDMI cables up to 15 meters|
|Software Support||Popular acquisition software on Windows, Android & Mac OS|
|USB Support||Conforms to USB Video and UVC standard |
Conforms to USB Audio UAC standard (L-PCM format)
|Power||No external power required|
|Maximum Working Current||0.4A / 5V DC|
|Operating Temperature Range||-10 to +55 °C|
|Dimensions (L x W x H)||64 x 28 x 13mm / 2.52 x 0.98 x 0.51"|
|Weight||21.4g / 0.75 oz|
|PC i5-3400 or above|
|NB i7-3537U 2.0GHZ or above.|
|Graphics Card||PC NVIDIA GT630 or above |
NC NVIDIA GT735M or above
|Run Memory||4G RAM|
