Atomos Ninja V Thin 5” 4K HDMI Recording Monitor

AtomosSKU: ATOMNJAV01 | UPC: 814164021173
OUT OF STOCK
Price:
Save $100.00
Sale price$399.00 Regular price$499.00

Free in-store pick up
Free shipping for orders over $100

Return Policy

At pictureline, we are extremely proud that unless very clearly marked, all products we sell are new, unopened, and purchased directly from the manufacturer or their authorized distributor. Products that have left the store, been tested, or are otherwise opened, will be labeled and advertised as such, and have a discount associated with them. Our return policy reflects our commitment to being fully transparent with our customers, and only offering the best quality products. If you are dissatisfied with your purchase, we are happy to process a return based on the following conditions.

ELIGIBLE ITEMS:

We accept returns up to 14 days from the date of receipt for all products that meet the following conditions:

  • Items must be unused and unopened.
  • All items, warranty cards, manuals, accessories, etc. must be included in original, unaltered condition.
OPENED / USED ITEMS:

Opened / Used Items are returnable, but will be subject to a 15% restocking fee. Opened / Used Items must meet the following conditions in order to qualify for a partial refund.

  • All items, warranty cards, packaging, manuals, accessories, etc. must be included in original, unaltered condition. Items must be in the same new condition as was received by the customer. Products that have signs of wear may be refused or subject to additional restocking fees.
NON-REFUNDABLE ITEMS:
  • Special order items (not regularly stocked)
  • Items not in original condition
  • Sensitized materials (film, photographic paper, or liquid chemicals)
  • Consumable items (batteries/chargers or ink)
  • Printers
  • Professional Cinema products
RETURNING YOUR ITEM:

First, call our support team to receive authorization for your return, or visit us at our store.

  • Once authorized, ship your item back to us!
  • Pack all items to be returned in a sturdy shipping carton (use the original if you’d like)
  • Enclose a copy of your sales receipt, keeping the original for your records
  • Ship it back by your method of choice - we can provide a label and deduct the cost from your refund
  • We suggest adding shipping insurance as we can not cover any damage caused in transit
REFUNDS:
  • Once items are approved, refunds will be issued to the original form of payment (minus applicable fees)
  • 3% processing fee will apply unless issued as in-store credit
  • Shipping and handling fees are non-refundable
  • Credit for returns are normally processed within 3-5 business days from the date we receive the merchandise
  • An additional fee may be applied if items do not meet the return criteria and need to be sent back to the manufacturer
DEFECTIVE ITEMS:

If you receive a defective product, we will happily replace your product with the same or equivalent item at no cost to you! Some manufacturers have policies requiring replacement product be sent directly from the manufacturer rather than exchange by the retailer, and in those cases we will or assist you in receiving a replacement directly from the them. Defective items from Atomos, BlackMagic, DJI, and Hasselblad must be exchanged directly with the manufacturer. All defective returns must be made within 14 days of receipt of product. Full manufacturer warranties are supplied with merchandise purchased from pictureline for coverage after 14 days. Please call if you have any questions regarding the repairs or services covered under a manufacturer warranty.

EXCHANGES:

Exchanges can easily be arranged by contacting our support team. Please include your order number.

EXCESSIVE RETURNS:

pictureline reserves the right to refuse returns to customers who have exhibited a pattern of excessive returns, as determined solely by management.


  • Ninja V Thin 5” 4K HDMI Recording Monitor

  • 1 x Battery Eliminator

  • 1 x International DC power supply

  • 1 x MasterCaddy II

  • QuickStart Guide

  • Limited 1-Year Warranty (Extendable to 3-Years)

Related Products

Description

Record like a Ninja!

Eliminate your camera’s internal compression and time limits – record up to 4Kp60 10-bit HDR video direct from your camera's sensor over HDMI 2.0. Teamed with a 1TB AtomX SSDmini you can now achieve up to 150 minutes of 4K recording on a single drive! And when you’re done, your edit-ready ProRes and DNxHR recordings are stored on affordable SSD drives.

HDR/SDR perfection

The Ninja V displays 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. See your images clearly in daylight on the near edge-to-edge anti-reflection screen. Ninja V can be calibrated for perfect color accuracy every time, and also enables playout to HDR or SDR TV.

Compact Monitor Recorder made perfect

The new Ninja V features a stunningly bright 5.2” 10-bit HDR monitor with an astounding 1000 nits of output. The sleek aluminum body is crafted for maximum durability, weighing in at just 360g and measuring only 25mm thick – easily attaching to any camera rig.

Pocket size playback

AtomOS allows accurate set up and one-touch operation, ensuring a great recording every time. Of course, a recording isn't complete until checked; Ninja V allows instant playback, slow motion and frame-by-frame analysis for immediate review.

Record 4K HDR Gaming

Ninja V is a stand-alone system for 4k UHD, HDR and high frame rate capture that eliminates expensive, complicated and unreliable PC setups. Ninja V enables simple recording, monitoring and instant review. Capture every detail in HDR and automatically include all the correct HDR flags ready for upload to YouTube. Ideal for games development testing, pre-release capture sessions or just to show off your skills!

Edit, finish & upload

Ninja V files are available immediately on your Mac or PC. Tag on-the-fly while recording for direct-to-edit look up in Final Cut Pro X, Adobe Premiere and Avid Media Composer. Both video and gaming workflows are supported for the fastest path to your audience.

SSD made Mini

We have worked closely with our drive partners at Angelbird and Sony to bring you the AtomX SSDmini. These tiny drives are only 7mm high and 80mm long. They retain the same SATA III connector as traditional SSDs and they are backward compatible with our range of Ninja, Shogun and Sumo devices.

Endless Open Expansion

Modularity is at the heart of the Ninja V with a bi-directional high speed expansion port breaking out connectivity for I/O of video, audio and power. Atomos created AtomX to ensure users could adapt and connect to any legacy or future wireless or wired video standard. The expansion system offers endless scalability.

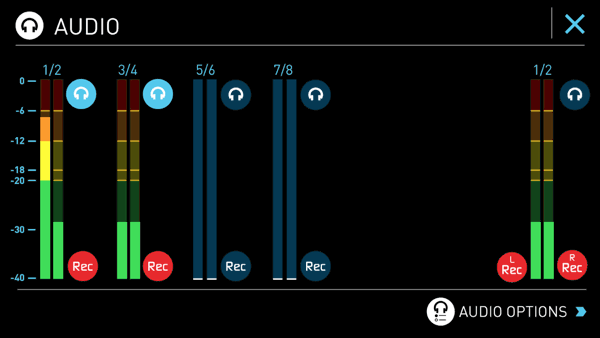

Looks good, sounds great!

Like all Atomos Monitor/Recorders, Ninja V enables audio input directly from your camera. Choose from digital source via HDMI, or analogue input via the stereo 3.5mm line/mic socket, depending on your rig.

Physical Specifications
Dimensions (W x H x D) 5.94 x 3.6 x 1.22" / 151 x 91.5 x 31mm
Weight 360g / 12.7oz
Mount points 1 x Anti rotation 1/4"-20 + 3/8 top and bottom
Environmental
Ambient operating temperature Up to 40° C
Construction and Control
Body Aluminum & ABS plastic
Cooling Actively controlled fan and heat sink
Tally light Rear and front
Multi-function button Power / lock Screen
AtomXpansion slot Yes
Power
Input voltage 6.2V - 16.8V
Operating power 5.8V - 7.2W
Compatible batteries NPF L series
Built in battery No
Battery Run time (Record) 5200mAh - up to 2hrs (monitor & record 4K 60p)
7800mAh - up to 3hrs (monitor & record 4K 60p)
Continuous power Via Optional AtomX SYNC Module
DC in connector Via DC Jack on Battery Eliminator
Dtap Via Battery Eliminator and optional D-Tap to DC cable
Display
Touchscreen SuperAtom IPS panel (capacitive touch)
Size 5.2"
Resolution 1920 x 1080
PPI 427
Bit depth 10Bit (8+2 FRC)
Backlight Type Edge lit
Brightness (cdm2 / nits) 1000
Aspect ratio 16:9
Color Gamut Rec.709
Calibration support Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
Color Pipeline
Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3,Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog,JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilmFlog, PQ (HDR10), HLG, Nikon N-Log
Gamut BT2020, DCI P3, DCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 /RedColor3 / RedColor4 / RedWideGamut
3D LUT Display .Cube Format
3D LUT Down Stream Loop out
3DLUT 50/50 Yes
Monitoring Modes Native / HLG / PQ / 3D LUT
HDR output Conversion Log / HDR to HLG / PQ / Dolby Vision
Video Input
HDMI 1 x HDMI (2.0) 4K p60
HDMI RAW Apples ProRes RAW up to 6K
SDI Optional via AtomX SDI module
SDI RAW Optional with AtomX SDI + SDI RAW activation
Bit Depth 8/10-bit Video / RAW up to 12-bit
Video Chroma Subsampling 4:2:2
HDCP copy protection Not supported
Metadata
HDMI RAW - white balance, exposure index, shutter speed/angle, iris F stop, ISO, gamma, gamut
SDI File name from Arri, RED
Video Output
HDMI 1 x HDMI (2.0) 4k p60
SDI loop out Optional Via AtomX SDI module
SDI Play out Optional Via AtomX SDI module
Video Chroma Subsampling 4:2:2
Bit Depth 10-bit Video / 12-bit RAW
Web Streaming
USB UVC Optional via Connect 4k, AtomX Cast
Video Signal Conversion
HDMI to SDI Optional Via AtomX SDI module
SDI to HDMI Optional Via AtomX SDI module
Audio In/Out
Audio Quality 24-bit 48kHz
Audio Codec PCM
HDMI 8ch 24-bit, input dependent
SDI 12ch 24-bit, input dependent
Analogue Audio in 3.5mm 2ch.
Headphone out 3.5mm 2ch.
Timecode / Sync
Embedded HDMI and SDI
Time of day Yes, Time and Date
LTC via 3.5mm audio Jack input (requires post processing)
Wireless SYNC Via Optional AtomX SYNC Module
Resolution and Frame Rates (Record, Monitor & Playback)
6k RAW Only up to 30p via HDMI
4k DCI 23.98/24/25/29.9/30/50/59.94/60p
4k UHD 23.98/24/25/29.9/30/50/59.94/60p
2K DCI 2046 x 1080 Optional via AtomX SDI module
Anamorphic 3.5k: RAW up to 60p (from supported cameras only)
FHD 1920 x 1080 Progressive 23.98/24/25/29.9/30/50/59.94/60/100/120p
FHD 1920 x 1080 PsF converted to P and looped out PsF
FHD 1920 x 1080 Interlaced 23.98/24/25/29.9/30/50/59.94/60i
1280 x 720p 50/59.94/60p
Recording CODEC
Apple ProRes RAW ProRes RAW & RAW HQ
Apple ProRes LT, 422, 422HQ
Avid DNxHD 220x, 220, 145, 36
Avid DNxHR LB, SQ, HQ, HQX
H.265 Optional activation. For more info visit my.atomos.com
Playback
Playlist Yes, create playlists from full or sub clips
Loop Yes, with user customizable in / out markers
Apple ProRes Raw Yes, recorded clips
Apple ProRes Yes, with Linear PCM audio
Avid DNx Yes, with Linear PCM audio
Recording functions
Pre-roll record Yes (HD 8s, 4K 2s) - Not available in RAW
Timelapse Yes
Multi Input / Switching
SDI A/B toggle via optional AtomX SDI module
Supported media
SSDmini Native size and fit
CFast II Supported cards via optional AtomX CFast Adapter
File Naming Unit Name - Scene/Shot/Take
File System ExFAT
On screen tools
Waveform Yes, 3 size / position
RGB parade Yes, 3 size / position
Vector scope Yes, 2 size / position
1 x Zoom Yes. 1:1 Pixel mapping for 4k
2 x Zoom Yes
Focus peaking Colour selected / threshold setting / color / mono / edges only
False colour Yes, with scale
Zebra Yes, adjustable
Isolate color channel Blue Only
Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides 9:16, 1:1, 1.91:1, 4:5
Safe areas Action and Graphic
Grid markers 9 grid
Anamorphic desqueeze 1.25x 1.33x , 1.5x ,1.8x ,2x
Display Flip Vertical Only
Onboard Signal Processing
Pulldown Removal 24/25/30pSF > 24/25/30p (2:2 pulldown)60i > 24p (3:2 pulldown)
4K UHD Downscale for HD Loop out - 4K UHD to FHD
DCI Crop Loop out - 17:9 to 16:9 Crop
Remote control
HDMI Auto HDMI Trigger, Supported Protocols - Canon, Sony,Atomos Open Standard
SDI SDI trigger camera selectable
Serial 2.5mm Jack LANC control and calibration via optional USB to serial cable
Bluetooth LE via optional AtomX SYNC module
Wireless RF via optional AtomX SYNC module
External Device Control
Serial 2.5mm Jack Camera control for supported cameras via Optional USB to Serial Cable
Bluetooth LE via optional AtomX SYNC module to compatible devices
Wireless RF via optional AtomX SYNC module to compatible devices
Supported Applications
XML Cut tag EDL in FCPX XML
Apple ProRes RAW Apple FCP, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light.
Video Codecs All Applications with support for Apple ProRes and Avid DNX in .MOV wrapper
