Product Information
-

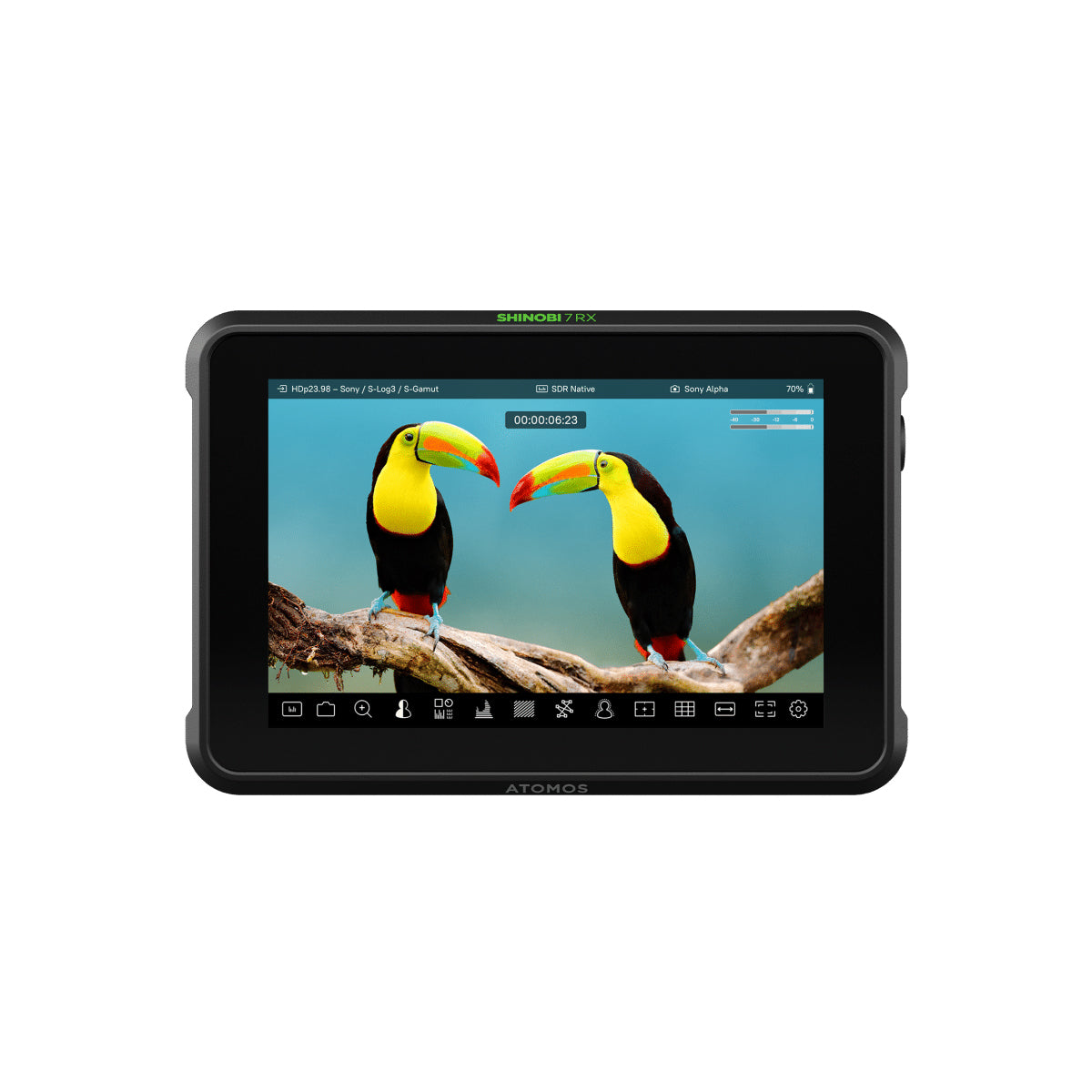

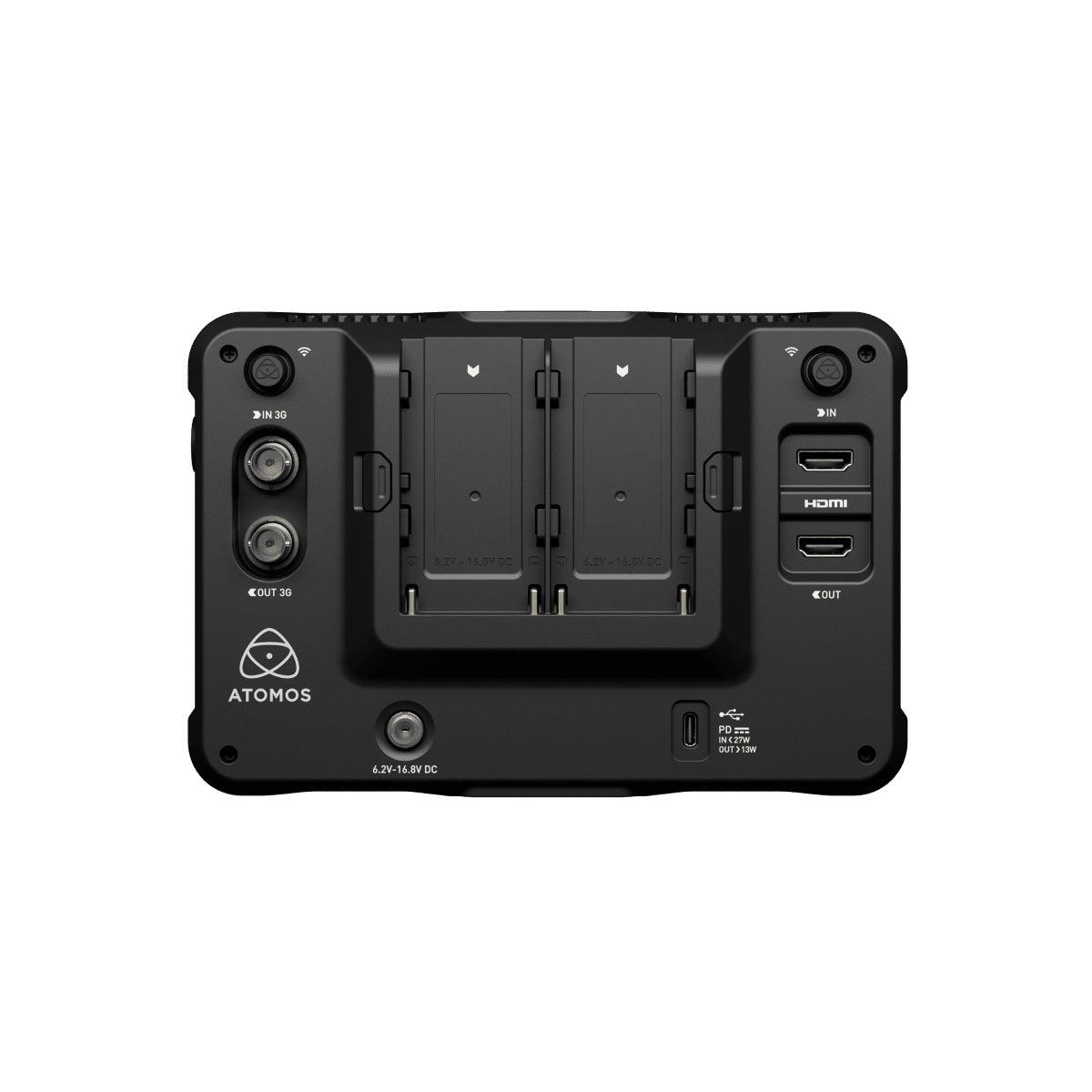

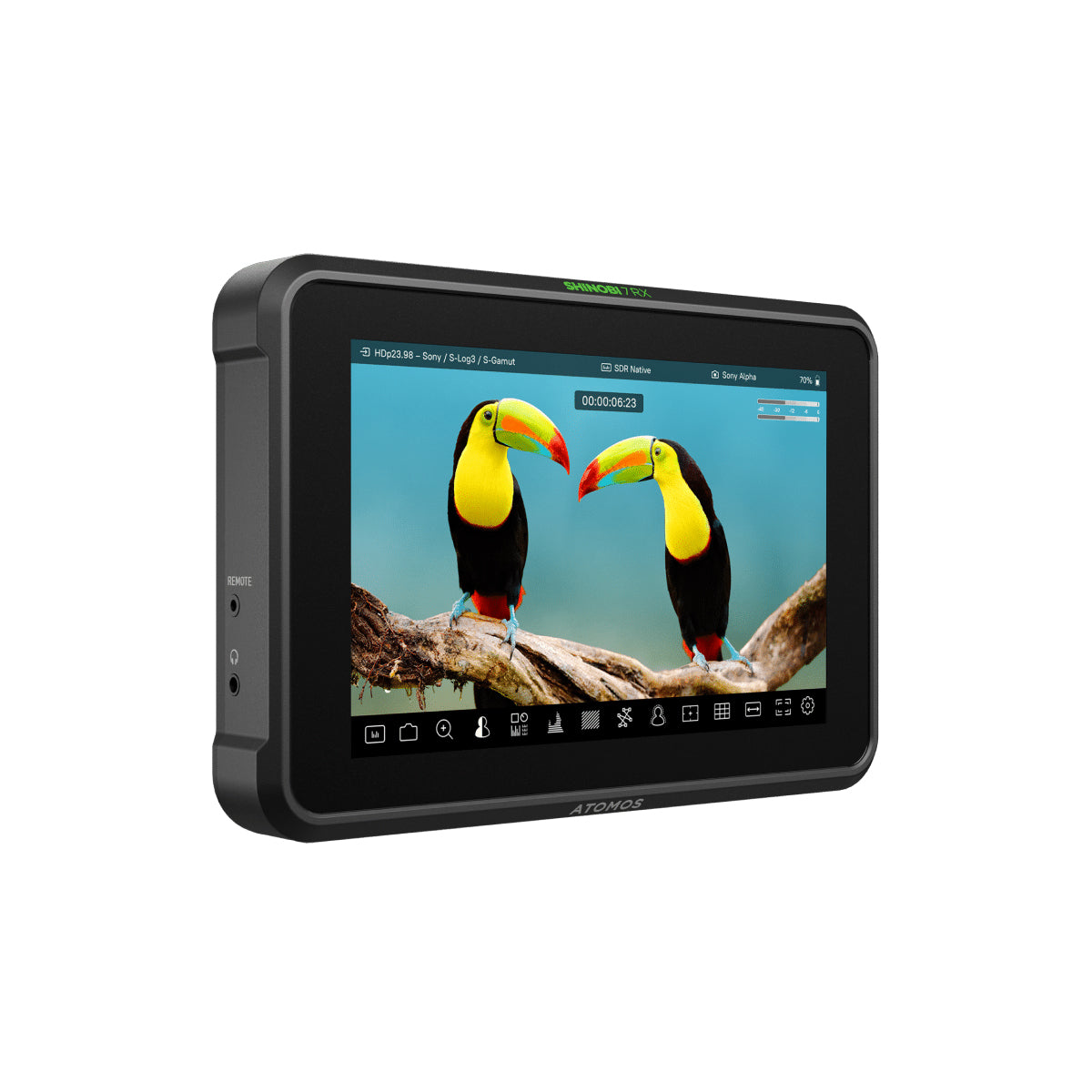

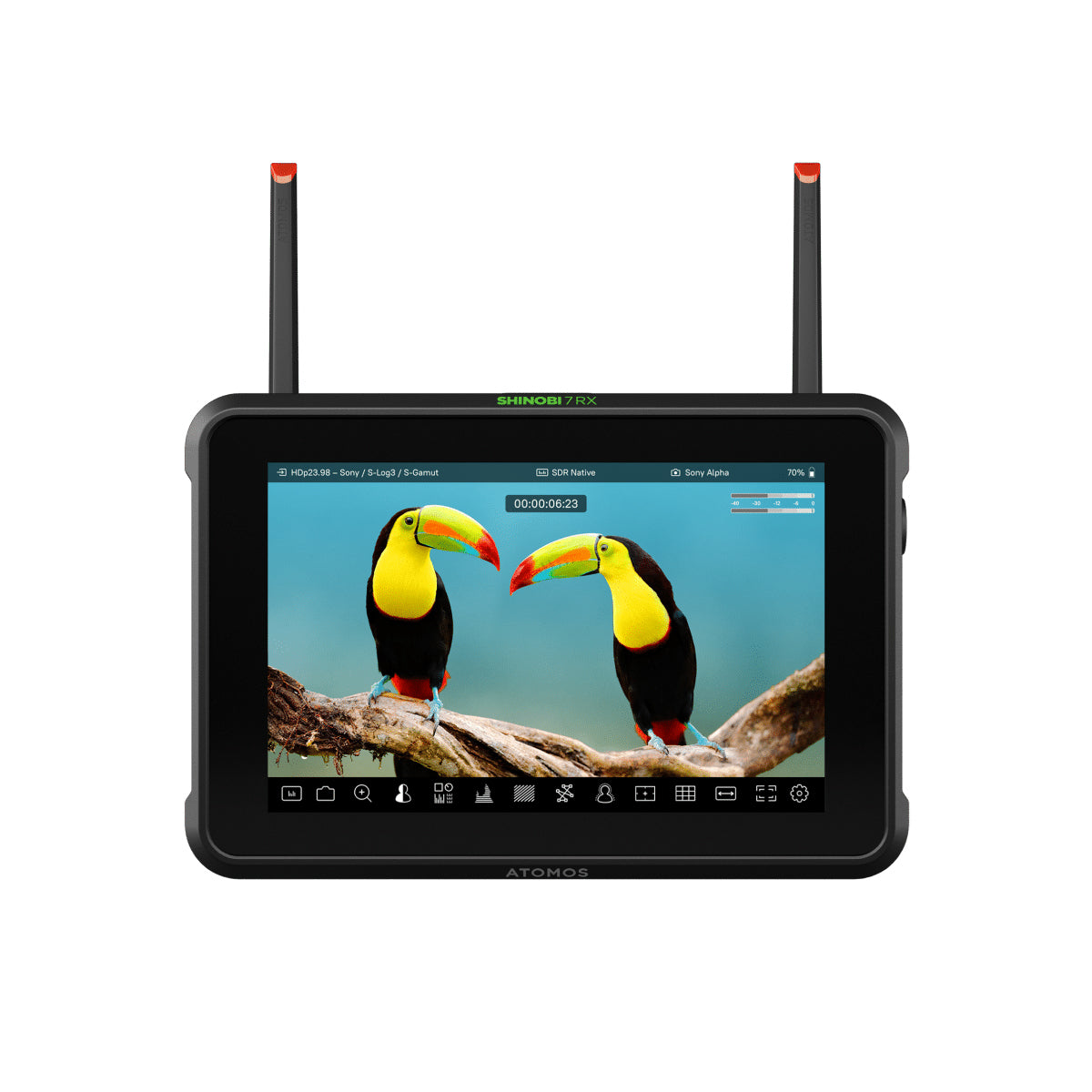

Shinobi 7 RX 7" 4K HDMI/SDI HDR Monitor
-

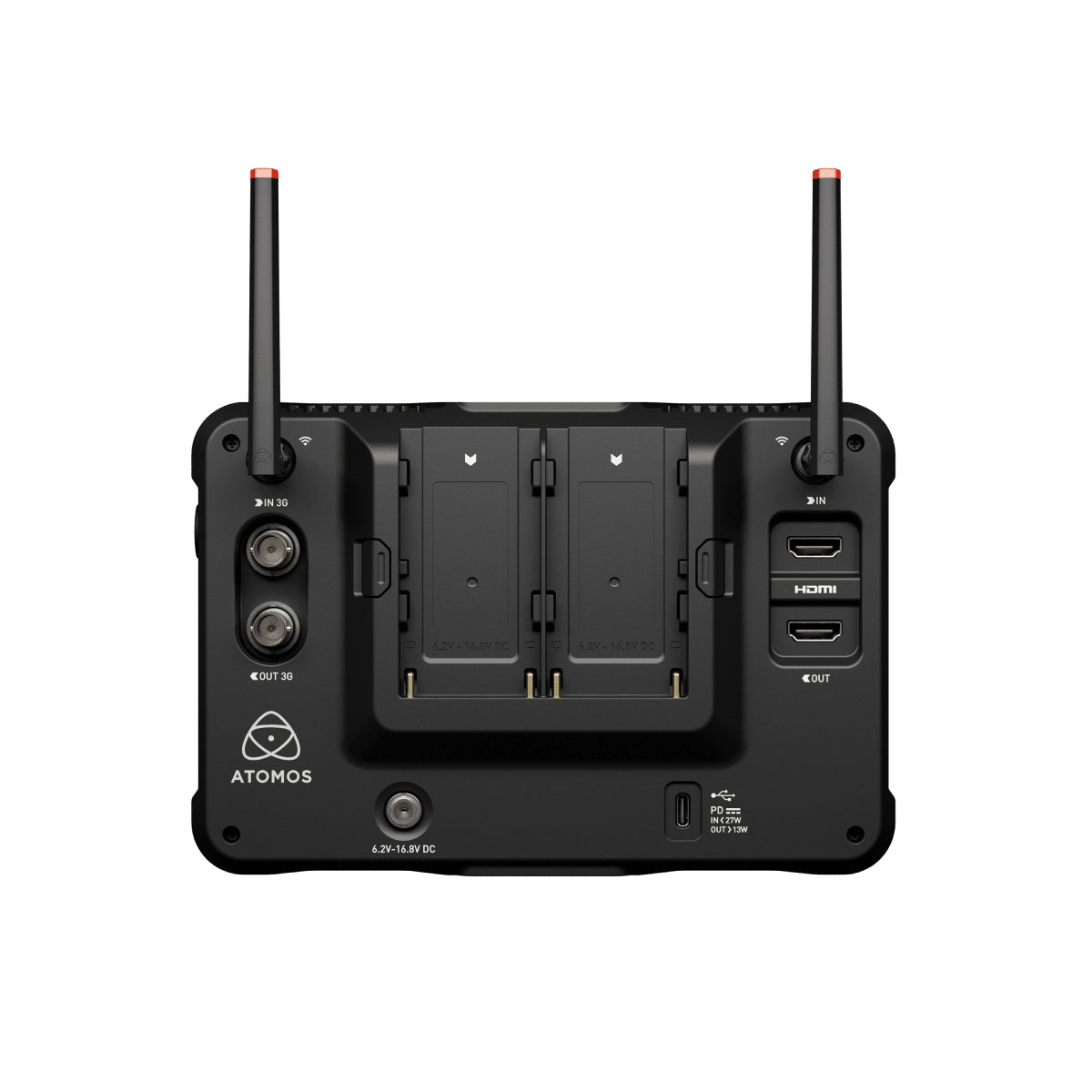

Wi-Fi antenna
-
5x antenna tips (black, white, yellow, green, red)
-
2x antenna caps
-
USB-C 2.0 cable (1m)
-
Limited 1-Year Warranty, Extended to 2 years on product registration.
| Display | |
|---|---|
| Size | 7-inch HDR screen with a calibrated peak brightness of 2200nits |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:10 native |
| Backlight Type | Edge-lit |
| Brightness (cdm2 / nits) | 2200 |
| Color Gamut | REC709 HDTV |
| Calibration support | Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable |
| Color Pipeline | |
|---|---|
| Gamma | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
| Gamut | BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display | .Cube format (17 & 33 points supported) |
| 3D LUT Down Stream | Loop out |
| 3DLUT 50/50 | Yes |
| Monitoring Modes | SDR Native / HDR HLG / HDR PQ / 709 LUT / User LUT |
| Video Input | |
|---|---|
| HDMI | 1 x HDMI (2.0) |
| Locking port | N/A |
| SDI | up to 1080p60 |
| Wi-Fi | Wi-Fi 6 |
| USB | 1 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit Video |
| Video Chroma Subsampling | 4:2:2 |
| Metadata | |
|---|---|
| HDMI | N/A |
| Network | |
|---|---|
| Wi-Fi | Wi-Fi 6 |
| Connectivity | |
|---|---|
| LANC | Yes |
| Audio In/Out | |
|---|---|
| HDMI | 2-channel, 24-bit |
| SDI | 8-channel, 24-bit |
| Headphone out | 3.5mm headphone jack, 2-channel |
| Timecode | |
|---|---|
| Embedded | HDMI (display only) |
| Time of day | Yes |
| Reference / Genlock input | No |
| LTC | No |
| Resolution and Frame Rates (Record, Monitor & Playback) | |
|---|---|
| 4k DCI | 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60p |
| 4k UHD | 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60p |
| 2K DCI 2048 x 1080 | Yes |
| 1080p | 23.98 / 24 / 25 / 29.9 / 30 / 50 / 59.94 / 60 / 100 / 120p |
| 1080 PsF | Converted to P and looped out PsF |
| 1080i | 50 / 59.94 / 60i |
| 720p | 50 / 59.94 / 60p |
| Supported media | |
|---|---|
| SD | Update firmware & upload LUTs |
| File System | FAT32, NTFS |
| On screen tools | |
|---|---|
| MultiScope Analysis View | Image, waveform, histogram, & vectorscope |
| Waveform | 3 sizes – adjustable opacity & brightness |
| Histogram | 1 sizes – adjustable opacity & brightness |
| RGB parade | 3 sizes – adjustable opacity & brightness |
| Vector scope | 2 sizes – adjustable opacity & brightness |
| 1 x Zoom | Yes. 1:1 Pixel mapping for 4K |
| 2 x Zoom | Yes |
| 4 x Zoom | Yes |
| Focus peaking | 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity |
| Atomos False color | Yes, with scale |
| Zebra | Adjustable threshold (50% to 105%) |
| Isolate color channel | Blue only |
| Cine Frame Guides | Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
| Social Frame guides | Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
| Safe areas | SMPTE safe title area – 93% & 90% |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x |
| Display Flip | Horizontal & vertical |
| External Device Control | |
|---|---|
| USB-C | Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus. USB-C port can also be used with external calibrators (no PC required). |
| Serial 2.5mm Jack | Calibration via optional USB to serial cable |
| Power | |
|---|---|
| Input voltage (battery) | 6.2V to 16.8V |
| Operating power | 26W |
| Compatible batteries | 2 x NPF L series |
| Continuous power | Via NPF battery or USB-C PD |
| DC-In Connector | Via Battery Eliminator (separate purchase) |
| USB PD IN | 45W capable, power supply required |
| USB PD OUT | Up to 13W |
| General | |
|---|---|
| Weight | 20.46 oz / 580g (excluding batteries and antennas) |
| Dimensions (W x H x D) | 7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm |
| Mounting points | 1 x anti-rotation 1/4-inch top and bottom |
| Ambient Operating Temperature | Up to 40 degrees Celsius |
| Cooling | Heat sink + actively controlled fan |
| Construction | ABS polycarbonate |
