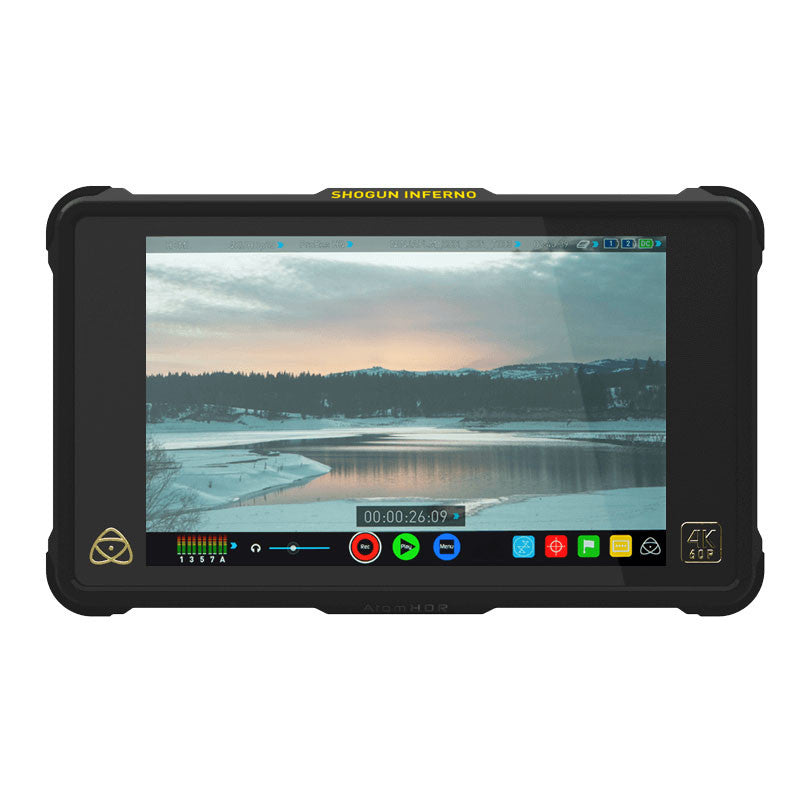

Shogun Inferno combines award winning HDR, high bright monitor with high resolution & high frame rate recording. Designed for the world's leading cinema cameras with both QuadLink SDI* and HDMI 2.0 connections for recording up to 4K 60p (HD 240p) video, 4K 30p Raw to CDNG and 4K 60p Raw to ProRes / DNxHR.
AtomHDR image processing lets you shoot with the high brightness range of your camera’s Log profile while maintaining vibrant true-to-life colors. Conventional monitors lack this capability, displaying the brightness detail of Log but with a washed out image that makes judging exposure difficult. Be at the forefront of the HDR revolution by having a field monitor capable of resolving HDR in the field as you see it in Post Production and record the original Log image direct from the sensor for HDR grading in post production.
The 10-bit panel resolves more colors (1.07 billion colors compared to 16.7 million for standard 8-bit panels) to ensure smooth color transitions in both HDR and SDR (standard dynamic range) shooting. The 1500nit panel brings HDR to life, accentuating high contrast scenes. While for regular SDR scenes, use the brightness slider to take advantage of the 1500nit screen for hood-free outdoor monitoring.
4K 60P & HD 240P RECORDING
Shogun Inferno combines high resolution recording, high frame rate recording and playback. Record Video from both HDMI and SDI cameras direct from the sensor to 4:2:2 10-bit ProRes or DNxHR up to an amazing 4K 60p or HD 240p*. Record Raw over SDI* up to 4K 30p either directly to CDNG or record to ProRes or DNxHR. Playback recorded ProRes or DNxHR files via the HDMI or SDI output at the same high frame rates to supporting monitors
LOG AND RAW OVER QUADLINK SDI
The QuadLink SDI connections* offer the widest camera compatibility with 1.5G/3G/6G/12G SDI inputs and a single 12G SDI output. Recording RAW* from Arri, Sony, Canon and Panasonic cameras provides 4K functionality not available in some cameras whilst also offerings a far more affordable solution in terms of media costs.
MONITOR & RECORD XLR AUDIO
The Shogun Inferno has multiple audio options replacing the need for a separate audio recorder. Monitor up to 8ch of embedded HDMI audio, up to 12ch of SDI audio or use the included XLR breakout cable to connect with external microphones for balanced analogue audio with 48V phantom power.
BATTLE-READY! FOR THE FIELD

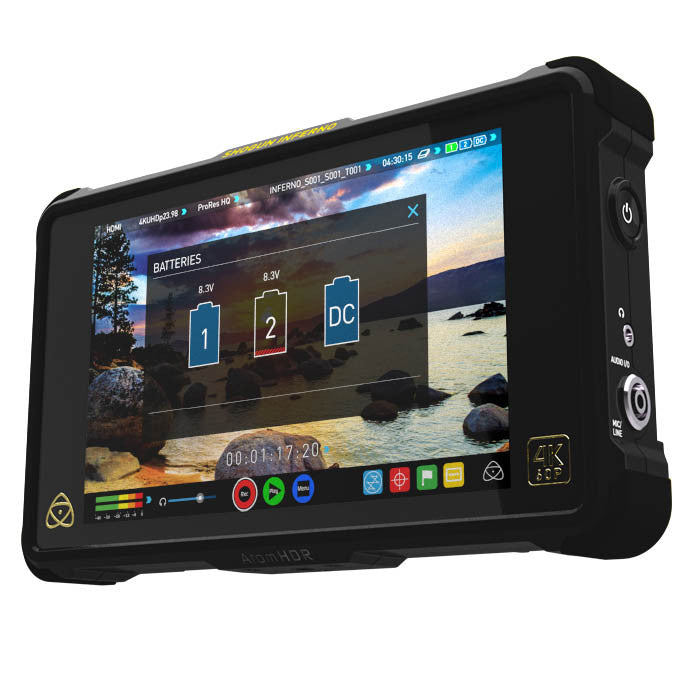

Our built-in armor enhances protection & airflow whilst the raft of accessories (2 x NP series 4-cell batteries, fast battery charger, USB3 docking station, 2 x input XLR breakout cable, control cable, DC to D-Tap cable, 5 x Master Caddy cases, DC adapter & HDR sun hood) and the premium HPRC flight case ensures you're ready to hit the field immediately.
* Available in future firmware updates
