Description

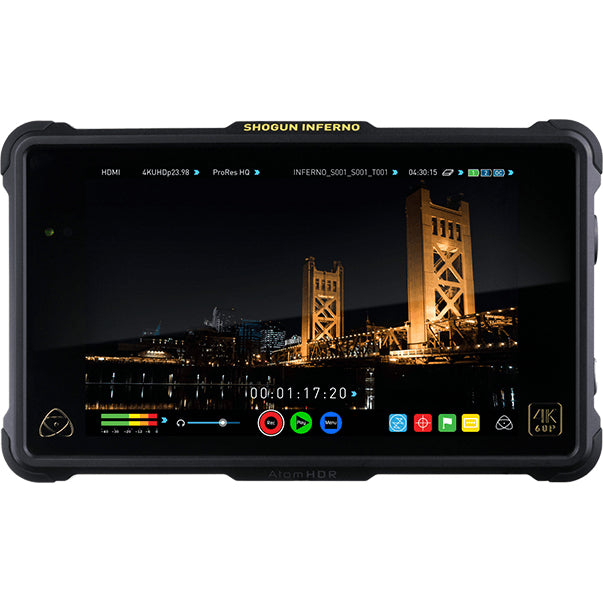

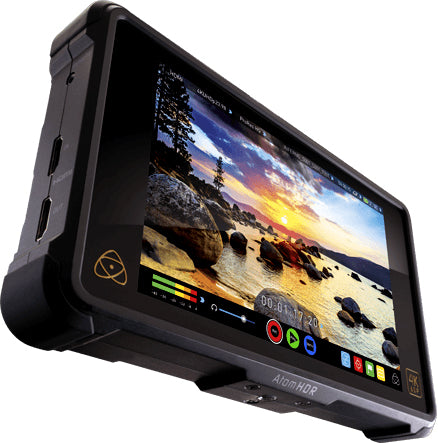

Shogun Inferno combines award winning HDR, high bright monitor with high resolution, and high frame rate recording. Designed for the world's leading cinema cameras with both QuadLink SDI* and HDMI 2.0 connections for recording up to 4K 60p (HD 240p) video, 4K 30p Raw to CDNG and 4K 60p Raw to ProRes / DNxHR.

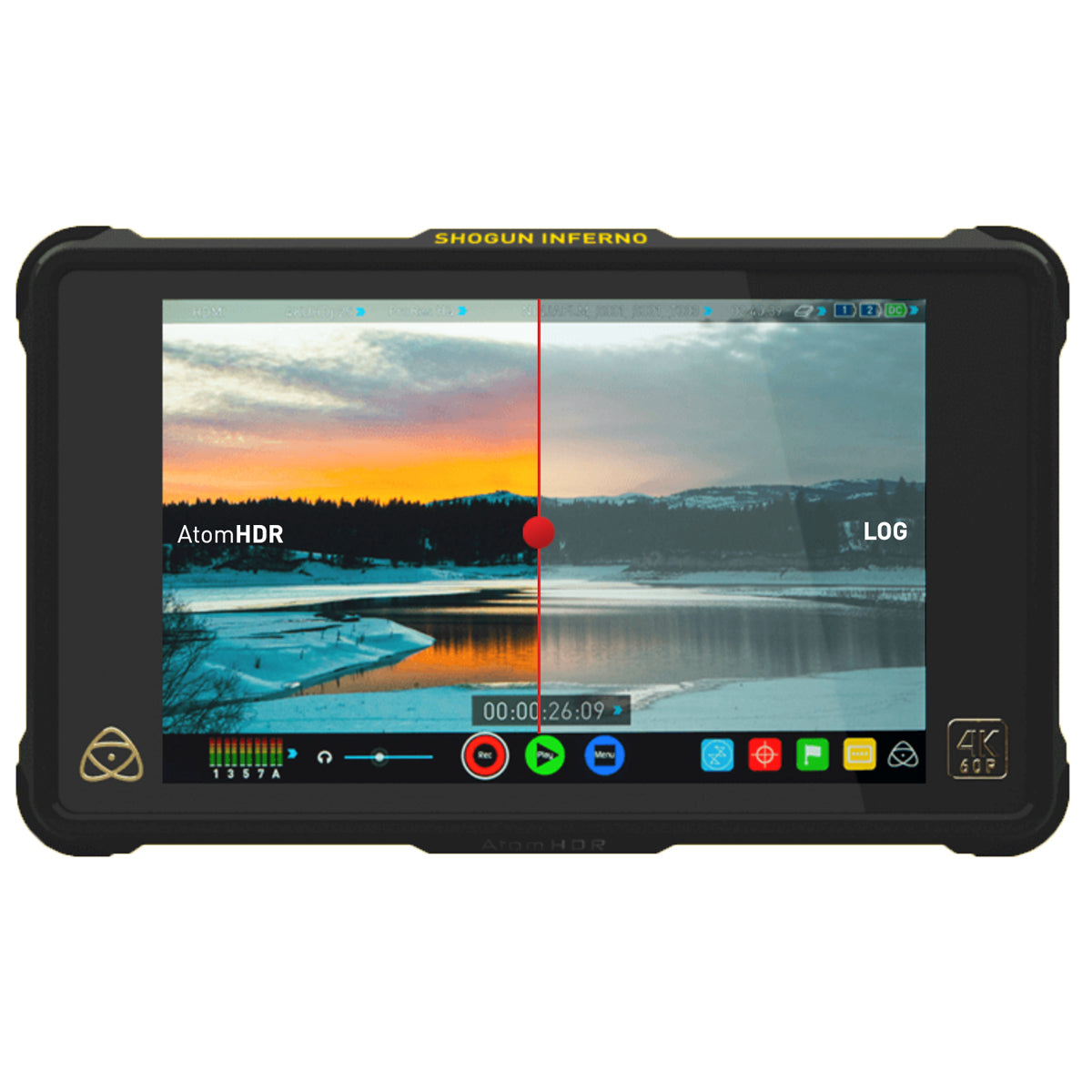

SHOOT HDR WITH LOG CAMERAS
AtomHDR image processing lets you shoot with the high brightness range of your camera’s Log profile while maintaining vibrant true-to-life colors. Conventional monitors lack this capability, displaying the brightness detail of Log but with a washed out image that makes judging exposure difficult. Be at the forefront of the HDR revolution by having a field monitor capable of resolving HDR in the field as you see it in Post Production and record the original Log image direct from the sensor for HDR grading in post production.
1500NIT 10-BIT
The 10-bit panel resolves more colors (1.07 billion colors compared to 16.7 million for standard 8-bit panels) to ensure smooth color transitions in both HDR and SDR (standard dynamic range) shooting. The 1500nit panel brings HDR to life, accentuating high contrast scenes. While for regular SDR scenes, use the brightness slider to take advantage of the 1500nit screen for hood-free outdoor monitoring.
PQ & HLG PLAYOUT & INPUT
The AtomHDR engine not only lets you set perfect exposure in the field, you can take a HDR output in either PQ or HLG* standard to compatible HDR screens or accept HDR input from your NLE for mobile grading or for HDR connection from cameras with a PQ or HLG* output.
4K 60P & HD 240P RECORDING
Shogun Inferno combines high resolution recording, high frame rate recording and playback. Record Video from both HDMI and SDI cameras direct from the sensor to 4:2:2 10-bit ProRes or DNxHR up to an amazing 4K 60p or HD 240p*. Record Raw over SDI* up to 4K 30p either directly to CDNG or record to ProRes or DNxHR. Playback recorded ProRes or DNxHR files via the HDMI or SDI output at the same high frame rates to supporting monitors.
LOG AND RAW OVER QUADLINK SDI
The QuadLink SDI connections* offer the widest camera compatibility with 1.5G/3G/6G/12G SDI inputs and a single 12G SDI output. Recording RAW* from Arri, Sony, Canon and Panasonic cameras provides 4K functionality not available in some cameras whilst also offers a far more affordable solution in terms of media costs.
CONTINUOUS POWER & SUPER FAST CHARGING
The patented continuous power system pioneered on Atomos' HD products are back on the 4K range. The hot swappable dual battery system that automatically swaps to the second battery when power is low, coupled with the blazingly fast battery charger and dual 4-cell batteries (optional accessories) means that continuous power in the field is all but assured.
MONITOR & RECORD XLR AUDIO
The Shogun Inferno has multiple audio options replacing the need for a separate audio recorder. Monitor up to 8ch of embedded HDMI audio, up to 12ch of SDI audio or use the included XLR breakout cable to connect with external microphones for balanced analogue audio with 48V phantom power.
ADVANCED RECORDING CAPABILITY
Outside of RAW and high frame rate 4:2:2 Apple ProRes / AVID DNxHR recording, the Shogun Inferno adds recording functionality not found in other recorders. Trigger start/stop recording over HDMI or SDI popular cameras, convert interlace to progressive signals on the fly with built-in 3:2 and 2:2 pulldown or use features like Pre-roll (continuous cache recording) and Time lapse to maximize your creativity.
*Available in future firmware updates
