Product Information
-

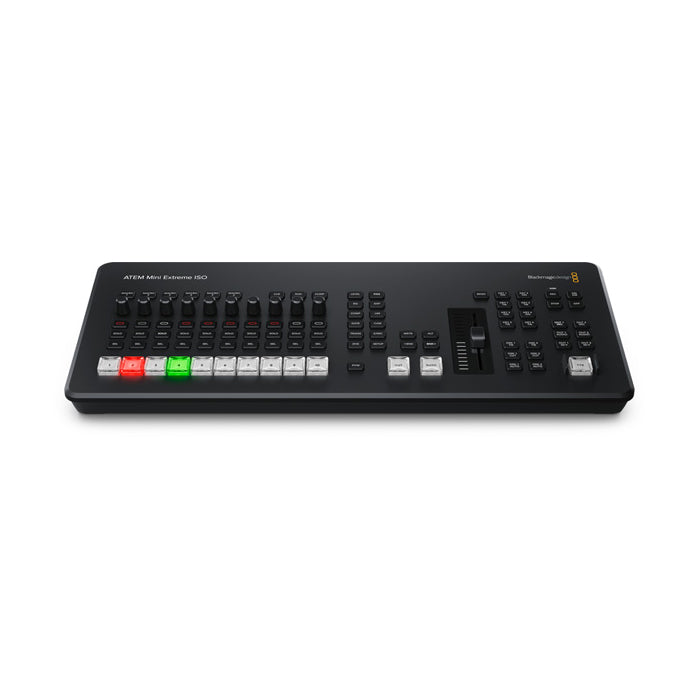

ATEM Mini Extreme ISO G2
-
External 12V DC power supply
-
Limited 1-Year Manufacturer Warranty

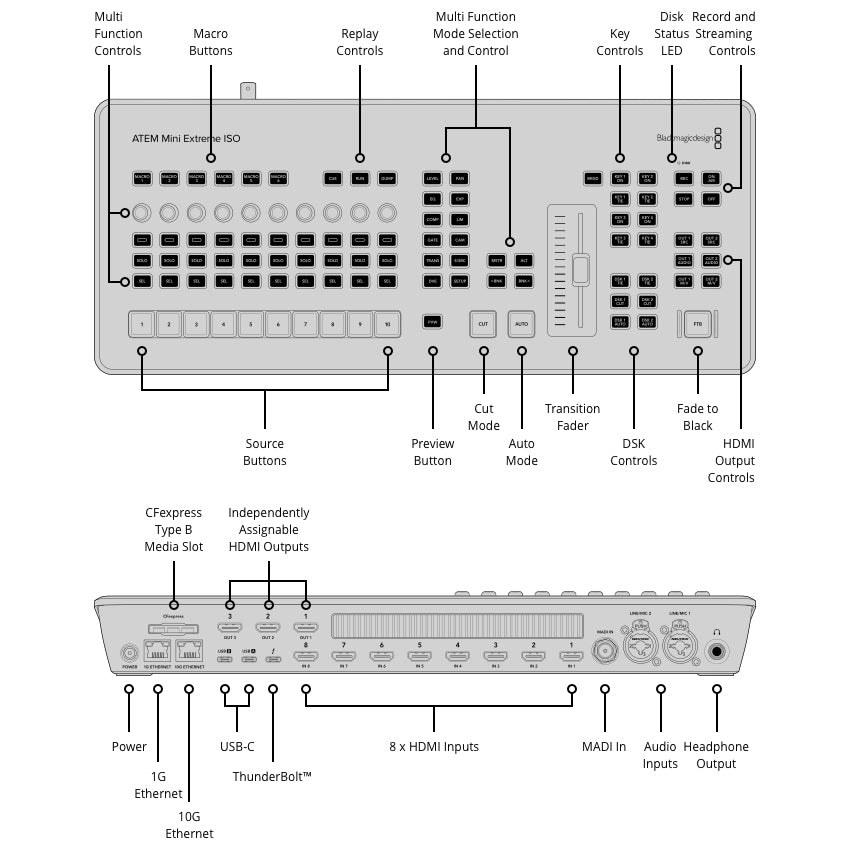

| Connections | |
|---|---|
| Total Video Inputs | 8 x HDMI 1 x SDI |
| Total Video Outputs | 3 x HMDI 1 x Thunderbolt |
| Total Aux Outputs | 4 |
| Total Audio Inputs | 2 x XLR Combo with phantom power. 1 x BNC 32 Ch MADI digital audio. |
| Total Audio Outputs | 1 x 6.35mm headphone jack |
| Timecode Connection | None |
| HDMI Video Inputs | 8 x HDMI type A, 10-bit HD switchable 2 channel embedded audio |
| Video Input Re-Sync | On all 8 HDMI inputs |
| Frame Rate and Format Converters | On all 8 HDMI inputs and remote sources |
| HDMI Program Outputs | 3 |
| Ethernet | 1 x 1G Ethernet for simple streaming, control panels and internet connection 1 x 10G Ethernet connection for recording. |
| Computer Interface | 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection |
| Control | |
|---|---|
| Control Panel | Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. |
| Control Panel Compatibility | Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. |
| Control Panel Connection | Ethernet supports 10/100/1000/10G BaseT. Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software. |
| Processing | |
|---|---|
| Audio Mixer | 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. |
| Camera Control | When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop. |
| Media Player | |
|---|---|
| Media Players | 2 |
| Channels | Fill and key for each Media Player |
| Media Pool Still Image Capacity | 20 with fill and key |
| Media Pool Still Image Format | 200 frames in 1080 HD |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF |
| Media Pool Video File Format | TGA Sequence |
| Media Pool Audio File Format | WAV, MP3 and AIFF |
| Audio | |
|---|---|
| Audio Mixer | 26 input x 2 channel mixer. (8 HDMI+16MADI+XLR+Thunderbolt) Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
| Analog Input | Balanced stereo XLR combo connectors |
| Analog Input Delay | Up to 8 frames |
| Mic Plug In Power | +48V phantom power on XLR combo inputs |
| Streaming | |
|---|---|
| Direct Streaming | Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. |
| Recording | |
|---|---|
| Direct Recording Video and Audio | CFExpress slot for recording USB-C Recording |
| Video Recording | 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. |
| Audio Recording | 26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels. |
| Switching | Program switching recorded as a DaVinci Resolve project .drp file. |
| Media Format | Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac). |
| Multi View Monitoring | |
|---|---|
| Multi View Monitoring | Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters. |
| Multi View Video Standard | HD |
| Media Player | |
|---|---|
| Media Players | 2 |
| Channels | Fill and key for each Media Player |
| Media Pool Still Image Capacity | 20 with fill and key |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF |
| Media Pool Video File Format | TGA Sequence. |
| Media Pool Audio File Format | WAV, MP3 and AIFF. |
| OS Compatibility | |
|---|---|
| Mac | Mac 14.0 Sonoma, Mac 15.0 Sequoia or later |
| Windows | Windows 10 and 11, Windows 11 for ARM |
| Power | |
|---|---|
| Power Supply | 1 x External 12V power supply |
| Power Usage | 120W max. |
| Physical | |
|---|---|
| Size (W x L x H) | 16.3 x 7.35 x 1.97" / 41.4 x 18.7 x 5.0 cm |
| Weight | 4.09 lb / 1.85 kg |
| Operating Temperature | 41 - 104° F / 5 - 40° C |
| Storage Temperature | 14 - 140° F / -10 - 60° C |
| Relative Humidity | 0% to 90% non-condensing |
