Product Information
The Canon EL-5 II Speedlite is a rechargeable, radio-capable flash for EOS cameras equipped with Canon’s Multi-function Shoe. It combines a 76 Ws maximum energy rating with 14–200mm coverage, including a 14mm wide panel, for on-camera or multi-flash lighting setups.
Fast, repeatable flash performance
With the included LP-EL battery pack, the EL-5 II is rated for approximately 350–2,450 flashes per charge and an approximately 0.1–1.2 second recycle time under Canon testing standards. Its guide number reaches 60 m / 196.9 ft at ISO 100 with 200mm coverage.
Built for flexible lighting control

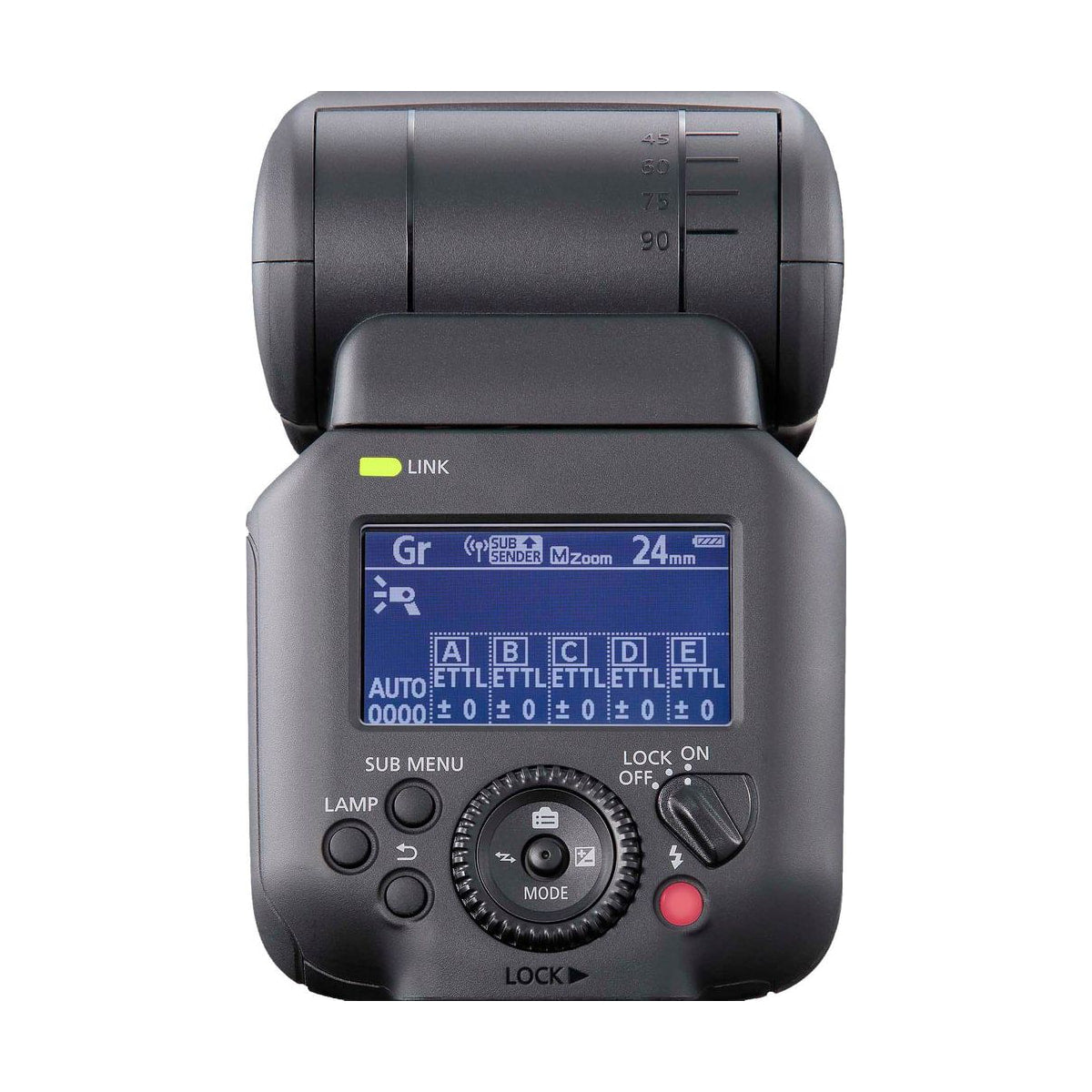

Use the LED modeling lamp to preview the direction of light and shadows, or work with E-TTL II/E-TTL autoflash, manual flash, stroboscopic flash, and radio sender/receiver functions. The flash supports up to five wireless groups and includes an LCD, joystick, and select dial for direct control.
Compatibility matters
The EL-5 II is designed specifically for EOS cameras with Canon’s Multi-function Shoe; it cannot be mounted or used on cameras with other accessory-shoe designs. A soft case, stand, and LP-EL Battery Pack are included. The compatible LC-E6 Battery Charger is not included.
-
Speedlite EL-5 Ver. 2 Flash
-
Soft Case
-
Stand
-
LP-EL Battery Pack
| Compatibility | |
|---|---|
| Compatible Cameras | EOS cameras equipped with a Multi-function Shoe |
| Accessory-Shoe Limitation | Cannot be mounted or used on Canon cameras with other accessory-shoe designs |
| Flash | |
|---|---|
| Maximum Energy | 76 Ws |
| Flash Coverage | 14mm with wide panel; 24, 28, 35, 50, 70, 80, 105, 135, and 200mm zoom positions |
| Guide Number | Approx. 48.6 ft / 14m at ISO 100 with 14mm coverage; maximum approx. 196.9 ft / 60m at ISO 100 and 200mm coverage |
| Modes | E-TTL II/E-TTL autoflash, manual flash, stroboscopic flash, auto external flash metering, manual external flash metering, continuous shooting priority mode, and group firing |
| Flash Exposure Compensation | ±3 stops in 1/3- or 1/2-stop increments |
| Flash Exposure Bracketing | ±3 stops in 1/3- or 1/2-stop increments |
| Power & Performance | |
|---|---|
| Power Source | Battery Pack LP-EL |
| Number of Flashes | Approx. 350–2,450 flashes with a fully charged LP-EL Battery Pack, based on Canon testing standards |
| Recycle Time | Approx. 0.1–1.2 sec, based on Canon testing standards |
| Continuous Flash Count | Approx. 95 or more at full output |
| Compatible Charger | LC-E6 / LC-E6E; not included |
| Modeling Lamp & AF Assist | |
|---|---|
| Modeling Lamp | Supported LED modeling lamp |
| Brightness | Manual setting levels 1 (Low) to 5 (High) |
| AF Assist Beam | LED AF-assist beam; center effective range approx. 2.0–32.8 ft / 0.6–10.0m |
| Wireless Radio | |
|---|---|
| Wireless Settings | Sender and receiver supported |
| Communication Standard | IEEE 802.15.4; ARIB STD-T66 |
| Transmission Frequency | 2405–2475 MHz |
| Channels | 1–15; Auto / Manual |
| Groups | Up to 5 groups (A–E) |
| Possible Units | Up to 16 sender and receiver units in total |
| Physical & Operational | |
|---|---|
| Dimensions (W × H × D) | Approx. 3.2 × 5.5 × 4.9 in |
| Weight | Approx. 17.3 oz body only; 21.4 oz with battery |
| Dust & Water Resistance | Supported; water-resistant performance equivalent to EOS R5 |
| Country of Origin | Taiwan |
| Warranty | 1 Year |
| Shipping Availability | Late October 2026 |
| Identifiers | |
|---|---|
| Item Number | 7327C002[AA] |
| UPC | 013803388893 |
