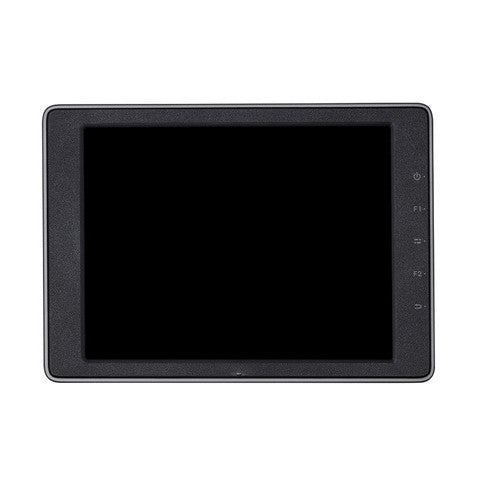

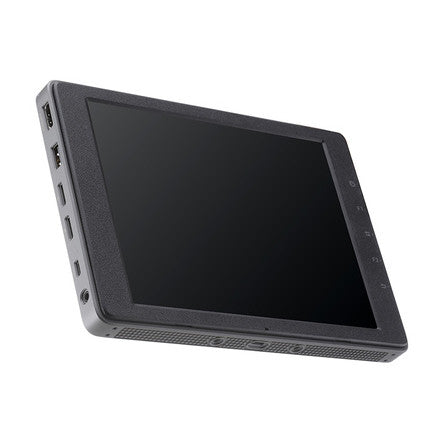

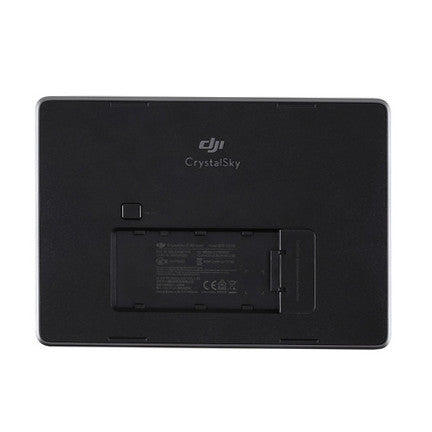

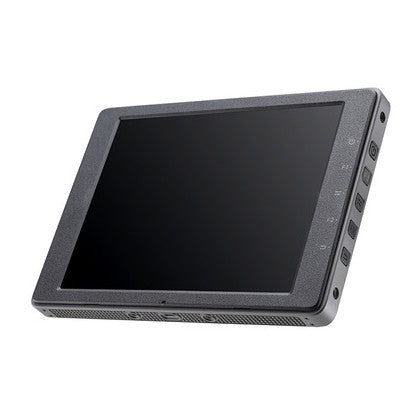

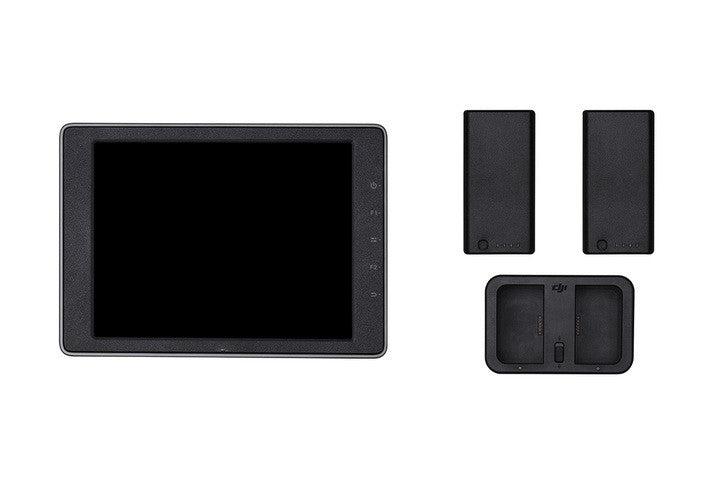

DJI CrystalSky Ultra Bright 7.85” Monitor
Created for outdoor aerial imaging, the CrystalSky monitorfeatures an ultra-bright screen that is clearly visible in sunlight.It is designed from the ground up to work seamlessly with theDJI GO app, giving camera operators total control.
A maximum 2000 cd/m² of brightness means the CrystalSky monitor is more than four times as bright as typical mobile devices. On-screen details are clear and sharp, and colors are vibrant, giving the quality needed to fine tune image composition. A dedicated Sunlight Readability Enhancement mode is especially designed for processing the image in real-time to ensure more comfortable viewing under bright light.
SMOOTHER VIDEO DISPLAY
The CrystalSky monitor uses optimized video decoding to decode video in real-time. Due to limitations in software access on smartphones and tablets, video decoding in other smart devices is less than ideal. When used to view photos or videos transmitted by the camera, problems can occur including video jitter, long latency and more. The CrystalSky monitor’s optimized decoder provides smooth, real-time video with minimal latency.
CUSTOMIZED SYSTEM AND DJI GO
A newly designed system removes unnecessary Android apps and services and is resistant to viruses and junk software. This ensures that the CrystalSky monitor is able to offer optimum performance at all times. Its embedded DJI GO app provides full access to all DJI GO features including aircraft parameter adjustment, camera control, footage management, and playback. Using offline maps, maps can be kept available even if going out of Wi-Fi reach. *Supports DJI GO, DJI GO 4, and DJI Pilot.

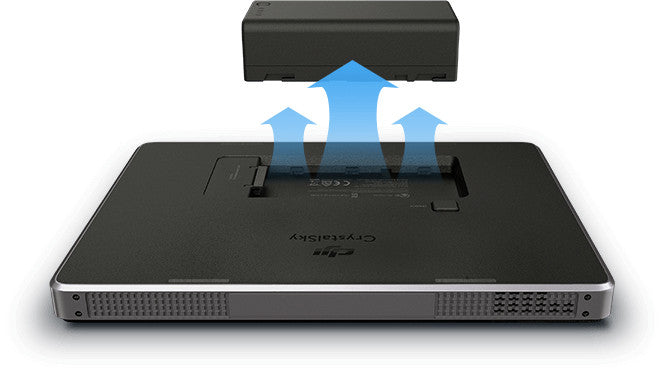

A two cell 4920 mAh secondary external battery gives the CrystalSky monitor a longer operating time than comparable mobile devices. It supports quick charge, and controls its discharge rate well even in low temperatures. Used with the 7.85" and 5.5" screens, it can achieve a maximum operation time of 4-5 hours and 5-6 hours respectively.

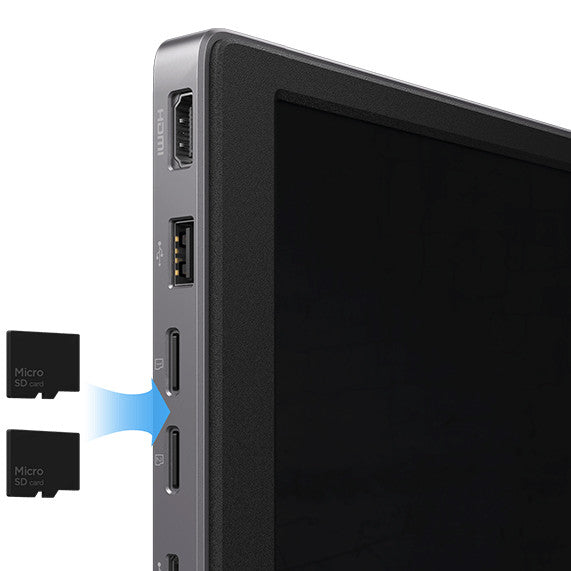

DUAL SD CARD SLOTS
Equipped with dual Micro SD Card slots, the CrystalSky monitor’s storage can be extended, or footage recorded on a Micro SD Card can be played back directly on the monitor. It can also be used for footage backups. Using editors built in DJI GO, high-quality edits can be made quickly and instantly shared to social media.The CrystalSky monitor supports H.264 and H.265 video decoding, allowing it to play back these files at 30 fps and 60 fps respectively. These videos can also be output through its HDMI port.
PORTS AND NETWORK
The CrystalSky monitor’s HDMI port allows up to 4K video to be output to FPV goggles and other display devices. Built-in dual band Wi-Fi means it can connect to Wi-Fi networks and Wi-Fi hotspots from mobile devices, and it is also compatible with 4G dongles and USB storage through its USB-A port.When connected to the internet, the CrystalSky monitor gets easy access to system upgrades, livestreaming, photo or video sharing, data synchronization and more. File sizes are optimized as much as possible to minimize mobile data demands.Onboard Micro USB and USB-C ports make it convenient to connect the CrystalSky monitor with a remote controller or other devices.
EXTREME TEMPERATURE OPTIMIZED
Most smart devices are designed to operate in common temperature ranges. The CrystalSky monitor's external battery has been designed for more extreme temperatures. It is able to operate in as low as -4°F (-20°C) and, with its internal cooling system, functions normally in temperatures as high as 104°F (40°C).
DJI AERIAL SYSTEM COMPATIBILITY
The CrystalSky monitor can quickly connect to the Inspire series, Phantom 4 series, Phantom 3 series (Phantom 3 Professional, Phantom 3 Advanced), Matrice series,Mavic Pro and Osmo series (except the Osmo Mobile) over Wi-Fi or via a remote controller USB port, depending on your specific product.* Also, CrystalSky easilyattaches to the Cendence remote controller without an additional mounting bracket.*Monitor mounting bracket recommended. The Mavic Pro and Osmo series gimbal cameras(excluding the Osmo Mobile) are only compatible with 5.5" Crystalsky monitors.
|Display||Multi-touch display with IPS technology|
|Brightness||High brightness：1000 cd/m²
Ultra Brightness：2000 cd/m²
|App||DJI GO, DJI GO 4, DJI Pilot|
|Memory||High brightness：ROM 64GB+RAM 4GB
Ultra Brightness：ROM 128GB+RAM 4GB
|Connectors||HDMI，MicroSD card slots，Micro-USB and USB-C|
4G dongle support
|Built-In Battery||980 mAh, 3.7V|
|External Battery||4920 mAh,7.6V(detachable)|
|Operation Temperature||-20℃ to 40℃ (-4℉ to 104℉)|
|4K Video decoding||H.264 4k 30fps / H.265 4k 60fps|
