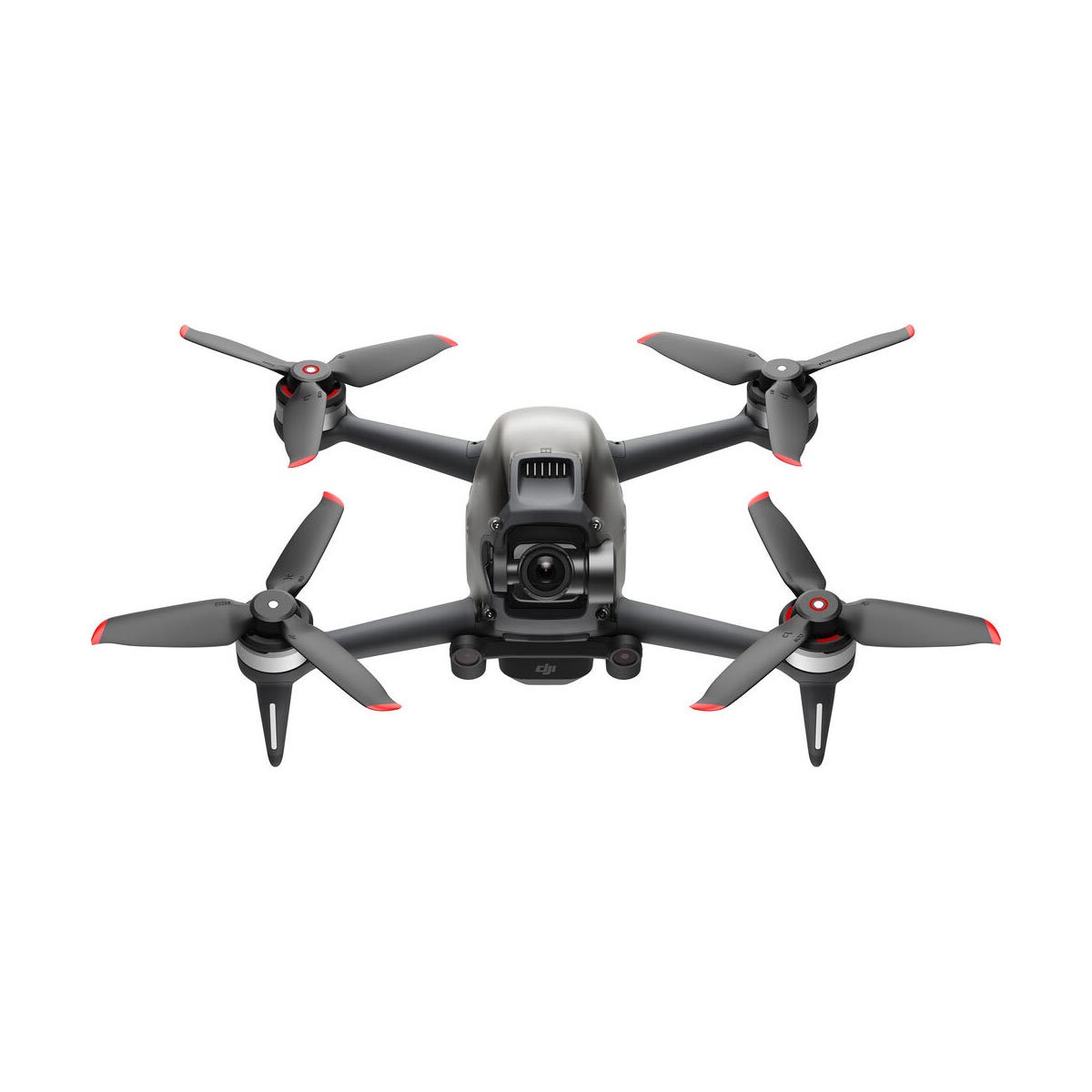

DJI FPV Explorer Combo Drone

DJISKU: CP.FP.00000140.01

Price:
Sale price$999.00
  • Three Intuitive Flight Modes
  • 4K/60fps and FHD120 Video
  • Easily Replaceable Parts
  • RockSteady Stabilization
  • 10km 1080p Video Transmission
Related Products

Description

Aircraft
Maximum Ascent Speed M mode: No limit
S mode: 33mph (15 m/s)
N mode: 17.9 mph (8 m/s)
Maximum Descent Speed M mode: No limit
S mode: 22.37 mph (10 m/s)
N mode: 11.18 mph (5 m/s)
Maximum Speed 140 kph; M mode: 87.24 mph (39 m/s)
S mode: 60.4 mph (27 m/s)
N mode: 33.55 mph (15 m/s)
Max Acceleration 0-62mph: 2 s (in ideal conditions while flying in M mode)
Flight Ceiling 3.73 Miles / 6000 m
Maximum Flight Time Approx. 20 mins (measured while flying at 40 kph in windless conditions)
Maximum Hover Time Approx. 16 mins (measured when flying in windless conditions)
Max Flight Distance 16.8 km (measured while flying in windless conditions)
Max Wind Speed Resistance 39-49 kph (25-31 mph)
Maximum Tilt Angle 35°
Hovering Accuracy Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS positioning)
Camera
Sensor 1/2.3" CMOS
Effective Pixels 12 MP
Focal Length 14.66mm (35mm Equivalent)
Lens Field of View 150º
Aperture f/2.8
Focus Mode Fixed Focus
Minimum Focusing Distance 0.6 m to ∞
ISO Range 100-12800
Photo Resolution 3840×2160
Photo Format JPEG
Photo Modes Single shot
Video Format MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC
Video Resolution 4K (3840×2160): 60/50fps
FHD (1920×1080): 120/100/60/50fps
Max Video Bitrate 120 Mbps
Color Profiles D-Cinelike, Standard
RockSteady EIS Available
Distortion Correction Available
Recording Media SD (up to 256 GB)
Flight Control System
GNSS Support GPS+GLONASS+GALILEO
Sensing System
Forward Precision Measurement Range: 0.5-18 m
Obstacle Sensing: Available in N mode only
Forward Field of View 56° (Horizontal)
71° (Vertical)
Downward (dual vision sensors + ToF) ToF Effective Sensing Height: 10 m
Hovering Range: 0.5-15 m
Vision Sensor Hovering Range: 0.5-30 m
Downward Auxiliary Light Single LED
Operating Environment Refers to non-reflective, discernible surfaces Diffuse reflectivity >20% (e.g. walls, trees, people) Adequate lighting conditions (lux >15 in normal indoor lighting conditions)
Video Transmission
Operating Frequency 2.400-2.4835 GHz
5.725-5.850 GHz
Communication Bandwidth 40 MHz (Max.)
Live View Mode Low-Latency Mode: 810p/120fps ≤ 28ms
High-Quality Mode: 810p/60fps ≤ 40ms
Max Video Bitrate 50 Mbps
Transmission Range 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Audio Transmission Support Yes
DJI Goggles Integra
Weight Approx. 410 g (battery included)
Dimensions (L × W × H) With antennas folded: 170 × 104 × 75mm
With antennas unfolded: 205 × 104 × 104mm
Screen Size (single screen) 0.49"
Resolution (single screen) 1920×1080
Screen Refresh Rate Up to 100 Hz
Interpupillary Distance Range 56-72 mm
FOV (single screen) 44°
Video Format MOV
Supported Video Playback Format MP4, MOV (codec: H.264, H.265; audio format: AAC, PCM)
Operating Temperature -10° to 40°C / 14° to 104°F
Power Input Built-in battery
Supported SD Cards microSD (up to 512 GB)
Operating Frequency 2.4000-2.4835 GHz
5.725-5.850 GHz
Transmitter Power (EIRP) 2.4000-2.4835 GHz:
<30 dBm (FCC)
<20 dBm (CE/SRRC/MIC)

5.725-5.850 GHz:
<30 dBm (FCC)
<23 dBm (SRRC)
<14 dBm (CE/KC)
Live View Mode 1080p/100fps, with latency down to 30 ms
1080p/60fps, with latency down to 40 ms
Max Transmission Distance 10 km (FCC)
6 km (CE)
6 km (SRRC)
Max Video Bitrate 50 Mbps
DJI Integra Goggles Battery
Capacity 2450 mAh
Voltage 5.6-8.4 V
Type Li-ion, LiNiMnCoO2
Energy 17.64 Wh
Charging Temperature 5° to 45°C / 41° to 113°F
Max Charging Power 15 W (charging when powered off)
Battery Life Approx. 2 hours
Weight Approx. 185 g (headband included)
Dimensions (L × W × H) 120 × 51 × 71mm
DJI FPV Remote Controller 2
Operating Frequency 2.4 GHz (2.400 - 2.484)
5.8 GHz (5.725 - 5.850)
Maximum Operating Distance 6.21 Miles / 10 km at 2.4 G
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Transmitter Power 2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm
MIC: ≤ 20 dBm
5.725-5.850 GHz
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm
Dimensions 190×140×51 mm
Weight 346 g
Battery Life Approx. 9 hours
Charging Time 2.5 hours
Gimbal
Mechanical Range Tilt: -65° to 70°
Control Controllable Range Tilt: -50° to 58°
Stabilization Single-axis (tilt), electronic roll axis
Max Control Speed 60°/s
Angular Vibration Range ±0.01° (N mode)
Electronic Roll Axis Available (can stabilize footage when the aircraft is tilted at angles of up to 10°)
Flight Battery
Battery Chemistry Lithium-Ion Polymer (LiPo 6S)
Capacity 2000 mAh
Voltage 22.2 V
Maximum Charging Voltage 25.2 V
Energy 44.4 Wh@0.5C
Discharge Rate Standard 10C
Max Charging Power 90 W
Charging Temperature 41 to 104°F / 5 to 40°C
Weight 10.41 oz / 295 g
General
Number of Rotors 4
Operating Temperature 14 to 104°F / -10 to 40°C
Diagonal Size 9.65" / 245 mm
Overall Dimensions 10.04 x 12.28 x 5" / 255×312×127 mm (with propellers)
7.01 x 9.13 x 5" / 178×232×127 mm (without propellers)
Weight 1.75 lb / 795 g
