Zenmuse X5s Micro 4/3”
Max Flight Time
REGISTER YOUR DRONE! Safety Tips! No Fly Zones!

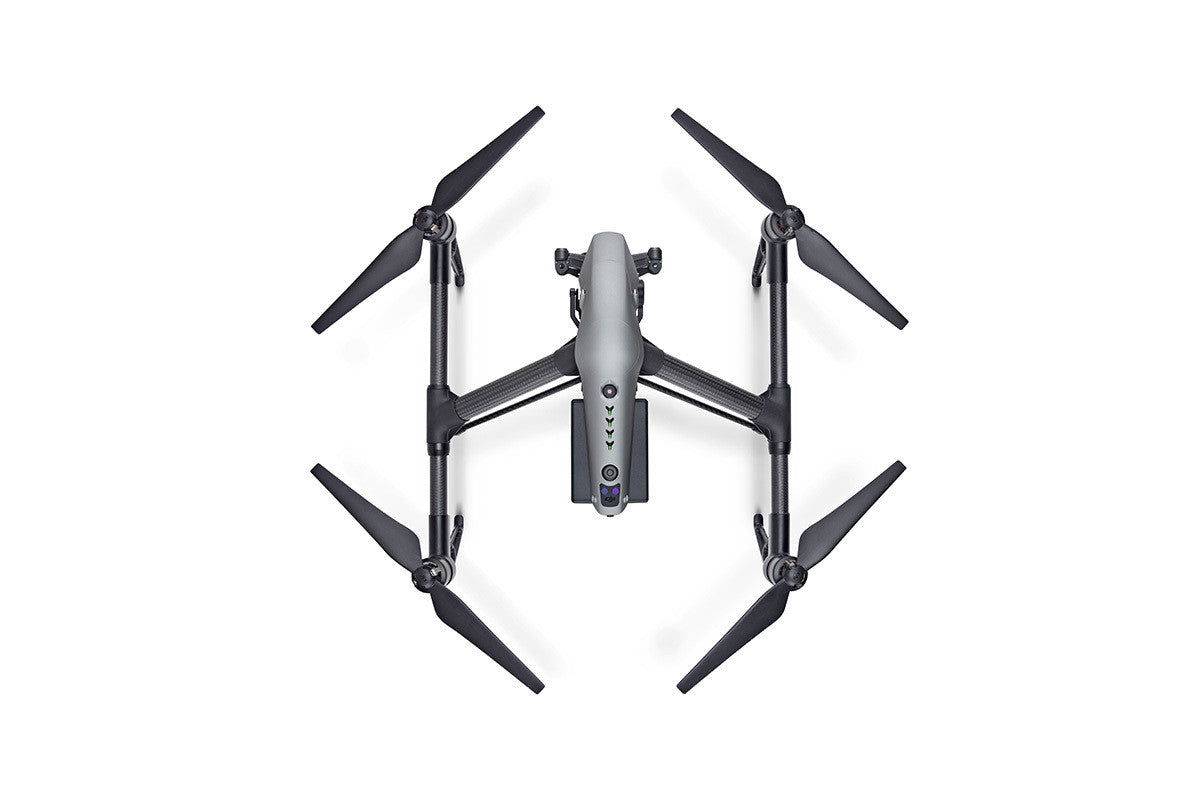

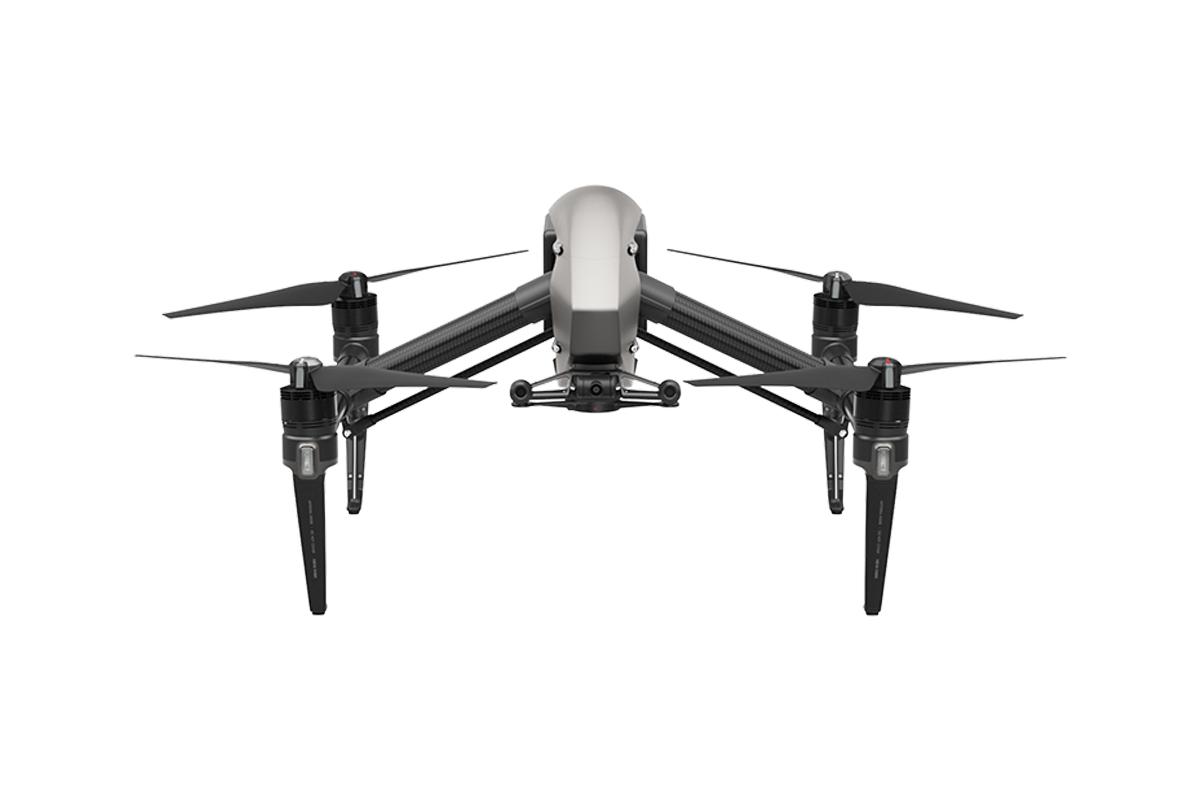

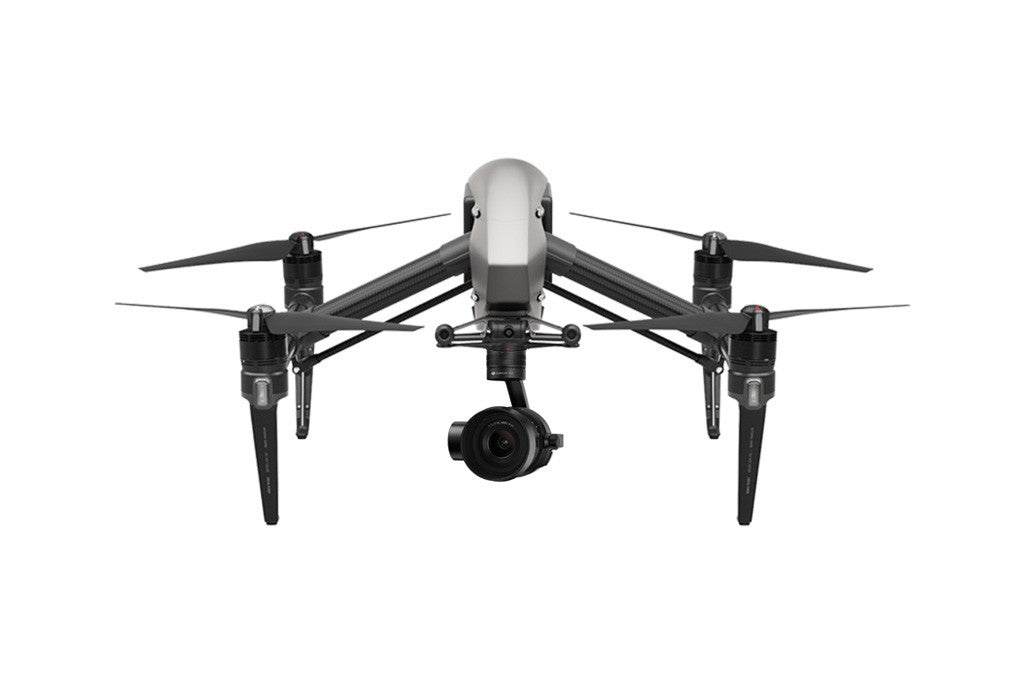

The Inspire 1 was a revelation. The first filmmaking drone in the world to integrate an HD video transmission system, 360° rotating gimbal and a 4K camera, as well as the simplicity of app control. The launches of the Zenmuse X5 and X5R cameras further cemented the Inspire as a critical tool for filmmakers around the globe. The Inspire 2 takes everything that was good about the Inspire 1 and improves it. An all-new image processing system records at up to 5.2K in CinemaDNG RAW, Apple ProRes and more. It goes from 0 to 50mph (80kph) in just 5 seconds and hits a maximum speed of 58mph (94kph) and has a max descent speed of 9m/s for unheard of speed and agility in an aircraft this size. A dual battery system prolongs the flight time to a maximum of 27 minutes (with an X4S),while self-heating technology allows it to fly even in low temperatures. FlightAutonomy has been revised and developed specifically for the Inspire 2,providing two directions of obstacle avoidance and sensor redundancy. Increased intelligence adds multiple intelligent flight modes, including Spotlight Pro, giving even single pilots the ability to create complex, dramatic shots. An upgraded video transmission system is now capable of dual signal frequency and dual channel, streaming video from an onboard FPV camera and the main camera simultaneously, for better pilot and camera operator collaboration.
Sense and Avoid
Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34mph (54kph)at a controllable attitude angle of 25°. Upward facing infrared sensors scan obstacles 16ft (5m) above, adding protection when flying in enclosed spaces. Obstacle sensing systems are active during normal flight, RTH and all Intelligent Flight Modes. These sensors are core components of the DJI Flight Autonomy System, which bring intelligent features to the Inspire 2:

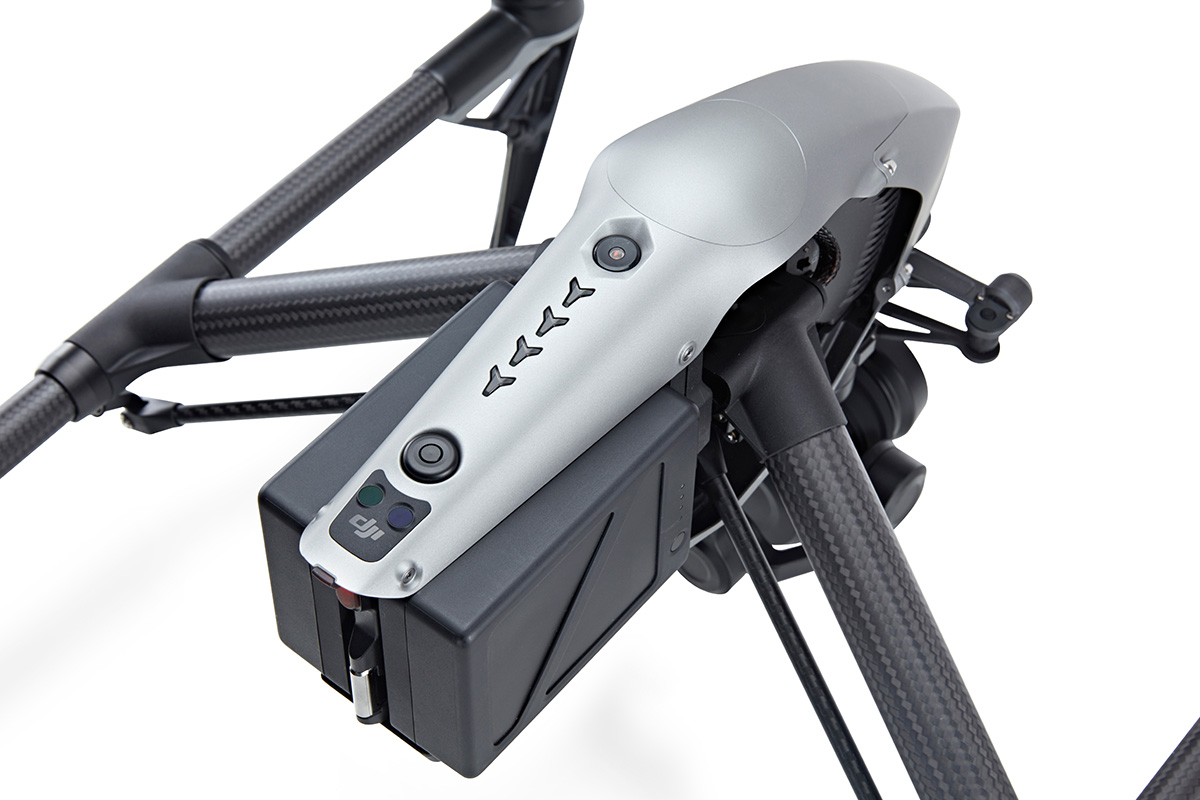

- Dual Battery Design
- Flight view separate from in-camera view
- Independently adjustable camera pitch
- 58 MPH top speed
- 27 minute max. flight time
- Unmatched flight autonomy system
- Infrared obstacle avoidance
- Self-heating system for flight in extreme cold
- Live Broadcast Mode
- Upward Infrared Sensors
- Obstacle avoidance
- Accurate indoor hovering and positioning
- Automatic obstacle avoidance during RTH
- Terrain detection
- Accurate indoor hovering and positioning
Spotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced visual tracking algorithms to lock onto a subject during flight, regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement. It has two shooting modes, Quick Mode and Composition Mode. In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position. When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments. Spotlight Pro is available in all Intelligent Flight Modes including ActiveTrack, TapFly, Waypoint and Point of Interest.
Intelligent Flight Modes
In addition to Spotlight Pro, a range of other intelligent flight and shooting modes are available. Obstacle avoidance is optimized when using Point of Interest and Waypoint* modes, making complex shots simple and repeatable. Also available are QuickSpin, TapFly and ActiveTrack, to simplify challenging shots.

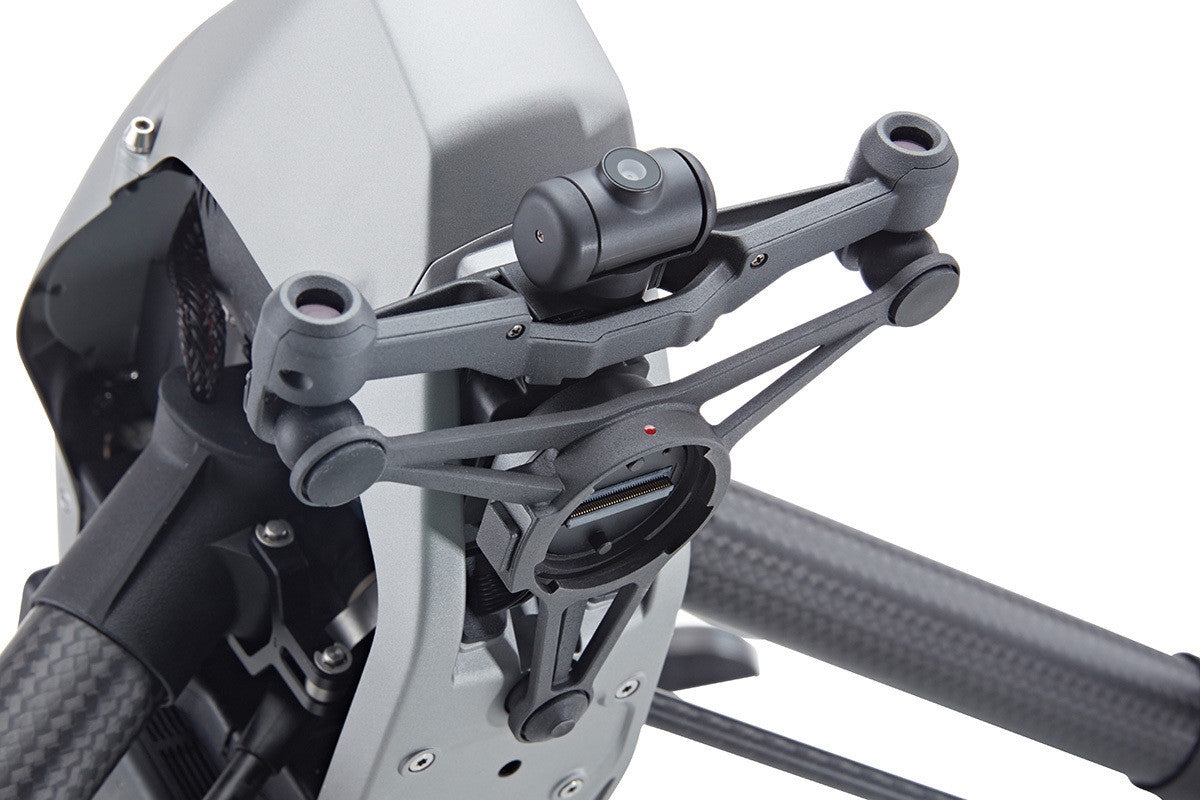

TapFly – The 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated TapFly camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.
ActiveTrack – The ActiveTrack Mode allows the Inspire 2 to recognize a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.
Smart Return to Home – Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return Home is enabled, it is able to fly home along its original route, and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.

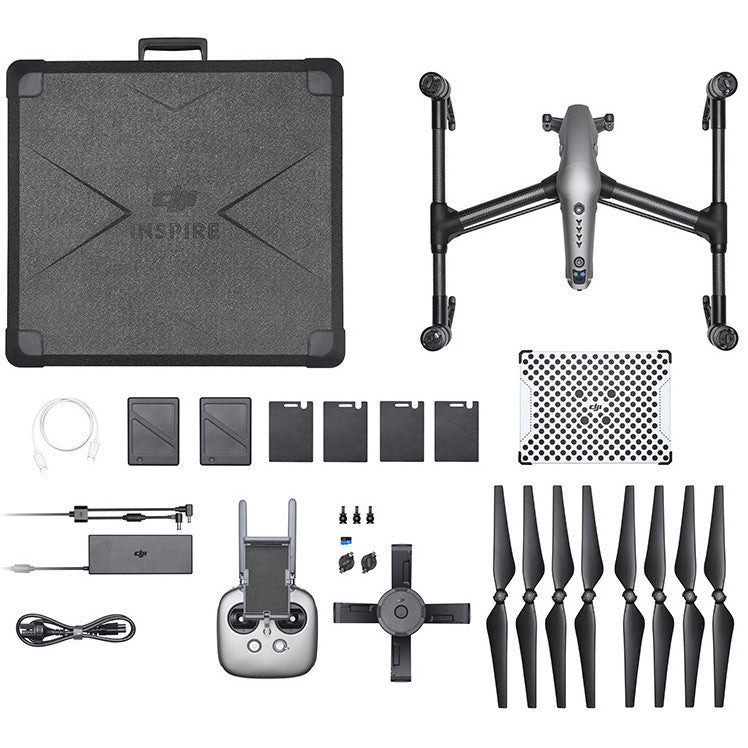

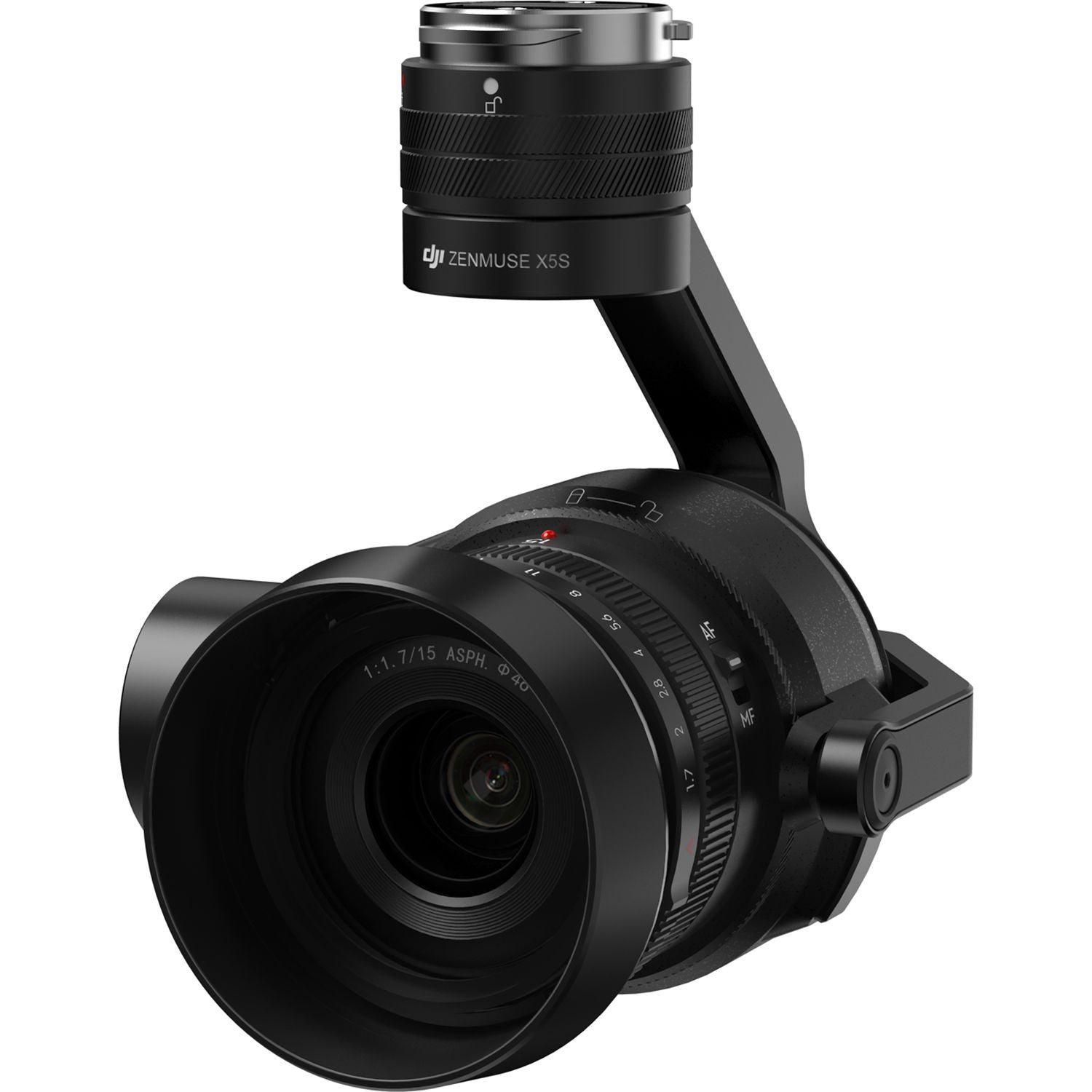

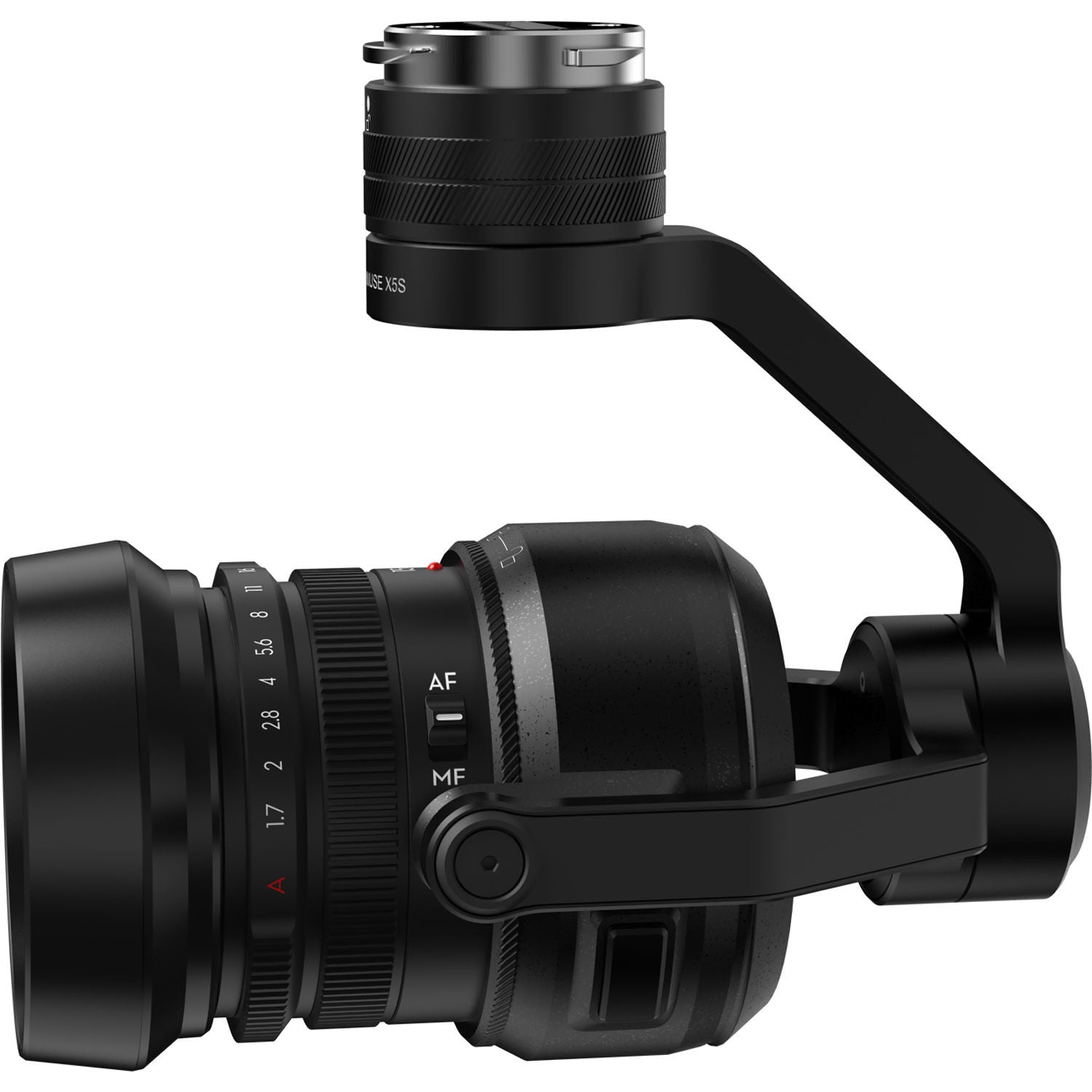

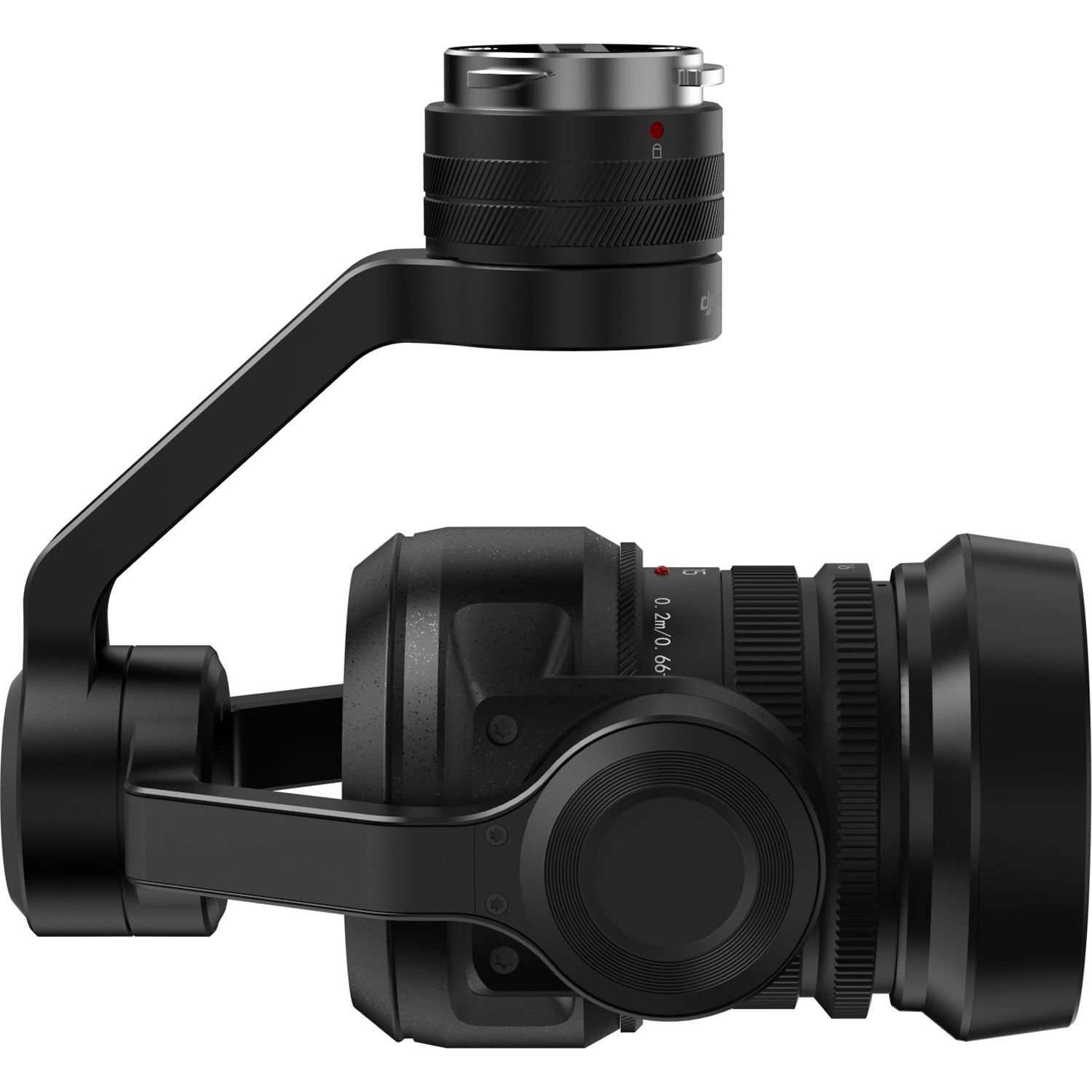

The DJI Inspire 2 Premium Combo includes the DJI MFT 15mm,F/1.7 ASPH Prime Lens for the Micro Four Thirds Zenmuse X5 Series camera and gimbal systems allows you to capture incredible aerial images and video. This lens is comprised of 9 elements in 7 groups uses 3 aspherical lenses, for maximum sharpness, while maintaining a compact size.
The large F1.7 aperture gives great low-light performance and allows control over the camera’s Depth of Field for object separation and bokeh effects. When used together with the Zenmuse X5 Series, you can adjust both focus and aperture remotely via the DJI GO app, or by using the DJI Focus wireless lens control system.

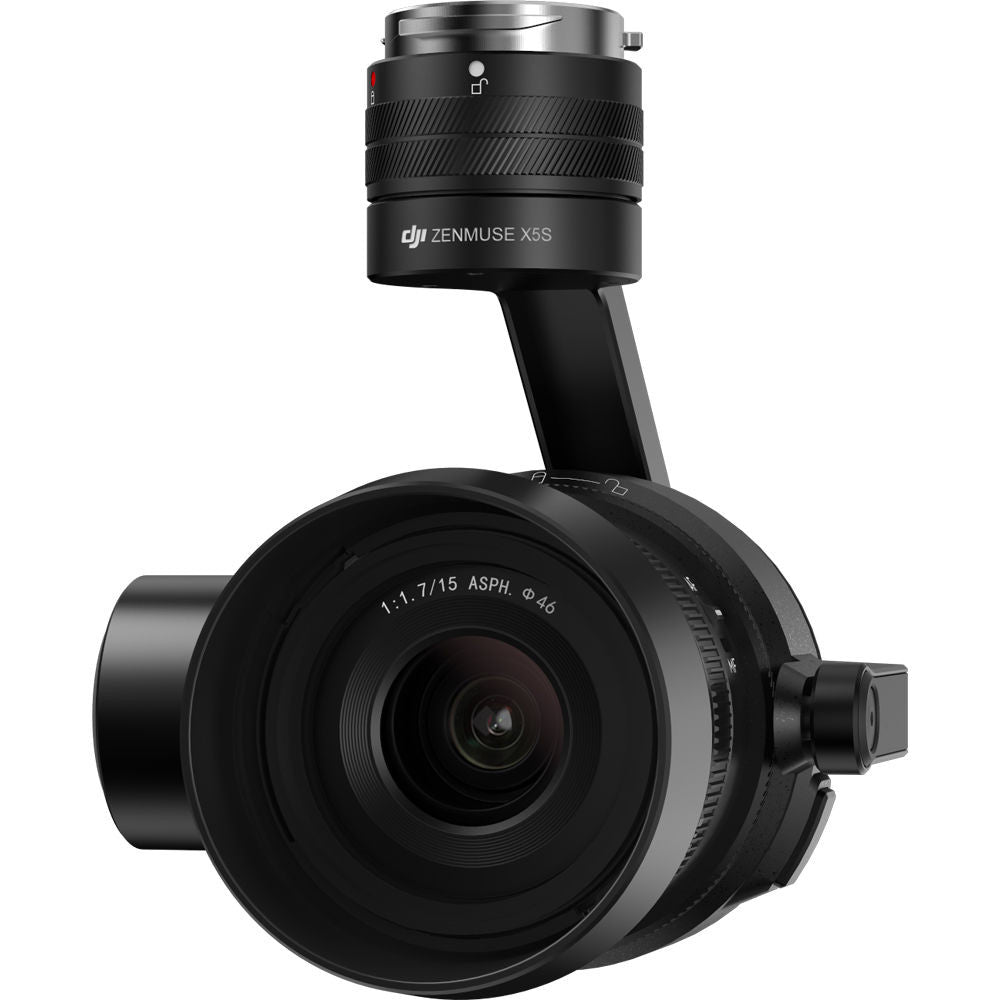

Equipped with an uprated Micro 4/3 sensor, the Zenmuse X5S has a dynamic range of 12.8 stops with a much improved signal to noise ratio and color sensitivity than the X5R. It supports up to eight standard M4/3 lenses (including zoom lenses) with focal lengths ranging from 9mm-45mm(equivalent to 18mm-90mm on a 35mm camera), allowing more creative flexibility. The new CineCore 2.0 image processing system on the Inspire 2makes the Zenmuse X5S capable of capturing 5.2K 30fps CinemaDNG video and Apple ProRes video as well as 4K 60fps using H.264 and 4K 30fps using H.265 (both at 100Mbps). Continuous DNG burst shooting at 20fps with 20.8MP images is also supported. The Zenmuse X5S was designed to keep pace with the rigors of high-end professional aerial imaging.
IMPROVED MICRO 4/3 SENSOR
ARRAY OF COMPATIBLE LENSES
The onboard Micro 4/3 sensor has been upgraded, significantly improving image quality. With a pixel size of 3.4μm, this 20.8-megapixel sensor captures more detail than the previous sensor. It has 12.8 stops of dynamic range as well as a better signal to noise ratio and color sensitivity than the X5R, allowing it to create clear, low noise images in low light environments.
Since it uses a standard Micro 4/3 mount, the Zenmuse X5S now supports up to eight professional lenses* with focal lengths ranging from 9mm-45mm (equivalent to 18mm-90mm on a 35mm camera), providing more creative control over the final look of a shot.
- Olympus M.Zuiko 12mm/2.0
- DJI MFT 15mm/1.7 ASPH
- Olympus M.Zuiko 17mm/1.8
- Panasonic Lumix 15mm/1.7
- Olympus M.Zuiko 25mm/1.8
- Panasonic Lumix 14-42mm/3.5-5.6 HD
- Olympus M.Zuiko 45mm/1.8
- Olympus M.Zuiko 9-18mm/4.0-5.6
FAST, EFFICIENT WORKFLOWS
The DJI CINESSD card (PCIe3.0 NVMe SSD support) and a highly optimized FAT32/exFAT file system, allows Zenmuse X5Sfootage to be transferred directly through the DJI CINESSD STATION card reader to a computer at high speeds without anyadditional software. Footage also supports the DIT standard. CinemaDNG or Apple ProRes workflows can be used for post-processing.
ENHANCED CAMERA STABILIZATION

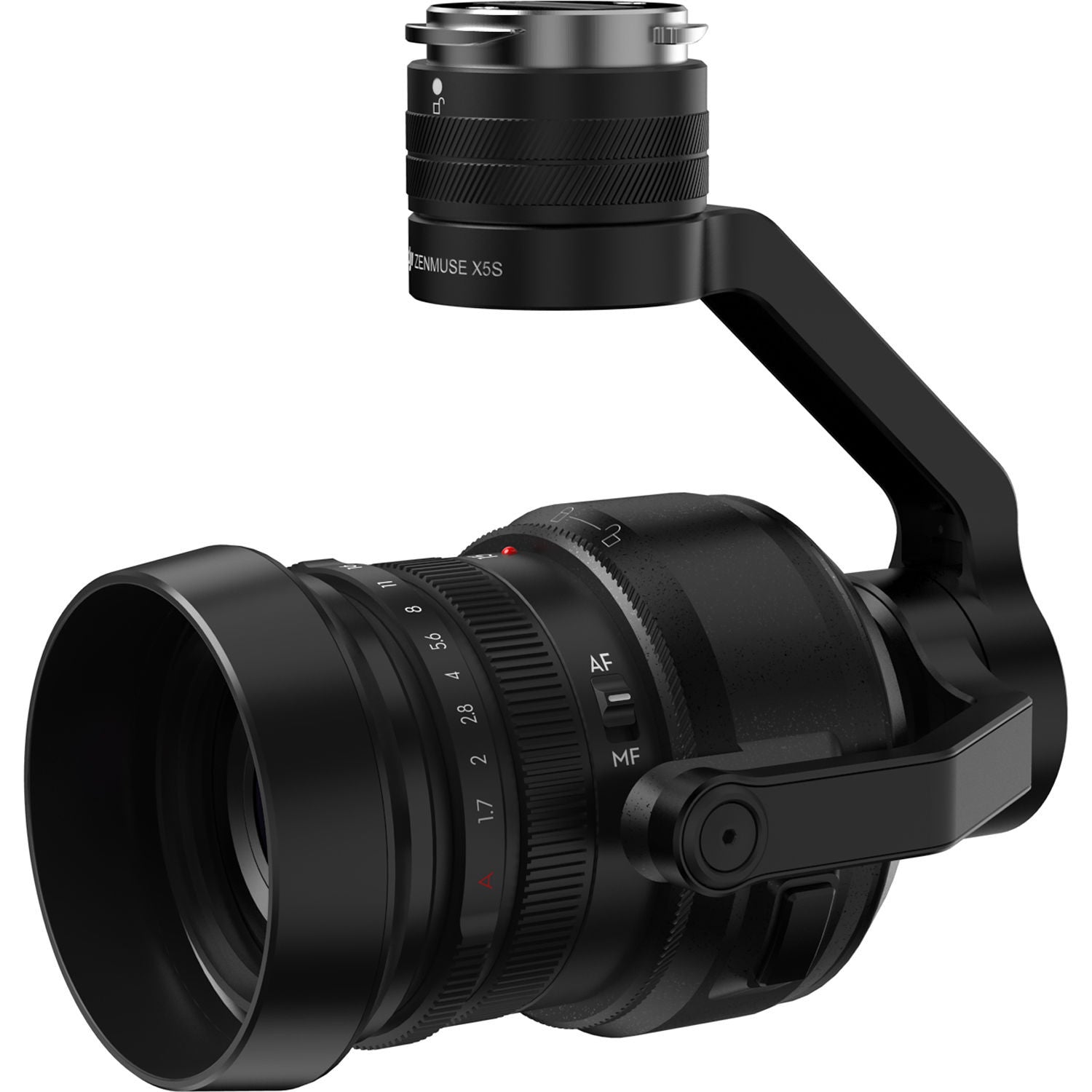

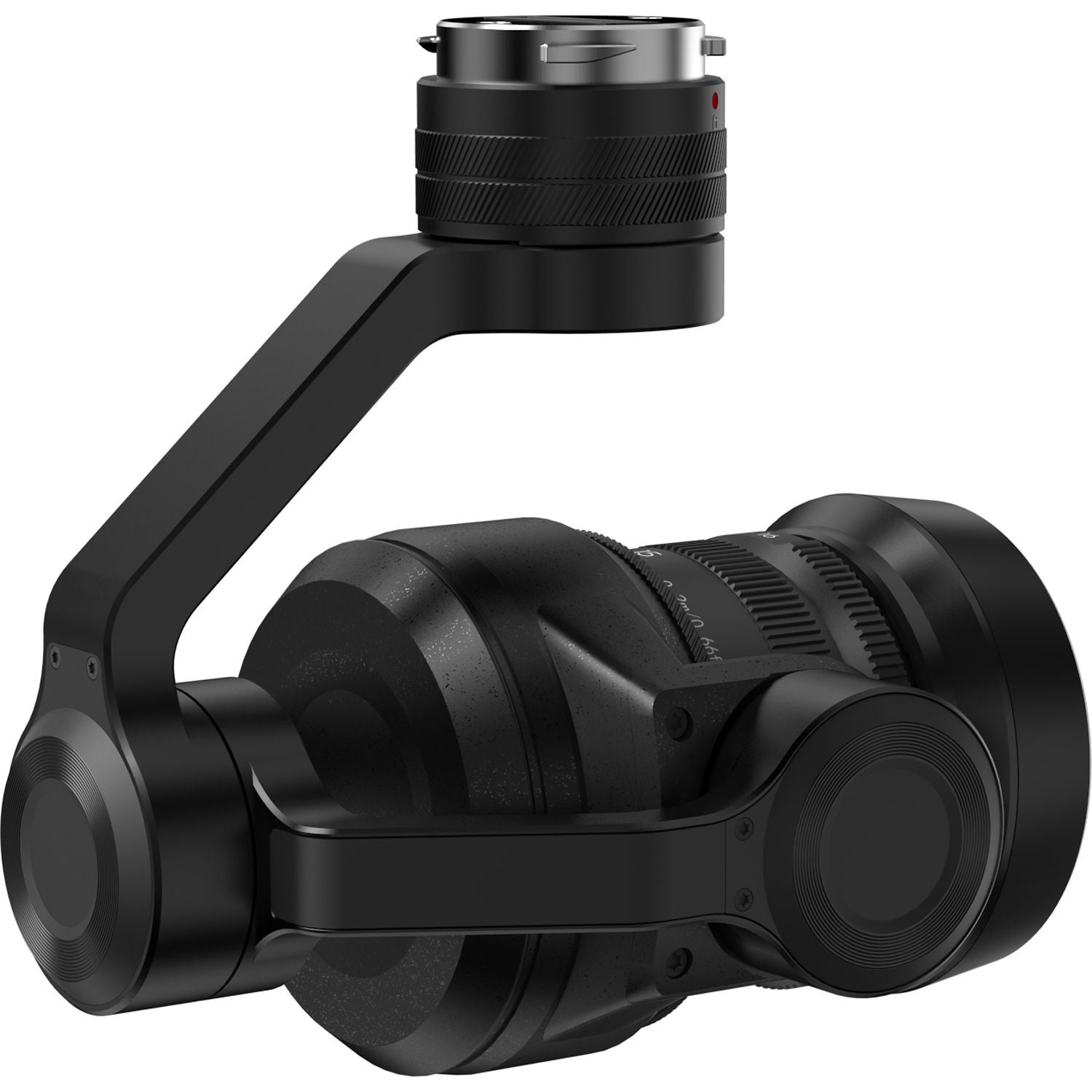

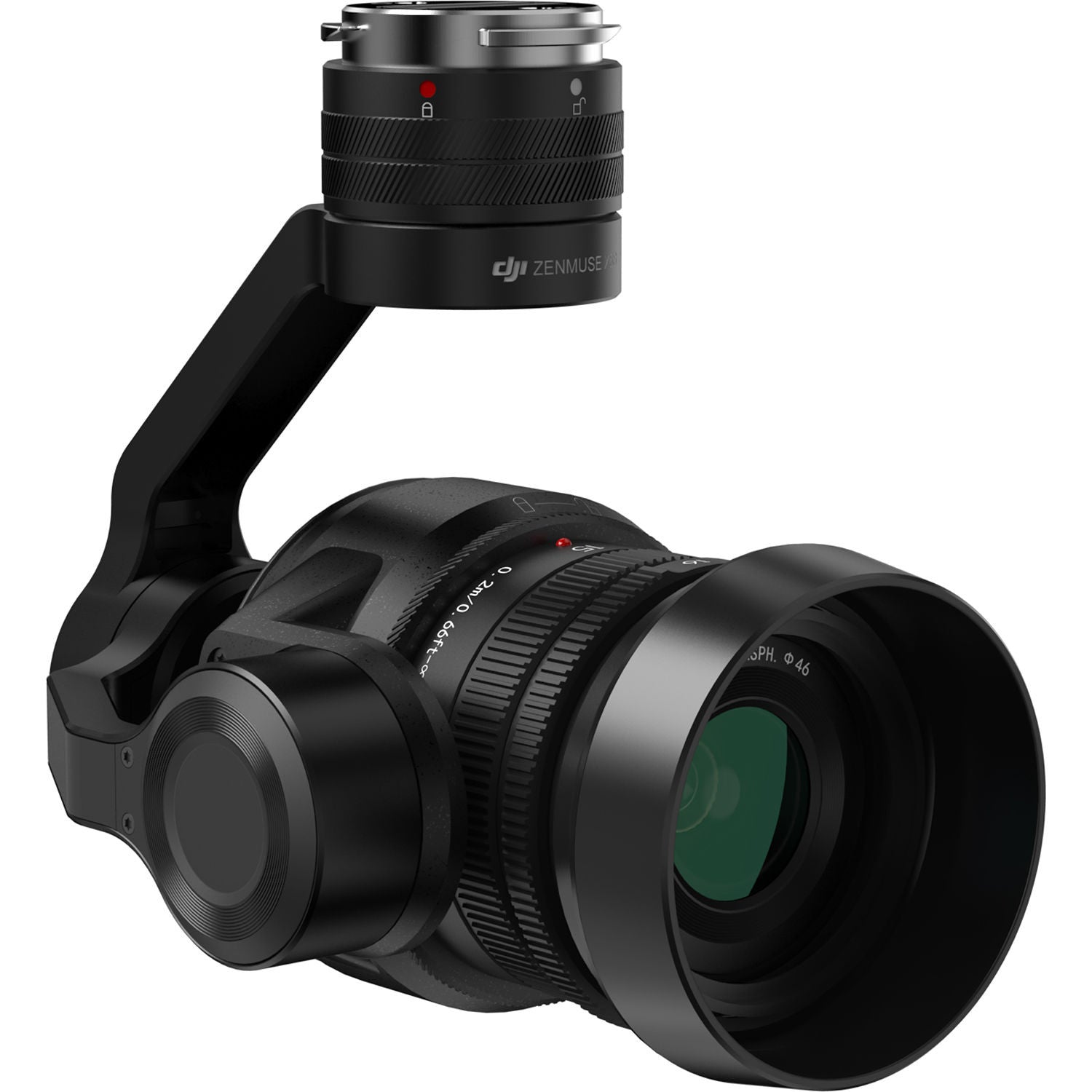

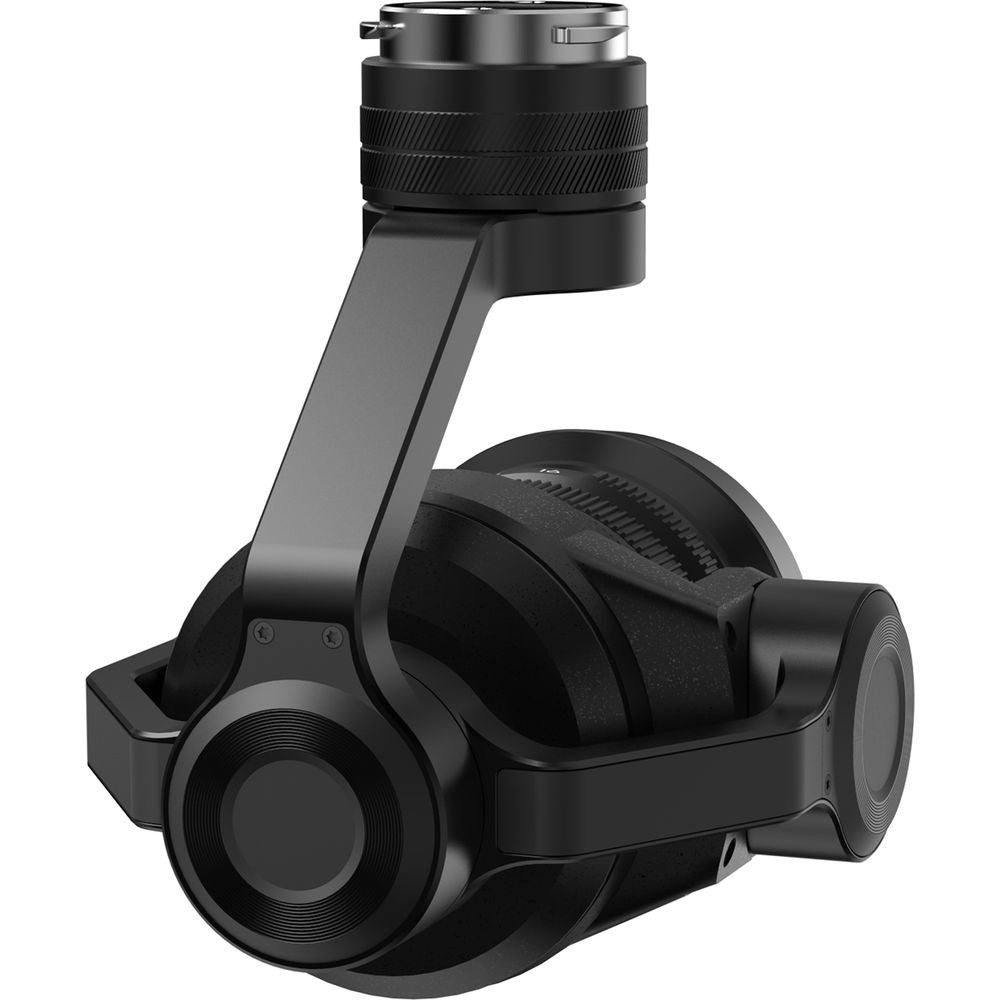

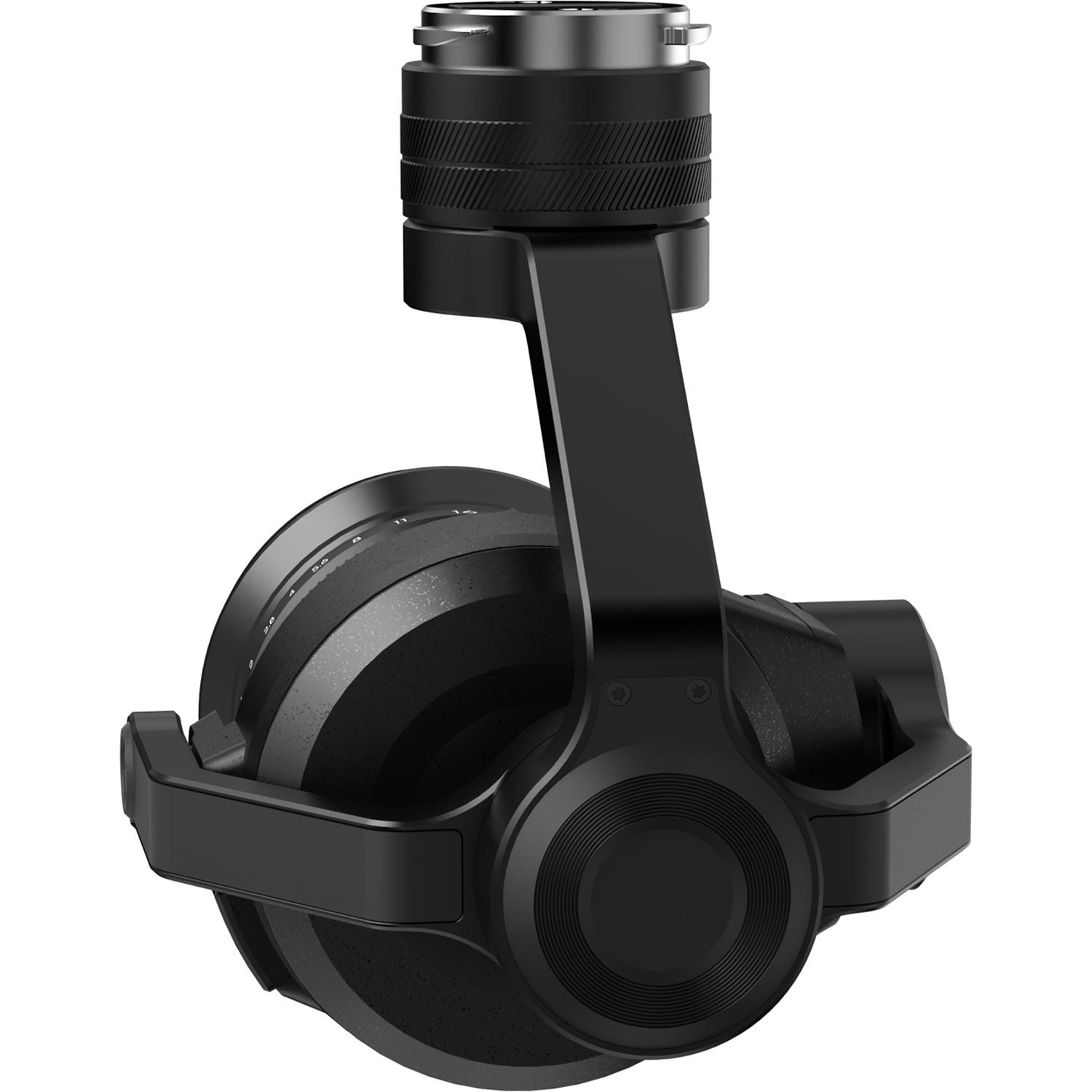

Stabilizing the Zenmuse X5S is a highly optimized 3-axis gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor.Rather than rely on electrical slip rings — as is common with many gimbals — the Zenmuse X5S uses a unique mechanically limited design and concealed wires to ensuremore stable data transmission and greater durability. Vibration is eliminated using three damping balls and a lightweight damping board, creating seamlessly smooth video.360° rotation remains possible through gimbal rotation and smooth aircraft yaw. Stable, smooth footage1 can be captured even when using a 90mm2 lens.
LONG-RANGE CAMERA AND FOCUS CONTROL
Take control over every camera setting from afar, including focus, aperture, and format, directly in the DJI GO app.Precision control also extends to focus, with DJI GO and the optional DJI Focus, offering focus control across the entire transmission range.Using DJI Focus, no additional cables or motors are needed and new Lightbridge technology sends all signals as far as 4.3mi (7km) away*.
