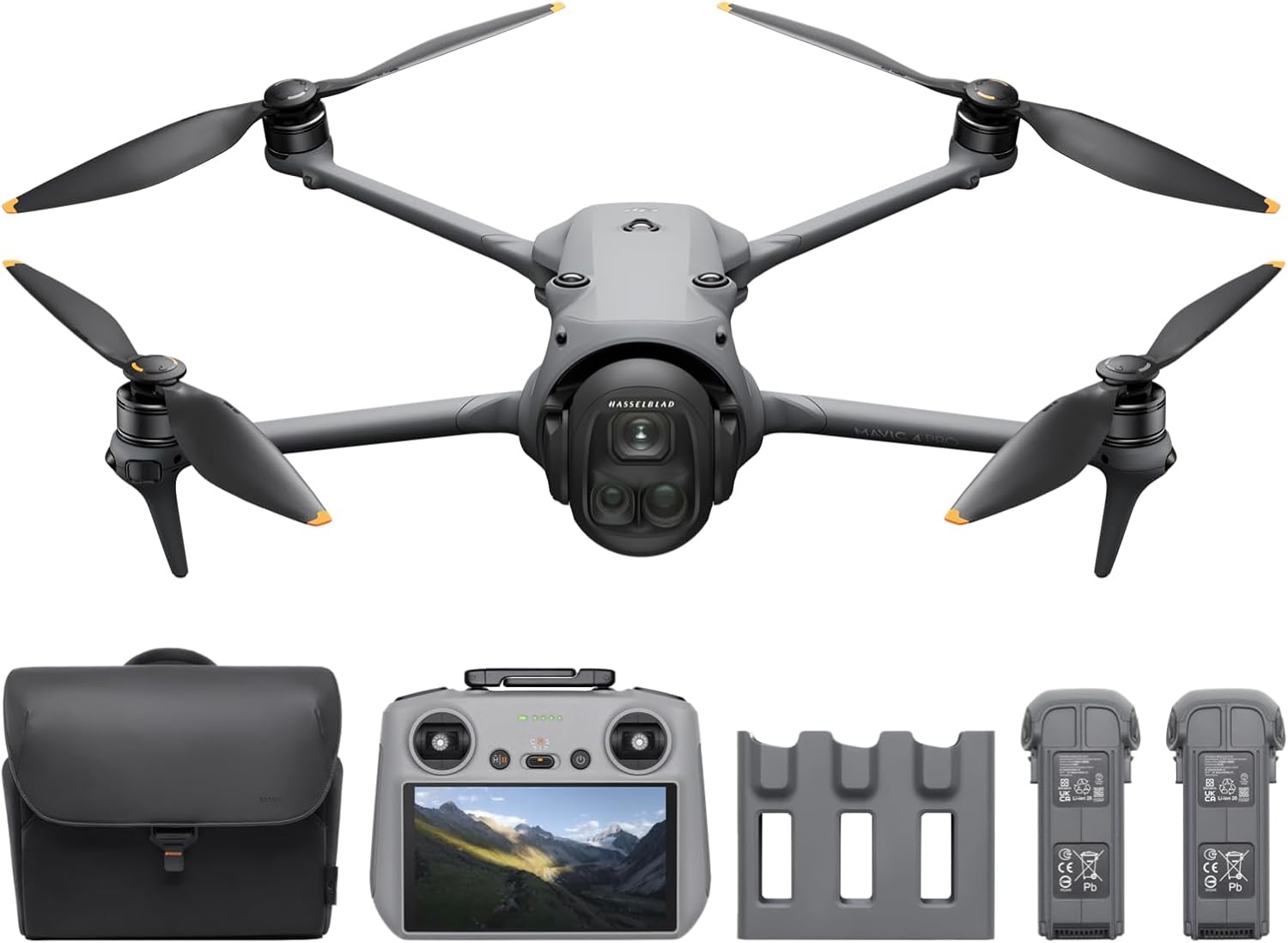

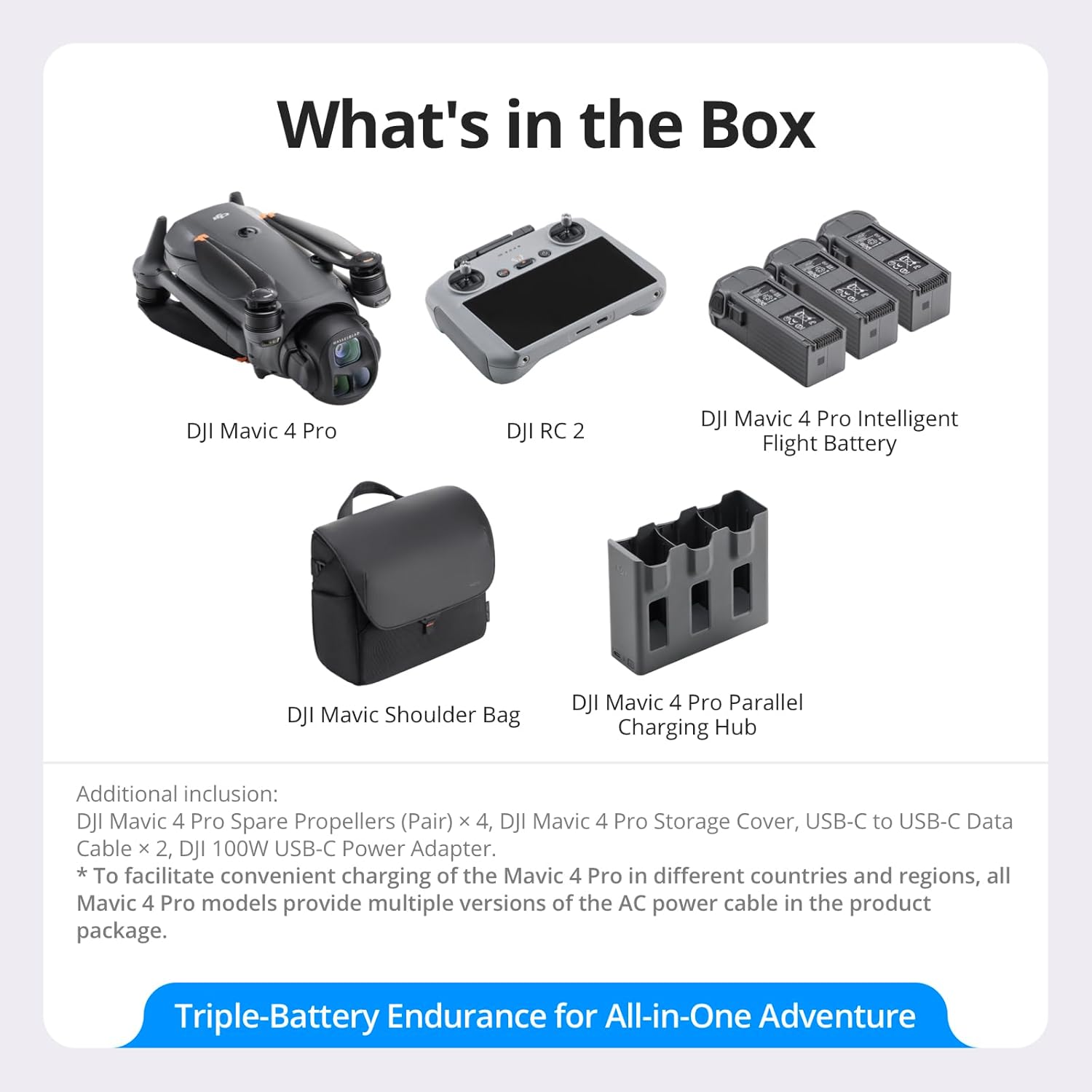

Configurations
Product Information
-
Mavic 4 Pro
-
RC 2 Remote Controller
-
Intelligent Flight Battery x 3
-
Spare Propellers (pair) x 4
-
100W USB-C Power Adapter
-
USB-C to USB-C Cable x 2
-
Parallel Charging Hub
-
Storage Cover
-
Shoulder Bag
| Aircraft | |
|---|---|
| Takeoff Weight | Approx. 1063 g Product weight may vary due to differences in batch materials and other factors. |
| Dimensions | Folded (with propellers): 257.6×124.8×106.6 mm Unfolded (without propellers): 328.7×390.5×135.2 mm |
| Max Ascent Speed | 10 m/s (Sport Mode) 6 m/s (Normal Mode) 6 m/s (Cine Mode) |
| Max Descent Speed | 10 m/s (Sport Mode) 6 m/s (Normal Mode) 6 m/s (Cine Mode) |
| Max Horizontal Speed | At sea level, in windless conditions: 25 m/s (Sport Mode) 15 m/s (tracking status) At sea level, with 2 m/s tailwind: 27 m/s (Sport Mode) 15 m/s (tracking status) |
| Max Takeoff Altitude | 6000 m |
| Max Flight Time | 43 minutes |
| Max Hovering Time | 37 minutes |
| Max Flight Distance | 28 km |
| Max Wind Speed Resistance | 12 m/s |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| GNSS | GPS + Galileo + BeiDou |
| Internal Storage | 8 GB |
| Battery | |
|---|---|
| Capacity | 6654 mAh |
| Weight | Approx. 332 g |
| Nominal Voltage | 14.32 V |
| Max Charging Voltage | 17.2 V |
| Battery Type | Li-ion 4S |
| Energy | 95.3 Wh |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Camera | |
|---|---|

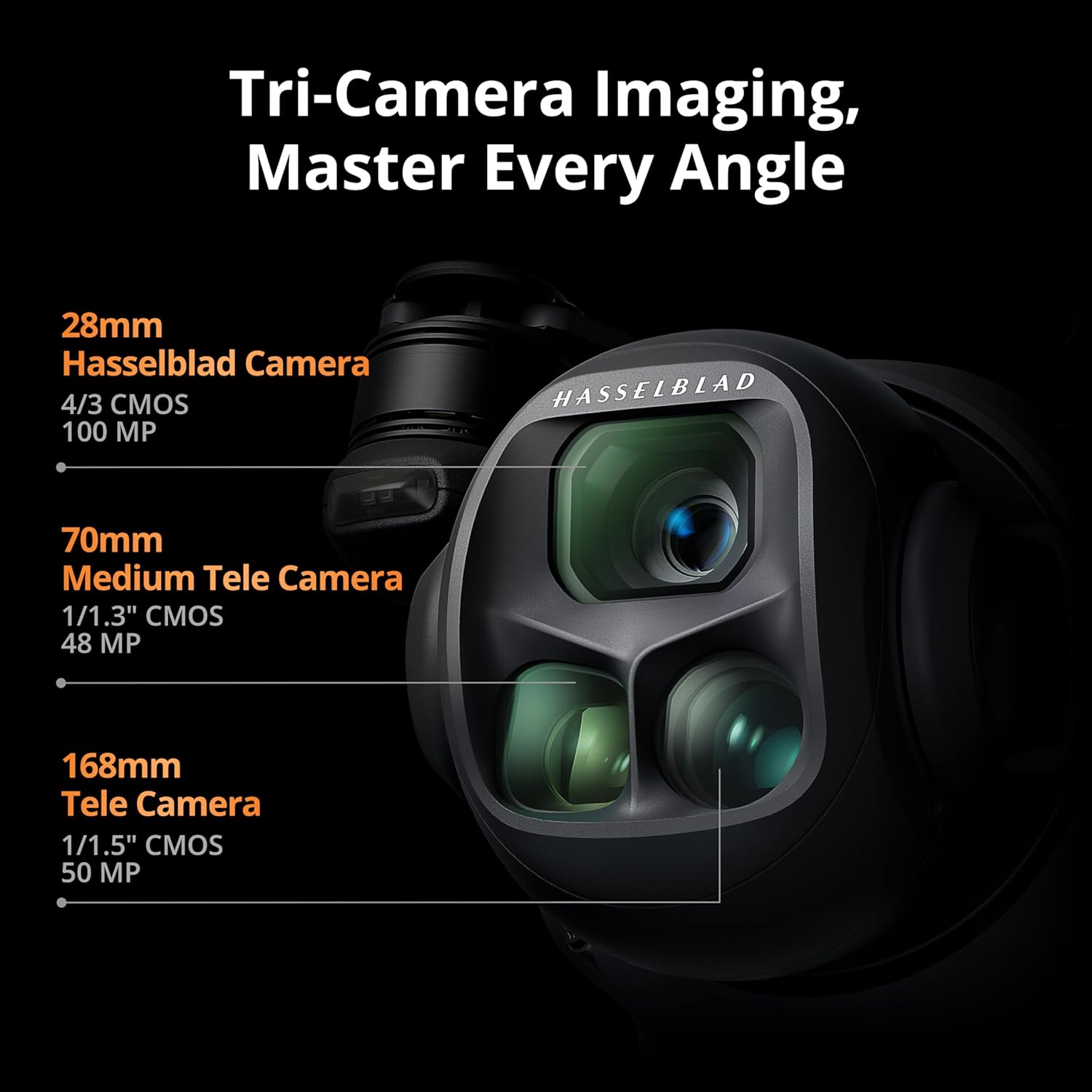

| Image Sensor | Hasselblad Camera: 4/3 CMOS, Effective Pixels: 100 MP Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 50 MP |
| Lens | Hasselblad: FOV 84°, 24 mm equivalent, f/2.8-f/11 Medium Tele: FOV 35°, 70 mm equivalent, f/2.8 Tele: FOV 15°, 166 mm equivalent, f/3.4 |
| ISO Range | Hasselblad: 100-6400 (Normal), 100-1600 (D-Log) Medium Tele: 100-6400 Tele: 100-6400 |
| Photo Format | JPEG DNG (RAW) |
| Video Format | MP4 (H.264 ALL-I/H.264 Standard/H.265 Standard) |
| Max Video Resolution | 5.1K at 50fps 4K at 120fps 1080p at 200fps |
| Max Bitrate | 200 Mbps |
| Gimbal | |
|---|---|
| Stabilization | 3-axis mechanical gimbal (tilt, roll, pan) |
| Mechanical Range | Tilt: -135° to 100° Roll: -45° to 45° Pan: -27° to 27° |
| Controllable Range | Tilt: -90° to 35° Pan: -5° to 5° |
| Sensing | |
|---|---|
| Obstacle Sensing System | Omnidirectional binocular vision system, supplemented with an infrared sensor |
| Forward | Measurement Range: 0.5-20 m |
| Backward | Measurement Range: 0.5-16 m |
| Lateral | Measurement Range: 0.5-25 m |
| Upward | Measurement Range: 0.2-10 m |
| Downward | Measurement Range: 0.3-18 m |
| Video Transmission | |
|---|---|
| Transmission System | O3+ Transmission |
| Max Transmission Distance | 15 km (FCC) 8 km (CE) |
| Live View Quality | 1080p/60fps |
| Operating Frequency | 2.4 GHz / 5.8 GHz |
| Latency | Approx. 120 ms |
| Wi-Fi | |
|---|---|
| Protocol | 802.11 a/b/g/n/ac |
| Operating Frequency | 2.4 GHz / 5.8 GHz |
| Transmitter Power (EIRP) | < 20 dBm (2.4 GHz) < 23 dBm (5.8 GHz) |
| Bluetooth | |
|---|---|
| Protocol | Bluetooth 5.1 |
| Operating Frequency | 2.4 GHz |
| Transmitter Power (EIRP) | < 10 dBm |
| Storage | |
|---|---|
| Supported Memory Cards | microSD (Up to 1TB) |
| Internal Storage | 64GB (available storage space is appoximately 42GB) |
