Configurations

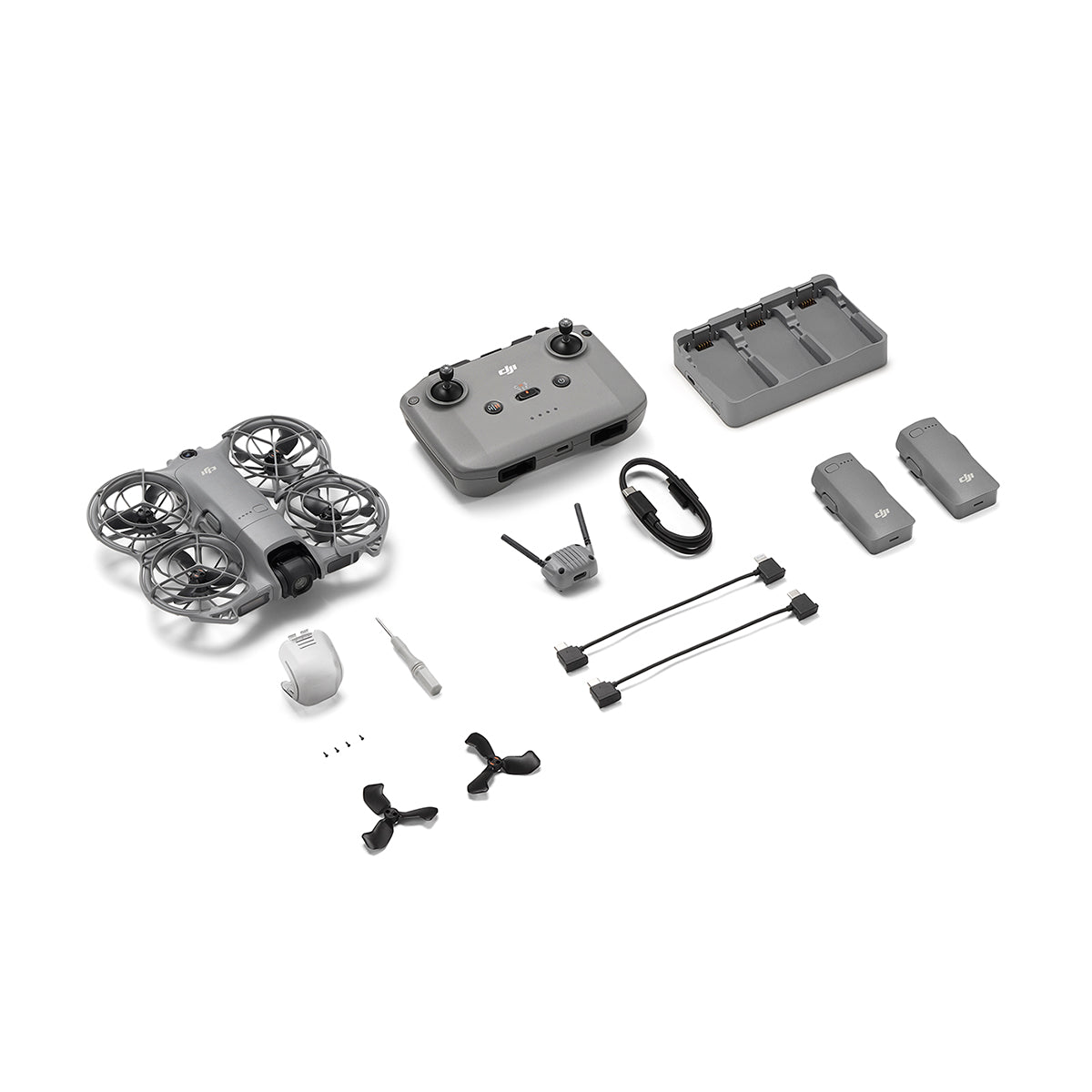

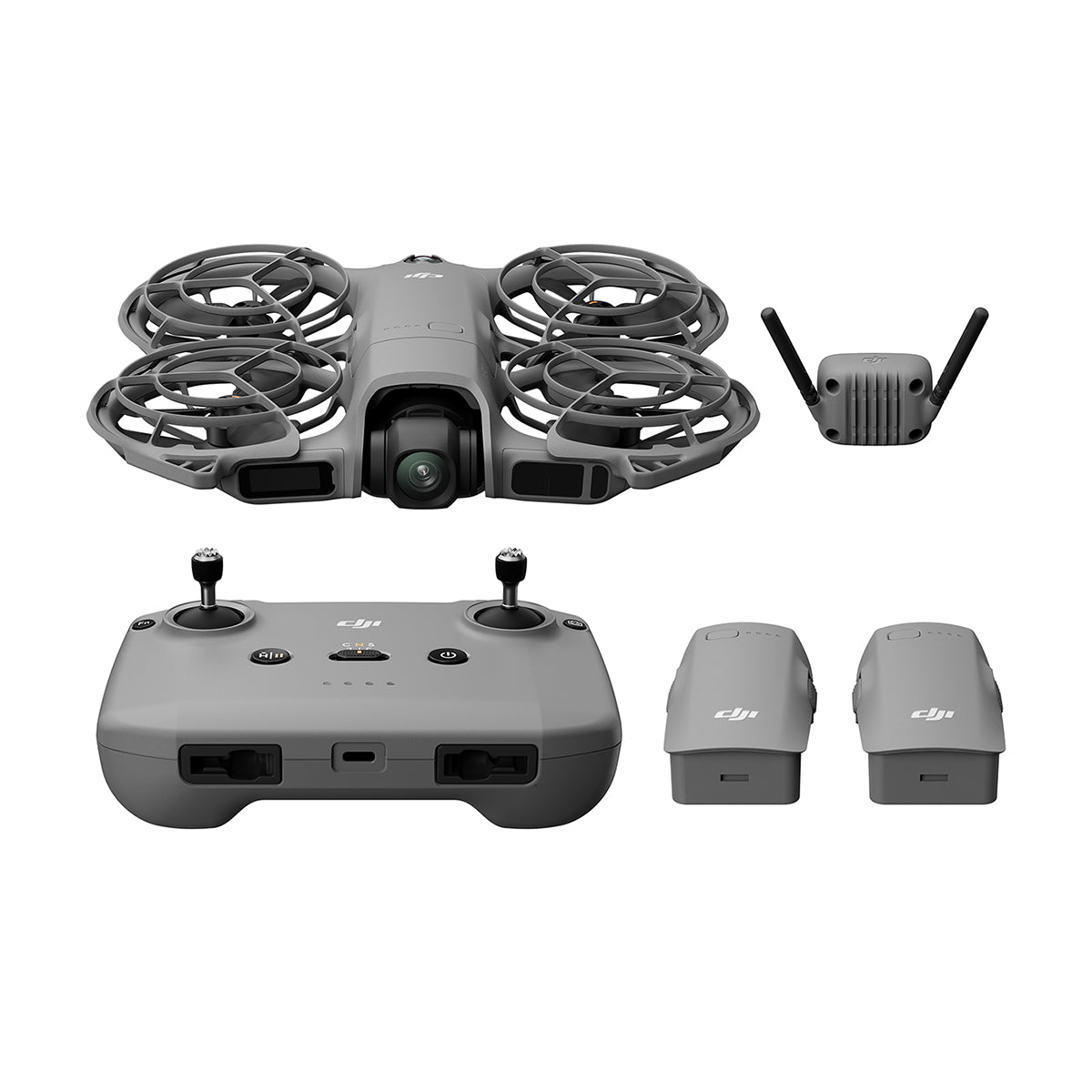

Product Information
-

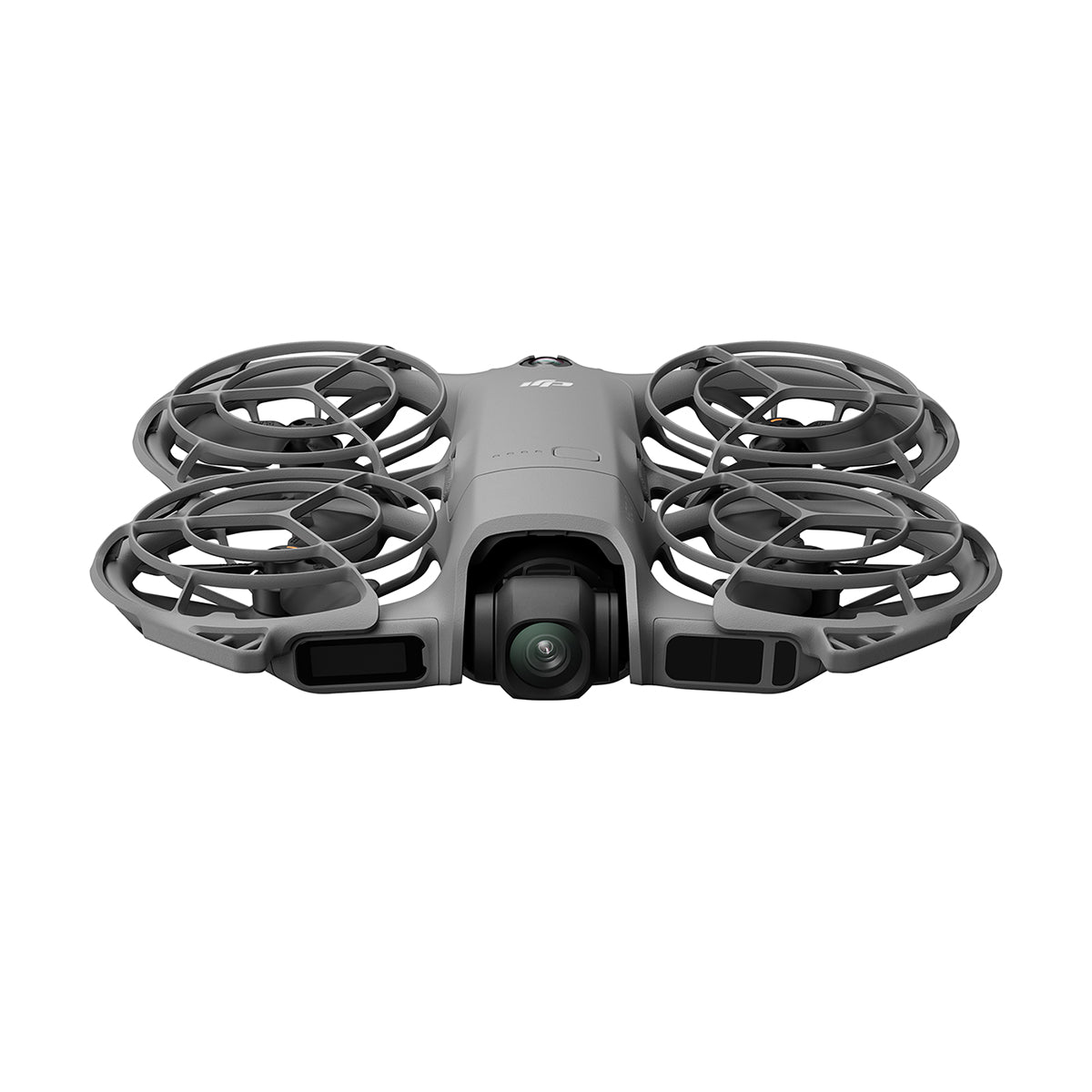

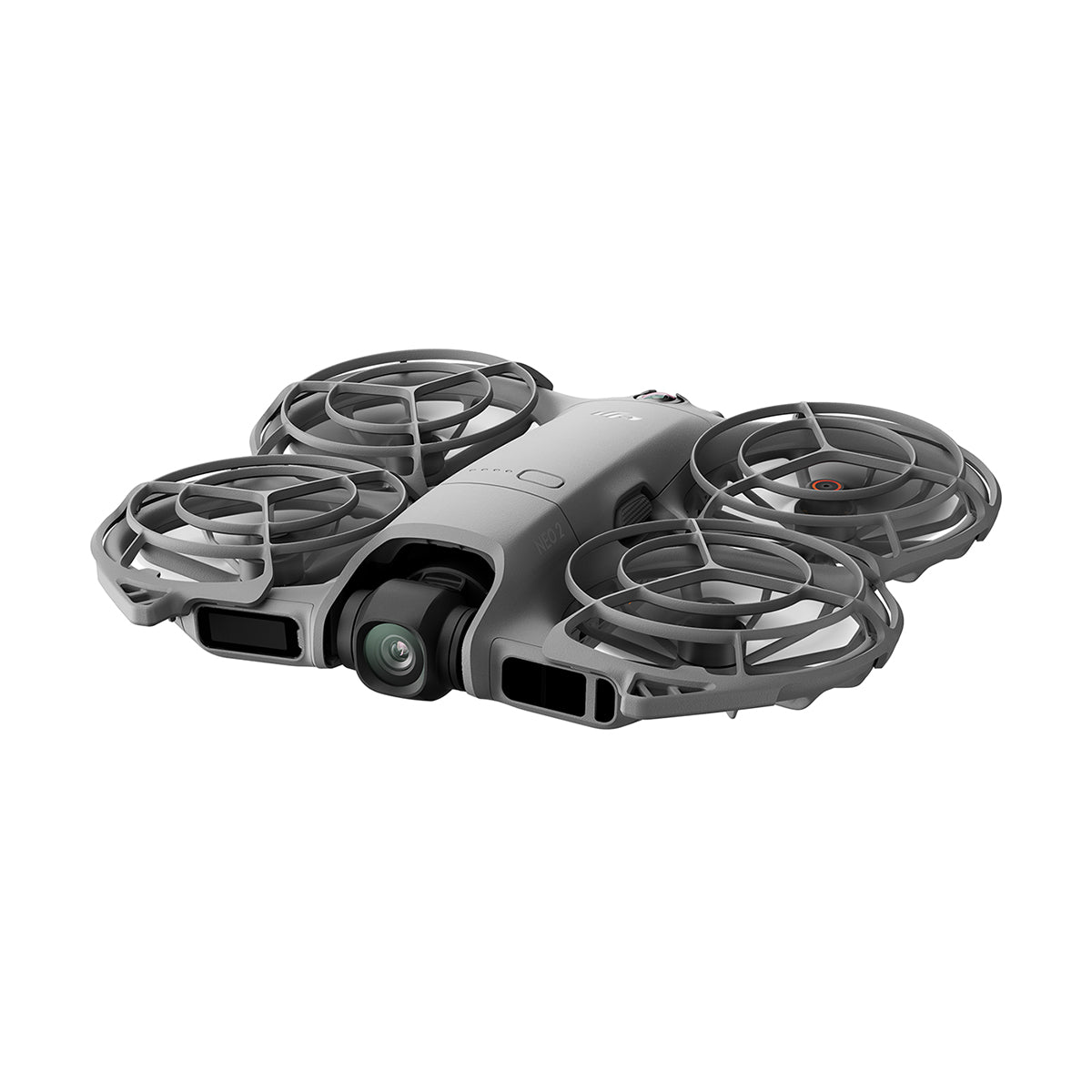

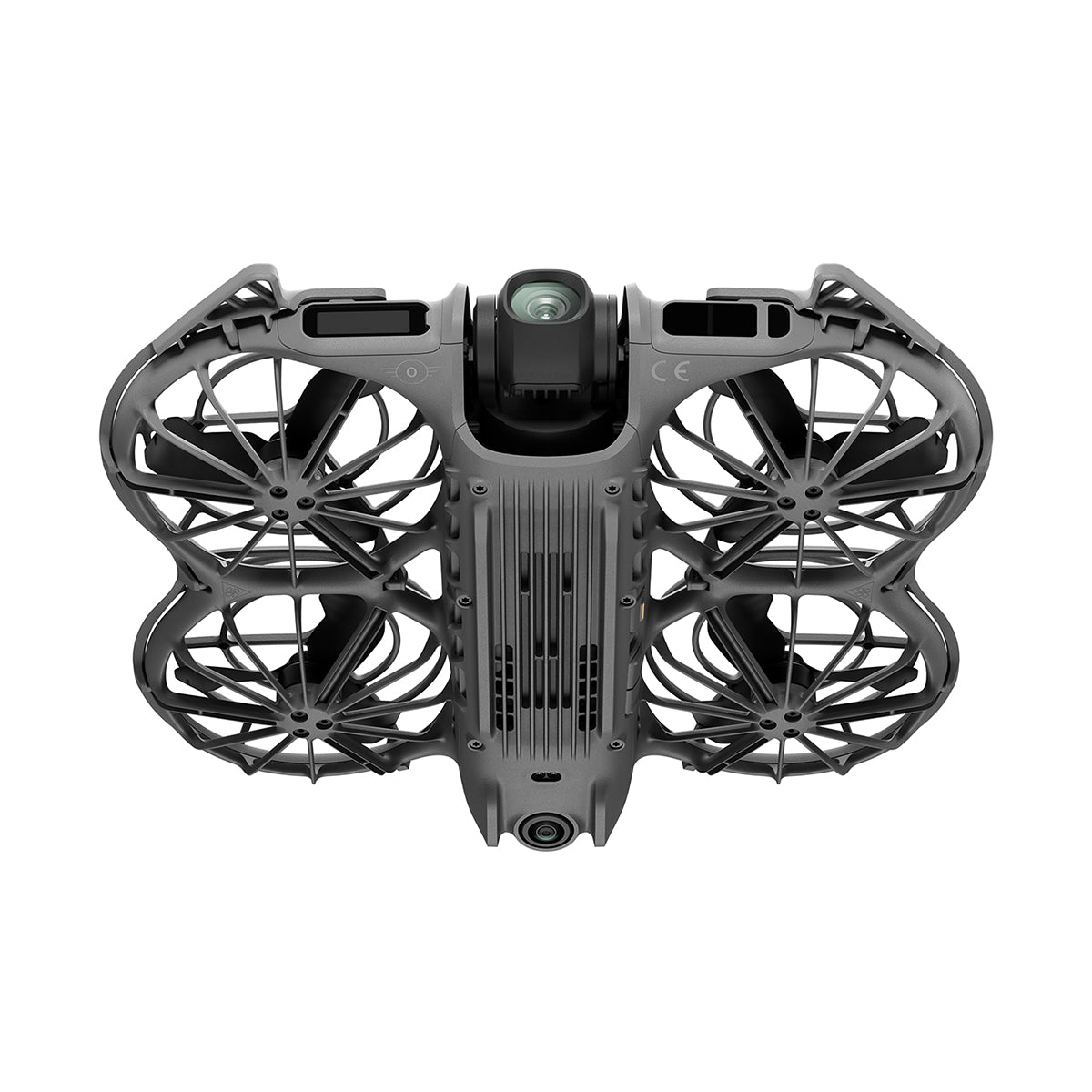

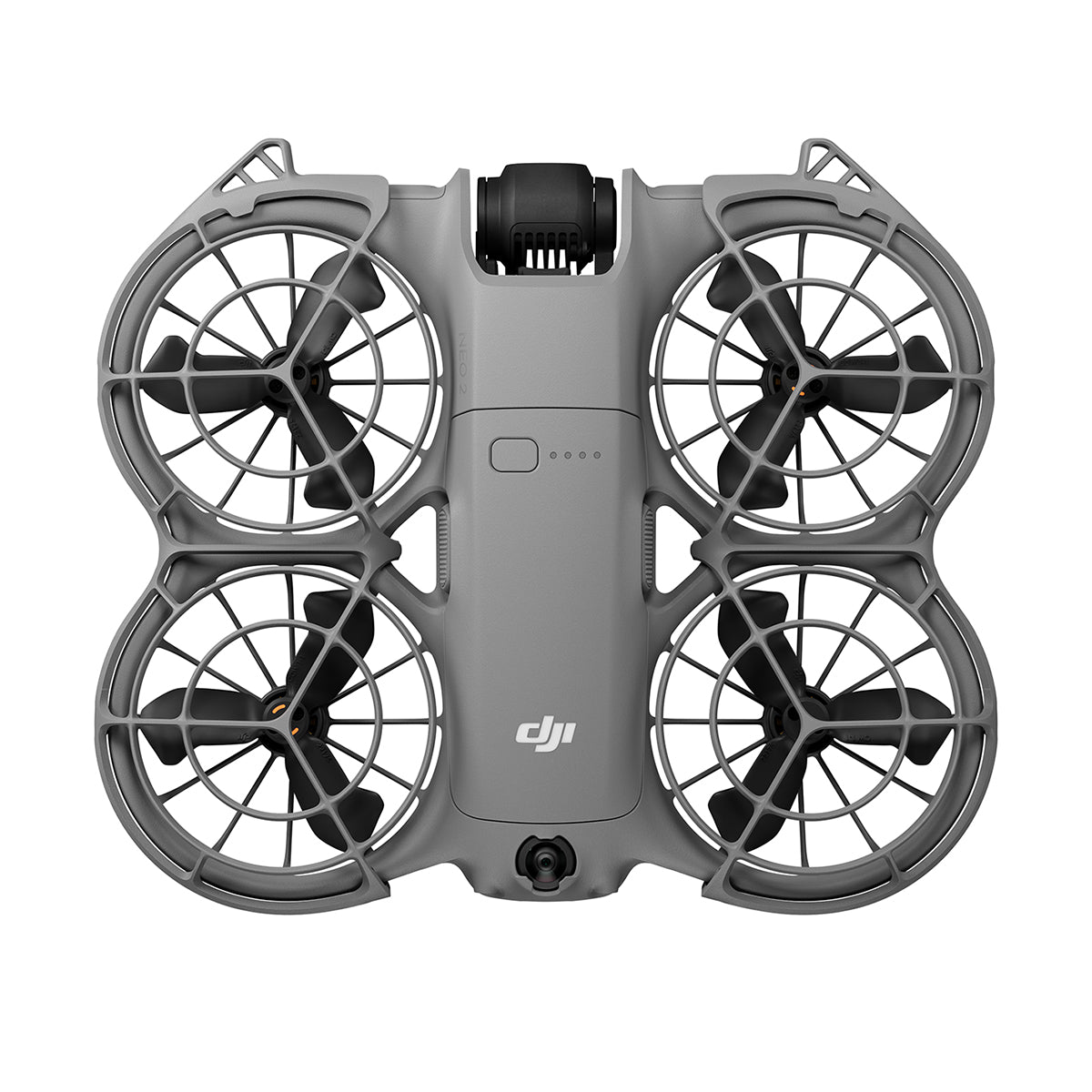

DJI Neo 2 Aircraft
-
DJI RC-N3 Remote Controller
-
DJI RC-N Series RC Cable (USB-C Connector)
-
DJI RC-N Series RC Cable (Lightning Connector)
-
3x DJI Neo 2 Intelligent Flight Battery
-
DJI Neo 2 Two-Way Charging Hub
-
DJI Neo 2 Spare Propellers (Pair)
-
4x DJI Neo 2 Spare Propeller Screw
-
Screwdriver
-
DJI Neo 2 Propeller Guard (Pair)
-

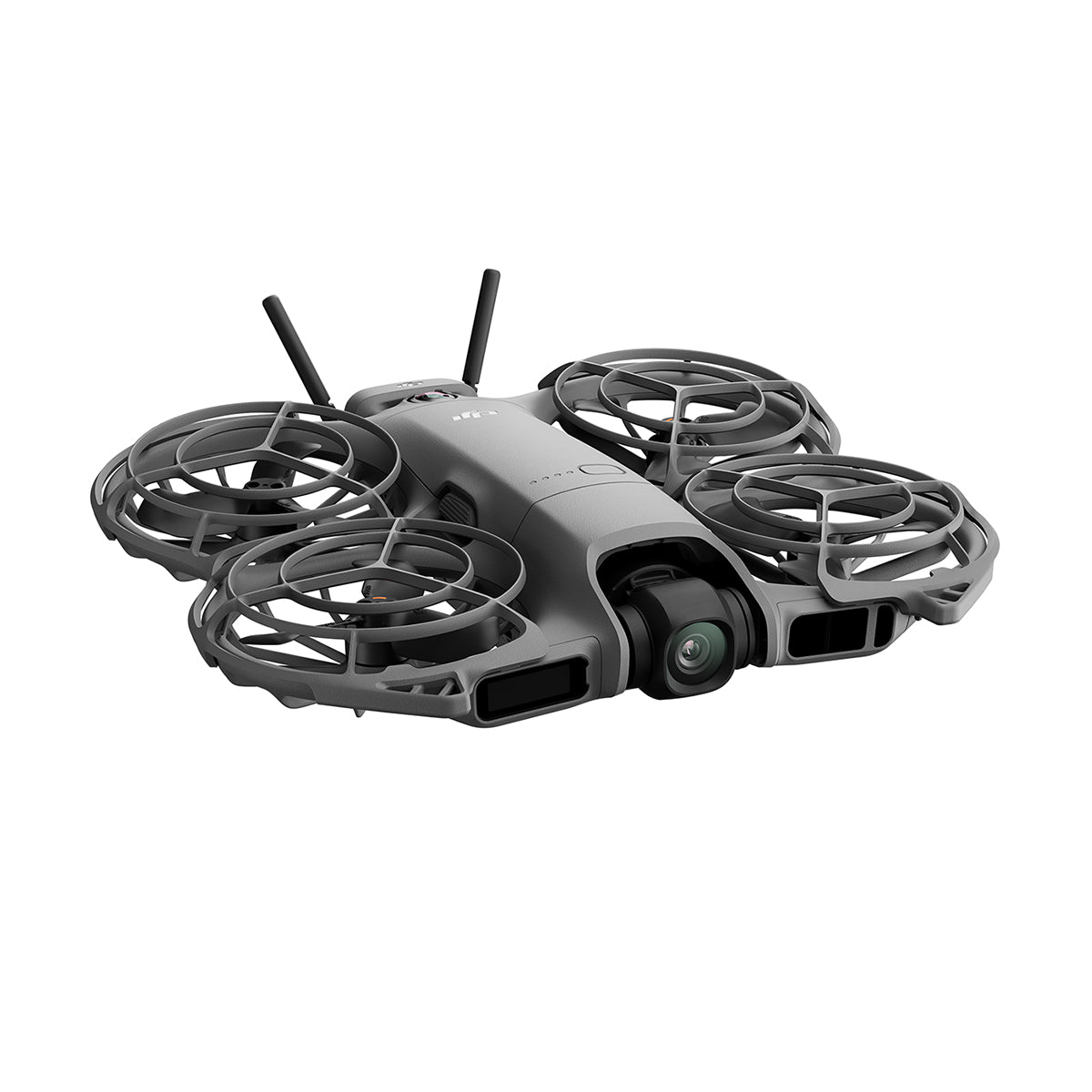

DJI Neo 2 Digital Transceiver
-
DJI Neo 2 Gimbal Protector
-
USB-C to USB-C Data Cable
-
Documents (Quick Start Guide, Safety Guidelines, and DJI Logo Stickers)
| Aircraft | |
|---|---|
| Takeoff Weight | 151 g (without DJI Neo 2 Digital Transceiver) 160 g (with DJI Neo 2 Digital Transceiver) |
| Dimensions | 147×171×41 mm (L×W×H, with propeller guards and without DJI Neo 2 Digital Transceiver) 167×171×54 mm (L×W×H, with propeller guards and DJI Neo 2 Digital Transceiver) |
| Max Ascent Speed | 0.5 m/s (Cine mode) 3 m/s (Normal mode) 5 m/s (Sport Mode) |
| Max Descent Speed | 0.5 m/s (Cine Mode) 3 m/s (Normal Mode) 3 m/s (Sport Mode) |
| Max Horizontal Speed | 8 m/s (Normal Mode) 12 m/s (Sport Mode) 12 m/s (tracking status) |
| Max Takeoff Altitude | 2000 m |
| Max Flight Time | Approx. 19 minutes (approx. 17 minutes with the propeller guards)* Each battery allows the drone to perform at least 20 palm takeoff and landing for shoots in succession** |
| Max Hovering Time | Approx. 18 minutes (16.5 minutes with the propeller guards) |
| Max Flight Distance | 7 km |
| Max Wind Speed Resistance | 10.7 m/s (Level 5) |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| Global Navigation Satellite System | GPS + Galileo + BeiDou |
| Hovering Accuracy Range | Vertical: ±0.1 m (with vision positioning) ±0.5 m (with satellite positioning) Horizontal: ±0.3 m (with vision positioning) ±1.5 m (with satellite positioning) |
| Internal Storage | 49 GB |
| Class | C0 (EU) |
| Battery | |
|---|---|
| Capacity | 1606 mAh |
| Weight | 46 g |
| Nominal Voltage | 7.16 V |
| Max Charging Voltage | 8.6 V |
| Battery Type | Li-ion |
| Chemical System | LiNiMnCoO2 |
| Energy | 11.5 Wh |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Charging Time | When Using the Two-Way Charging Hub (65W max charging power): Approx. 68 minutes to charge three batteries simultaneously from 0% to 100% When Directly Charging the Aircraft Body (15W max charging power): Approx. 70 minutes to charge from 0% to 100% |
| Battery Charging Hub | |
|---|---|
| Input | 5 V, max 5 A 9 V, max 5 A 12 V, max 5 A 15 V, max 4.33 A 20 V, max 3.25 A |
| Output (charging) | 5 V, 2 A |
| Charging Method | 3 batteries charged simultaneously |
| Compatibility | DJI Neo 2 Intelligent Flight Battery |
| Bluetooth | |
|---|---|
| Protocol | Bluetooth 5.2 |
| Operating Frequency | 2.400 GHz to 2.4835 GHz |
| Transmitter Power (EIRP) | < 10 dBm |
| Camera | |
|---|---|
| Image Sensor | 1/2-inch CMOS Sensor |
| Lens | FOV: 119.8° Format Equivalent: 16.5 mm Aperture: f/2.2 Focus: 0.7 m to ∞ |
| ISO Range | Photo 100-3200 (Single Auto) 100-12800 (Burst Auto/Timed Auto) 100-12800 (Manual) Video 100-12800 (Auto) 100-12800 (Manual) |
| Shutter Speed | Video: 1/8000-1/30 s Photo: 1/8000-1/10 s |
| Max Image Size | 12 MP Photo 4000×3000 (4:3) 4000×2250 (16:9) |
| Still Photography Modes | Single/Timed Shot Single Shot: 12 MP Timed Shot: 12 MP, 2/3/5/7/10/15/20/30/60 s |
| Photo Format | JPEG |
| Video Resolution | Horizontal Shooting: 4K (4:3): 3840×2880@60/50/30fps 1080p (4:3): 1440×1080@60/50/30fps 4K (16:9): 3840×2160@100*/60/50/30fps 1080p (16:9): 1920×1080@100*/60/50/30fps Vertical Shooting: 2.7K (9:16): 1512×2688@60/50/30fps |
| Video Format | MP4 |
| Max Video Bitrate | 80 Mbps |
| Supported File System | exFAT |
| Color Mode | Normal |
| EIS | Supports RockSteady and turning stabilization off.* |
| Charger | |
|---|---|
| Recommended Charger | DJI 65W Portable Charger USB Power Delivery chargers |
| DJI RC-N3 Remote Controller | |
|---|---|
| Max Operating Time | Without charging any mobile device: 3.5 hours When charging a mobile device: 1.5 hours |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Charging Time | 2 hours |
| Charging Method | 5 V, 2 A |
| Battery Capacity | 2600 mAh |
| Weight | Approx. 320 g |
| Dimensions | 104.2×150×45.2 mm (L×W×H) |
| Operating Frequency | 2.400 GHz to 2.4835 GHz 5.170 GHz to 5.250 GHz 5.725 GHz to 5.850 GHz |
| Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 33 dBm (FCC) < 14 dBm (CE) < 30 dBm (SRRC) |
| Gimbal | |
|---|---|
| Stabilization | 2-axis mechanical gimbal (tilt, roll) |
| Mechanical Range | Tilt: -125° to 105° Roll: -43° to 43° |
| Controllable Range | Tilt: -90° to 70° |
| Max Control Speed (tilt) | 100°/s |
| Angular Vibration Range | ±0.01° |
| Image Roll Correction | Supports correction of footage recorded on the drone Live view correction is unavailable only when using with goggles |
| Sensing | |
|---|---|

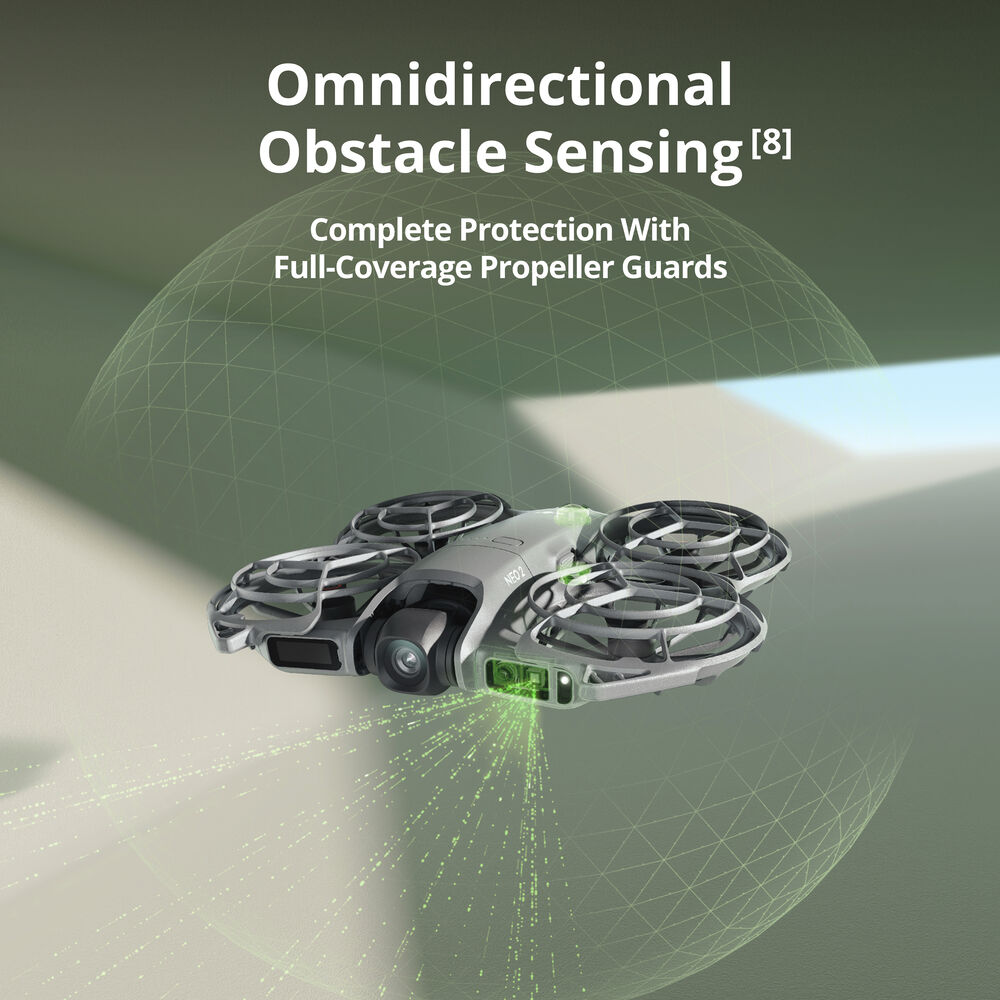

| Sensing Type | Omnidirectional monocular vision system, paired with a downward infrared sensing system and forward-facing LiDAR |
| Forward | Measurement Range: 0.5-10 m Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 8 m/s |
| Backward | Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 8 m/s |
| Lateral | Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 8 m/s |
| Upward | Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 3 m/s |
| Downward | Detection Range: 0.5-15 m Effective Sensing Speed: Flight Speed ≤ 3 m/s |
| Infrared Sensor | Forward-Facing LiDAR: Measurement Range: 0.3-8 m (reflectivity > 10%) FOV: Horizontal 60°, Vertical 60° Downward-Facing Infrared Sensor: Measurement Range: 0.3-8 m (reflectivity > 10%) |
| Operating Environment | Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 5) Downward: Surfaces with discernible patterns and adequate lighting (lux > 5), and surfaces that are diffusely reflective with a reflectivity above 20% (e.g., walls, trees, people). |
| Storage | |
|---|---|
| Recommended microSD Cards | Does not support storage expansion with an external SD card |
| Video Transmission | |
|---|---|
| Video Transmission System | Standard: Wi-Fi Video Transmission Optional: DJI Neo 2 Digital Transceiver (O4) |
| Live View Quality | With DJI RC-N3 Remote Controller: Up to 1080p/60fps With DJI Goggles N3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps With DJI Goggles 3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/100fps |
| Operating Frequency | 2.400 GHz to 2.4835 GHz 5.170 GHz to 5.250 GHz 5.725 GHz to 5.850 GHz |
| Transmitter Power (EIRP) | 2.4 GHz: < 26 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: < 26 dBm (FCC) < 14 dBm (CE) < 26 dBm (SRRC) |
| Communication Bandwidth | Max 60 MHz |
| Max Transmission Distance (unobstructed, free of interference) | FCC: 10 km CE: 6 km SRRC: 6 km MIC: 6 km |
| Max Transmission Distance (unobstructed, with interference) | Strong Interference: Urban landscape, approx. 1.5-3 km Medium Interference: Suburban landscape, approx. 3-6 km Low Interference: Suburb/Seaside, approx. 6-10 km |
| Max Transmission Distance (obstructed, with interference) | Low Interference and Obstructed by Buildings: Approx. 0-0.5 km Low Interference and Obstructed by Trees: Approx. 0.5-3 km |
| Max Download Speed | Wi-Fi: 80 MB/s |
| Lowest Latency | With DJI RC-N3 Remote Controller or DJI RC 2 Remote Controller: Approx. 120 ms With DJI Goggles N3 (1080p/60fps Video Transmission): Lowest latency at 54 ms With DJI Goggles 3 (1080p/100fps Video Transmission): Lowest latency at 50 ms |
| Max Video Bitrate | 60 Mbps |
| Antenna | 2 antennas, 1T2R |
| Wi-Fi | |
|---|---|
| Protocol | 802.11a/b/g/n/ac/ax |
| Operating Frequency | 2.400 GHz to 2.4835 GHz 5.725 GHz to 5.850 GHz |
| Transmitter Power (EIRP) | 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC) 5.8 GHz: < 26 dBm (FCC/SRRC) < 14 dBm (CE) |
| Effective Operating Range | 500 m |
