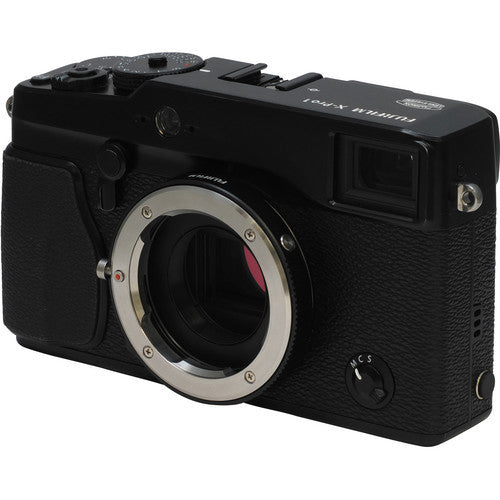

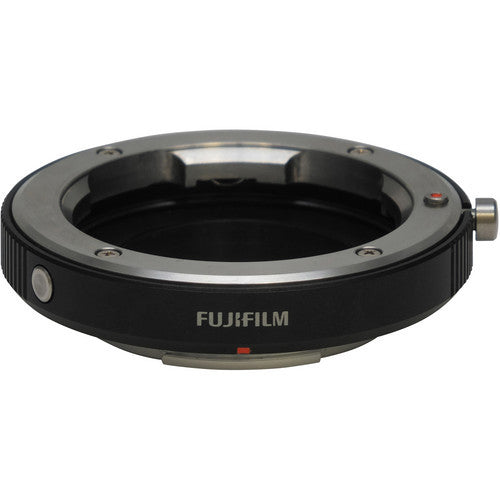

Fujifilm X-PRO1 M-Mount Adapter
The Fuji FinePix X-PRO1 M-Mount Adapter is a mount adapter that allows the use of a wide variety of M Mount lenses on the X Mount camera body. It is built with a three-part structure that uses optimum materials for each of the components to accommodate perfect fitting with high precision. The X-PRO1 M-Mount Adapter also features electronic contacts for communicating signals with the camera body and a function button to allow users to easily choose necessary settings and functions (Shoot Without Lens, focal length settings, various image corrections, etc.). The bright frame, shown in the Optical Viewfinder mode, changes according to the defined focal length for easy shooting.
Signal contacts and the new Function Button for easy shooting
When the camera body recognizes the signal contacts of the Mount Adapter, the "Shoot Without Lens" mode is activated automatically. You don't have to go to the MENU screen in order to change this setting, enabling you to start shooting instantly. Pressing the Function Button brings up the Mount Adapter Setting mode instantaneously. This provides ease of operation when registering a new lens to use, entering its settings or changing a lens.
High precision design
The X-PRO1 M-Mount Adapter is designed to maintain the flange back distance of 27.8mm for high precision M Mount lenses with advanced planarity. It is constructed using a three-part structure that employs optimum materials for each of the components. The contact surface with M Mount lenses features the same high quality stainless steel finish as that used on the X Mount camera body, while the contact surface with the camera body uses an aluminum component similar to that used in XF lenses. The middle section is made of aluminum to achieve an all-metal construction for a high level of rigidity and durability.
Various image corrections and focal length settings in order to bring out the appeal of these legendary lenses
The camera body has four preset focal lengths (21mm, 24mm, 28mm and 35mm) and can store two additional focal lengths. For each of the six focal lengths, users can define three image correction settings (distortion, peripheral illumination and color shading).
Three types of detailed image correction settings
Users can fine-tune "distortion," "peripheral illumination," and "color shading" according to individual lens characteristics. This feature allows users to correct images according to each lens's optical profile, or opt for settings that accentuate a particular lens characteristic in order to enjoy a unique image quality and style.
This function corrects distortion prominent on the edges of the frame. It is designed to correct "barrel distortion" typically seen with wide angle lenses and "pincushion distortion" common with telephoto lenses. Users may select three levels of correction ("Strong," "Medium," "Weak") or "OFF" for both "barrel distortion" and "pincushion distortion."
Gauge for confirming lens compatibility
The X-PRO1 M-Mount Adapter pacage contains a gauge made of resin that allows the user to check the compatibility of M Mount lenses with the adapter.
