400'
Wireless Range
1080p
Resolution
60fps
FPS
< 0.1 sec
Latency
HDMI/SDI
Connections
- 1 Transmitter can connect with 2 Receivers
- Up to 4 Mobile Devices Monitoring with 1 Receiver
- Three Application Scene Modes
- OLED Display Screens and USB Firmware Upgradable
Volta NP-F Battery Charger
Volta NP-F Dual Battery Charger
Volta NP-F550 Li-ion Rechargable Battery
Volta NP-F770 Li-ion Rechargeable Battery
Hosa High Speed HDMI Cable - HDMI to HDMI, 1.5 ft
Hosa SDI PRO 75-ohm Coax Cable 3ft (BNC to BNC)
Blackmagic Design ATEM Mini Extreme
Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher
BlackMagic Design ATEM Streaming Bridge
Description
| Wireless | |
|---|---|
| Wireless Range | 400' / 121.92 m (Line-of-Sight) |
| Channel Bandwidth | 20 MHz |
| Frequency Range | 5 GHz |
| Latency | < 0.1 sec |
| RF Power | ≤ 21 dBm |
| RF Sensitivity | -80 dBm |
| Wi-Fi | Yes |
| Interfaces | |
|---|---|

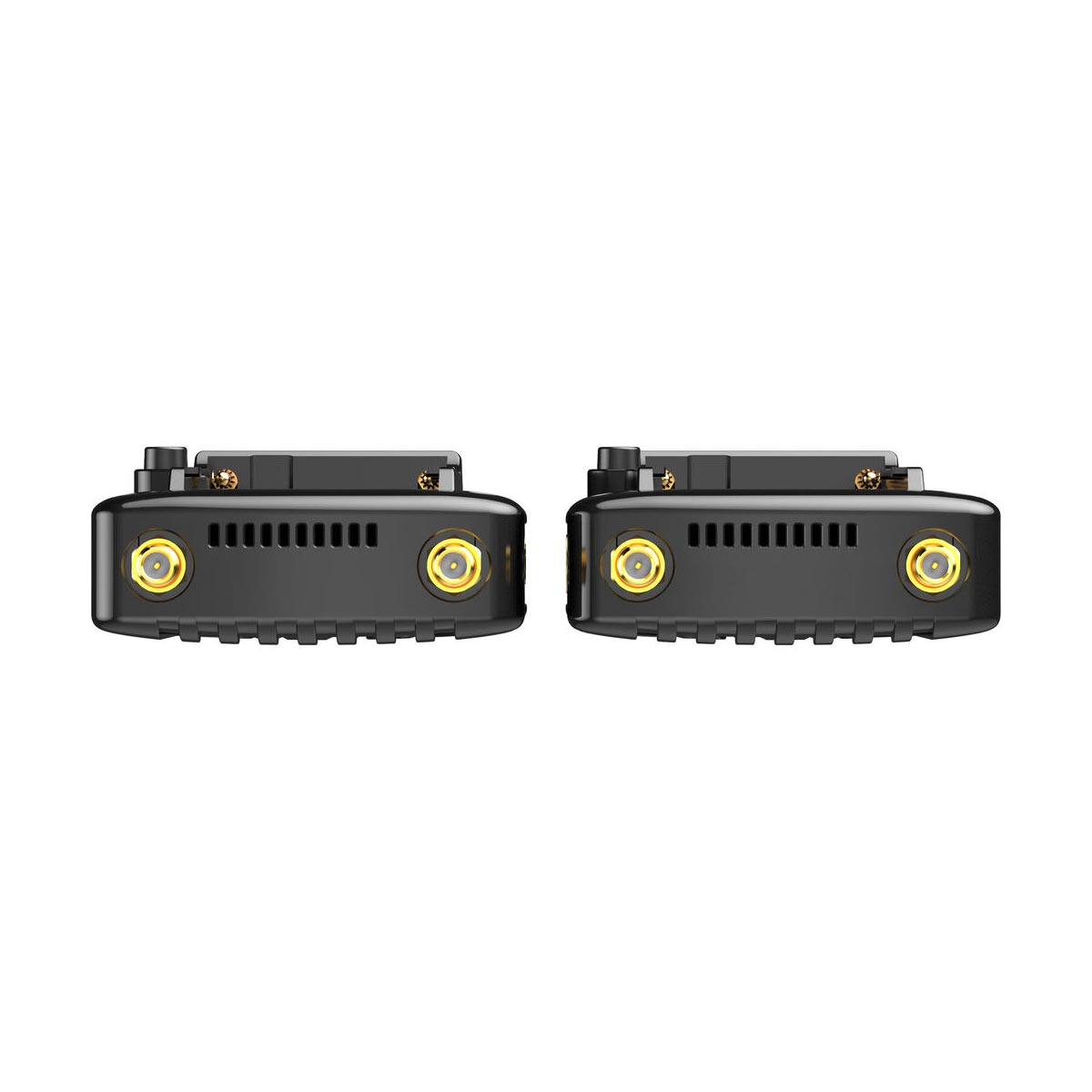

| Transmitter Antenna Ports | 2 x RP-SMA Male |
| Receiver Antenna Ports | 2 x RP-SMA Male |

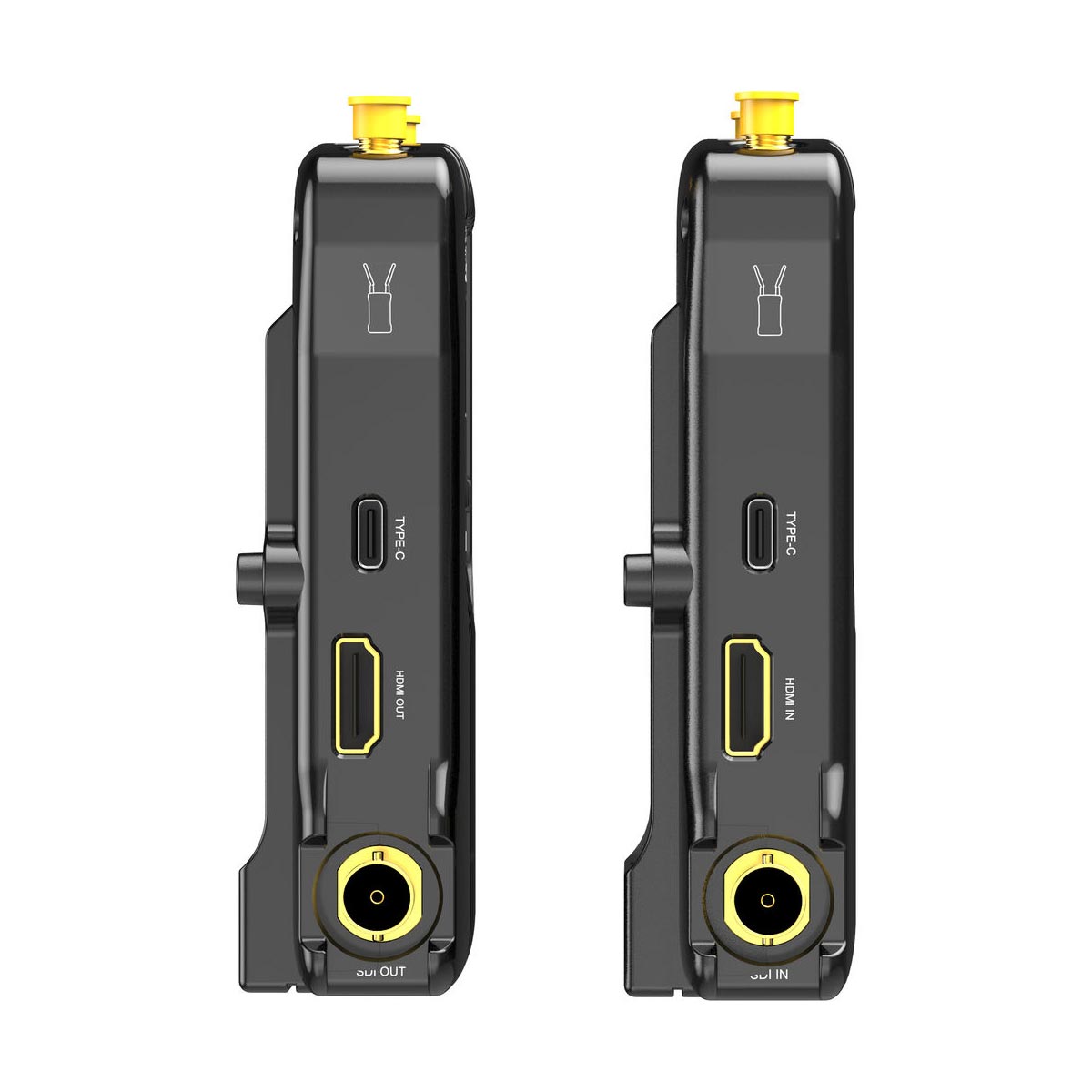

| Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI) Input 1 x HDMI Input |
| Receiver Video Connectors | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Transmitter Other I/O | 1 x USB Type-C |
| Receiver Other I/O | 1 x USB Type-C |
| Embedded Audio | SDI HDMI |
| Format Support | |
|---|---|
| Video Format | SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 1080PsF at 23.98, 24, 25 fps 720p at 50, 59.94, 60 fps HDMI: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i at 50, 59.94, 60 fps 720p at 50, 59.94, 60 fps 576p at 50 fps 480p at 60 fps |
| Display | |
|---|---|
| Transmitter Panel Type | OLED |
| Receiver Panel Type | OLED |
| Power | |
|---|---|

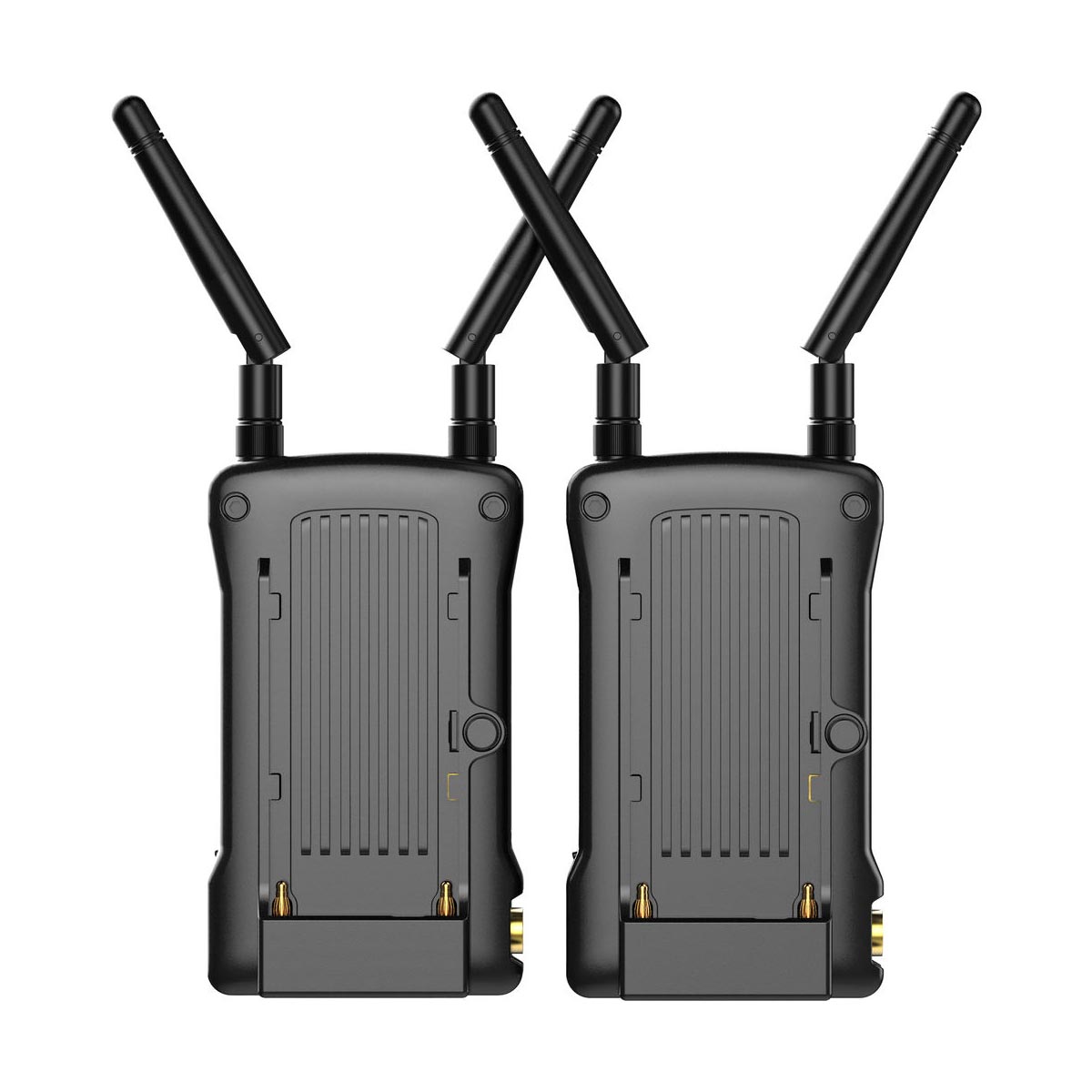

| Transmitter Battery Support | 1 x Sony L-Series / NP-F Type |
| Receiver Battery Support | 1 x Sony L-Series / NP-F Type |

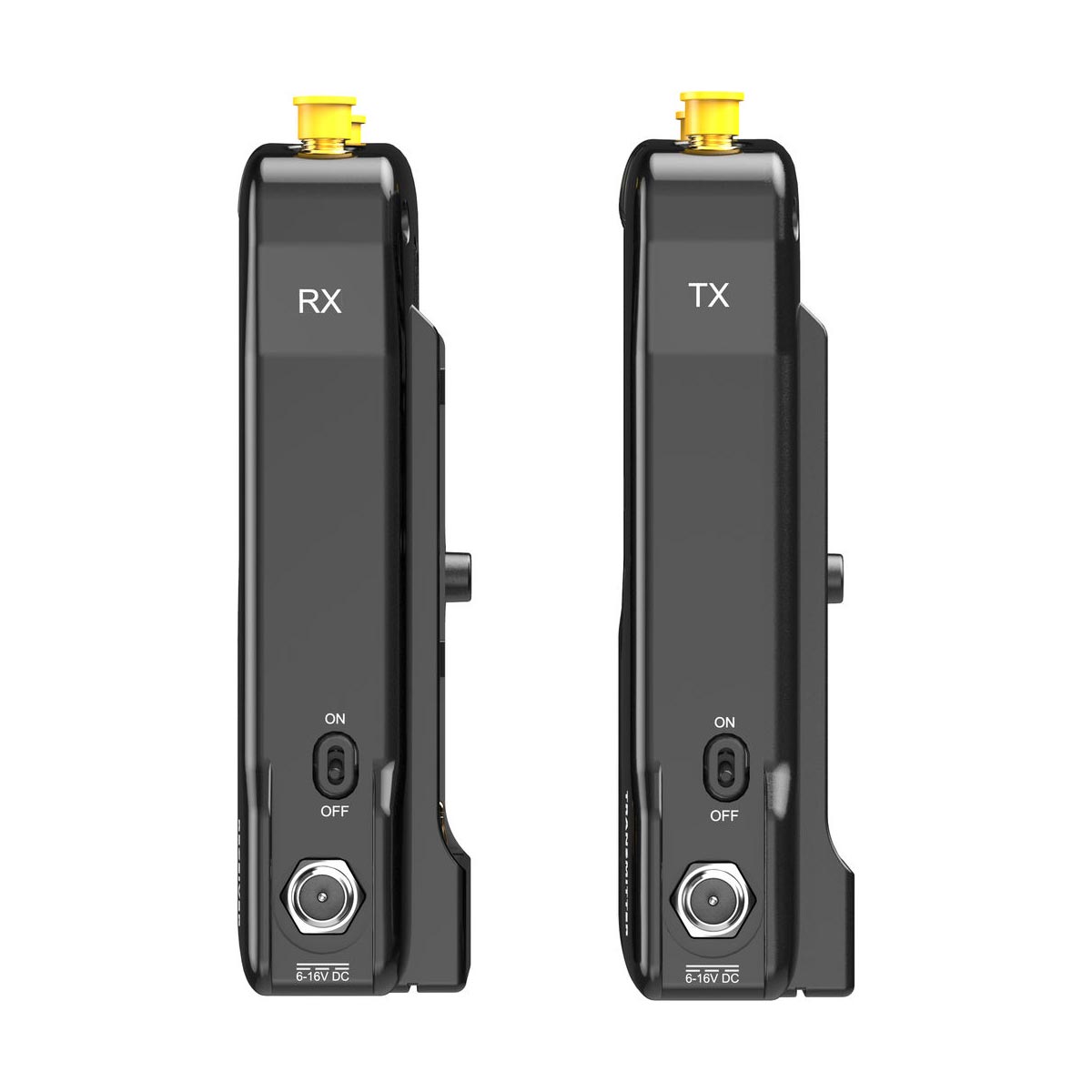

| Transmitter Power Connector | 1 x Barrel (6 to 16V DC) Input |
| Receiver Power Connector | 1 x Barrel (6 to 16V DC) Input |
| Transmitter Power Consumption | Device: (11 W) |
| Receiver Power Consumption | Device: (6 W) |
| General | |
|---|---|

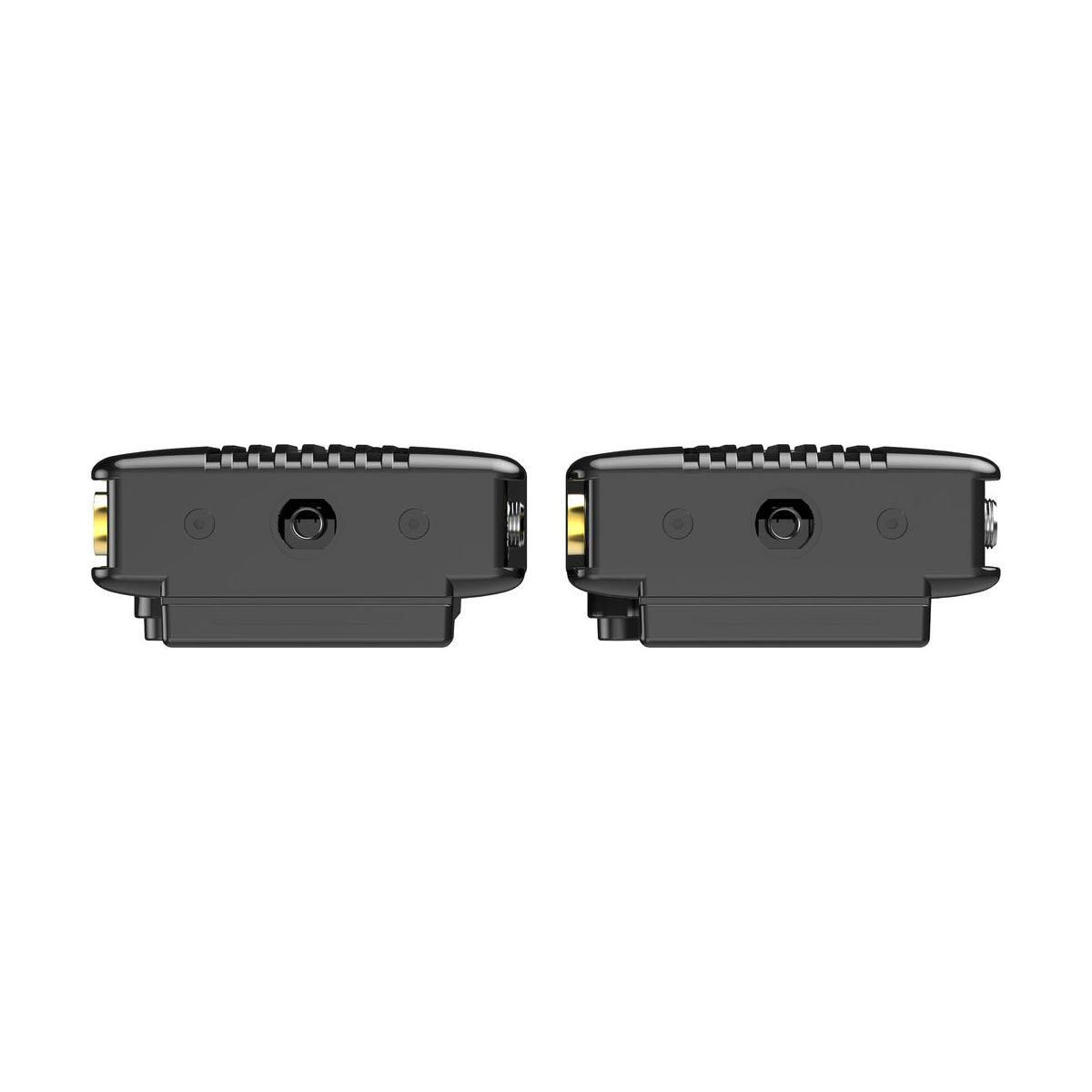

| Transmitter Mounting | 1 x 1/4"-20 Female |
| Receiver Mounting | 1 x 1/4"-20 Female |
| Materials | Metal |
| Transmitter Dimensions | 4.41 x 2.56 x 0.94" / 11.2 x 6.5 x 2.4 cm |
| Receiver Dimensions | 4.41 x 2.56 x 0.94" / 11.2 x 6.5 x 2.4 cm |
| Transmitter Weight | 0.4 lb / 192 g |
| Receiver Weight | 0.4 lb / 189 g |
