- Quick and quiet focusing thanks to precision autofocus system with Dual Syncro Drive
- The eye detection enables sharp, pinpoint portraits, even with very shallow depth of field
- The high detail contrast in combination with the maximum magnification of 1: 5 provides impressive images
- High performance in a handy format

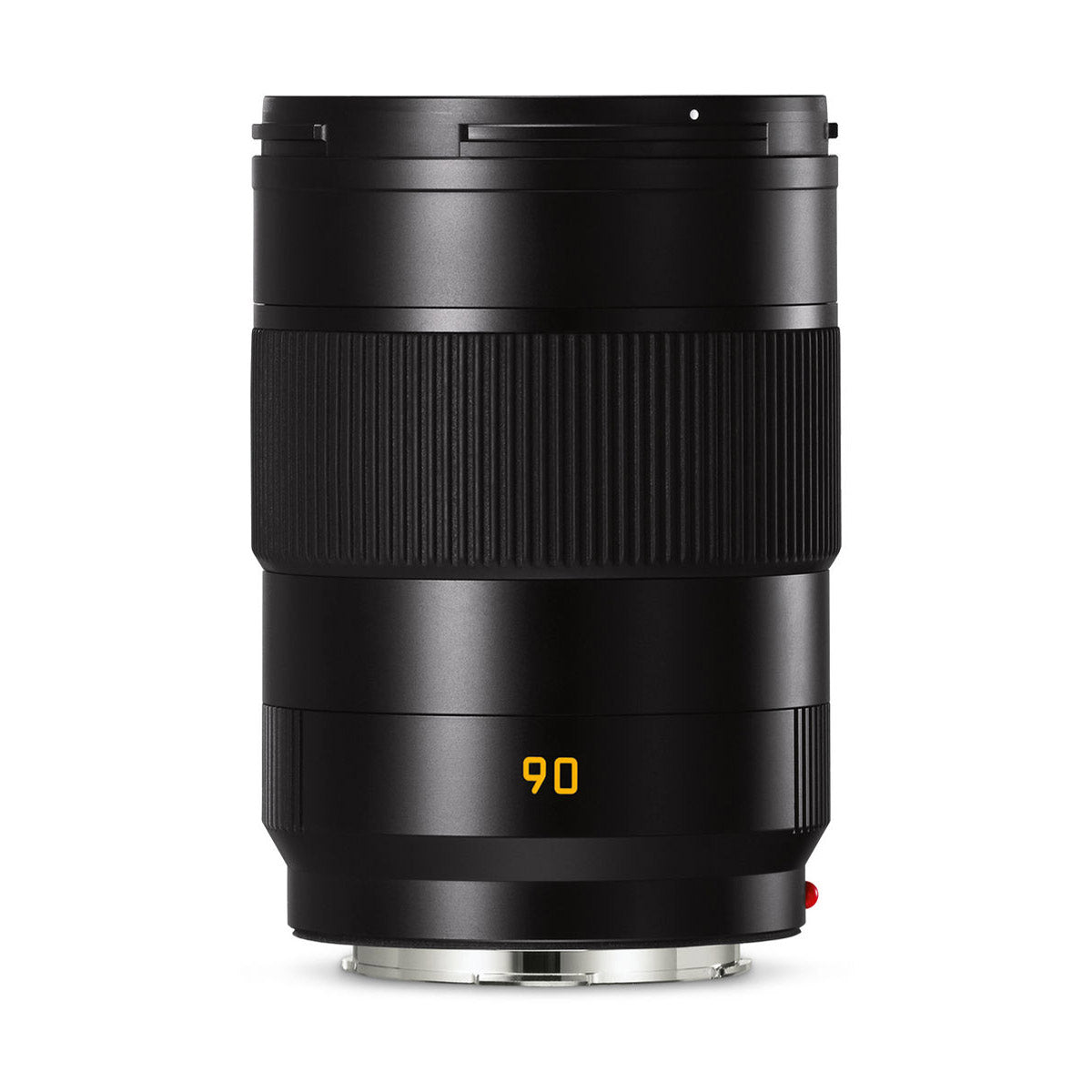

The Leica 90mm f/2 APO-Summicron-SL ASPH Lens expands the SL prime lens lineup. The 90mm focal length is perfect for portraiture work or other situations that require the extra reach offered by a 90mm prime lens. A minimum focus distance of 0.6 meters gives the lens additional flexibility. The lens is compact, powerful and bright. The high light intensity opens up a number of possibilities. The design of the Leica 90mm f/2 APO-Summicron-SL ASPH Lens represents the next step in lens development for the Leica SL system. New and extremely precise manufacturing methods and measurement techniques had to be developed for this purpose. The result is reflected not only in more compact dimensions and a significantly lower weight, but also in an excellent imaging performance. In addition, there is a new and faster autofocus system with Dual Syncro DriveTM and a much lower limit.
The optical design contains a total of 11 elements, of one of which is an aspherical element and four are made from glasses with anomalous partial dispersion for the correction of chromatic aberrations. The front element has the Leica AquaDura coating, which protects the lens from dirt and scratching.
Its high speed and the unique aesthetics of its depth of focus make this telephoto lens the first choice for portrait photographers. At the decisive moment, its almost silent and simultaneously precise autofocus gives photographers more time to concentrate fully on the creative aspects of their subject, the person in front of their camera. Like all Leica SL-Lenses, the Leica 90mm f/2 APO-Summicron-SL ASPH Lens is perfectly matched to the modern SL-System and is constructed for a long working life under professional shooting conditions.
AF System with Dual Syncro Drive™ - From zero to sharp in no time
The AF system of the Summicron-SL lenses is fast, precise, and almost silent. They thank their outstanding AF performance figures to the autofocus drive unit they share. These are limited only by the mass of the lens elements moved when focusing, the travel from infinity to the closest focusing distance and, of course, the amount of space available. In order to preserve the compact dimensions of the lenses, the integration of these components must follow an integral approach.
Specialists from the areas of optical and mechanical engineering and electronics worked together in an interdisciplinary team on the development of a unique lens concept based on double internal focusing. This system, comprising two particularly light focusing lenses, allows the construction of particularly small and compact drive systems. In addition to space limitations, the choice of the drive motors is also determined by the AF principle used for focusing.
Several contrast measurements at various focusing positions must be made before the correct direction of motion for focusing can be determined and followed by precise focusing. In this procedure, the focusing lenses must be moved rapidly backwards and forwards in accordance with the speed specifications of the contrast AF system. This requires a dynamic drive system without any play.
In the Summicron-SL lenses, the drive units installed are extremely powerful and robust stepping motors with Dual Syncro Drive™. Thanks to these, the entire focusing throw can be traveled completely in fractions of a second. This means that the Summicron-SL lenses achieve values that are among the best in the full-frame system segment in terms of speed, precision, and noise emissions.
Higher Contrast for greater perceived depth
With an initial aperture of f/2, the SL-Summicron lenses are significantly more compact than faster lenses, but still allow photographers to work with similar depth of field. The reason for this is contrast: the zone of highest contrast is perceived by viewers as being sharp, while zones with lower contrast are regarded as being unsharp.
In the case of SL-Summicron lenses, this difference in contrast is considerably higher than that of conventional lenses: sharply focused objects show much higher contrast than objects that are out of focus. This means that objects “snap” more distinctly out of the foreground or background and more effectively isolate the subject. This creates a three-dimensional visual effect with very impressive apparent depth.
Optically and Mechanically - A new standard
In the construction of the Summicron-SL lenses, particular attention has been paid to the prevention of stray light and reflections. The optimization of the optical and mechanical design was carried out in elaborate simulations before the construction of the first prototype lenses. Unavoidable reflections are reduced to the best possible level by high-quality coating of lens surfaces.
Complex Electronics for uncomplicated handling
The focusing and aperture setting functions of a SL-Summicron lens are based on a multitude of control systems and mathematical operations. The demands on the electronics are particularly high in the case of the double focusing system.
The two autonomous focusing units must be moved in perfect synchronization and positioning data have to be analyzed at a very high sampling rate and passed on to the camera. Here, the communication with the camera is so fast that there is no perceptible delay. These are the primary preconditions for fast and precise contrast AF.
The aperture is driven by a stepping motor. Here, a special micro-step control system ensures precise and fast movements with minimized vibration.
Manual Focusing - A new experience
SL-Summicron Lenses feature a totally new manual focusing ring construction concept. In this concept, a ring magnet with alternating north-south magnetization is embedded in the manual focusing ring. The magnetic field changes its polarity when the ring is turned. A sensor monitors the status of the magnetic field and sends the data to the main processor. The drive then shifts the lens to the corresponding focusing position on the basis of the angle of rotation and the rotational speed.
The construction of the MF-ring guarantees reliable sealing against dust and water spray, provides protection against impacts and other mechanical stresses, and prevents focusing inaccuracies as a consequence of temperature fluctuations. Even after years of use, the MF-ring of a SL-Summicron lens impresses with a smooth action without play and homogeneous focusing.
Impressive down to the smallest detail
The consistently compact dimensions, low weight, and the excellent grip and feel of the SL-Summicron lenses are particularly impressive when shooting. Thanks to the almost identical design of the Summicron-SL lenses, feeling for the MF ring is unnecessary after switching lenses and the center of gravity remains largely the same. This means that the camera always lies perfectly in the hand and makes working from a tripod much easier.
The optical system of the Leica 90mm f/2 APO-Summicron-SL ASPH Lens is comprised of 11 elements, one of which has an aspherical surface. A very high proportion of these elements is manufactured from specially formulated, high-quality glass types for the correction of chromatic aberration. Their particular optical property, so-called anomalous partial dispersion, enables compensation for chromatic aberrations resulting from the other glasses in the optical system. As a result of this, even highlights in images remain almost completely free of color fringing.
|Lens Format||Full Frame|
|Lens Mount||Leica L-Mount|
|Focus Type||Autofocus, Manual|
|Minimum Focus Distance||1.97' / 60 cm|
|Maximum Magnification Ratio||0.2x|
|Lens Construction||11 Elements in 9 Groups|
|Angle of View||27.3°|
|Dimensions (Ø x L)||2.87 x 4.02" / 73 x 102 mm|
|Weight (without lens hood)||1.54 lb / 700 g|
