Configurations
Product Information
| Camera | |
|---|---|
| Lens Mount | Canon RF |
| Image Sensor | |
|---|---|
| Image Sensor Type | CMOS |
| Image Sensor Size | 27.03 x 14.26 mm (Super35) |
| Effective Pixels | 19.9 Megapixel |
| In-Body Image Stabilization | No |
| Media | |
|---|---|
| Card Slots | Single Slot: CFexpress Type B (CFexpress 2.0) |
| Autofocus | |
|---|---|
| Focus Type | Auto and Manual |
| Focus Modes | Automatic, Manual |
| Shutter | |
|---|---|
| Shutter Type | Electronic Global Shutter |
| Video | |
|---|---|
| File Format | ProRes 4444XQ 4:4:4 4096 x 2160 up to 60.00 fps [560 MB/s] ProRes 4444 4:4:4 4096 x 2160 up to 80 fps [560 MB/s] ProRes 422/ProRes 422 HQ/ProRes 422LT 4096 x 2160 up to 120 fps [560 MB/s] REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ 6144 x 3240 up to 80 fps [560 Mb/s] 5120 x 2700 up to 96 fps [560 Mb/s] 4096 x 2160 up to 120 fps [560 Mb/s] 2048 x 1080 up to 240 fps [560 Mb/s] |
| External Recording Quality and Frame Rates | 4:2:2 via SDI/BNC DCI 4K (4096 x 2160) up to 60.00 fps DCI 2K (2048 x 1080p) up to 60.00 fps |
| Monitor and Viewfinder | |
|---|---|
| Monitor Type | Fixed Touchscreen LCD |
| Monitor Size | 2.9" |
| Monitor Resolution | 1440 x 1440 |
| Viewfinder Type | Optional, Not Included |
| Connectivity | |
|---|---|

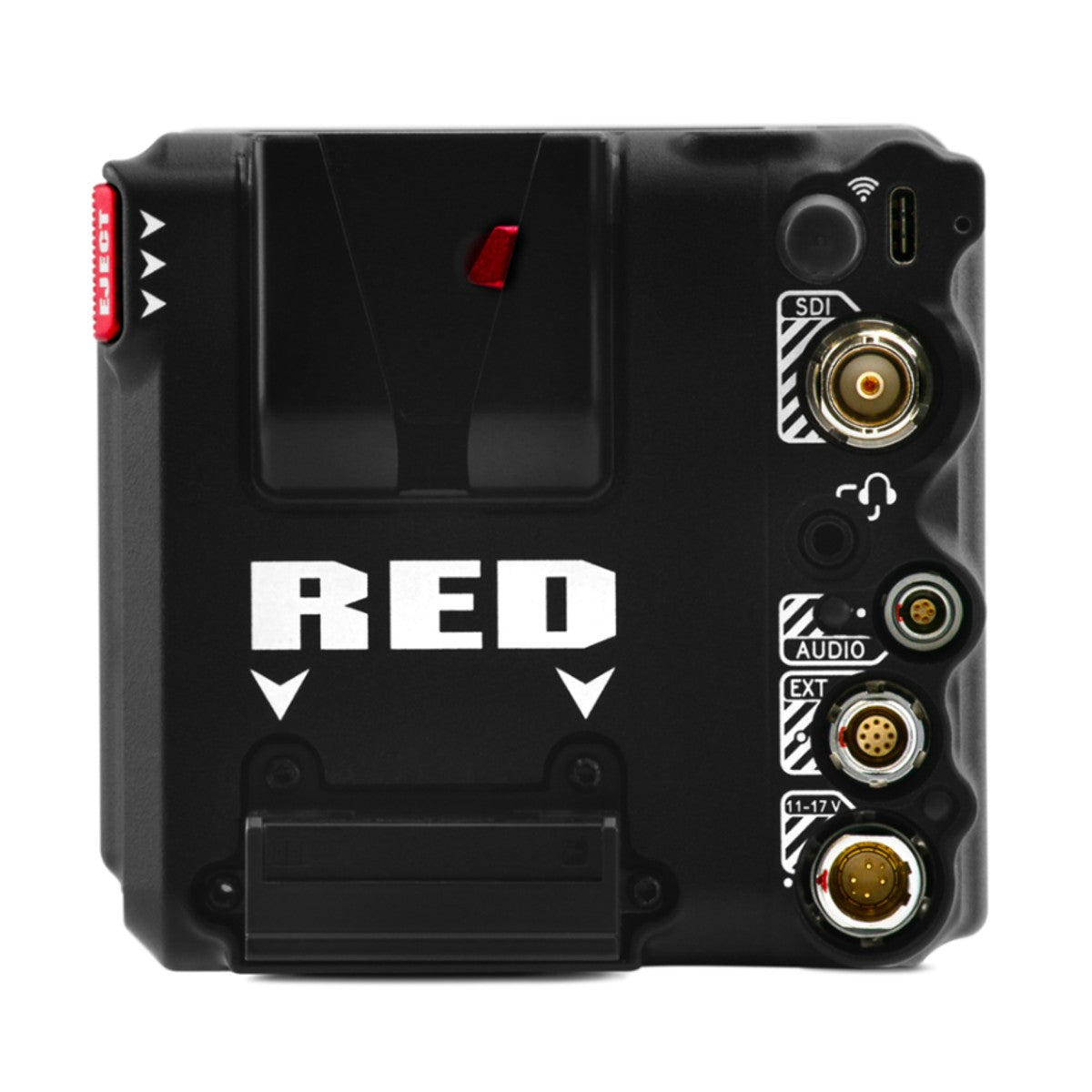

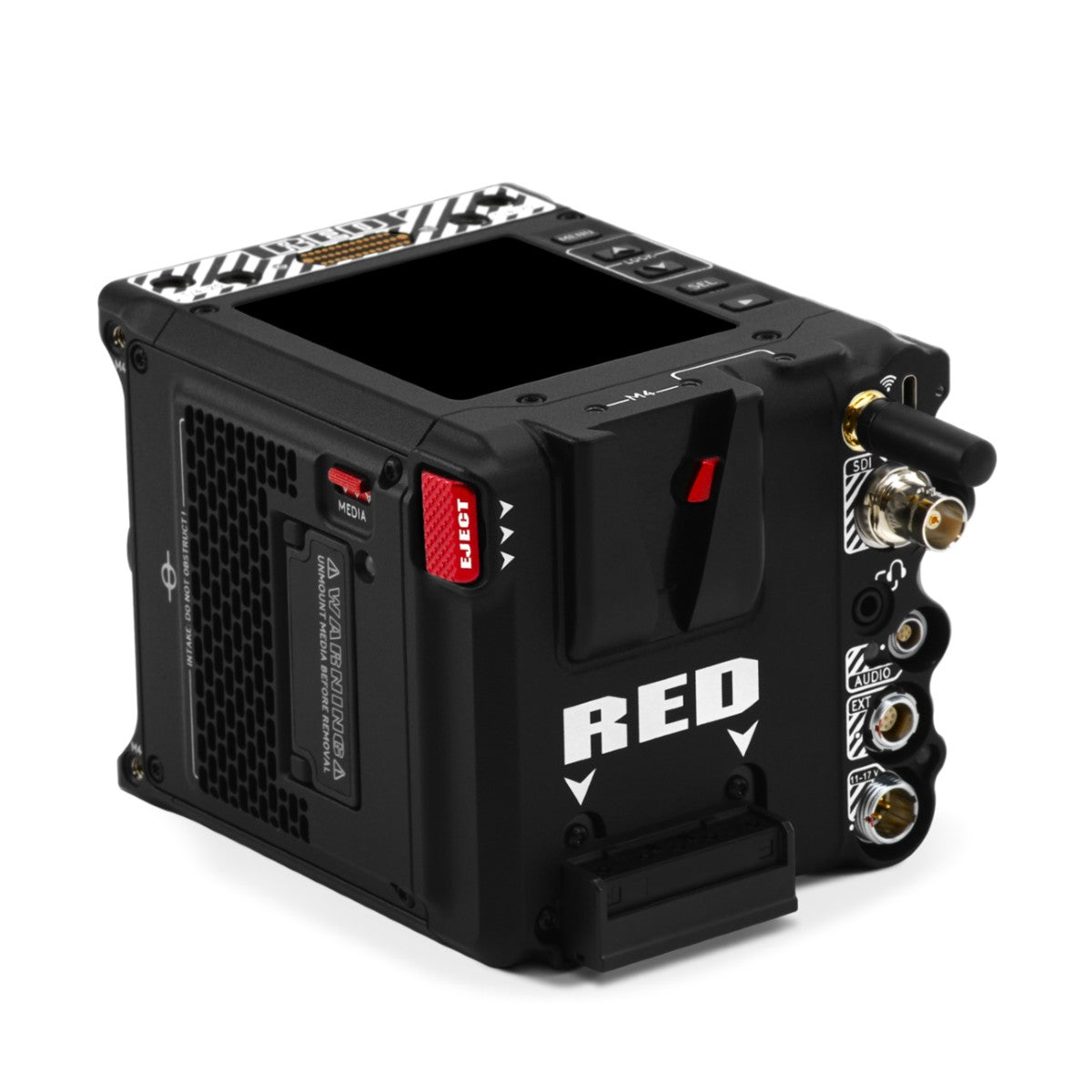

| Interface | Video: 1 x BNC (12G-SDI) Output Audio: 1 x LEMO 5-Pin Line Input on Camera Body Power: 1 x LEMO 6-Pin (11 to 17VDC) Input Other:1 x 9-Pin (Genlock, GPI, Timecode) 1 x USB-C (Camera Interface) Control/Data/Video Input/Output 1 x RED Cable-Free Monitor Connection Output |
| Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control |
| GPS | None |
| Power | |
|---|---|
| Battery | V-Mount |
| Physical | |
|---|---|
| Dimensions (W x H x D) | 5.09 x 3.99 x 3.75" |
| Weight (Body Only) | 2.62 lb |
