Description

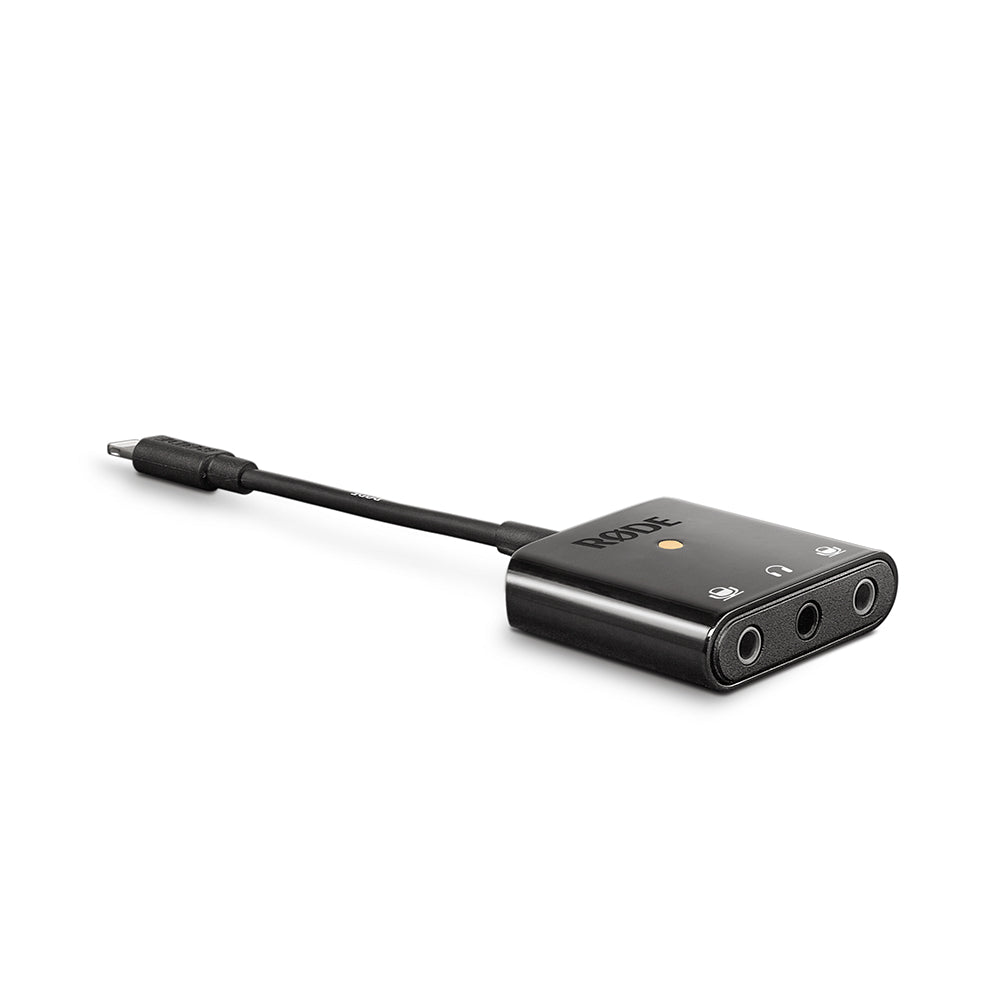

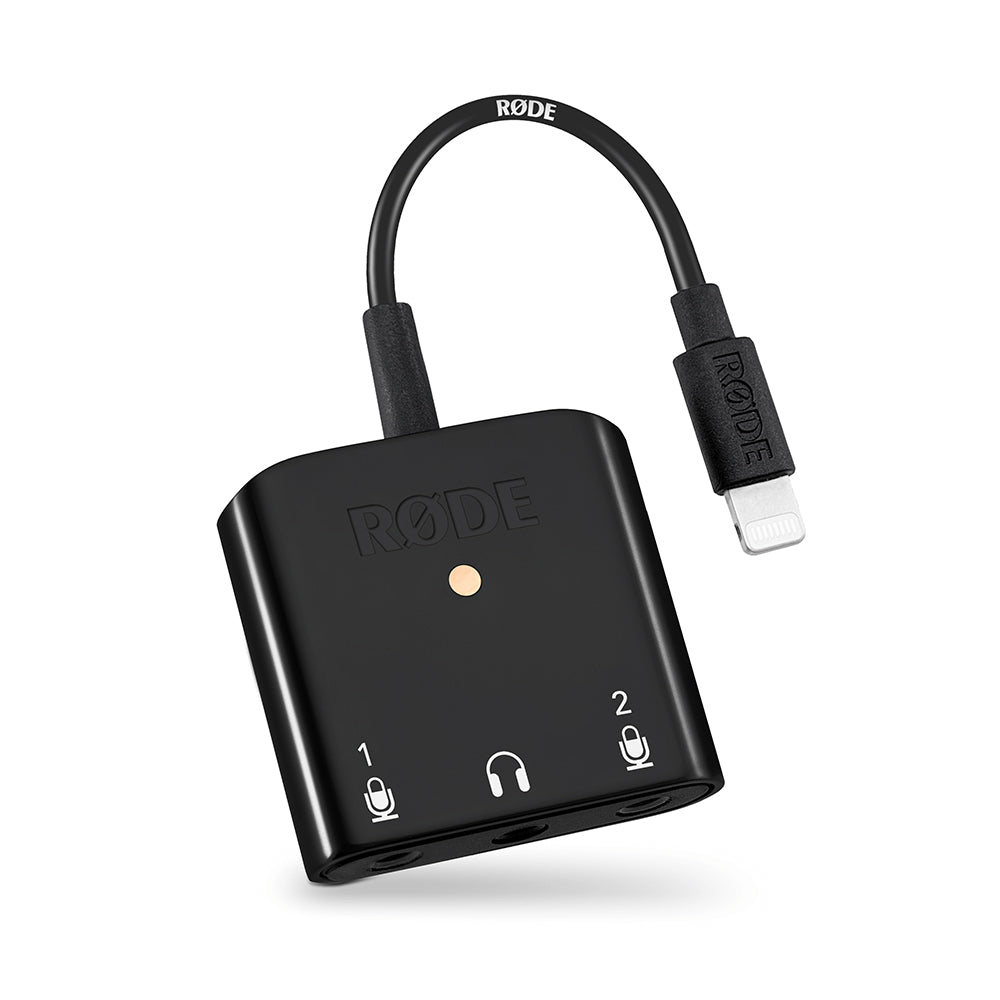

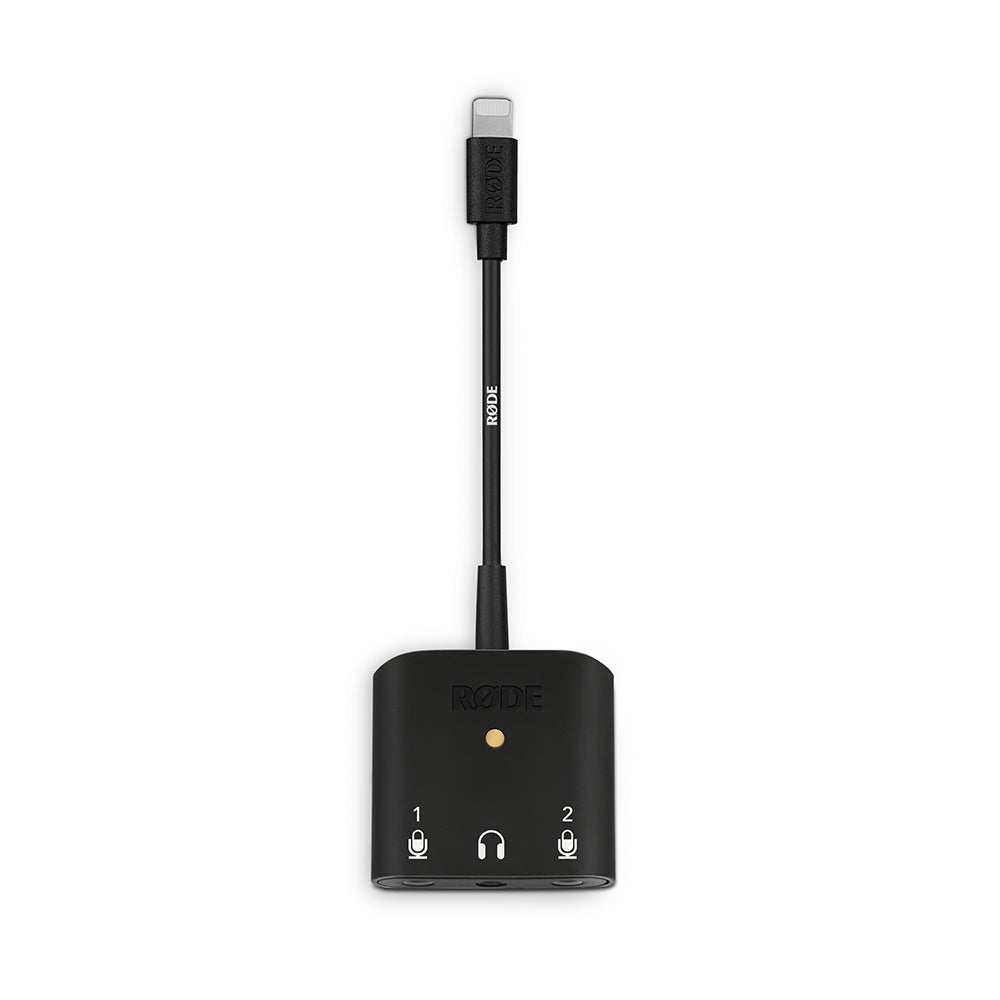

The SC6-L is a simple input/output breakout box designed for Apple iOS devices. Inspired by the original SC6 with a 3.5mm TRRS jack, the SC6-L uses a Lightning Connector to connect directly to Apple iOS devices.
With two TRRS inputs and one stereo headphone output, the SC6-L can be used with two RØDE smartLav+ microphones and one pair of headphones, allowing audio monitoring and playback, perfect for interview scenarios. The SC6-L can also be used with RØDE’s range of VideoMics in conjunction with a TRRS adaptor, such as the SC4 and SC7.
The SC6-L has been optimized to work seamlessly with the easy-to-use RØDE Reporter App. Users can enable/disable direct monitoring, alter the gain boost, and choose between summed stereo and dual-mono. These features are retained within the SC6-L allowing users to use the dual-mono mode with other apps, such as the Camera app, GarageBand, Voice Memos, etc.
The SC6-L is compatible with all Apple iOS devices with a Lightning connection and running iOS 11 or higher.
The SC6-L is also available as part of the SC6-L Mobile Interview Kit.
SC6-L Mobile Interview Kit Specifications
| OS Requirements | iOS 11 and higher |
| Bus Powered | Yes |
| Direct Monitor | Yes |
| Sample Rates | 44.1/48 kHz |
| Bit Depth | 24-bit |
| Simultaneous I/O | 2/2 |
| Computer Connectivity | Lightning (iPhone/iPad/iPod) |
| Analog Outputs | 3.5mm TRS Headphone Output |
| Output Connection | SC6-L: 3.5mm Headphone Output SmartLav+: Gold-plated TRRS plug |
| Power Requirements | Powered from iPhone TRRS socket (2.7V) |
| Maximum SPL | n/a |
| Equivalent Noise | 25 dB Typical |
| Signal to noise Ratio | 69 dB |
| Frequency Range | SC6L: 20Hz - 20 kHz SmartLav+: 60 Hz - 18 kHz |
| Polar Pattern | Omni-directional |
| Active Electronics | JFET |
| Acoustic Principle | Permanently Polarised Condenser |
