- Dual D-Tap output ports and DC output ports
- Standard V mount fits most V mount batteries
- Dual rod clamp suits 15mm rail system
- On/off switch for easy use
- An adjustable extension arm can quickly reposition the battery adapter plate
-

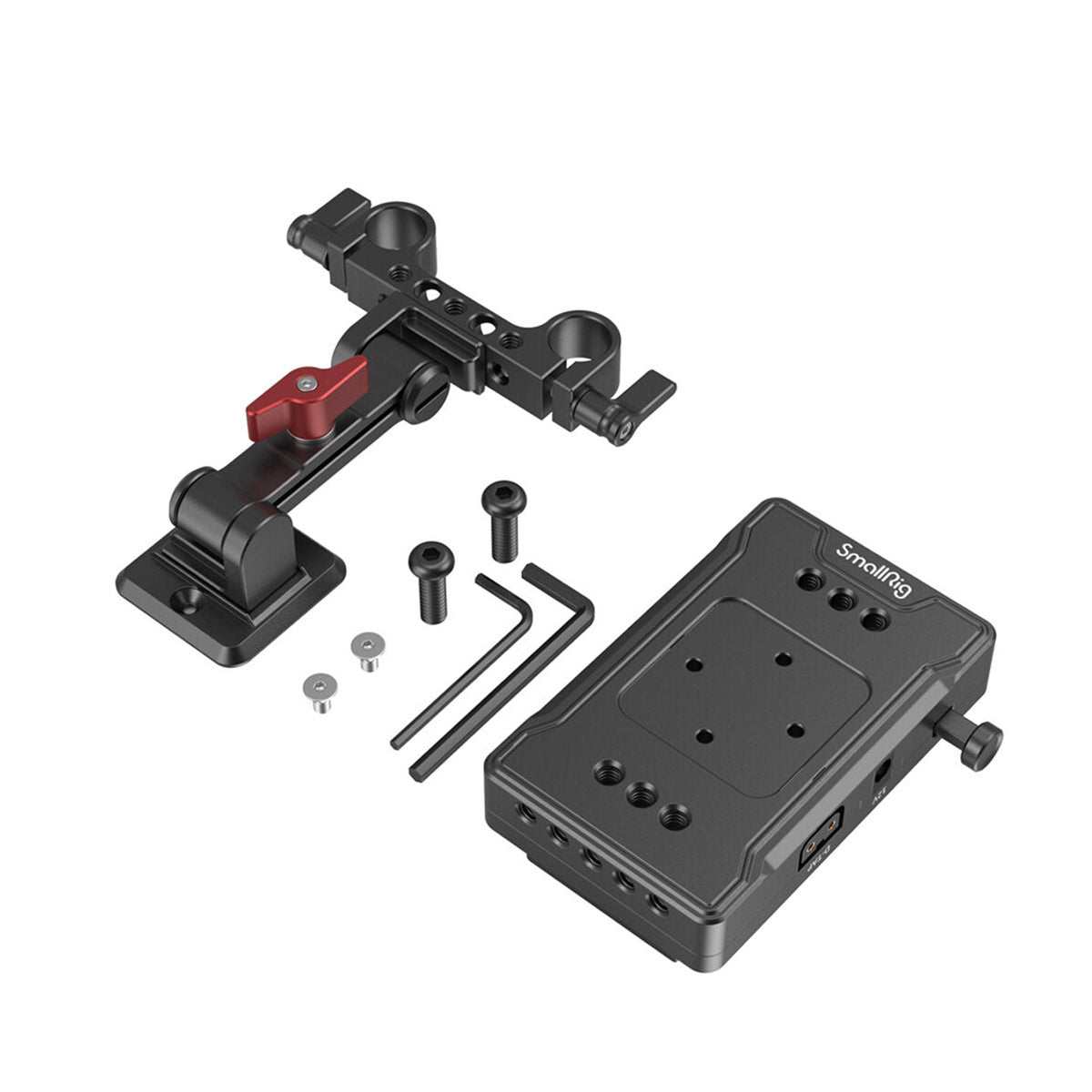

V Mount Battery Adapter with Dual-Rod Clamp and Extension Arm
-
Extension Arm
-
2 x Allen Key
-
2 x M4 Screw
-
2 x 1/4"-20 Screw
-
Limited 2-Year Warranty
Description

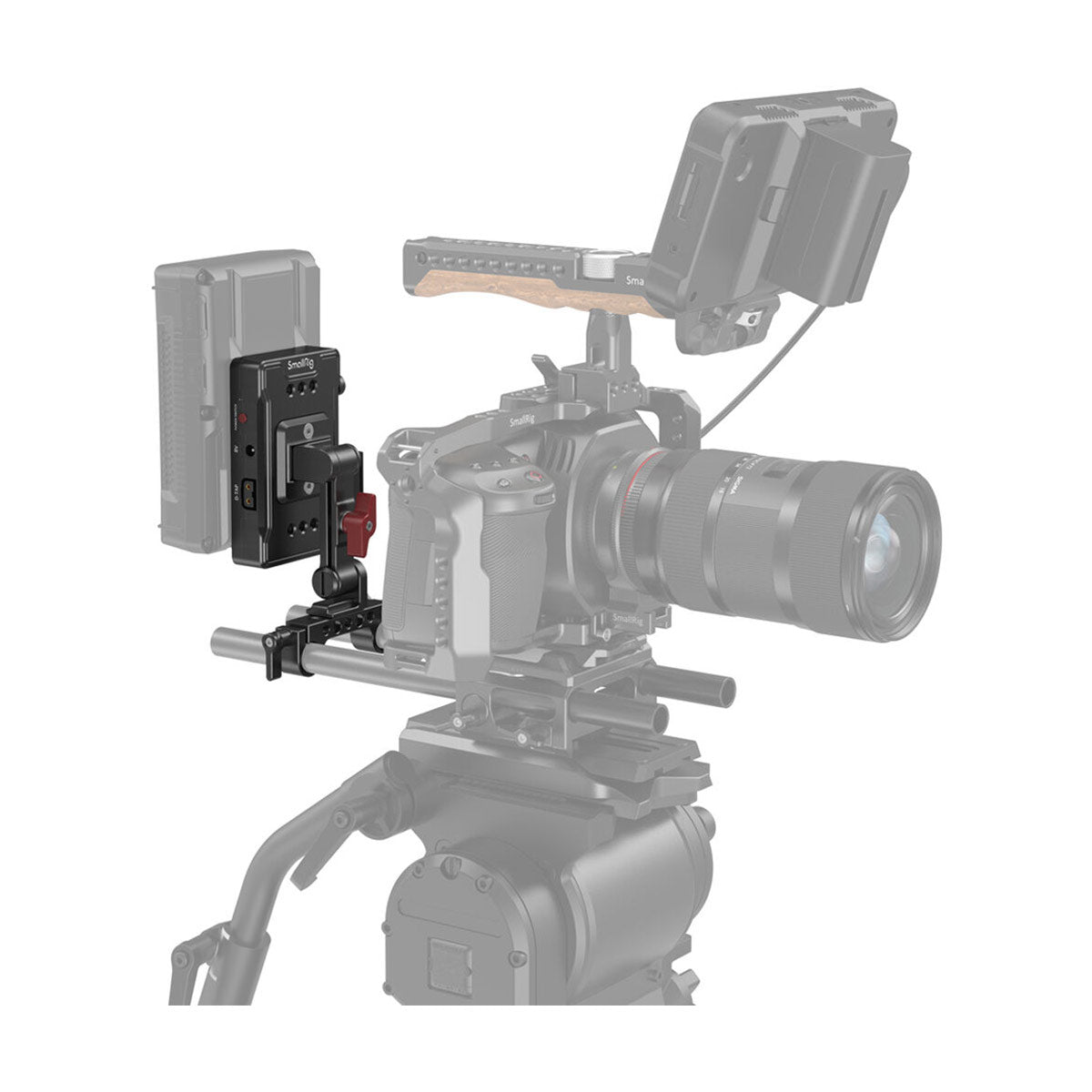

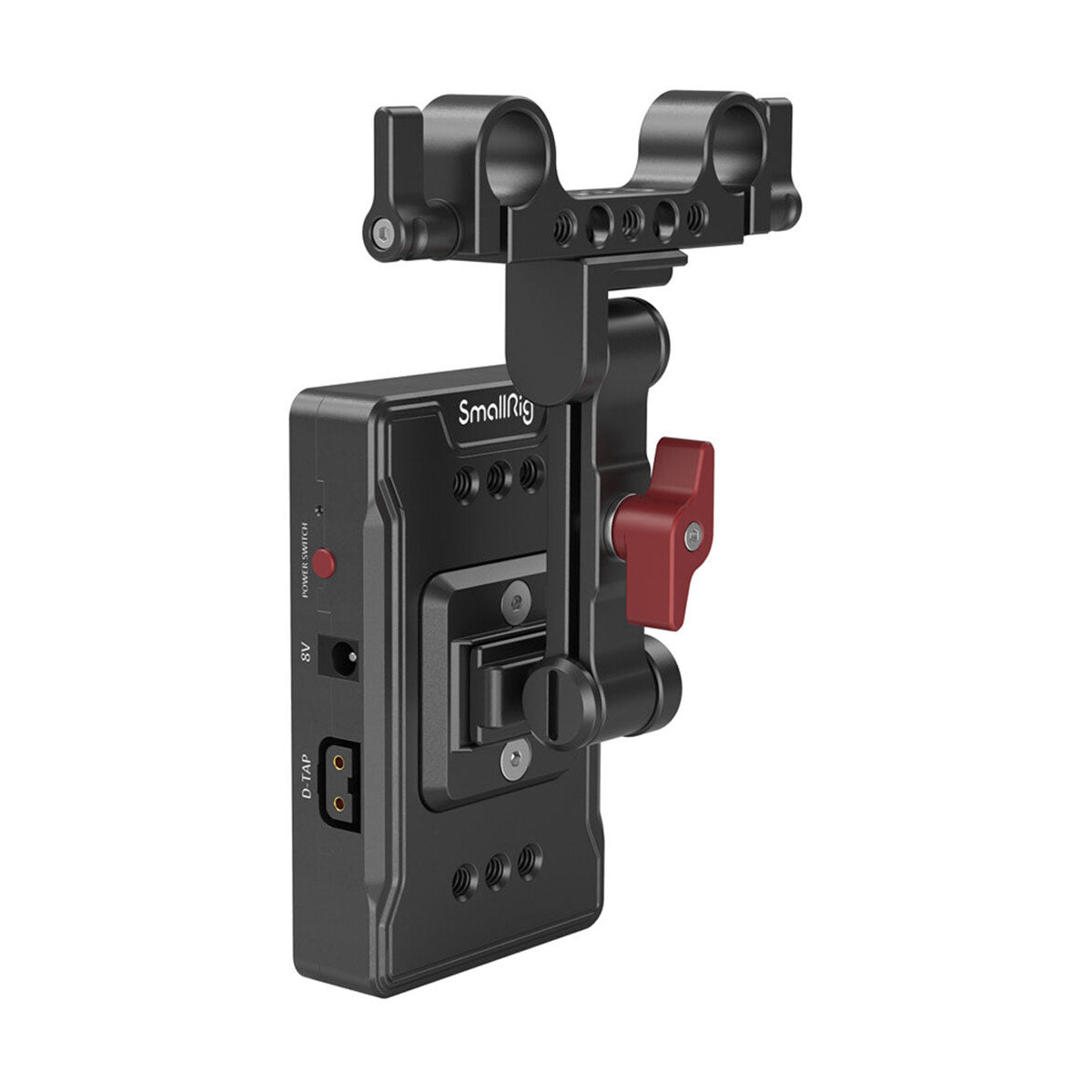

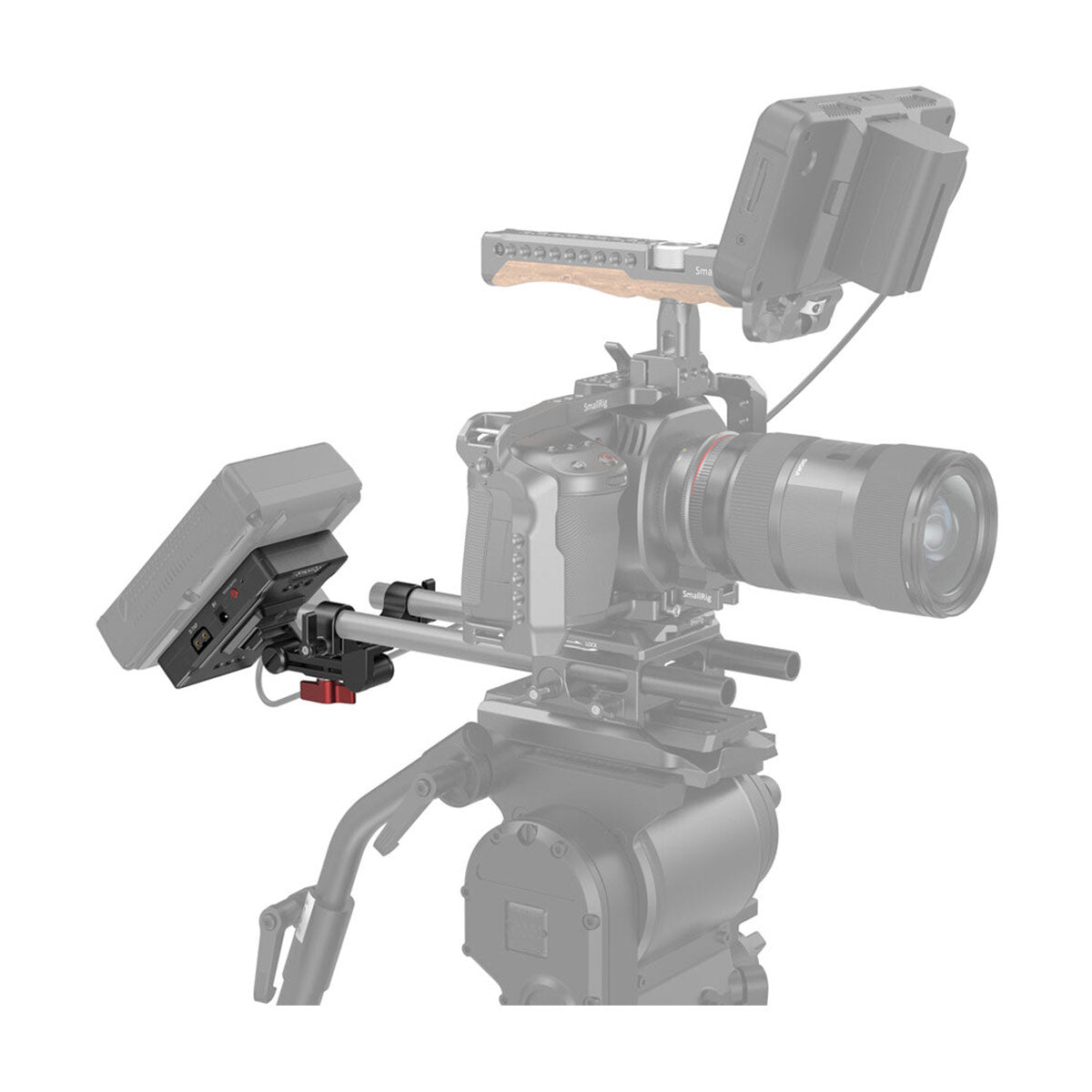

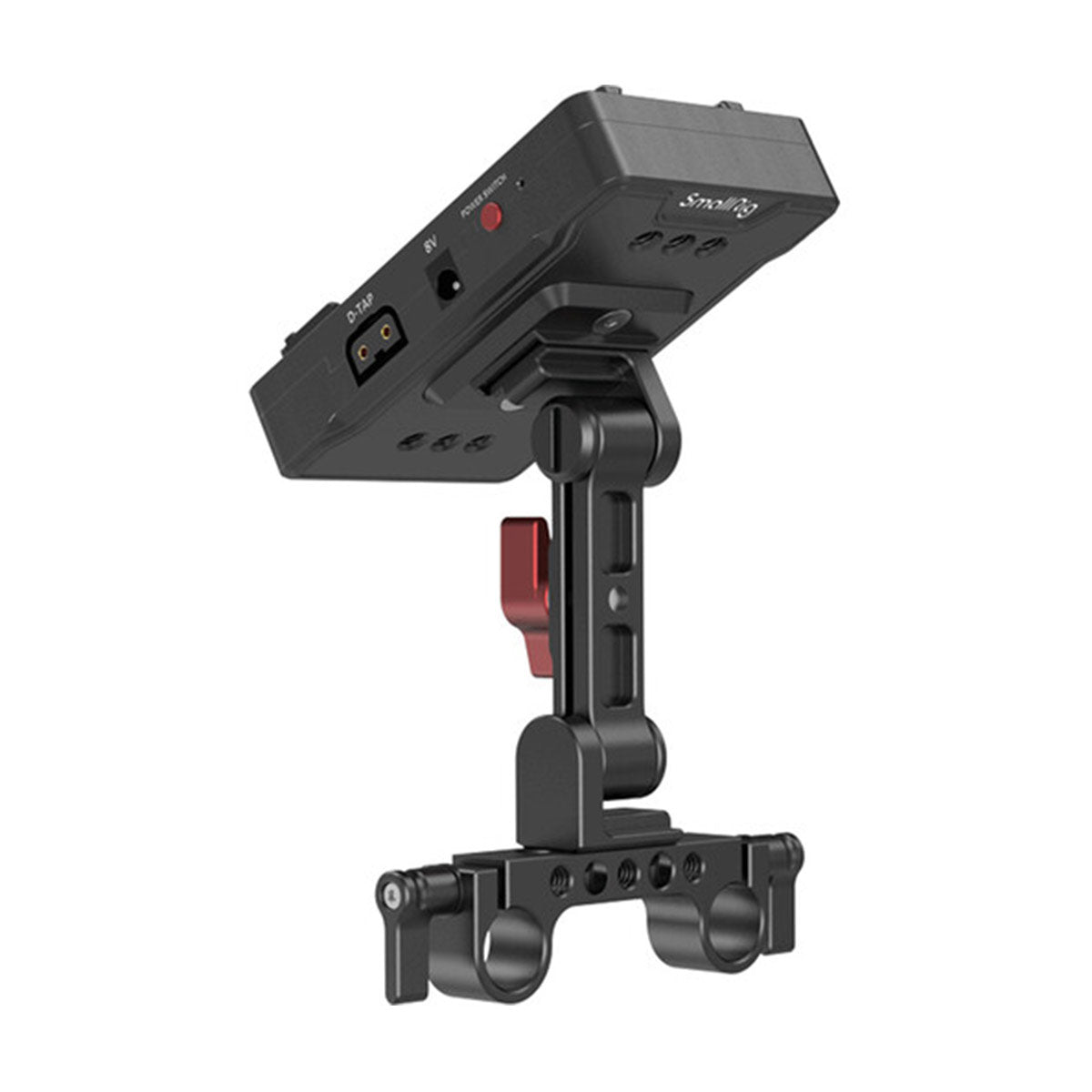

The SmallRig V Mount Battery Adapter with Dual-Rod Clamp and Extension Arm is designed to provide greater battery life to your camera rig via a V mount battery. Its standard quick-lock V mount supports most V mount batteries. Output ports, including an 8V DC port, a 12V DC port, and two 14.8V D-Tap ports, work with a V mount battery to power your camera and other equipment (e.g. monitor, transmitter, follow focus, mobile phone, etc.). It features a power switch that controls all of the output ports more quickly and conveniently and comes with a 15mm dual rod clamp with an adjustable extension arm that suits a 15mm rail support system and can quickly reposition the battery adapter plate. In addition, multiple 1/4”-20 thread holes allow attaching other accessories such as super clamp mount and magic arm.
| General | |
|---|---|

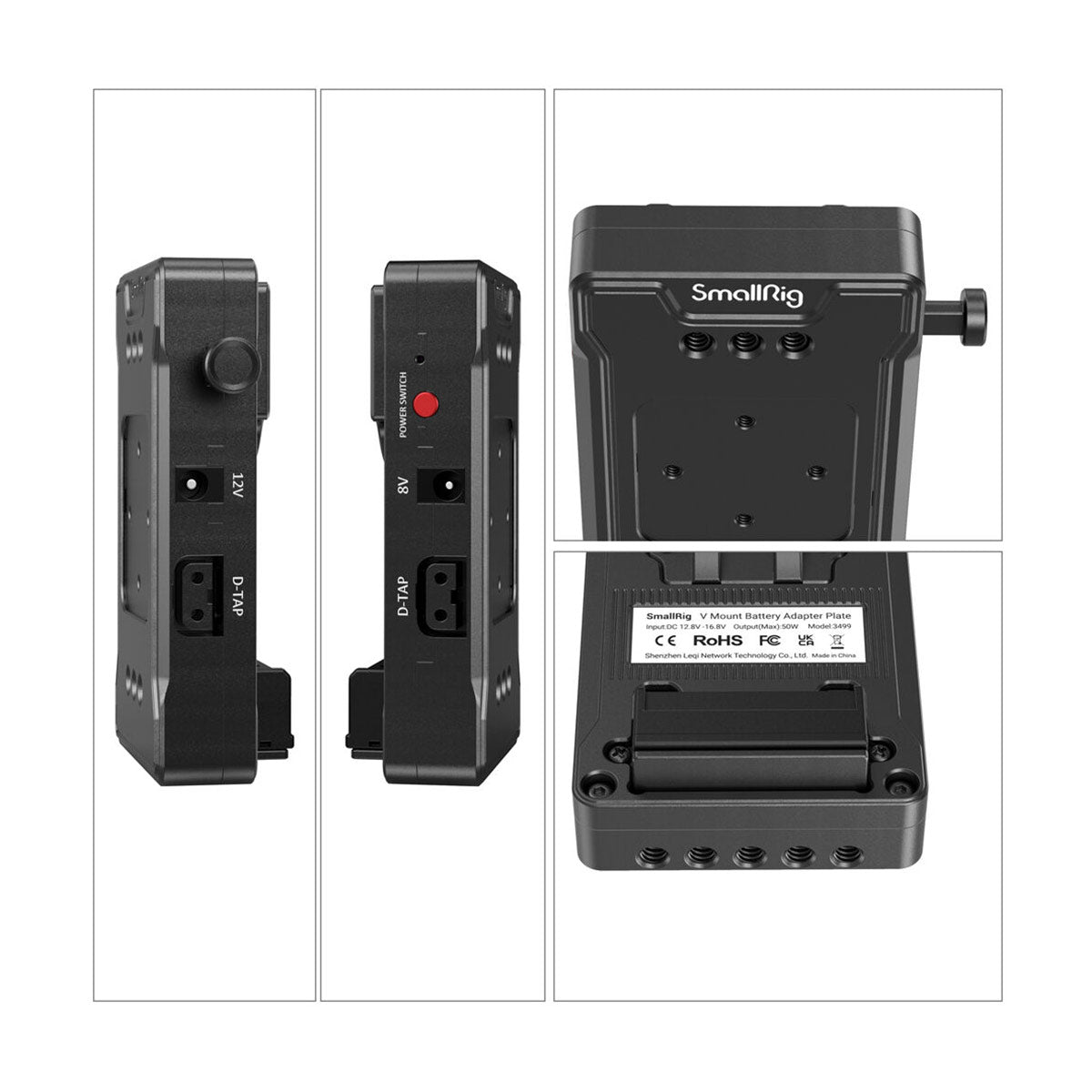

| Power Output | DC Jack: 8 VDC DC Jack: 12 VDC D-Tap: 14.8 VDC D-Tap: 14.8 VDC |
| Camera Power Method | Connector |
| Plate Front / Battery Mount | V-Mount |
| Number of Battery Bays | 1 |
| Accessory Mounting | 1/4"-20 Female |
| Hot-Swap Support | No |
| Material of Construction | Aluminum Alloy |

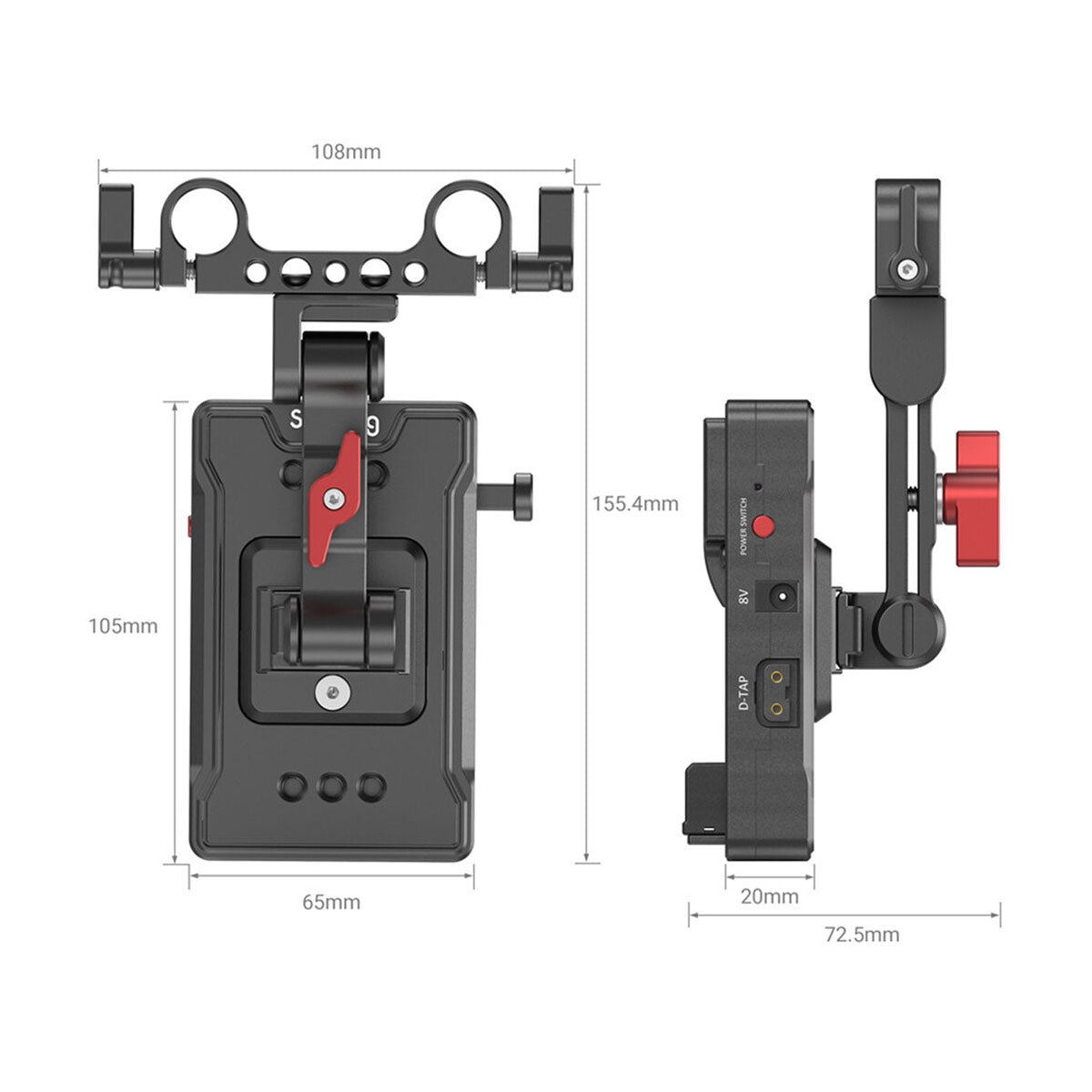

| Dimensions | 4.8 x 4.3 x 2.9" / 121.3 x 108 x 72.8 mm |
| Weight | 12 oz / 340 g |
