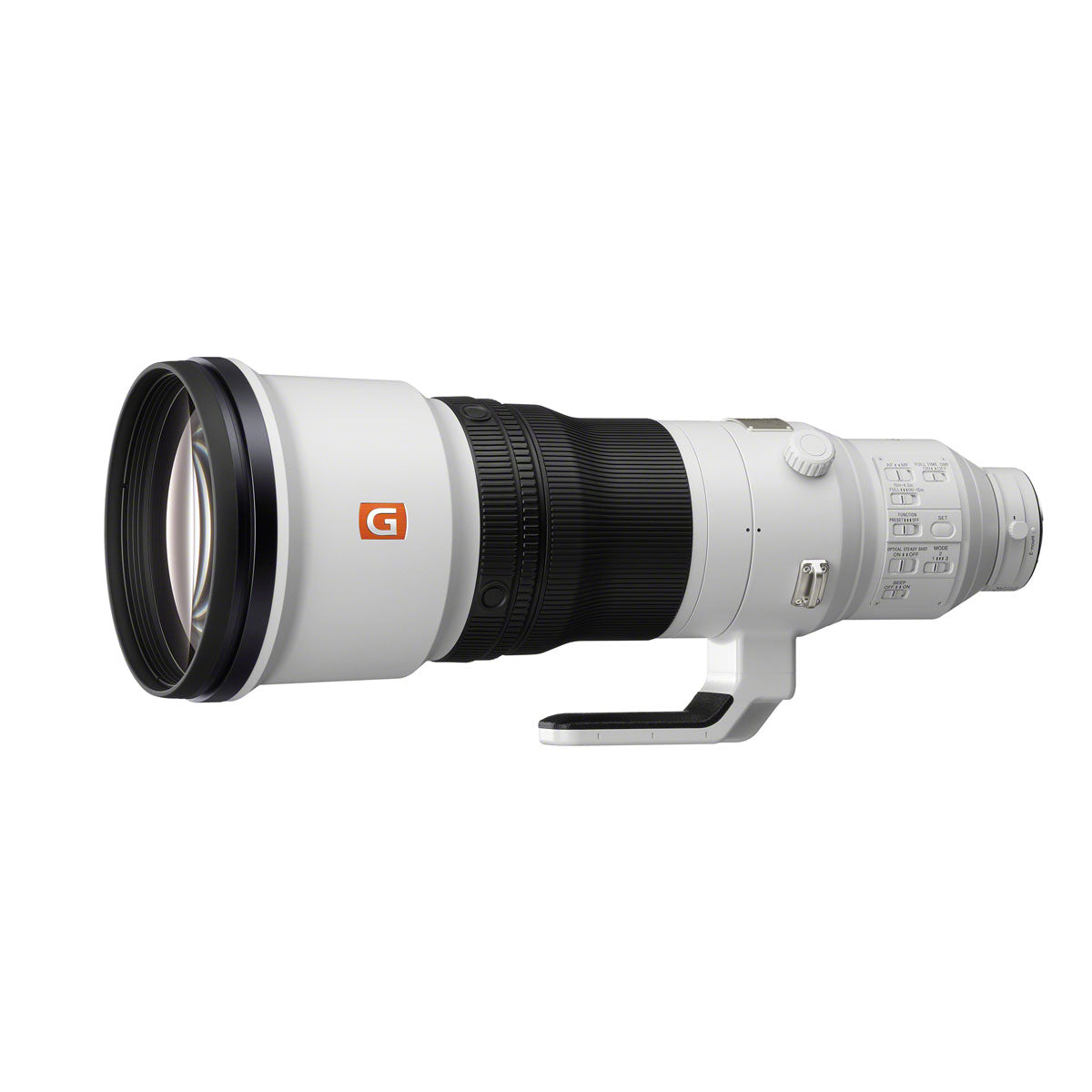

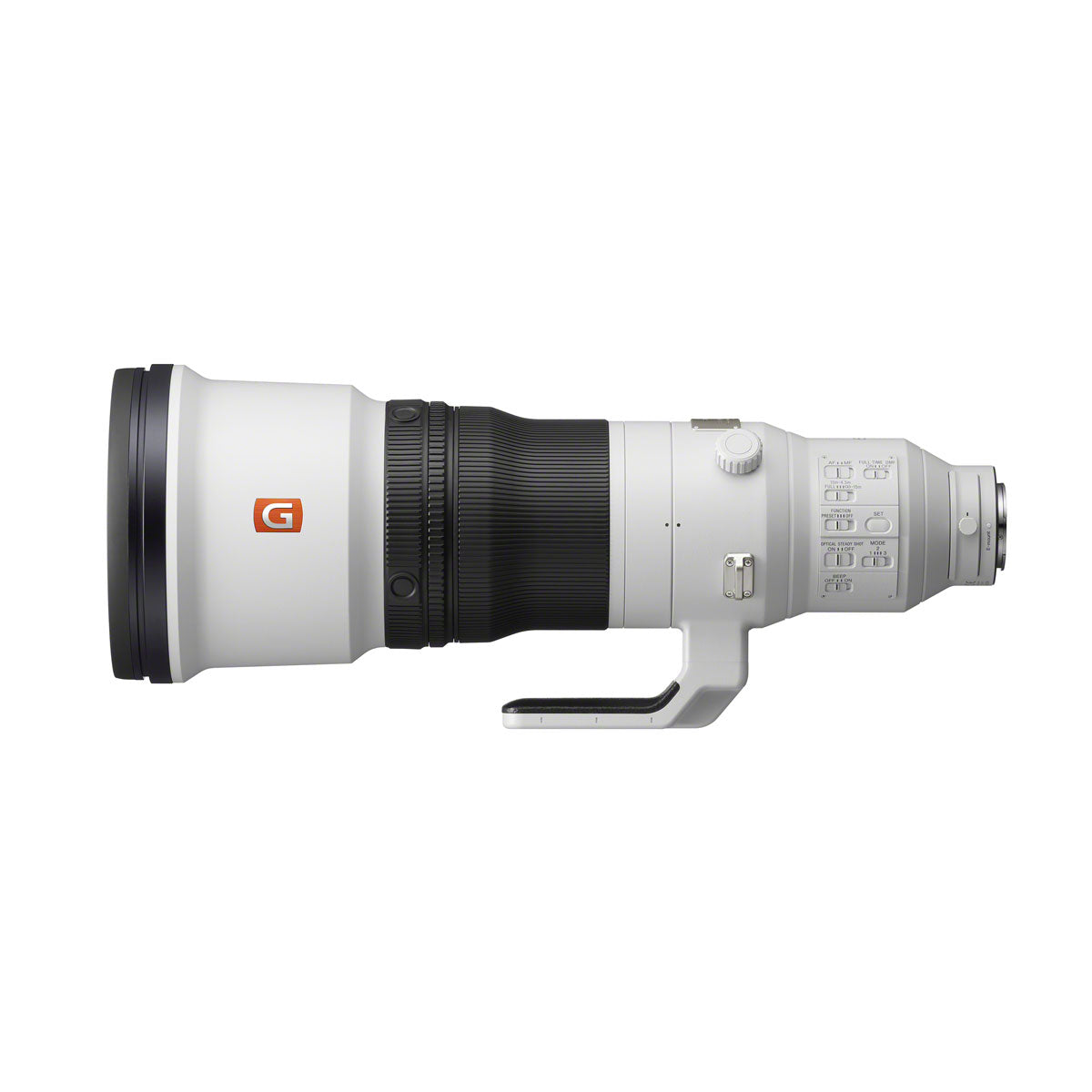

Sony FE 600mm f4 GM OSS Lens
The extraordinary G Master quality of the Sony FE 600mm f4 GM OSS Lens is the world’s lightest 1600mm f4 lens with two XD (extreme dynamic) Linear Motors for fast precise autofocus. Taking full advantage of the world’s fastest cameras-reaching speeds up to 20fps with the 24MP α9 and up to 10fps with the 42.4MP α7R III, as well as 24.2MP α7 III. The Sony FE 600mm f4 GM OSS lens is a revolutionary product.
- World’s lightest 1600mm super-telephoto full-frame F4 lens
- Large XA (extreme aspherical) element suppresses common aberrations
- 2x Extreme Dynamic -XD Linear Motors for fast, precise, quiet AF
- G Master quality with superior focusing speed up to 20fps
- Balanced weight eliminates “front heavy” nature of similar lenses
- 3x fluorite and1x ED glass element reduces chromatic aberration
- F4 with 11-blade circular aperture contributes to gorgeous bokeh
- Nano AR coating effectively suppresses ghosting and flare
- Optical SteadyShot™ image stabilization significantly reduces blur
- 4x customizable multi-function focus hold buttons and function ring
- Light magnesium construction w/ dust/moisture resistant reliability
- High-performance with 1.4x / 2.0x teleconverters
World’s lightest 1600mm F4.0 super-telephoto lens
Remarkable light weight and excellent balance the FE 600mm F4.0GM OSS lens weighs only 6.71 lbs. This is achieved through an innovative optical design that includes a large XA (extreme aspherical) element, three fluorite elements, one ED glass element, and liberal usage of durable magnesium alloy components. The new design of this well-balanced lens, reduces the number of elements deployed at the front of the barrel, resulting in quicker, more precise planning, whether shooting handheld or on a monopod.
XD (extreme dynamic) Linear Motors for fast precise autofocus
To make full use of the rapidly evolving performance speed of modern and future camera bodies, the lens’s focus group is driven by two (extreme dynamic) Linear Motors that achieve higher thrust and efficiency than conventional types of AF drive motors. The XD Linear Motors deliver new levels of fast, precise, quiet autofocus operation and contribute to reliable and tenacious AF tracking that sports and wildlife photographers will appreciate. Additionally, a new algorithm developed specifically for the X motors, notably improve their response, minimizing lag and instability that can occur when driving a large aperture focus lens group, resulting in quiet, low-vibration operation.
Superlative G Master quality
All lenses bearing the G Master brand are designed to extremely high standards, ensuring that outstanding contrast at high spatial frequencies is maintained right out to the image edges. The optical design includes a large aperture XA (extreme aspherical) element and three fluorite elements that help to minimize axial chromatic aberration that can be a problem in large-aperture lenses, as well as a lateral chromatic aberration that can reduce resolution towards the image periphery. Color bleeding is effectively suppressed, allowing clear reproduction of the finest subject details, while Sony’s original Nano AR coating suppresses any unwanted reflections, glare, or ghosting.
3x fluorite elements, 1x ED glass element reduces flare and ghosting
New optical design that conforms to strict G Master standards, the FE 600mm F4.0 GM OSS lens includes three fluorite elements, and one ED (Extra-low Dispersion) glass element. The ED glass element helps to reduce chromatic aberration, which is a common problem in telephoto lenses. An extremely high resolution is maintained right out to the image edges. Spherical aberration is optimized to create a perfect balance between high resolution and soft, beautiful bokeh through careful control at both the design and manufacturing stages. Each lens is individually tested and adjusted to achieve ideal characteristics.
Wide F4.0max aperture
The wide F4.0max aperture maintains exposure and depth of field while also allowing maximum light for shooting in almost any condition. When changing your aperture to defocus the background, the areas out of the focal plane appear blurred. This ‘bokeh’ effect of the blurred background can be enhanced with circular aperture blades used in this lens.
11-blade circular aperture contributes to gorgeous bokeh
Complementing the wide F4.0aperture are the 11-blade circular aperture blades that result in soft-edged bokeh that is a hallmark of the Sony G Master series. While conventional aperture blades have flat sides creating unappealing, polygonal shaped defocussed points of light. α lenses overcome this problem through a unique design that keeps the aperture almost perfectly circular from its wide-open setting to when it is closed by 2 stops. Smoother, more natural defocusing can be obtained as a result. In addition to careful control of spherical aberration at the design stage, each lens is individually tested and adjusted during manufacture to achieve the highest possible bokeh quality.
Nano AR Coating
Sony’s original Nano AR Coating is applied to interior lens surfaces to effectively suppress reflections that can lead to flare and ghosting, significantly enhancing image clarity and contrast. This precisely defined regular nano-structure allows accurate light transmission, contributing to high-quality images, even more so than with lenses that use coatings with an irregular nano-structure.
Optical SteadyShot™ image stabilization significantly reduces blur
High-performance Optical SteadyShot™ image stabilization is built right into the lens for sharp, blur-free images with a wide range of subjects and handheld shooting. An updated ‘Mode 3’algorithm6is optimized for smooth, stable framing of moving subjects. Control features have also been refined to effectively support professional requirements.5-axis image stabilization becomes available when used with α series cameras that feature built-in image stabilization.
4x customizable multi-function focus hold buttons and function ring
The FE 600mm F4.0GM OSS features focus hold buttons in four locations on the lens barrel for easy access in any shooting situation. Once you’ve adjusted focus to where you want it, pressing one of the focus hold buttons on the lens barrel will keep the lens locked to that focusing distance. The focus hold buttons can also be customized via a camera body menu, allowing them to be assigned to a different function selected by the user: Eye AF, for example.
Dust and moisture resistant4for robust reliability
Sony’s lens sealing maximizes resistance to dust and moisture4, providing the reliability needed for outdoor use and in challenging environmental conditions as demanded by professional photographers.
Lightest in Class
A durable magnesium alloy is used not only for the lens barrel exterior and tripod mount but also for interior barrel components as well. This provides the tough durability that demanding professional application requirements while minimizing overall weight –making the FE 600mm F4.0 GM OSS the lightest in its class at only 6.71lb.
1.4x and 2.0x teleconverter support5, with high imaging and AF performance
Optional high-performance 1.4x and 2.0x teleconverters are supported5, providing up to 1200mm focal length (1800mm equivalent on APS-C bodies). Outstanding imaging performance and fast, precise AF operation are maintained when either of these excellent teleconverters is used, ensuring that the lens’s superior G Master image quality is not compromised. The maximum aperture with the 1.4x and 2.0x teleconverters is F5.6and F8, respectively.
Instant auto/manual focus selection
Instantly and quickly switch between auto and manual focus via an AM/MF switch on the side of the lens. This makes operation faster and easier as you let the camera and lens focus for you, or decide to take control and manually focus on the precise point you chose.
Fluorine front-element coating
The front lens element features a fluorine coating that helps to prevent dirt and fingerprints from sticking while making it easier to wipe clean if they do become attached to the lens surface.
DMF (Direct Manual Focus) gives you the ability to instantly switch to manual focus while in autofocus mode. This is particularly useful when acquiring a subject using AF and then allowing you to fine-tune your focus point using the manual focus ring. When the FULL-TIME DMF switch is ON, the manual focus is immediately engaged by simply rotating the focus ring, even while shooting in the AF-C mode. If AF causes focus to shift to a different subject while shooting, the focus ring can be used to quickly bring the focus back to the desired subject. It can also be useful when it is necessary to focus beyond a set focus range limit.
Linear Response MF
The focus ring features Linear Response MF for fine, responsive manual focus control. Manual focus changes linearly in response to focus ring rotation, giving you the control immediacy needed for fast, accurate manual focusing.
Focus range limiter
The focus range limit switch allows a limited focus range to be selected when the fastest possible focusing is required. Three settings are provided: FULL, 7m-2.7m, and ∞-7m.
Drop-in filter slot
The FE 600mm F4.0GM OSS includes a filter slot7that accepts ø 40.5mm ND and other filter types, as well as the optional VF-DCPL1 Drop-in circular polarizing filter. The VF-DCPL1 can be rotated to achieve the desired polarization while installed in the lens.
High-speed, accurate AF tracking F22 aperture
High-speed, accurate AF tracking for continuous shooting at minimum F22 aperture8(α9 software must be updated to the latest version). This is an important advantage allowing the maximum depth of field to be used without limitations when shooting continuously to follow the action and ensuring that AF tracking can keep the subject in focus.
Strong, lightweight carbon fiber lens hood
The supplied lens hood is made of strong, lightweight carbon fiber to minimize added weight. The interior of the hood is lined with flocking to minimize reflections for optimum light control.
Increased mount strength and reliability
While conventional lenses use four mount attachment screws, the FE 600mm F4.0GM OSS uses seven. The number of mount attachment screws has been increased to ensure maximum rigidity and durability that will easily withstand professional use.
Versatile high-durability tripod mount
The tripod collar ring employs bearings to ensure smooth rotation as well as high reliability. It also features a switch that engages or disengages click stops which when engaged, easily and quickly allows the user to switch between horizontal and vertical camera orientations in 90-degree click stops as required. The click stops can be disengaged when the smooth, low-resistance operation is desired.
Supplied hard carrying case
A dedicated trunk style hard case is supplied to protect the lens from shock and vibration during transport. The case has carrying handles on two sides and a convenient carrying strap.
The FE 600mm F4.0GM OSS includes a new function ring with switch selectable for PRESET (preset focus), FUNCTION and OFF positions. When in the PRESET position, the SET button is initially used to memorize the desired focus point, moving the function ring in either direction will immediately set focus to the memorized point. This can be a huge advantage for sports and other rapidly changing situations, allowing the focus to be preset in advance and instantly recalled to ensure that the decisive moment is properly captured. This function is available whether shooting with AF or MF and can focus outside a set focus limit range. When in the function position, functions can be assigned to the FUNCTION mode via a camera body menu. If Power Focus is assigned and the function ring is rotated, focus shifts smoothly at a speed determined by the amount of function ring rotation. This allows a smooth focus shift for movies. If APS-C/Full Frame Select6is assigned, the function ring can be rotated to switch between APS-C and full-frame angles of view.
Type: Interchangeable lens
Product name: FE 600mm F4 GM OSS
Model name: SEL600F40GM
Lens mount: Sony E-mount
Format: 35mm full frame
Focal-length (mm): 600mm
35mm equivalent focal-length (APS-C) (mm): 900mm
Lens construction (groups-elements): 18 groups-24 elements*Including one filter
Angle of view: 2°40'
Angle of view (35mm): 4°10'
Maximum aperture: F4
Minimum aperture: F22
Number of aperture blade: 11 -circular
Circular aperture: Yes
Minimum focus distance (m): 4.5m
Minimum focus distance (ft): 14.8'
Maximum magnification ratio (x): 0.14x
Filter diameter (mm): 40.5mm
ADI metering / Distance encoder
Image stabilization (SteadyShot): Optical SteadyShot
Zoom speed switch (Step)
Teleconverter compatibility (x1.4): SEL14TC
Teleconverter compatibility (x2.0): SEL20TC
Hood type: Round shape
Dimensions dia. x length (mm): 163.6mm x 449mm
Dimensions dia. x length (in.): 6-1/2" x 17-3/4"
Weight (approx.) (g): 3040g
Weight (approx.) (oz.): 107.3oz.
Hood (model): ALC-SH158
Lens front cap: Supplied
Lens rear cap: ALC-R1EM
Case: Yes (hard case)
Other: Lens strap
Other: Case strap
Fluorine coating: Yes
Mount rubber ring: Yes
Function ring: Yes
Full-time DMF ON/OFF: Yes
Tripod collar ring-clicking select switch: Yes
Preset focus: Yes
Tripod base screw: 1/4 (2), 3/8 (1)
Series: G Master
Type: Fixed-focal length lens
Easy Choice lens
ED/Super ED glass (elements): ED (2), Super ED (0), Fluorite(3)
Aspherical lens (elements): Yes (1) (including one XA lens)
Lens coating: Yes
Nano AR Coating: Yes
Focusing type: Internal
AF actuator: XD Linear
Focus hold button: 4
Focus range limiter: Yes
Click for the aperture ring
Zoom rotation reversing
Optical SteadyShot Switch: Yes
Optical SteadyShot mode: Yes
AF/MF switch: Yes (switch)
Moisture-proof, dust-proof: Yes
Hood lock: Yes
SMO (Smooth Motion Optics)
Slip-on hood for PL filter
Non-rotating filter thread: Yes
