Product Information

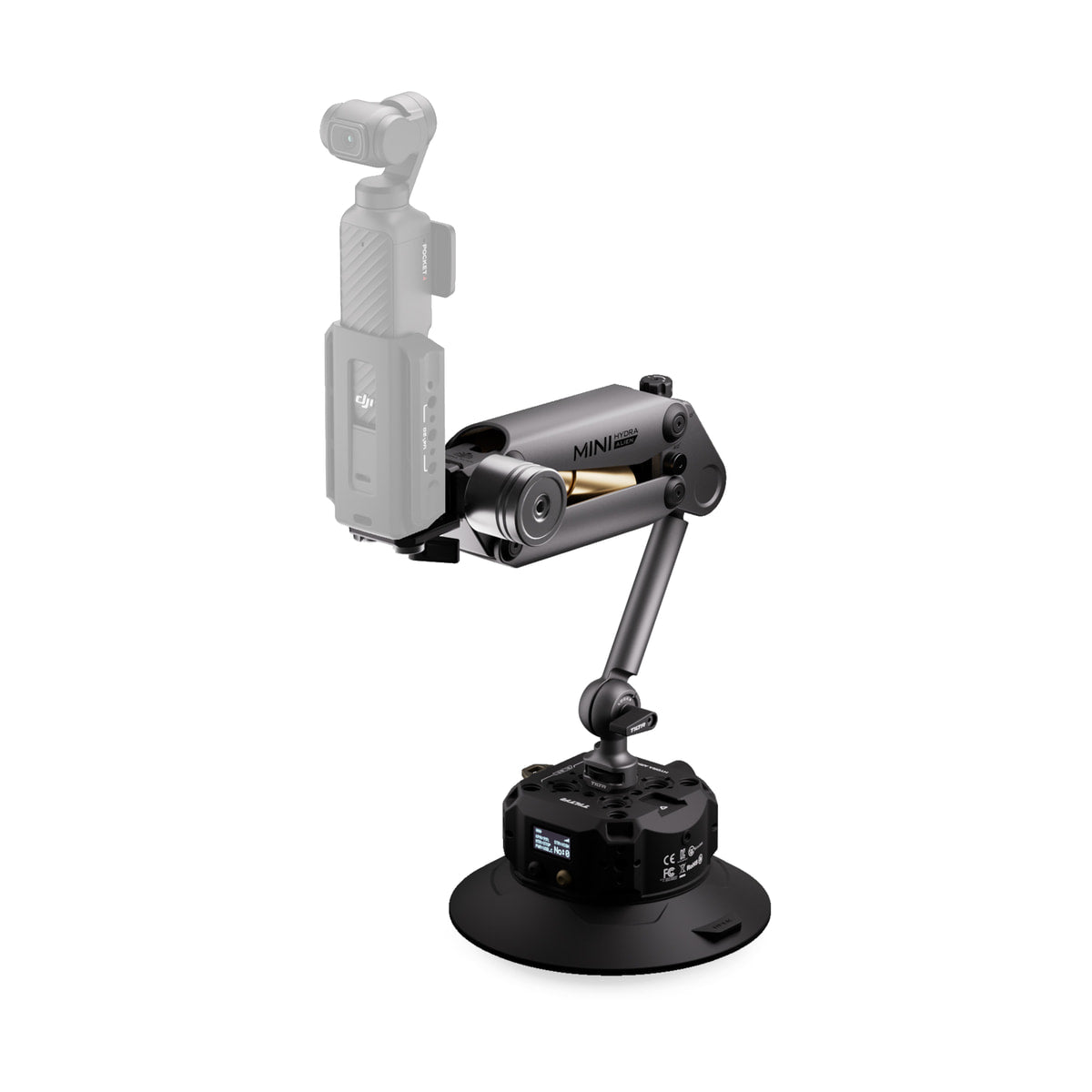

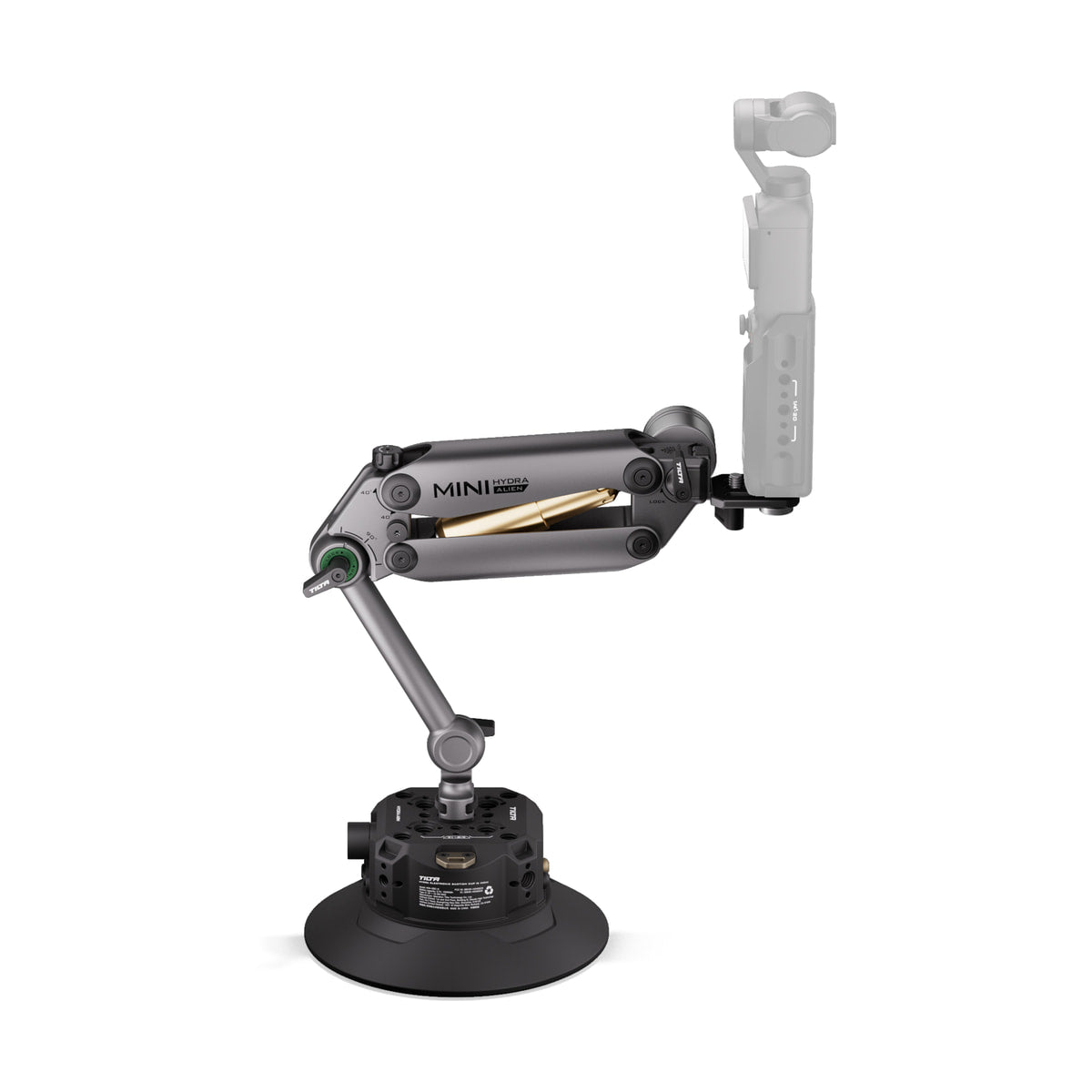

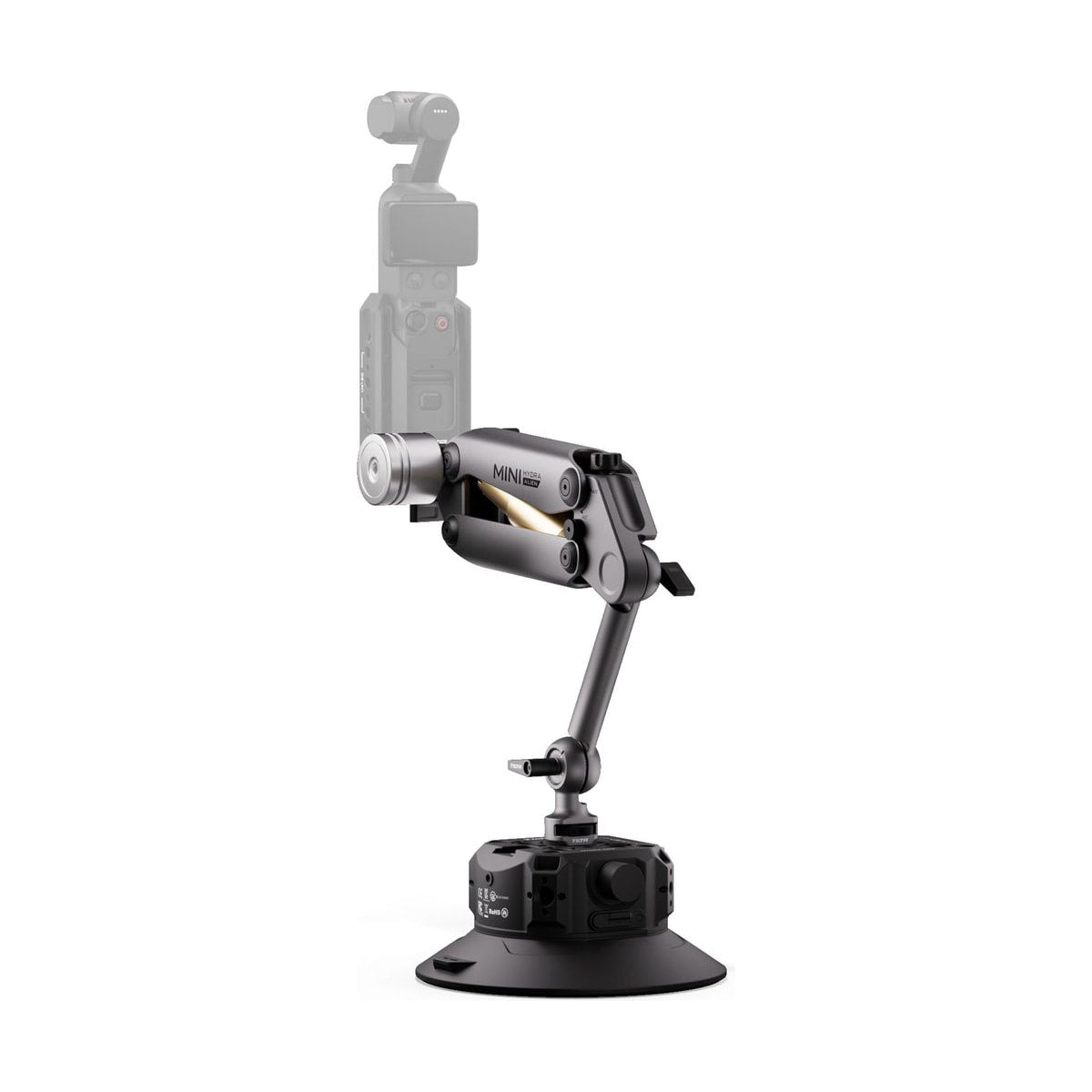

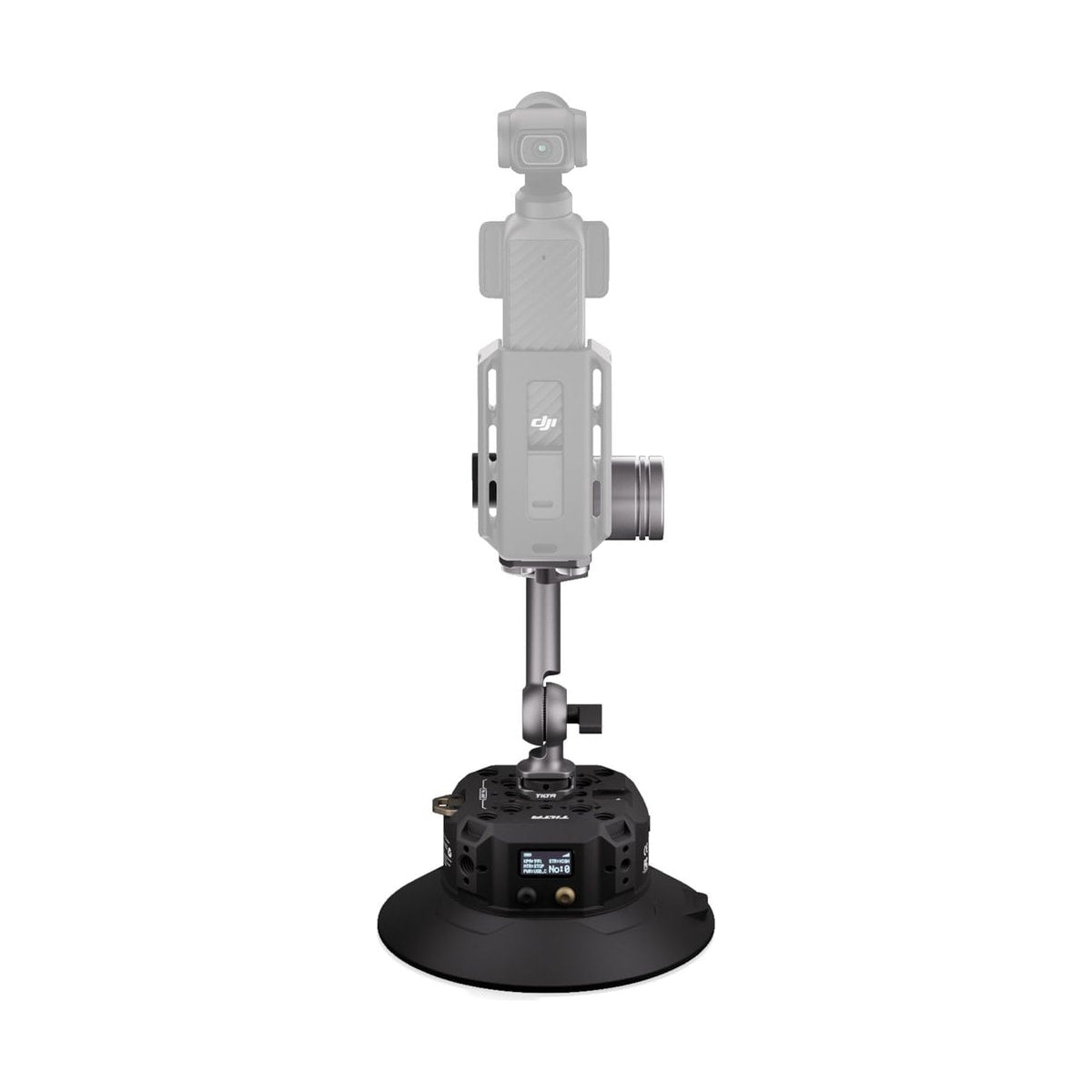

The Tilta Hydra Alien Mini Electronic 6" Suction Cup Kit pairs a compact, shock-absorbing arm with a 6-inch electronic suction cup for vehicle-mounted work with smaller cameras, action cameras, compact devices, and compatible smartphones.
Active suction monitoring for a secure setup
The electronic cup samples air pressure 1,000 times per second and uses an internal motor to restore suction when it detects a pressure drop. Tilta specifies full suction in as little as 2 seconds, operation below 60 dB, automatic high-altitude adaptation, up to 19 hours of normal-use battery life, and 5 V/1 A USB-C external power input.
Built around compact capture systems
The hydraulic damping arm supports a 150–600 g load range and is intended for DJI Action and OSMO Pocket series cameras, Insta360 X, Ace Pro, and Luna series cameras, plus smartphones in the Khronos ecosystem. Its adjustable arm helps position the setup for different vehicle placements.
Use within Tilta’s safety guidance
Use the suction cup on a flat surface with the arm’s weight balanced over its center. Tilta notes that extending the arm past the cup or side-mounting it increases failure risk, and recommends additional precautions such as ratchet straps or safety chains in those situations. The cup can leave marks on some surfaces and is not recommended for wrapped vehicles.
-

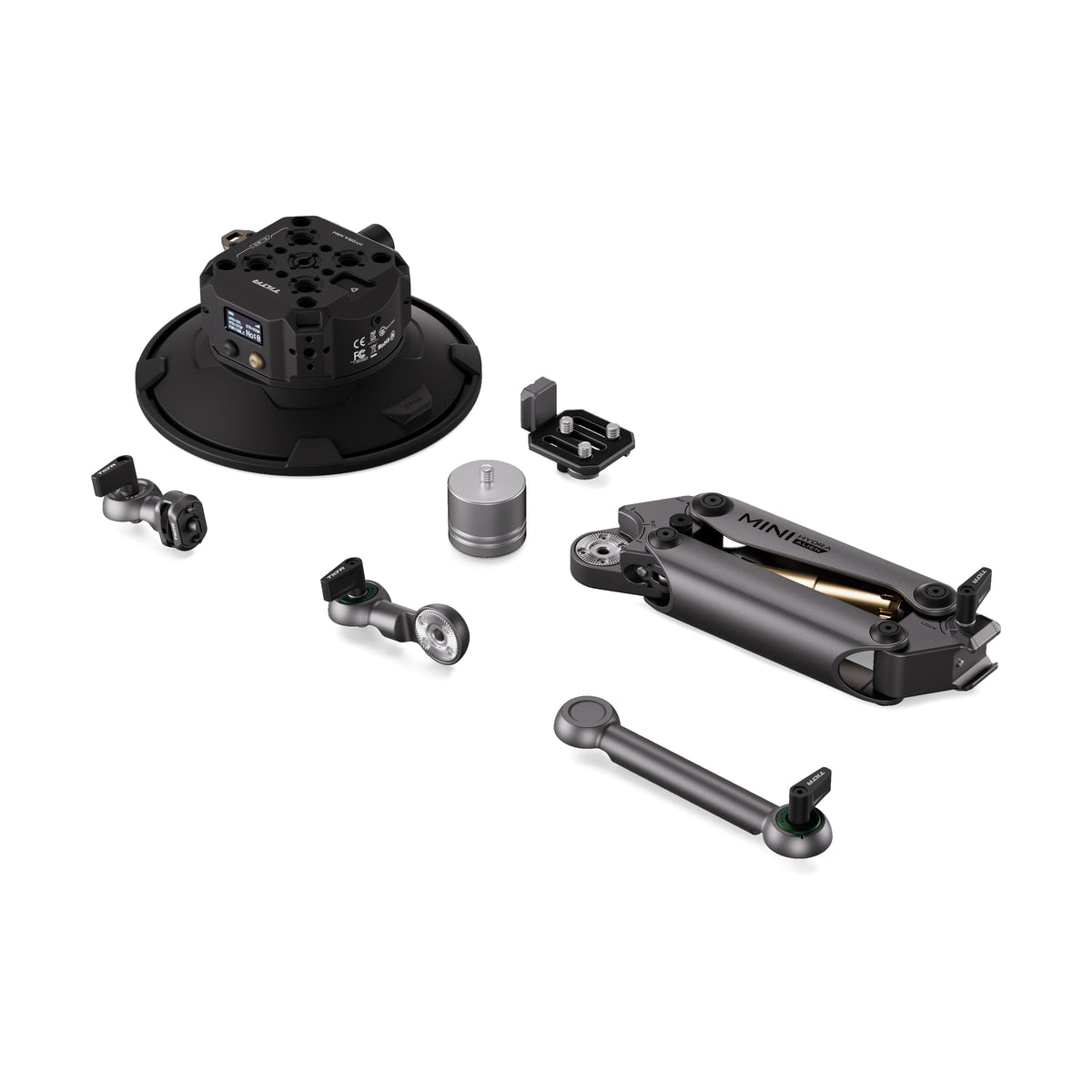

Hydra Electronic Suction Cup (6 Inch) (HDA-ESC-6)
-
Shock Absorbing Arm for Hydra Alien Mini – Titanium Gray (HDA-T15-SAA-TG)
-
220 g Counterweight (TGA-CW-220)
-
Mounting Bracket for Hydra Alien Mini – Titanium Gray (HDA-T15-MB-TG)
-
Support Arm for Hydra Alien Mini – Titanium Gray (HDA-T15-SA-TG)
-
Soft Carrying Case for Hydra Alien Mini (27 × 23 × 11 cm)
-
1/4"-20 Mounting Bracket for Hydra Alien Mini – Titanium Gray (HDA-T15-1420-TG)
| Suction & Power | |
|---|---|
| Suction Cup | 6 in electronic suction cup |
| Pressure Monitoring | Samples pressure 1,000 times per second |
| Full Suction Time | As little as 2 seconds |
| Motor Noise | Under 60 dB |
| Battery Runtime | Up to 19 hours under normal conditions |
| External Power Input | USB-C, 5 V / 1 A |
| Water Resistance | IPX5 |
| Mounting & Compatibility | |
|---|---|
| Arm Load Range | 150–600 g |
| Supported Compact Devices | DJI Action and OSMO Pocket series; Insta360 X, Ace Pro, and Luna series |
| Smartphone Support | Smartphones in the Khronos ecosystem |
| Damping | Hydraulic damping system with automotive-grade oil |
| Physical | |
|---|---|
| Dimensions | 13.2 × 10.2 × 5.5 in |
| Materials | Aluminum alloy, composite silicone |
| Color | Titanium Gray |
| Identification | |
|---|---|
| Manufacturer SKU | HDA-T15-G-TG |
| UPC | 810193522599 (existing Shopify variant) |
