Product Information
The Tilta Nucleus Auto Focus Adapter (E to PL) Base Kit connects Sony E-mount camera autofocus data with PL-mount manual cinema lenses for a motor-driven autofocus workflow. Designed for the Nucleus-M II and Nucleus Nano II Wireless Lens Control Systems, it translates supported Sony Alpha and FX camera phase-detection information into focus movement through the Nucleus ecosystem.
Put manual cinema glass into an autofocus workflow
Use the adapter with supported Sony cameras, including the FX3, FX30, FX5, and FX6, and compatible PL-mount rehoused vintage or high-end cinema lenses. The built-in lens-profile library lets supported lenses be selected from the menu without calibration. For unsupported or specialty lenses, the adapter lets you manually map and save a profile through its on-device interface.
Keep control close at hand
With a Nucleus-M II FIZ Hand Unit, the MF button provides an AF/MF override for manual focus pulls and racks before returning control to autofocus. With two wireless motors, iris can be adjusted through the camera’s electronic control.
Compatibility notes
This adapter is not compatible with Sony Burano or FX9 bodies because of physical clearance at the locking E-mount. It is not compatible with the Viltrox E Mount to Z Mount Adapter. Current firmware does not support zoom functionality or 2× anamorphic lenses.
-

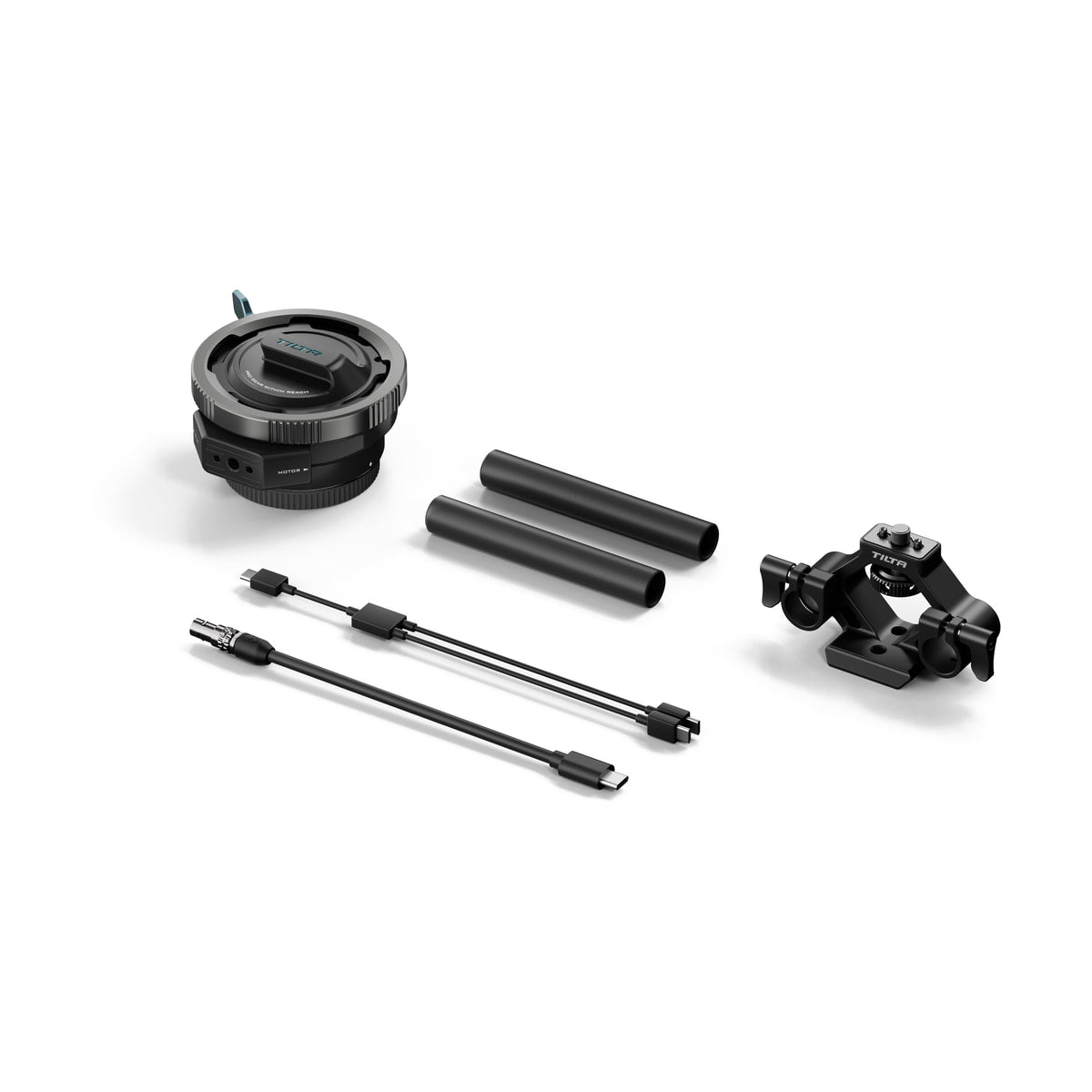

Nucleus Auto Focus Adapter
-
15mm Rod Adapter
-
Aluminum Rod 15 × 100mm, Black (2)
-
3mm Allen Key
-
Nucleus 7-Pin to USB-C Power Cable (36cm)
-
Dual USB-C Control Cable for Nucleus Auto Focus Adapter
| Mount & Compatibility | |
|---|---|
| Camera Mount | Sony E-Mount |
| Lens Mount | PL Mount |
| Supported Camera Families | Sony Alpha and FX line up to Sony FX6; examples include FX3, FX30, FX5, and FX6 |
| Lens Compatibility | Rehoused vintage and high-end PL-mount cinema lenses |
| Lens Control Systems | Tilta Nucleus-M II and Nucleus Nano II Wireless Lens Control Systems |
| Focus Workflow | |
|---|---|
| Autofocus Data | Uses native camera phase-detection autofocus data to drive Nucleus motor focus movement |
| Lens Profiles | Built-in library for supported lenses; unsupported or specialty lenses can be manually mapped and saved |
| Manual Override | Nucleus-M II FIZ Hand Unit MF button only |
| Two-Motor Control | Camera electronic control can adjust iris when using two wireless motors |
| Physical | |
|---|---|
| Dimensions | 7.5 × 5.5 × 3.5 in |
| Weight | 1.21 lb |
| Material | Aluminum-alloy |
| Color | Black |
| Compatibility Notes | |
|---|---|
| Sony Burano / FX9 | Not compatible because of physical clearance issues with the locking E-Mount |
| Viltrox E-to-Z Adapter | Not compatible |
| Firmware Limits | Zoom functionality and 2× anamorphic lenses are not currently supported |
