Product Information
Real-Time Safety, Zero Guesswork
The Tilta Wireless Monitoring Module for Hydra Electronic Suction Cups takes the uncertainty out of high-stakes shoots. Designed to provide real-time data with lightning-fast responsiveness, this module empowers filmmakers and camera crews to track suction strength and battery levels at a glance. Whether you’re racing down the highway or capturing precision movements in studio, you’ll know the second your setup needs attention—before anything moves an inch.

Intelligence You Can Trust
With a cutting-edge automotive-grade processor under the hood, this monitoring module is engineered to react in milliseconds—50ms when tracking up to six suction cups and 100ms with as many as twelve. That’s real-time performance you can count on when your gear is in motion. The display feeds back key metrics like KPA suction levels and battery status, while visual and audio alarms provide immediate alerts if suction begins to drop.

Ready for Any Condition
From the heat of the desert to freezing dawn shoots, the module’s rugged design thrives in environments ranging from -20°C to 90°C. Its streamlined, no-fuss setup—powered by USB-C and mounted via a standard 1/4"-20 thread—lets you spend less time wiring and more time shooting. No manual pairing required, just plug in and start monitoring with confidence.

-

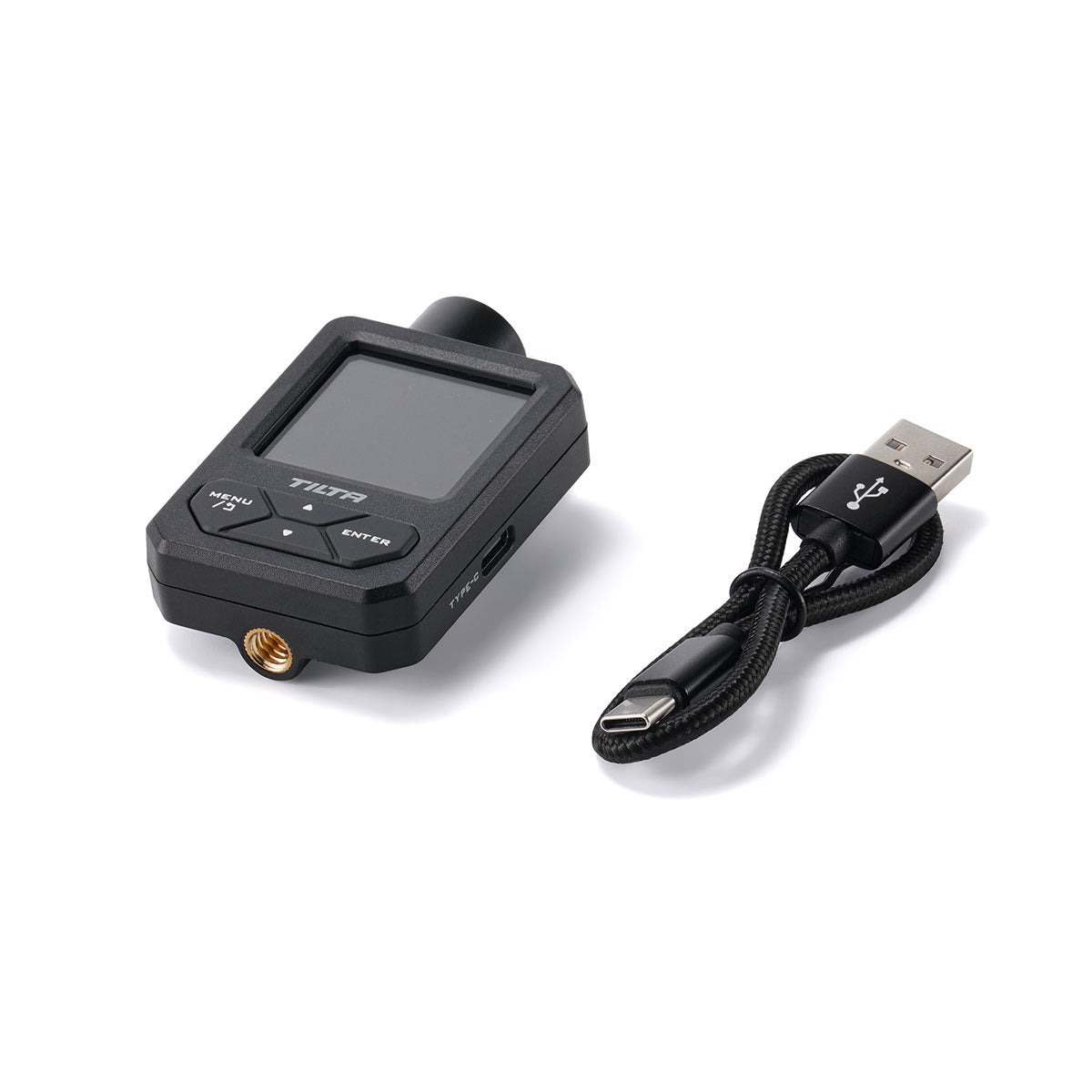

Wireless Monitoring Module for Hydra Electronic Suction Cup
-
USB-C Charge Cable
-
Limited 1-Year Warranty
| General | |
|---|---|
| Compatibility | Hydra Electronic Suction Cup |
| Connection Limit | Up to 12 Hydra Electronic Suction Cup |
| Response Time | 1-6 Suction Cups: 50ms 6-12 Suction Cups: 100ms |
| Interface | USB-C Port for Power (No internal battery) 1/4″-20 thread for mounting |
| Dimensions | 2 x 1 x 3" / 5.08 x 2.54 x 7.62cm |
| Weight | 0.5 lbs / 0.23kg |
| Operating Temperature | -4 to 194ºF / -20 to 90°C |
