Configurations

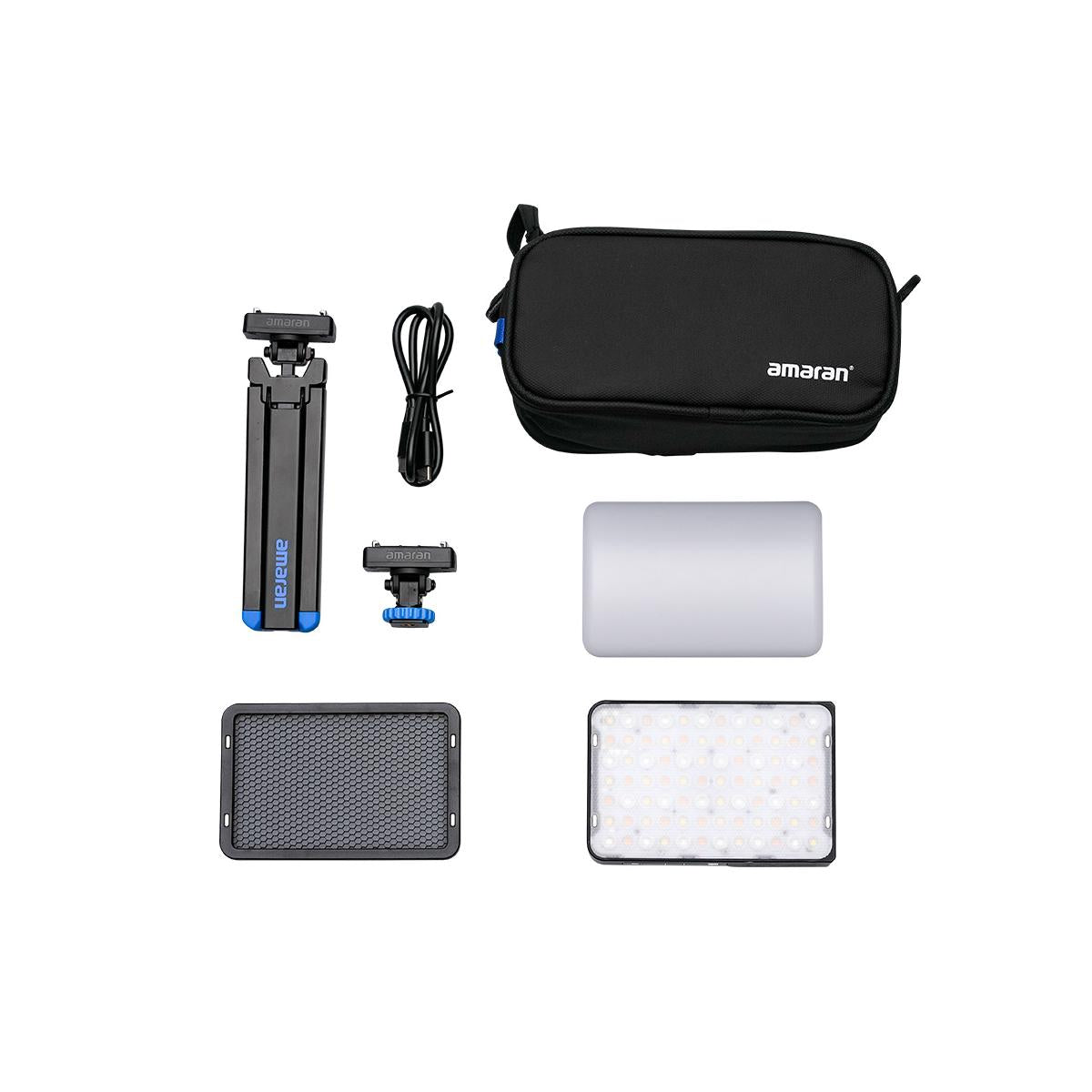

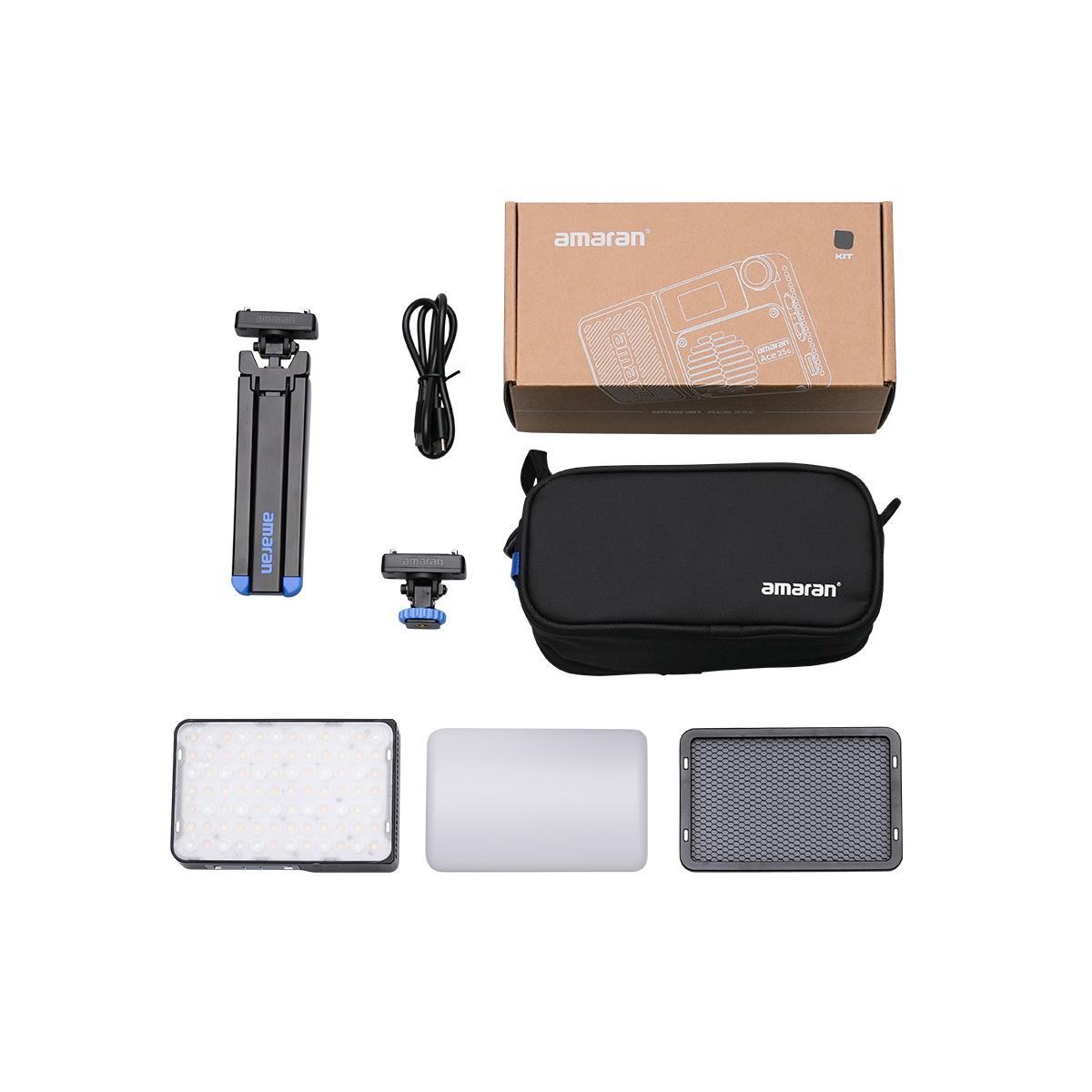

Product Information
-

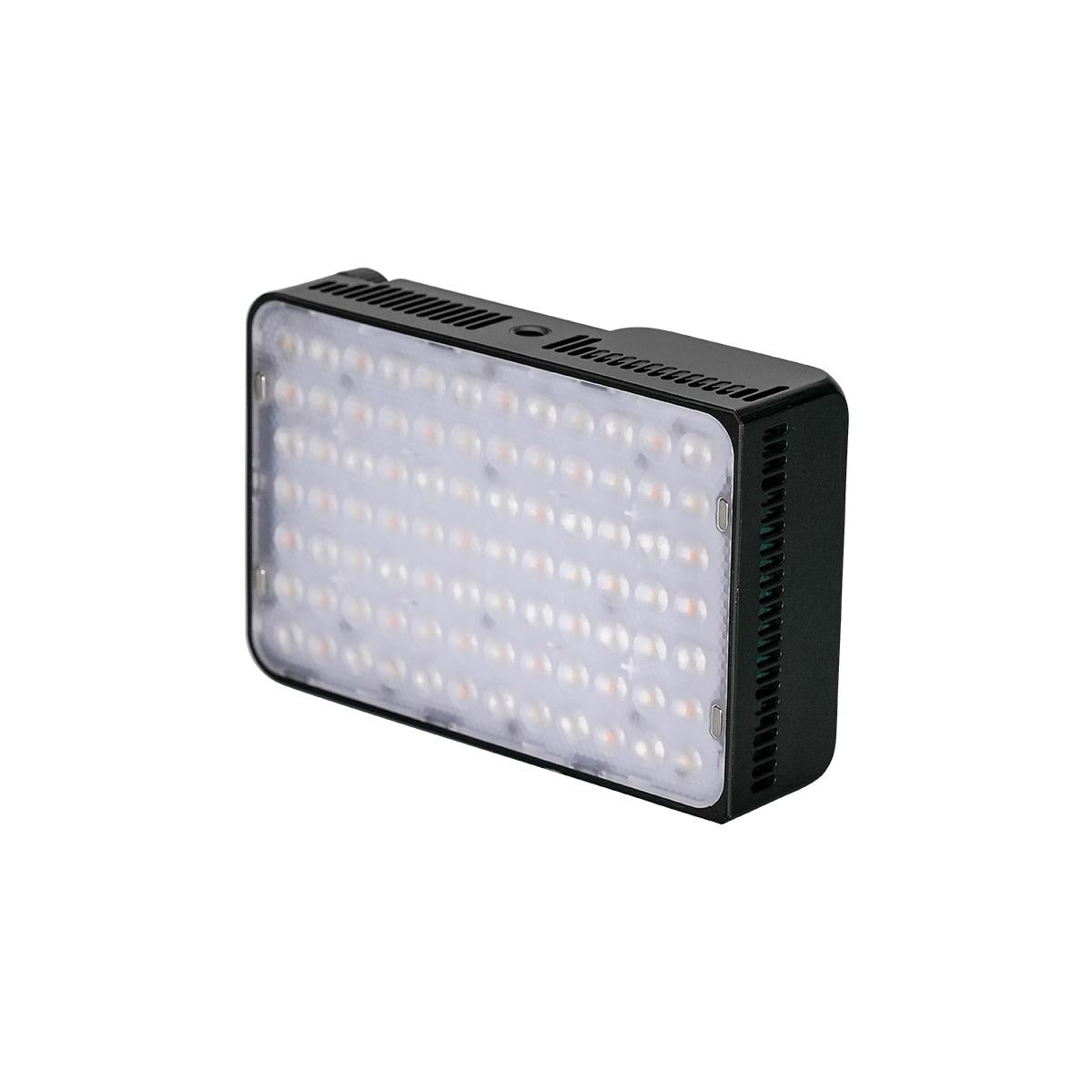

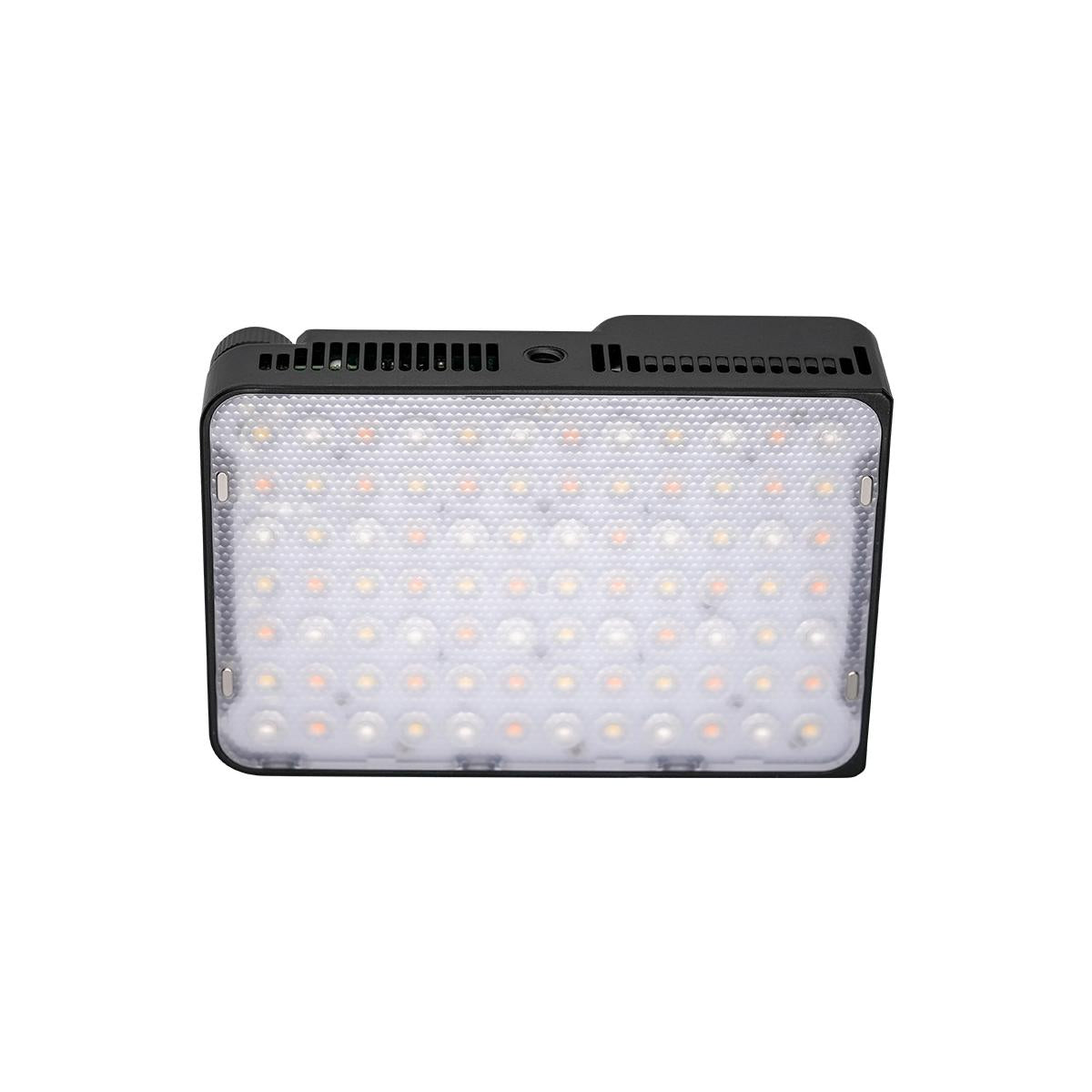

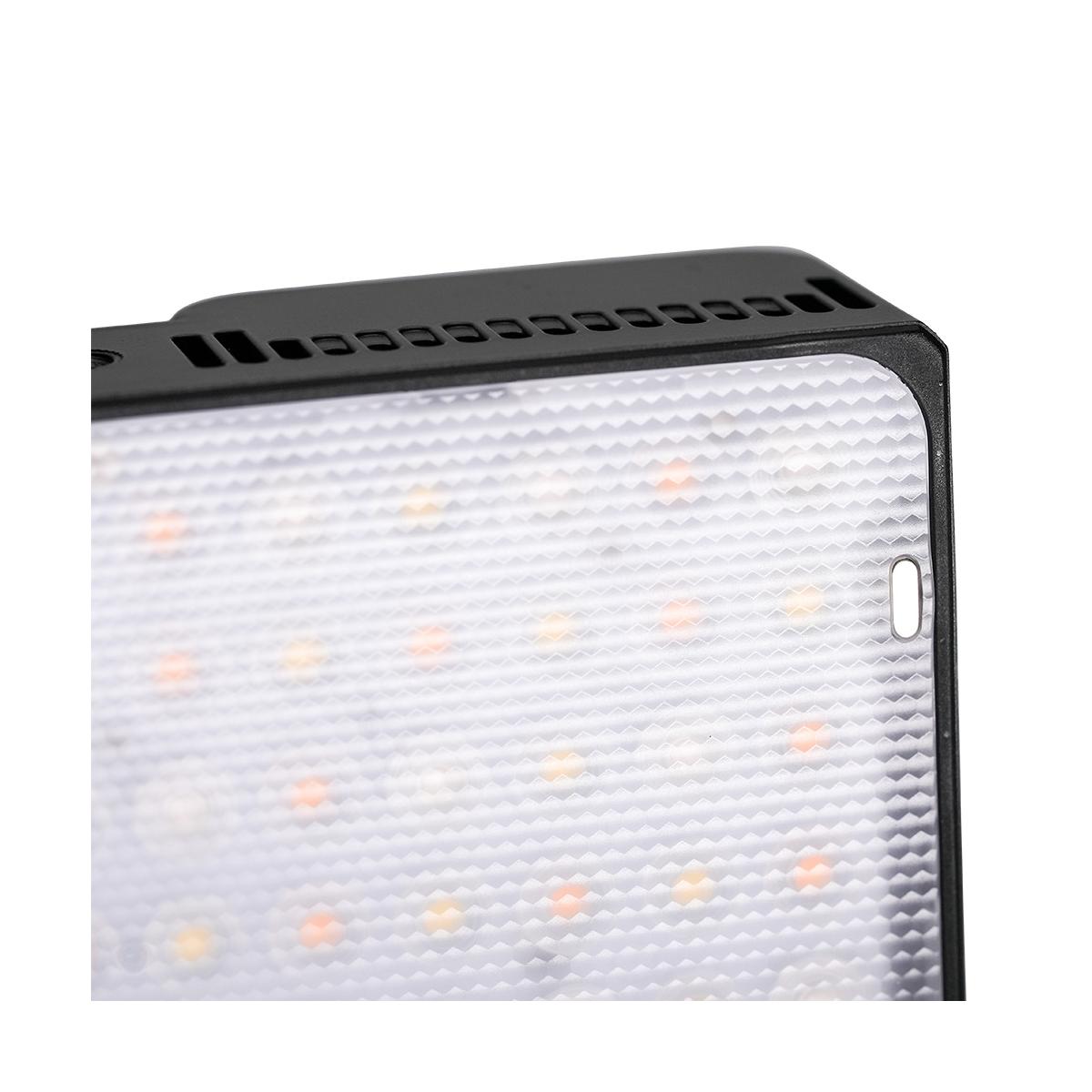

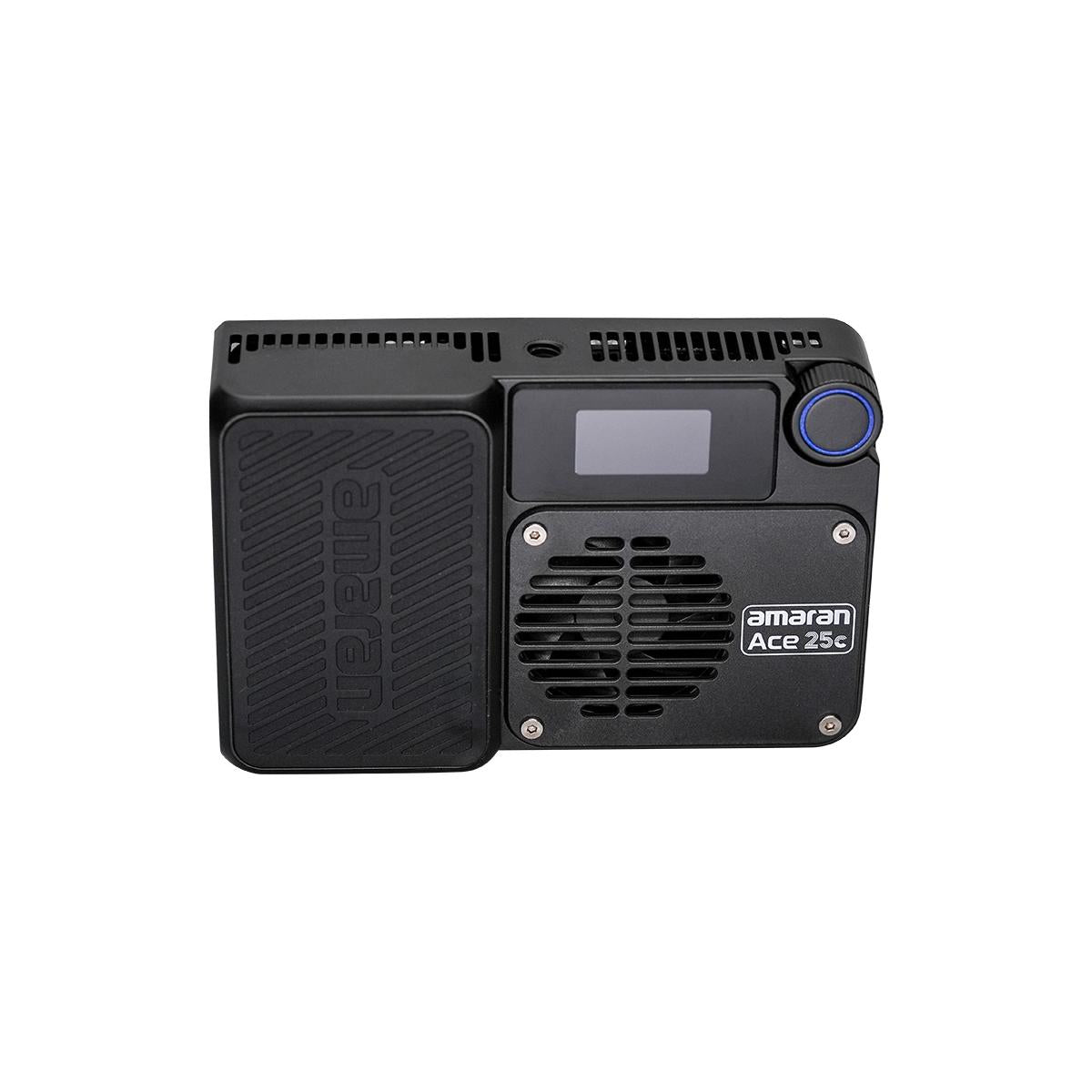

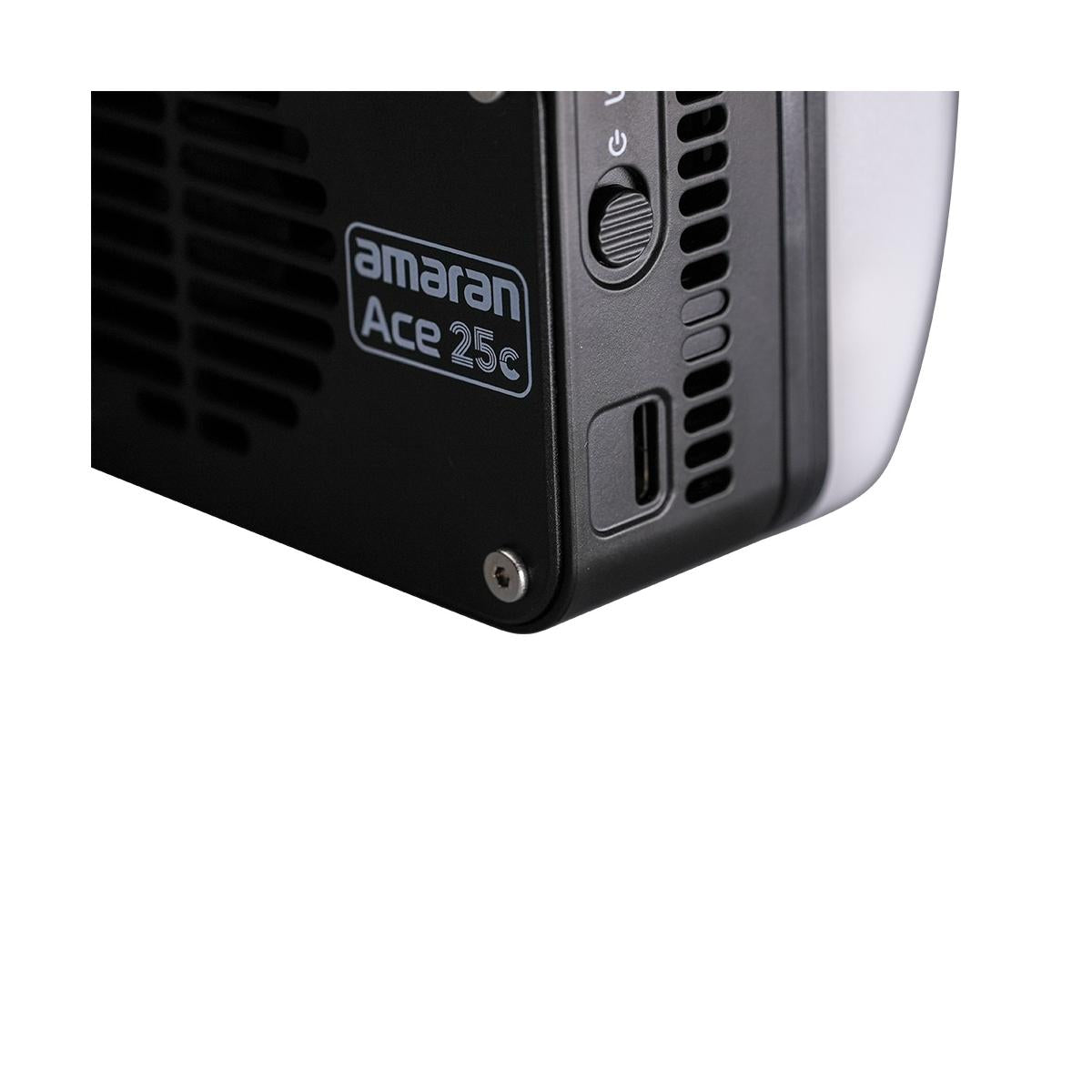

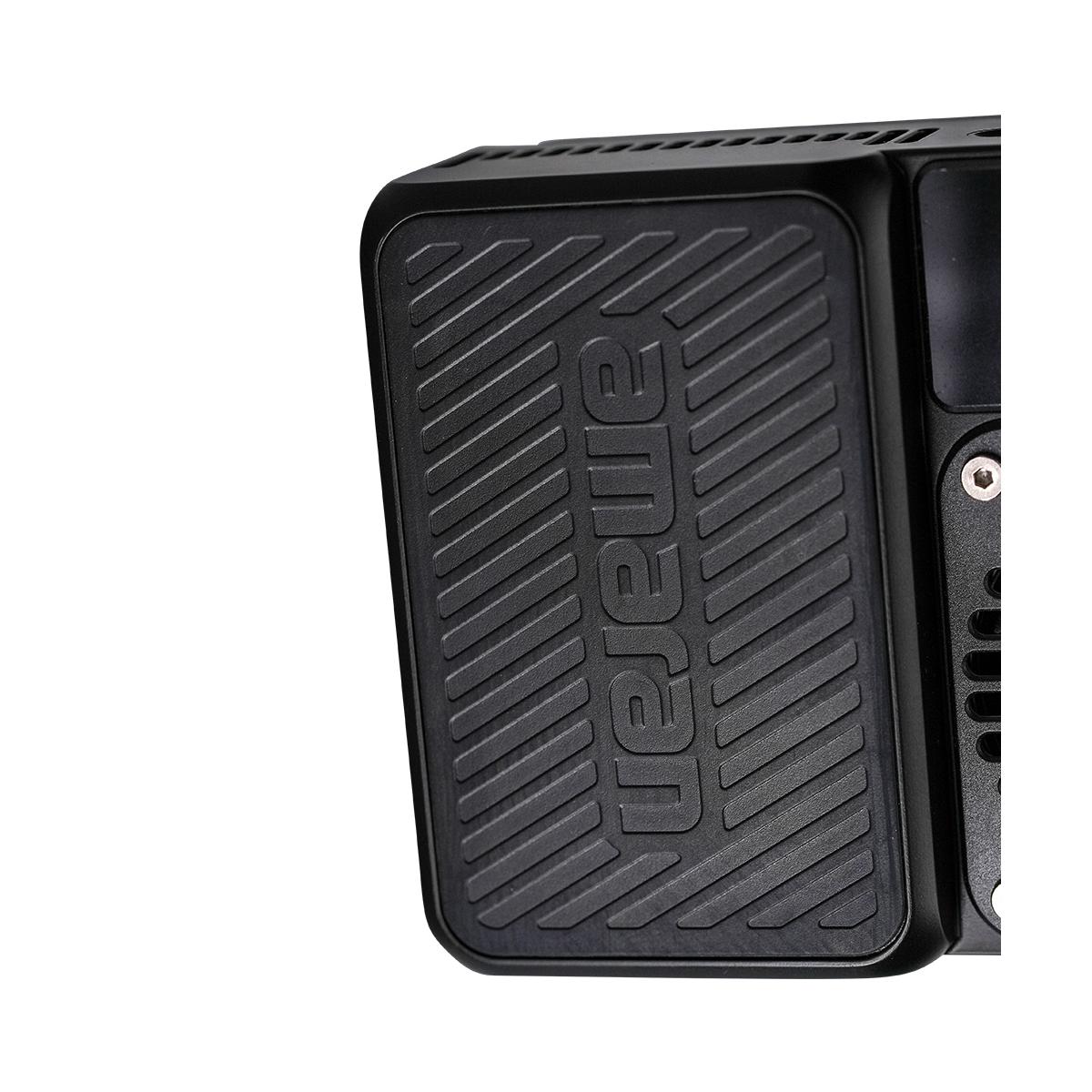

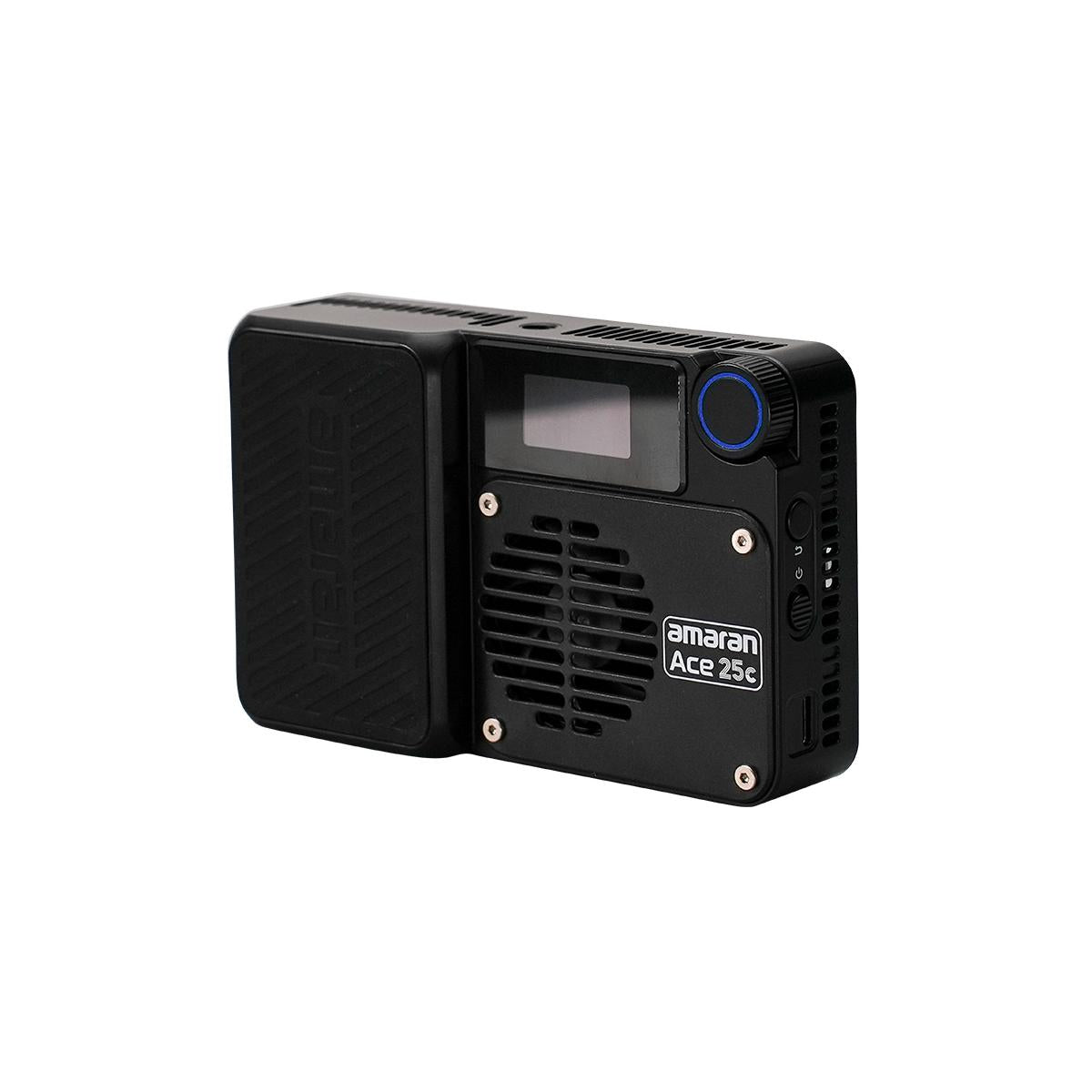

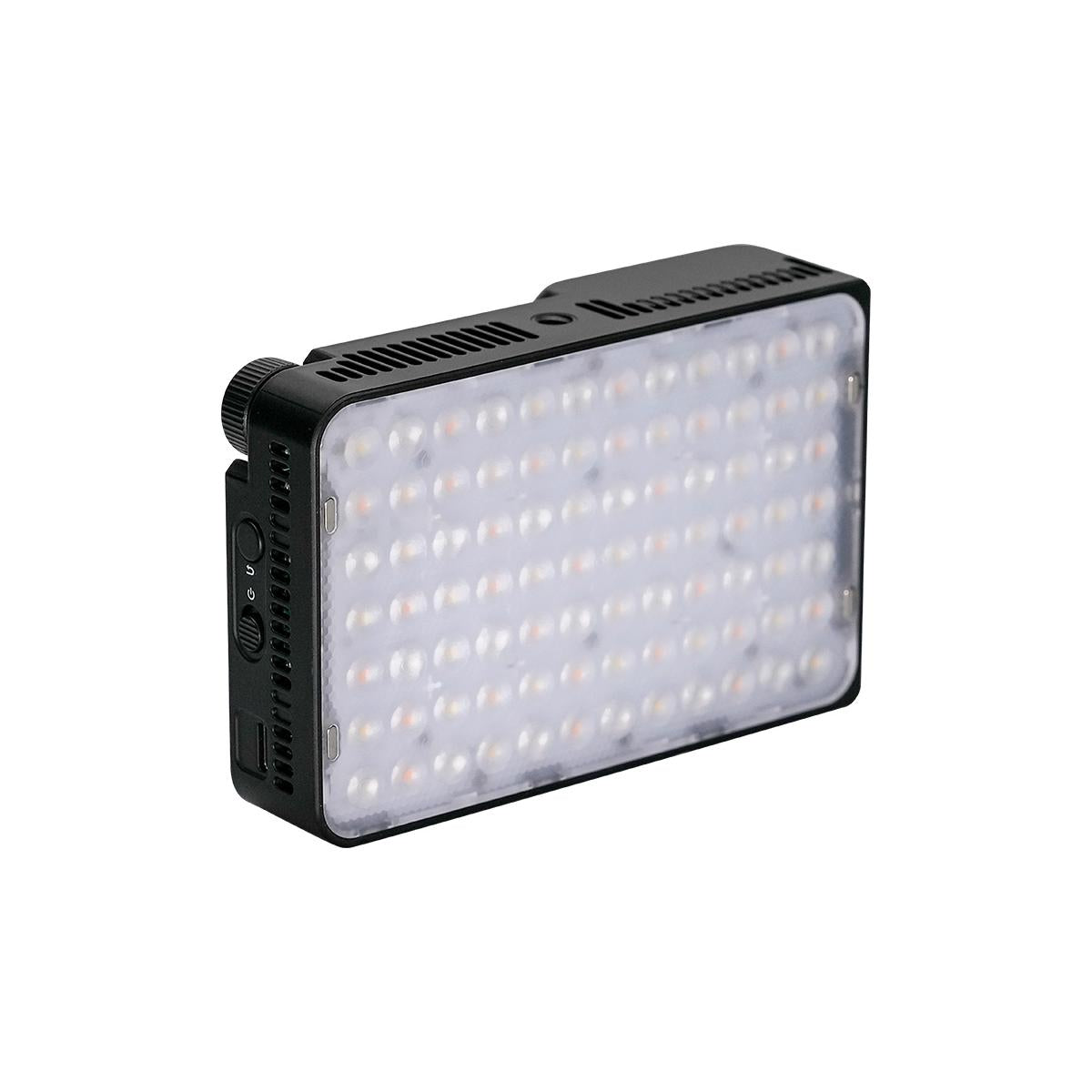

Ace 25c RGB LED Light Panel Kit (Charcoal)
-

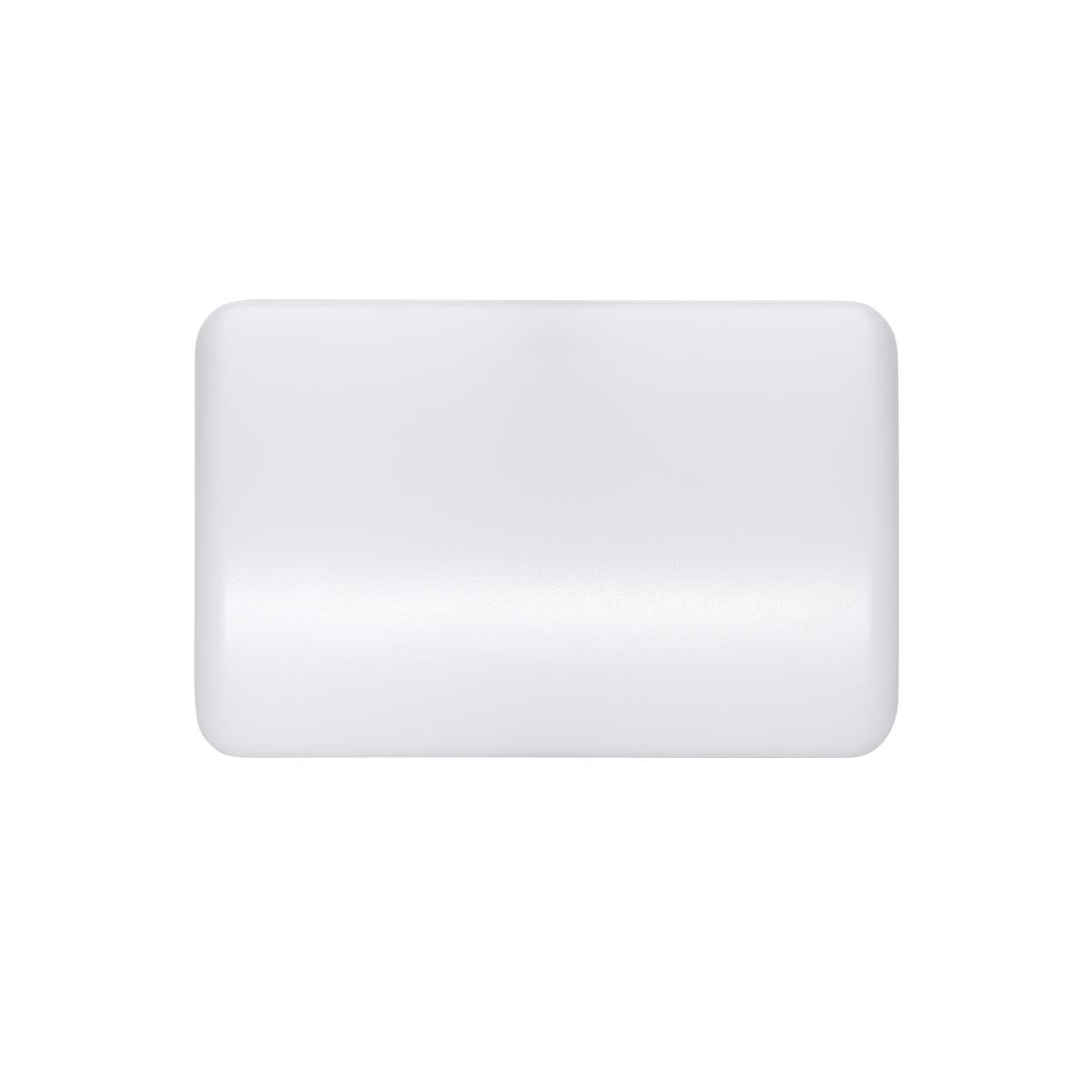

Ace Dome Diffuser
-

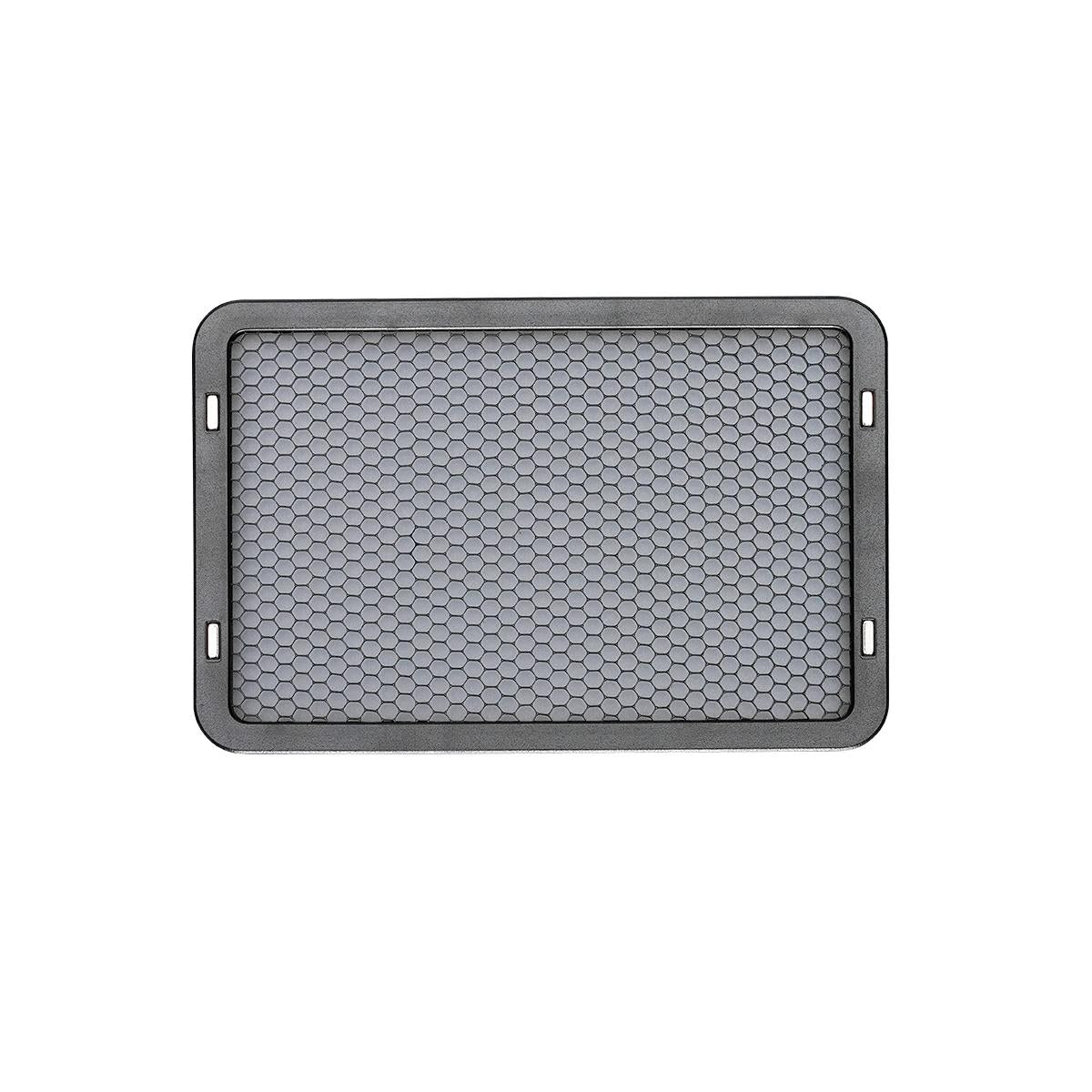

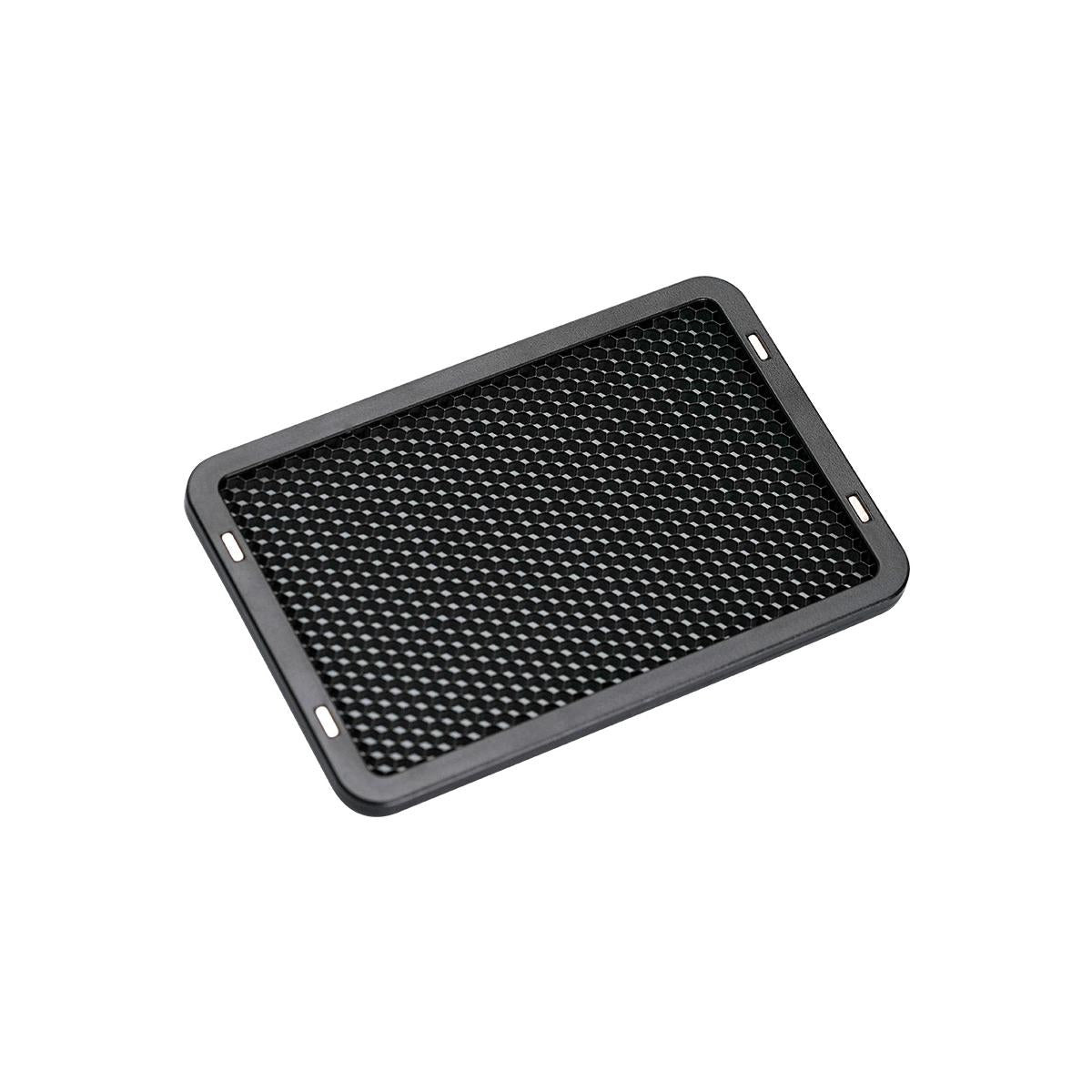

Ace 30º Light Control Grid
-

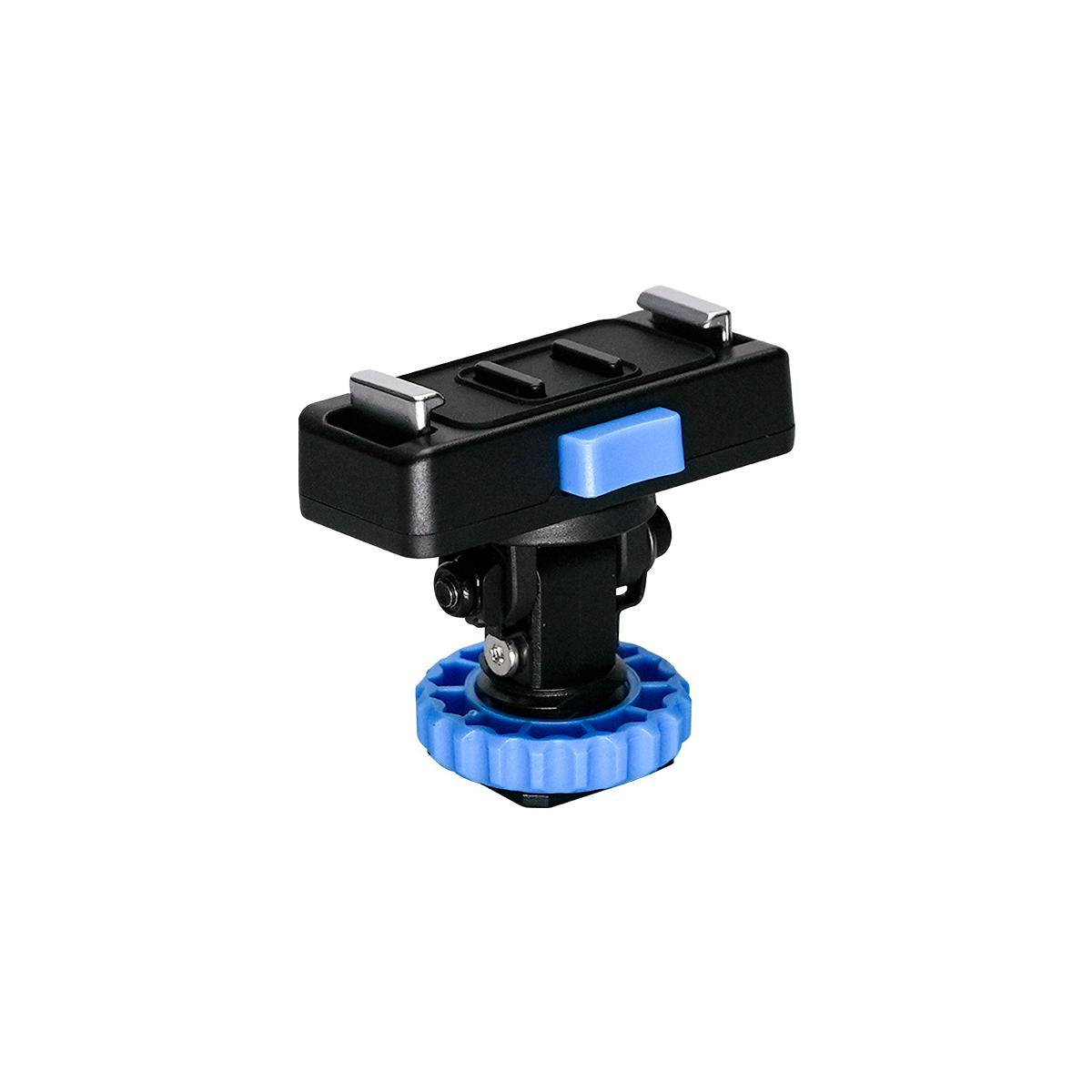

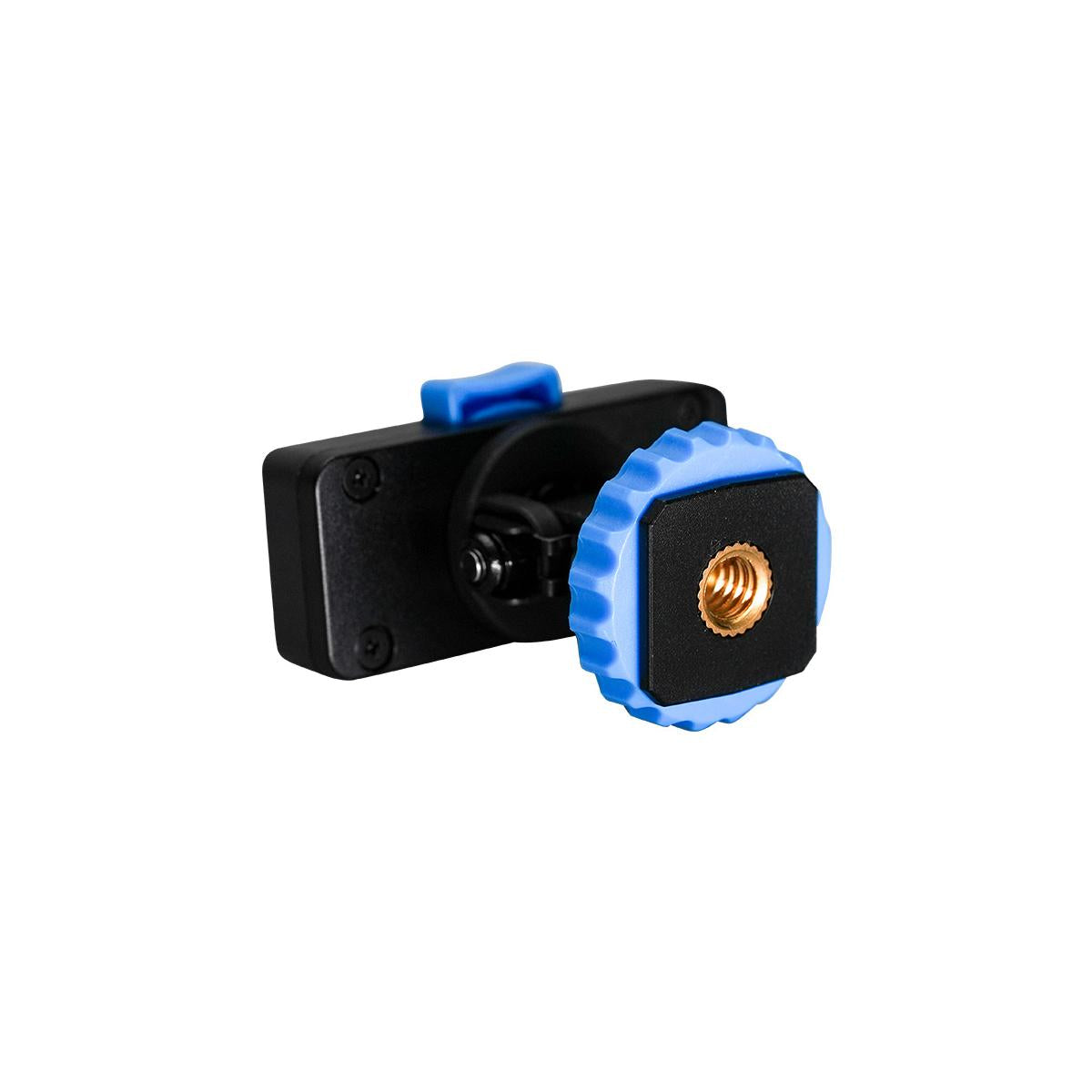

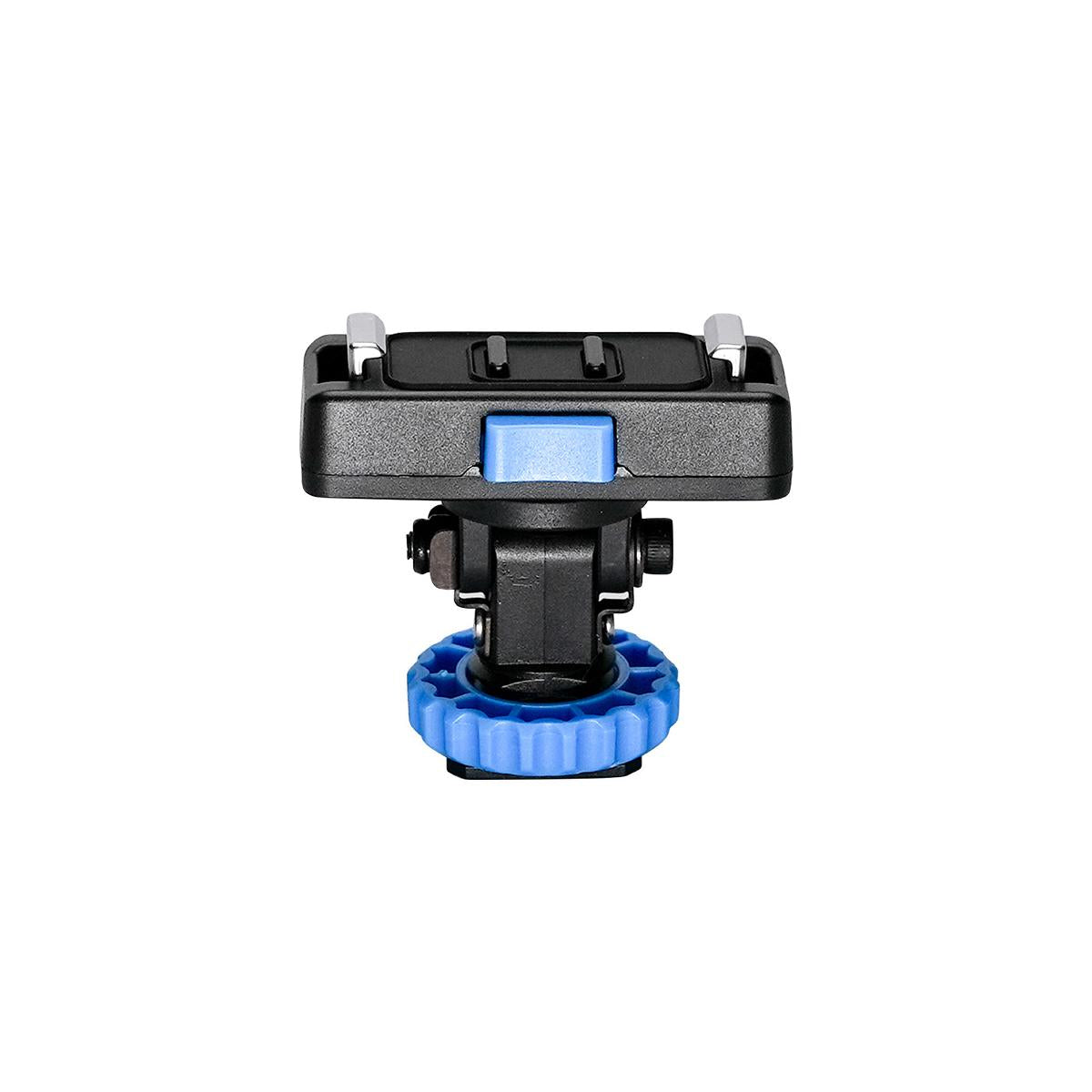

Ace Lock to Cold Shoe Adapter
-

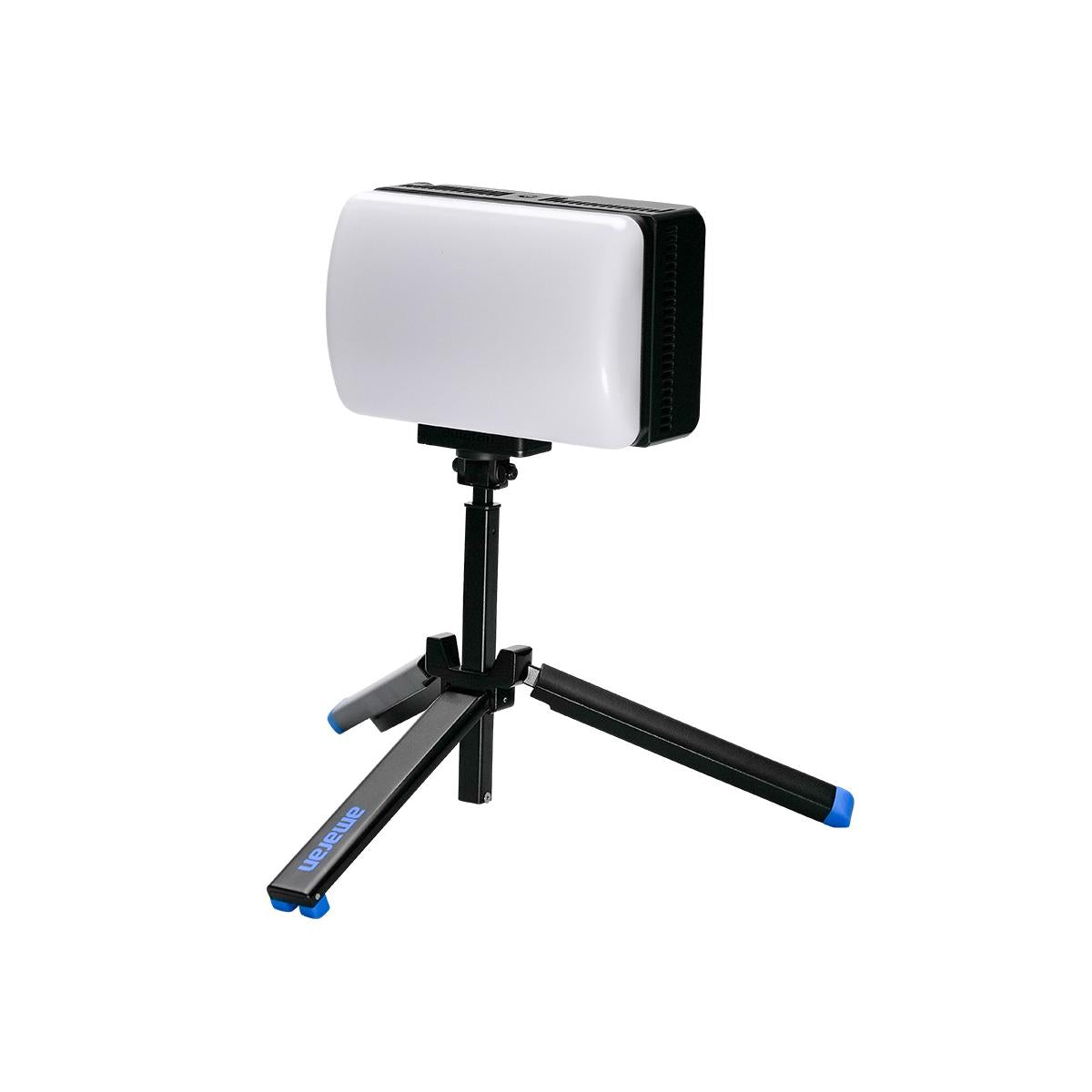

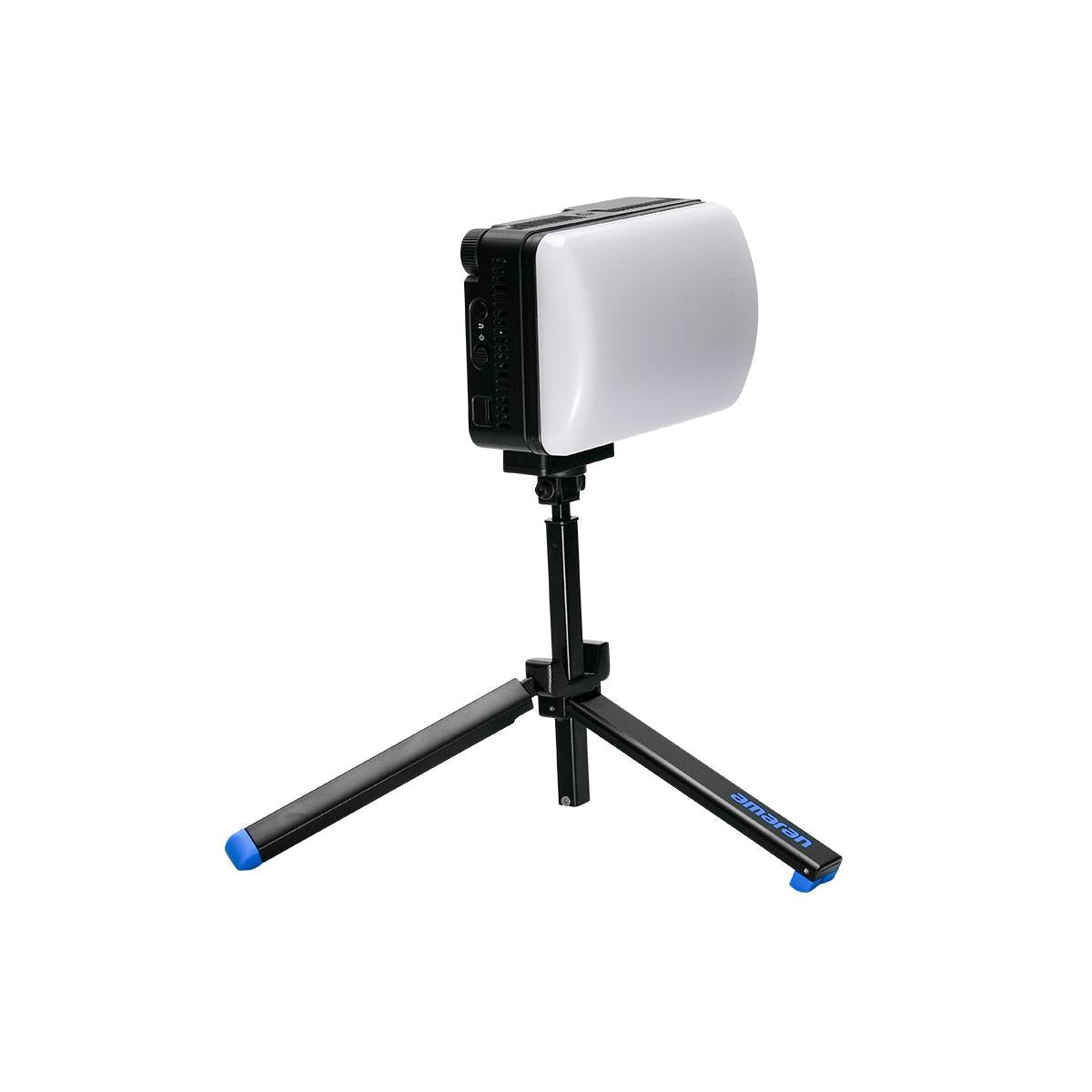

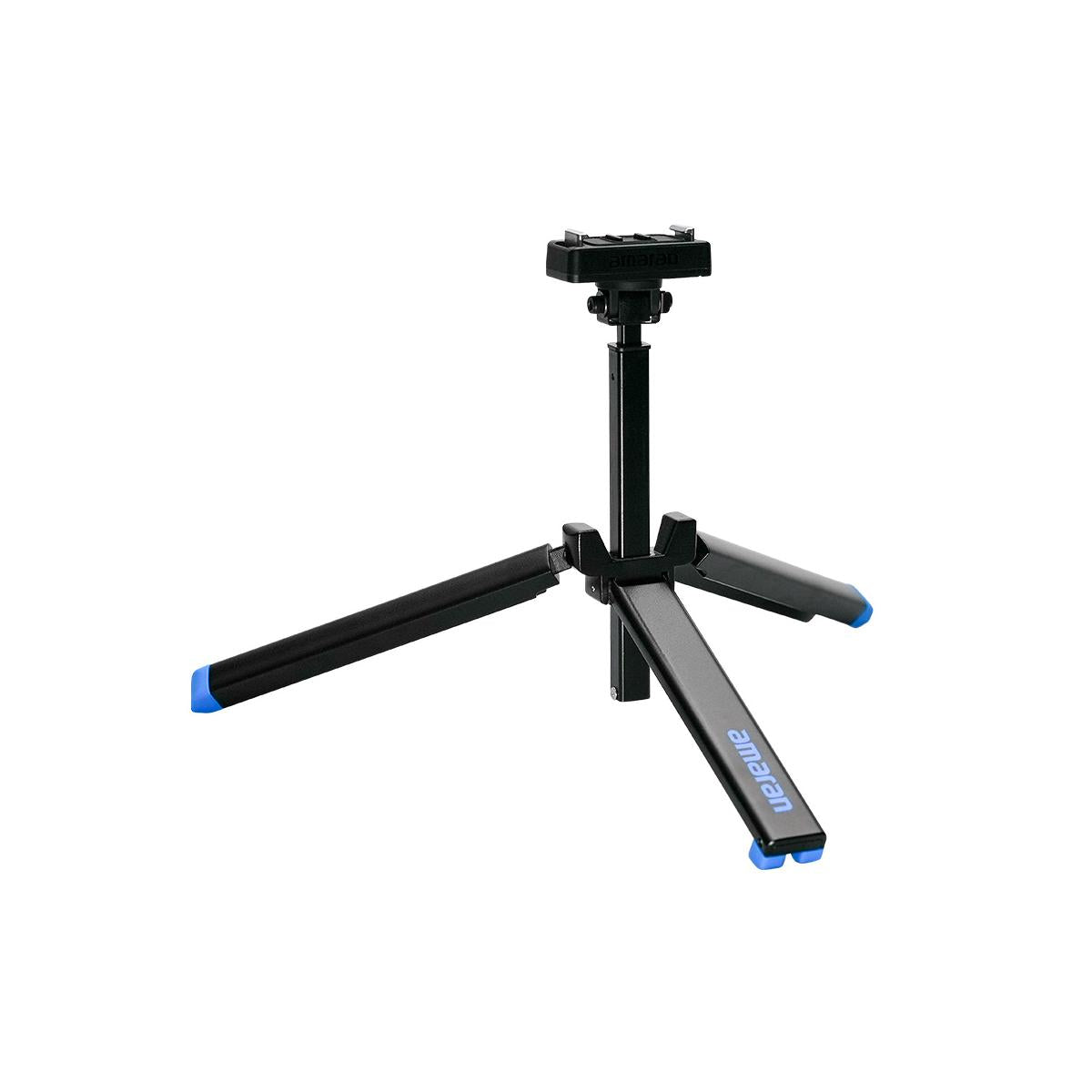

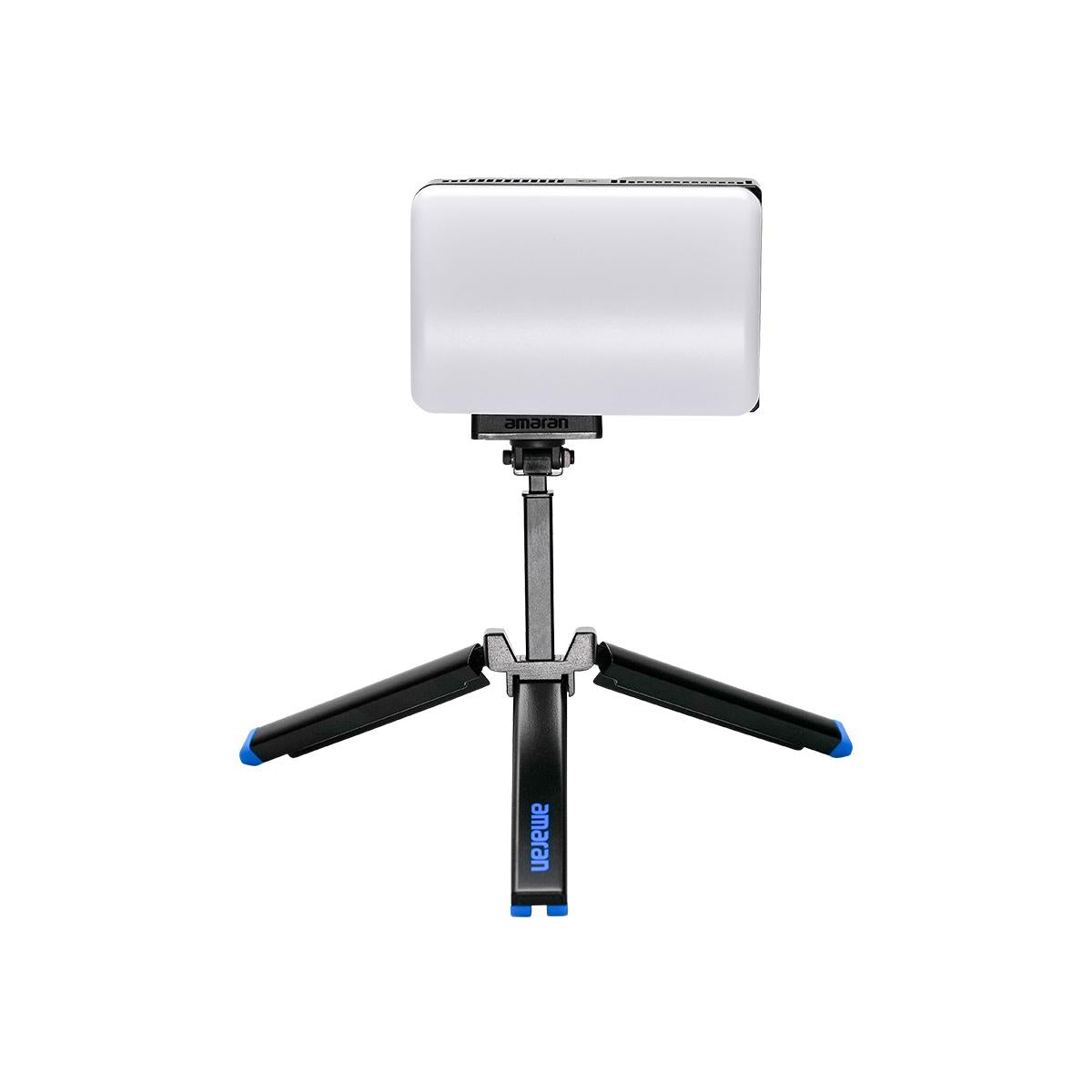

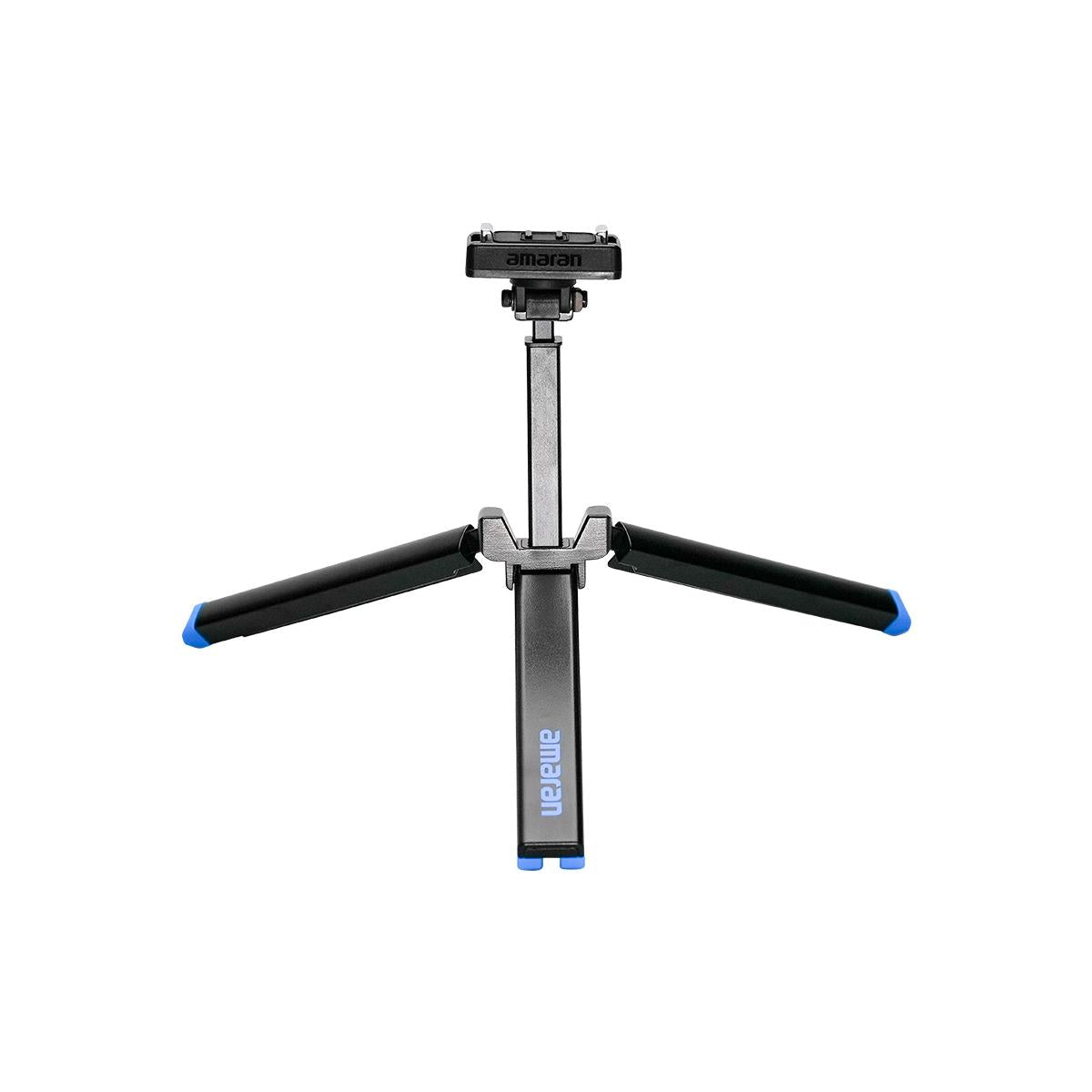

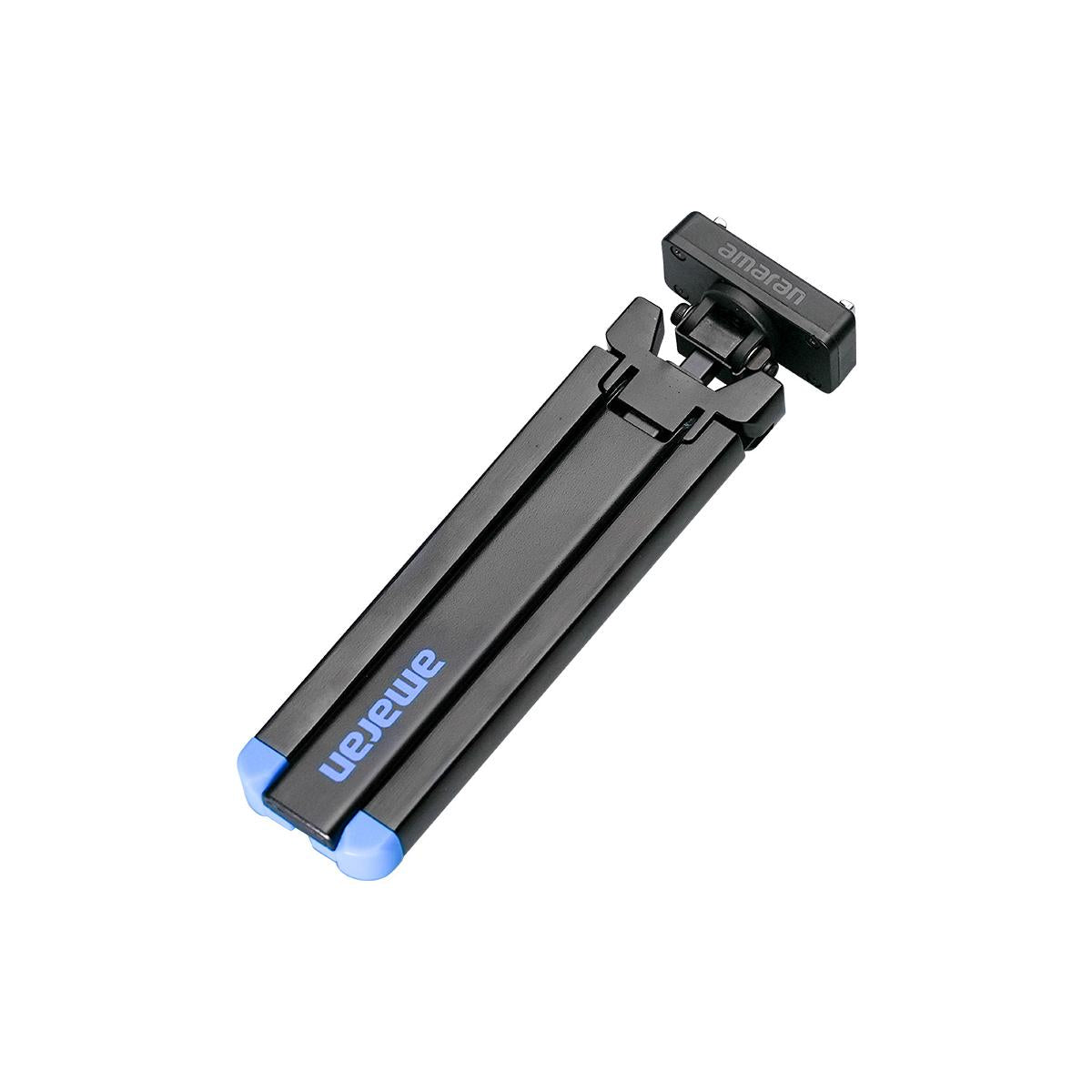

Ace Lock Mini Tripod
-

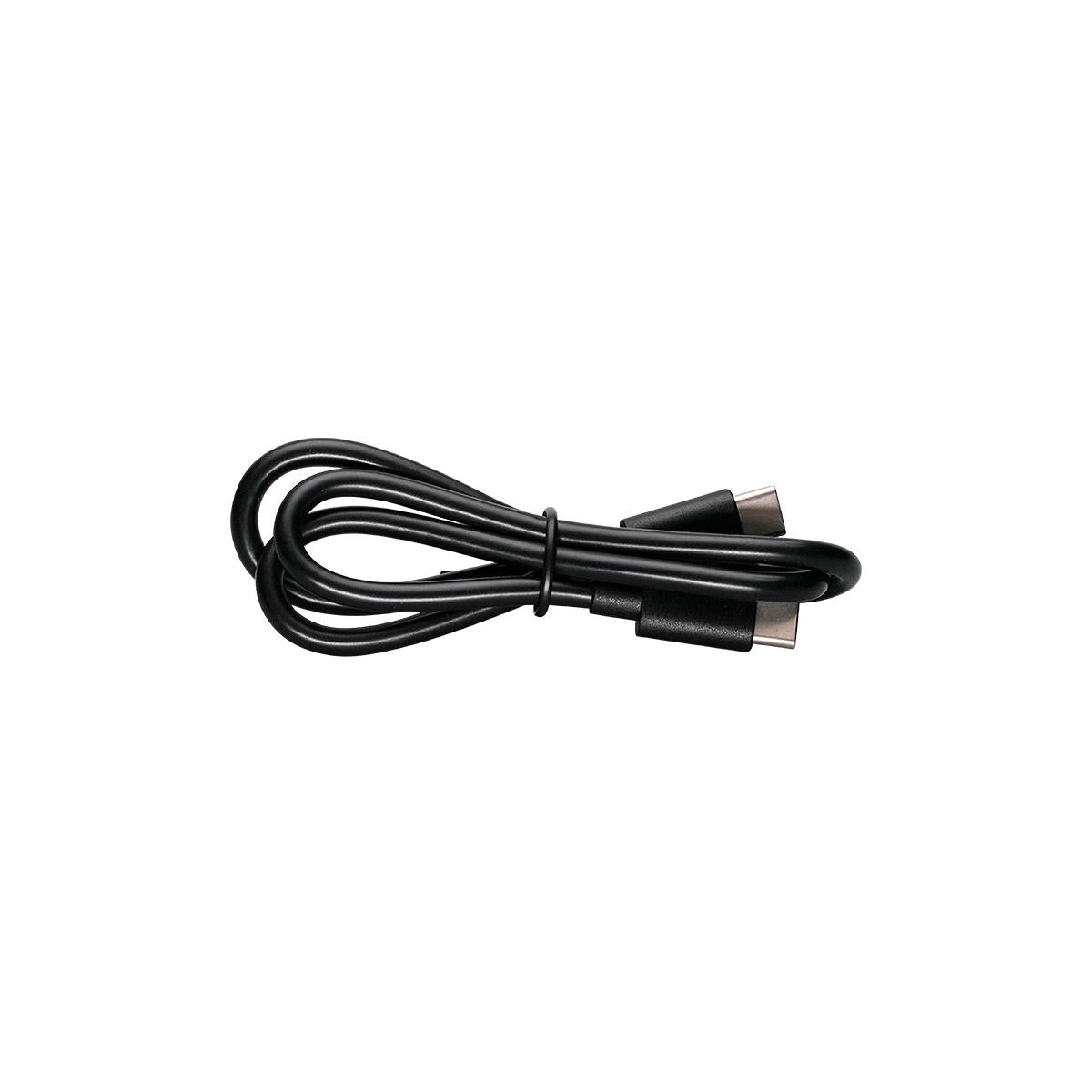

USB-C Charging Cable (1.6' / 50cm)
-
5mm Hex Key
-

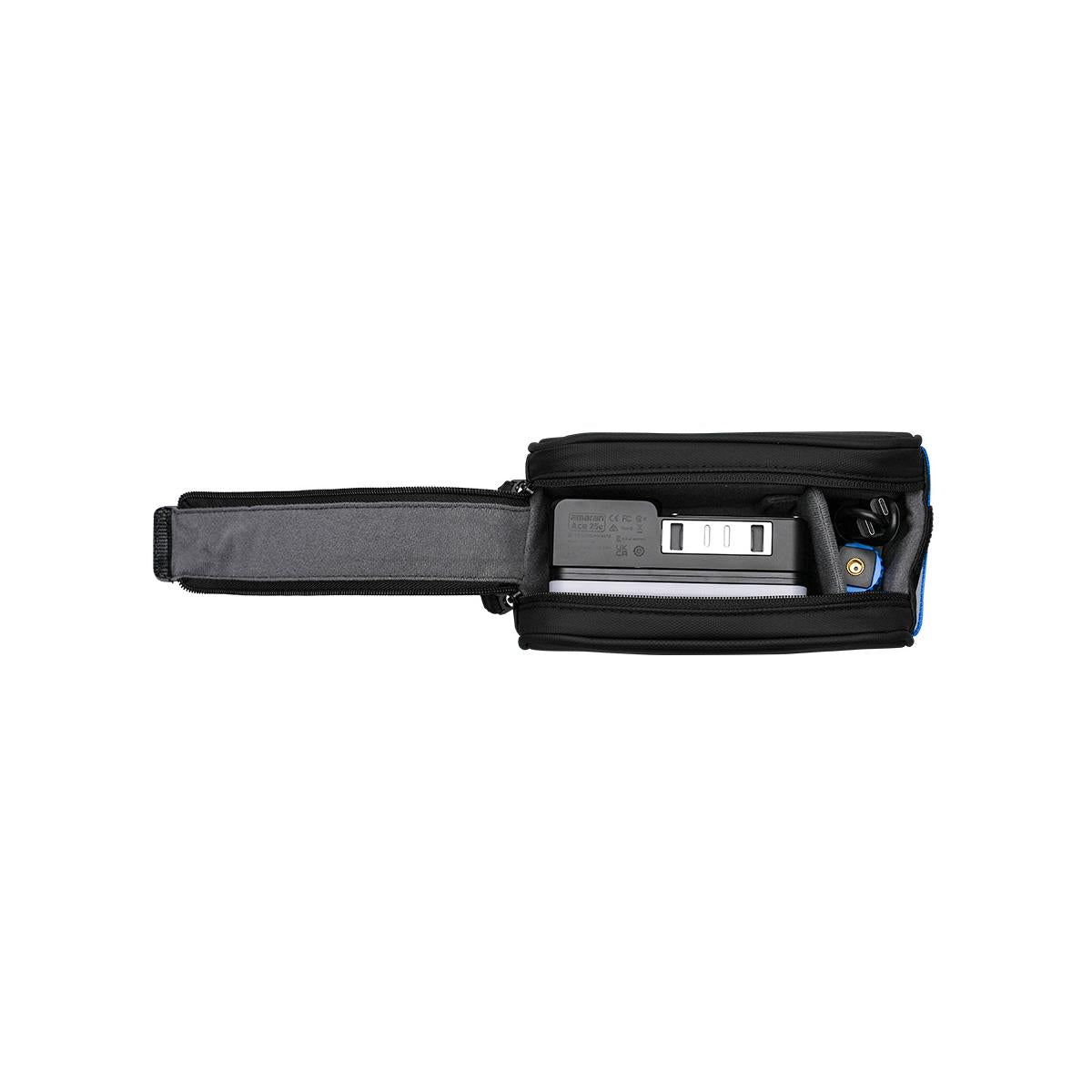

Carrying Bag
-
Limited 1-Year Warranty (Extendable to 2-Years)
| Light Fixture | |
|---|---|
| Color Temperature | 2,300K – 10,000K |
| Color Accuracy Standard | CRI 95+ TLCI 95+ CQS 94 SSI (Tungsten) 83 SSI (D56) 73 TM-30 RF (Average) 102 TM-30 RG (Average) 102 |
| Cooling System | Active Cooling |
| Dimming | Yes, 0 to 100% |

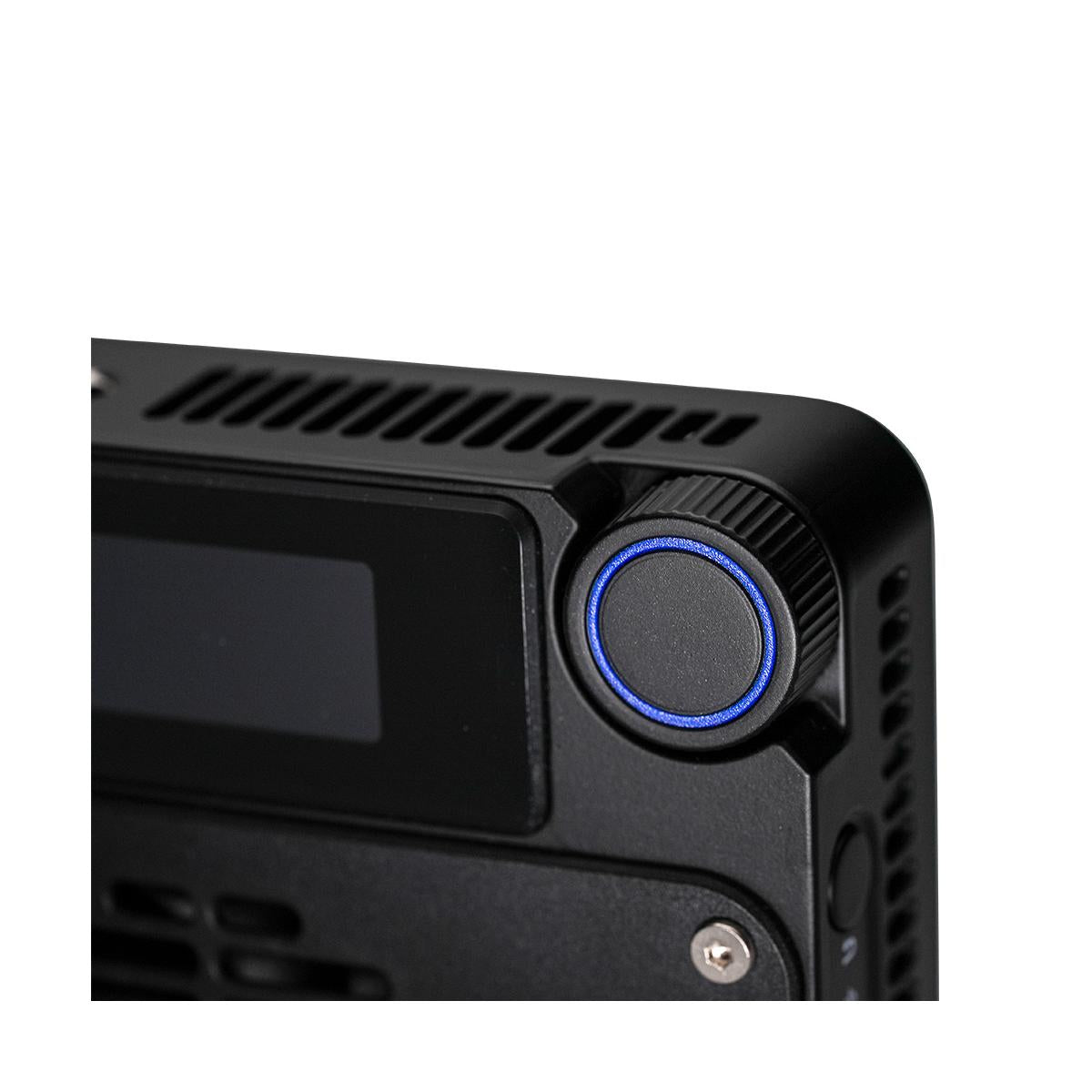

| Display | TFT OLED |
| Lumens | 3,332 lm |
| Beam Angle | 50º |
| Photometrics - Standard | |
| Photometrics - Boost | |
| Panel Size | 4.65 x 3.03 x 1.30" / 11.8 x 7.7 x 3.3cm |
| Fixture Weight | 0.72lbs / 325.5g |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Max Noise Level | Standard Mode (25W): 28dBA (25ºC / 77ºF) Boost Mode (32W): 32dBA (40ºC / 104ºF) |
| Wireless | |
|---|---|
| Wireless Remote Control Type | Bluetooth |
| Firmware Upgradeable | amaran App, Sidus Link |
| Wireless Operating Range | ≤80m / ≤262.5ft (Bluetooth) |
| Connectors | |
|---|---|
| Power Input Connector | USB-C |
| Remote Control | On-board, amaran App, Sidus Link |
| USB-C Charging Cable Length | 1.64' / 50cm |
| Mounting | |
|---|---|

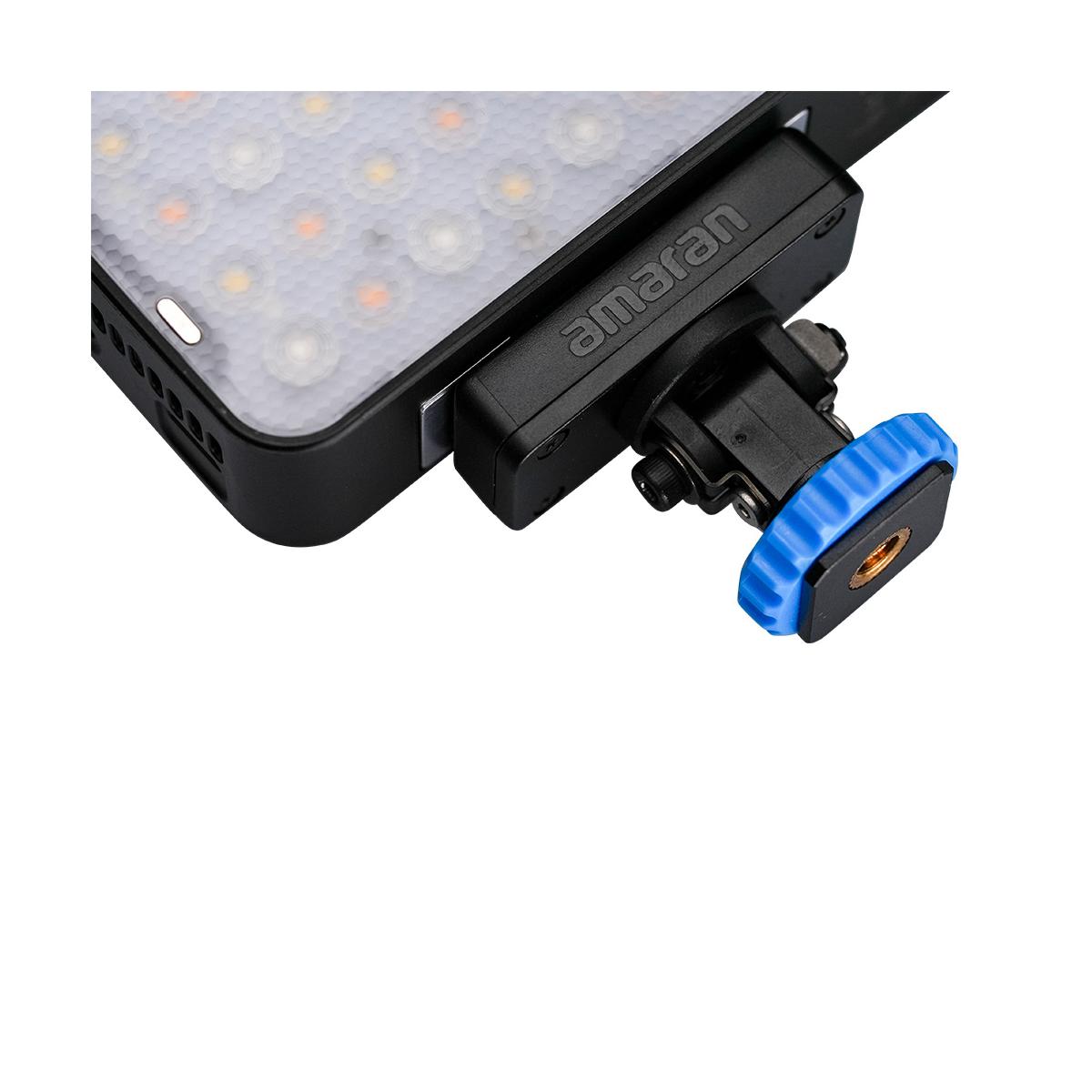

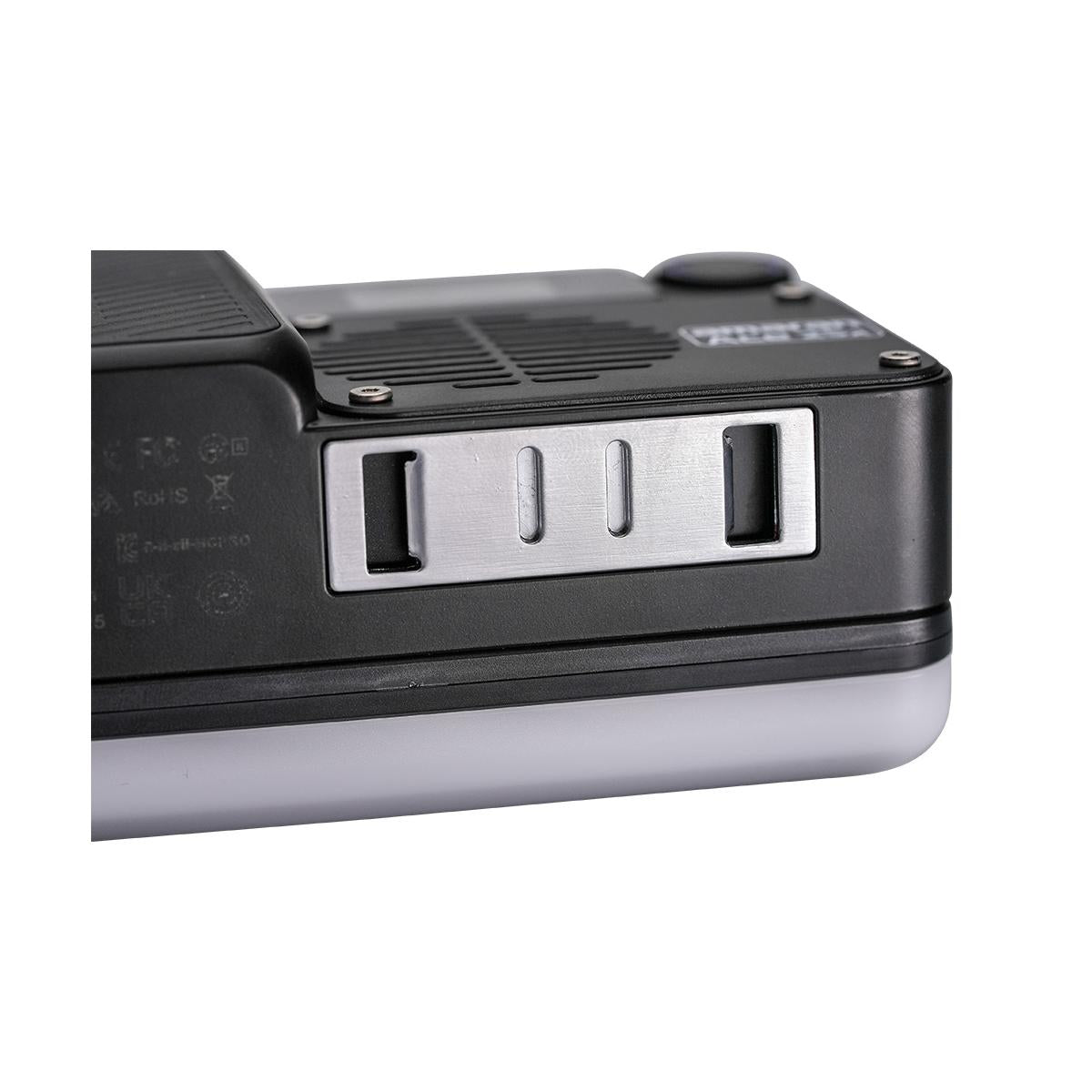

| Fixture Mounting | Proprietary Magnetic Lock to Cold Shoe Adapter |
| Included Adapter | 1x Swivel Mount: Accessory Foot with 1/4"-20 Female Thread to Proprietary Magnetic Mount |
| Power | |
|---|---|
| Power Source | Internal Battery |
| Power Supply Specifications | USB Type-C PD / QC |
| Battery Voltage | 7.4V |
| Battery Capacity | 4,500mAh / 33.3Wh |
| Max Power Output | 32W |
| USB-C Max Power Output | 5V/2A |
| USB-C Max Power Input | Powered Off: 36W Powered On: 41W |
| Battery Runtime | Standard Mode (25W): Approx. 70 Mins Boost Mode (32W): Approx. 50 Mins Silent Mode (6.5W): Approx. 4 Hours 40 Mins |
| Charge Time | 0% - 100% Charge: Approx. 90 Mins 0% - 90% Charge: Approx. 40 Mins 90% - 100% Charge: Approx. 50 Mins |
