Product Information
Overview

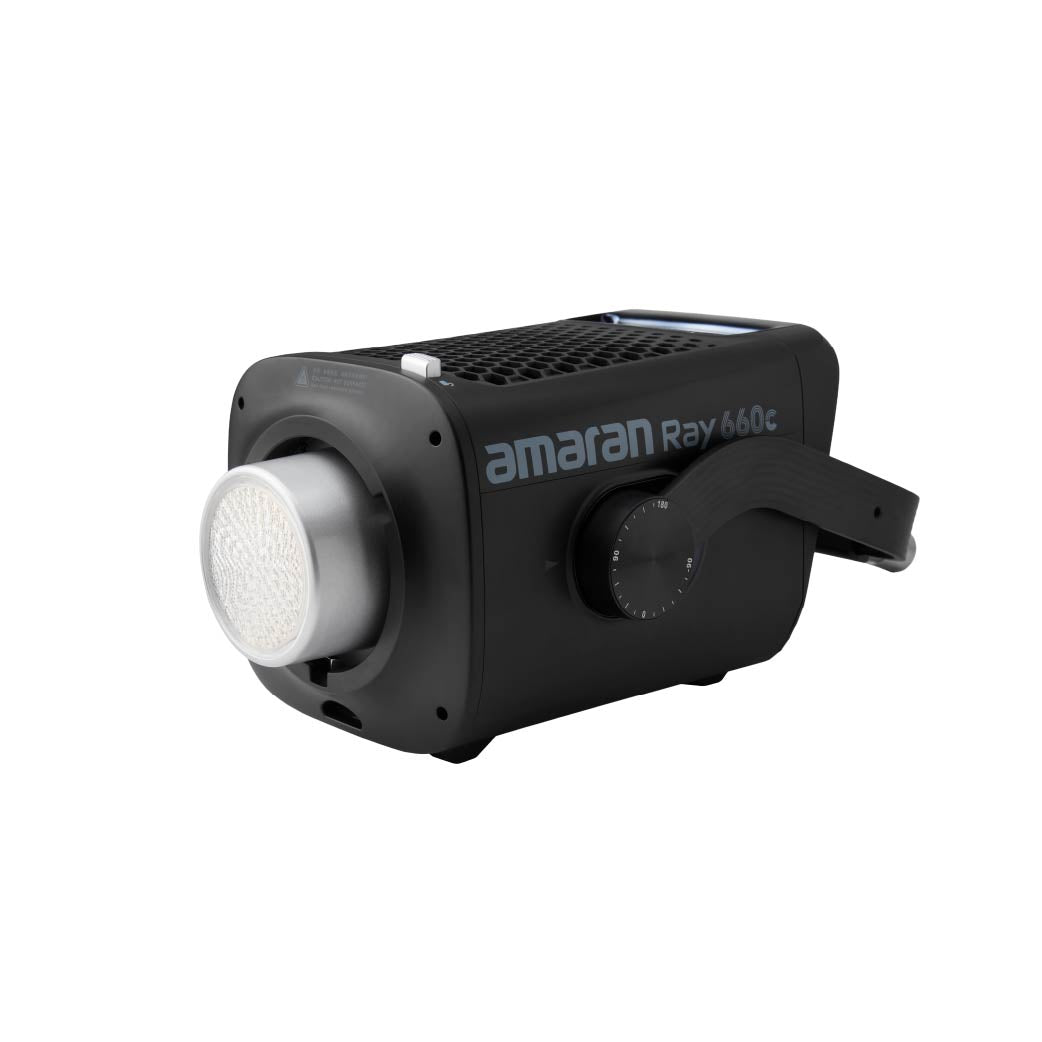

The amaran Ray 660c brings serious punch to home studios, commercial sets, and outdoor productions that demand rich color and dependable output. This 660W full-color point-source LED harnesses the power of the OmniColor light engine, producing beautifully accurate tones with a noticeably fuller spectrum. Designed as a single, streamlined monolight with an integrated AC power supply, it keeps your setup fast, clean, and ready for any creative challenge.

Color Accuracy That Holds Up Everywhere
OmniColor technology pushes the red and blue channels further than previous generations, giving you more control over nuanced hues and improved balance across the spectrum. With impressive SSI ratings of 87 (Tungsten) and 80 (D56), white light appears cleaner, skin looks natural, and mixed-lighting environments become easier to match. Whether you’re relying on its expansive 2,300K–10,000K range—or extending to 1,800K–20,000K with CCT+ Mode—the color fidelity makes every frame feel intentional.
Output Built for Bigger Spaces

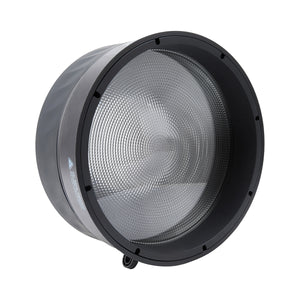

When you need power, this light delivers. The amaran Ray 660c reaches up to 38,500 lux at 1 meter (bare), making it the brightest amaran COB to date. That output gives you freedom to work from farther distances, fill wide compositions, or pair the light with larger Bowens-mount modifiers. Use the included Reflector for a stronger punch, add an optional Fresnel to push your throw even further, or build soft, even light with Bowens-Mount softboxes.
Designed for Fast, Modern Workflows

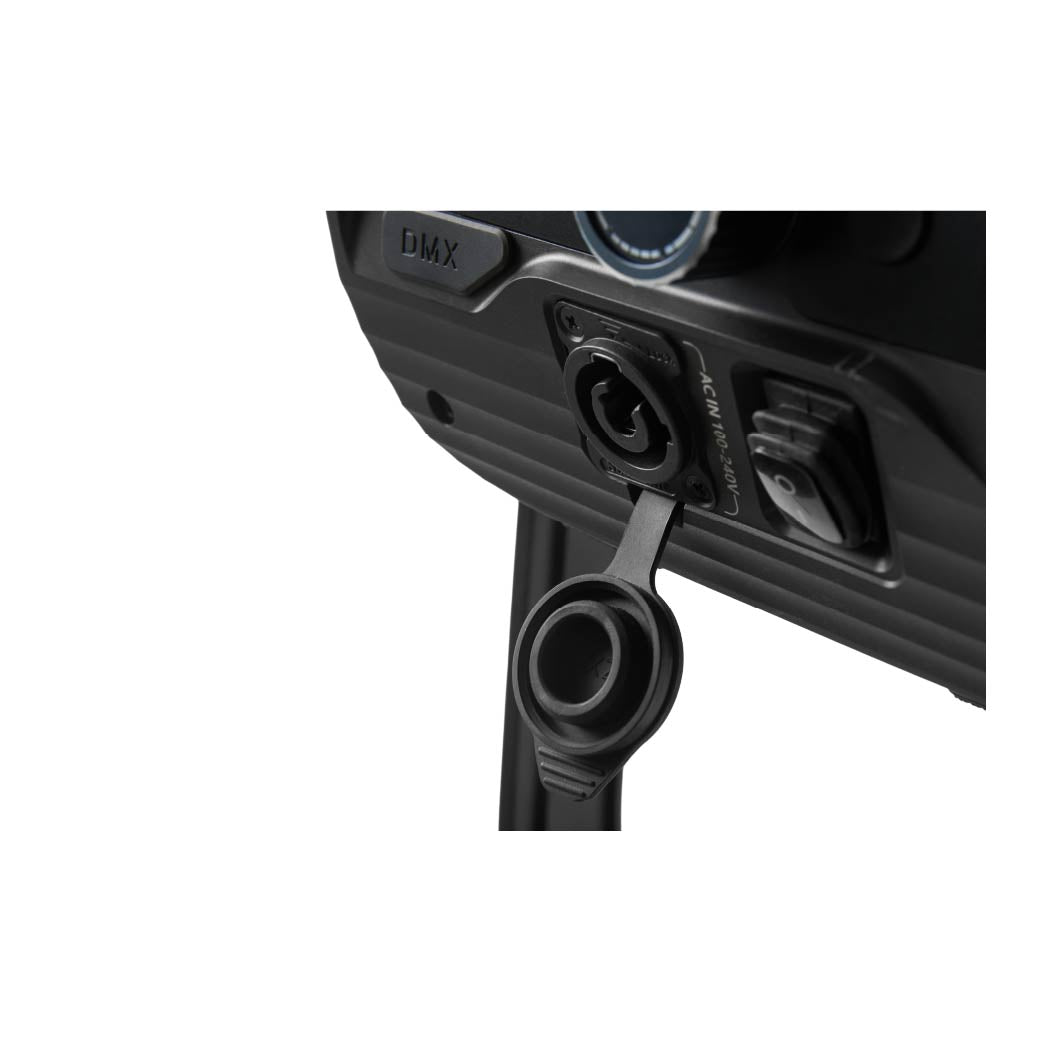

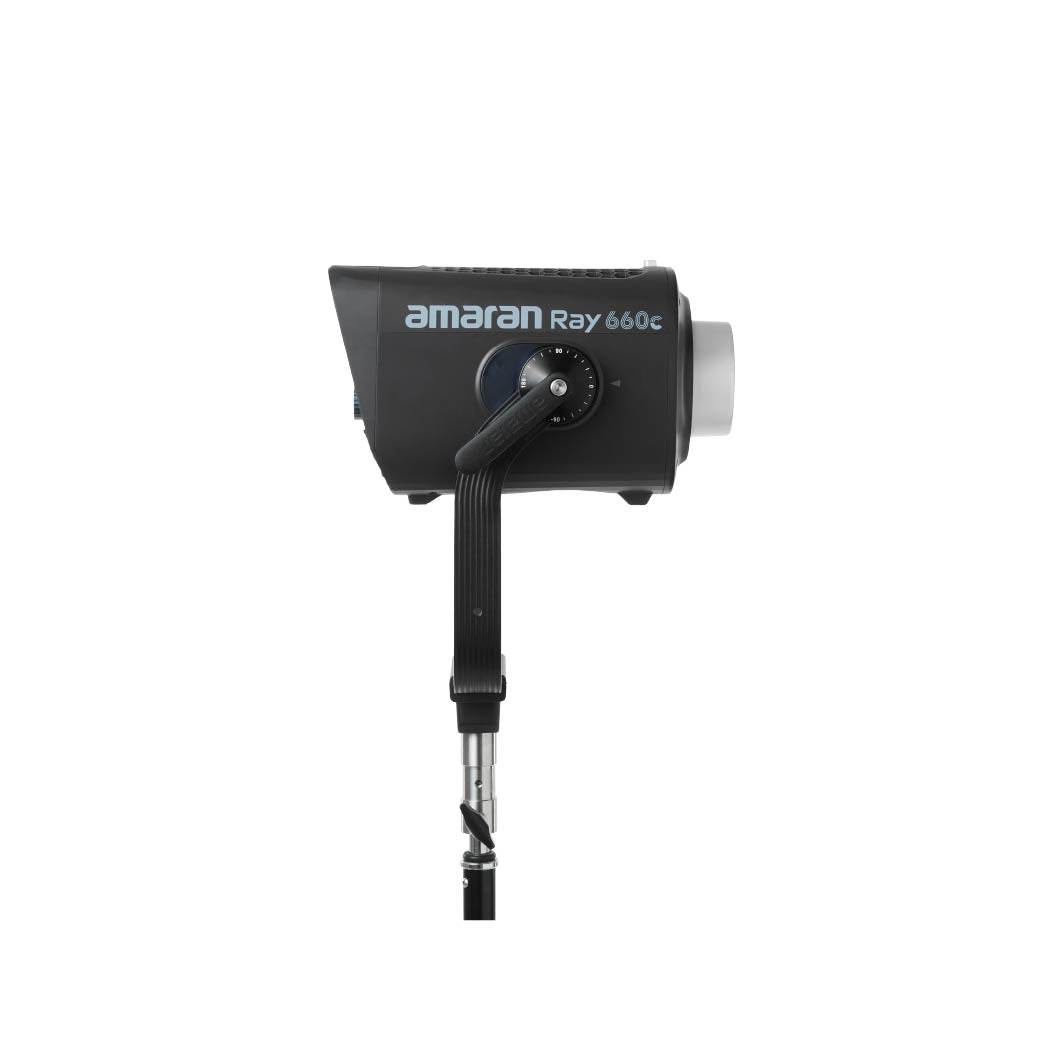

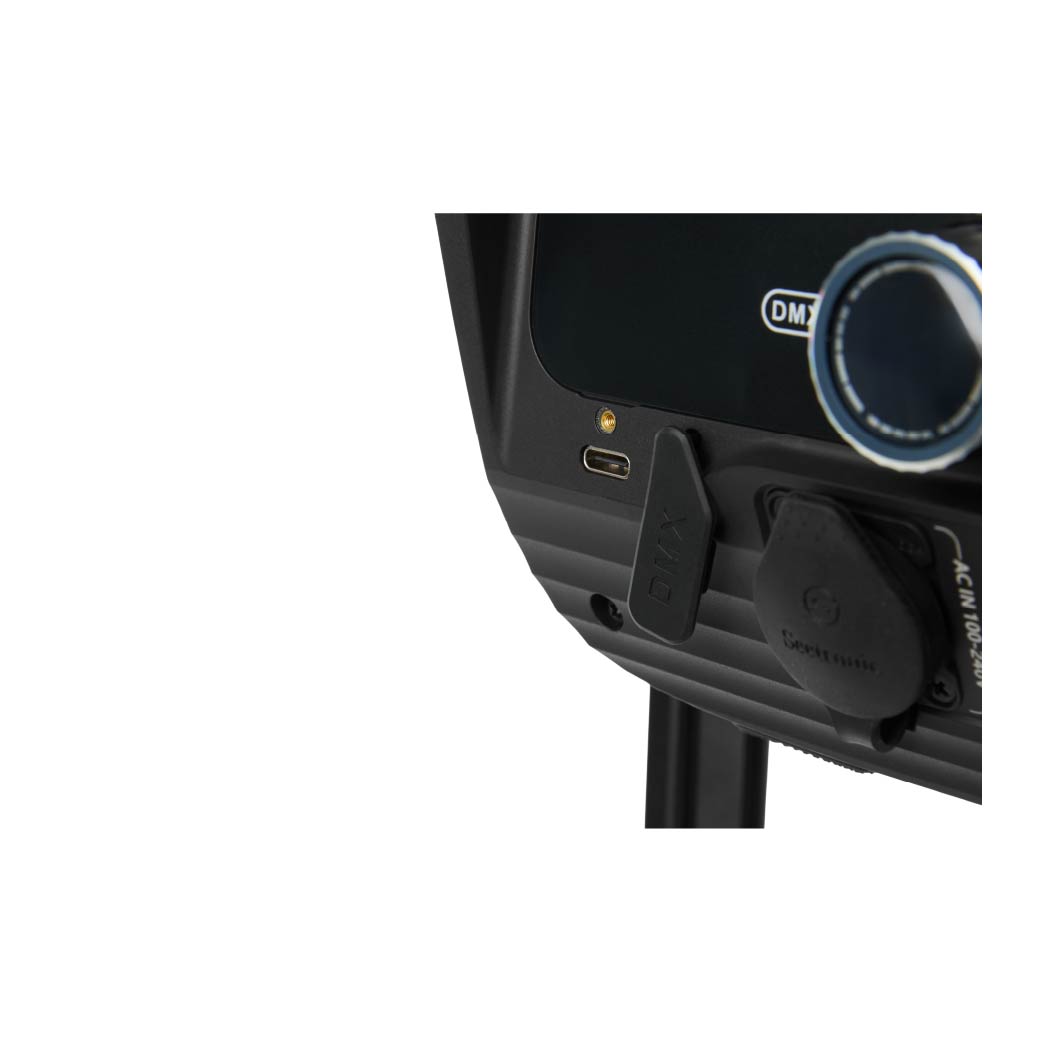

With DMX control available through the optional USB-C to 5-Pin DMX Adapter, the Ray 660c easily integrates into professional lighting setups. From synced cues to repeatable lighting patterns, it scales effortlessly for podcasts, music video production, or high-end studio systems. Hands-on adjustments are just as smooth thanks to the tactile FlowTurn knob, while the amaran app makes wireless control simple—pair through built-in NFC instantly, even if the light is still powered off.
Built to Handle Real-World Sets
An IP54 rating means the Ray 660c is ready for dust, mist, wind, humidity, and unpredictable outdoor conditions. The Bowens-compatible metal mount, dual junior/baby pin yoke, and integrated safety chain bracket all contribute to a rugged design that can be rigged with confidence. With quiet fan performance (max 28dBA), quick-toggle operation modes, custom shortcuts, and 12 built-in lighting effects, it’s designed for creators who move fast and expect their gear to keep up.
-

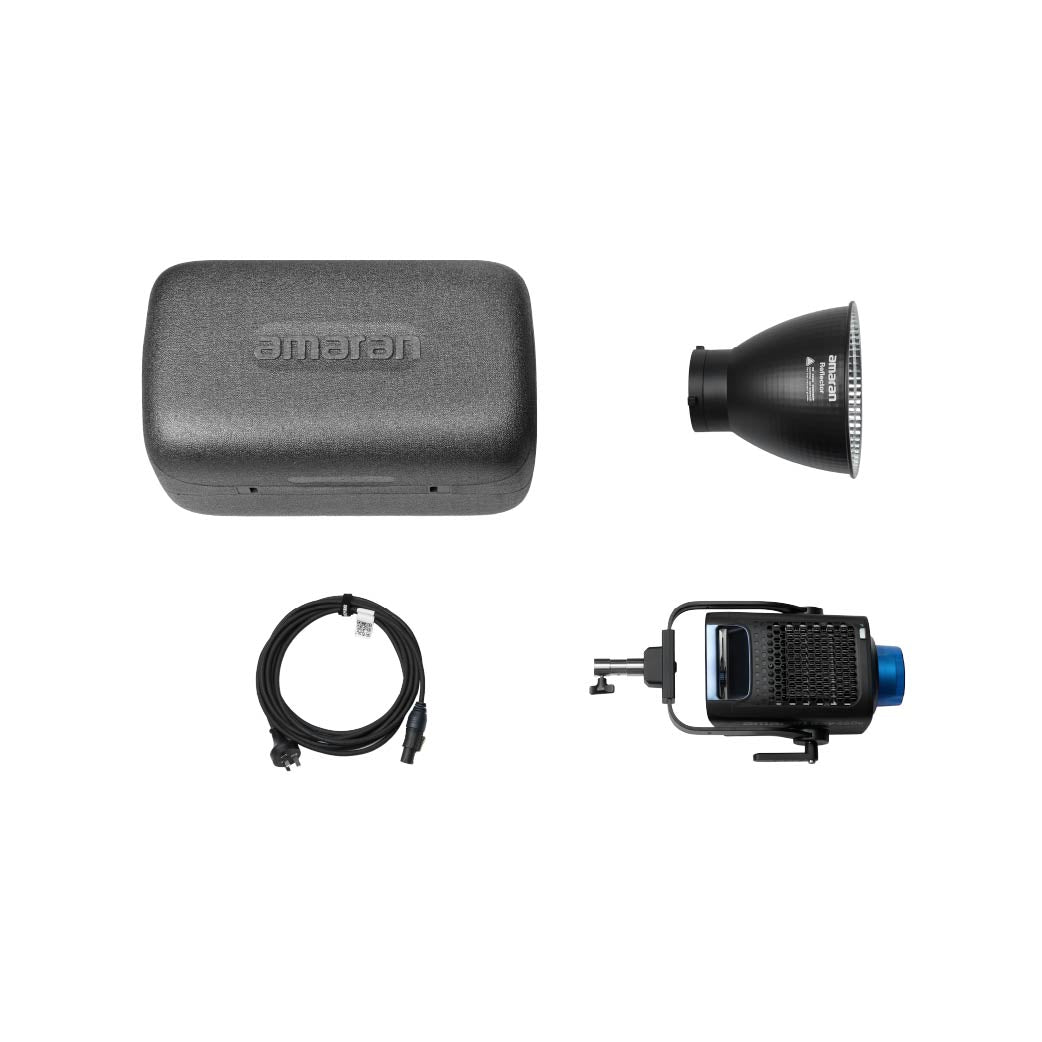

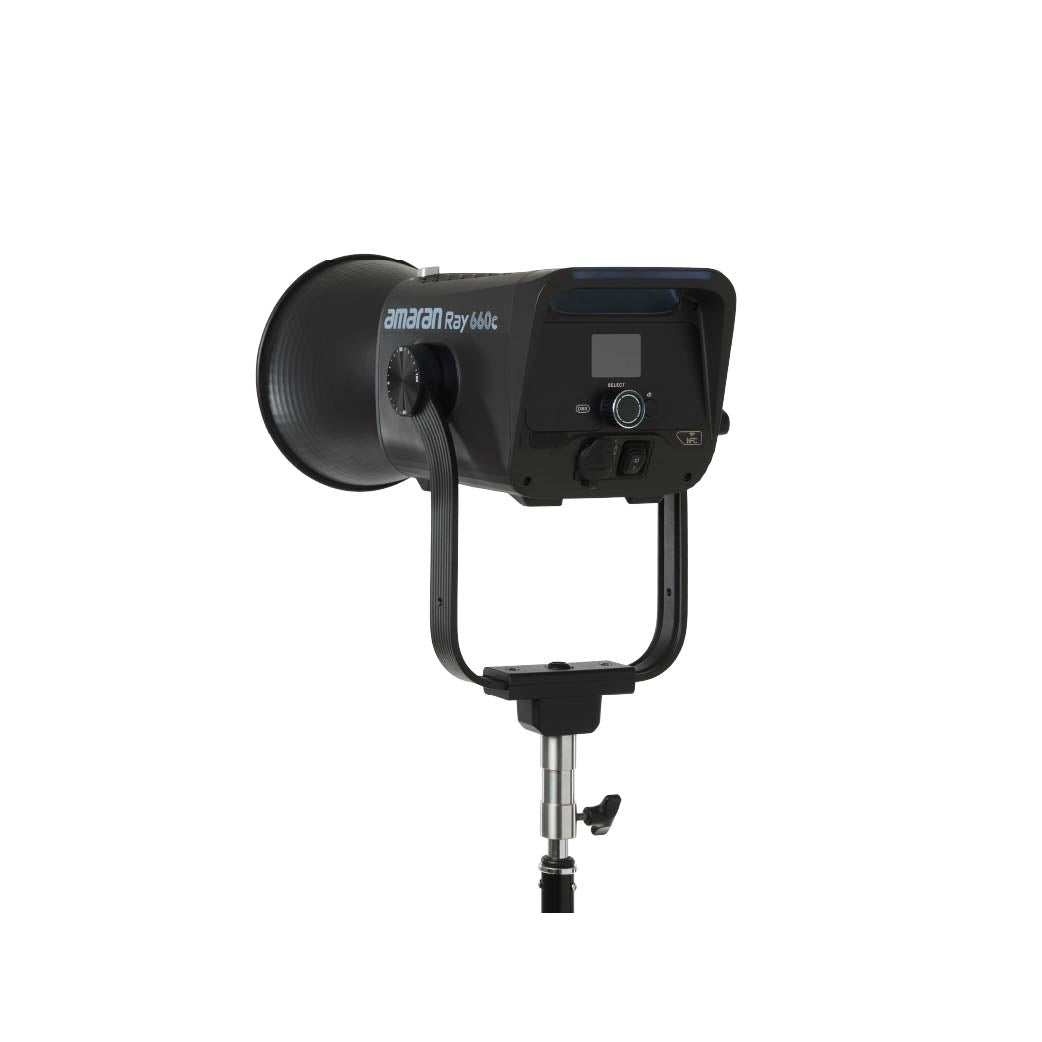

Ray 660c RGB LED Light
-

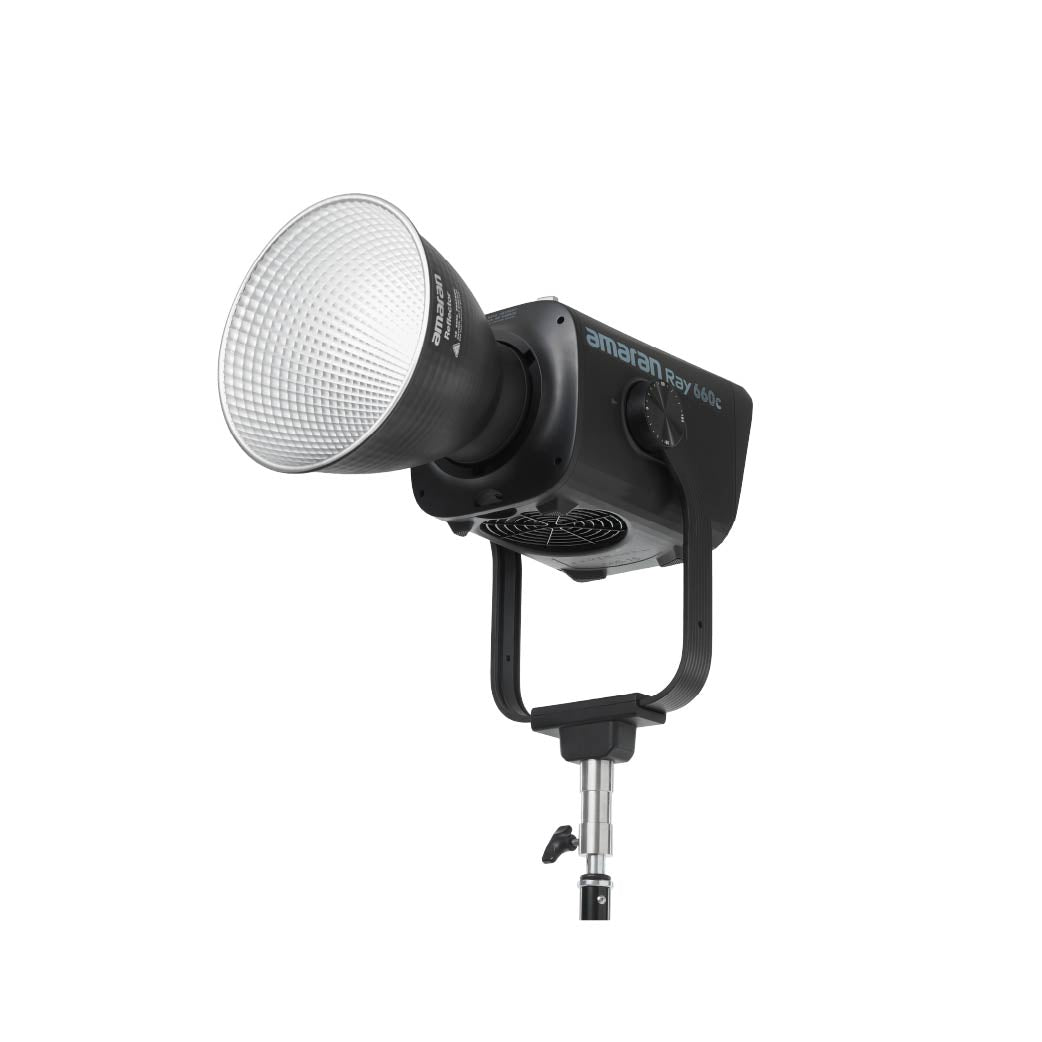

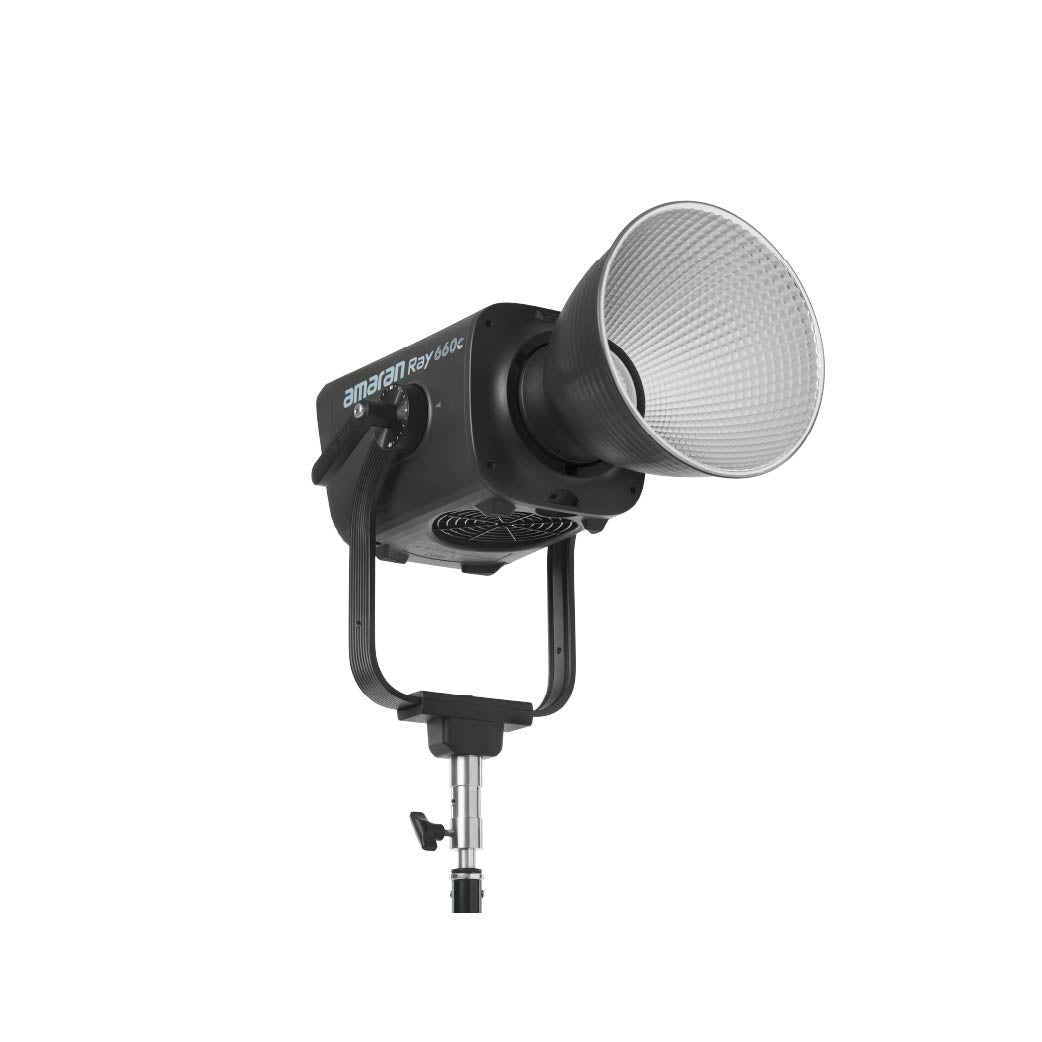

Bowens Mount Hyper Reflector
-
AC Power Cable (5m)
-
Blue Bowens Mount Protection Cover
-

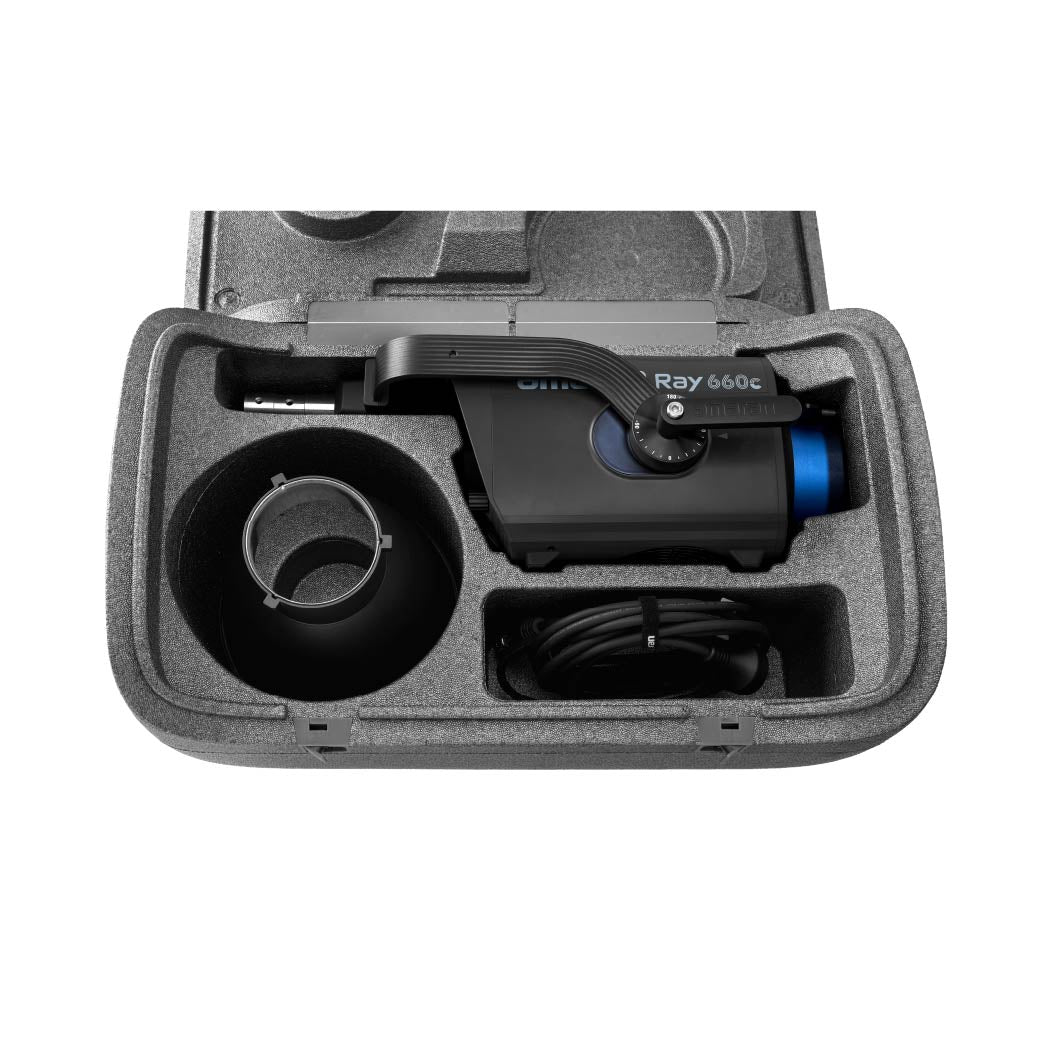

Ray 660c EPP Carrying Case
| Light Fixture | |
|---|---|
| Color Modes | Bi-Color CCT and Full RGB Tuning |
| Color Temperature | 2,300 to 10,000K (Standard) 1,800 to 20,000K (Expanded CCT+) |
| Color Accuracy Standard (@5600K) | CRI: 95+ TLCI: 95+ SSI (D56): 80 SSI (Tungsten): 87 TM-30 RF (Average): 94 TM-30 RG (Average): 100 |

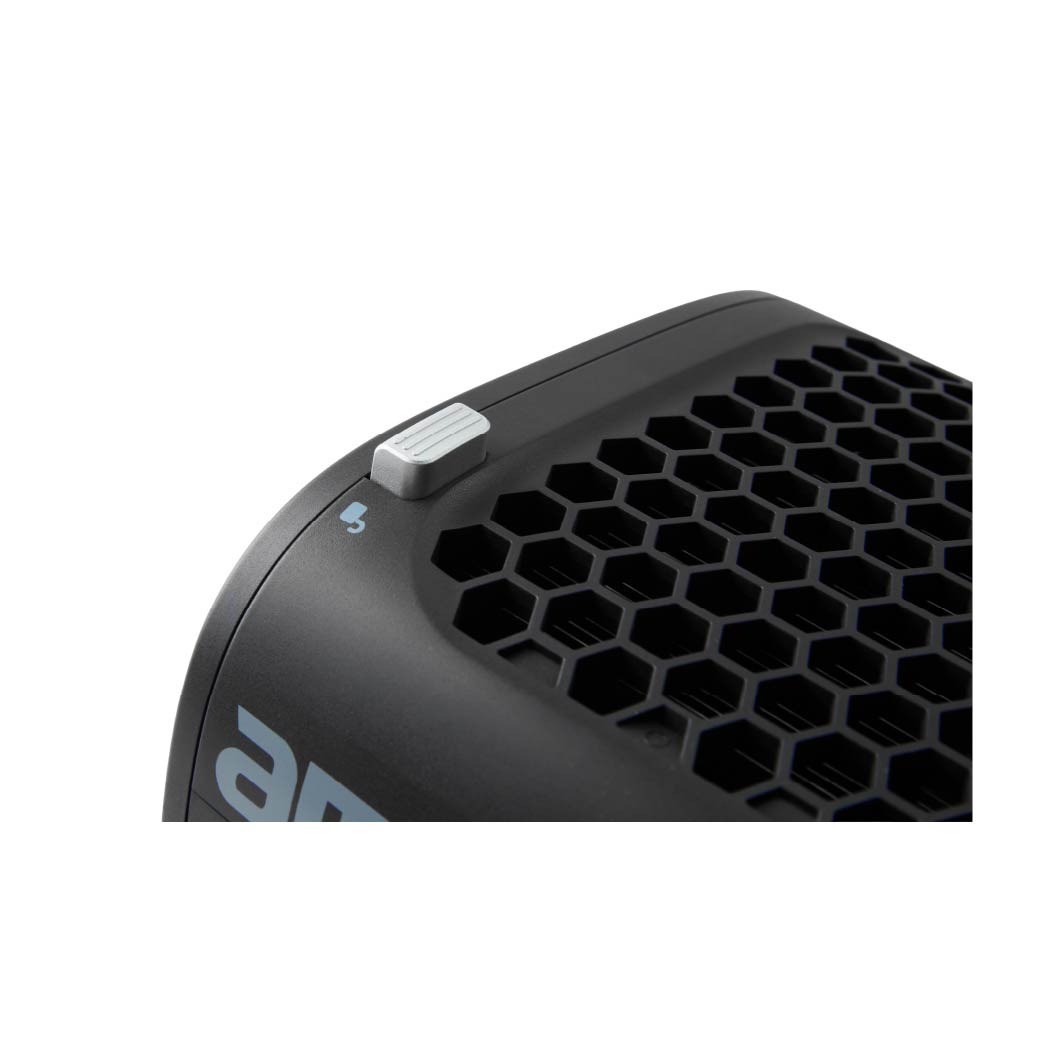

| Cooling System | Silent Active Cooling System |
| Dimming | Yes, 0 to 100% |
| Display | TFT LCD |
| Beam Angle | 70° Unmodified 45° with Included Reflector |
| Photometrics (No Reflector, 70º) | 2,300K 1m: 24,640 lux / 2,289 fc 3m: 2,860 lux / 266 fc 3,200K 1m: 36,300 lux / 3,372 fc 3m: 4,220 lux / 392 fc 4,300K 1m: 38,500 lux / 3,577 fc 3m: 4,470 lux / 415 fc 5,600K 1m: 37,900 lux / 3,521 fc 3m: 4,420 lux / 410 fc 6,500K 1m: 37,400 lux / 3,475 fc 3m: 4,350 lux / 404 fc 10,000K 1m: 35,600 lux / 4,150 fc 3m: 4,150 lux / 386 fc Red 1m: 5,790 lux / 538 fc 3m: TBD Green 1m: 22,350 lux / 2,076 fc 3m: TBD Blue 1m: 3,140 lux / 292 fc 3m: TBD |
| Photometrics (Hyper Reflector, 45º) | 2,300K 1m: 58,800 lux / 5,463 fc 3m: 5,870 lux / 545 fc 3,200K 1m: 86,900 lux / 8,073 fc 3m: 4,220 lux / 392 fc 4,300K 1m: 91,600 lux / 8,510 fc 3m: 9,180 lux / 853 fc 5,600K 1m: 90,400 lux / 8,398 fc 3m: 9,010 lux / 837 fc 6,500K 1m: 88,900 lux / 8,259 fc 3m: 8,860 lux / 823 fc 10,000K 1m: 84,400 lux / 7,841 fc 3m: 8,440 lux / 784 fc Red 1m: TBD 3m: TBD Green 1m: TBD 3m: TBD Blue 1m: TBD 3m: TBD |
| Front Accessory Mount | Bowens S |
| Lumens | 45,904 lumens |
| Lighting FX | Paparazzi, Fireworks, Lightning, Faulty Bulb, TV, Pulsing, Strobe, Explosion, Welding, Cop Car, Party Lights & Fire |
| Fixture Dimensions | 11.79 x 9.49 x 16.54" / 29.9 x 24.1 x 42.0cm |
| Case Dimensions | 23.5 x 13.98 x 12.6" / 59.7 x 35.5 x 32cm |
| Fixture Weight | 12.57 lbs / 5.7kg |
| Total Weight with Case | 16.8 lbs / 7.622kg |
| Operating Temperature | 14 ~ 104°F / -10 ~ 40°C |
| Interface and Connection | |
|---|---|
| Control Methods | On-board, amaran App, DMX2 |
| Wireless Control | Bluetooth (amaran App) |
| Bluetooth Operating Range | ≤ 262.5' / ≤ 80m |
| Mounting | |
|---|---|
| Fixture Mount | 1 x 5/8" Receiver |
| Power | |
|---|---|
| Power Source | AC Adapter, External Battery (Not Included) |
| Max Power Consumption | 750W |
| Max Power Output | 660W |
| Operating Voltage | Fixture: DC 48V / 7.5A AC Power Supply 100V ~ 240V / 2.5A / 50-60 Hz |
