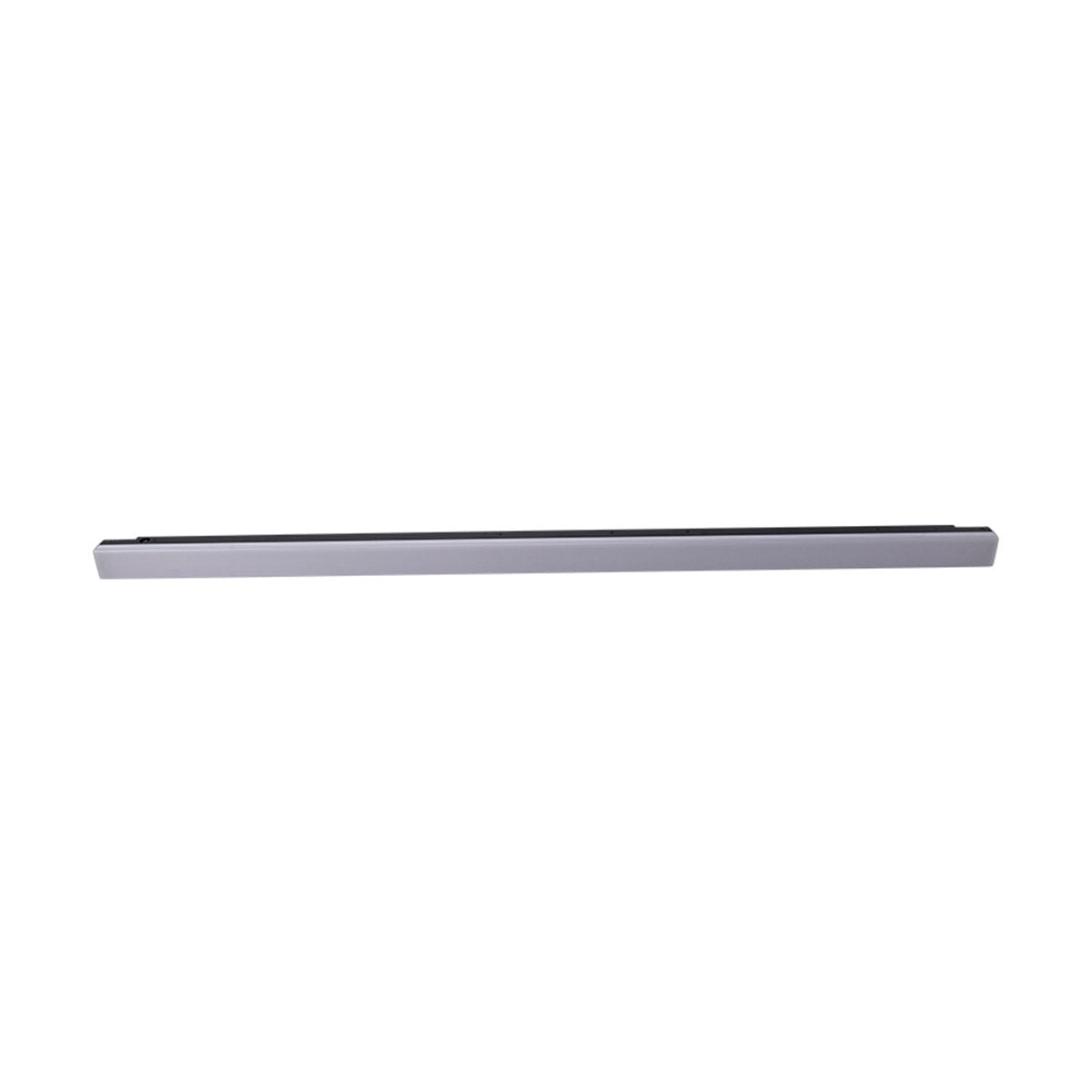

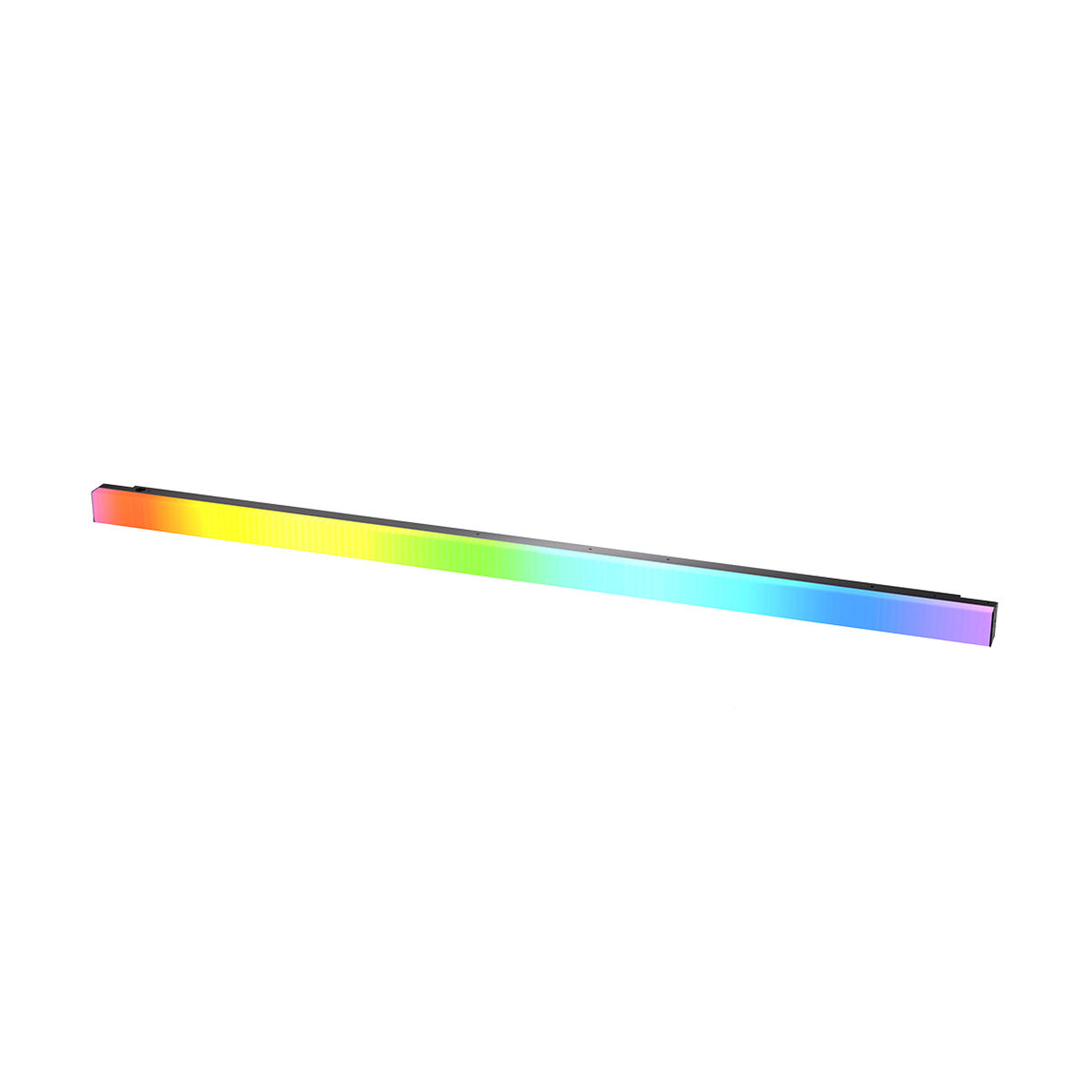

Aputure INFINIBAR PB12 - RGB LED Light Bar (4')

IN STOCK
AputureSKU: APL0300A1G
No reviews

Price:
Sale price$639.00
Configurations

  • Infinite Blending Design to Reduce Visible Gaps When Connecting Multiple Lights
  • 96 Individual Pixel Lighting Zones
  • Approx. 80 mins Run Time @ Max Output
  • Save up to 10 Custom FX and 10 Music FX
  • Wireless Sidus Link App Control
  • 16 Built-in Lighting FX Including: Party II, Cop Car III, Pixel Chase, Rainbow, Pixel Fire, etc.

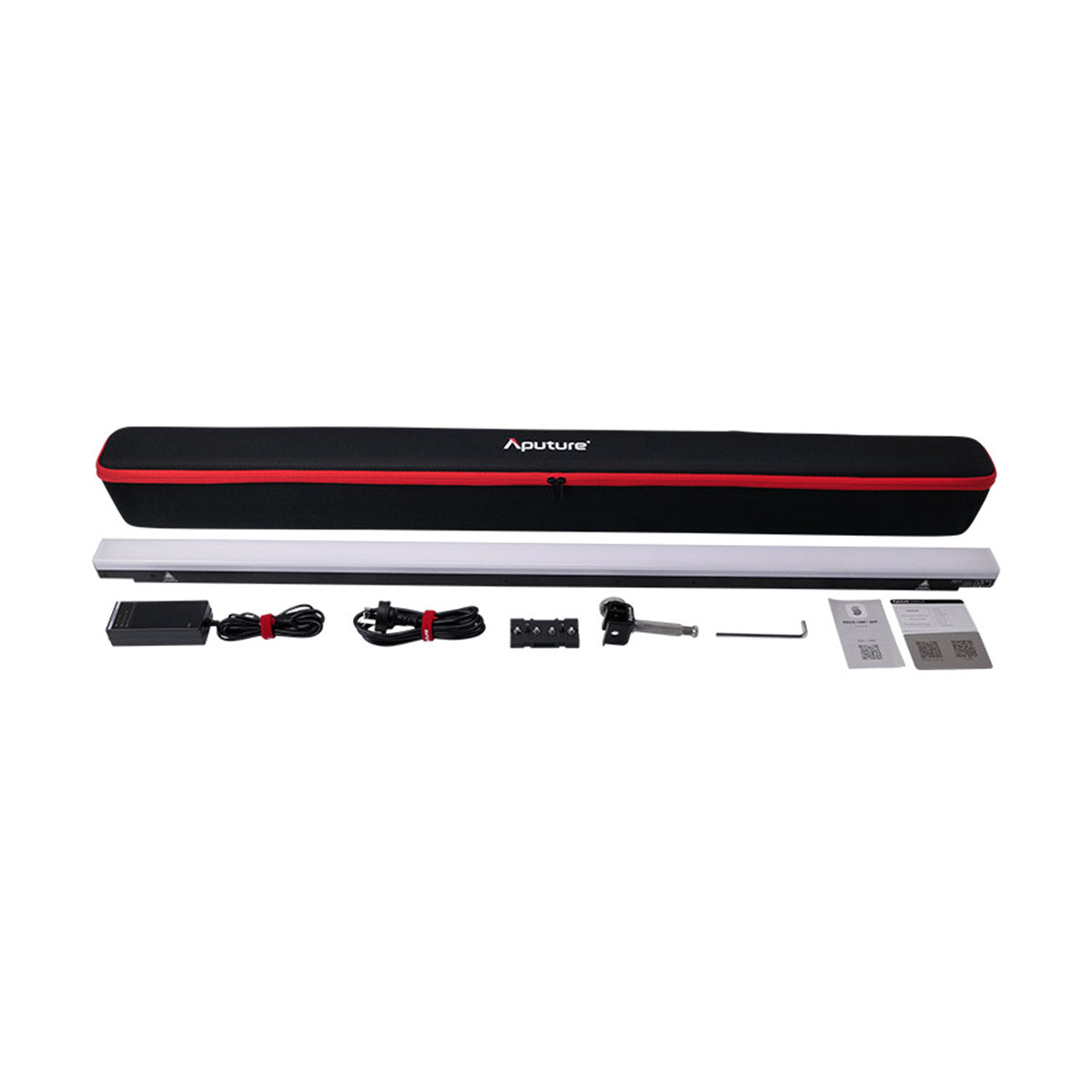

  • INFINIBAR PB12 - RGB LED Light Bar (4')

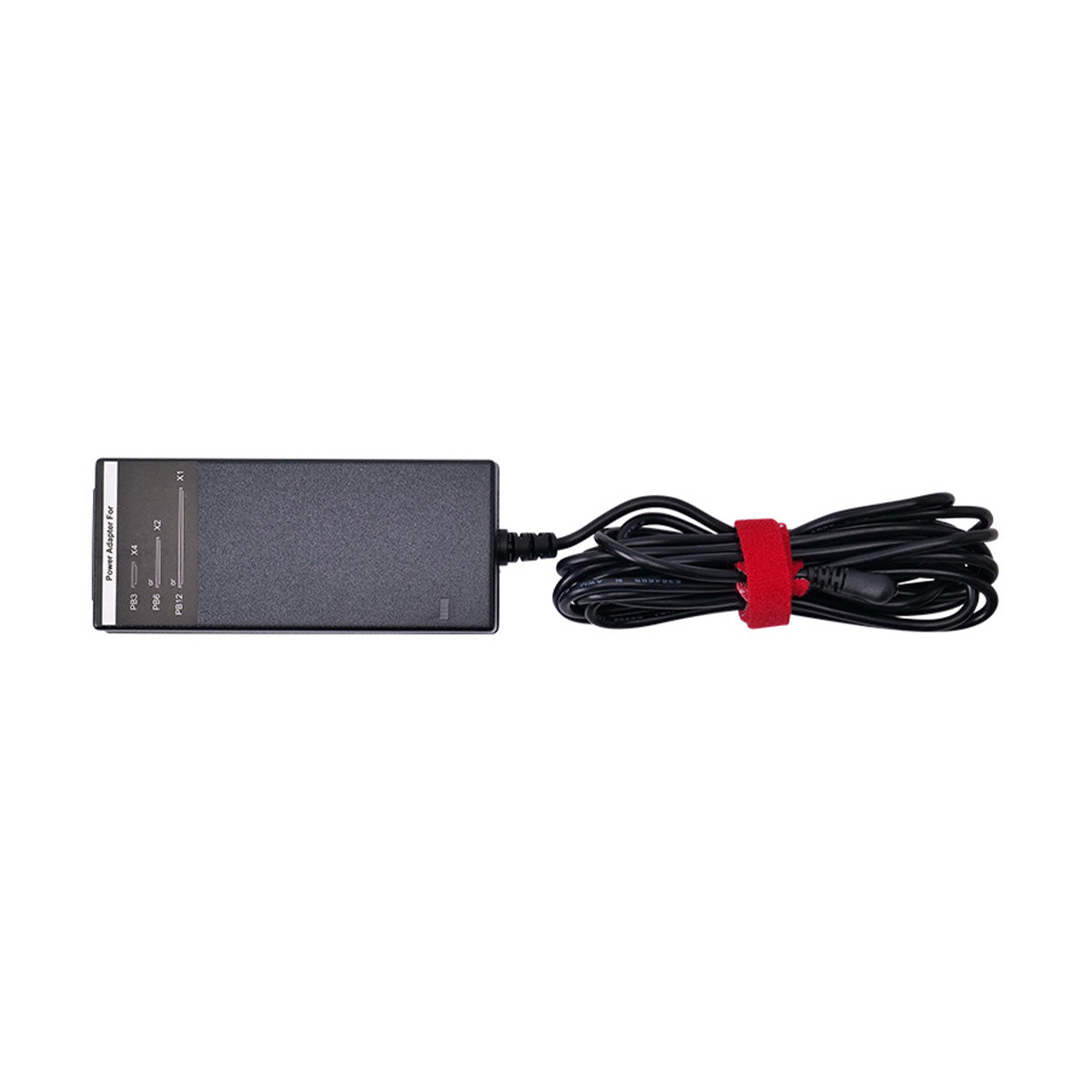

  • 48W DC Power Adapter (9.8')

  • AC Locking Power Cable (4.9')

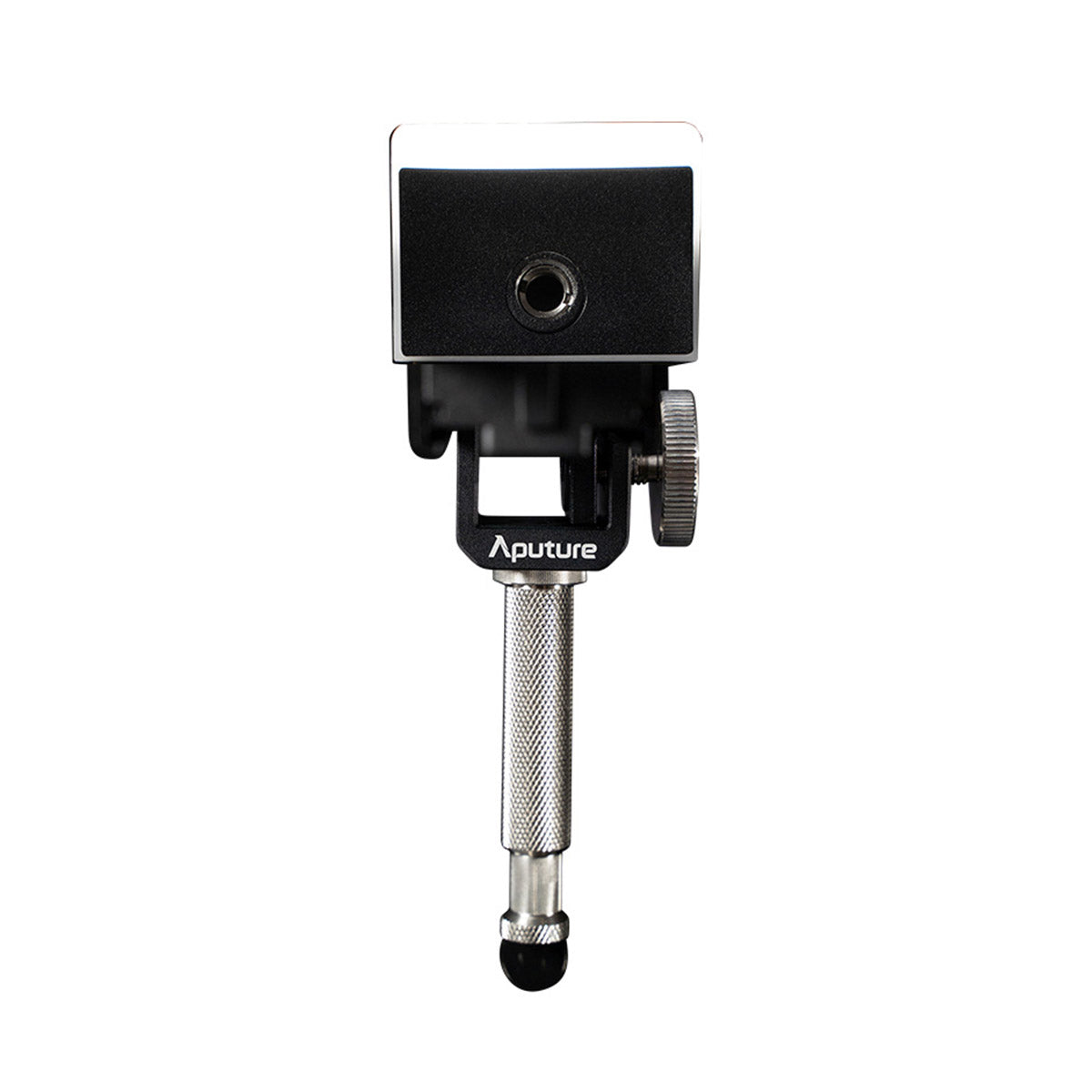

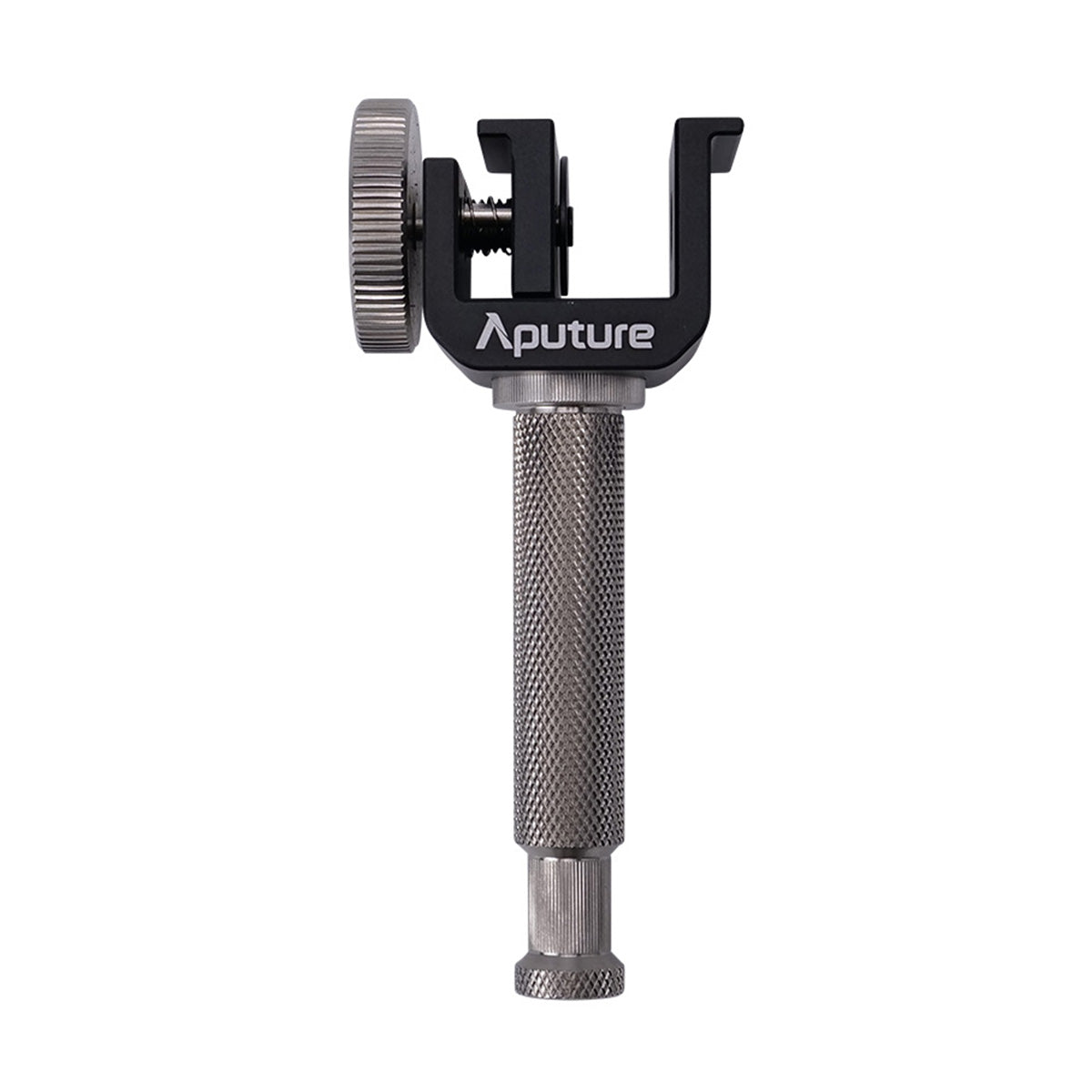

  • INFINIBAR Clamp to Baby Pin Adapter

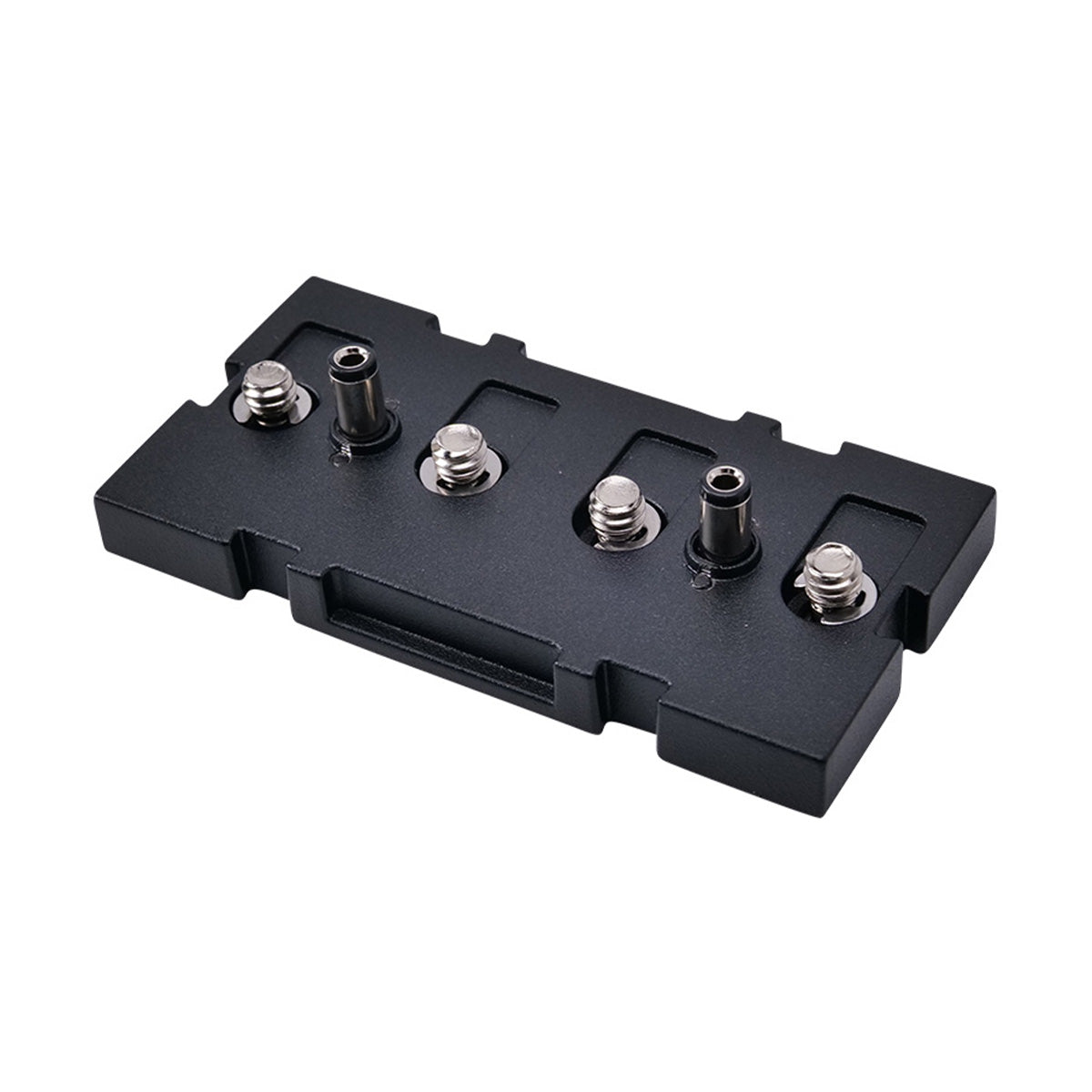

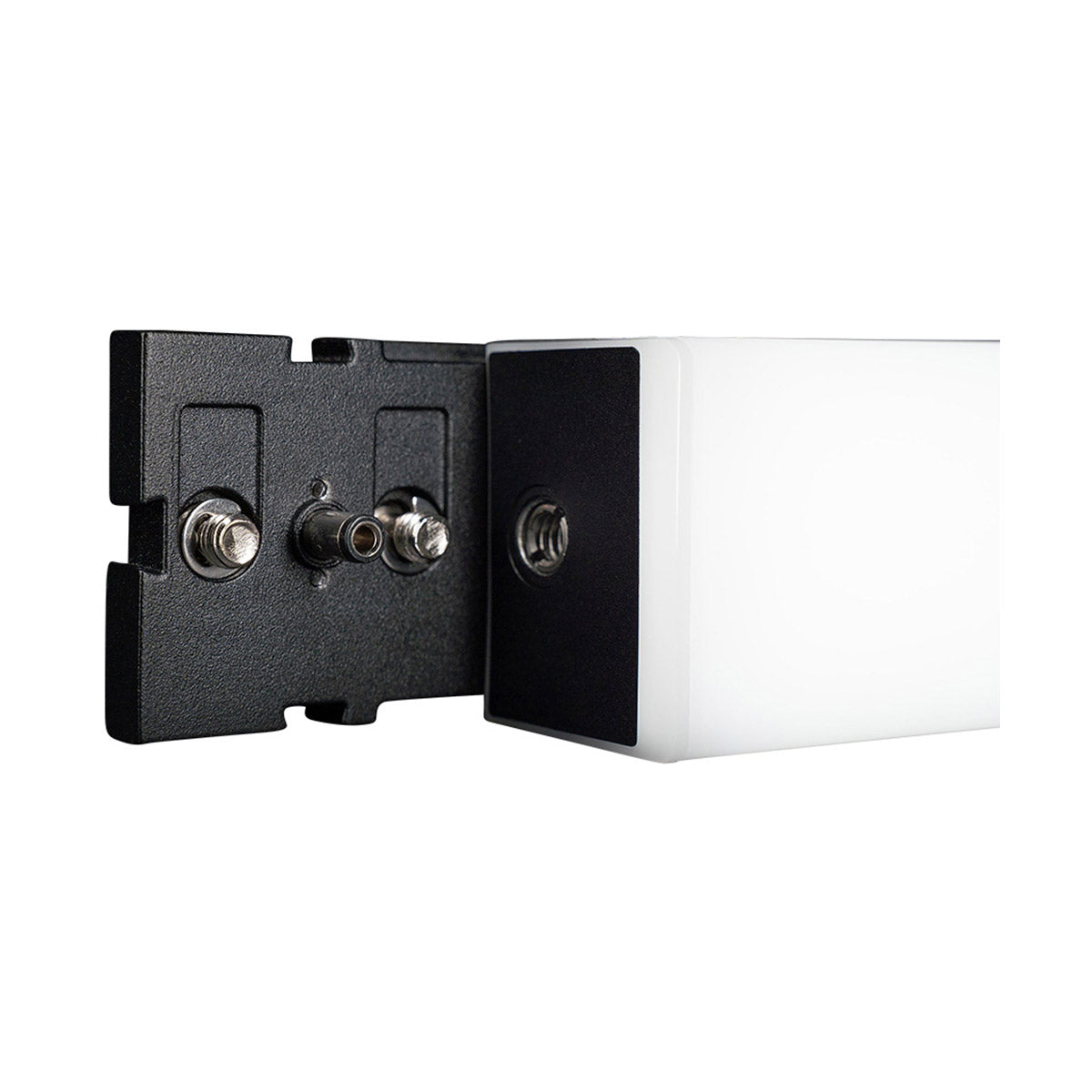

  • Straight Connector for INFINIBAR LED Light Bars
  • Magnetic Spacer x 2

  • 5mm Hex Wrench

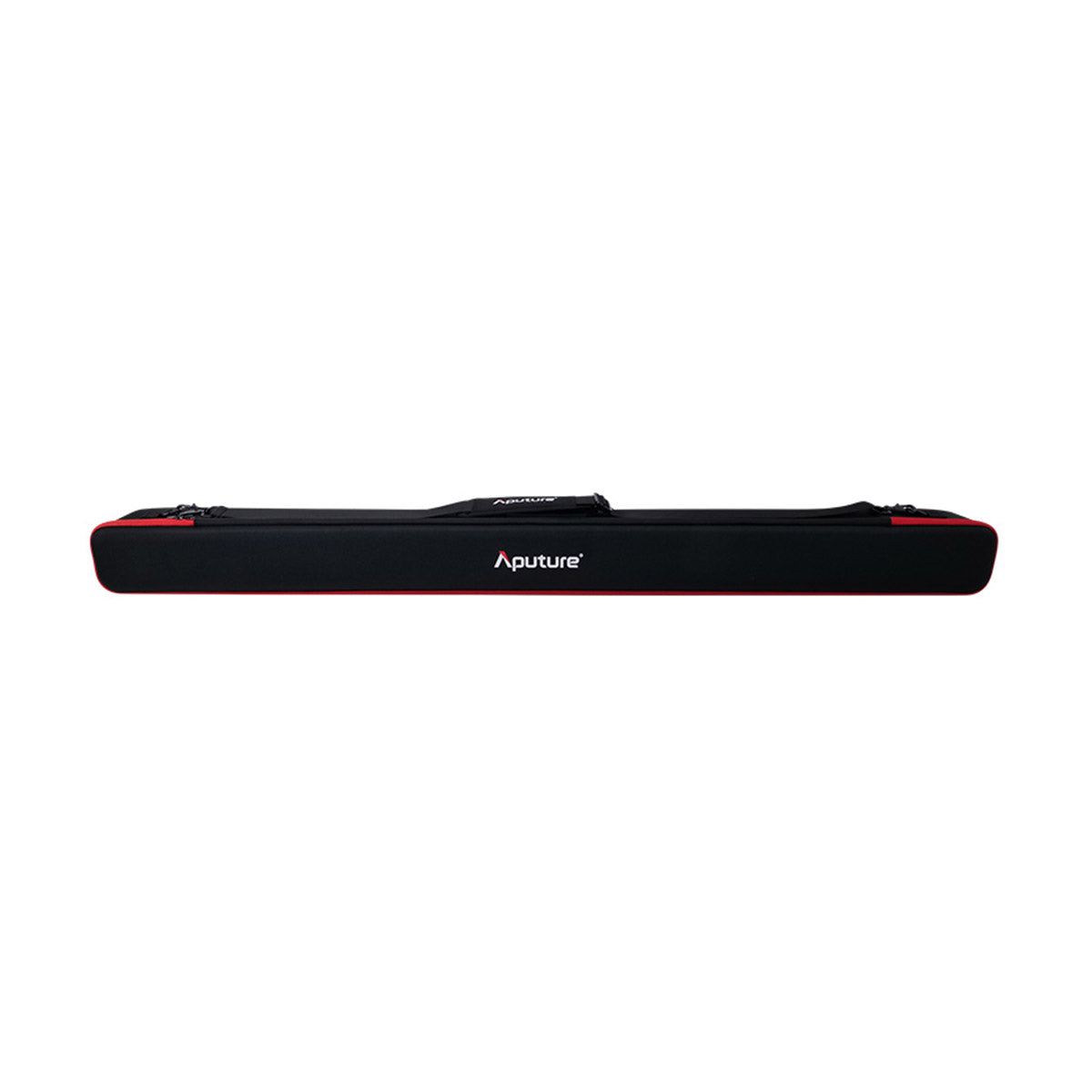

  • Carrying Case

  • Limited 1-Year Warranty (Extendable to 2-Years)

Related Products

Description

Light Fixture
Color ModesBi-Color CCT and Full RGB Tuning
Color Temperature2,000 to 10,000K
Color Accuracy Standard (@5600K)CRI: 96+
TLCI: 98+
CQS: 96
SSI (D56): 74
SSI (Tungsten): 85
TM-30 RF (Average): 94
TM-30 RG (Average): 103
Pixel Mapping96 Pixels
Cooling SystemPassive Cooling
DimmingYes, 0 to 100%
DisplayOLED
Photometrics2000K
0.5m: 975 lux / 91 fc
1m: 350 lux / 33 fc
3200K
0.5m: 1,410 lux / 131 fc
1m: 542 lux / 50 fc
5600K
0.5m: 1,600 lux / 149 fc
1m: 593 lux / 55 fc
10,000K
0.5m: 1,510 lux / 140 fc
1m: 563 lux / 52 fc
Red
0.5m: 227 lux / 21 fc
1m: 85 lux / 8 fc
Green
0.5m: 793 lux / 74 fc
1m: 297 lux / 28 fc
Blue
0.5m: 131 lux / 12 fc
1m: 49 lux / 5 fc
Lumens2,077 lm
Lighting FXFireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
Pixel FXColor Fade, Color Cycle, One Pixel Chase, Two Pixel Chase, Three Pixel Chase, Rainbow, Pixel Fire
Fixture Dimensions (L x W x H)47.4 x 1.8 x 1.7" / 120.4 x 4.5 x 4.3 cm
Fixture Weight4.32 lb / 1.96 kg
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Connectors
Charging InputEdison Plug to Barrel / Coax AC to DC Adapter
Control MethodsOn-board, Sidus Link App, DMX/RDM, LumenRadio CRMX
Wireless ControlBluetooth 5.0 (Sidus Mesh), LumenRadio
Bluetooth Operating Range≤ 262.5' / ≤ 80m
Mounting

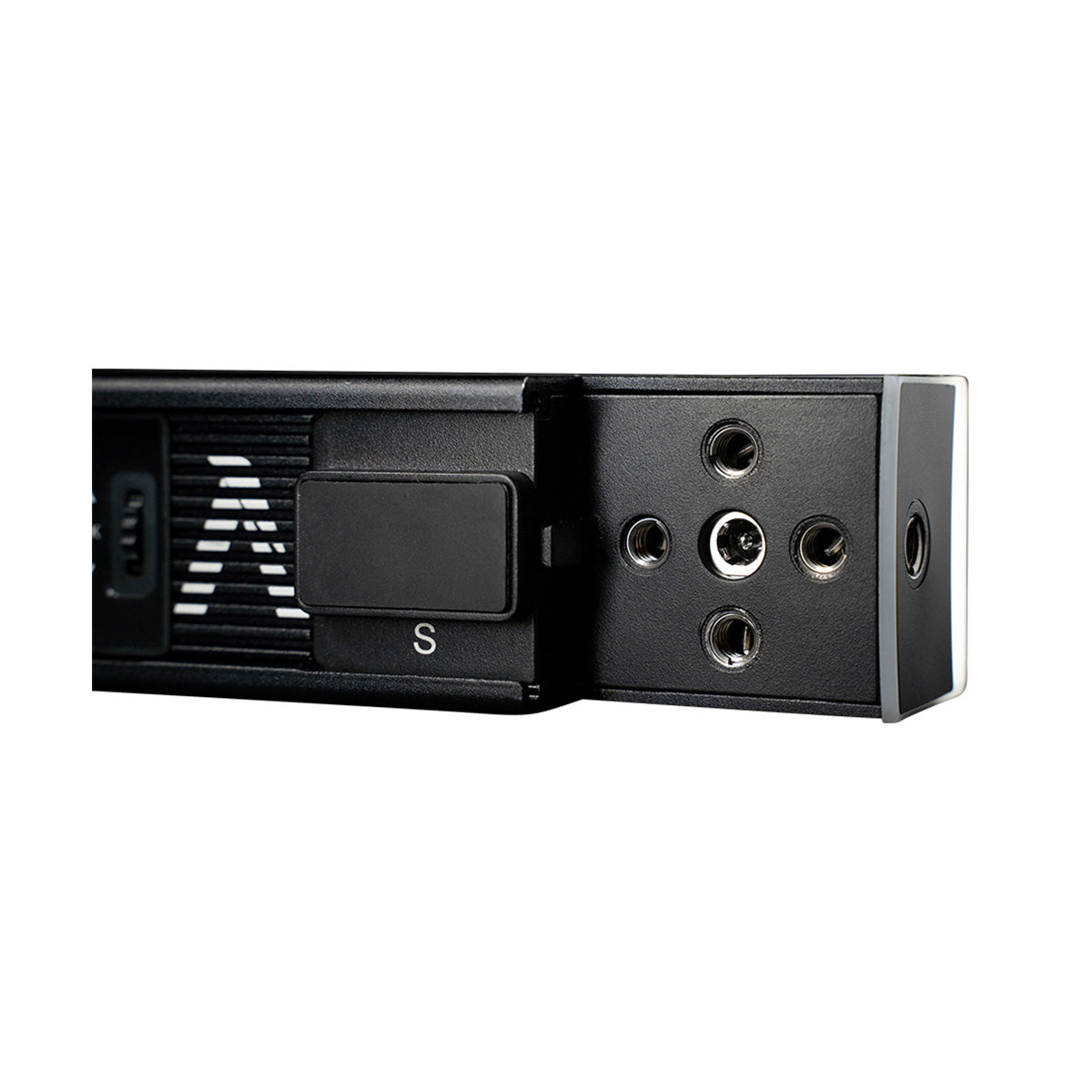

Fixture Mount180º rotatable plastic end caps with built-in magnets for adjustable positioning
3/8-16in Mounting points on each end cap for additional rigging options
Power
Power SourceAC Adapter, Internal Battery
Battery Capacity7.4V, 8000mAh, 59.2Wh
Battery RuntimeApprox. 80 Mins @ Max Output
Charge TimeApprox. 120 Mins (24V/2.67A)
Operating Voltage & Current (Fixture)24V, 1.8A
Operating Voltage & Current (Power Supply)100V-240V 50/60Hz, 1.5A
Max Power Output27W
Max Power Consumption (Fixture)36.5W
Max Power Consumption (Power Supply)40W
