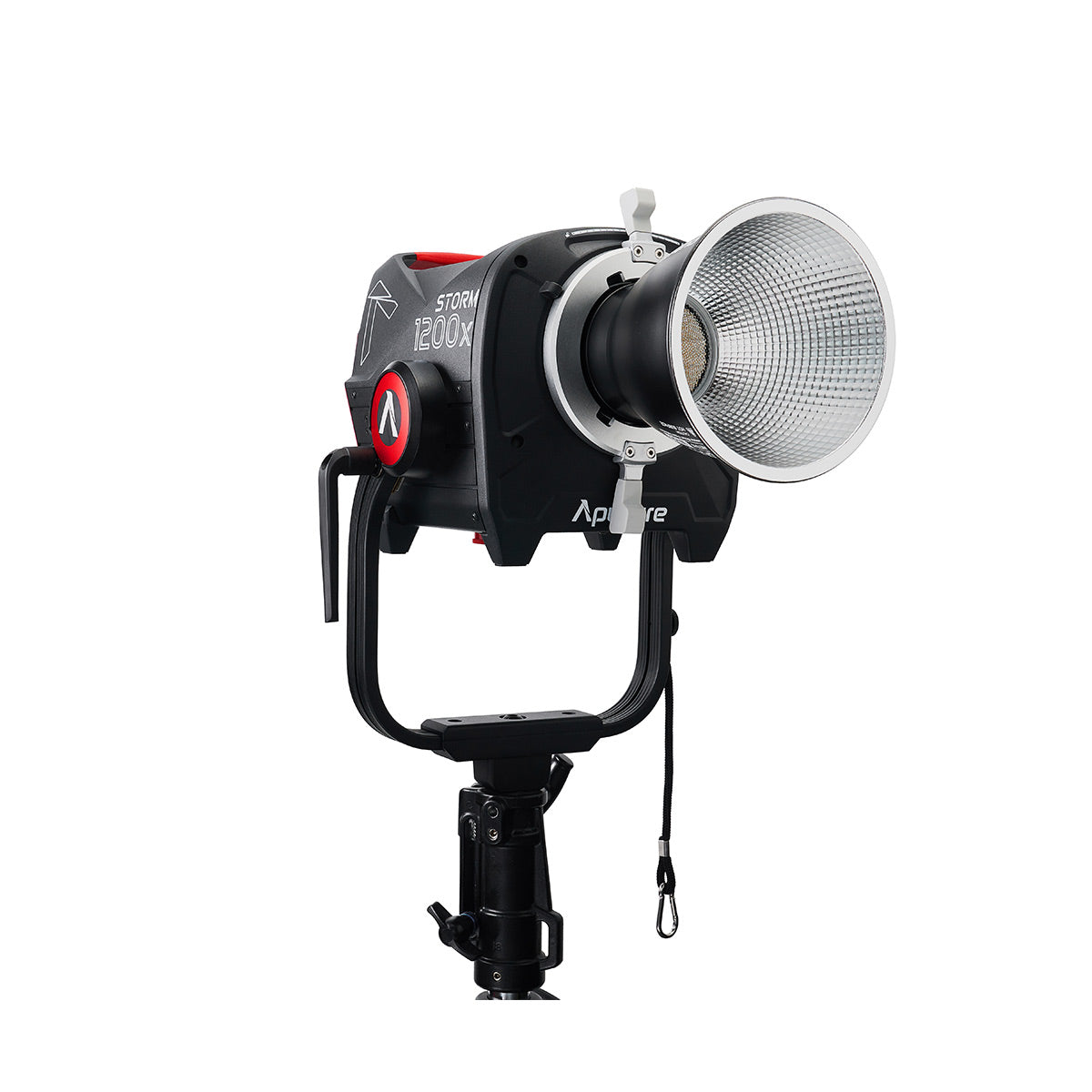

The Aputure Storm 1200x: A Powerhouse of Precision Lighting
The Aputure Storm 1200x sets a new standard for professional lighting, designed for the most demanding filmmakers, photographers, and videographers. This 1,200W bi-color LED fixture is the first in the Storm family, featuring the revolutionary BLAIR LED chipset, offering unparalleled brightness and color fidelity. Whether you’re shooting a high-end film production or a small crew video project, the Storm 1200x delivers precision, versatility, and power in every frame.

Breakthrough Technology for Ultimate Creative Control
At the heart of the Storm 1200x is Aputure’s proprietary BLAIR chipset, combining multiple light spectrums, including blue, lime, amber, indigo, and red diodes, to provide exceptional color accuracy. With an astounding 24,000 lux at 3 meters and a CCT range of 2,500K to 10,000K, this light offers the flexibility needed to mimic both natural daylight and tungsten lighting perfectly. The built-in green-magenta correction ensures that your lighting environment is precisely matched to your creative vision. The subtle but impactful difference in color quality between the Storm 1200x and traditional bi-color LEDs is undeniable.

Unmatched Versatility in Any Shooting Environment

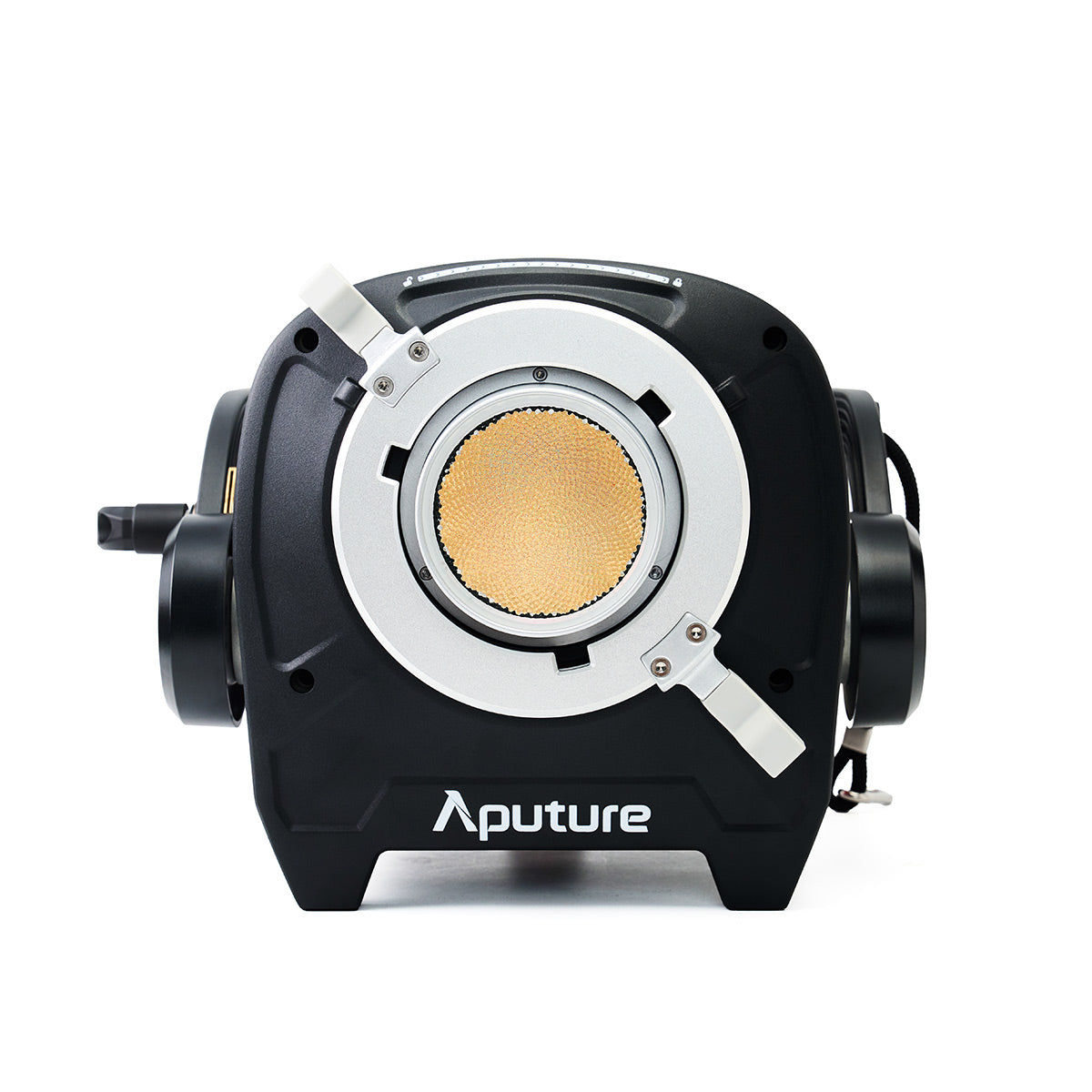

The Storm 1200x is not just about power; it's about precision. Offering stepless dimming from 0.1% to 100%, you can achieve the exact light intensity required without flicker, even at ultra-low levels. Its rugged IP65 rating ensures the fixture performs in all conditions, rain or shine, making it the perfect choice for any location. The ProLock Bowens mount allows for secure and seamless accessory integration, empowering users to easily enhance their setup with light modifiers and achieve their creative goals.

Seamless Workflow Integration

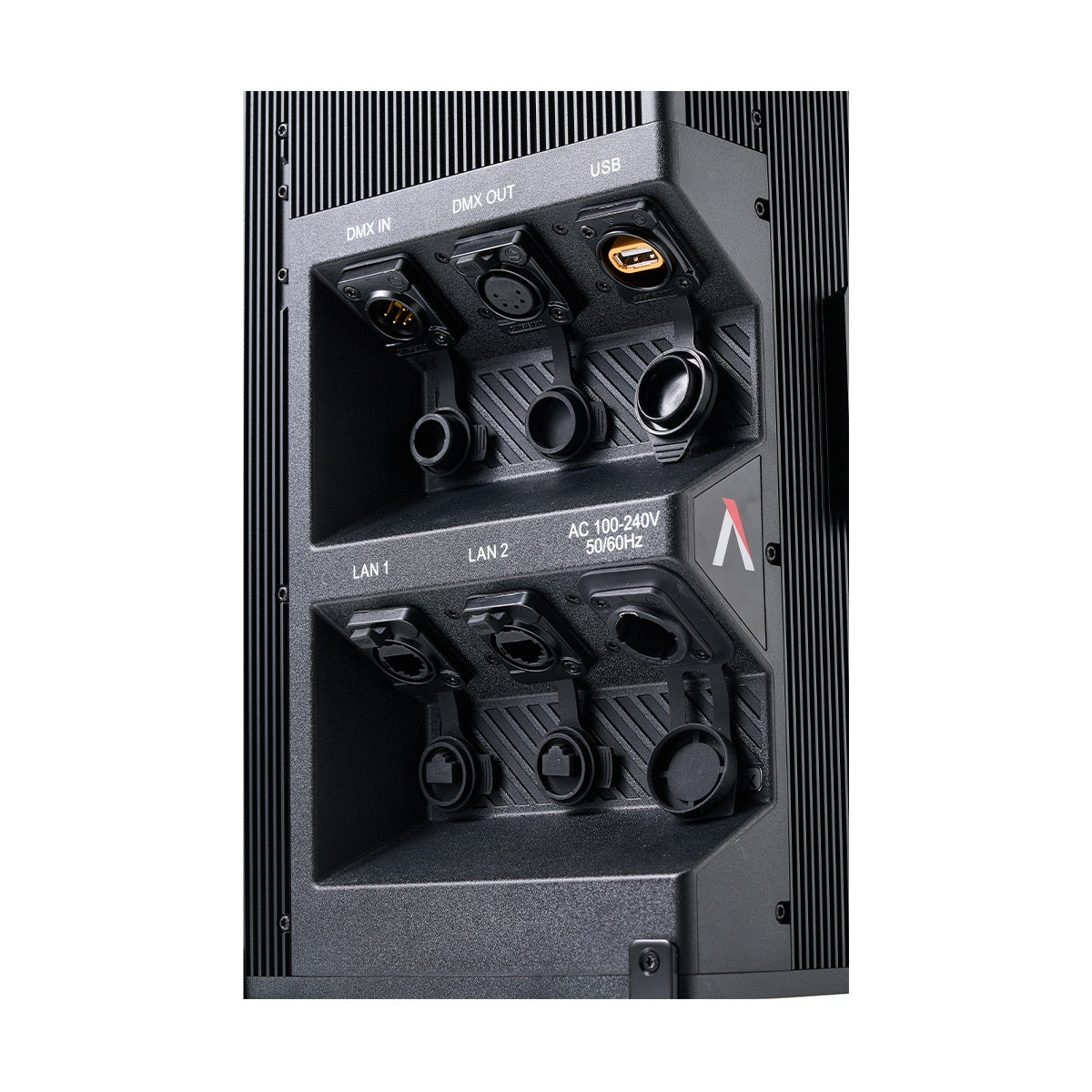

With advanced lighting control protocols, including DMX512, LumenRadio CRMX, Art-net, and Sidus Link App control, the Storm 1200x is built to be fully integrated into professional lighting setups. No matter the complexity of the shoot, the Storm 1200x adapts to your workflow, offering real-time, reliable control from the lamp head or your lighting console. It’s engineered to deliver maximum performance in every scenario, from high-speed photography to cinematic film production.
-

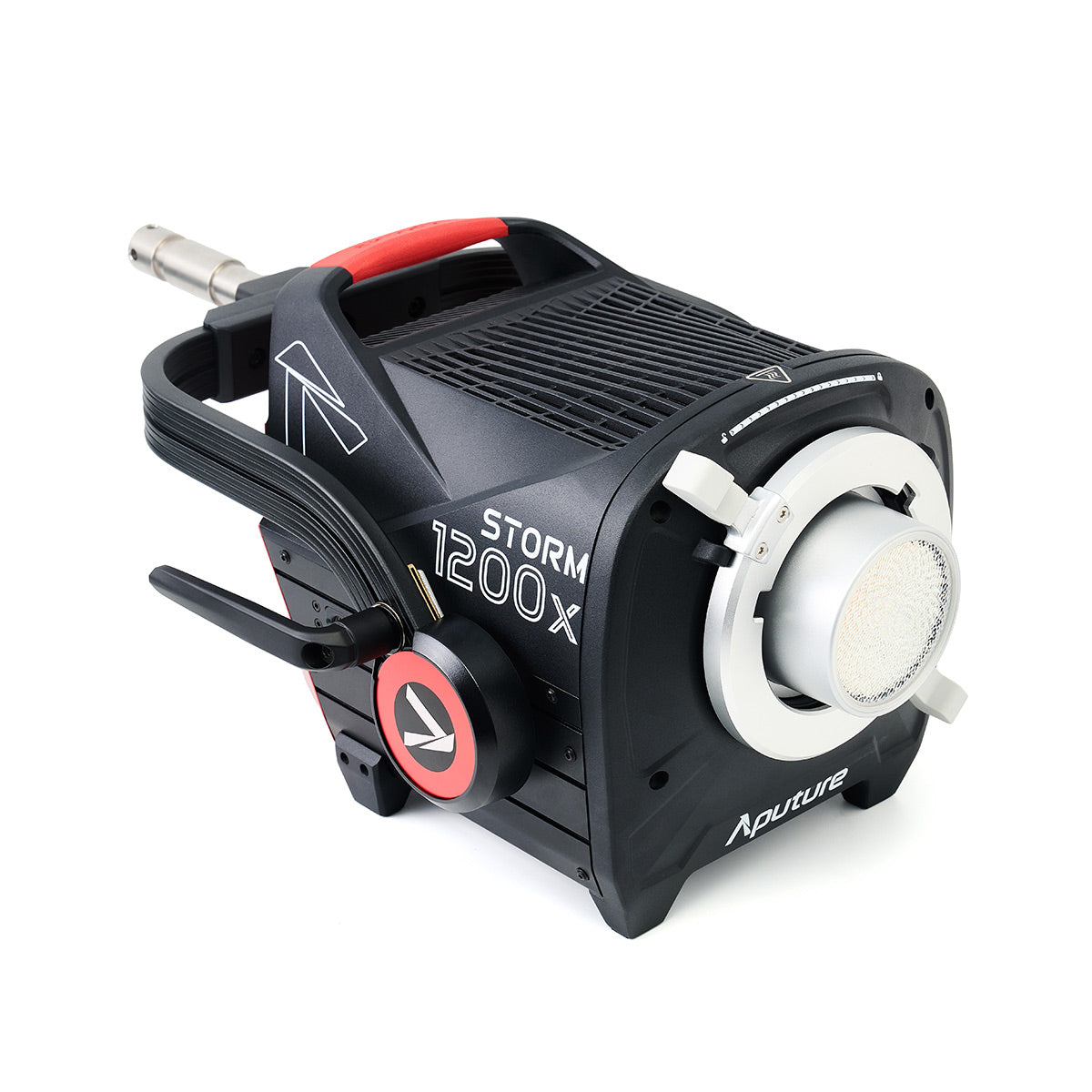

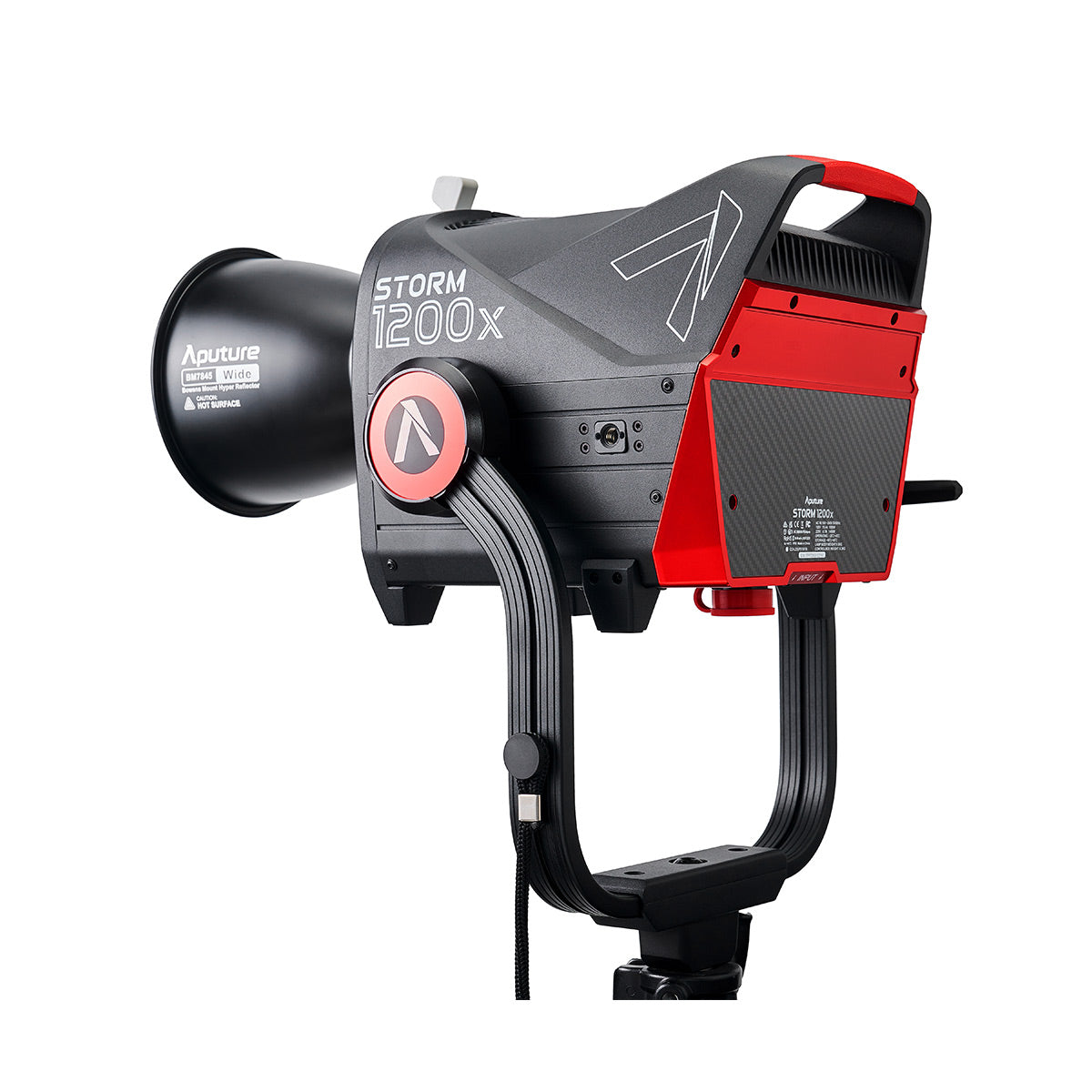

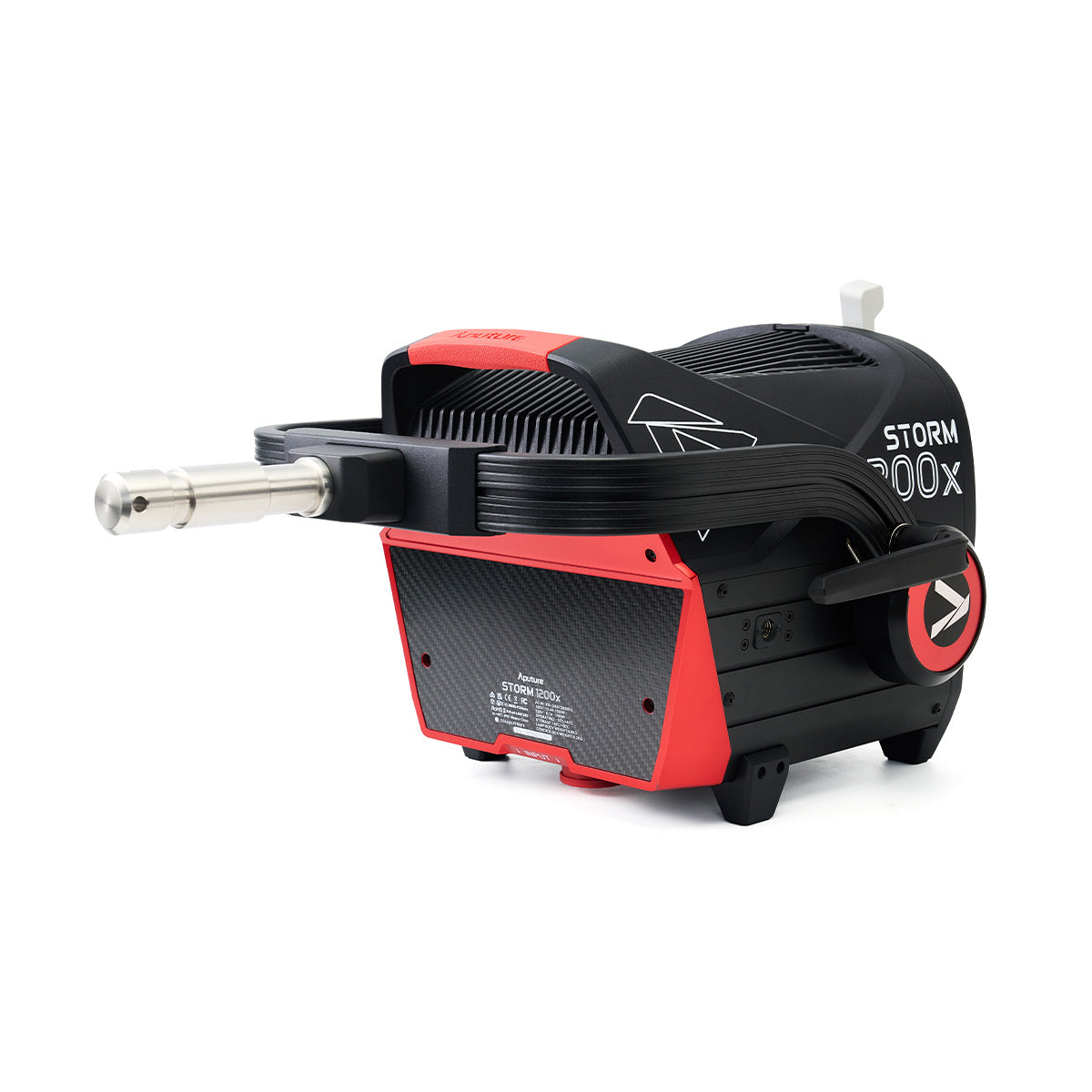

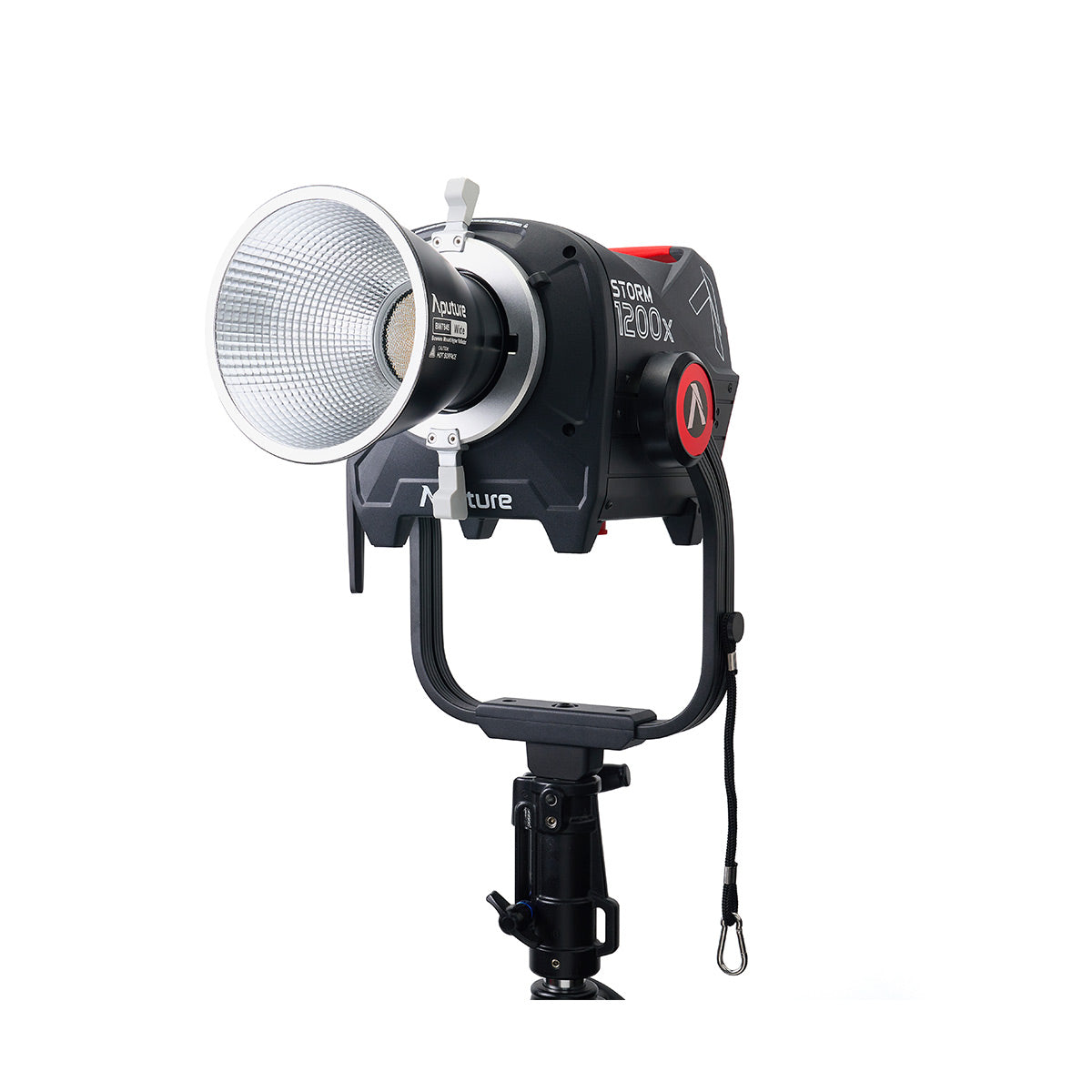

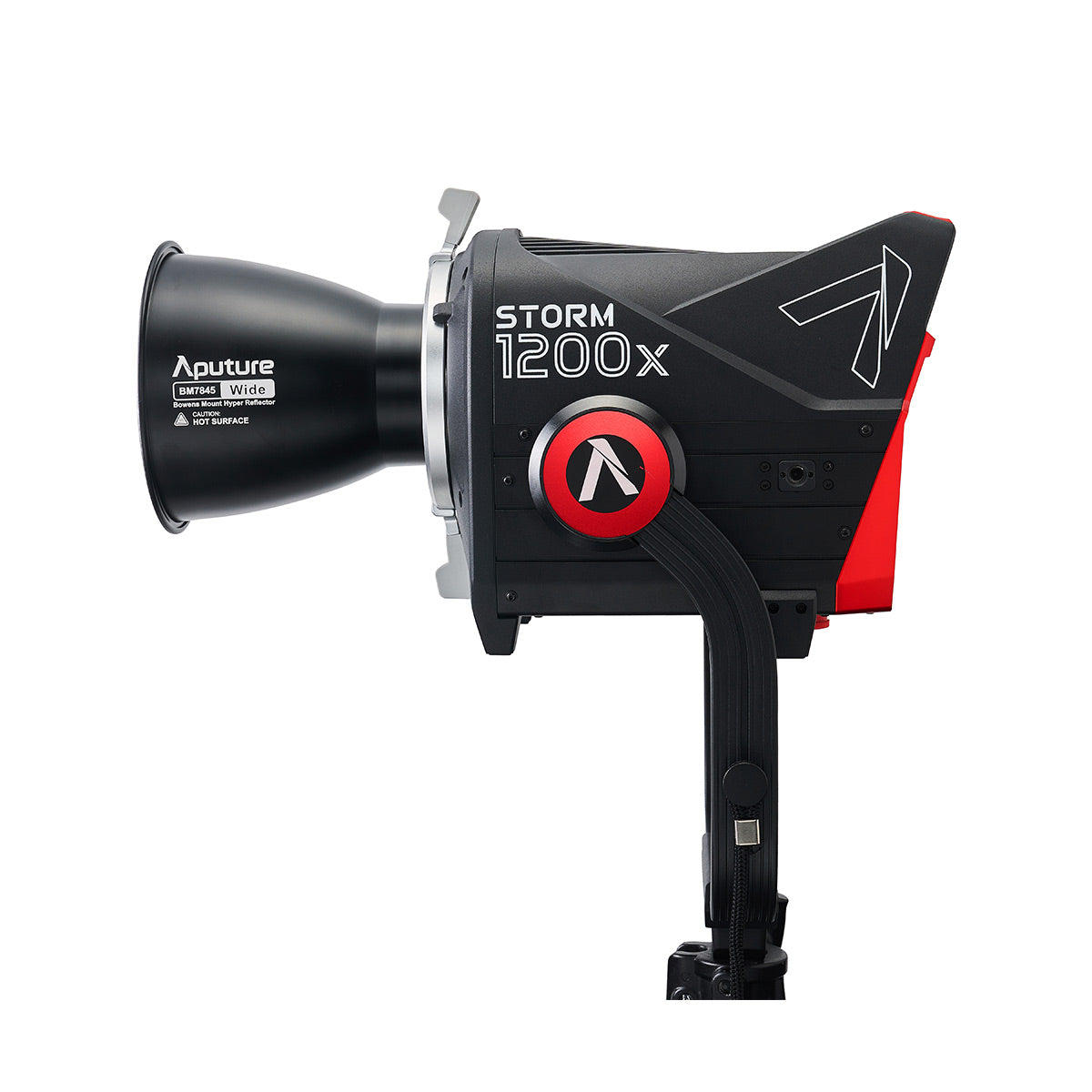

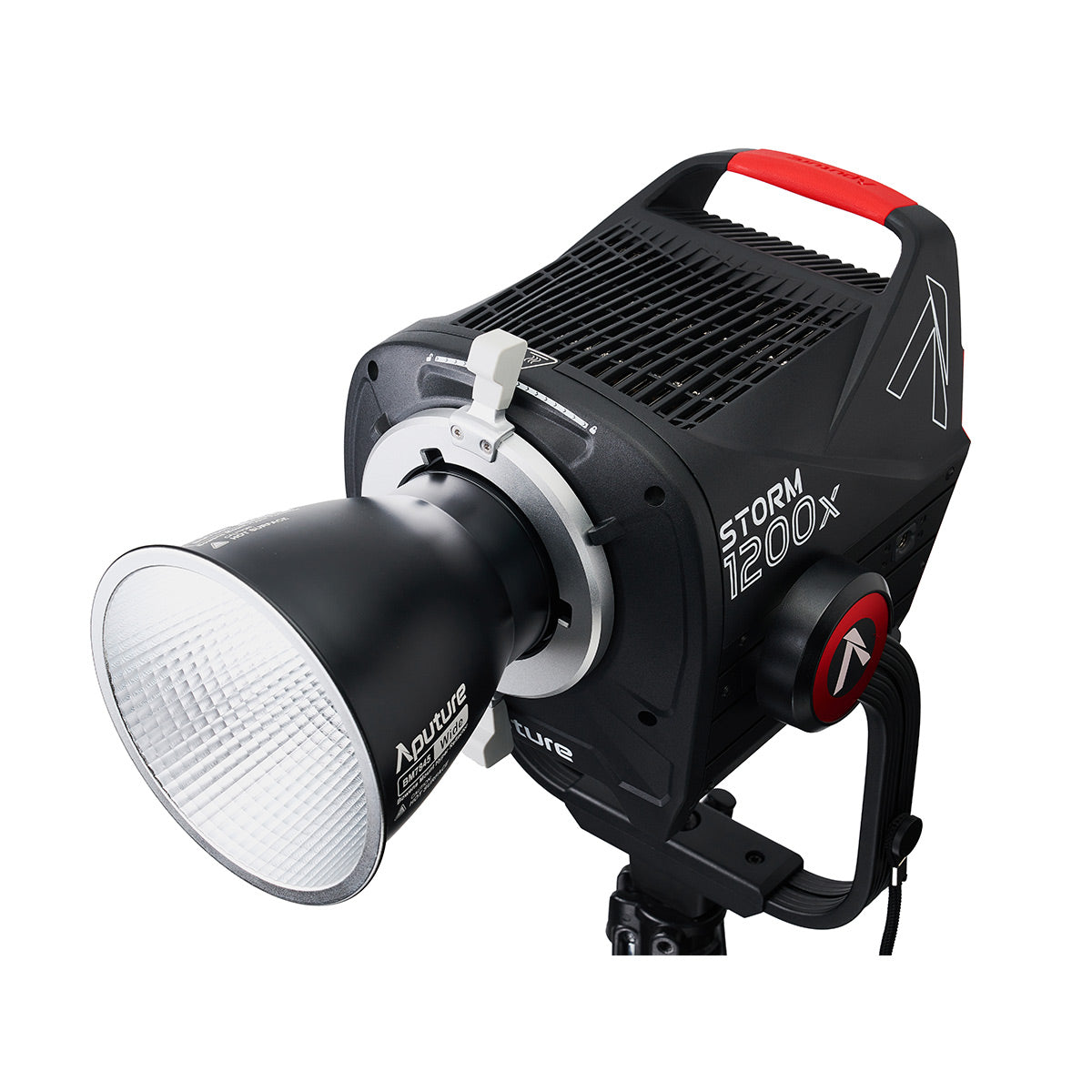

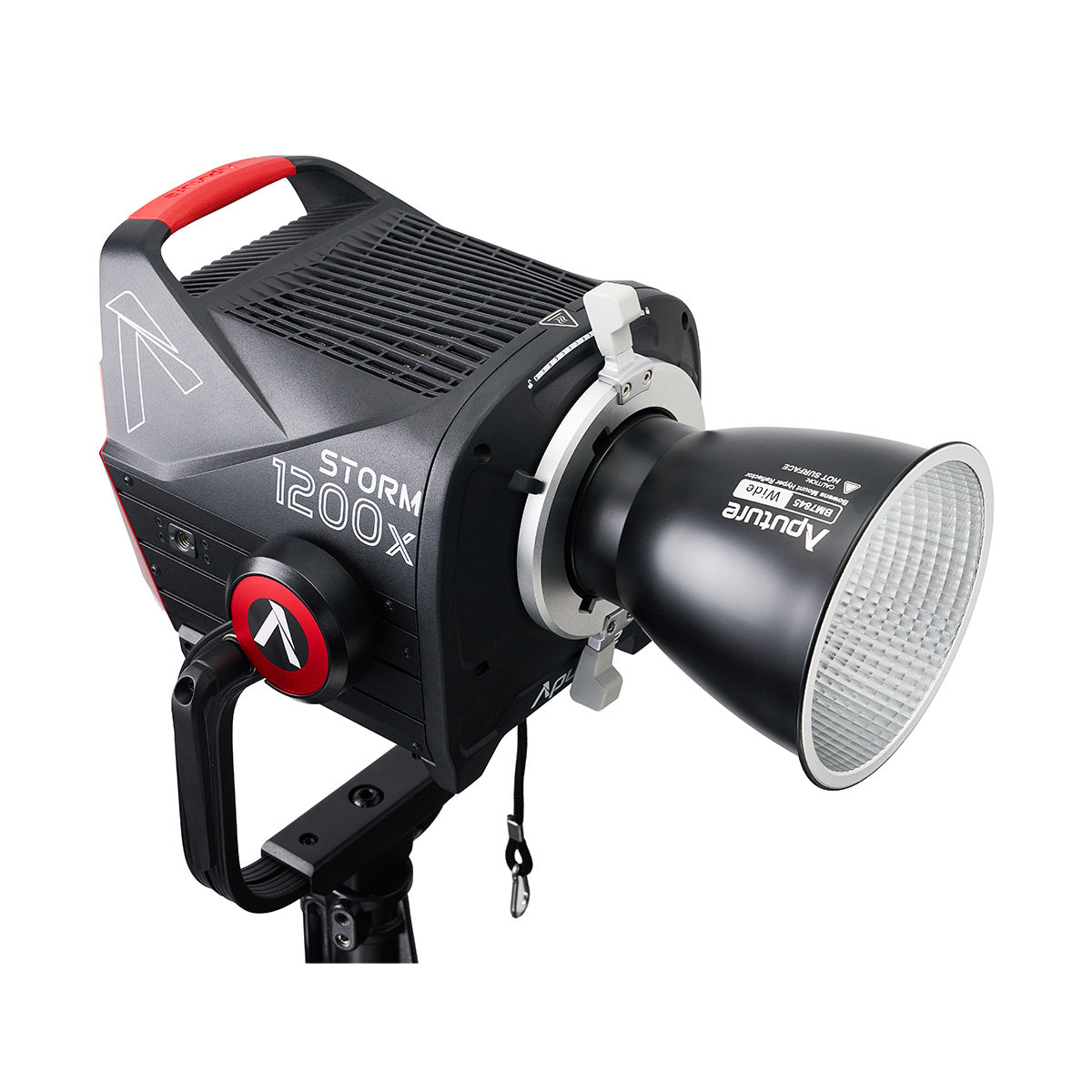

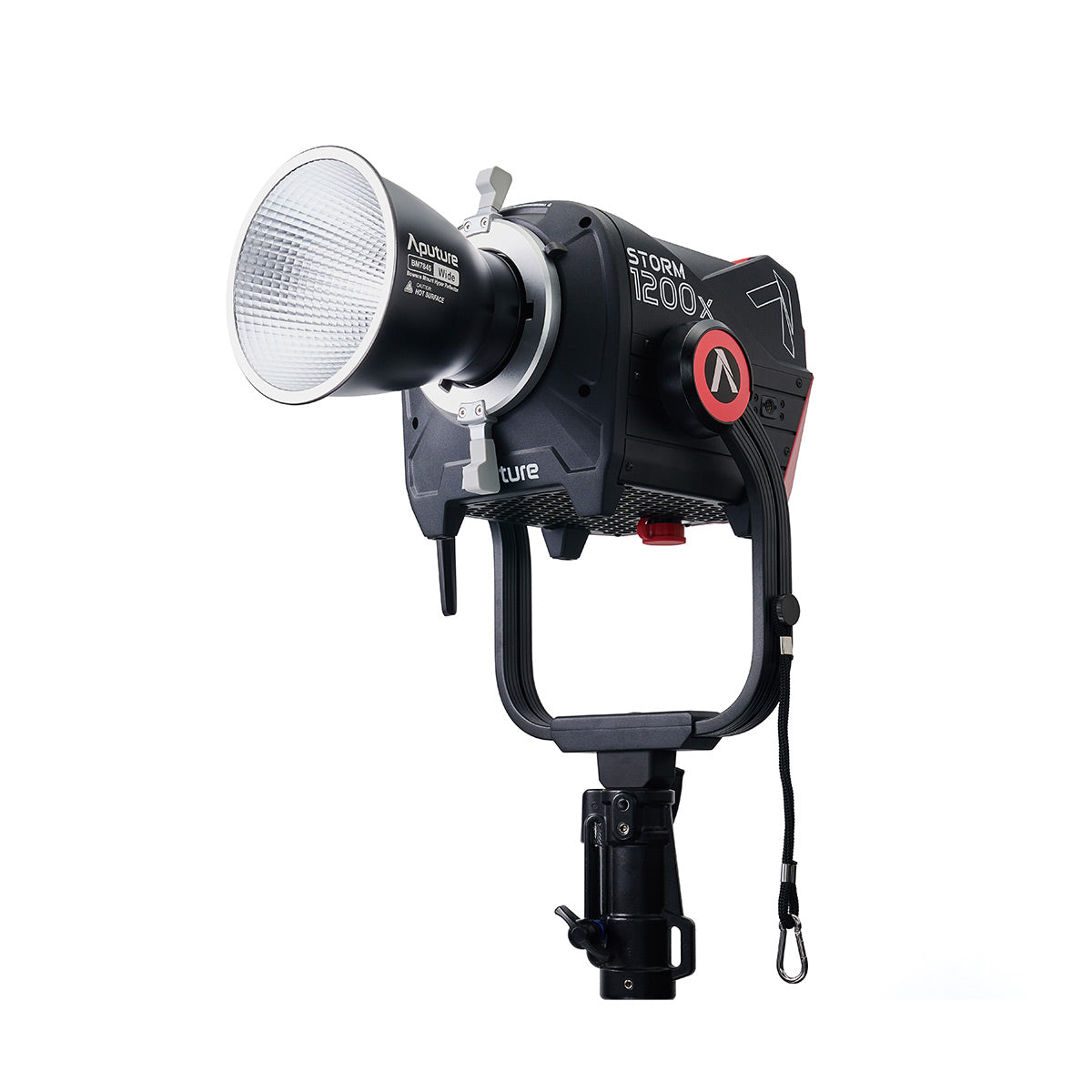

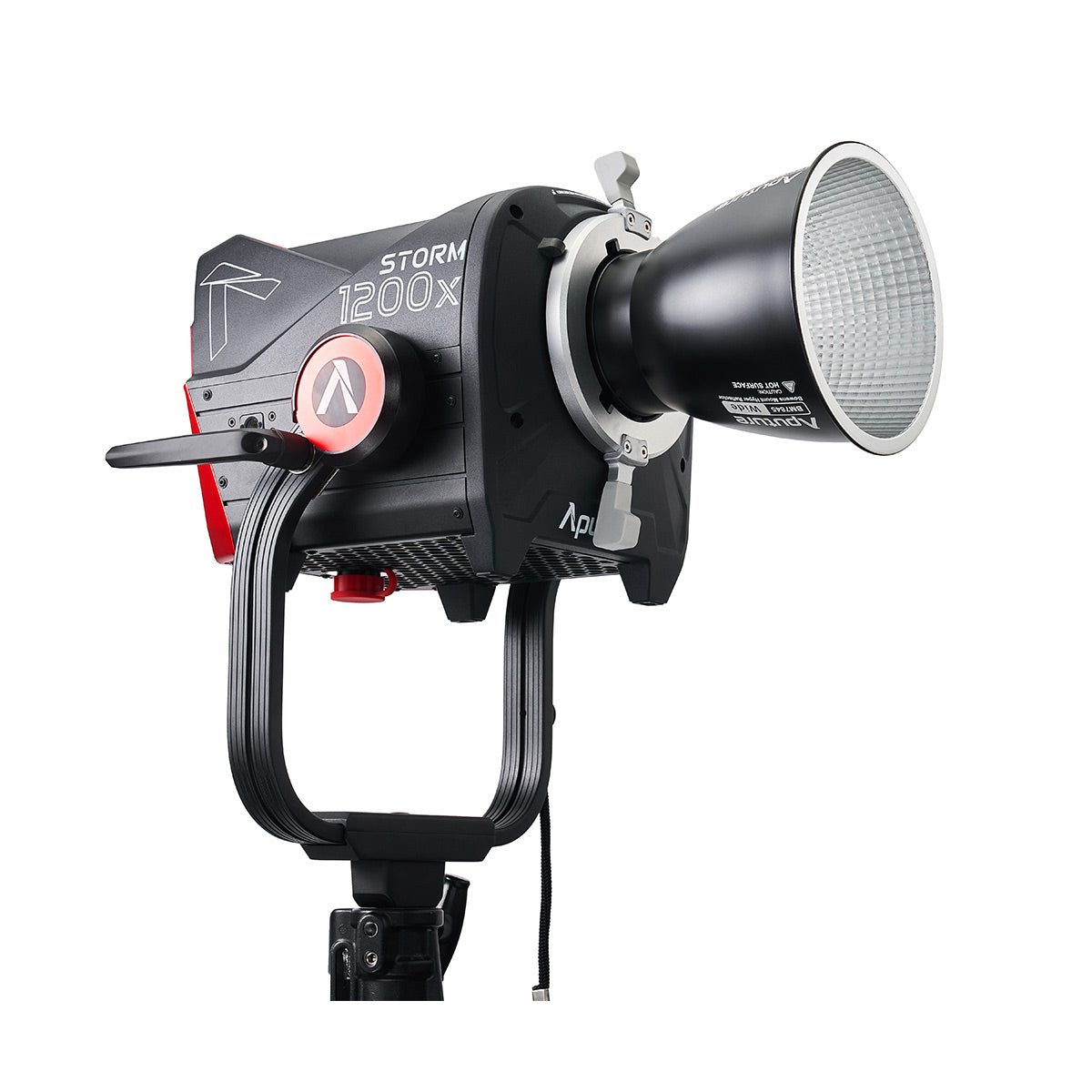

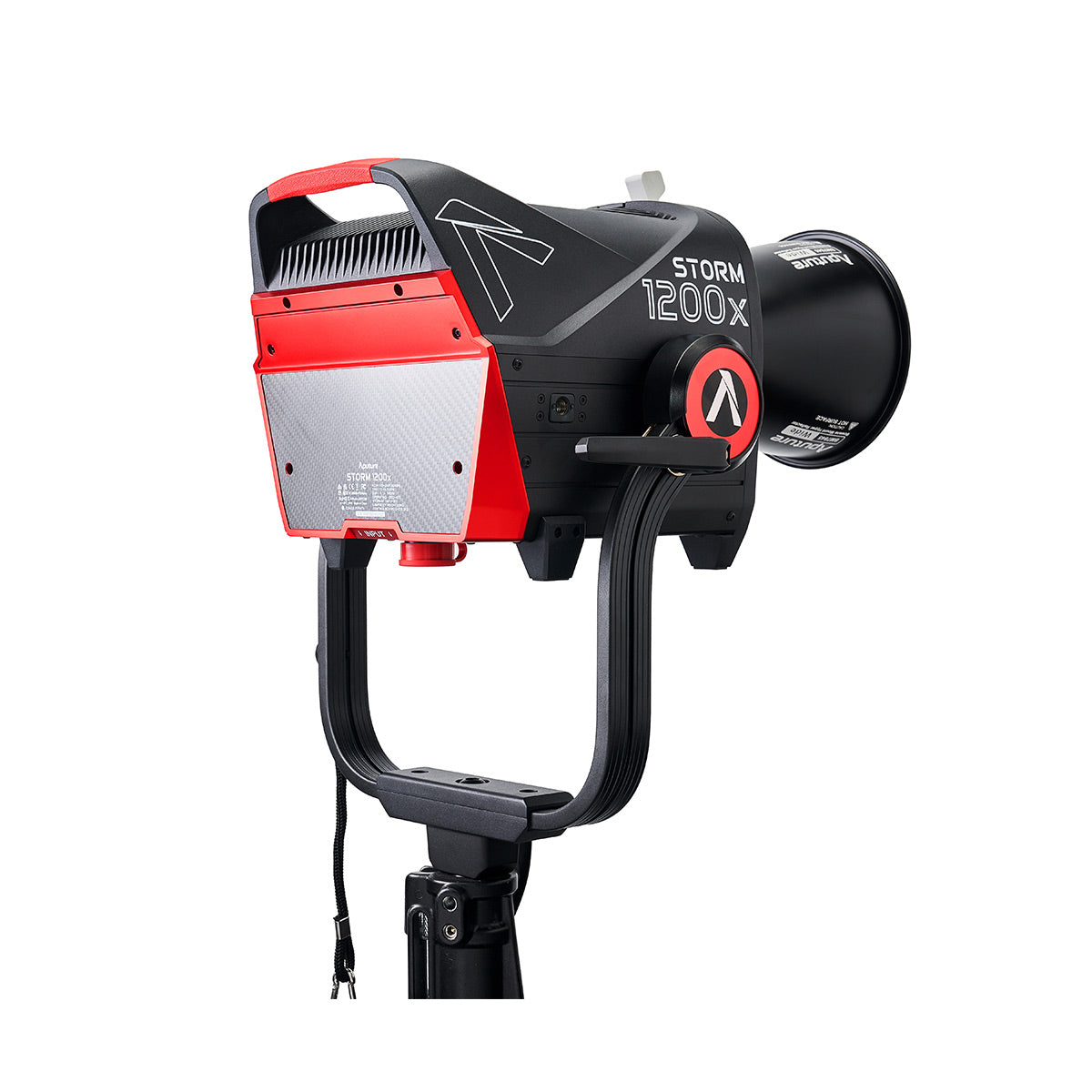

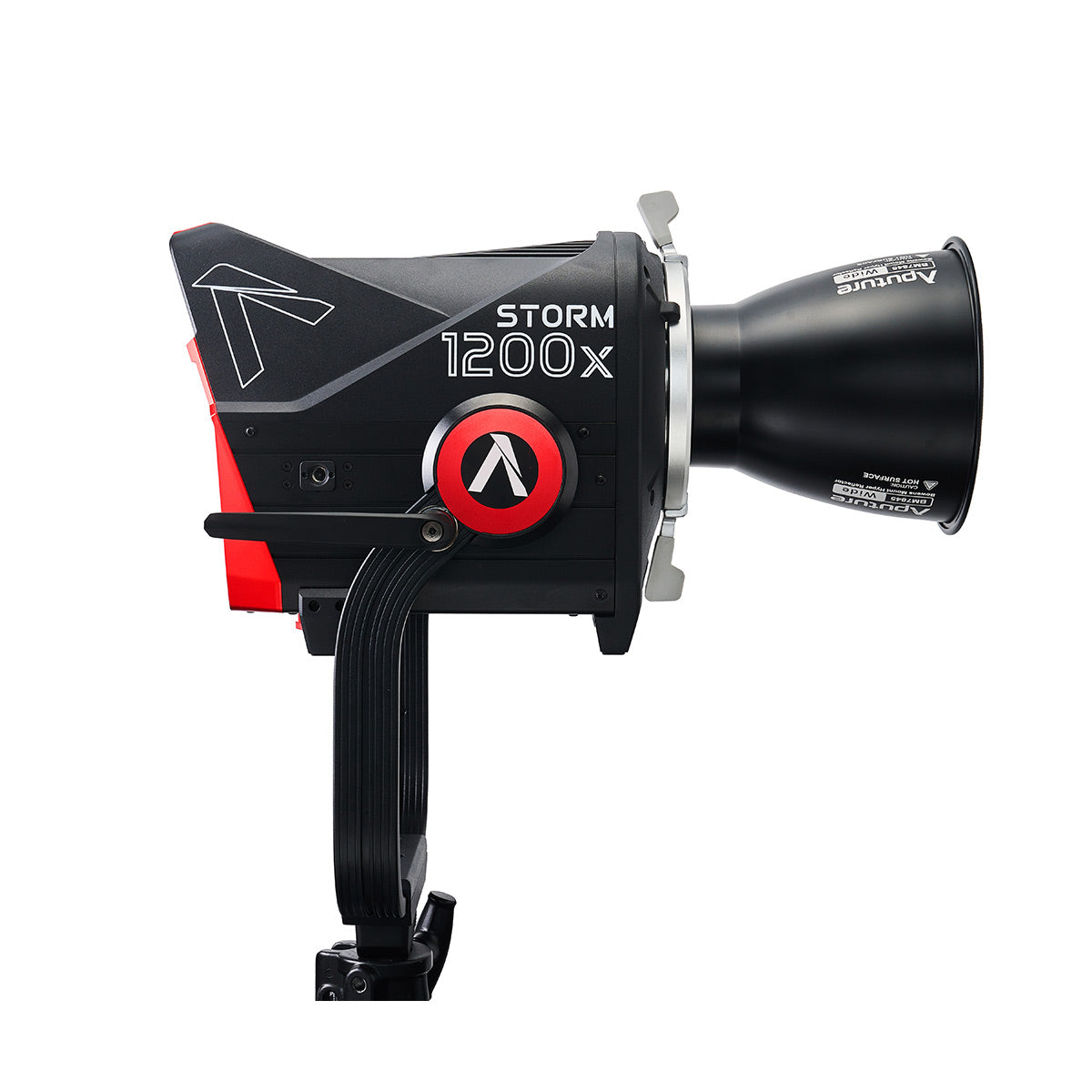

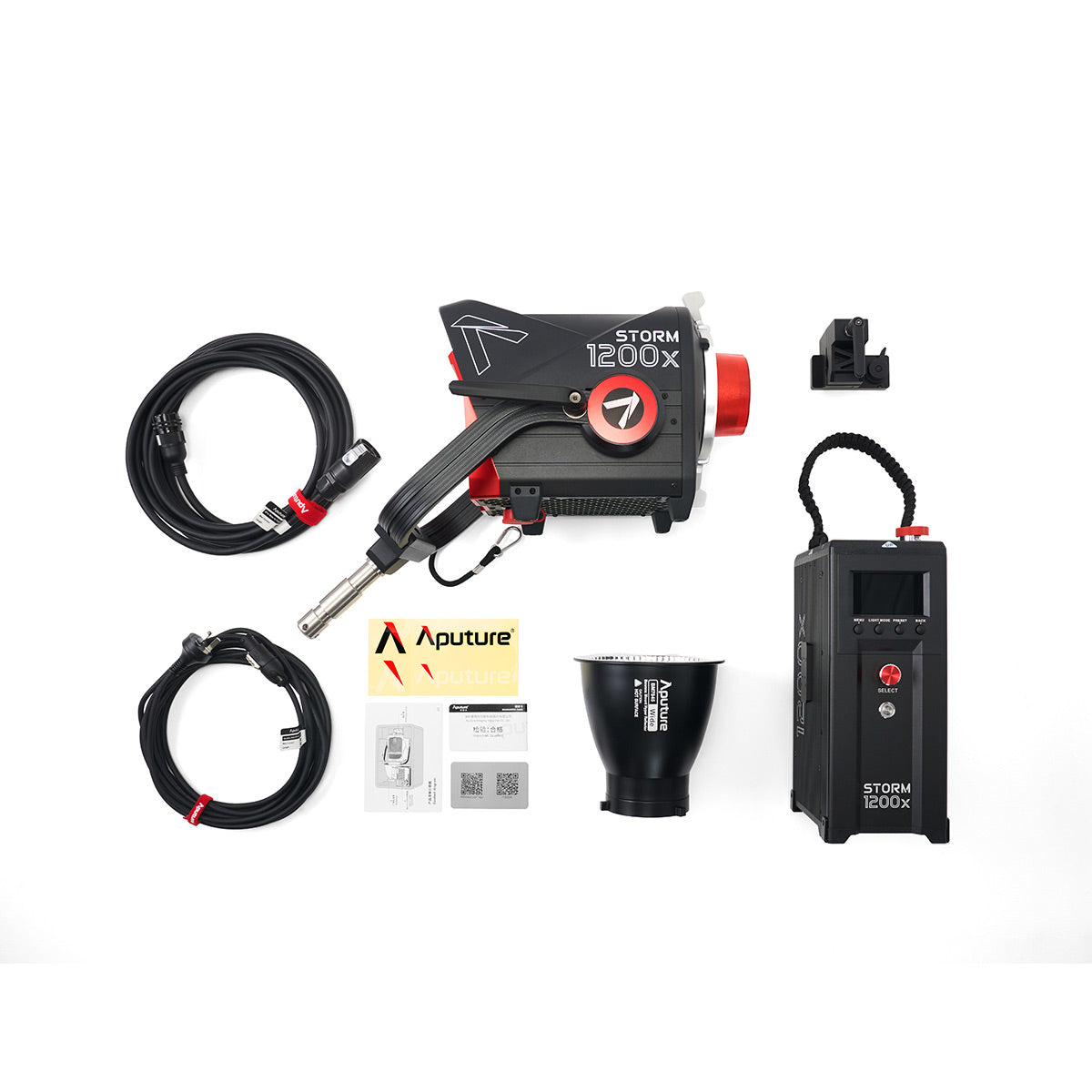

Storm 1200x Lamp Head
-

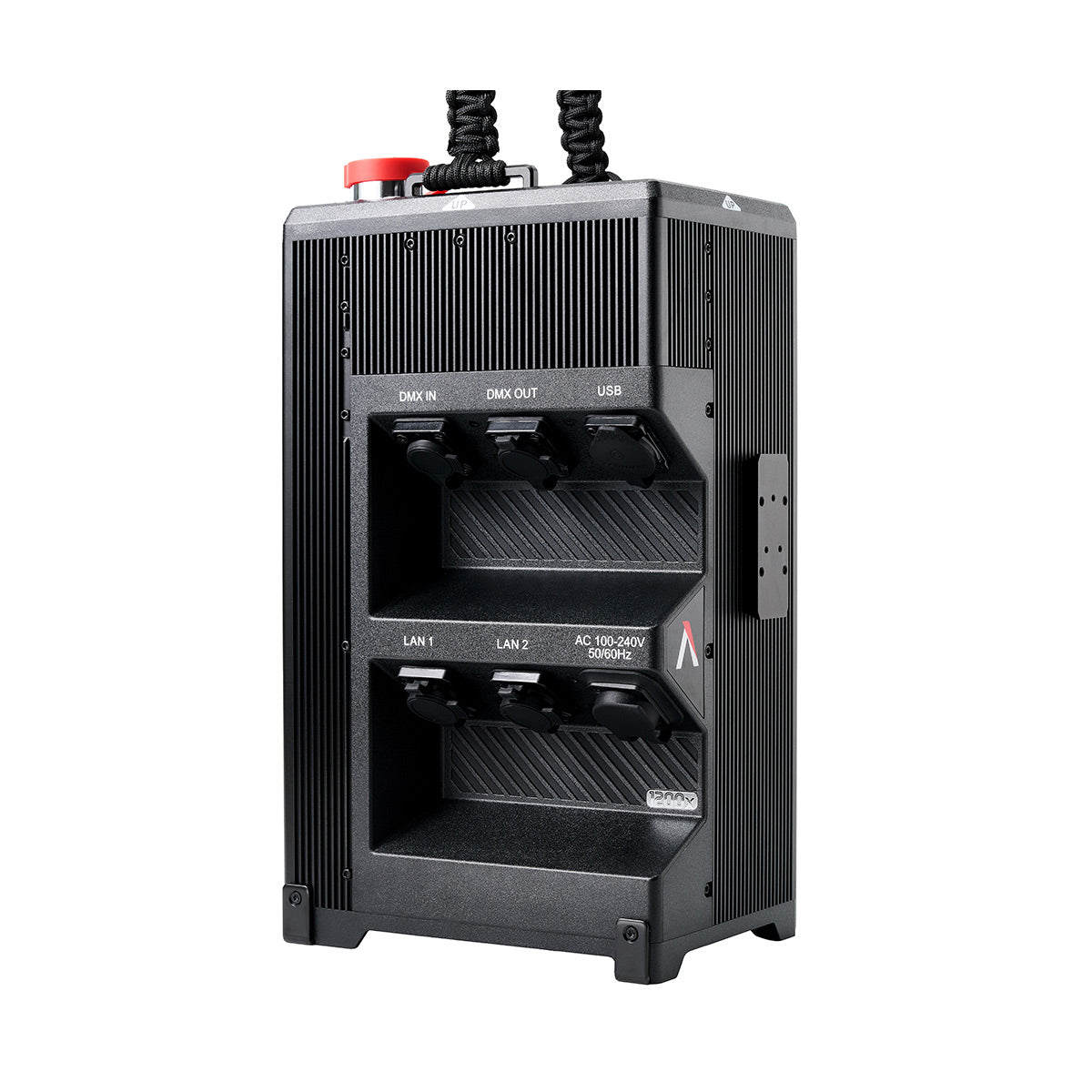

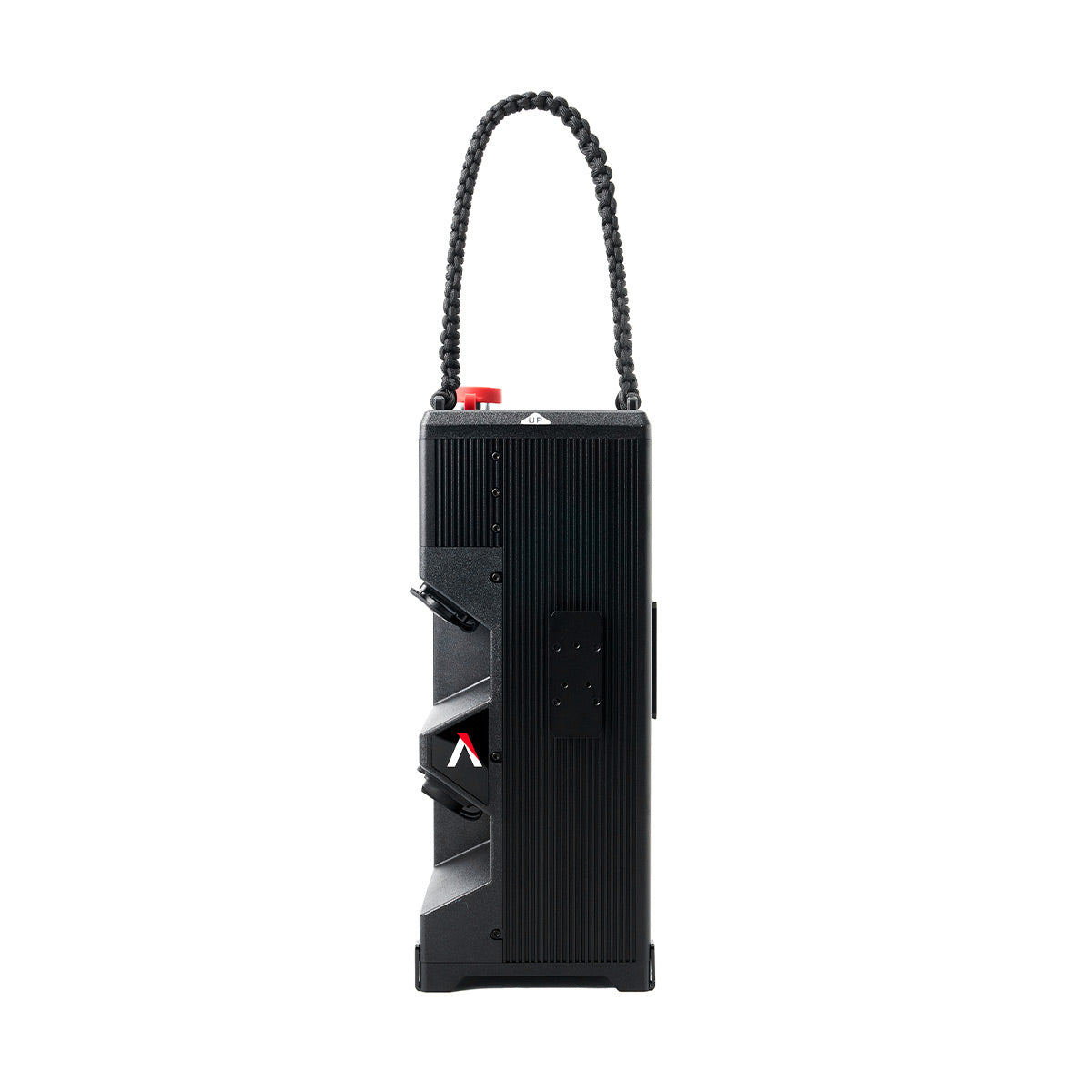

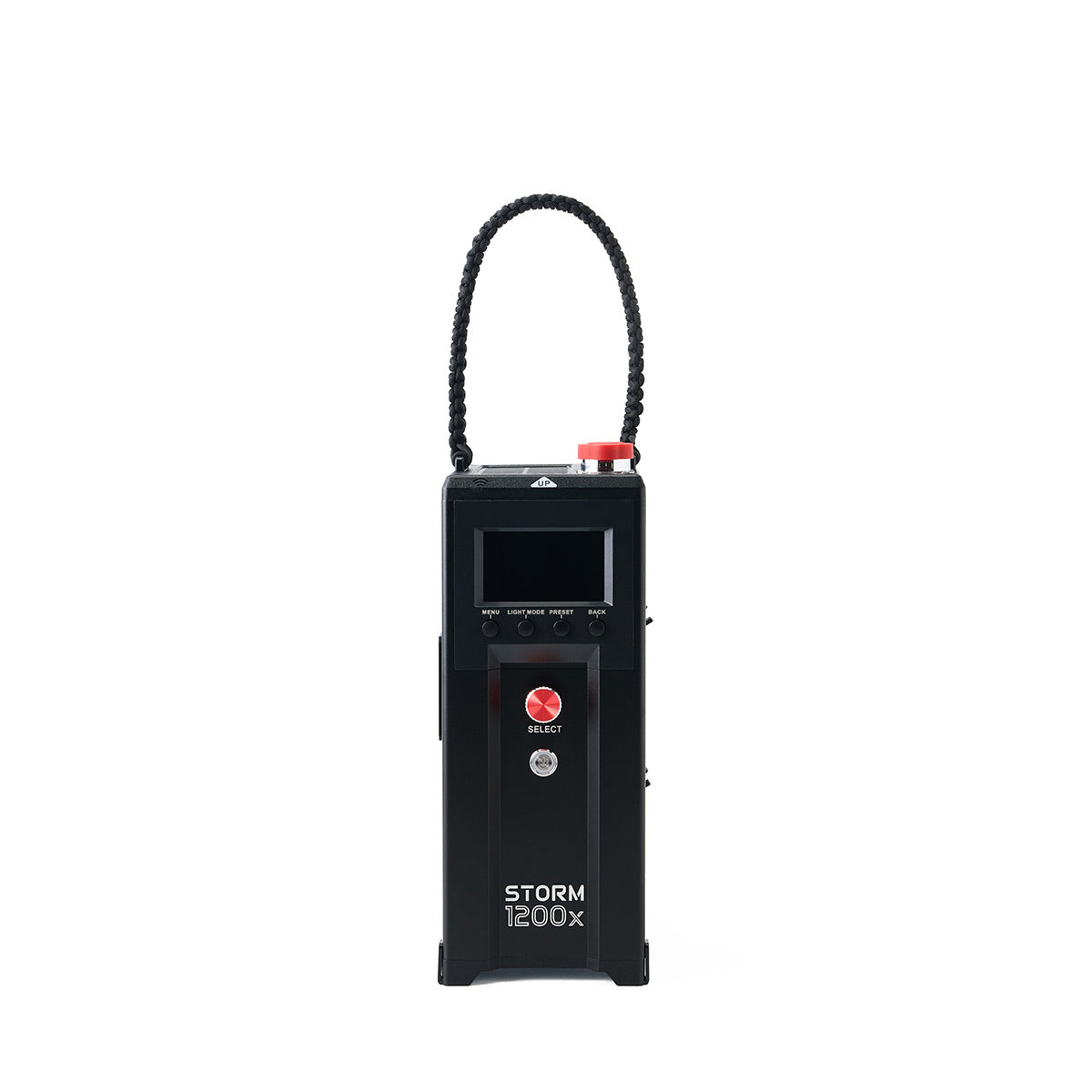

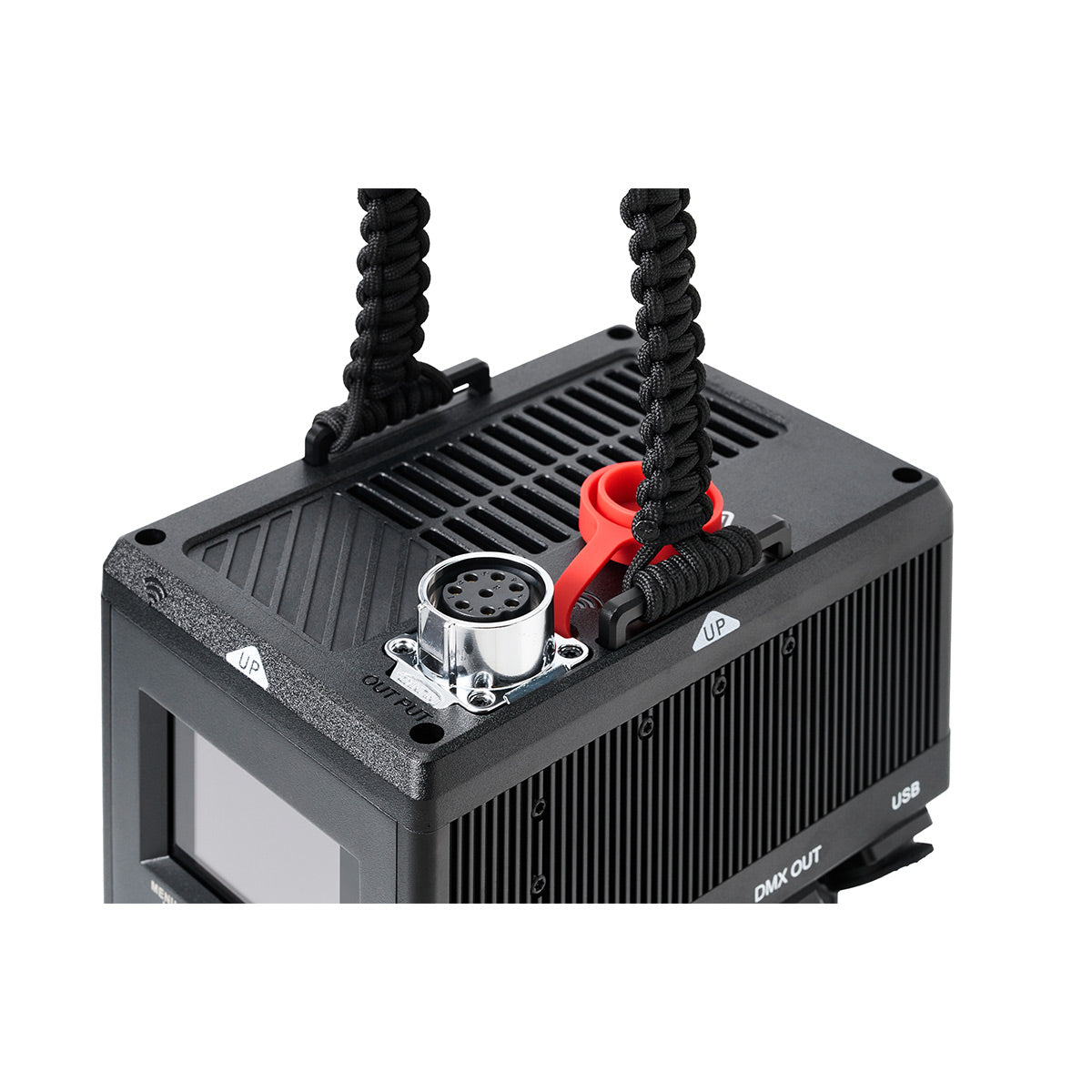

Storm 1200x Control Box
-
Lightning Clamp
-

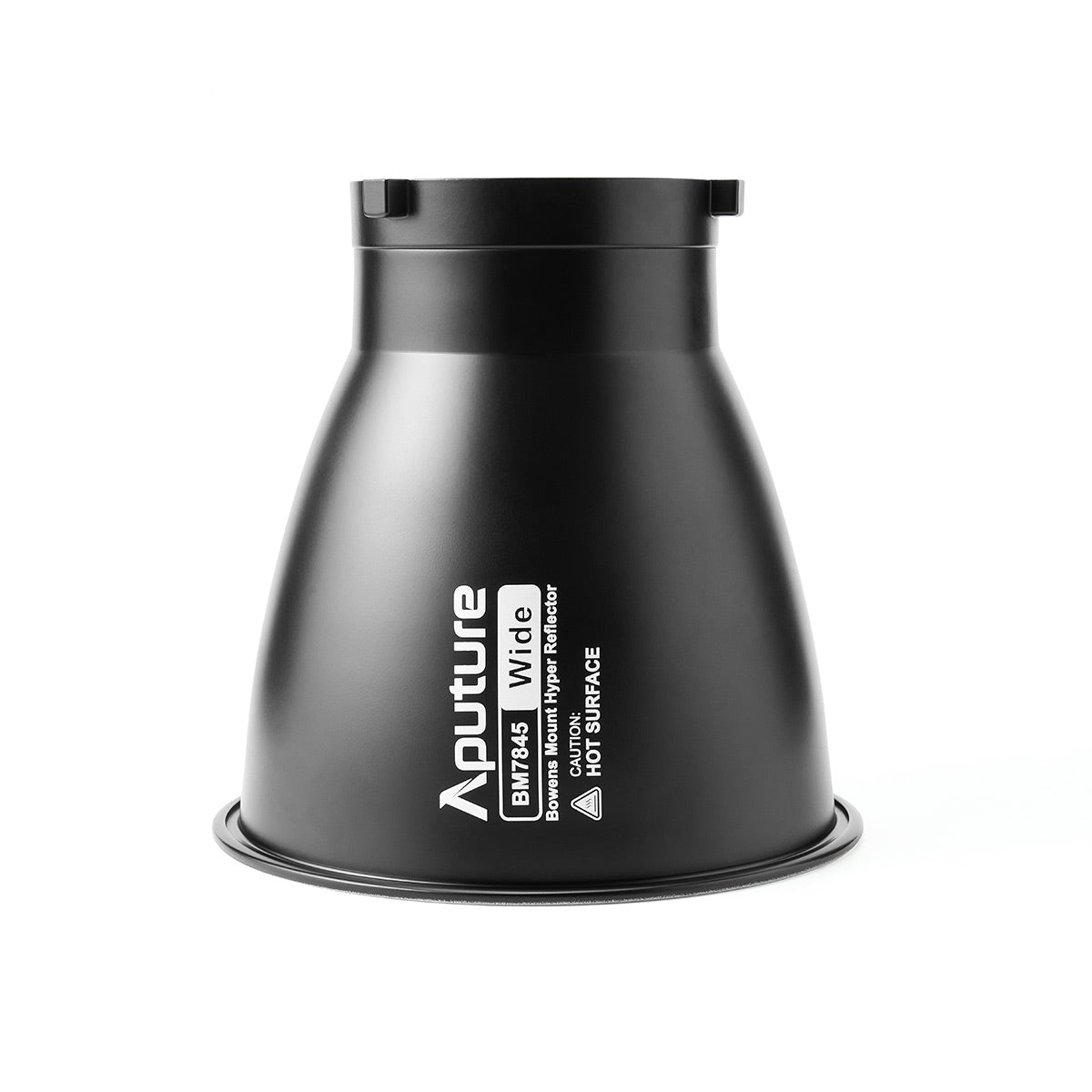

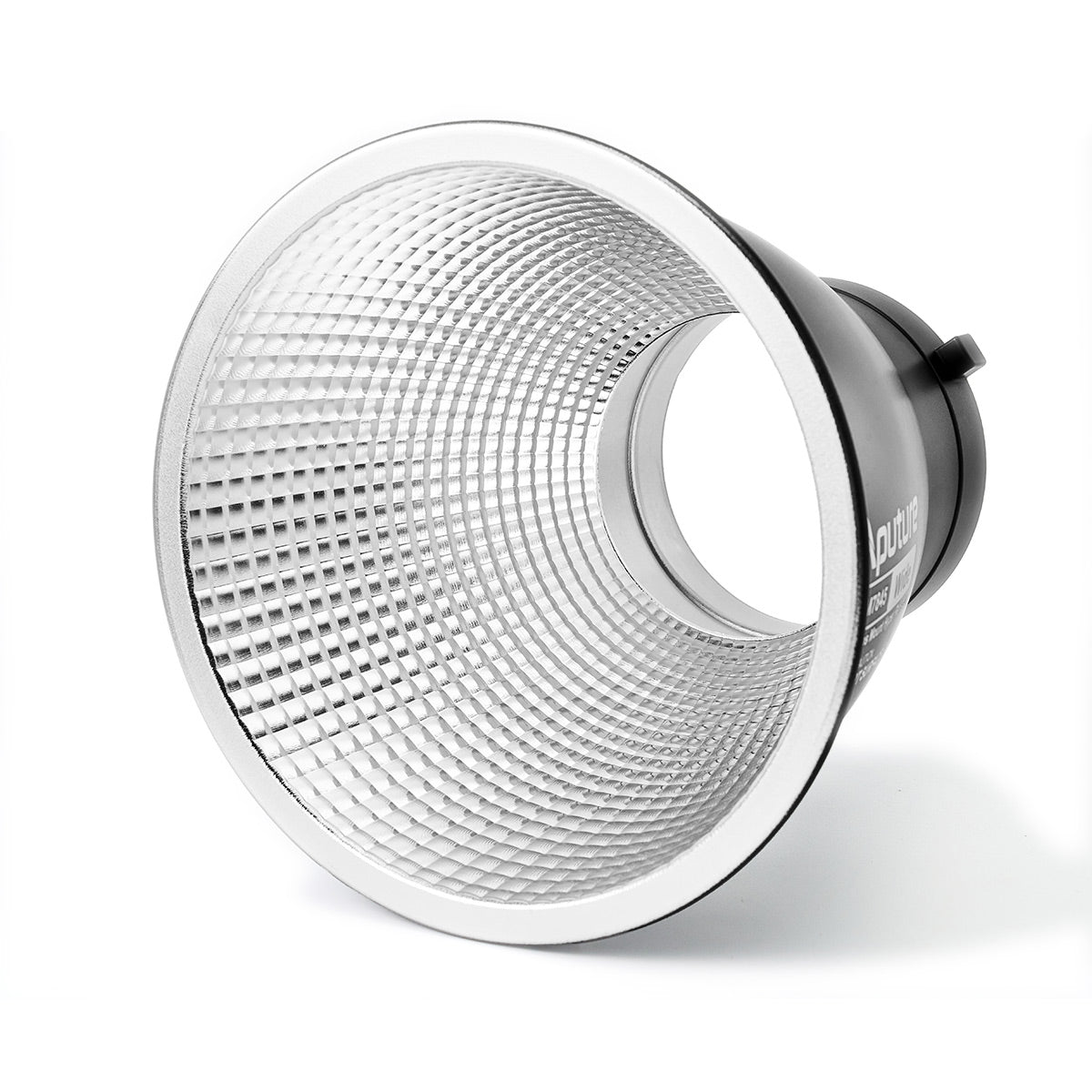

Storm 1200x 45º Angle Wide Reflector
-

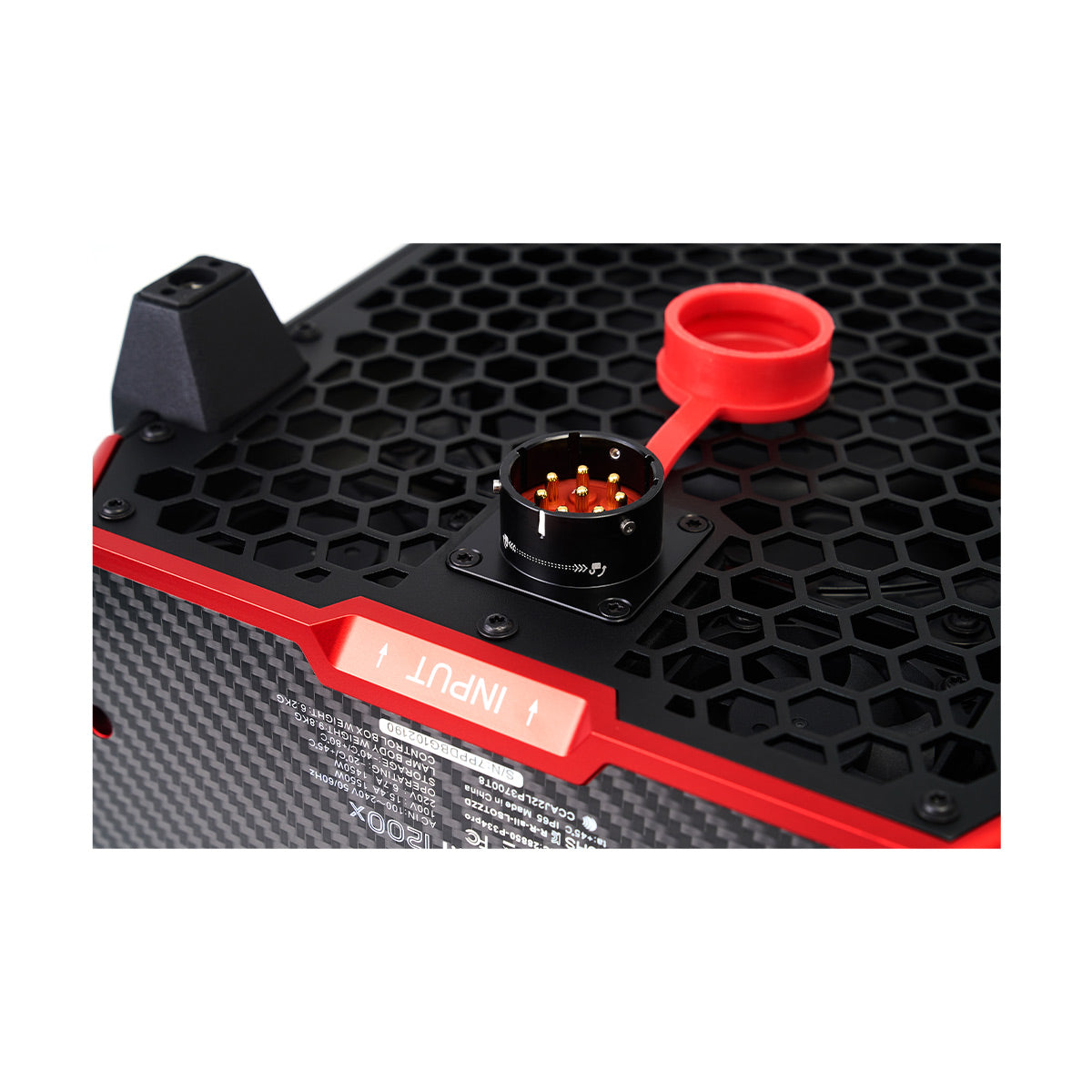

8-Pin Weatherproof Head Cable (7.5m)
-
AC Power Cable (6m)
-
Bowens Mount Protection Cover
-

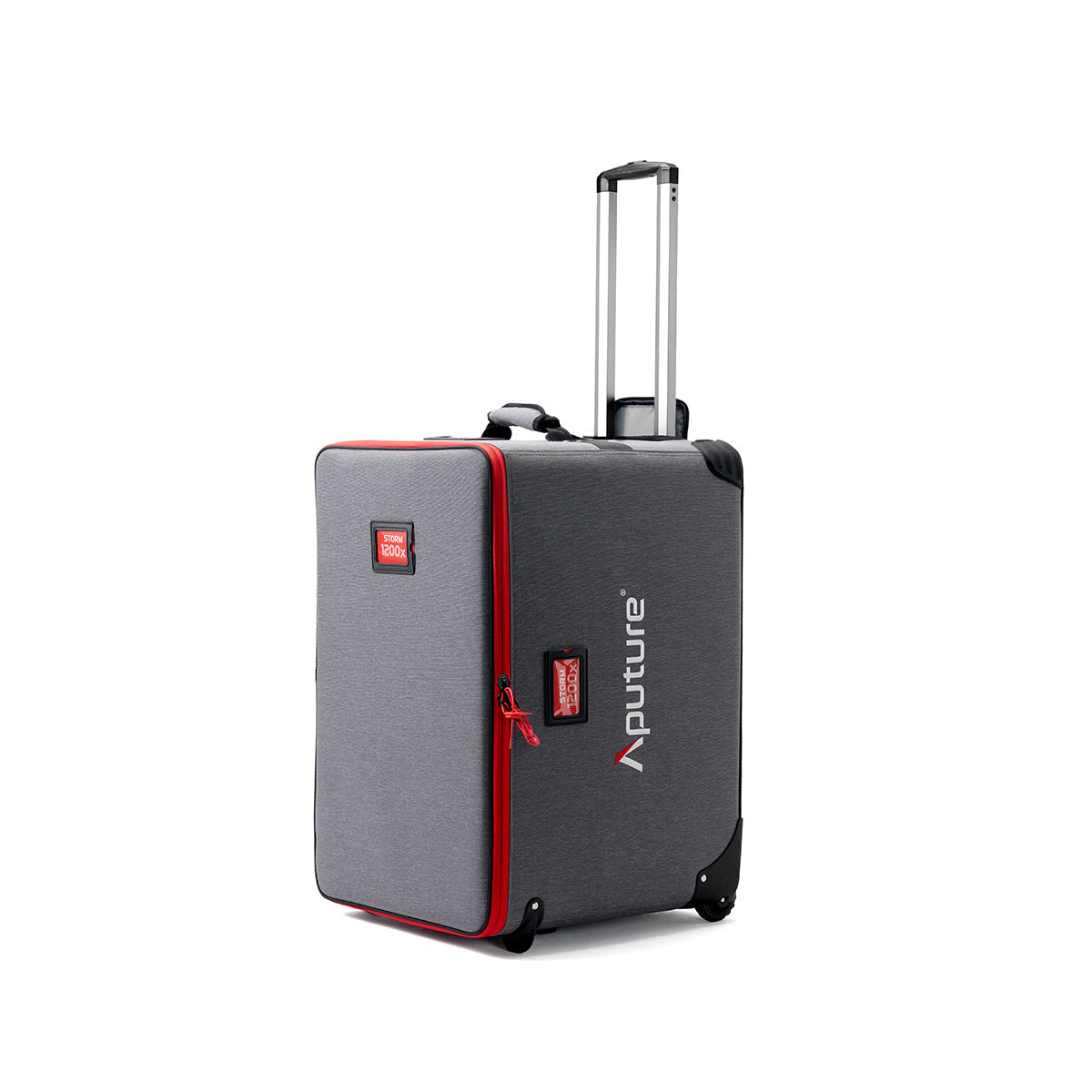

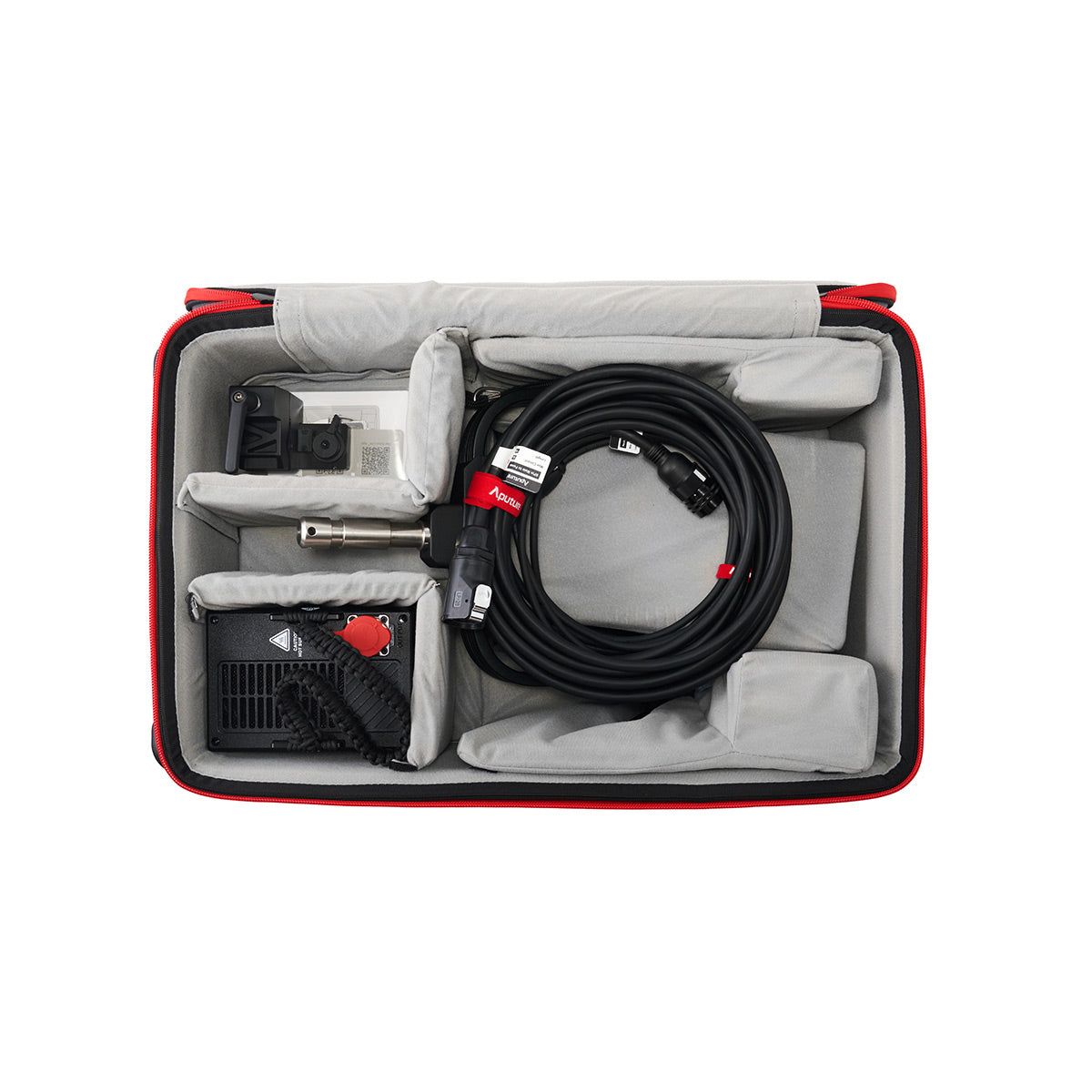

Rolling Soft Case
-
Limited 1-Year Warranty
| Light Fixture | |
|---|---|
| LED Chipset | BLAIR |
| Max Output | 1200W |
| Bare Beam Angle | 105º |
| Included Reflector Beam Angle | 45º |
| Color Temperature | 2500 to 10,000K (in CCT Mode) |
| Color Accuracy Standard | CRI 95 at 3000K TLCI 95 at 3200K CQS 96 SSI 87 at 3200K SSI 87 at 5600K TM-30 Rf 95 TM-30 Rg 100 |
| Cooling System | Active Fan Cooling |
| Dimming | 0.1-100% |
| Display | Adaptive Brightness LCD |
| Photometrics (Barebulb) | 2500K 3m: 6,570 lux / 611 fc 5m: 2,510 lux / 233 fc 3200K 3m: 8,370 lux / 778 fc 5m: 3,170 lux / 778 fc 4300K 3m: 8,620 lux / 801 fc 5m: 3,280 lux / 305 fc 5600K 3m: 8,490 lux / 789 fc 5m: 3,230 lux / 300 fc 6500K 3m: 8,370 lux / 778 fc 5m: 3,180 lux / 296 fc 7500K 3m: 8,200 lux / 762 fc 5m: 3,120 lux / 290 fc 10,000K 3m: 7,790 lux / 724 fc 5m: 2,960 lux / 275 fc |
| Photometrics (15° Reflector) | 2500K 3m: 74,000 lux / 6,877 fc 5m: 25,600 lux / 2,379 fc 3200K 3m: 94,600 lux / 8,792 fc 5m: 30,900 lux / 2,872 fc 4300K 3m: 97,400 lux / 9,052 fc 5m: 33,600 lux / 3,123 fc 5600K 3m: 96,100 lux / 8,931 fc 5m: 33,300 lux / 3,095 fc 6500K 3m: 94,700 lux / 8,801 fc 5m: 32,700 lux / 3,039 fc 7500K 3m: 92,800 lux / 8,625 fc 5m: 32,000 lux / 2,974 fc 10,000K 3m: 87,900 lux / 8,169 fc 5m: 30,400 lux / 2,825 fc |
| Photometrics (30° Reflector) | 2500K 3m: 32,200 lux / 2,993 fc 5m: 10,900 lux / 1,013 fc 3200K 3m: 41,100 lux / 3,820 fc 5m: 13,800 lux / 1,283 fc 4300K 3m: 42,400 lux / 3,941 fc 5m: 14,300 lux / 1,329 fc 5600K 3m: 41,800 lux / 3,885 fc 5m: 14,100 lux / 1,310 fc 6500K 3m: 41,200 lux / 3,829 fc 5m: 13,900 lux / 1,292 fc 7500K 3m: 40,400 lux / 3,755 fc 5m: 13,600 lux / 1,264 fc 10,000K 3m: 38,400 lux / 3,569 fc 5m: 12,900 lux / 1,199 fc |
| Photometrics (45° Reflector) | 2500K 3m: 15,300 lux / 1,422 fc 5m: 5,420 lux / 505 fc 3200K 3m: 19,500 lux / 1,812 fc 5m: 6,910 lux / 642 fc 4300K 3m: 20,100 lux / 1,868 fc 5m: 7,130 lux / 663 fc 5600K 3m: 22,500 lux / 2,090 fc 5m: 7,070 lux / 657 fc 6500K 3m: 19,500 lux / 1,812 fc 5m: 6,910 lux / 642 fc 7500K 3m: 19,100 lux / 1,775 fc 5m: 6,800 lux / 632 fc 10,000K 3m: 18,200 lux / 1,691 fc 5m: 6,470 lux / 601 fc |
| Operation Controls | |
|---|---|
| Control Methods | On-board, Sidus Link App, Sidus Link Pro App, DMX/RDM, CRMX, sACN & Art-Net |
| Firmware Upgradeable | Sidus Link, Sidus Link Pro, USB Drive |
| Wireless Range Sidus Bluetooth | ≤100m / ≤262.5ft |
| Wireless Range CRMX (TimoTwo) | ≤100m / ≤262.5ft |
| Mounting | |
|---|---|
| Fixture Mount | Junior Pin (28mm) |
| Power | |
|---|---|
| Connectors | Dual 48V/15A DC Inputs (3-pin XLR) |
| Max Power Consumption | 1440W |
| Operating Voltage | 100V ~ 240V / 50-60 Hz |
| Cable | |
|---|---|
| Cable Type | Neutrik powerCON TRUE1 TOP AC Power Cable (6m) LS 1200 Series 7-Pin Weatherproof Head Cable (7.5m) |
| Physical | |
|---|---|
| Dimensions | 13.2 x 13.1 x 21.9" / 33.6 x 33.4 x 55.7cm (Fixture with Yoke) 13.5 x 7.4 x 5.4" / 34.4 x 18.9 x 13.6cm (Power Supply/Controller) |
| Weight | 20.9 lb / 9.5 kg (Lamp Head with Yoke) 13.05 lb / 5.92 kg (Control Box) |
| Environmental Resistance | Weather-Resistant IP65 |
| Operating Temperature | -4 ~ 113°F / -20 ~ 45°C |
