Product Information
The Aputure STORM CS32 is a 3,200W tunable-color point-source LED fixture built around the BLAIR-CG With Extended Red light engine. This flight-case kit pairs the lamp head and control box with a 3m PLG28 4-Pin to Bare Leads AC power cable for professional power-system wiring, plus a protective rolling flight case for transport.
High-output color with a broad white-light range
The CS32 covers 1,800K–20,000K with full +/- Green adjustment and uses Blue, Lime, Amber, Indigo, Red, Cyan, and Green emitters. It is specified for more than 90% of the Rec. 2020 color space, with CRI 97, TLCI 98, SSI Tungsten 93, and SSI D56 91.
Built for controlled sets and location work
The included 7.5m head cable keeps the control box within reach while the lamp head is positioned remotely; compatible head cables can be daisy-chained to 45m. IP65 weather protection, air cooling, on-board controls, Sidus Bluetooth, DMX, CRMX, and Art-Net/sACN support make the fixture adaptable to demanding lighting workflows.

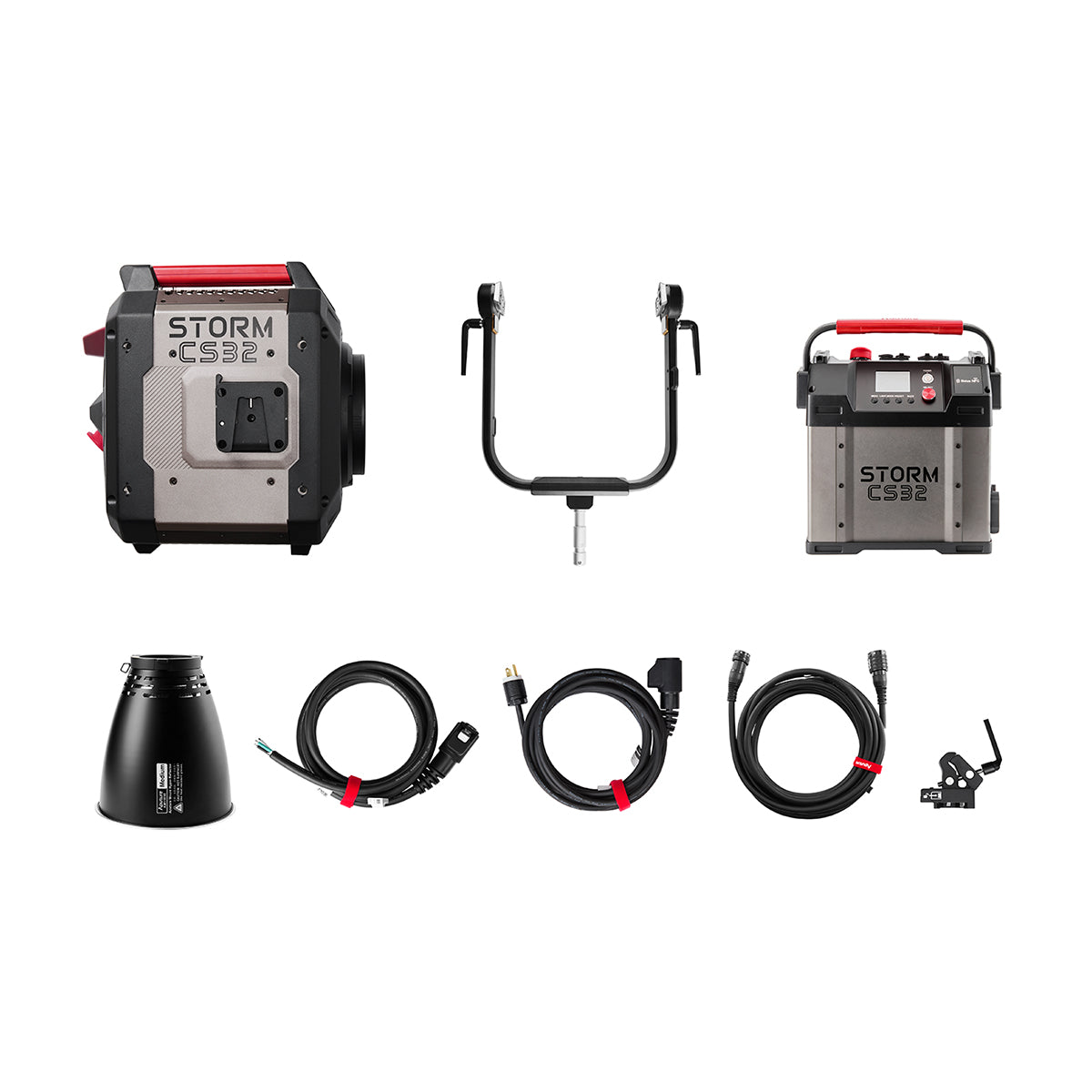

Reflector, rigging, and transport included

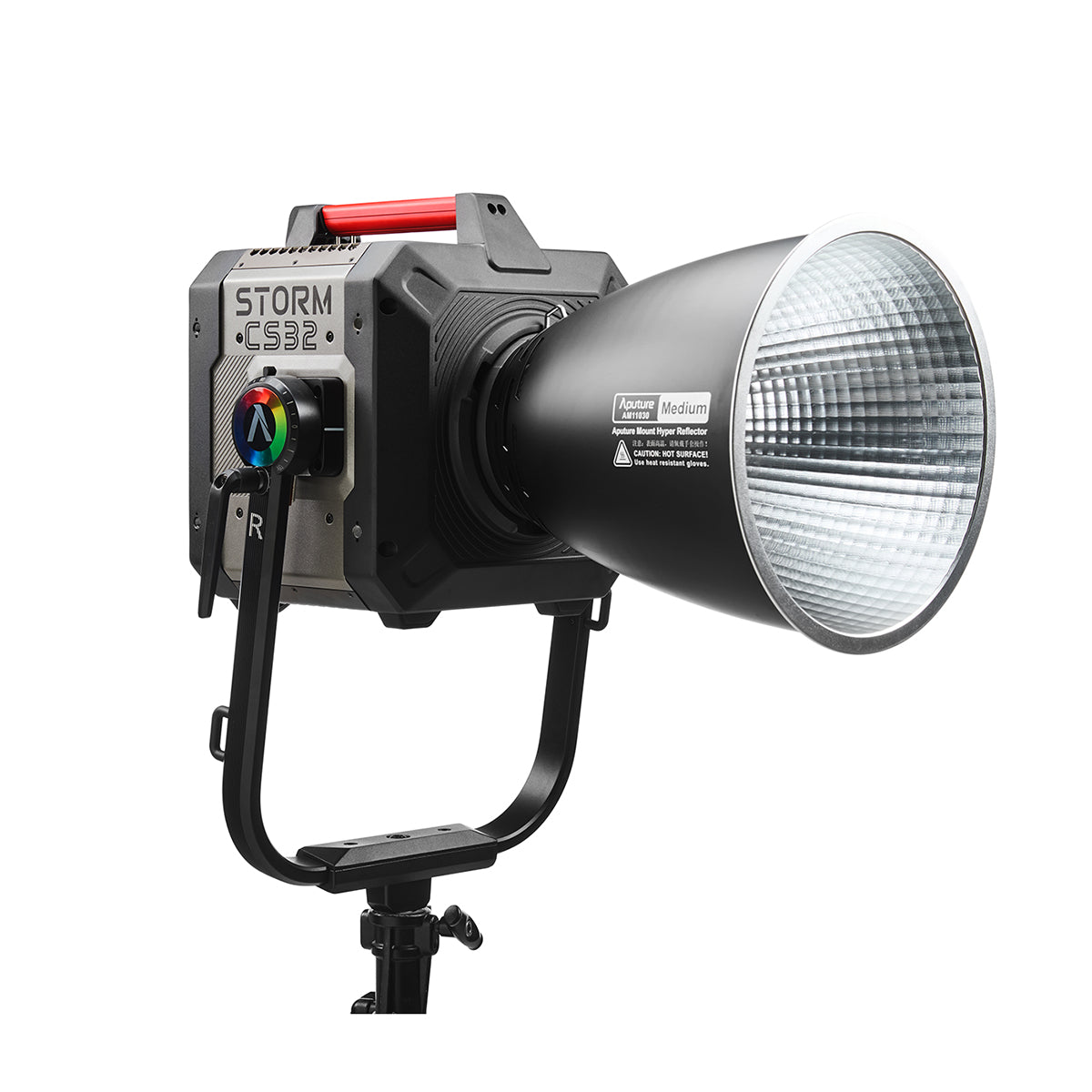

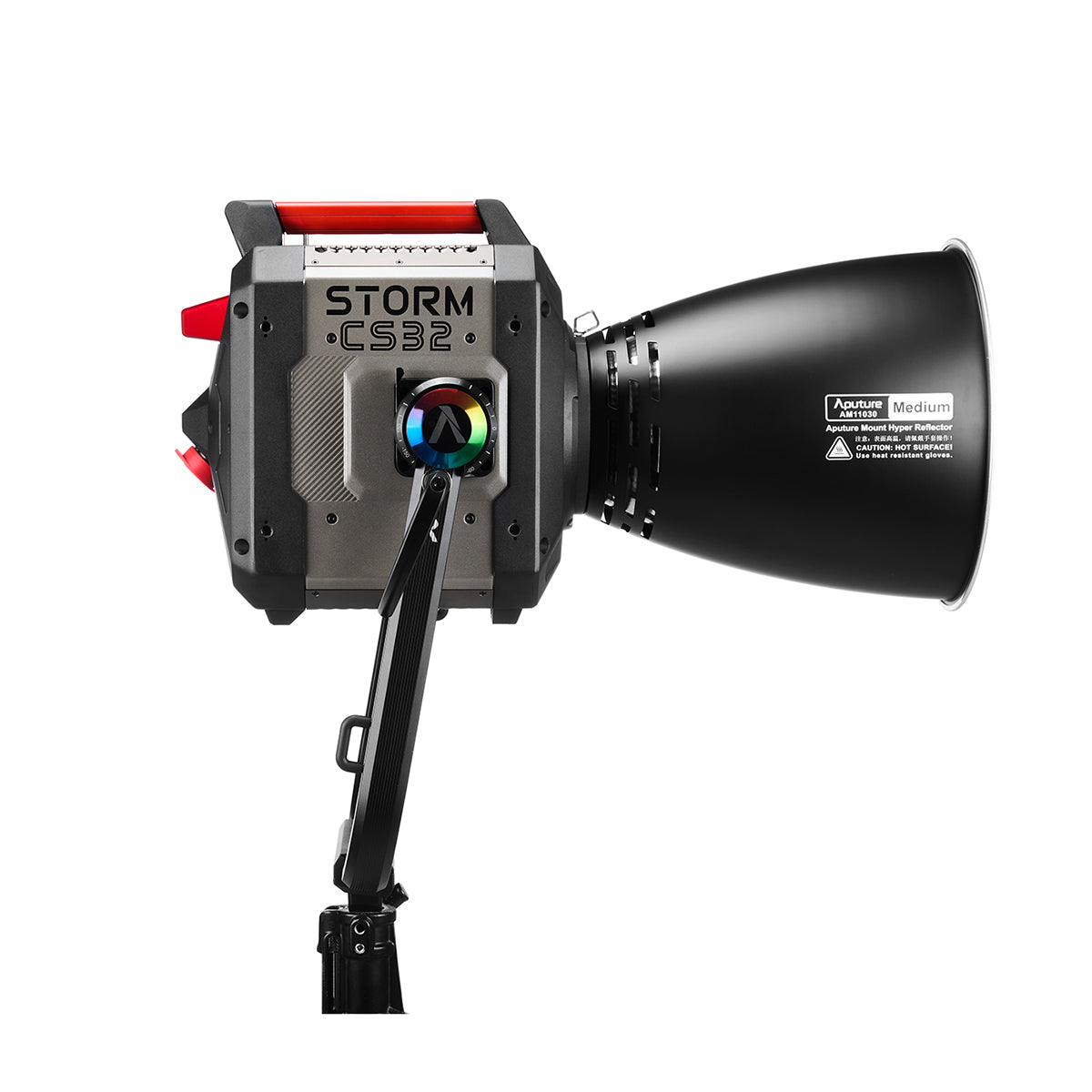

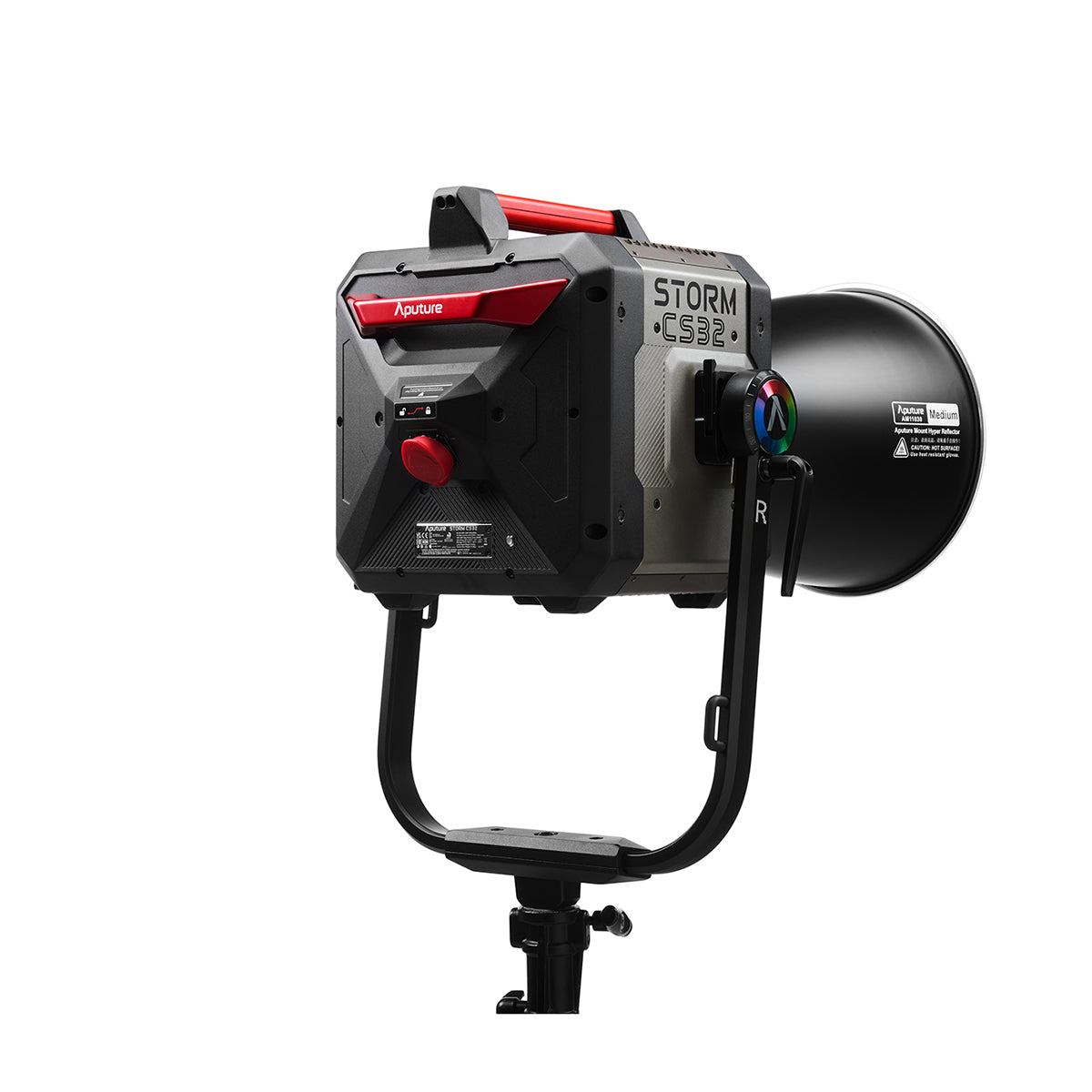

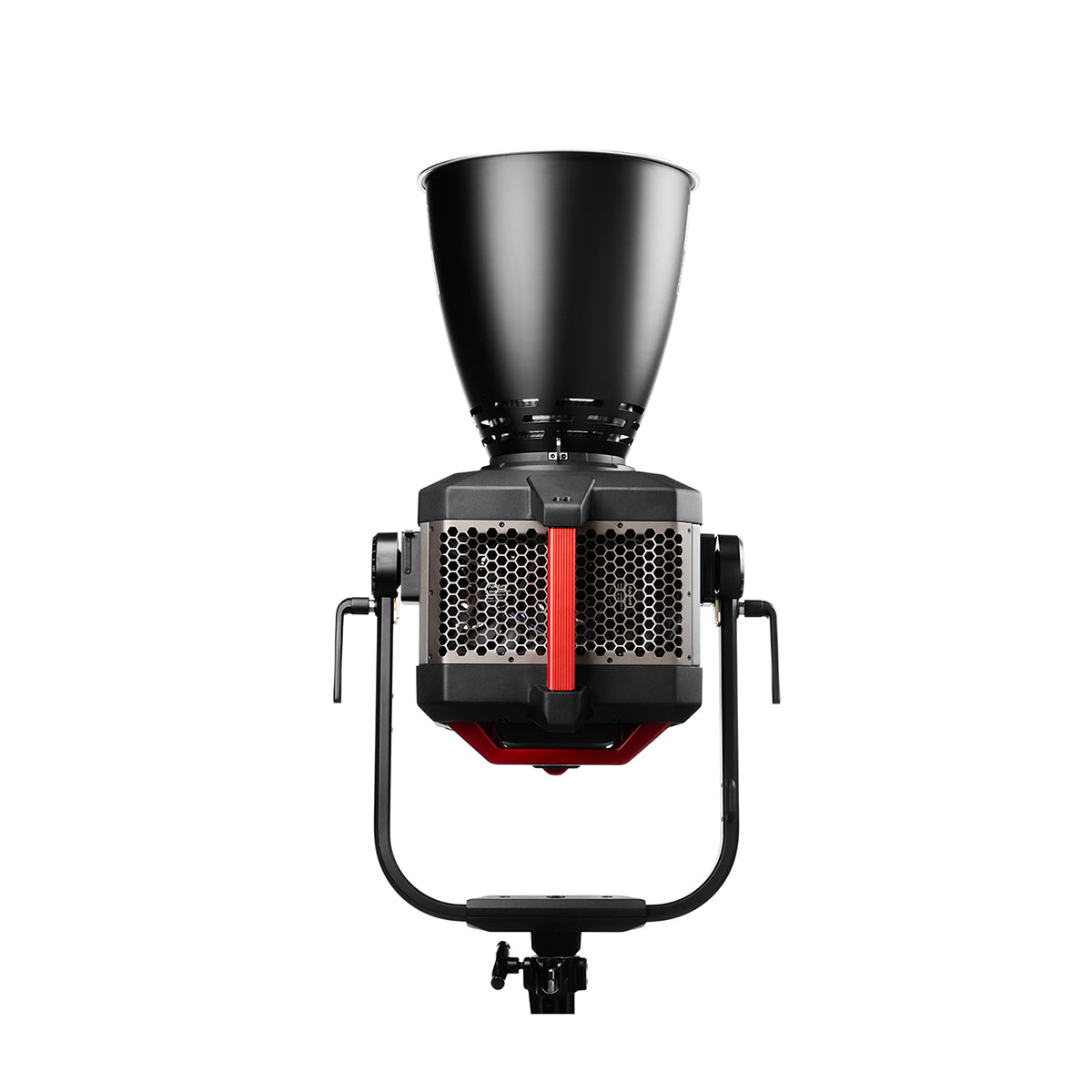

This kit includes the removable yoke, AM11030 Medium Reflector, Aputure Ultra Clamp, Aputure Mount protection cover, control box, and flight case. The supplied 30° reflector narrows the fixture’s native 78° beam for more directed output.
-

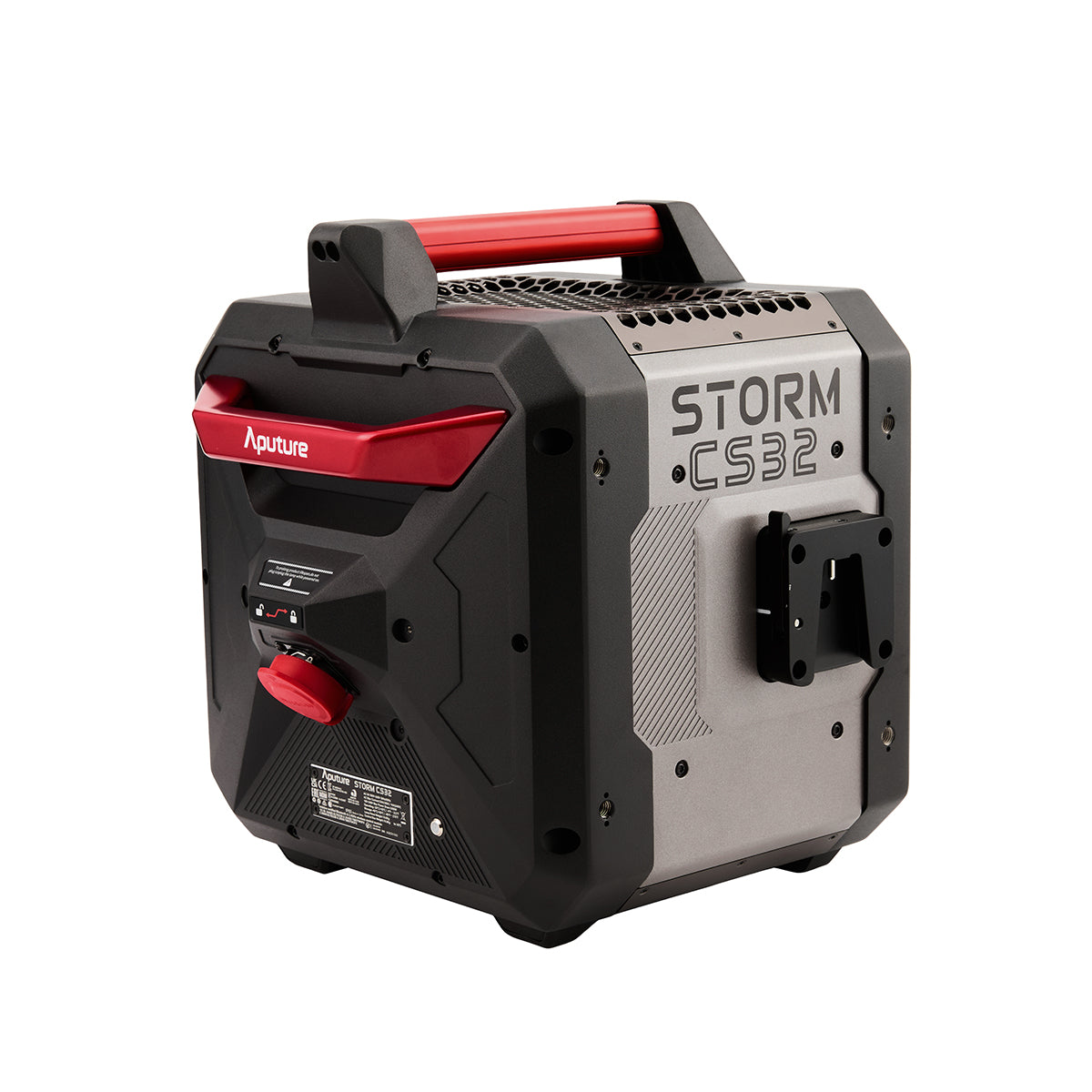

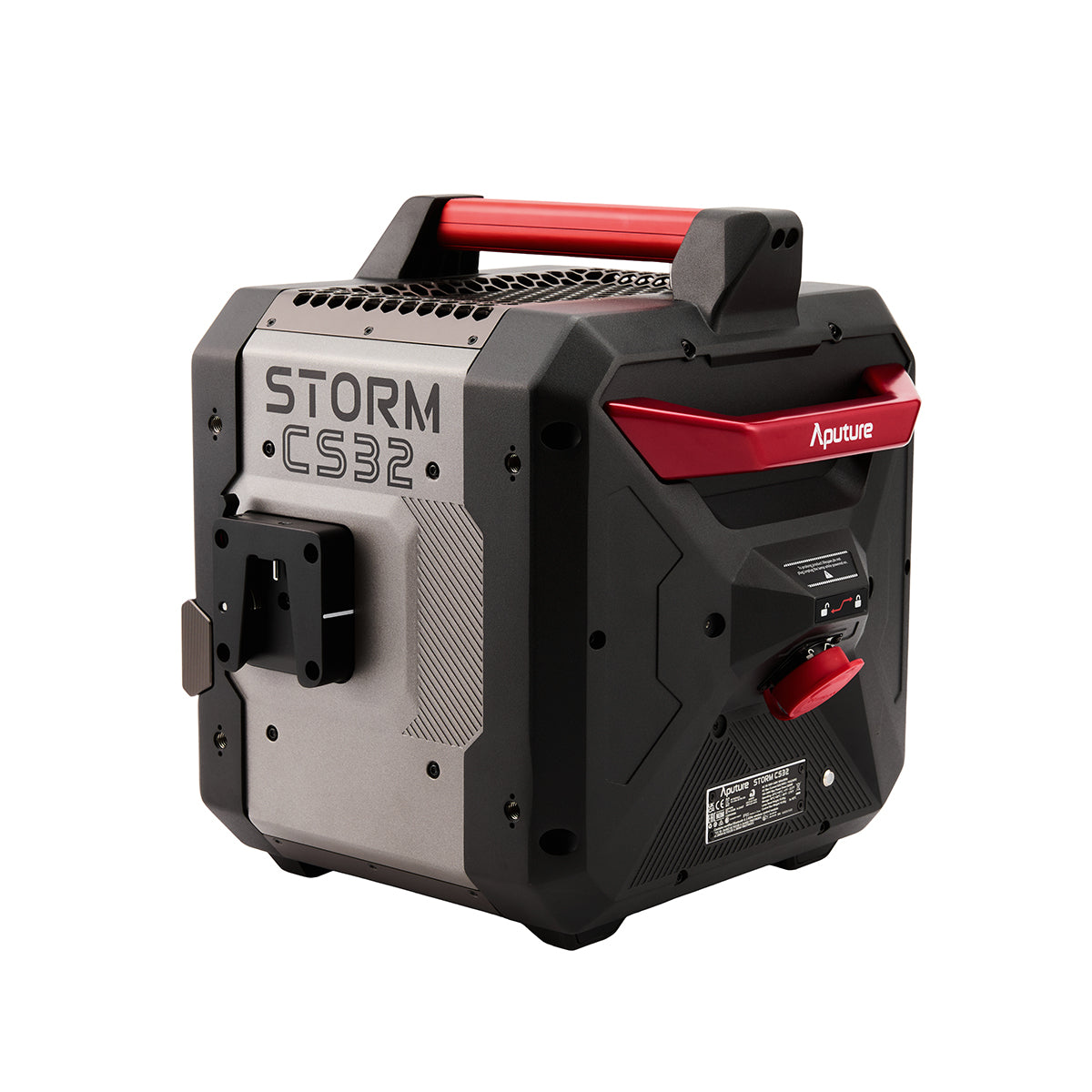

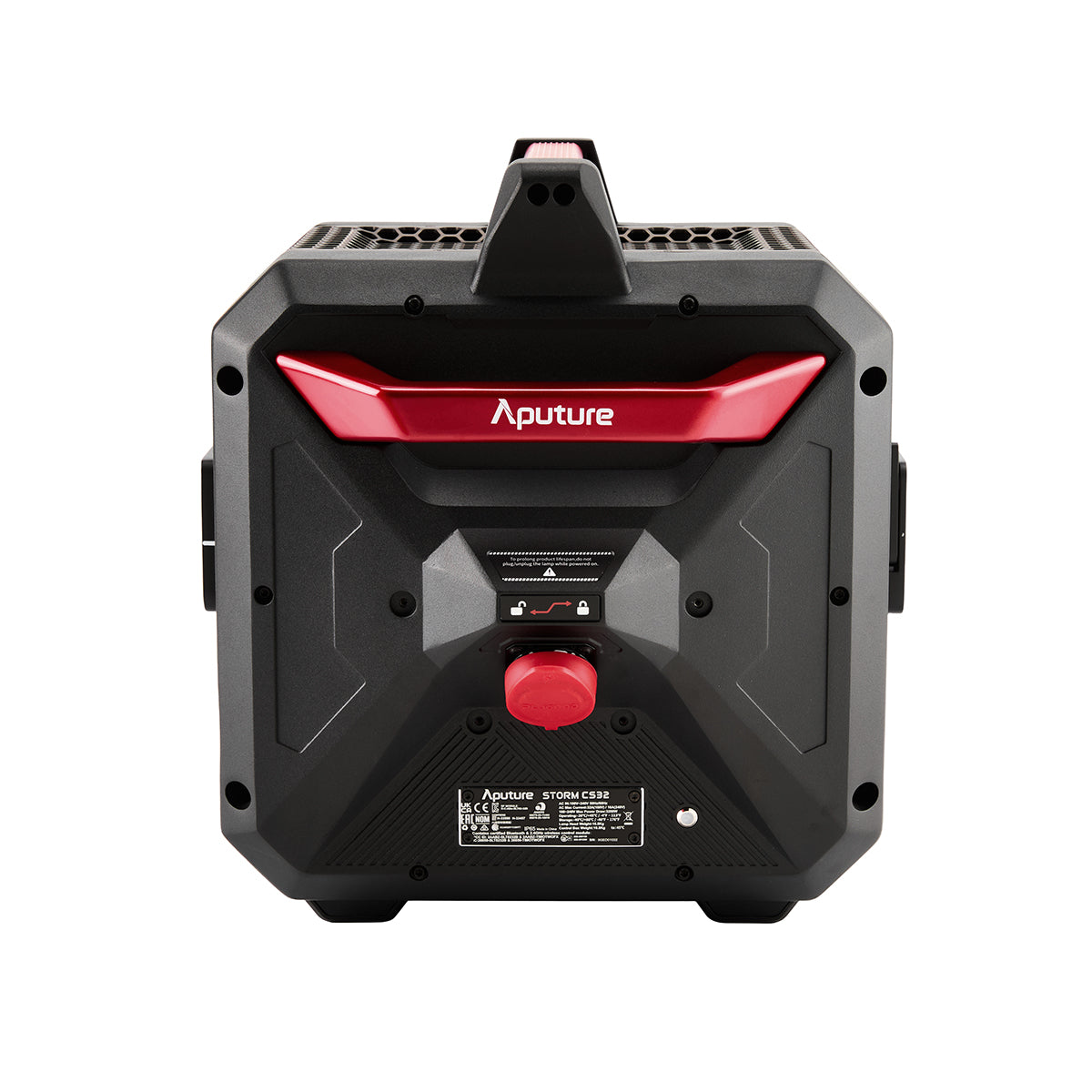

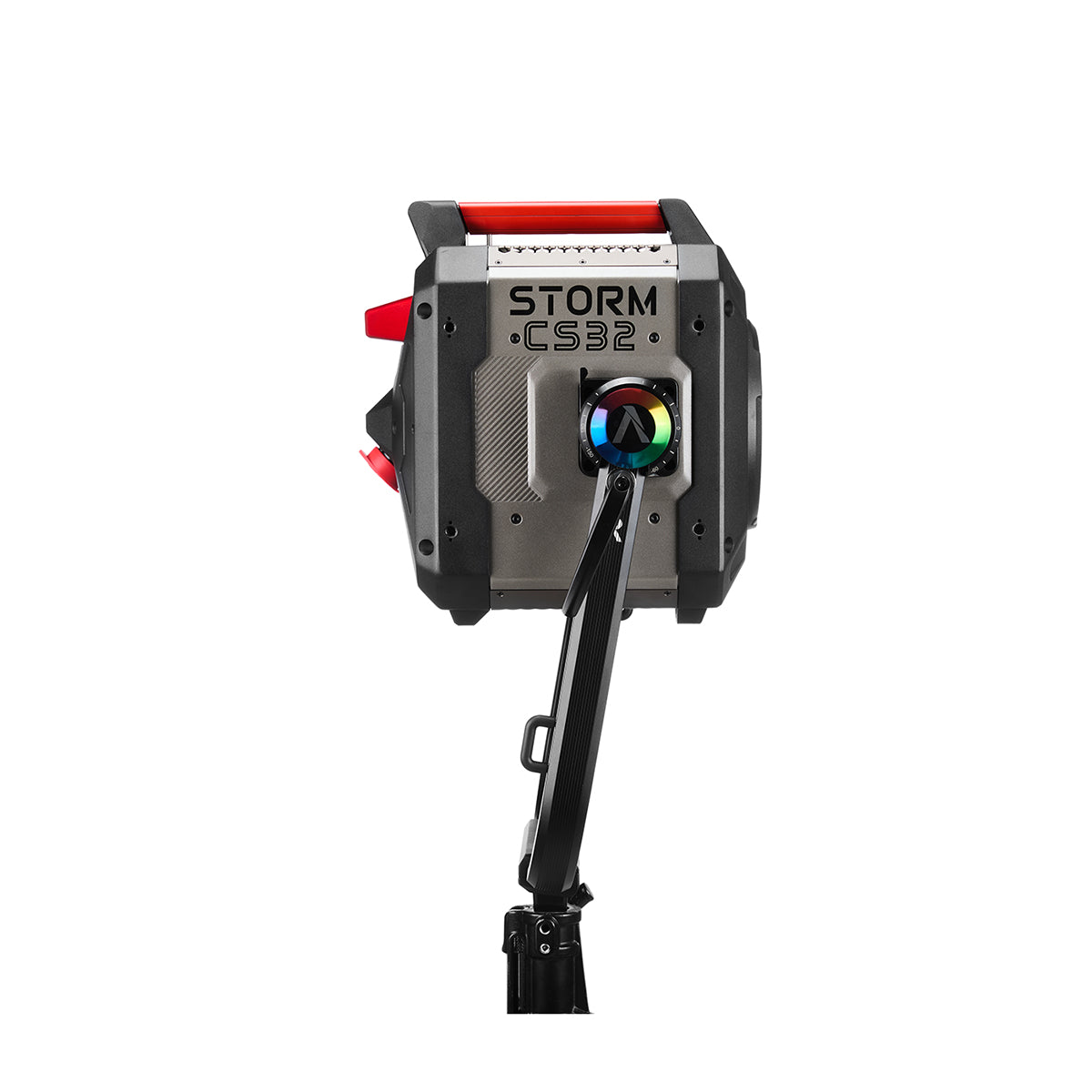

STORM CS32 Lamp Head
-

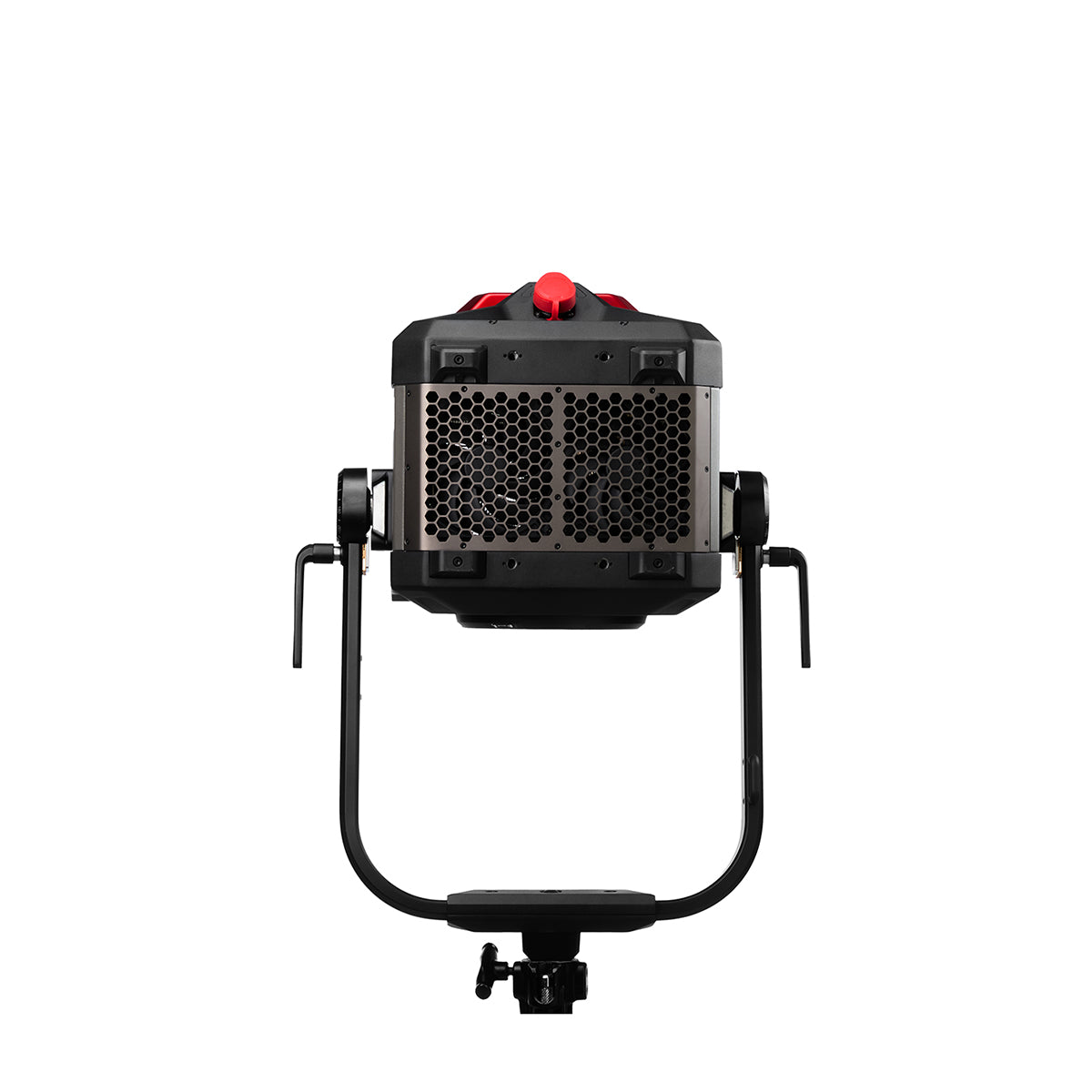

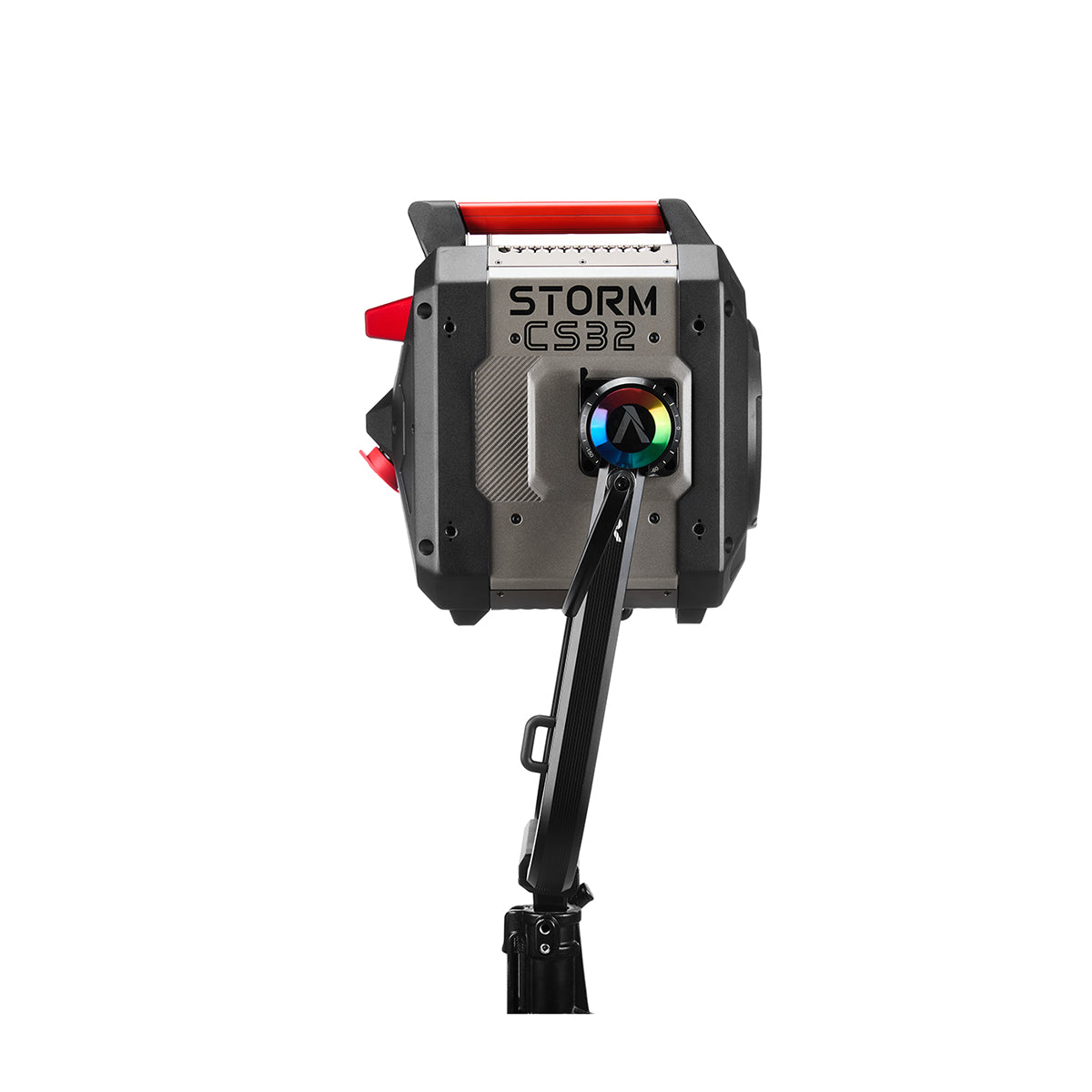

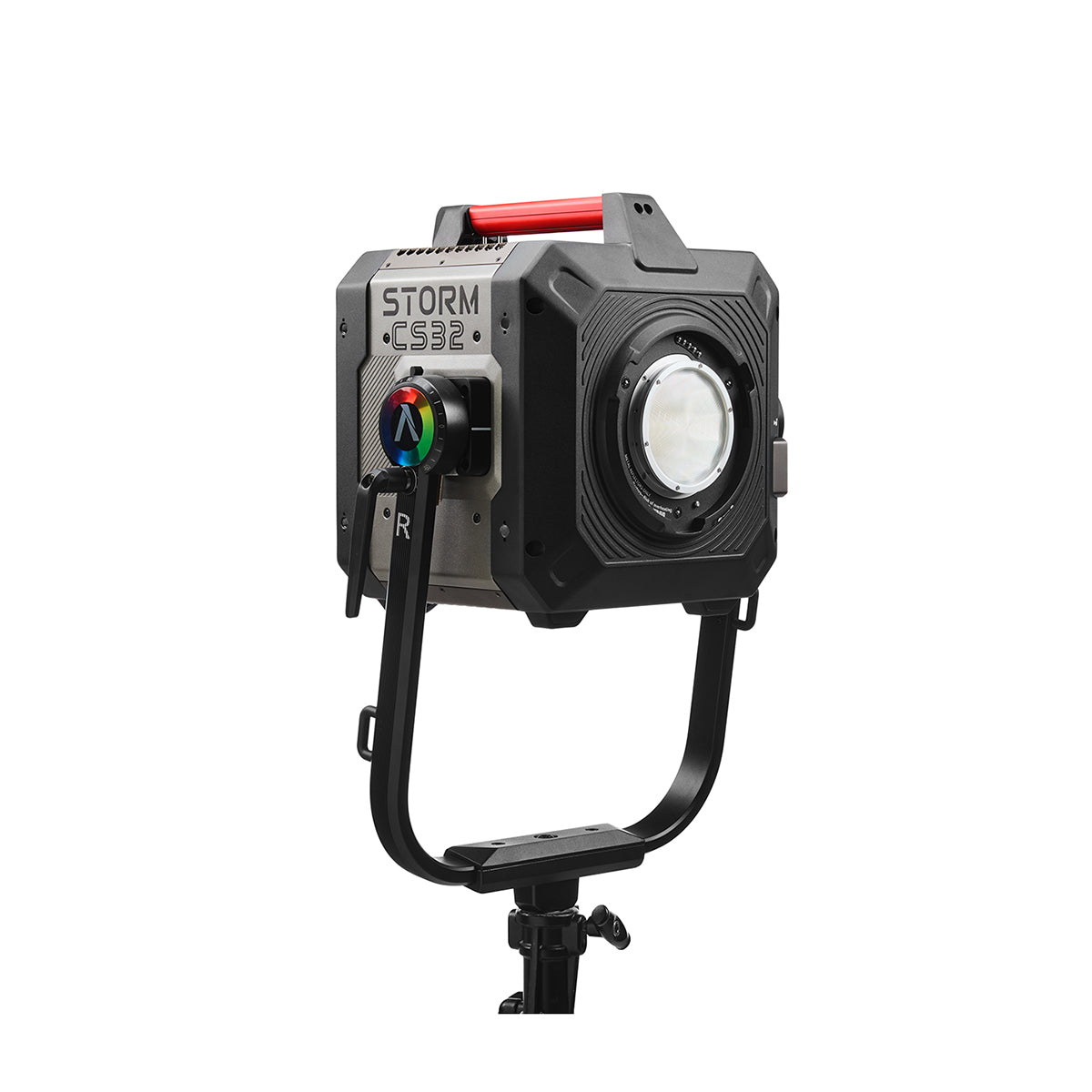

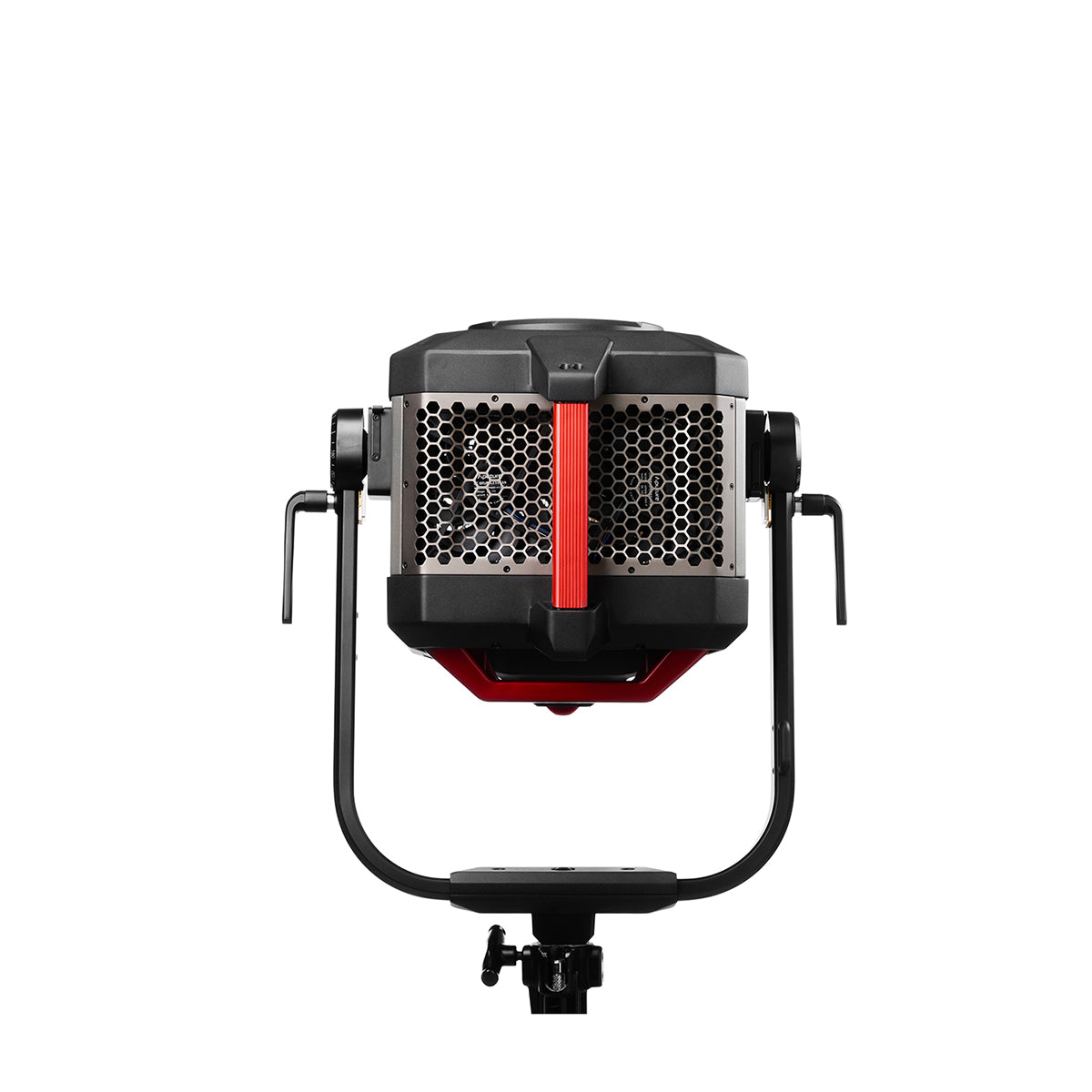

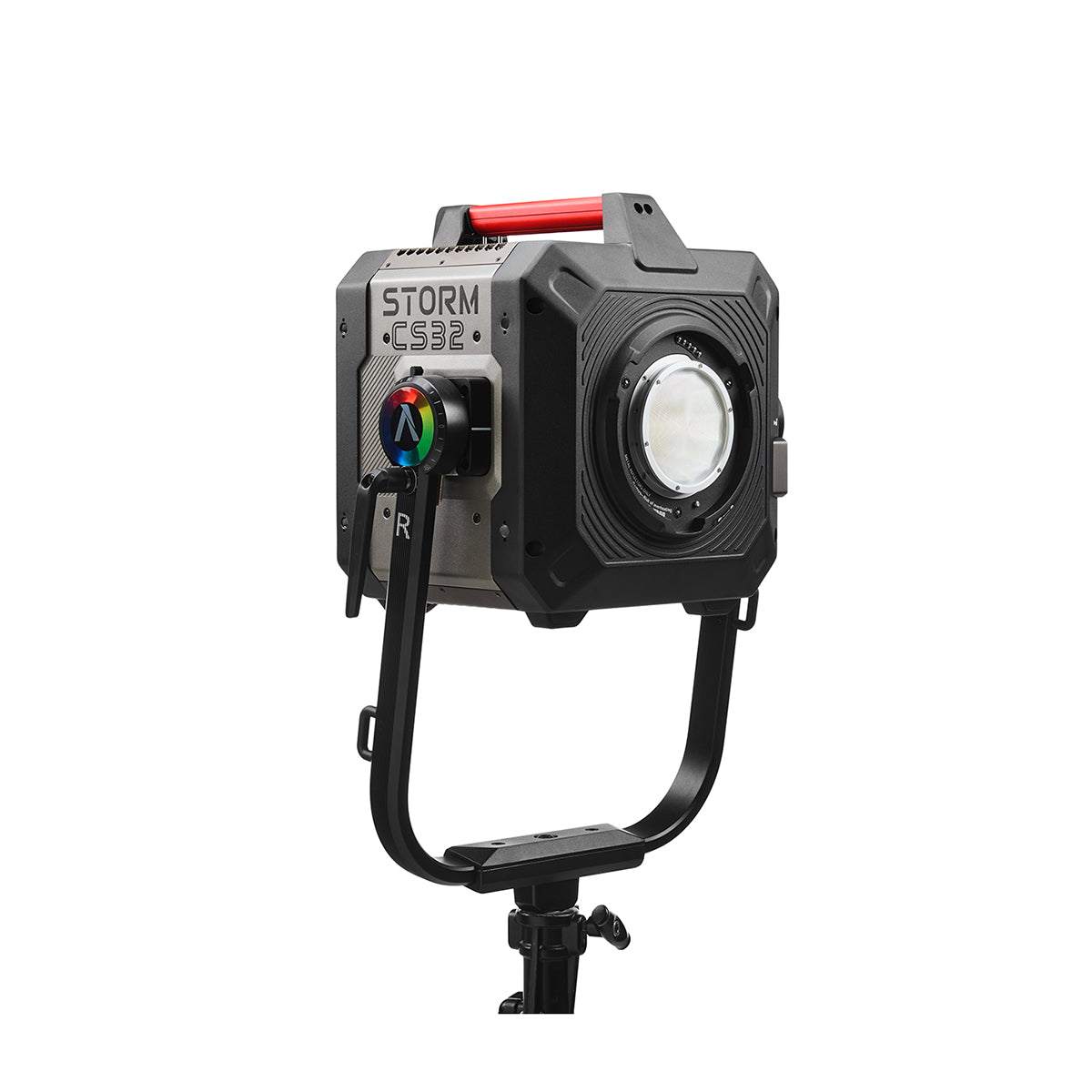

STORM CS32 Removable Yoke
-

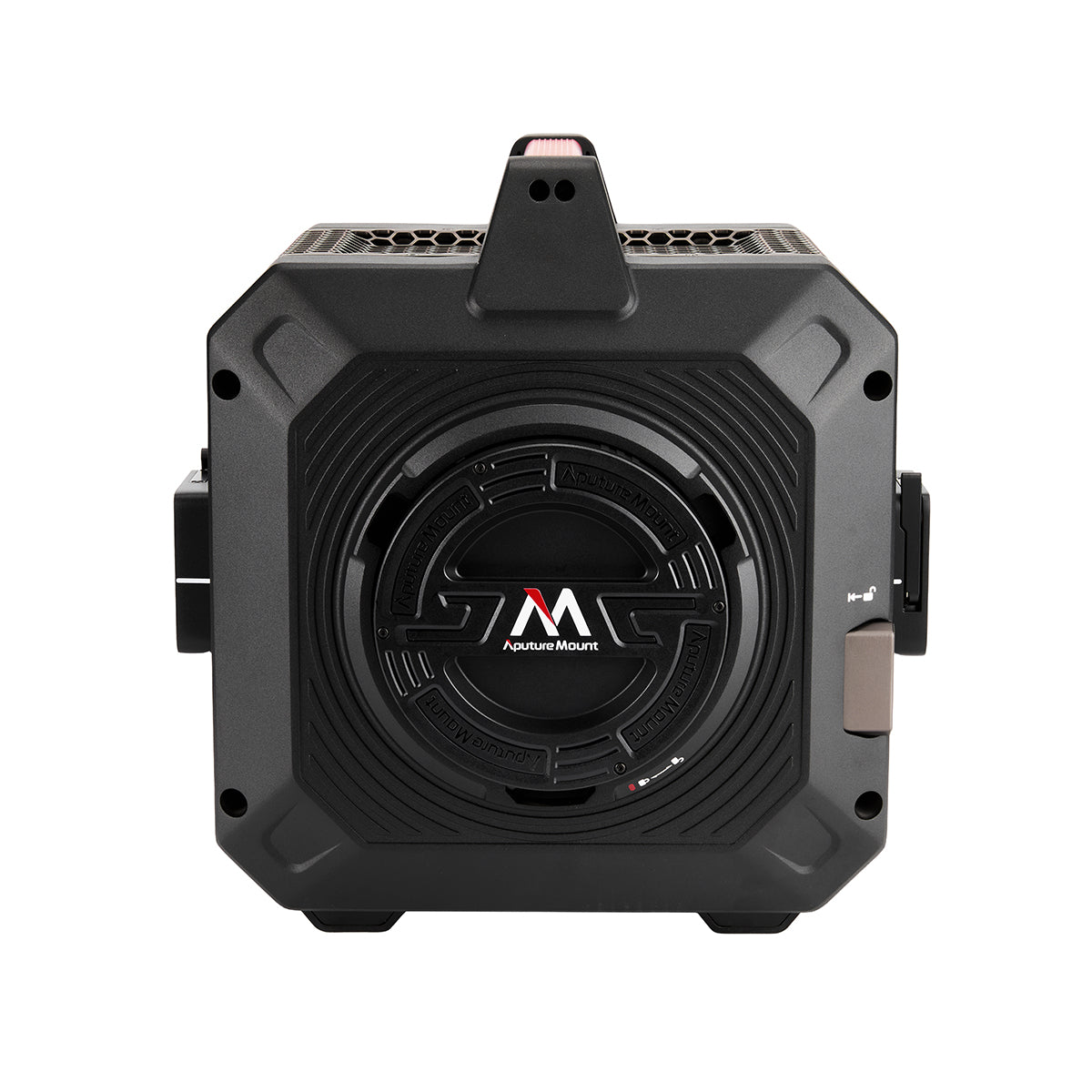

STORM Series Aputure Mount Protection Cover
-

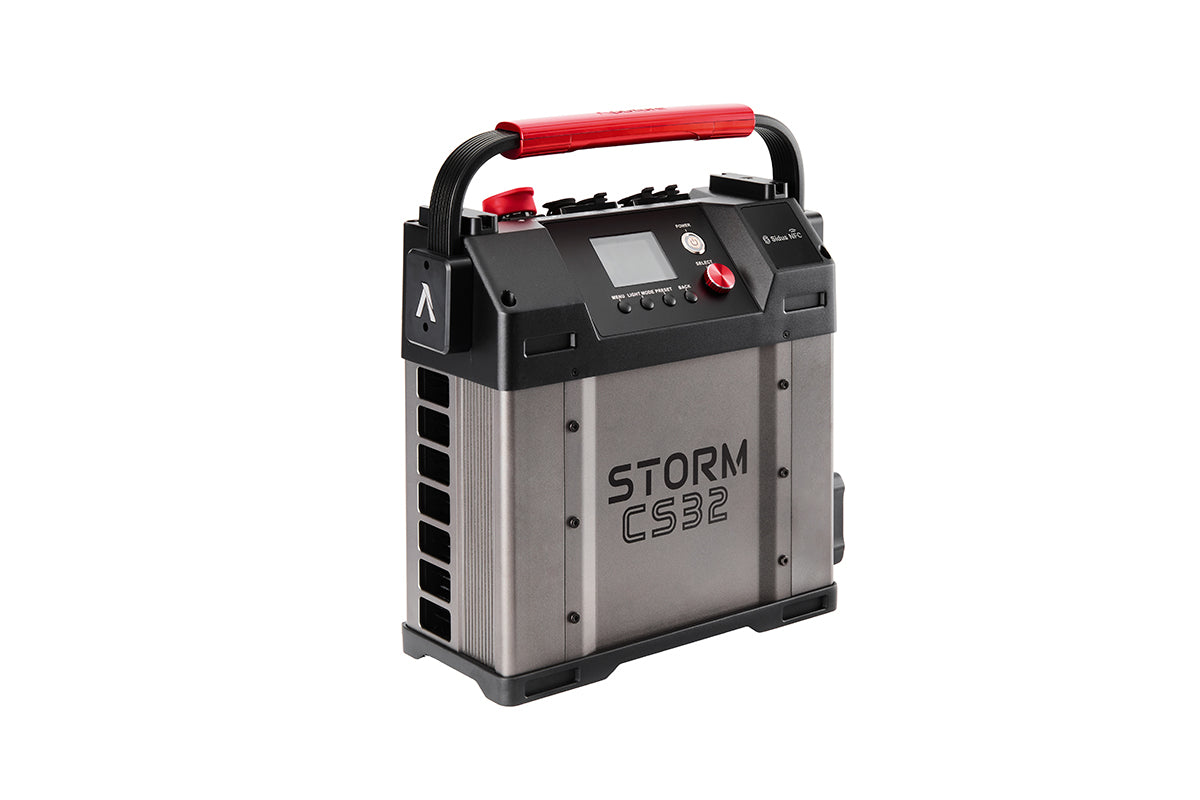

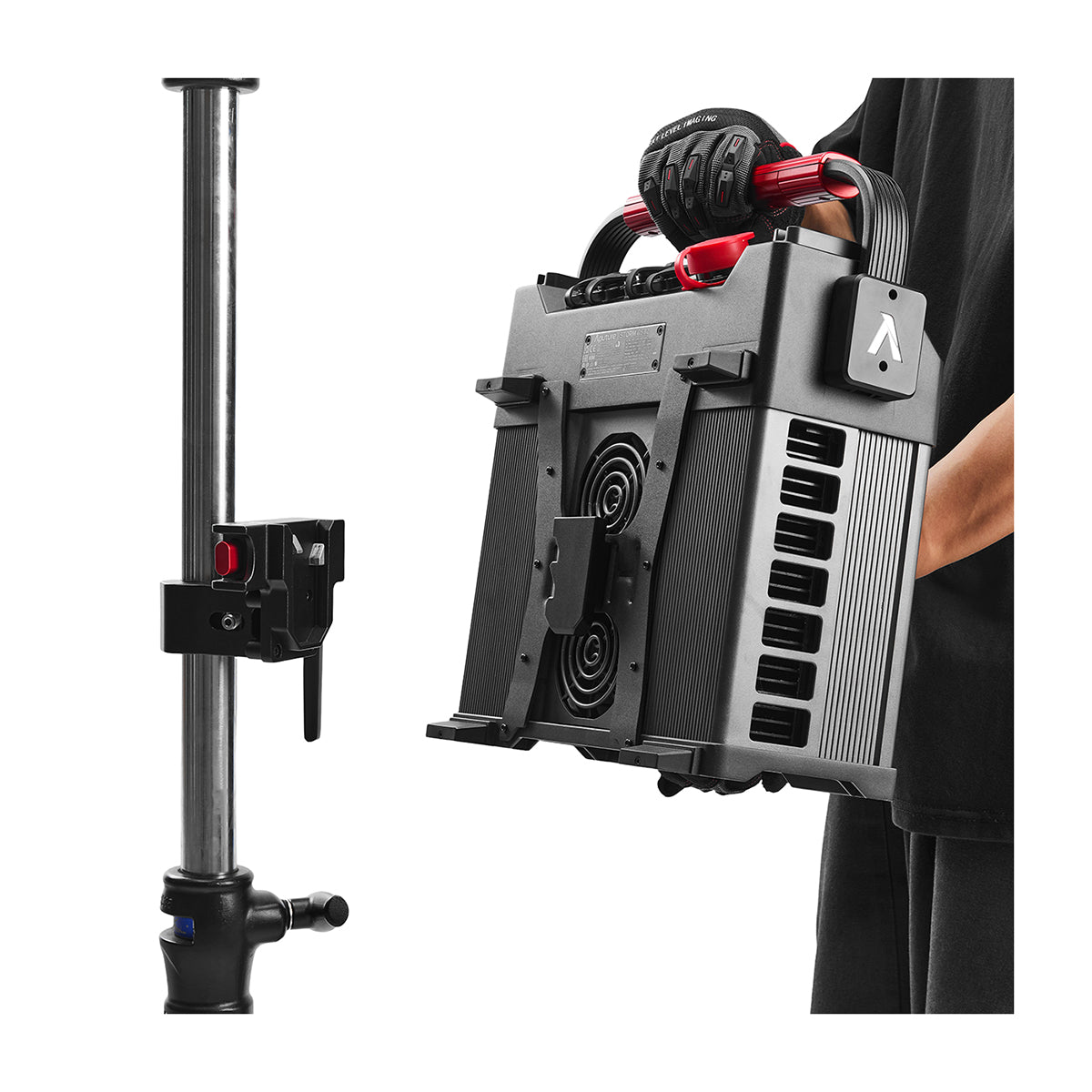

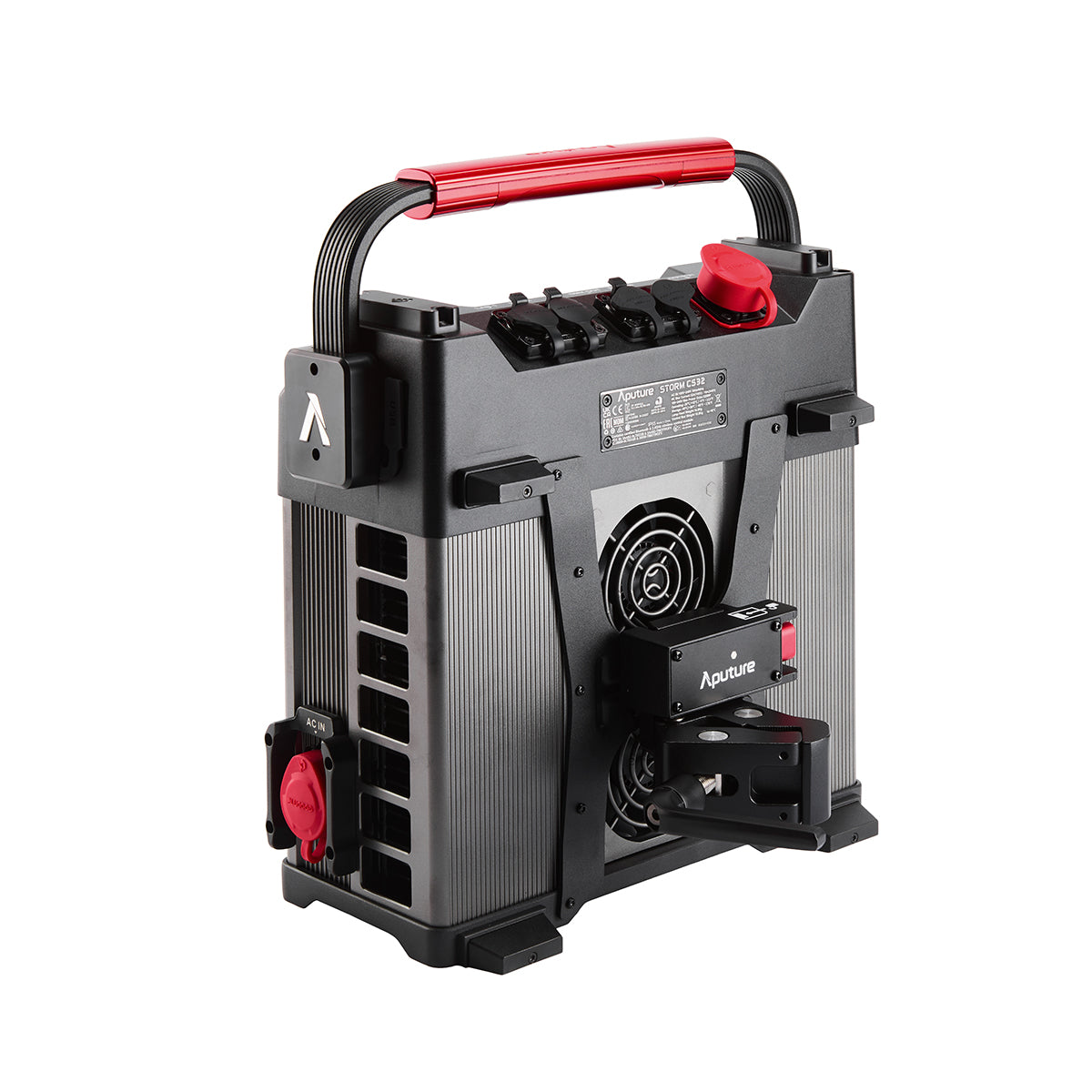

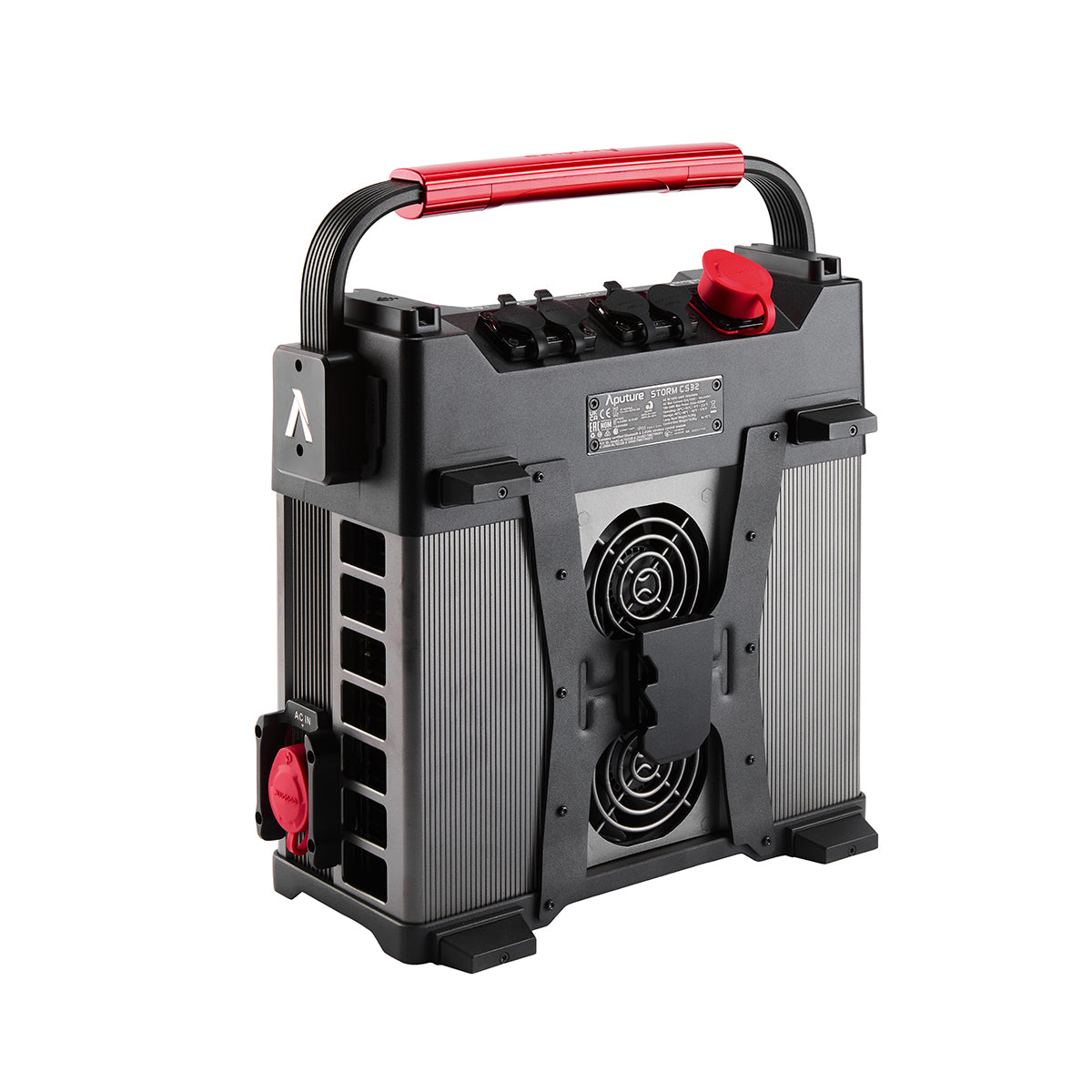

STORM CS32 Control Box
-
AM11030 Medium Reflector
-
PLG28 4-Pin to Bare Leads AC Power Cable (3m; all regions except CN/EU)
-
PLG28 4-Pin to NEMA 5-20P AC Power Cable (6m; all regions except CN/EU)
-
PLK28 10-Pin Male to Female Lamp Head Cable (7.5m)
-
Aputure Ultra Clamp
| Light and Color | |
|---|---|
| LED Chipset | BLAIR-CG With Extended Red |
| CCT Range | 1,800K–20,000K |
| CRI | 97 |
| TLCI | 98 |
| SSI (Tungsten) | 93 |
| SSI (D56) | 91 |
| TM-30 RF / RG | 96 / 100 |
| Power and Optics | |
|---|---|
| Operating Voltage (Full Output) | 100V–240V / 50–60 Hz |
| Max Power Consumption | 3,200W |
| Max Power Output | 2,600W |
| Native Beam Angle | 78° |
| Beam Angle with Included Reflector | 30° |
| Compatible Reflectors | 20°, 25°, 35°, 50° XT52 and 30° CS32 Reflectors |
| Control and Environmental | |
|---|---|
| Control Methods | On-board, Sidus Bluetooth, DMX, CRMX, Art-Net/sACN |
| Firmware Upgrade | USB-A, Sidus Link, Sidus Link Pro |
| Wireless Range | 100m Bluetooth; 100m CRMX |
| IP Rating | IP65 |
| Operating Temperature | -20°C to 45°C / -4°F to 113°F |
| Cooling | Air cooled |
| Dimensions and Weight | |
|---|---|
| Lamp Head (Without Yoke) | 37.2 × 38.3 × 35.8 cm / 14.6 × 15.1 × 14.1 in; 16.80 kg / 37.04 lbs |
| Control Box | 34.5 × 16.0 × 37.6 cm / 13.6 × 6.3 × 14.8 in; 10.80 kg / 23.81 lbs |
| Head Cable Length | 7.5m |
| Maximum Head Cable Length | 45m (daisy chain) |
| Identifiers | |
|---|---|
| SKU | AP0701051U |
| UPC | 850065294407 |
