Product Information
-

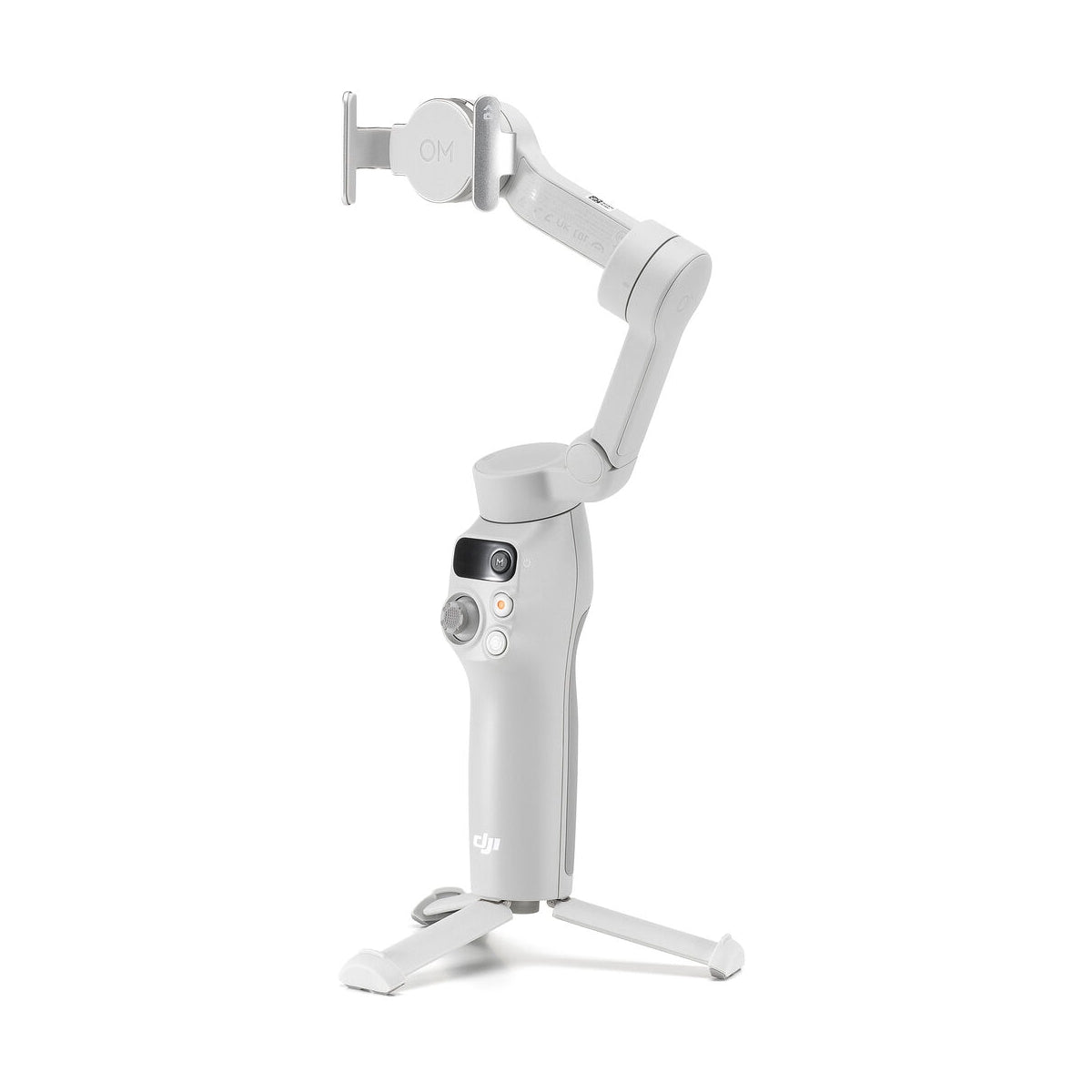

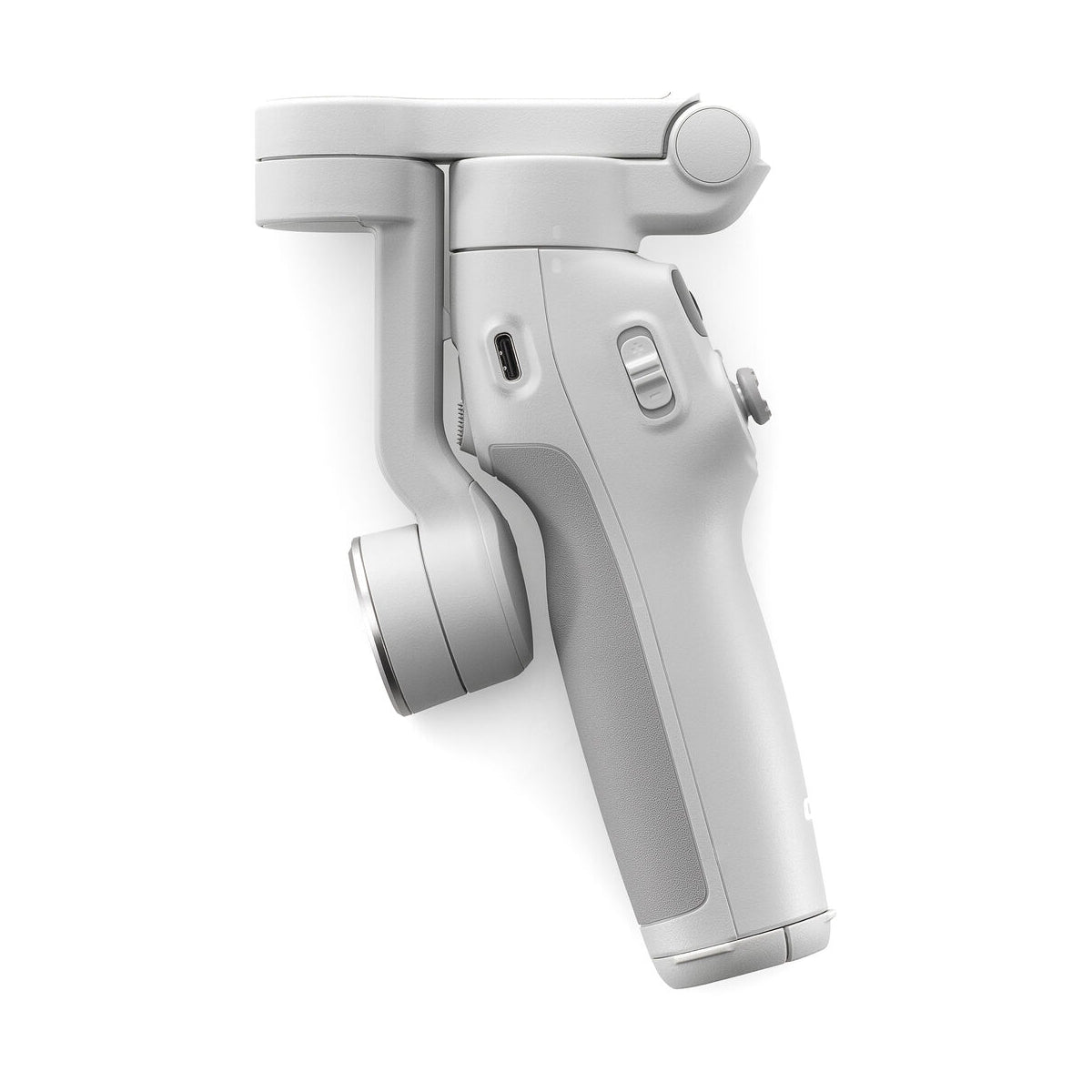

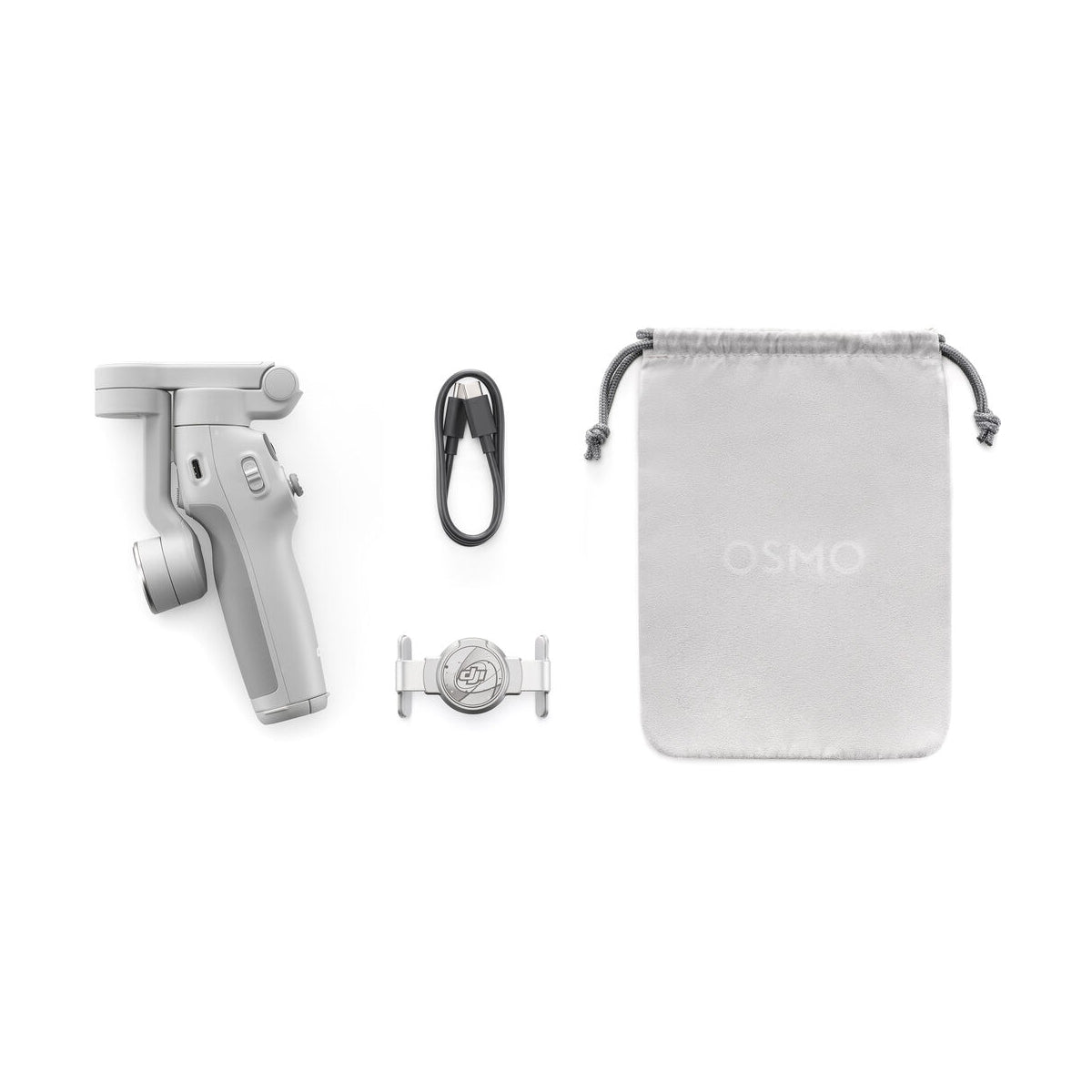

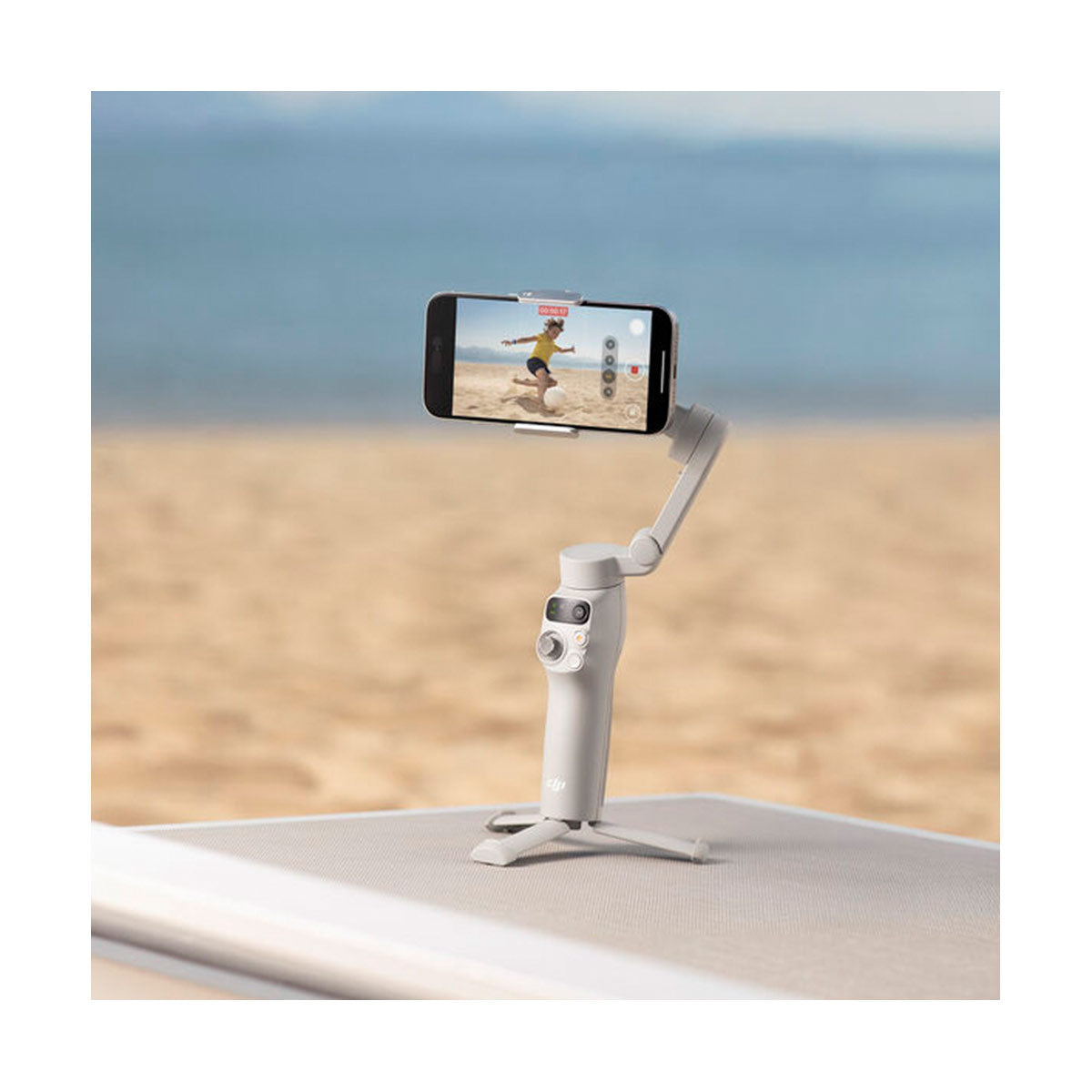

Osmo Mobile 7 Smartphone Gimbal
-
OM Magnetic Phone Clamp for Osmo Mobile 7 Series
-
USB-C Power Cable (19.7")
-
Storage Pouch
-
Limited 1-Year Warranty
| Gimbal | |
|---|---|
| Load Capacity | 6 to 10.58 oz / 170 to 300 g |
| Number of Axes | 3-Axis Pitch (Tilt) Roll Yaw (Pan) |
| Controllable Rotation Range | Pan (Yaw): 309° (-99 to 210°) Roll: 312° (-67 to 245°) Pitch (Tilt): 60° (-20° to 40°) |
| Mechanical Rotation Range | Pan (Yaw): 331° (-109 to 222°) Roll: 332° (-77° to 255°) Pitch (Tilt): 324° (-224 to 100°) |
| Follow Speed | Pan: 120°/s Tilt: 120°/s Roll: 120°/s |
| Compatibility | |
|---|---|
| Camera Control | On Compatible Models |
| Smartphone Dimensions | Width: 2.64 to 3.31" / 67 to 84mm Thickness: 0.3 to 0.4" / 6.9 to 10mm |
| Connectivity | |
|---|---|
| Inputs/Outputs | 1 x USB-C (5 VDC Power) Input |
| Wireless Protocol | Bluetooth 5.3 |
| Battery | |
|---|---|
| Battery Type | 1 x Built-In Lithium-Ion |
| Battery Capacity | 3350 mAh / 12.06 Wh |
| Battery Runtime | Approx. 10 hours (Measured with the gimbal balanced in a level and stationary state without additional accessories) With the Multifunctional Module's intelligent tracking feature enabled and the fill light off, the operating time is approximately 5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 4 hours. |
| Battery Charging Time | Approx. 2.5 hours (Measured with a 10W USB-C charger) |
| General | |
|---|---|
| Mounting | 1 x 1/4"-20 Female |
| Dimensions (L × W × H) | Unfolded: 10.94 x 4.21 x 3.66" / 278 × 107 × 93mm Folded: 7.05 x 3.74 x 1.54" / 179 × 95 × 39mm |
| Weight | Approx. 0.66 lbs / 300g (Gimbal + Built-in Tripod + Magnetic Phone Clamp) |
