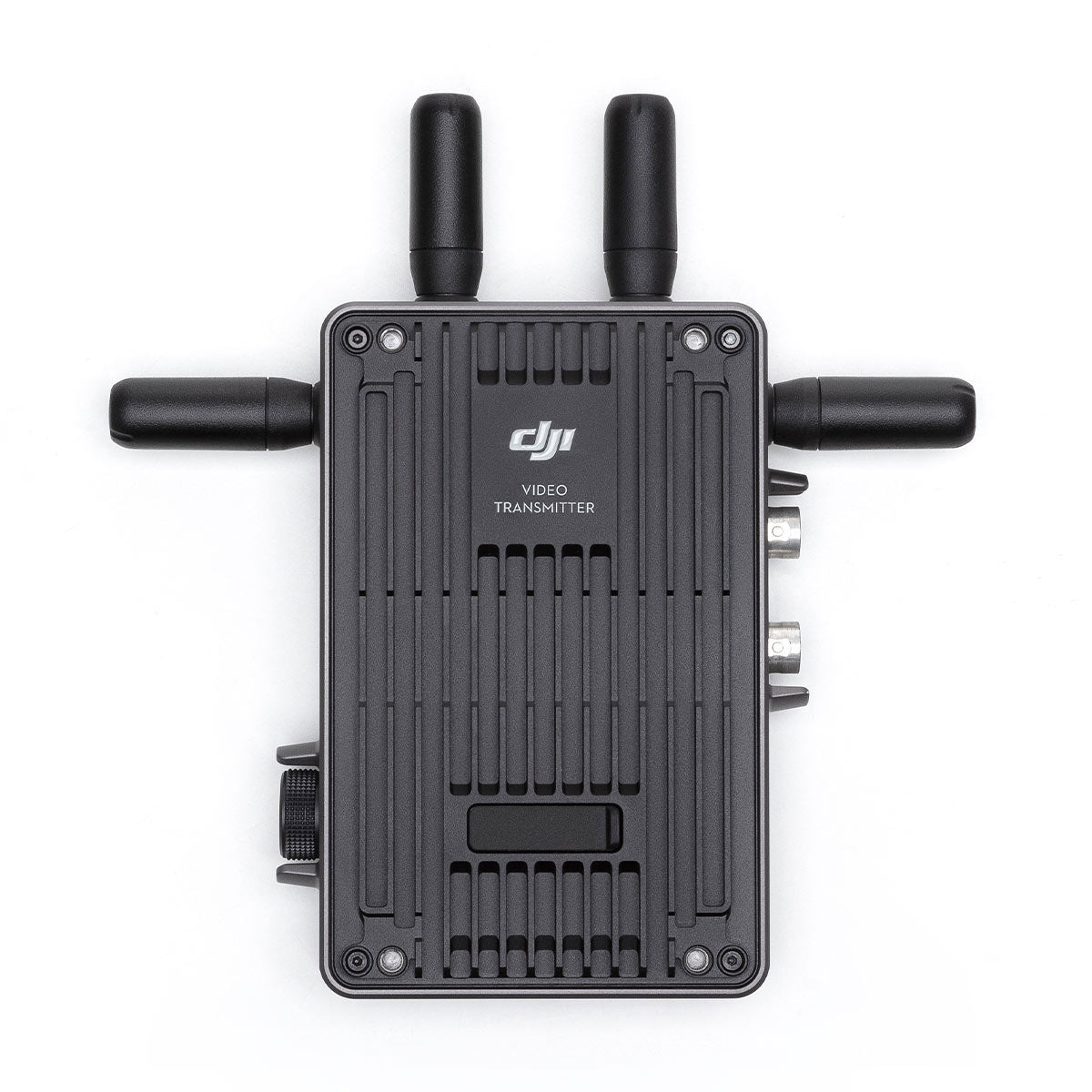

With the latest O3 Pro video transmission technology, the DJI Video Transmitter offers a stunning 20,000-foot ground transmission range. In addition to 2.4 GHz and 5.8 GHz, it supports the DFS frequency band and an AES 256-bit encryption algorithm that can output a 1080p/60fps FHD feed to multiple remote monitors simultaneously with significantly enhanced security, stability, and anti-interference capability.
End-to-End Ultra-Low Latency
The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.
Seamless Auto Frequency Hopping
O3 Pro adds DFS bands on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
One Transmitter with Multiple Receivers
The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds in two transmission modes. In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely.
For crews operating with multiple members and teams, such as lighting, art department, and props, Broadcast mode can be enabled on top of Control mode to allow an unlimited number of receivers (transmission performance differs from Control mode). This brings shooting efficiency and awareness to an entirely new level.
DJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorized access to your information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage.
|Antenna Ports||4 x RP-SMA Female|
|Video||1 x BNC (3G-SDI) Input |
1 x HDMI Type A (HDMI 1.4) Input
1 x BNC (3G-SDI) Loop Output
|Power I/O||1 x USB Type-C Input |
1 x Barrel Input
|Video Transmission System||O3 Pro|
|Wireless Range||3.7 Miles / 6 km (Line-of-Sight)|
|Number of Channels||23|
|Channel Bandwidth||40 MHz|
|Frequency Range||Non-DFS Frequencies |
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz
|RF Power||< 33 dBm|
|Wi-Fi||Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)|
|Video Format||HDMI/SDI (10-Bit 4:2:2 YCC) |
|Audio Format||16-Bit 48 kHz PCM Audio|
|Wireless Video Compression||Compressed|
|DC Input Power||6 to 18 VDC|
|Battery Type||1 x L-Series (Interchangeable Mount)|
|Power Consumption||11 W|
|Operating Time||3 hours 40 minutes|
|Mounting||1 x Cold Shoe|
|Dimensions||5 x 3.4 x 1" / 127 x 87 x 26 mm|
|Weight||12.3 oz / 350 g|
