The Hollyland Mars M1 is a powerful wireless monitor, integrating transmitter, receiver, and monitor functions into one solution. Featuring a 5.5" touch LCD screen with professional color calibration performed, 1,000 nits of brightness, and Rec. 709 color gamut, the Mars M1 delivers a pleasant monitoring experience. It can also transmit camera signals at a LOS range of up to 450ft (150m) with a low latency of 0.08s, effectively simplifying your device deployment and improving your efficiency during video shooting.

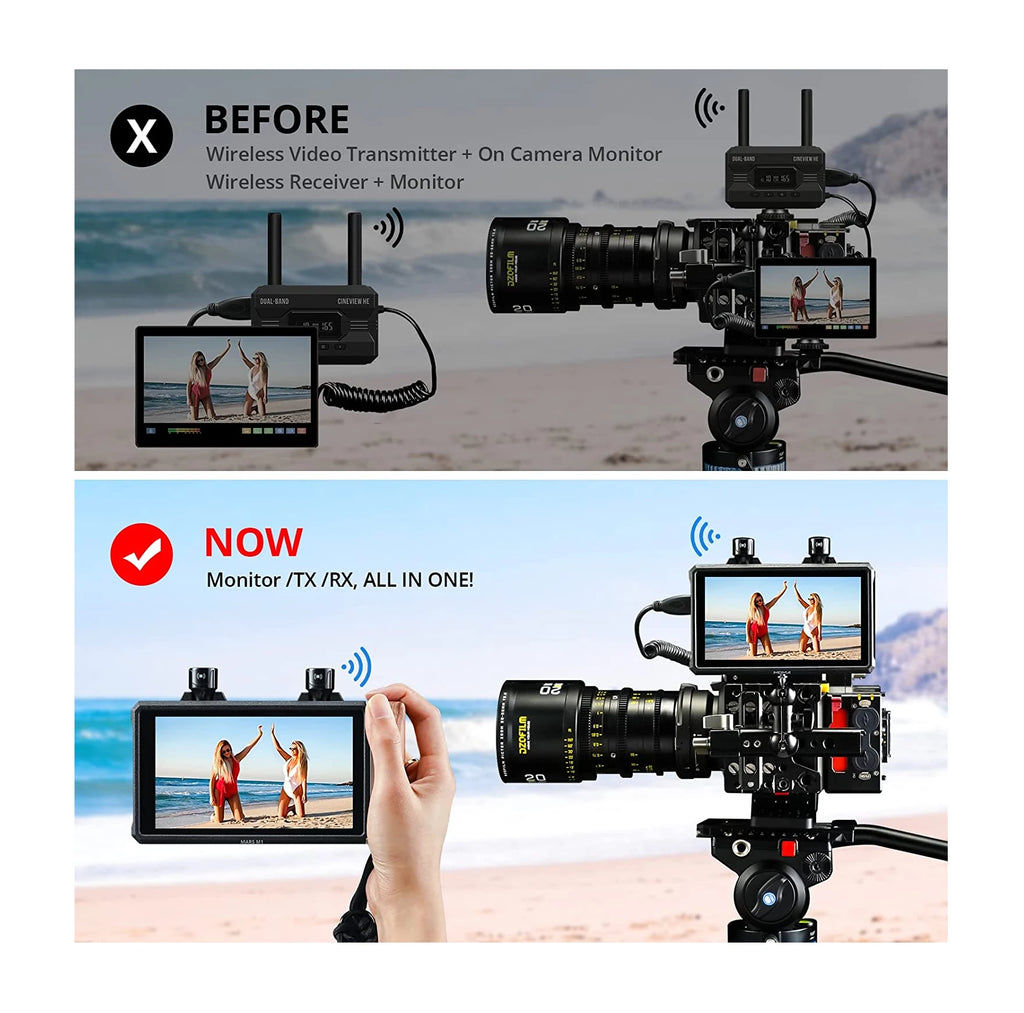

TX, RX, and Monitor—All in One
The Mars M1 functions as an all-in-one transmitter, receiver, and monitor solution. You can switch between the transmitter and receiver modes on the monitoring screen. One transmitter can work with up to two receivers or four mobile apps. The Mars M1 can be used together with the Mars Pro and 4K series to reduce the number of devices required for a more efficient shooting experience.
5.5" Touch LCD Screen with Professional Color Calibration
The Mars M1 is designed with a 5.5" touch LCD screen featuring up to 1,000 nits of brightness. Professional color calibration is performed during manufacturing, and multiple-level color temperature adjustments are available. The screen supports the Rec. 709 color gamut for excellent color rendition. Five selectable 3D LUT presets are available for transferring colors to the monitor.
450ft (150m) LOS Range and 0.08s Ultra-low Latency
The Mars M1 achieves an incredible LOS range of 450ft (150m) and ultra-low latency of 0.08s. The LOS range of 450ft (150m) is based on interference-free laboratory measurements.
HDMI & SDI Dual Interfaces
The Mars M1 supports 4K/30fps HDMI input and loopout for expanded connectivity and compatibility. Its SDI input also provides expanded flexibility and compatibility for professional video production.
Multiple Auxiliary Functions for Preview and Monitoring
The Mars M1 is featured with a variety of auxiliary functions, such as 4x zoom, focus assist, exposure assist, and waveform display, which increases shooting efficiency.
Smart Channel Scan and Selection
Channel assignment options allow for interference-free transmission. A stable connection is possible automatically upon startup. Smart channel scan helps determine which ones are occupied and selectable.
Customized Appearance and Textured Design
The custom-designed capsule antennas spare you the time spent on repeated disassembly. The Mars M1 body shell is highly impact- resistant with a frosted texture and weighs a mere 13.5oz (380g).
|Display Size||5.5" / 14.0 cm|
|Image Controls||Focus Peaking, Waveform|
|Inputs / Outputs|
|Antenna Ports||2 x RP-SMA Male|
|Video I/O||1 x HDMI Input |
1 x BNC (3G-SDI) Input
1 x HDMI Loop Output
|Audio I/O||1 x 1/8" / 3.5 mm Headphone Output|
|Power I/O||1 x Barrel Input |
1 x Barrel Output
|Other I/O||1 x USB-C Input|
|SIM Card Slots||None|
|Wireless Range||450' / 137.2 m (Line-of-Sight)|
|Frequency Range||US: 5 GHz|
|Video Format||HDMI |
UHD 4K: 30
|DC Input Power||7 to 16 VDC|
|Battery Type||1 x L-Series|
|Mounting||2 x 1/4"-20 Female|
|Material of Construction||Plastic|
|Weight||13.4 oz / 380 g|
|Dimensions (L x W x H)||5.98 x 3.78 x 1.57" / 152 x 96 x 40mm|
