Rode Rodelink Filmmaker Wireless Lav Kit *Open Box*

Save $80.00
RODESKU: RODELINKFILMMAKER-OB
No reviews

Price:
Sale price$319.00 Regular price$399.00
  • Three level gain control
  • Series II, 2.4GHz digital transmission with 128-bit encryption
  • Up to 100 meter range
  • OLED display (on receiver) and one button pairing

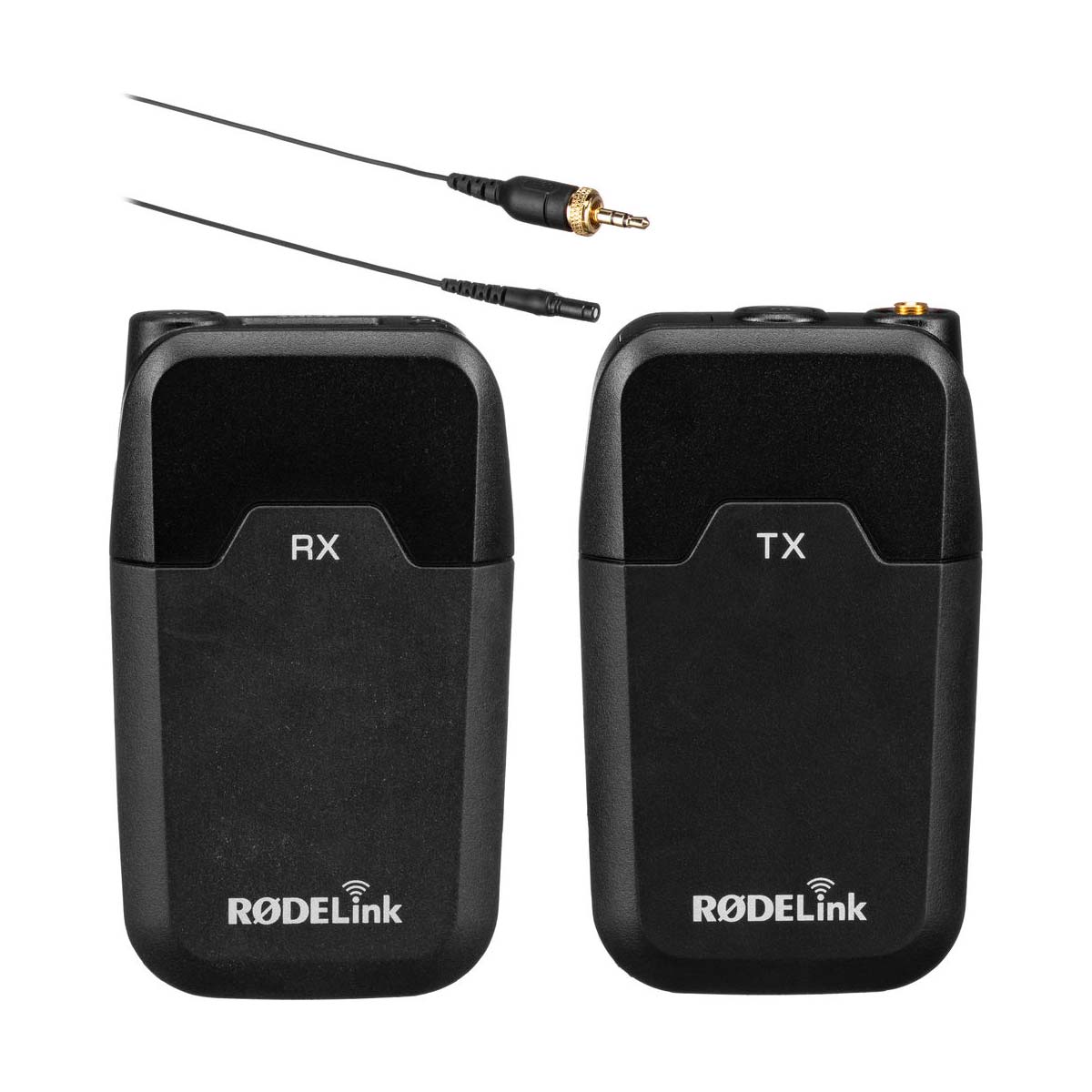

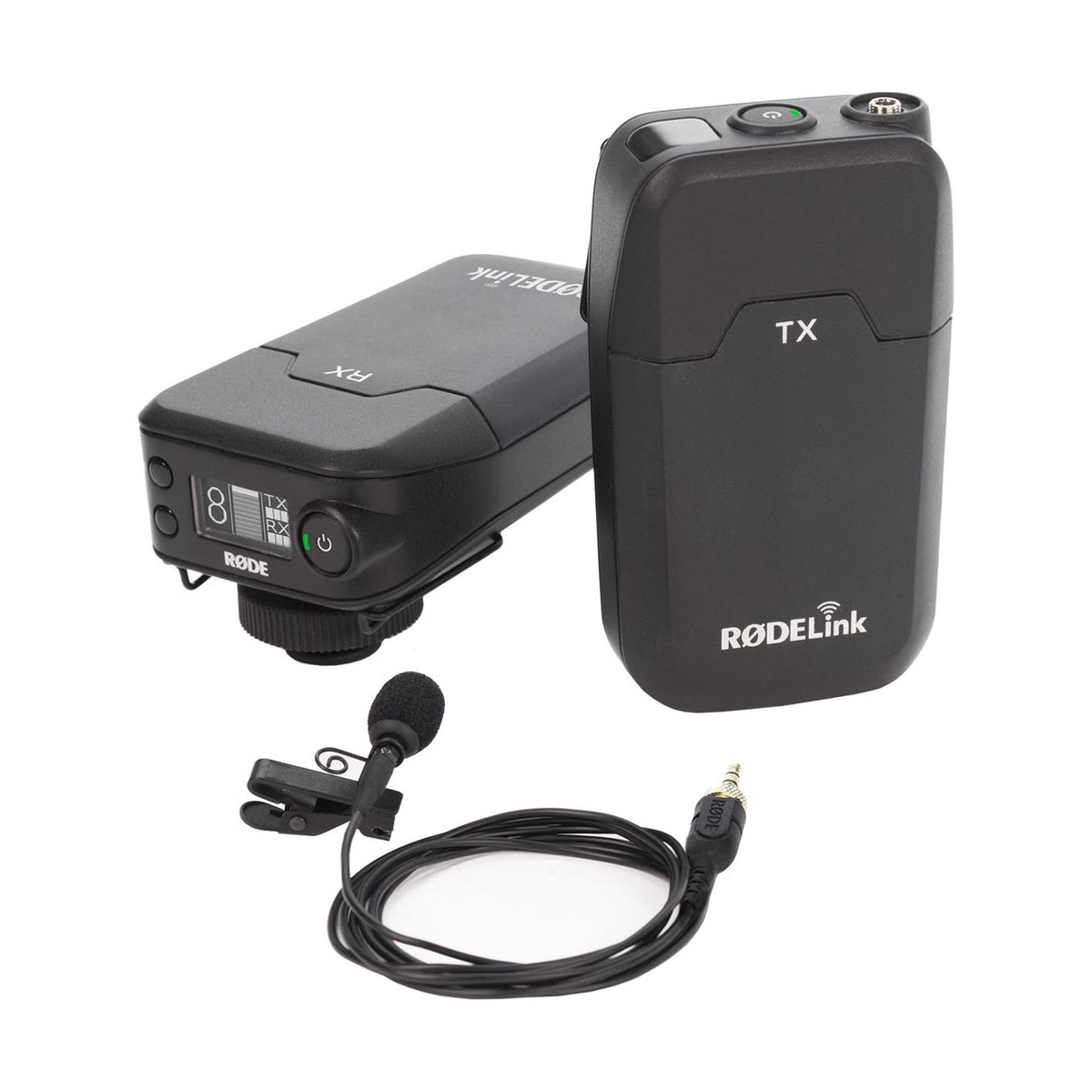

  • Rodelink Filmmaker Wireless Lav Kit

  • RØDELink LAV

  • Camera-Mounted Wireless Receiver

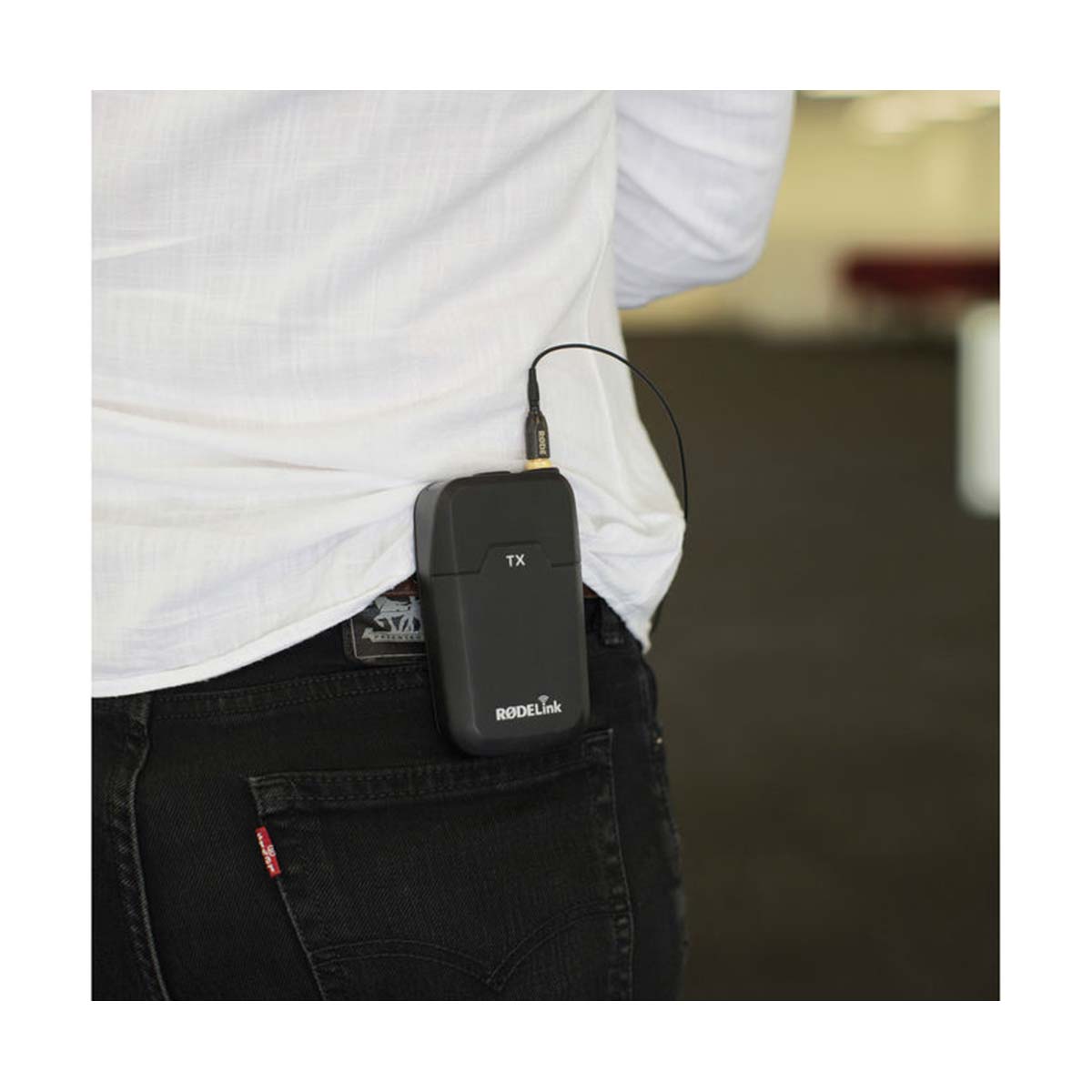

  • Beltpack Wireless Transmitter

  • Captive TRS cable

  • Limited 1-Year Warranty (Extendable to 2-Years)

Related Products

Description

RØDELINK FILMMAKER KIT Specifications
Transmission type2.4GHz Fixed Frequency Agile System
System dynamic range112dB
Range (distance)Up To 100m
Frequency range35Hz - 22kHz
Maximum output level1v Rms (2.8v P-p)
Max input signal level1v Rms (2.8v P-p)
Max latency4ms

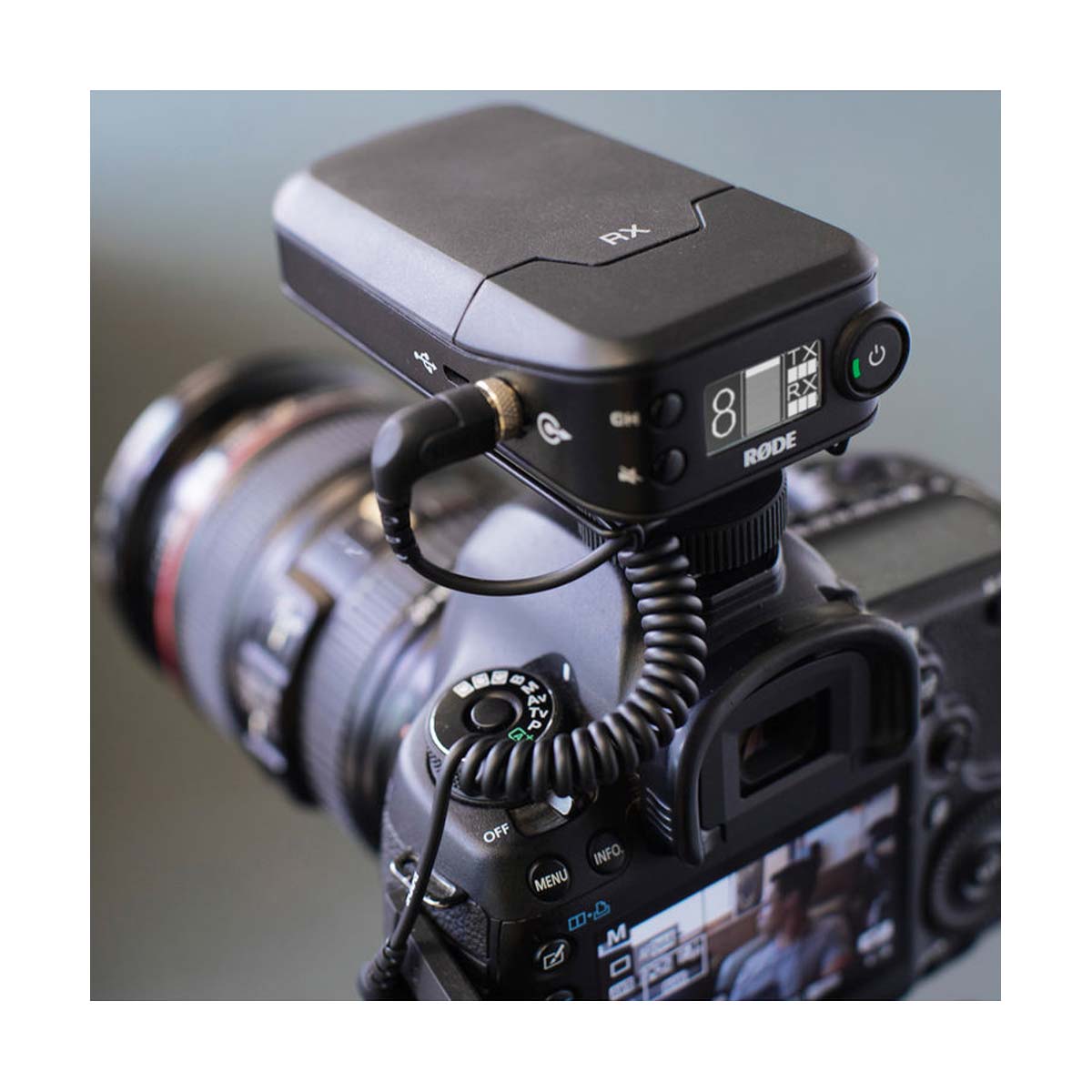

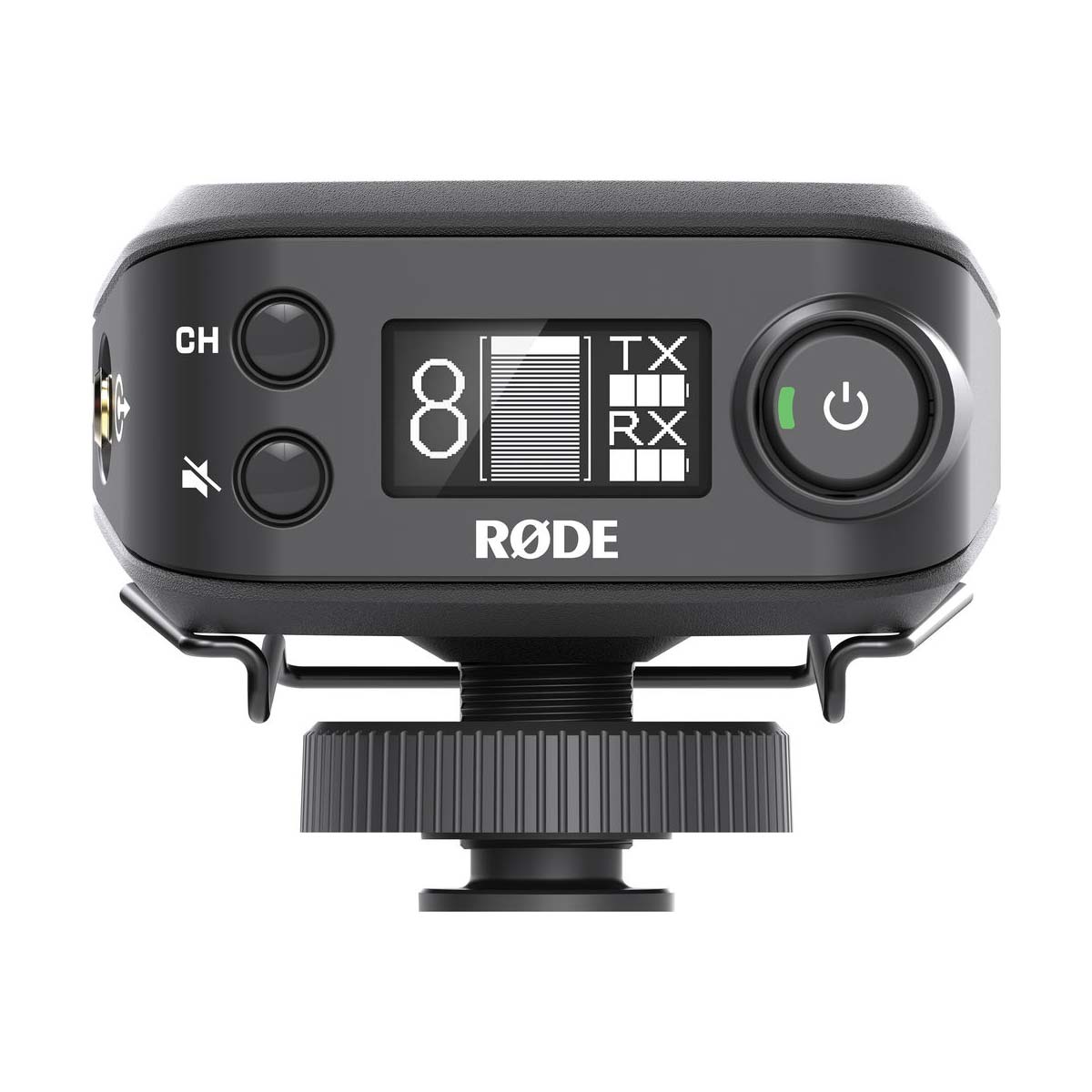

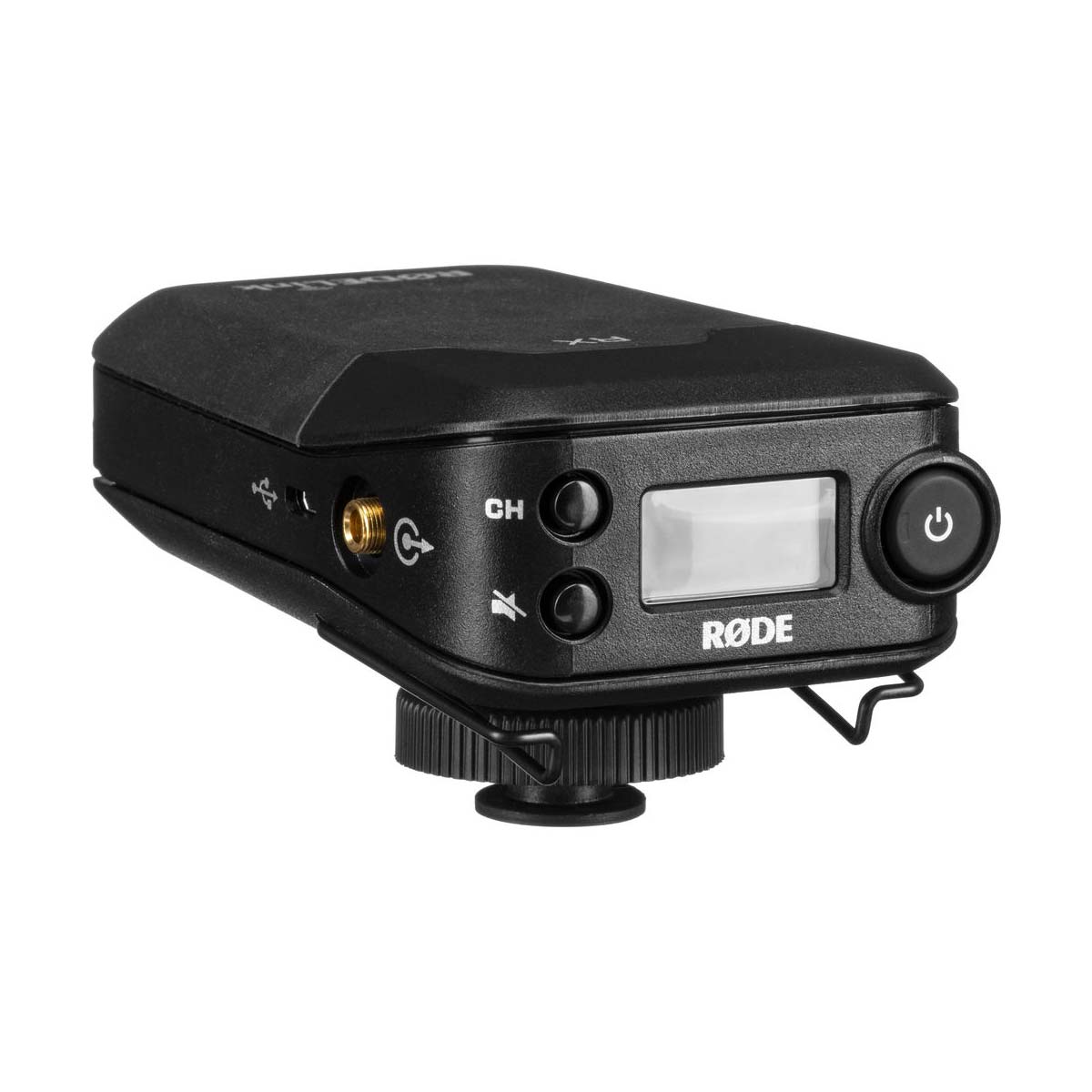

RECEIVER (RX-CAM)
Power source2 X AA Battery Or MicroUSB
AntennaInternal
Output connection3.5mm TRS Locking Jack Socket - Dual Mono
Output impedance300Ω
Dimensions111mm X 65mm X 52mm
Weight190gm

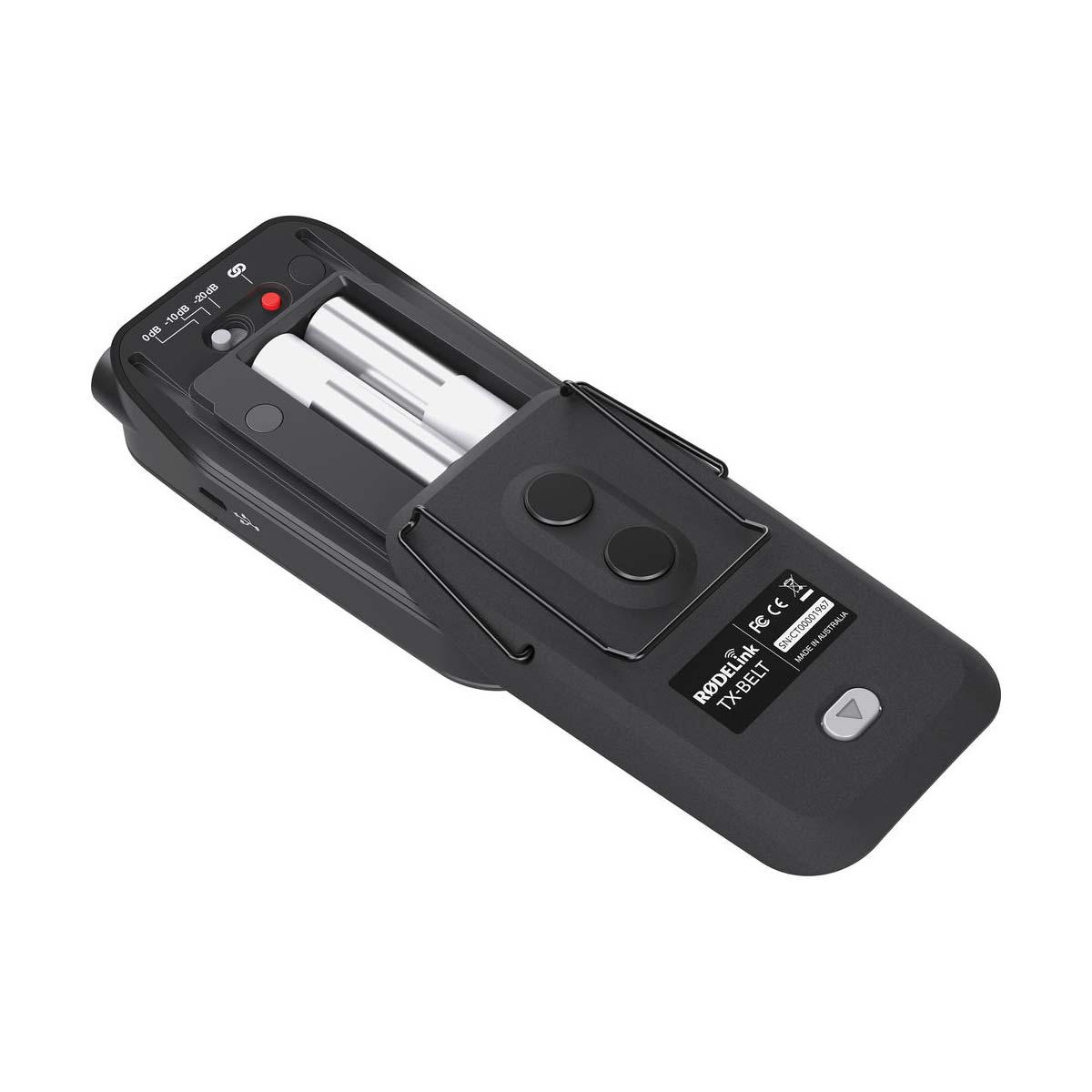

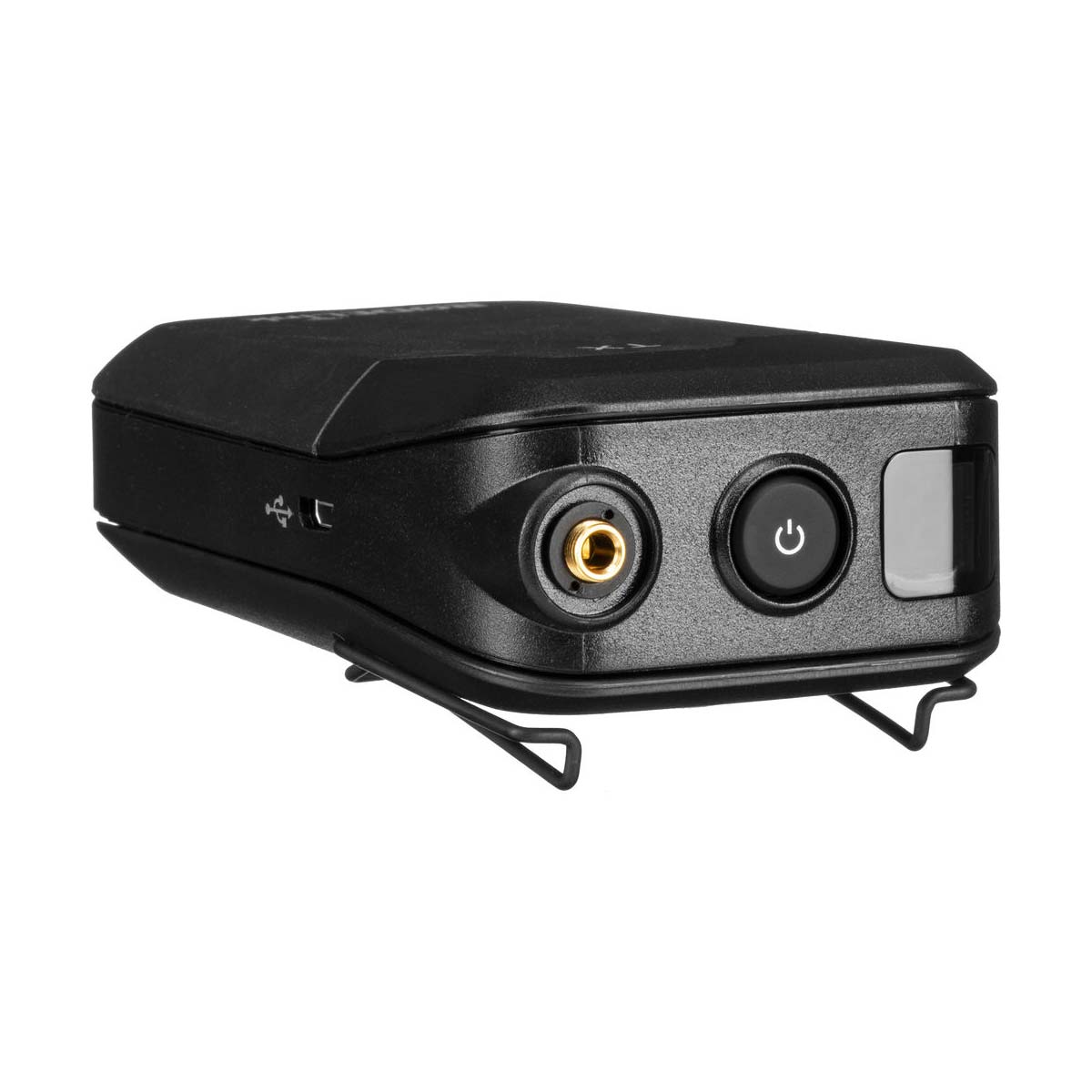

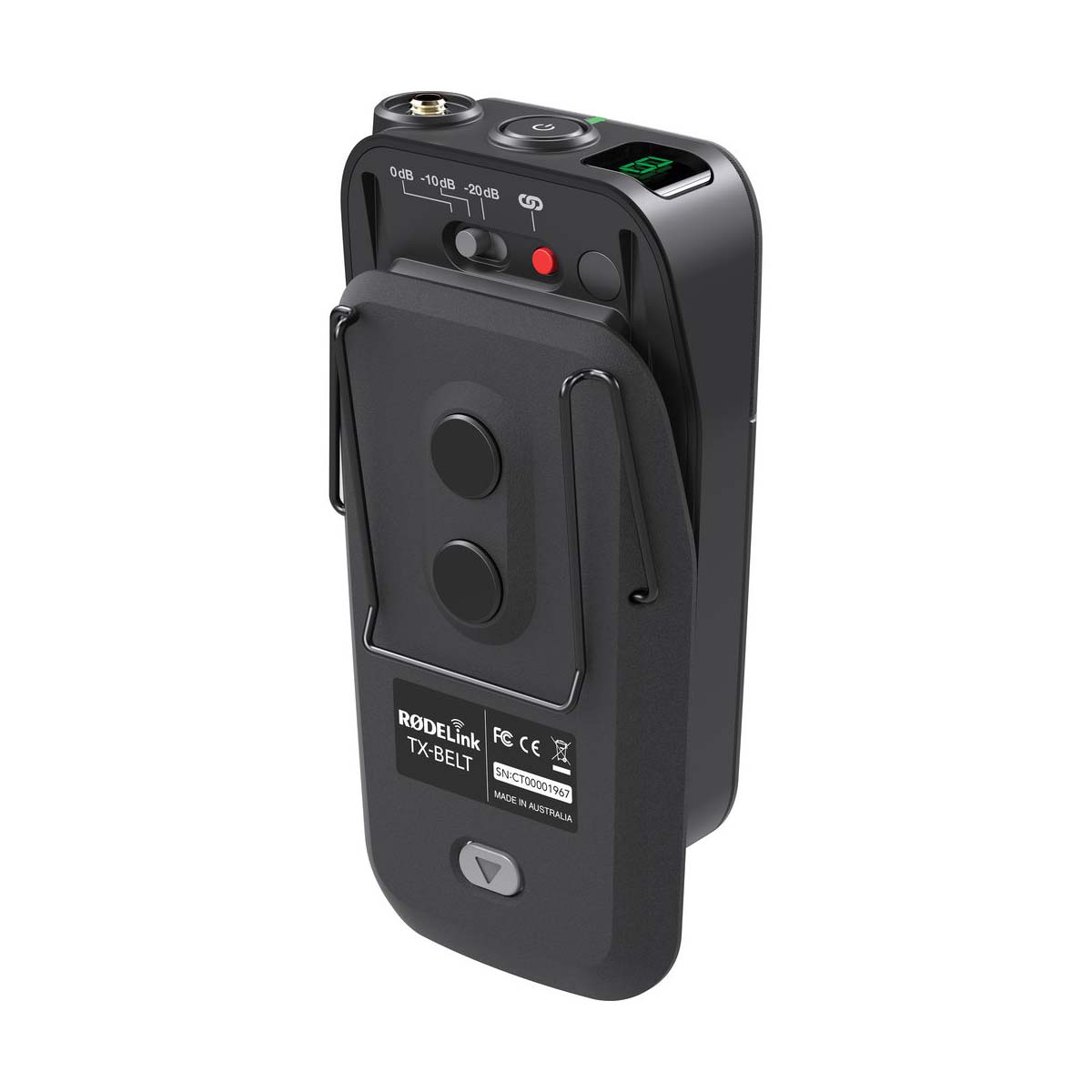

TRANSMITTER (TX-BELT)
Power source2 X AA Battery Or MicroUSB
AntennaInternal
Input connection3.5mm TRS Locking Jack Socket
Input impedance10kΩ
Dimensions111mm X 65mm X 40mm
Weight190gm
RØDELINK LAV ACOUSTIC & ELECTRICAL SPECIFICATIONS
Acoustic PrinciplePermanently Polarized Condenser
Polar PatternOmni-directional
Output Impedance3k Ω Typical
Frequency Range20Hz – 20kHz
Maximum SPL110 dB SPL (@ 1kHz, 1% THD into 1Ω load)
Sensitivity-33.5db re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2dB @ 1kHz
Signal to noise Ratio67 dB
Equivalent Noise (A-weighted)27 dB Typical
Dynamic Range83 dB Typical
