Product Information
A Compact Cinema Camera Built for Real Productions

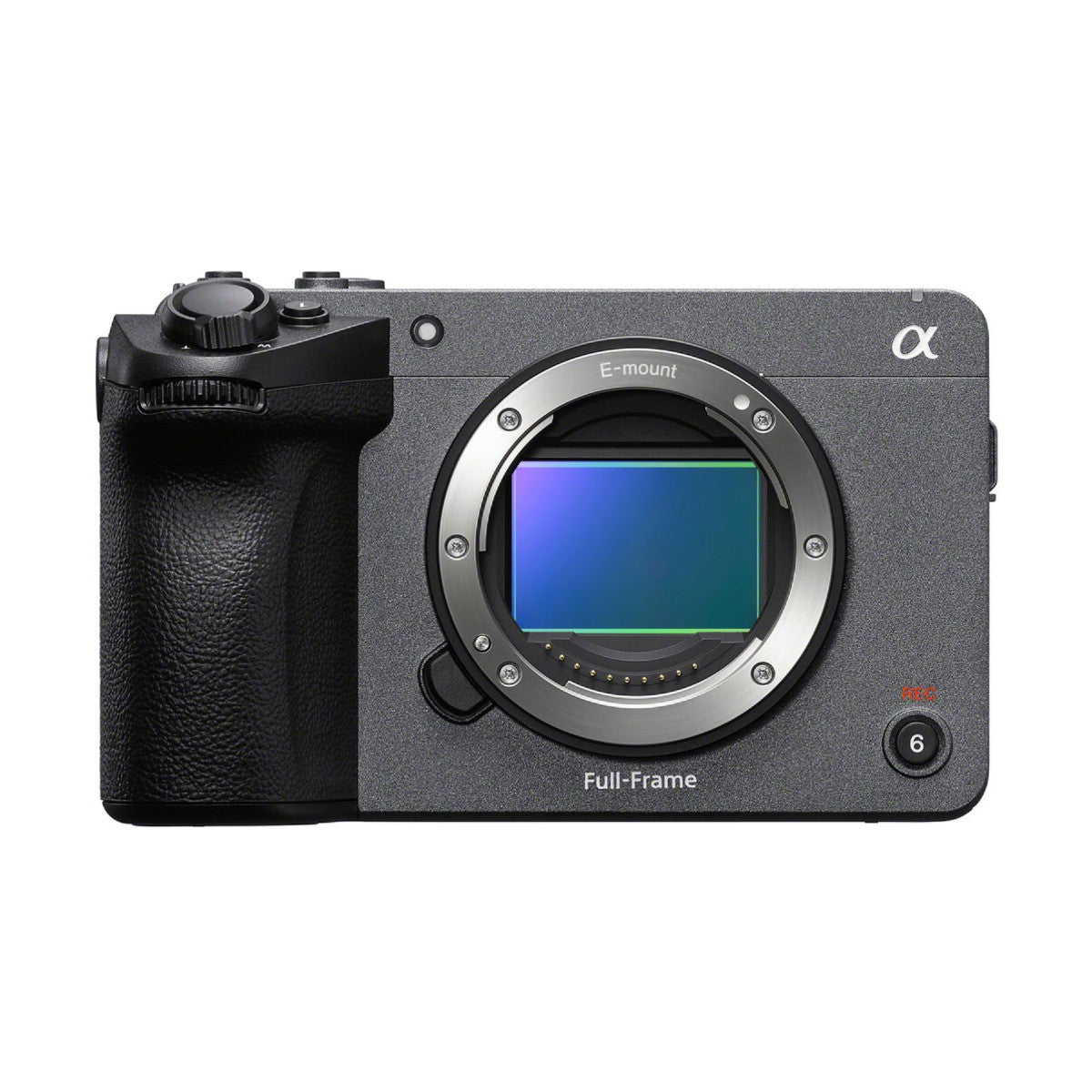

The Sony FX5 brings a full-frame, fully stacked 5K Exmor RS CMOS sensor and the BIONZ XR2 processor into a compact Cinema Line body. Its fast readout, 15+ stops of latitude in S-Log3, and cinema-focused controls give solo operators and production crews a flexible platform for documentary, commercial, narrative, and branded work.

5K Open Gate and Internal X-OCN
Record 5K Open Gate in a 3:2 aspect ratio at up to 60 fps, or capture 4K at up to 120 fps. Internal 16-bit scene-linear X-OCN recording is available in LT, C1, and C2 options, allowing productions to balance image quality, file size, and RAW workflow needs without an external RAW recorder.

Three Base ISOs and Dual Gain
Base ISO settings of 800, 4000, and 12800 help match the camera to changing light levels. Dual Gain Shooting extends flexibility in difficult scenes by preserving highlight and shadow information while controlling noise.

AI-Assisted Focus and Stabilization
Integrated AI processing supports subject recognition for people, animals, and birds, while Fast Hybrid AF uses up to 759 phase-detection points. Five-axis in-body stabilization, Active Mode, and Dynamic Active Mode provide multiple options for steadier handheld shooting.

Production-Ready Monitoring and Connectivity

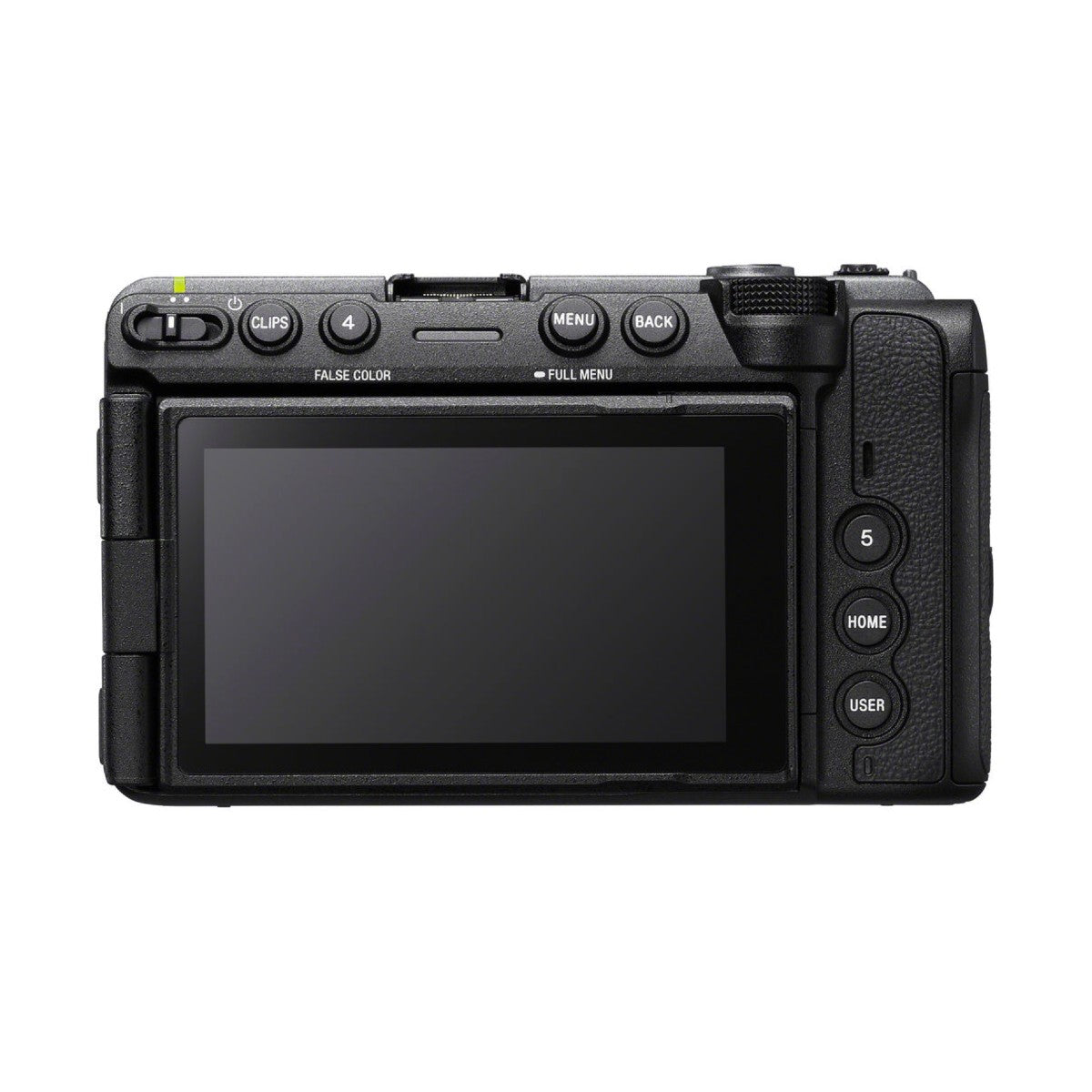

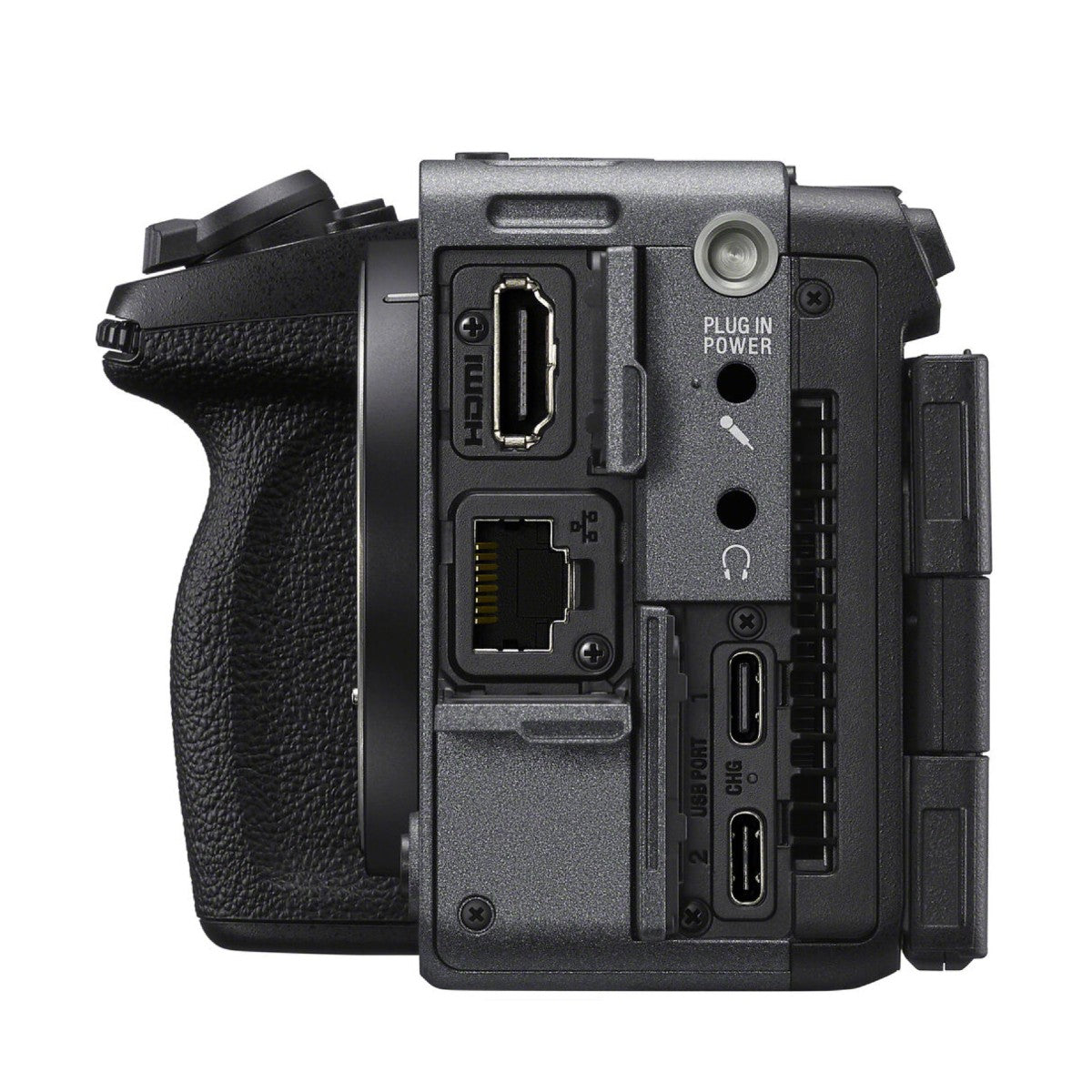

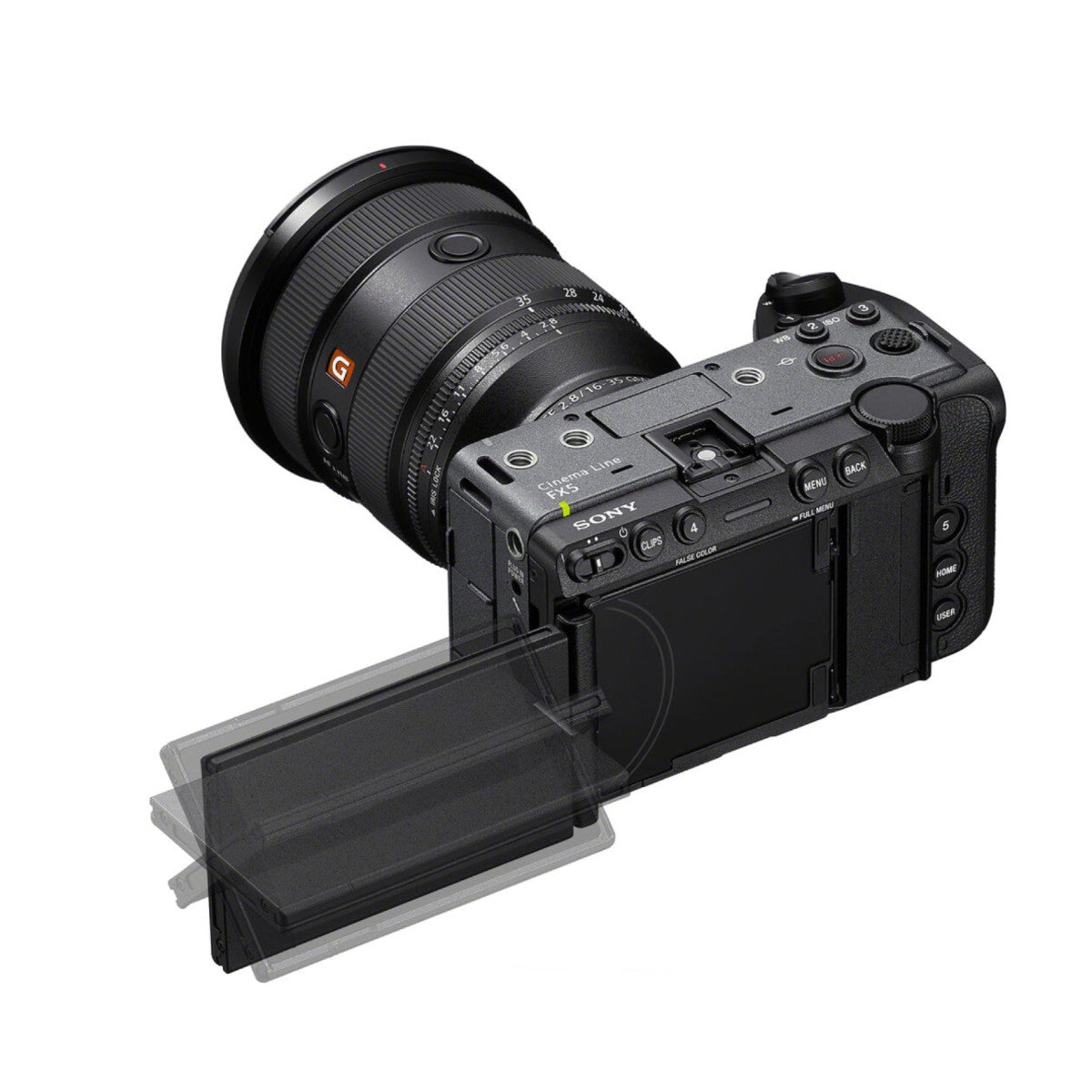

The 3.5-inch, four-axis touchscreen is supported by waveform, histogram, false color, Focus Map, and anamorphic de-squeeze tools. Dual CFexpress Type A/SD card slots, full-size HDMI, two USB-C ports, 2.5GBASE-T Ethernet, 802.11ax Wi-Fi on supported 6, 5, and 2.4 GHz bands, timecode support through USB Port 2, and remote operation through Sony Monitor & Control help the FX5 fit into connected productions.
-

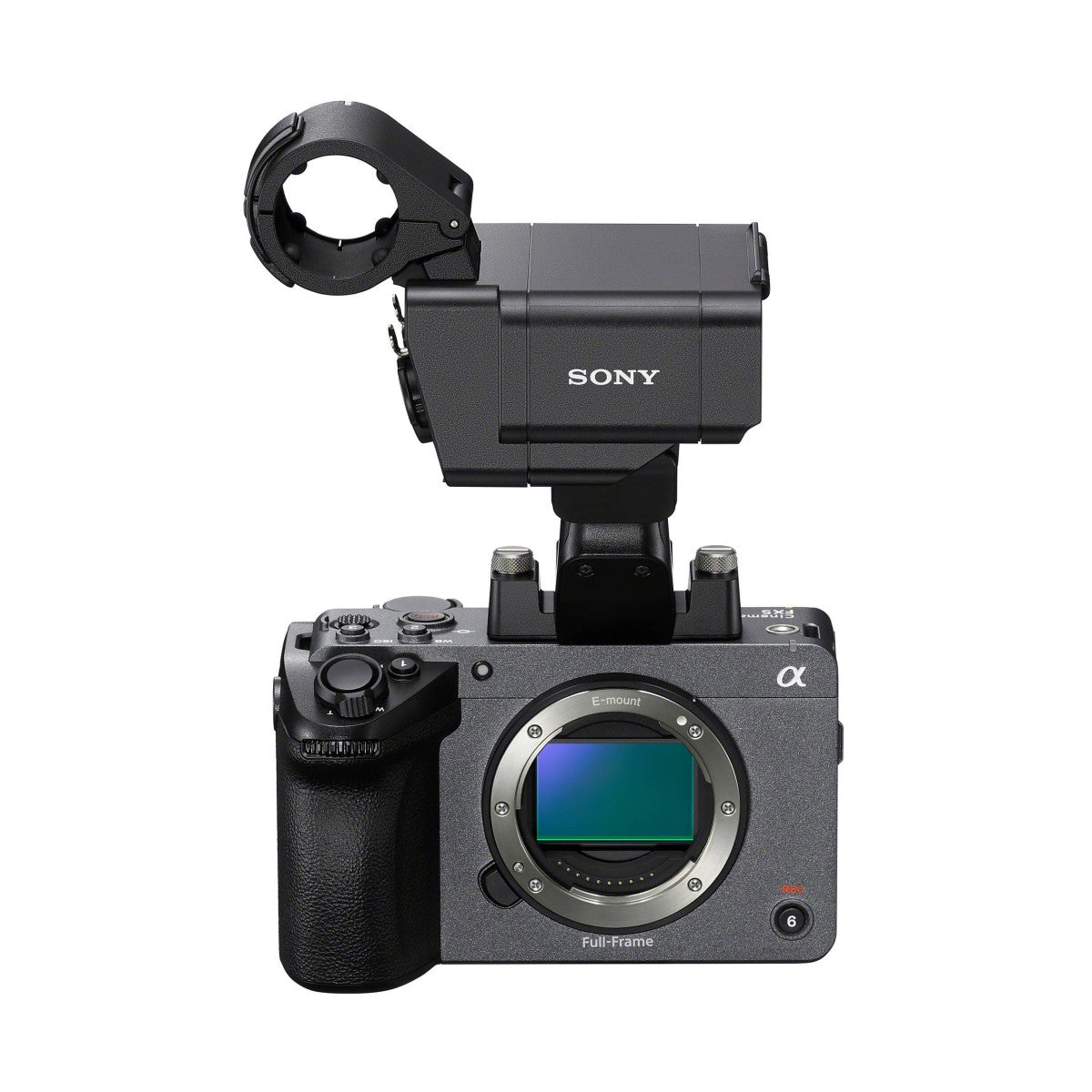

Sony FX5 Full-Frame Cinema Camera Body
- NP-SA100 Rechargeable Battery
- BC-SAD1 Battery Charger
- Body Cap
-
Accessory Shoe Cap
-
VF Terminal Protection Cap

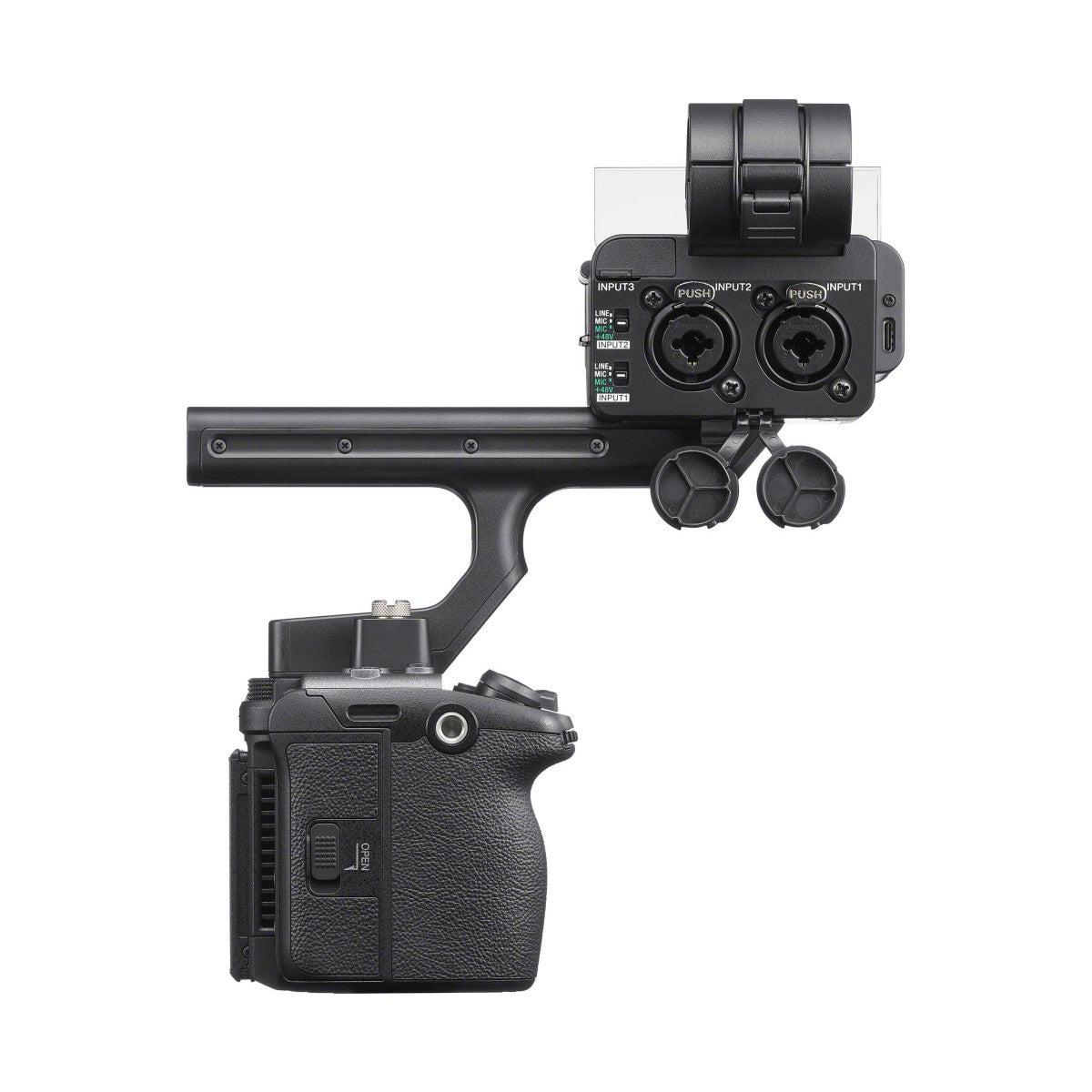

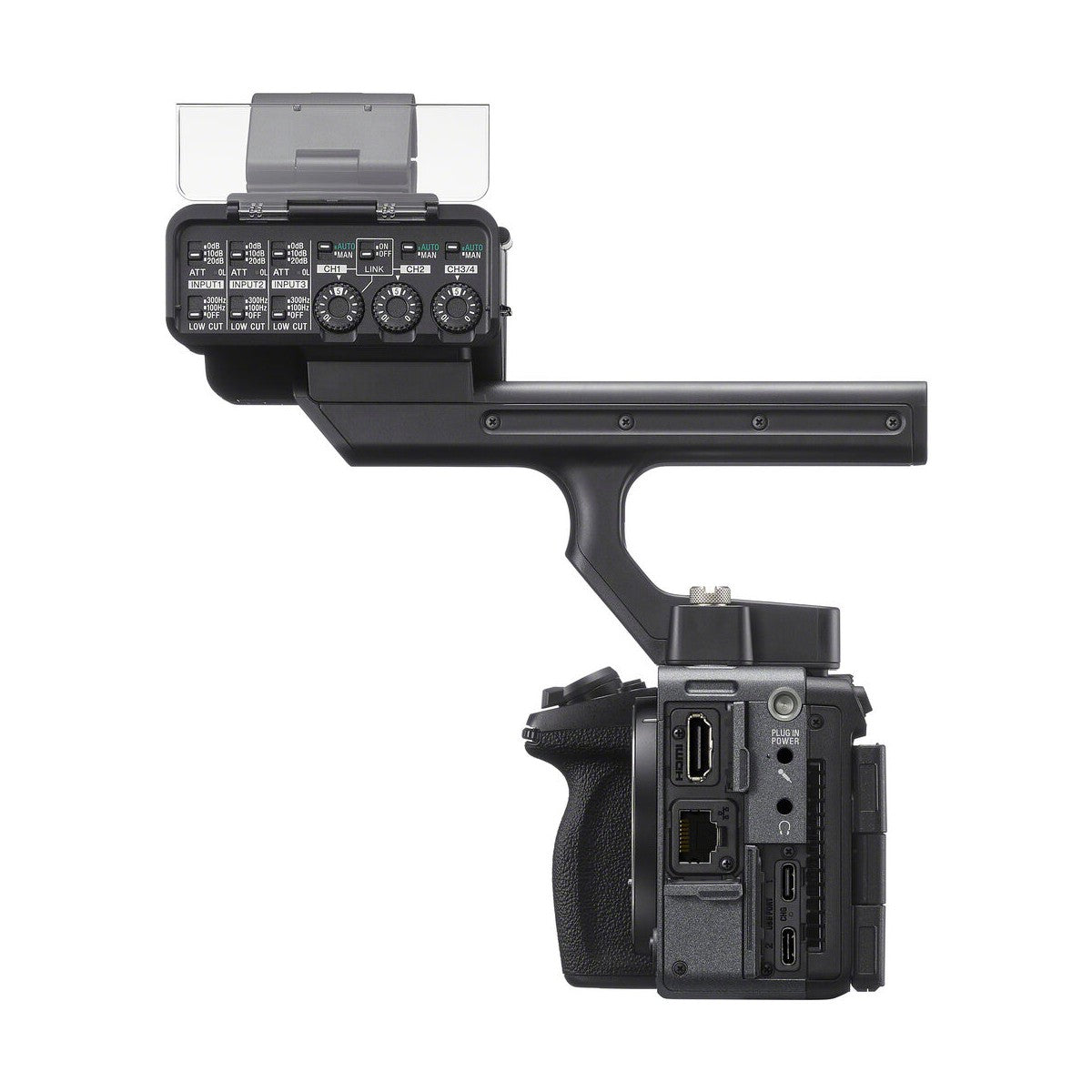

- XLR Handle Unit
-
Handle Shoe Cap
-
Accessory Shoe Kit
| General | |
|---|---|
| Camera type | Interchangeable lens digital camera |
| Lens mount | E-mount |
| Camera Section | |
|---|---|
| Type | 35mm full frame (35.9 x 24.0 mm), Exmor RS CMOS sensor |
| Number of pixels (effective)*1 | Approx. 16.6 megapixels max. |
| Number of pixels (total) | Approx. 18.2 megapixels |
| Optical low pass filter | Yes |
| Latitude | 15+ stops (S-Log3) |
| Color temperature range | 2000 K - 15000 K |
| Anti-Dust function | Yes |
| Recording system (movie) | |
|---|---|
| Video compression | X-OCN XAVC HS: MPEG-H HEVC/H.265 XAVC S: MPEG-4 AVC/H.264 |
| Audio recording format | LPCM 4ch (48 kHz 24 bit), PCM 4ch (48 kHz 32 bit float)*2 , LPCM 4ch (96 kHz 24 bit)*2 , PCM 4ch (96 kHz 32 bit float)*2 |
| Movie function | |
|---|---|
| Slow & Quick Motion (S&Q) | Yes |
| Proxy recording | Yes |
| TC/UB | Yes |
| RAW Output | Yes (HDMI) |
| Memory card slot | |
|---|---|
| Memory card slot | SLOT A: Multi slot for SDXC (UHS-I/II compliant) memory card / CFexpress 2 Type A card, SLOT B: Multi slot for SDXC (UHS-I/II compliant) memory card / CFexpress 2 Type A card |
| Focus System | |
|---|---|
| Type | Fast Hybrid AF (phase-detection AF / contrast-detection AF) |
| Focus point | Max. 759 points (phase-detection AF) |
| Recognition target (Movies) | Human Animal Bird |
| Other features | AF Subj. Shift Sensitivity (Movie) AF Transition Speed (Movie) Focus Map (Movie) AF Assist (Movie) |
| Exposure Control | |
|---|---|
| ISO sensitivity | ISO 320 - 409600 equivalent, AUTO (ISO 320 - 409600, selectable upper limit) |
| LCD screen | |
|---|---|
| Type | 8.8 cm (3.5-type) type TFT |
| Touch panel | Yes |
| Number of dots (total) | 2 764 800 dots |
| Adjustable angle | Opening Angles (approx.): Up 98 °, down 40 °, side 180 °, rotation 270 ° |
| Clear Image Zoom | |
|---|---|
| Movies | Approx. 1.5x (4K), Approx. 2x (HD) |
| Shutter | |
|---|---|
| Shutter speed | Movies: 64 F to 1/8000 s |
| Image Stabilization | |
|---|---|
| Type | Image sensor-shift mechanism with 5-axis compensation (compensation depends on lens specifications) |
| Mode | Movie: Dynamic active / Active / Standard / Off |
| Accessibility | |
|---|---|
| Functions | Screen Reader Focus Magnifier Focus Map (Movie) Peaking Display Subject Recognition in AF Touch Focus Touch Tracking Multi-angle LCD screen Custom function Enlarge Screen |
| Interface | |
|---|---|
| PC interface | Mass-storage |
| Multi / Micro USB terminal*3 | - |
| USB Type-C® Terminal | Yes (PORT1: SuperSpeed USB 10 Gbps (USB 3.2) compatible, PORT2: Hi-Speed USB 480 Mbps (USB 2.0) compatible) |
| Wireless LAN (built-in) | Yes (Wi-Fi Compatible, IEEE 802.11a/b/g/n/ac/ax (2.4 GHz band/5 GHz band/6 GHz band))*4 |
| Bluetooth | Yes (Bluetooth Standard Ver. 5.3 (2.4 GHz band)) |
| HDMI output | HDMI connector (Type-A) |
| Multi Interface Shoe*5 | Yes (with Digital Audio Interface) |
| Mic Terminal | Yes (3.5 mm Stereo minijack) |
| XLR audio input | Yes (3-pin (female) x2) |
| Headphone terminal | Yes (3.5 mm Stereo minijack) |
| Remote Control (Wireless) | Yes (Bluetooth remote control) |
| LAN terminal | Yes (2.5GBASE-T, 1000BASE-T, 100BASE-TX) |
| Functions | FTP Transfer Func. (Wired LAN, USB Tethering, Wi-Fi) |
| VF terminal | Yes |
| Network Streaming | |
|---|---|
| Video data format | MPEG-4 AVC/H.264 MPEG-H HEVC/H.265 *6 |
| Video resolution | 3840 x 2160 1920 x 1080 1280 x 720 |
| Audio data format | AAC-LC 2ch (16bit 48 kHz) |
| Protocol | RTMP RTMPS SRT |
| Audio | |
|---|---|
| Microphone | Built-in, stereo |
| Speaker | Built-in, monaural |
| Lens Compensation | |
|---|---|
| Lens compensation | Shading, Chromatic Aberration, Distortion, Breathing (Movie) |
| Power | |
|---|---|
| Battery | One rechargeable battery pack NP-SA100 |
| Movies (actual shooting)*7 | Approx. 105 min (LCD monitor) (CIPA standard) |
| Movies (continuous shooting) | Approx. 170 min (LCD monitor) (CIPA standard) |
| Internal battery charge | Yes (Available with USB Type-C terminal. USB Power Delivery compatible)*8 |
| USB power supply | Yes (Available with USB Type-C Terminal. USB Power Delivery compatible) |
| Power consumption | |
|---|---|
| With LCD screen | Approx. 7.4 W (with FE 28-70mm F3.5-5.6 OSS II lens attached) |
| Weight | |
|---|---|
| including Accessory | Approx.1046 g |
| With battery and memory card | Approx. 734 g |
| With battery and memory card (oz.) | Approx. 1 lb 9.9 oz |
| Body only | Approx. 643 g |
| Body only (oz.) | Approx. 1 lb 6.7 oz |
| Dimensions (W x H x D) | |
|---|---|
| Dimensions (W x H x D) | Approx. 132.2 x 79.0 x 87.0 mm (from grip to monitor) |
| Dimensions (W x H x D) (in.) | Approx. 5 1/4 x 3 1/8 x 3 1/2 inches (from grip to monitor) |
| Operation | |
|---|---|
| Operating temperature | 0 - 40 ℃ / 32 - 104 °F |
| Storage temperature | -20 to 55 ℃ / -4 to 131 °F |
| Supplied Accessories | |
|---|---|
| Supplied Accessory | Rechargeable Battery NP-SA100 Battery Charger BC-SAD1*9 Body cap Accessory shoe cap VF terminal protect cap XLR handle unit Handle shoe cap Accessory shoe kit |
| Specification Notes | |
|---|---|
| *1 | Number of effective pixels varies depending on attached lenses and camera settings. |
| *2 | When using accessories that support 4ch output / 96 kHz / 32 bit float with the Multi Interface Shoe |
| *3 | Supports Micro USB compatible device. |
| *4 | Models sold in some countries/regions support IEEE 802.11b/g/n/ax (2.4GHz) wireless LAN only or 802.11a/b/g/n/ac/ax (2.4GHz/5GHz) wireless LAN only. |
| *5 | Sony accessories for the Accessory Shoe can be attached. |
| *6 | When [Protocol] is set to [RTMP/RTMPS], [MPEG-4 AVC/H.264] is only available. |
| *7 | Indication recording time, which is defined by repeating the cycle: Power on, start recording, zoom , stand-by and power off. |
| *8 | Requires USB PD (27 W min.) external power supply and cable if charging the battery pack while it is inserted into the camera. |
| *9 | USB PD compatible power supply and USB cable are not included for the Battery Charger BC-SAD1 (supplied). Simultaneous two-battery charging requires a USB PD compatible power supply that can deliver 45 W or higher. Single-battery charging requires a USB PD compatible power supply that can deliver 27 W or higher. A USB cable that support USB PD is required in both cases. |
